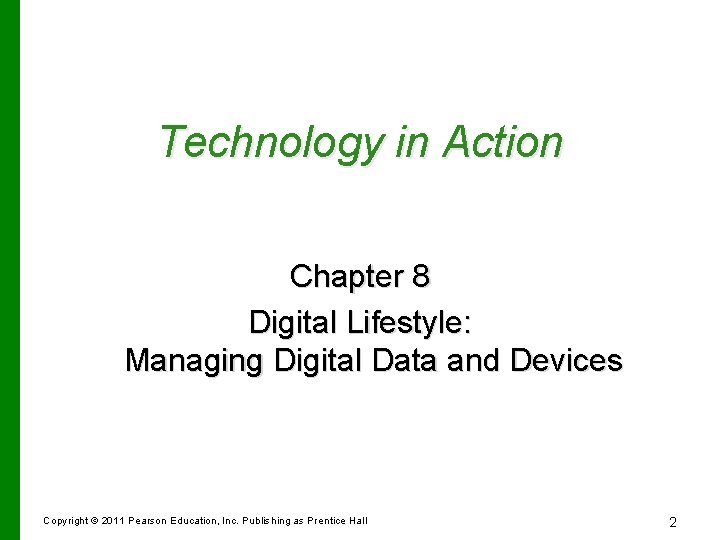

Technology in Action Chapter 8 Digital Lifestyle: Managing Digital Data and Devices Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 2
Chapter Topics • Changes that have brought us a digital lifestyle • The impact of a digital lifestyle • Cell phones and smartphones • Voice over Internet Protocol Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 3
Chapter Topics • • Digital media versus analog media Portable media players How to create and watch digital video Ubiquitous computing Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 4

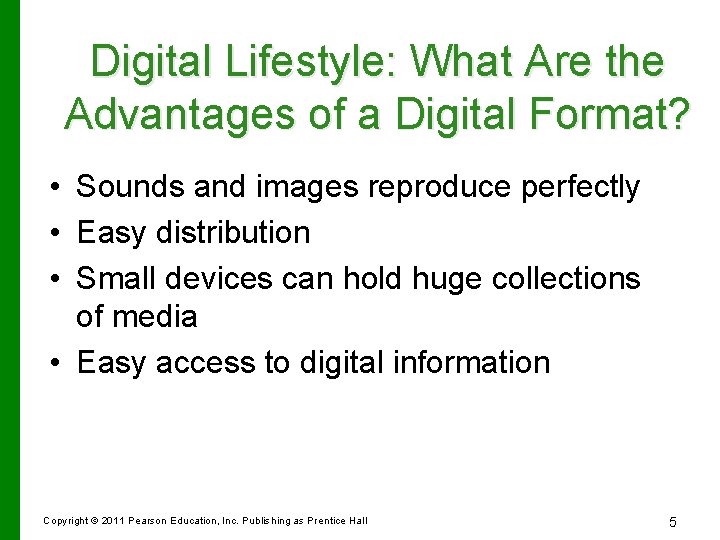

Digital Lifestyle: What Are the Advantages of a Digital Format? • Sounds and images reproduce perfectly • Easy distribution • Small devices can hold huge collections of media • Easy access to digital information Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 5
Cellular Phones and Smartphones • Features include – Auto-redial – Voice mail – Voice-activated dialing – Internet access – Text messaging – Personal information management (PIM) • The most full-featured cell phones are categorized as smartphones Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 6

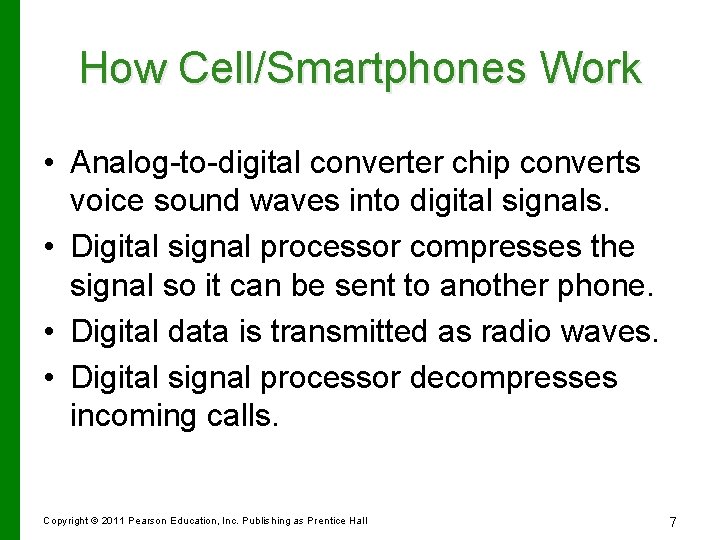

How Cell/Smartphones Work • Analog-to-digital converter chip converts voice sound waves into digital signals. • Digital signal processor compresses the signal so it can be sent to another phone. • Digital data is transmitted as radio waves. • Digital signal processor decompresses incoming calls. Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 7

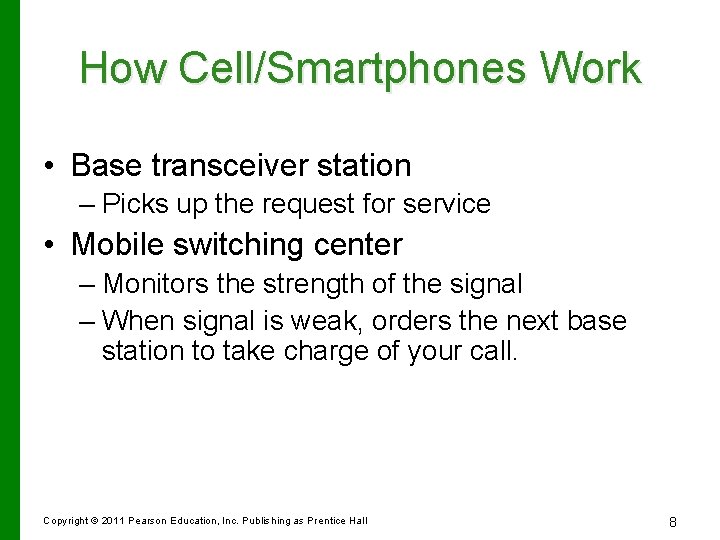

How Cell/Smartphones Work • Base transceiver station – Picks up the request for service • Mobile switching center – Monitors the strength of the signal – When signal is weak, orders the next base station to take charge of your call. Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 8

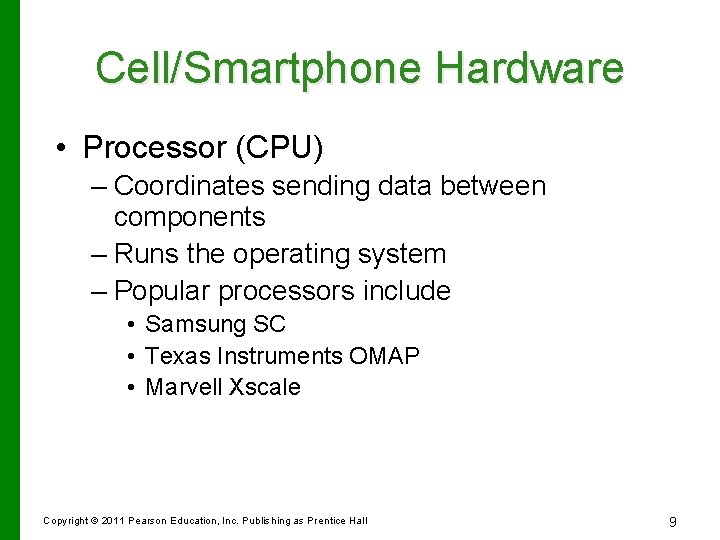

Cell/Smartphone Hardware • Processor (CPU) – Coordinates sending data between components – Runs the operating system – Popular processors include • Samsung SC • Texas Instruments OMAP • Marvell Xscale Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 9
Cell/Smartphone Operating Systems • Translate the user’s commands into instructions for the processor – Symbian – Windows Mobile – OS X – Open. Moko • A free open-source mobile operating system Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 10

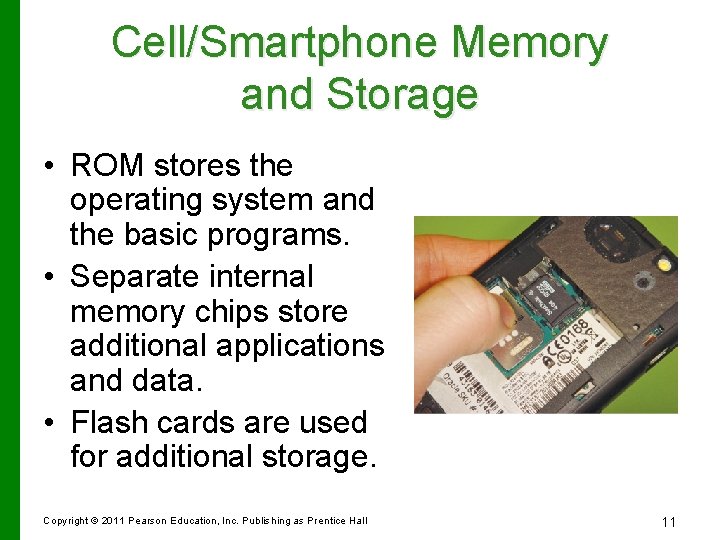

Cell/Smartphone Memory and Storage • ROM stores the operating system and the basic programs. • Separate internal memory chips store additional applications and data. • Flash cards are used for additional storage. Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 11

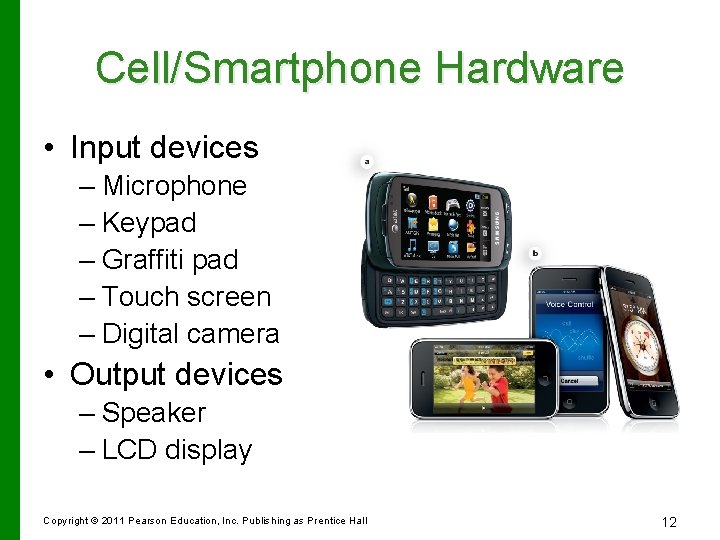

Cell/Smartphone Hardware • Input devices – Microphone – Keypad – Graffiti pad – Touch screen – Digital camera • Output devices – Speaker – LCD display Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 12
Cell/Smartphone Software • Standard software – To-do list – Contacts manager – Calendar • Additional software – Microsoft Word, Excel, Outlook, and Power. Point – Games – Tools – References Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 13
Cell/Smartphone File Transfer and Synchronization • Cell/smartphone files can be transferred to a desktop – Flash card readers – Cradles • Synchronizing updates files on the cell/smartphone and desktop – Sync cables – Windows Sync Center • Wireless transfers – Ir. DA – Bluetooth Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 14
Cell/Smartphone Text Messaging • Text messaging – Short Message Service (SMS) • Sends messages of up to 160 characters – Multimedia Message Service (MMS) • Sends text, sound, images, and video clips Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 15
Cell/Smartphone Internet Connectivity • Wireless Internet service provider • Internet connectivity plans, usually known as data plans • Microbrowser software • Pages are written in Wireless Markup Language (WML) Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 16
Cell/Smartphone Internet Connectivity • 3 G and Enhanced Data Rate for Global Evolution (EDGE) – Allow connectivity speeds of up to 1. 7 Mbps – Conditions must be ideal to get this transfer rate – More reliable and less susceptible to interference than Wi. Fi • 4 G networks are beginning to be tested. – Connection speeds of up to 50 Mbps Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 17
Voice Over Internet Protocol (Vo. IP) • A standard Internet connection can be used to make a phone call • Basic requirements for Vo. IP include: – Speakers – Microphone – Internet connection – Vo. IP provider • Allows free or low cost long distance Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 18
Cell/Smartphone Security • Viruses can target cell phones. • Antivirus software for mobile devices – Symantec – Mc. Afee – F-Secure • Keep your cell/smartphone number private – Use a virtual phone number Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 19
Portable Media Players (PMPs) • Small devices that store and play music • Many also handle video and still images • Many formats for storing files – MP 3, AAC, and WMA for music – Div. X, MPEG-4, WMV and Xvi. D for video • How much music/video can be stored depends on the PMP’s storage space Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 20
Other Choices for Portable Media Management • Some digital camera models • Sony Playstation Portable • Global positioning systems (GPS) Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 21
PMP Flash Memory • Flash cards can add memory to portable media players – Nonvolatile – Noiseless – Use very little power – Hold between 64 MB and 4 GB of data Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 22

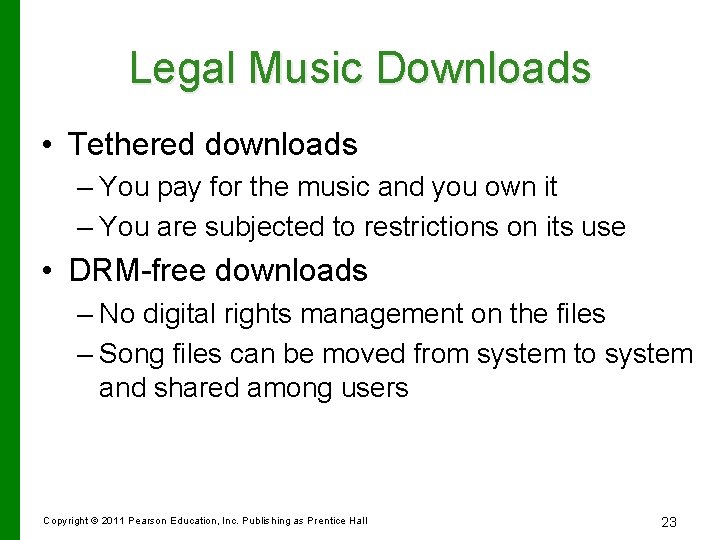

Legal Music Downloads • Tethered downloads – You pay for the music and you own it – You are subjected to restrictions on its use • DRM-free downloads – No digital rights management on the files – Song files can be moved from system to system and shared among users Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 23
Legal Music Downloads • Subscription services – Unlimited downloads to your PMP – Songs usable only as long as you pay your monthly subscription fee Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 24

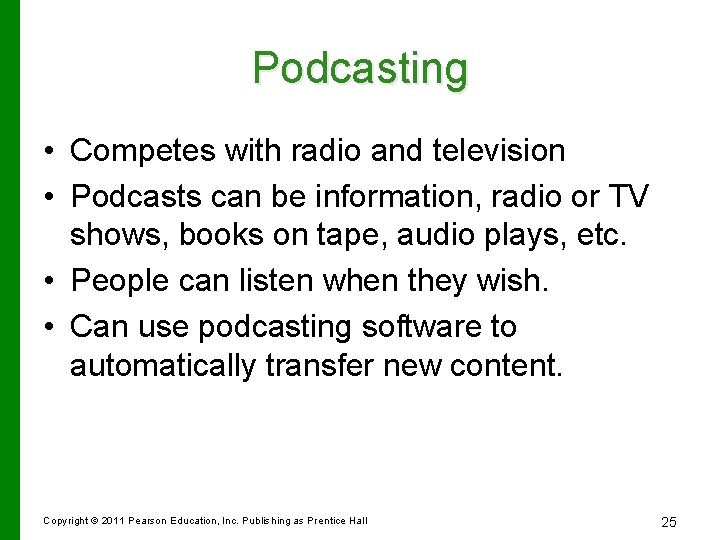

Podcasting • Competes with radio and television • Podcasts can be information, radio or TV shows, books on tape, audio plays, etc. • People can listen when they wish. • Can use podcasting software to automatically transfer new content. Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 25
Digital Photography • Does not use film • See your images instantly • Better than cell phone cameras – Digital cameras have a higher image resolution • Most common file format is JPEG Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 26
Digital Video • Digital video can be captured using – Digital video cameras – Cell/smartphones – Webcams • Digital video software allows you to – Edit digital video – Review clips frame by frame – Reorder segments – Correct color, balance, brightness, or contrast Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 27
Digital Video Files • Common file formats – Quick. Time – MPEG – Real. Media – AVI • Consider codecs when choosing file formats – Rules that squeeze audio and video information into less space Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 28
Getting Your Video Out to Viewers • Transfer your video from digital device to computer – USB – Special sync cable • Special devices can transfer video directly to You. Tube • Choose method of distribution – You. Tube – DVD – Webcast Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 29
Access to Digital Assets • Netbooks – Run fully featured OSs – Weigh less than two pounds • Internet tablets – Lightweight, very portable – No keyboard • Notebook computers – All capabilities of a desktop – May weigh more than other two Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 30
Other Devices to Consider • Sony Play. Station Portable – Internet access – Stores data files, videos, music, and images • Amazon Kindle – Stores up to 3, 500 e-books Amazon Kindle Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 31
Ubiquitous Computing • Computing that is inseparable from our everyday lifestyle Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 32
Chapter 8 Summary Questions • What are the changes that have brought us a digital lifestyle? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 33

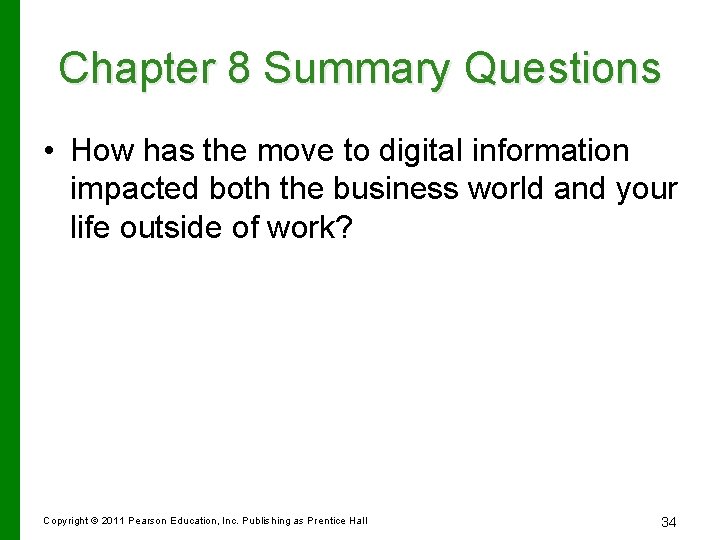

Chapter 8 Summary Questions • How has the move to digital information impacted both the business world and your life outside of work? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 34
Chapter 8 Summary Questions • How do cell/smartphone components resemble a traditional computer, and how do they work? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 35
Chapter 8 Summary Questions • Why would I use Vo. IP, and what does it offer that is unique? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 36
Chapter 8 Summary Questions • How is digital media different than analog? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 37
Chapter 8 Summary Questions • What can I carry in a portable media player, and how does it store data? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 38

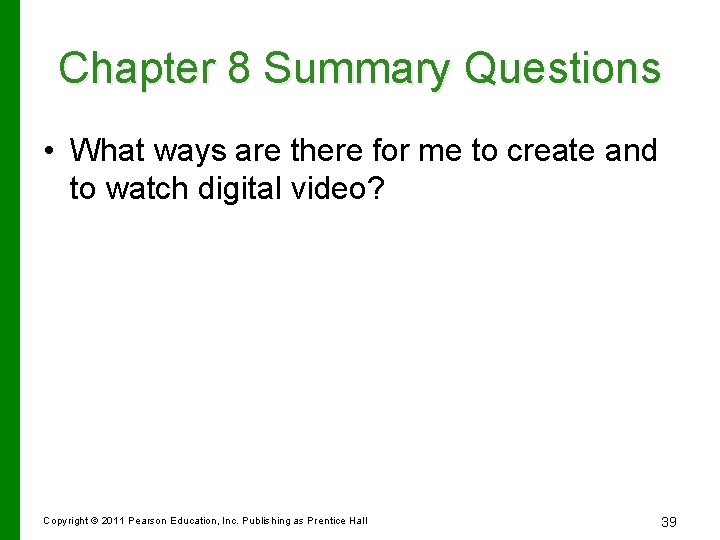

Chapter 8 Summary Questions • What ways are there for me to create and to watch digital video? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 39
Chapter 8 Summary Questions • What change does ubiquitous computing bring to our lifestyles? Copyright © 2011 Pearson Education, Inc. Publishing as Prentice Hall 40
