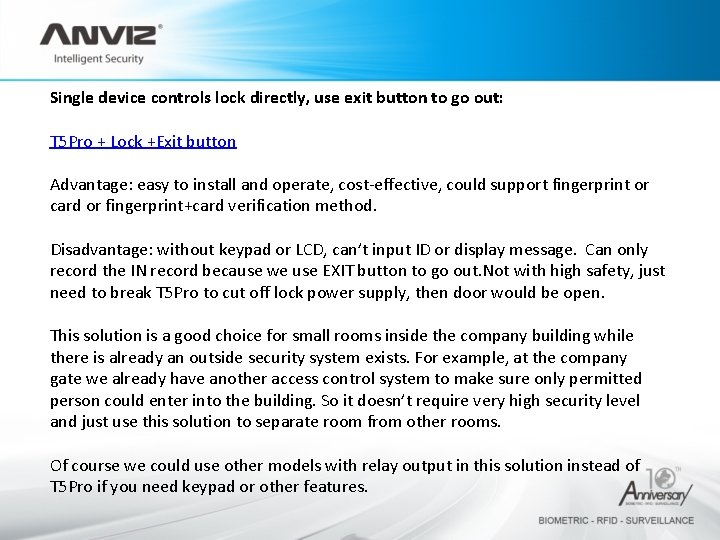

Single device controls lock directly, use exit button to go out: T 5 Pro + Lock +Exit button Advantage: easy to install and operate, cost-effective, could support fingerprint or card or fingerprint+card verification method. Disadvantage: without keypad or LCD, can’t input ID or display message. Can only record the IN record because we use EXIT button to go out. Not with high safety, just need to break T 5 Pro to cut off lock power supply, then door would be open. This solution is a good choice for small rooms inside the company building while there is already an outside security system exists. For example, at the company gate we already have another access control system to make sure only permitted person could enter into the building. So it doesn’t require very high security level and just use this solution to separate room from other rooms. Of course we could use other models with relay output in this solution instead of T 5 Pro if you need keypad or other features.

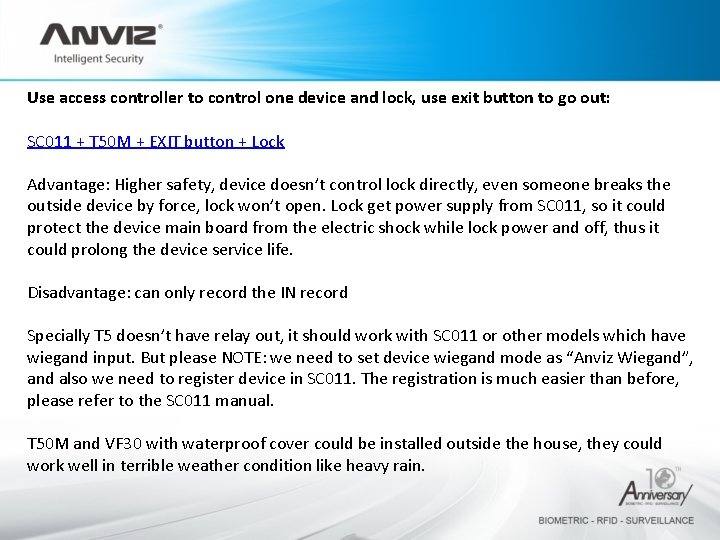

Use access controller to control one device and lock, use exit button to go out: SC 011 + T 50 M + EXIT button + Lock Advantage: Higher safety, device doesn’t control lock directly, even someone breaks the outside device by force, lock won’t open. Lock get power supply from SC 011, so it could protect the device main board from the electric shock while lock power and off, thus it could prolong the device service life. Disadvantage: can only record the IN record Specially T 5 doesn’t have relay out, it should work with SC 011 or other models which have wiegand input. But please NOTE: we need to set device wiegand mode as “Anviz Wiegand”, and also we need to register device in SC 011. The registration is much easier than before, please refer to the SC 011 manual. T 50 M and VF 30 with waterproof cover could be installed outside the house, they could work well in terrible weather condition like heavy rain.

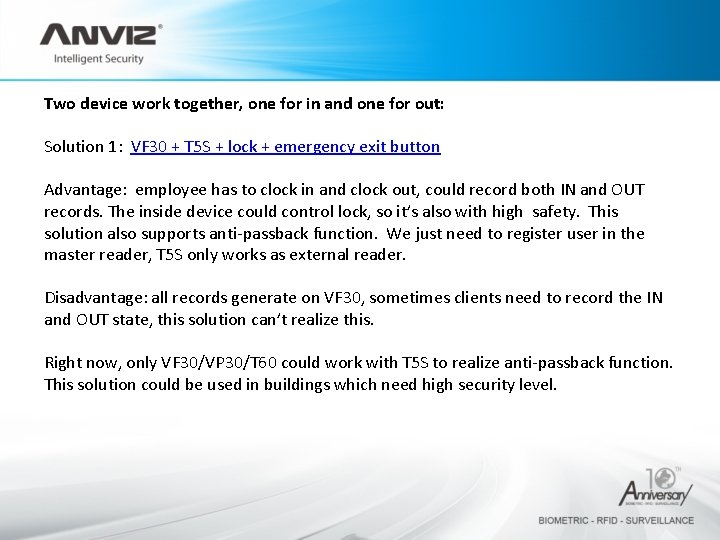

Two device work together, one for in and one for out: Solution 1: VF 30 + T 5 S + lock + emergency exit button Advantage: employee has to clock in and clock out, could record both IN and OUT records. The inside device could control lock, so it’s also with high safety. This solution also supports anti-passback function. We just need to register user in the master reader, T 5 S only works as external reader. Disadvantage: all records generate on VF 30, sometimes clients need to record the IN and OUT state, this solution can’t realize this. Right now, only VF 30/VP 30/T 60 could work with T 5 S to realize anti-passback function. This solution could be used in buildings which need high security level.

Two device work together, one for in and one for out: Solution 2: T 60 + OA 1000 + Lock + Emergency exit button Advantage: we could use complicated verify mode for both IN and OUT. Outside device use wiegand communication to send user data to inside master reader, so it is with high safety. Good appearance and remarkable time attendance and access control feature. Disadvantage: The registration way is different. Because all outside slaver reader would send virtual card ID to inside master reader no matter we user fingerprint or card. So we need to register on slave reader first, and register the virtual card ID in the inside master reader. The inside master reader would have all records, but the IN/OUT state would depend on its actual state. Here we use lock control power supply APC 123 to provide power for OA 1000 and also to control lock. Could improve system security and protect device.

Two device work together, one for in and one for out: Solution 3: VF 30 + OA 1000 + SC 011 + Emergency exit button Advantage: could make all records state in one device is IN, and another is OUT. Use APC 123 to provide power supply and control lock, high safety system, and could also protect device from electric shock while lock power on and off. Diadvantage: cost more than other solution

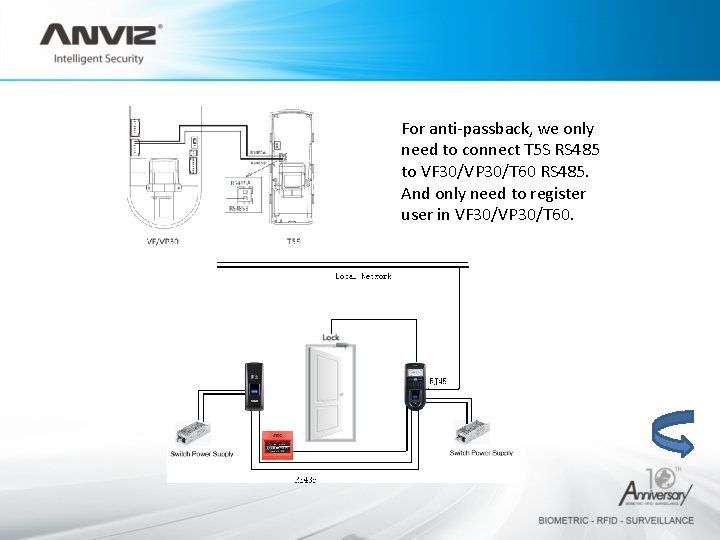

For anti-passback, we only need to connect T 5 S RS 485 to VF 30/VP 30/T 60 RS 485. And only need to register user in VF 30/VP 30/T 60.
