Copernicus for nature policy – recent work undertaken by EEA & ETC/BD Based on work prepared by ETCBD partner S 4 E: Stefan Kleeschulte, Karl Ruf Sophie Condé 22 th EGR meeting 09. 03. 2018 Brussels

• What is COPERNICUS? • Description of the Copernicus components and swot analysis made by ETCBD • ETCBD analysis related to Natura 2000 & Copernicus

What is Copernicus ? • Copernicus is the European Union's Earth Observation Programme, looking at our planet and its environment for the ultimate benefit of all European citizens. It offers information services based on satellite Earth Observation and in situ (non-space) data • Copernicus services address six main thematic areas: Atmosphere Climate Change Marine Environment Emergency Management Land Security

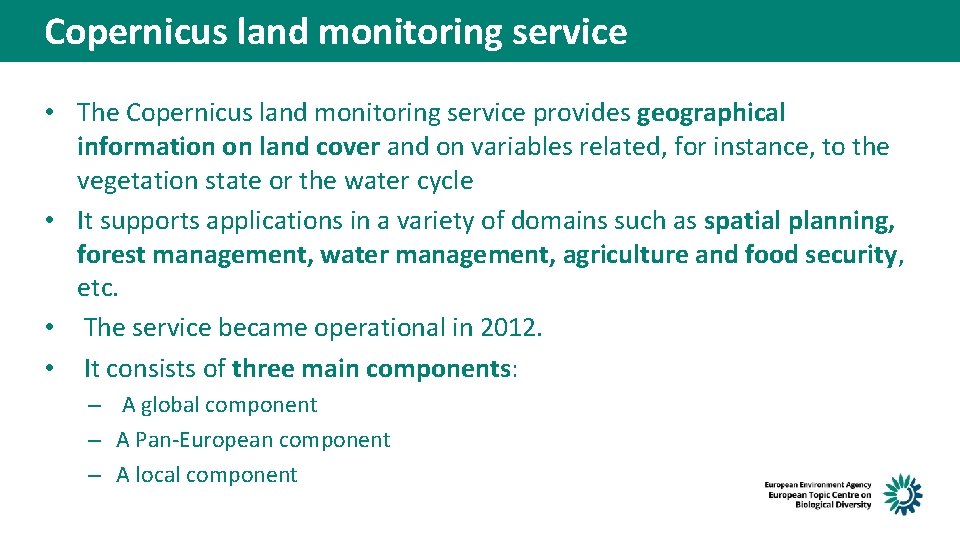

Copernicus land monitoring service • The Copernicus land monitoring service provides geographical information on land cover and on variables related, for instance, to the vegetation state or the water cycle • It supports applications in a variety of domains such as spatial planning, forest management, water management, agriculture and food security, etc. • The service became operational in 2012. • It consists of three main components: – A global component – A Pan-European component – A local component

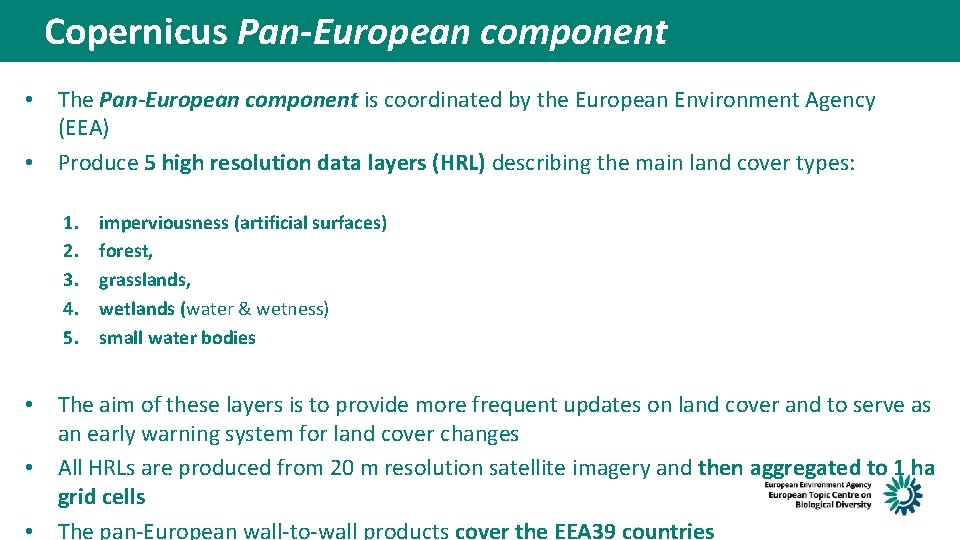

Copernicus Pan-European component • • The Pan-European component is coordinated by the European Environment Agency (EEA) Produce 5 high resolution data layers (HRL) describing the main land cover types: 1. 2. 3. 4. 5. • • • imperviousness (artificial surfaces) forest, grasslands, wetlands (water & wetness) small water bodies The aim of these layers is to provide more frequent updates on land cover and to serve as an early warning system for land cover changes All HRLs are produced from 20 m resolution satellite imagery and then aggregated to 1 ha grid cells The pan-European wall-to-wall products cover the EEA 39 countries

Copernicus local component • • • The local component is coordinated by the EEA Aims to provide specific and more detailed information complementary to the information obtained through the Pan-European component Focused on areas that are specifically sensitive with environmental challenges and problems Do not cover the complete territory but only selected areas of interest, with a specific challenge in terms of pressures or spatial management Provide a different level of spatial and thematic detail, going down from 1 ha to 0. 25 ha MMU based on very high resolution imagery (2. 5 x 2. 5 m pixels) 1. Urban Atlas: provides detailed LC & LU information 2. Riparian Zones: provide biodiversity in areas around rivers, 3. Natura 2000 sites rich in grassland

General info on Copernicus land service pan-European & local components Sealed soil Forest type Corine Land Cover 2012 Tree cover density Urban Atlas Grassland Wetlands Water bodies

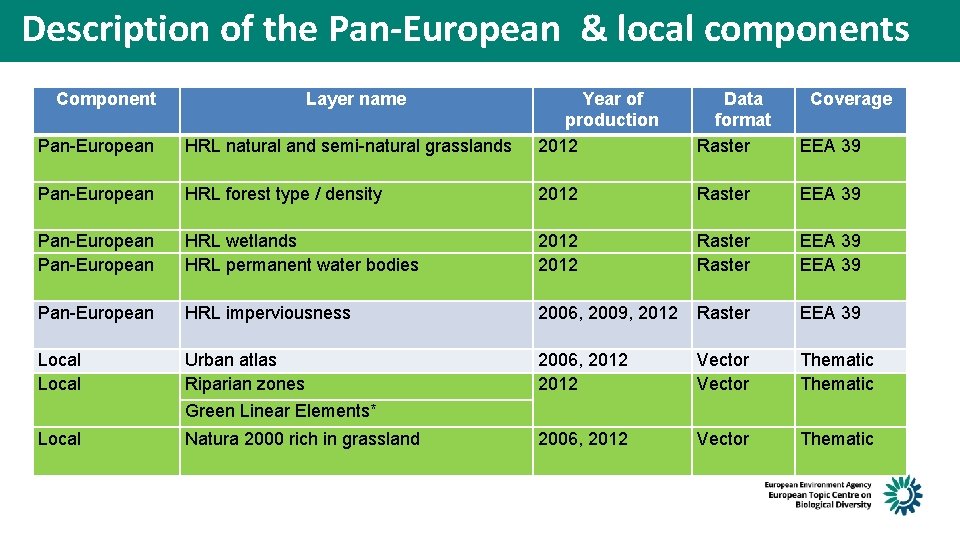

Description of the Pan-European & local components Component Layer name Pan-European HRL natural and semi-natural grasslands Year of production 2012 Data format Raster Coverage EEA 39 Pan-European HRL forest type / density 2012 Raster EEA 39 Pan-European HRL wetlands HRL permanent water bodies 2012 Raster EEA 39 Pan-European HRL imperviousness 2006, 2009, 2012 Raster EEA 39 Local Urban atlas Riparian zones 2006, 2012 Vector Thematic Green Linear Elements* Local Natura 2000 rich in grassland

Pan European - HRL natural and semi-natural grasslands • The 2012 product aimed at mapping natural & semi-natural grasslands as opposed to cultivated / managed grasslands used for grazing or hay HRL natural and semi-natural grasslands production : – This was based on absence of signs of management, non-regular shapes of the patches, absence of artificially limited parcels and location in remote areas often on slopes or poor soils – Binary layer showing the presence / absence of natural grasslands • Due to the weakness of the 2012 product, a new product based on a grassland (grass and non-woody vegetation) mask with several supporting layers: a ploughing indicator to support the separation of grasslands from croplands and a grassland probability layer • These two outputs will not be comparable

Pan European - HRL forest type / density • The forest HRL actually consists of two individual products: Tree Cover Density (TCD) and Forest Type (i. e. coniferous / broadleaved/mixed) • The tree cover density product maps the level of tree cover density in a range from 0 -100% • The forest type product comes as close as possible to the FAO forest definition

Pan European - HRL wetlands / water & wetness • Misunderstanding with the name of the 2012 layer: as the layer does not map “wetlands” in the ecological understanding of the idea, but rather different degrees of wet lands (i. e. wetness of the surface) and their permanence • Updated specifications of the 2015 HRL on “water & wetness” : to identify areas that are characterised by differently high degrees of soil water content and open water over different times during the year • Eventually this layer could be used to support the identification of (ecological) wetlands together with other ancillary information

Pan European - HRL permanent water bodies • This layer maps permanent lakes and ponds, rivers and coastal water surfaces, such as lagoons and estuaries • It does not include the sea and ocean, nor liquid dumpsites • Use seasonal time series of medium resolution images to determine the “permanence” of the water bodies • The final product is a binary layer showing the presence / absence of permanent water bodies

Local Component - Riparian zones • Areas occurring between land freshwater ecosystems, characterised by distinctive hydrology, soil and biotic conditions and strongly influenced by stream water • Providing a wide range of riparian functions (e. g. chemical filtration, flood control, bank stabilization, aquatic life and riparian wildlife support, etc. ) and ecosystem services • The Riparian LC/LU product is providing a detailed LC/LU dataset for areas along a buffer zone of selected rivers covering EEA 39 • Two complementary products: Delineation of the zones, Green Linear Elements

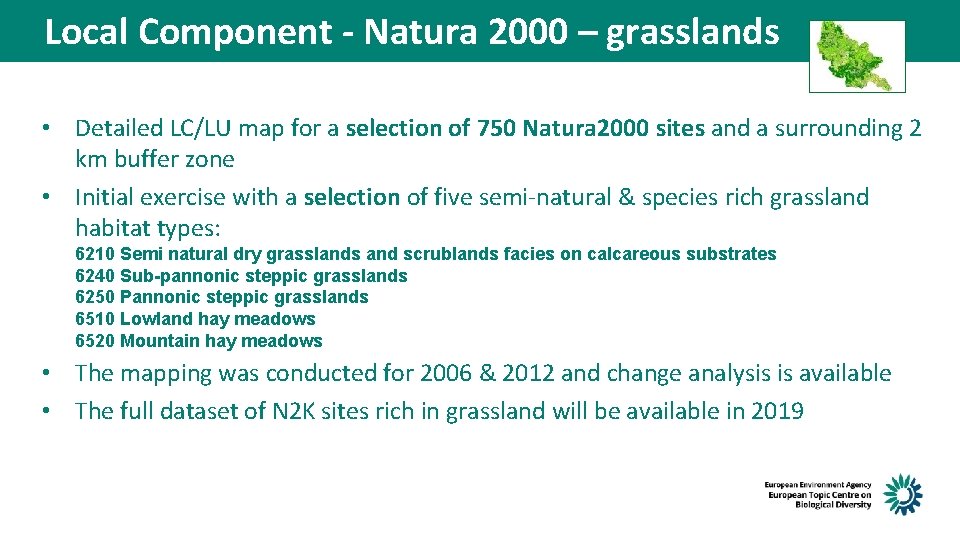

Local Component - Natura 2000 – grasslands • Detailed LC/LU map for a selection of 750 Natura 2000 sites and a surrounding 2 km buffer zone • Initial exercise with a selection of five semi-natural & species rich grassland habitat types: 6210 Semi natural dry grasslands and scrublands facies on calcareous substrates 6240 Sub-pannonic steppic grasslands 6250 Pannonic steppic grasslands 6510 Lowland hay meadows 6520 Mountain hay meadows • The mapping was conducted for 2006 & 2012 and change analysis is available • The full dataset of N 2 K sites rich in grassland will be available in 2019

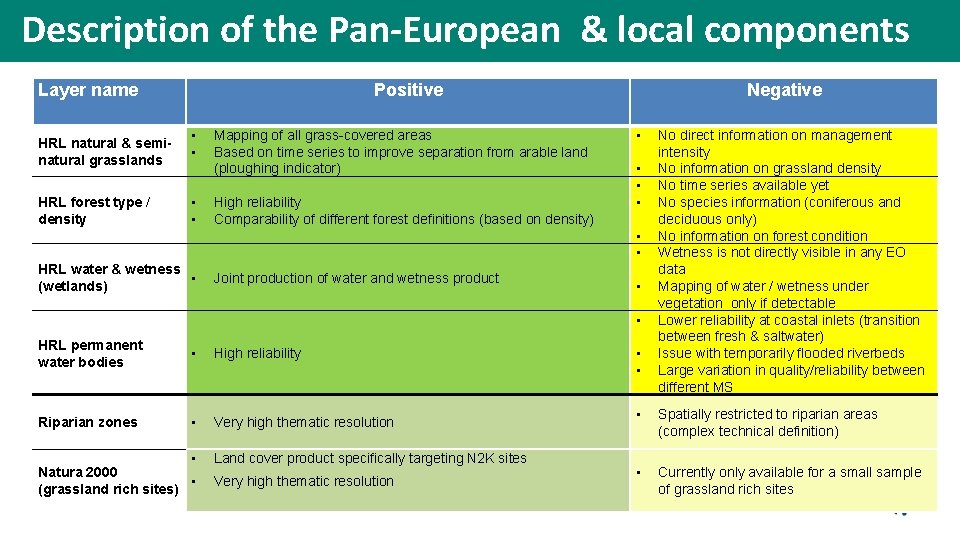

Description of the Pan-European & local components Layer name HRL natural & seminatural grasslands HRL forest type / density Positive • • Mapping of all grass-covered areas Based on time series to improve separation from arable land (ploughing indicator) High reliability Comparability of different forest definitions (based on density) Negative • • • HRL water & wetness • (wetlands) Joint production of water and wetness product • • HRL permanent water bodies • High reliability Riparian zones • Very high thematic resolution • Land cover product specifically targeting N 2 K sites Natura 2000 • (grassland rich sites) Very high thematic resolution • • No direct information on management intensity No information on grassland density No time series available yet No species information (coniferous and deciduous only) No information on forest condition Wetness is not directly visible in any EO data Mapping of water / wetness under vegetation only if detectable Lower reliability at coastal inlets (transition between fresh & saltwater) Issue with temporarily flooded riverbeds Large variation in quality/reliability between different MS • Spatially restricted to riparian areas (complex technical definition) • Currently only available for a small sample of grassland rich sites

ETCBD analysis related to Natura 2000 & Copernicus Spatial overlaps between N 2000 and Copernicus First step towards elaborating applications for Copernicus in the monitoring of habitats was to establish how much surface area of Natura 2000 actually overlaps with Copernicus products: • For Riparian Zones the coverage is about a mean of 13% at EU level • The calculated overlaps for HRLs indicate that most of Natura 2000 areas are covered by forested area (EU 46 %) • The remaining HRLs (Grassland, Water and Wetlands) all show vastly smaller overlaps ranging between 3 -6% on average per country (EU 4%). • As expected, there is generally only a very small amount of sealed area detected within protected sites (EU 0, 5 %)

ETCBD analysis related to Natura 2000 & Copernicus Suitability of Copernicus layers for potential applications

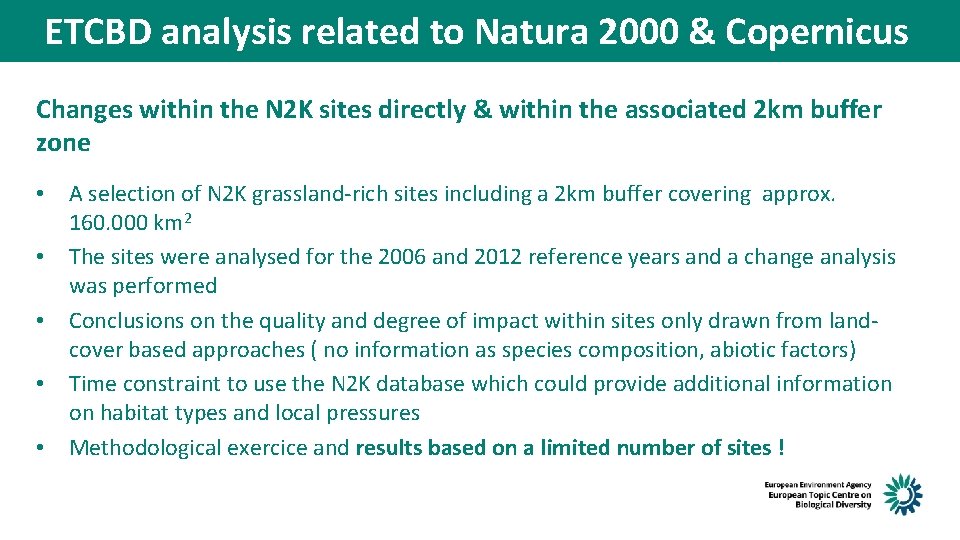

ETCBD analysis related to Natura 2000 & Copernicus Changes within the N 2 K sites directly & within the associated 2 km buffer zone • • • A selection of N 2 K grassland-rich sites including a 2 km buffer covering approx. 160. 000 km 2 The sites were analysed for the 2006 and 2012 reference years and a change analysis was performed Conclusions on the quality and degree of impact within sites only drawn from landcover based approaches ( no information as species composition, abiotic factors) Time constraint to use the N 2 K database which could provide additional information on habitat types and local pressures Methodological exercice and results based on a limited number of sites !

ETCBD analysis related to Natura 2000 & Copernicus Count of analysed sites per biogeographic region Due to splitting of sites located along region borders the actual count of sites is higher than specified within the N 2 K grassland mapping.

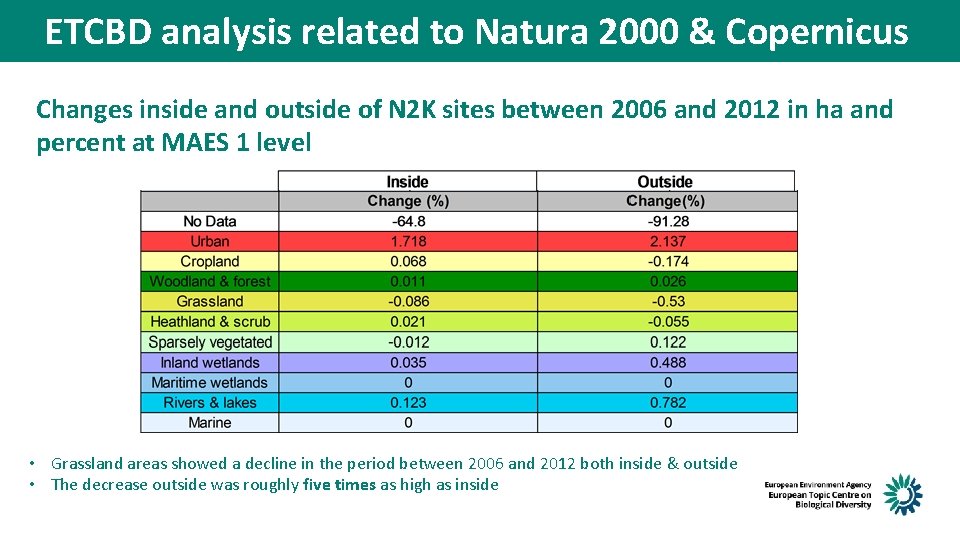

ETCBD analysis related to Natura 2000 & Copernicus Changes inside and outside of N 2 K sites between 2006 and 2012 in ha and percent at MAES 1 level • Grassland areas showed a decline in the period between 2006 and 2012 both inside & outside • The decrease outside was roughly five times as high as inside

ETCBD analysis related to Natura 2000 & Copernicus Grassland loss and gain in period 2006 -2012 by biogeographic region • Within the change period more than 10 000 ha were converted to other land uses • Losses were considerably higher outside of sites (except BLS & BOR) • The most severe losses were located within buffer zones of the ATL which features large amounts of pastures • Inside BOR sites, mainly due to afforestation

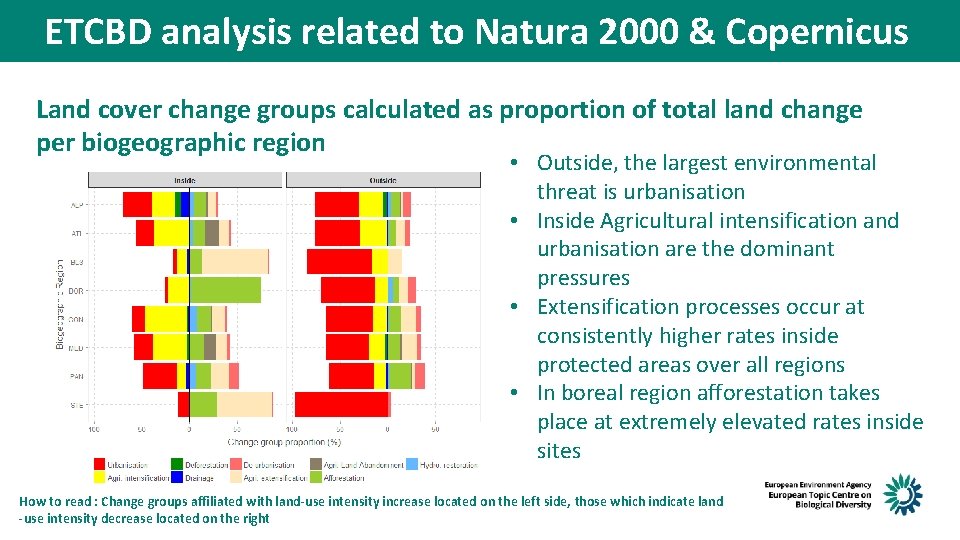

ETCBD analysis related to Natura 2000 & Copernicus Land cover change groups calculated as proportion of total land change per biogeographic region • Outside, the largest environmental threat is urbanisation • Inside Agricultural intensification and urbanisation are the dominant pressures • Extensification processes occur at consistently higher rates inside protected areas over all regions • In boreal region afforestation takes place at extremely elevated rates inside sites How to read : Change groups affiliated with land-use intensity increase located on the left side, those which indicate land -use intensity decrease located on the right

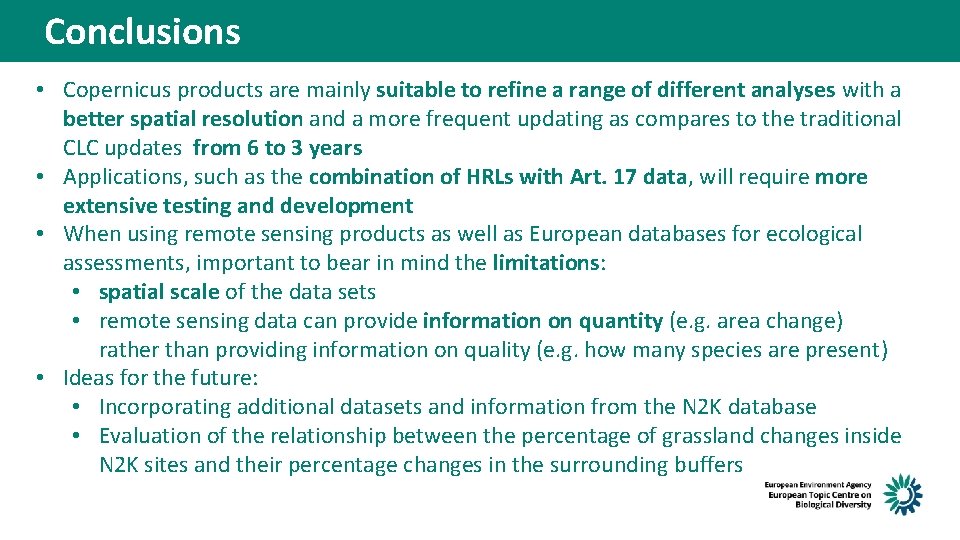

Conclusions • Copernicus products are mainly suitable to refine a range of different analyses with a better spatial resolution and a more frequent updating as compares to the traditional CLC updates from 6 to 3 years • Applications, such as the combination of HRLs with Art. 17 data, will require more extensive testing and development • When using remote sensing products as well as European databases for ecological assessments, important to bear in mind the limitations: • spatial scale of the data sets • remote sensing data can provide information on quantity (e. g. area change) rather than providing information on quality (e. g. how many species are present) • Ideas for the future: • Incorporating additional datasets and information from the N 2 K database • Evaluation of the relationship between the percentage of grassland changes inside N 2 K sites and their percentage changes in the surrounding buffers

Thank you for your attention ! And some links… • http: //www. copernicus. eu/ • https: //land. copernicus. eu/pan-european • https: //land. copernicus. eu/local
