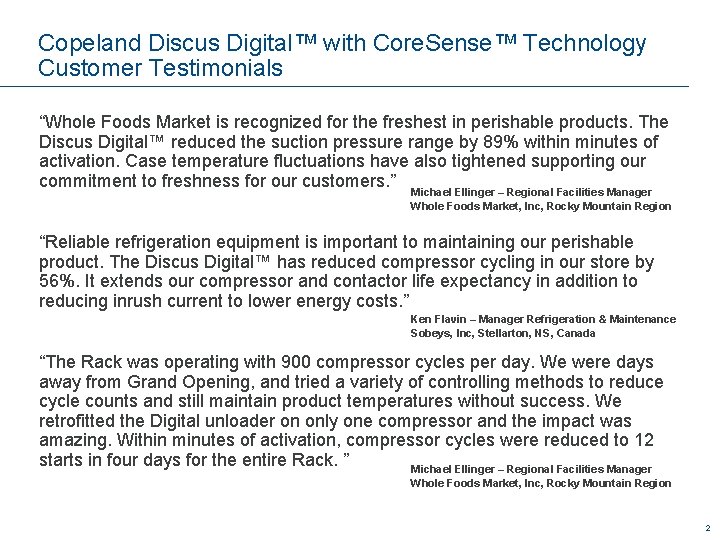

Copeland Discus Digital™ with Core. Sense™ Technology Customer Testimonials “Whole Foods Market is recognized for the freshest in perishable products. The Discus Digital™ reduced the suction pressure range by 89% within minutes of activation. Case temperature fluctuations have also tightened supporting our commitment to freshness for our customers. ” Michael Ellinger – Regional Facilities Manager Whole Foods Market, Inc, Rocky Mountain Region “Reliable refrigeration equipment is important to maintaining our perishable product. The Discus Digital™ has reduced compressor cycling in our store by 56%. It extends our compressor and contactor life expectancy in addition to reducing inrush current to lower energy costs. ” Ken Flavin – Manager Refrigeration & Maintenance Sobeys, Inc, Stellarton, NS, Canada “The Rack was operating with 900 compressor cycles per day. We were days away from Grand Opening, and tried a variety of controlling methods to reduce cycle counts and still maintain product temperatures without success. We retrofitted the Digital unloader on only one compressor and the impact was amazing. Within minutes of activation, compressor cycles were reduced to 12 starts in four days for the entire Rack. ” Michael Ellinger – Regional Facilities Manager Whole Foods Market, Inc, Rocky Mountain Region 2

Copeland Discus Digital™ with Core. Sense Technology Benefits • Precise Control of Suction Pressure and Temperature – Longer shelf life and less food shrink because of minimal food temperature fluctuations – More consistent TXV Operation • Reduced Cycling of Compressors – Extends contractor life – Extends compressor life • Reduced Defrost Cycle Time – Tighter temperature control minimizes formation of frost on evaporator • System Efficiency Improvement – Eliminates over/under shooting of suction pressure set point – Allows increasing suction pressure set point – Reduces inrush current / power usage • Paradigm Shift in Parallel System Design – No need for uneven paralleling for compressor staging – Using common compressor selections simplifies replacement needs 3

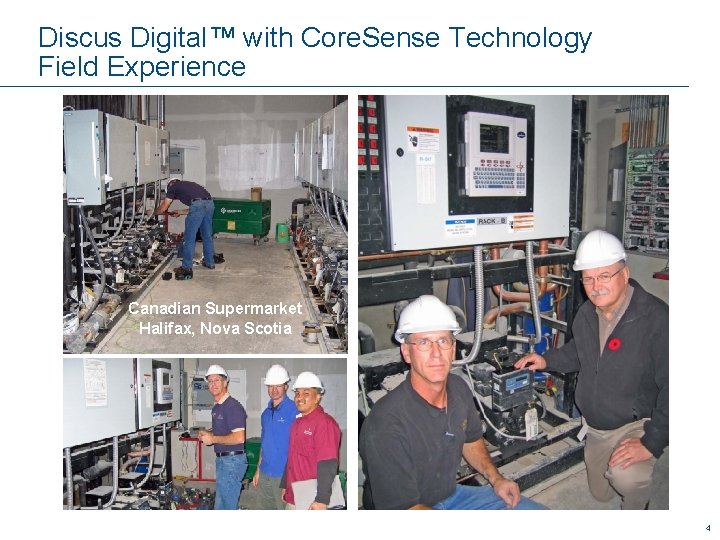

Discus Digital™ with Core. Sense Technology Field Experience Canadian Supermarket Halifax, Nova Scotia 4

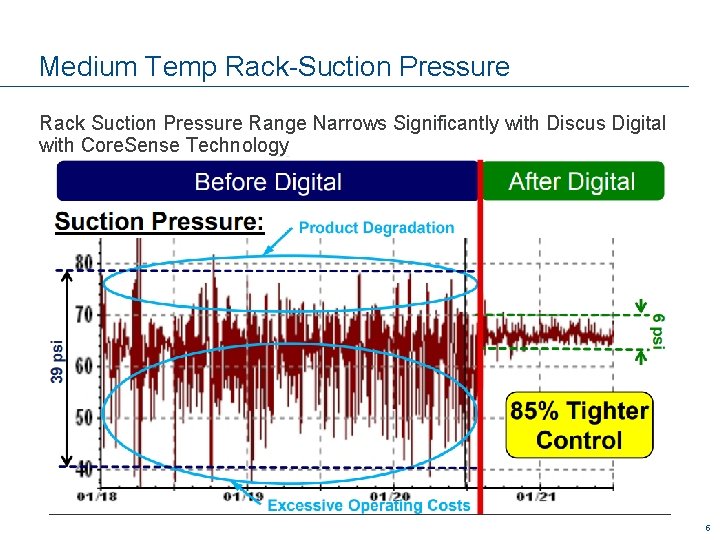

Medium Temp Rack-Suction Pressure Rack Suction Pressure Range Narrows Significantly with Discus Digital with Core. Sense Technology 5

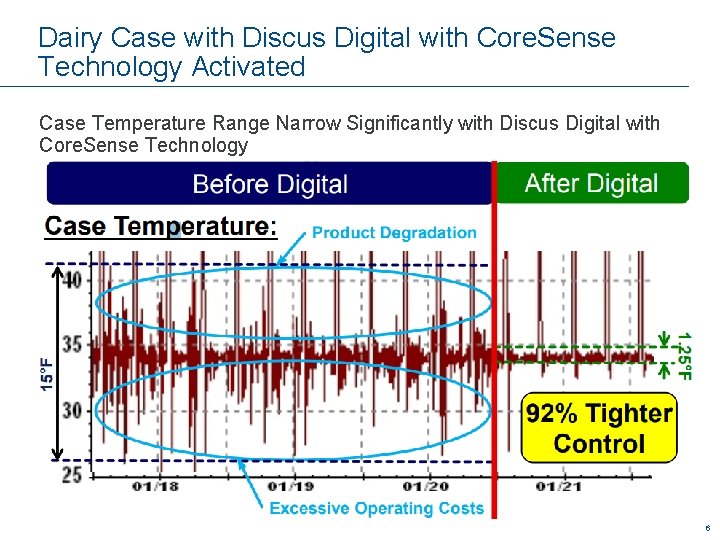

Dairy Case with Discus Digital with Core. Sense Technology Activated Case Temperature Range Narrow Significantly with Discus Digital with Core. Sense Technology 6

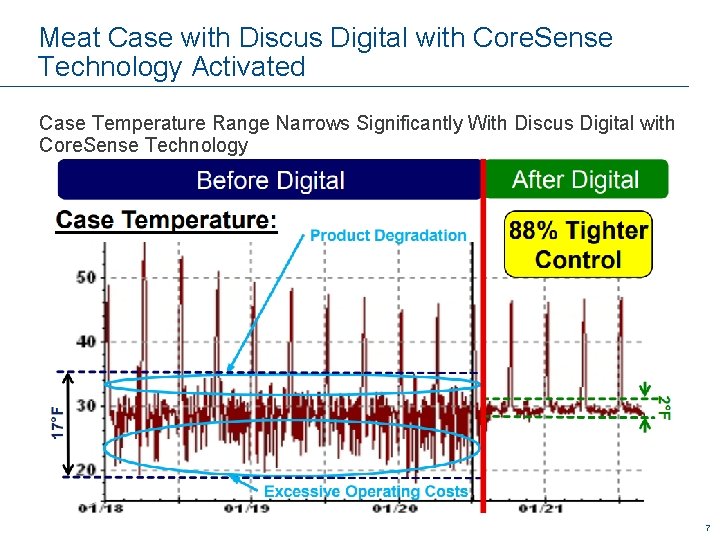

Meat Case with Discus Digital with Core. Sense Technology Activated Case Temperature Range Narrows Significantly With Discus Digital with Core. Sense Technology 7

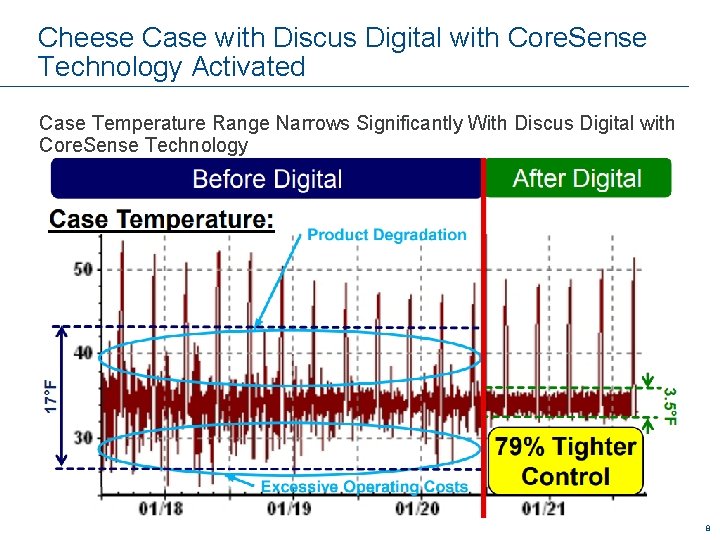

Cheese Case with Discus Digital with Core. Sense Technology Activated Case Temperature Range Narrows Significantly With Discus Digital with Core. Sense Technology 8

5 Compressor Rack with Discus Digital with Core. Sense Technology Activated Compressor Cycling Reduced By 56% With Discus Digital with Core. Sense Technology 56% Reduction Digital Retrofit 9

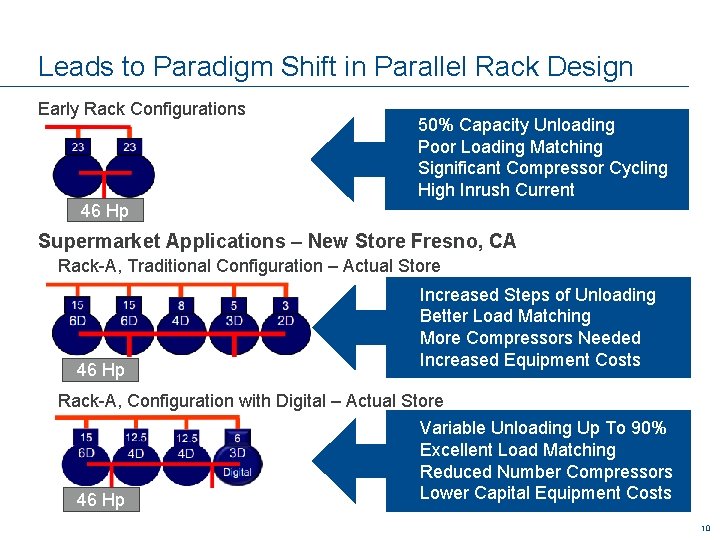

Leads to Paradigm Shift in Parallel Rack Design Early Rack Configurations 50% Capacity Unloading Poor Loading Matching Significant Compressor Cycling High Inrush Current 46 Hp Supermarket Applications – New Store Fresno, CA Rack-A, Traditional Configuration – Actual Store 46 Hp Increased Steps of Unloading Better Load Matching More Compressors Needed Increased Equipment Costs Rack-A, Configuration with Digital – Actual Store 46 Hp Variable Unloading Up To 90% Excellent Load Matching Reduced Number Compressors Lower Capital Equipment Costs 10

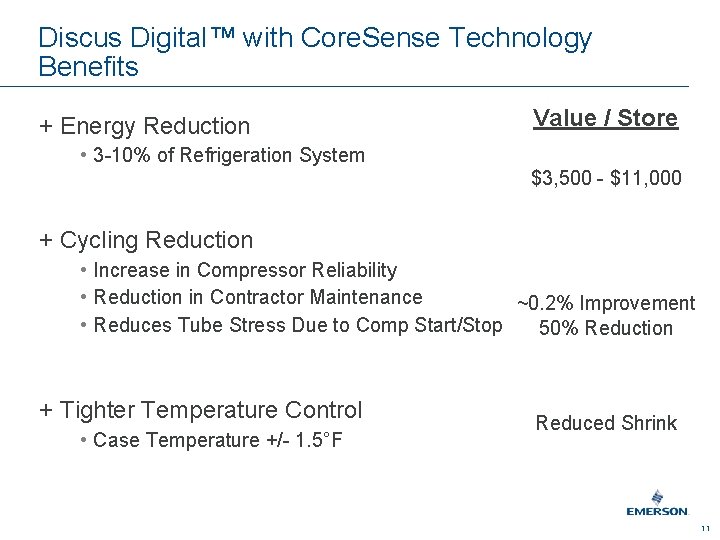

Discus Digital™ with Core. Sense Technology Benefits + Energy Reduction Value / Store • 3 -10% of Refrigeration System $3, 500 - $11, 000 + Cycling Reduction • Increase in Compressor Reliability • Reduction in Contractor Maintenance ~0. 2% Improvement • Reduces Tube Stress Due to Comp Start/Stop 50% Reduction + Tighter Temperature Control • Case Temperature +/- 1. 5°F Reduced Shrink 11

Copeland Discus Digital™ with Core. Sense Technology • Continuous Capacity Modulation from 10 to 100%* on Copeland Discus with Core. Sense Technology Compressors Digital Control Module – Available with 3 D, 4 D and 6 D Not needed with Intelligent Store Architecture • Applicable on New & Potentially Existing Discus Compressors • Patented Technology Modulation Range • 3 D Discus Digital 10 – 100% • 4 D Discus Digital 50 – 100% • 6 D Discus Digital 33 – 100% 10 10 10 50% Capacity Time (sec) Results in Narrow Operating Temperature Range 12

Discus Digital™ with Core. Sense Technology Nomenclature for 3 D Example High/Med Temp Low Temp Standard Models Digital Models 3 DS 3 R 17 ME 3 DS 4 S 12 ME 3 DS 3 F 46 KE 3 DSDR 17 ME 3 DSDS 12 ME 3 DSDF 46 KE 4 th Character Is “D” To Indicate Digital Model 6 th, 7 th, 8 th Characters Are Capacity At Rating Capacity Multiplier: K = 1, 000 M = 10, 000 13

Discus Digital™ with Core. Sense Technology Nomenclature for 4 D & 6 D Standard Models Digital Models High/Med Temp Low Temp 4 DBNR 20 M 4 DHNS 16 M 4 DHNF 63 K 4 DBXR 20 M 4 DHXS 16 M 4 DHXF 63 K High/Med Temp Low Temp 6 DHNR 35 M 6 DHNF 93 K 6 DKXR 35 M 6 DKXF 93 K Example 4 th Character Is “X” To Indicate Digital Model 6 th, 7 th, 8 th Characters Are Capacity At Rating Capacity Multiplier: K = 1, 000 M = 10, 000 14

Discus Digital™ with Core. Sense Technology Model Line-Up 3 D Models Standard Model Number 4 D Models Digital Model Number Low Temp Models Standard Model Number 6 D Models Digital Model Number Low Temp Models Standard Model Number Digital Model Number Low Temp Models 3 DA 3 F 28 K*- ### 3 DADF 28 K*- ### 4 DANF 47 K*-### 4 DAXF 47 K*-### 6 DHNF 93 K*-### 6 DKXF 93 K*-### 3 DB 3 F 33 K*- ### 3 DBDF 33 K*- ### 4 DHNF 63 K*-### 4 DHXF 63 K*-### 6 DJNF 11 M*-### 6 DRXF 11 M*-### 3 DF 3 F 40 K*- ### 3 DFDF 40 K*- ### 4 DJNF 76 K*-### 4 DJXF 76 K*-### 3 DS 3 F 46 K*- ### 3 DSDF 46 K*- ### Optimized Medium Temp Models 3 DF 4 S 11 M*- ### 3 DFDS 11 M*- ### 3 DS 4 S 12 M*- ### 3 DSDS 12 M*- ### Dual Medium & High Temp Models 3 DA 3 R 10 M*- ### 3 DADR 10 M*- ### 3 DB 3 R 12 M*- ### 3 DBDR 12 M*- ### 3 DF 3 R 15 M*- ### 3 DFDR 15 M*- ### 3 DS 3 R 17 M*- ### 3 DSDR 17 M*- ### Optimized Medium Temp Models 4 DHNS 16 M*-### 4 DHXS 16 M*-### Dual Medium & High Temp Models 4 DANR 18 M*-### 4 DAXR 18 M*-### 4 DBNR 20 M*-### 4 DBXR 20 M*-### 4 DHNR 22 M*-### 4 DHXR 22 M*-### 4 DJNR 28 M*-### 4 DJXR 28 M*-### Dual Medium & High Temp Models 6 DHNR 35 M*-### 6 DKXR 35 M*-### 6 DGNR 37 M*-### 6 DMXR 37 M*-### 6 DJNR 40 M*-### 6 DRXR 40 M*-### 15

Discus Digital™ with Core. Sense Technology Control Options Copeland Discus Digital with Core. Sense Protection Discus Digital with Core. Sense Diagnostics 2 D, 3 D, 4 D, 6 D Input / Output Point Analog Outpoint Point Digital Control Module Copeland Discus with Core. Sense Protection Copeland Discus Digital™ with Core. Sense Diagnostics 16
