COP 4009 ComponentBased Software Engineering Modeling Using UML

COP 4009 Component-Based Software Engineering Modeling Using UML Diagrams Fall 2005 Instructor: Masoud Sadjadi http: //www. cs. fiu. edu/~sadjadi/Teaching/COP-4009 -Fall-2005/index. html COP 4009 3 rd Lecture September 19, 2005

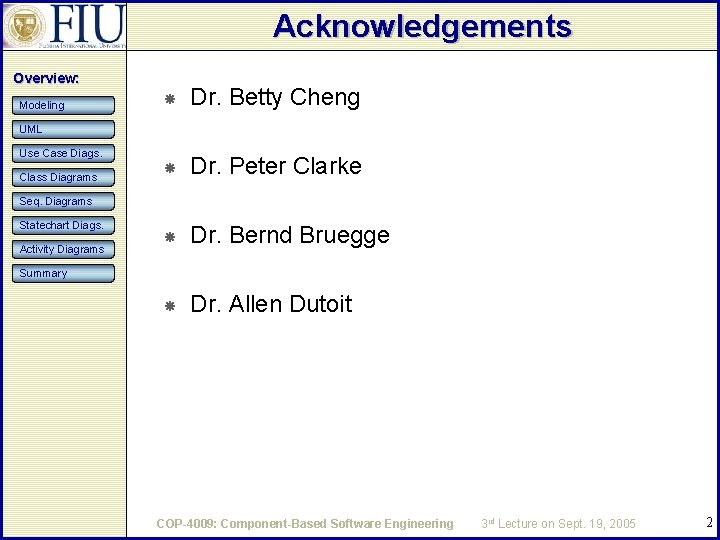

Acknowledgements Overview: Modeling Dr. Betty Cheng Dr. Peter Clarke Dr. Bernd Bruegge Dr. Allen Dutoit UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 2

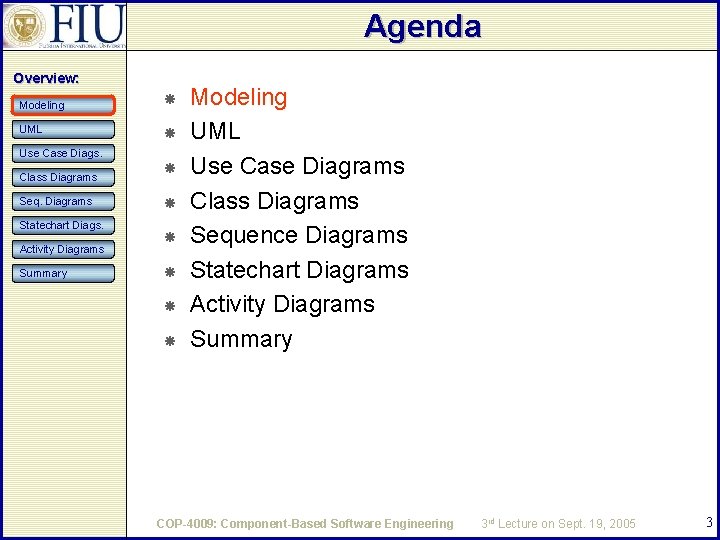

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 3

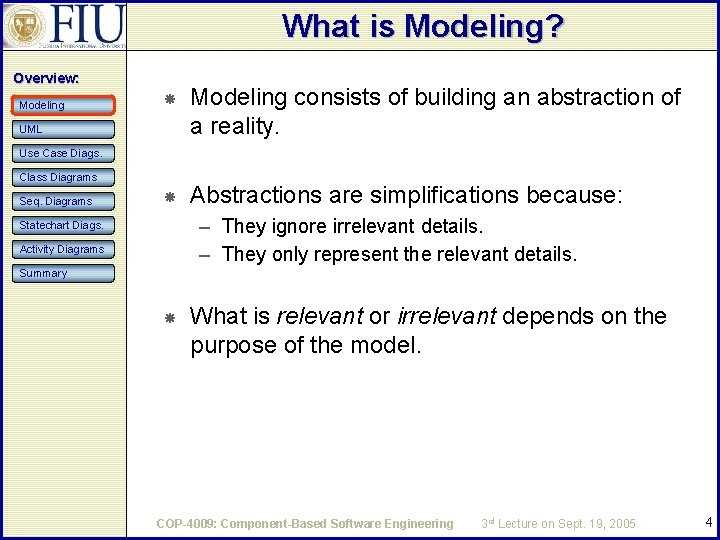

What is Modeling? Overview: Modeling consists of building an abstraction of a reality. Abstractions are simplifications because: UML Use Case Diags. Class Diagrams Seq. Diagrams – They ignore irrelevant details. – They only represent the relevant details. Statechart Diags. Activity Diagrams Summary What is relevant or irrelevant depends on the purpose of the model. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 4

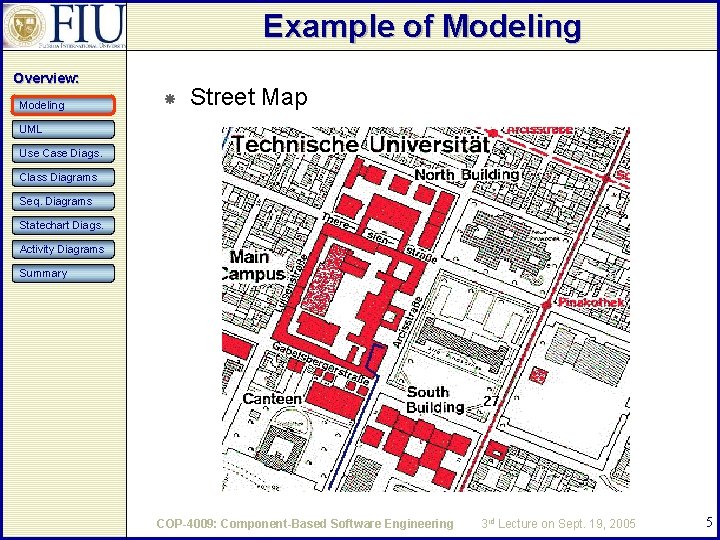

Example of Modeling Overview: Modeling Street Map UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 5

Why Model Software? Overview: Modeling Software is getting increasingly more complex – Windows XP > 40 million lines of code. – A single programmer cannot manage this amount of code in its entirety. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Code is not easily understandable by developers who did not write it. We need simpler representations for complex systems Summary – Modeling is a mean for dealing with complexity. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 6

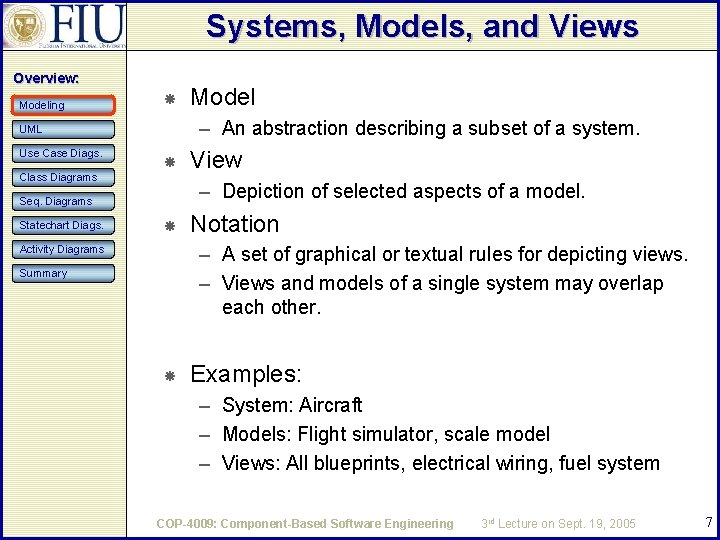

Systems, Models, and Views Overview: Modeling – An abstraction describing a subset of a system. UML Use Case Diags. Class Diagrams View – Depiction of selected aspects of a model. Seq. Diagrams Statechart Diags. Model Notation – A set of graphical or textual rules for depicting views. – Views and models of a single system may overlap each other. Activity Diagrams Summary Examples: – System: Aircraft – Models: Flight simulator, scale model – Views: All blueprints, electrical wiring, fuel system COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 7

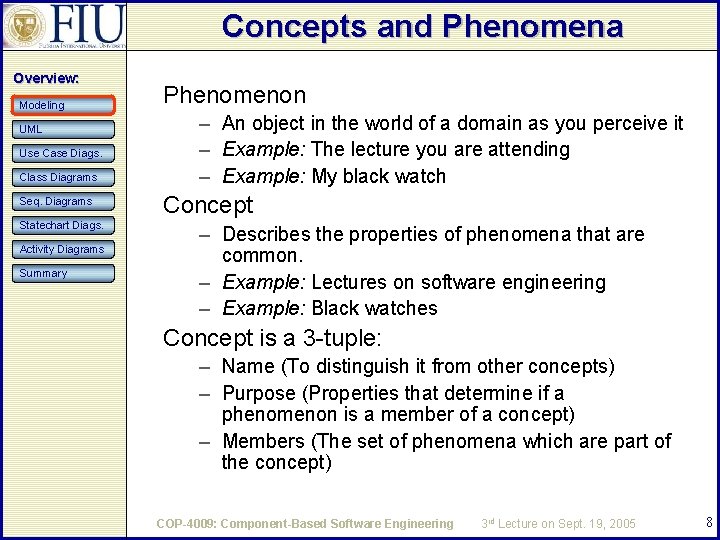

Concepts and Phenomena Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Phenomenon – An object in the world of a domain as you perceive it – Example: The lecture you are attending – Example: My black watch Concept – Describes the properties of phenomena that are common. – Example: Lectures on software engineering – Example: Black watches Concept is a 3 -tuple: – Name (To distinguish it from other concepts) – Purpose (Properties that determine if a phenomenon is a member of a concept) – Members (The set of phenomena which are part of the concept) COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 8

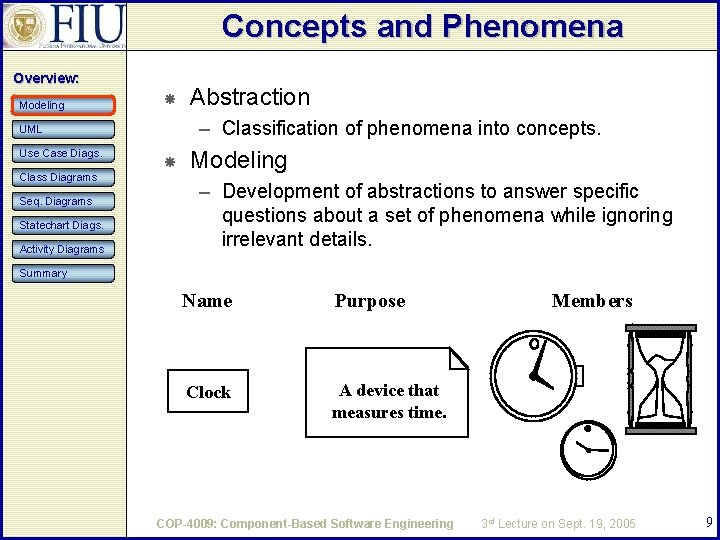

Concepts and Phenomena Overview: Modeling – Classification of phenomena into concepts. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Abstraction Modeling – Development of abstractions to answer specific questions about a set of phenomena while ignoring irrelevant details. Summary Name Purpose Clock A device that measures time. COP-4009: Component-Based Software Engineering Members 3 rd Lecture on Sept. 19, 2005 9

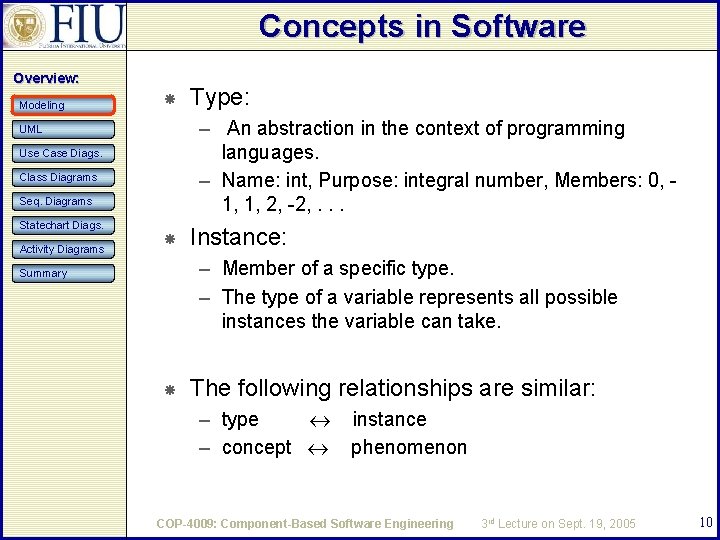

Concepts in Software Overview: Modeling – An abstraction in the context of programming languages. – Name: int, Purpose: integral number, Members: 0, 1, 1, 2, -2, . . . UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Type: Instance: – Member of a specific type. – The type of a variable represents all possible instances the variable can take. Summary The following relationships are similar: – type – concept instance phenomenon COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 10

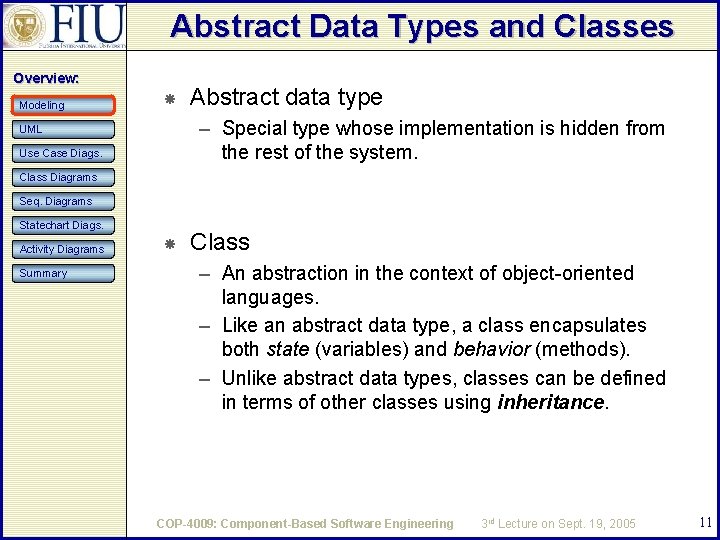

Abstract Data Types and Classes Overview: Modeling Abstract data type – Special type whose implementation is hidden from the rest of the system. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Class – An abstraction in the context of object-oriented languages. – Like an abstract data type, a class encapsulates both state (variables) and behavior (methods). – Unlike abstract data types, classes can be defined in terms of other classes using inheritance. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 11

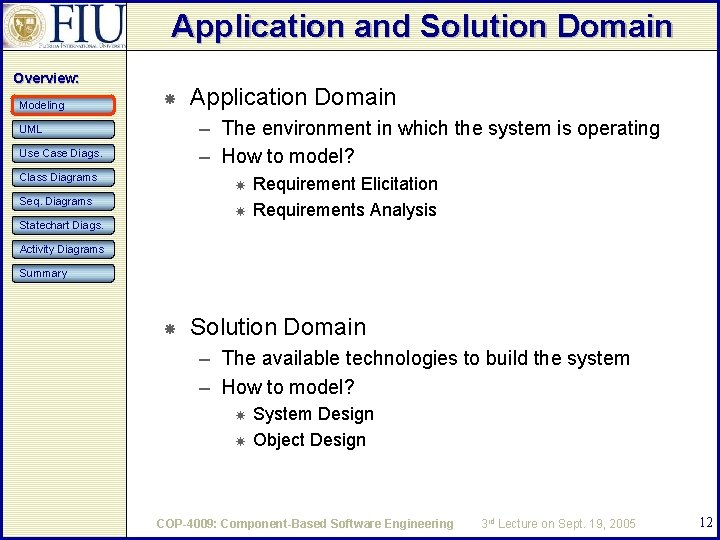

Application and Solution Domain Overview: Modeling Application Domain – The environment in which the system is operating – How to model? UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Requirement Elicitation Requirements Analysis Activity Diagrams Summary Solution Domain – The available technologies to build the system – How to model? System Design Object Design COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 12

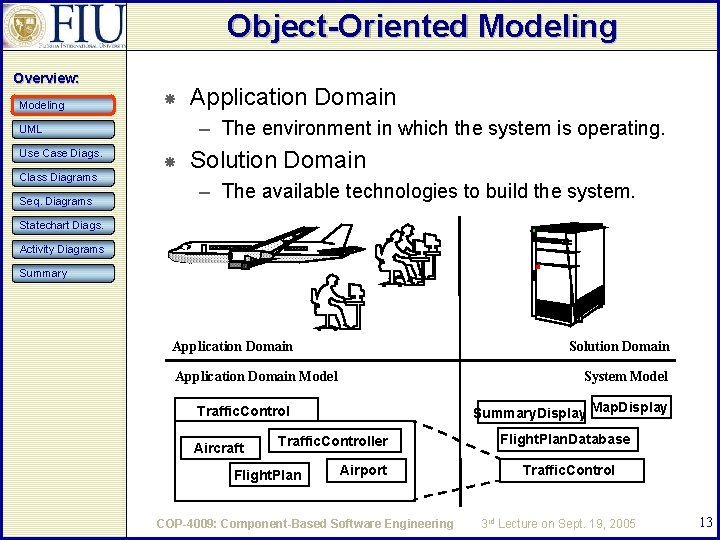

Object-Oriented Modeling Overview: Modeling – The environment in which the system is operating. UML Use Case Diags. Class Diagrams Seq. Diagrams Application Domain Solution Domain – The available technologies to build the system. Statechart Diags. Activity Diagrams Summary Application Domain Solution Domain Application Domain Model System Model Summary. Display Map. Display Traffic. Control Aircraft Traffic. Controller Flight. Plan Airport COP-4009: Component-Based Software Engineering Flight. Plan. Database Traffic. Control 3 rd Lecture on Sept. 19, 2005 13

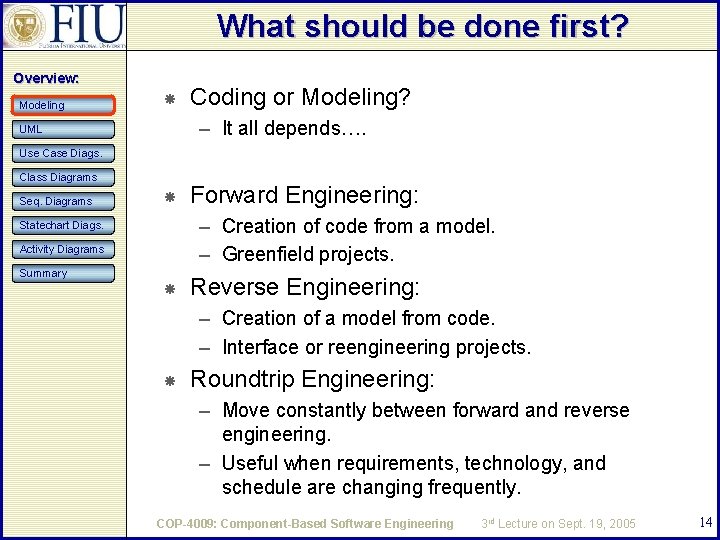

What should be done first? Overview: Modeling Coding or Modeling? – It all depends…. UML Use Case Diags. Class Diagrams Seq. Diagrams Forward Engineering: – Creation of code from a model. – Greenfield projects. Statechart Diags. Activity Diagrams Summary Reverse Engineering: – Creation of a model from code. – Interface or reengineering projects. Roundtrip Engineering: – Move constantly between forward and reverse engineering. – Useful when requirements, technology, and schedule are changing frequently. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 14

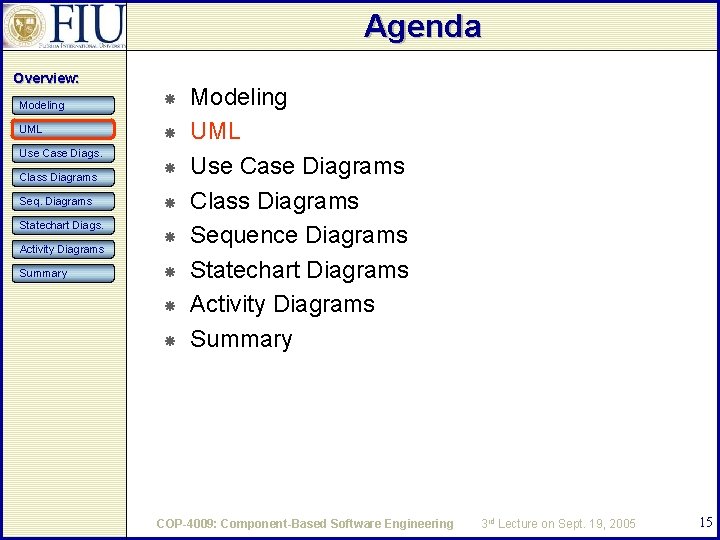

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 15

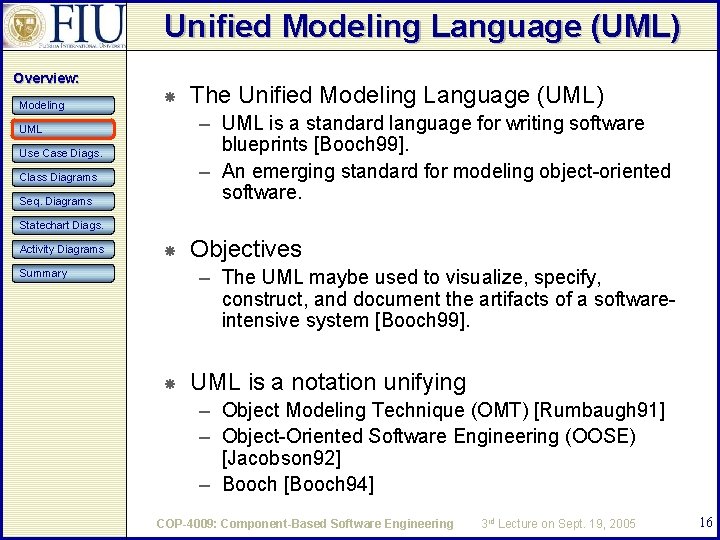

Unified Modeling Language (UML) Overview: Modeling The Unified Modeling Language (UML) – UML is a standard language for writing software blueprints [Booch 99]. – An emerging standard for modeling object-oriented software. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Objectives – The UML maybe used to visualize, specify, construct, and document the artifacts of a softwareintensive system [Booch 99]. Summary UML is a notation unifying – Object Modeling Technique (OMT) [Rumbaugh 91] – Object-Oriented Software Engineering (OOSE) [Jacobson 92] – Booch [Booch 94] COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 16

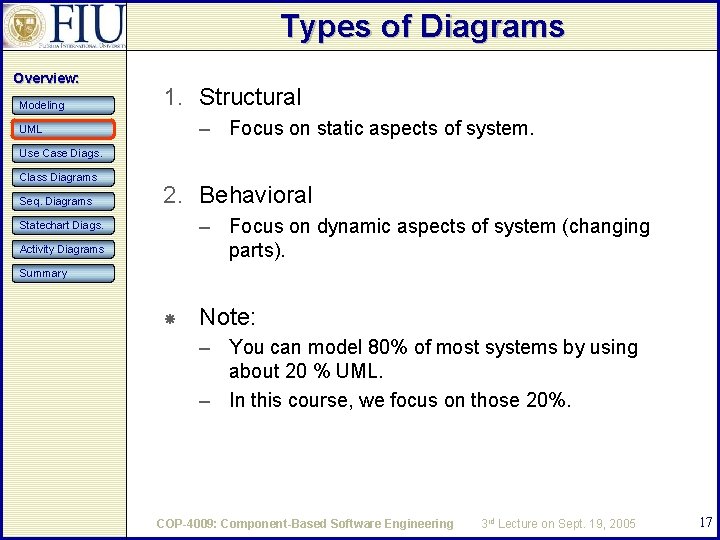

Types of Diagrams Overview: Modeling 1. Structural – Focus on static aspects of system. UML Use Case Diags. Class Diagrams Seq. Diagrams 2. Behavioral – Focus on dynamic aspects of system (changing parts). Statechart Diags. Activity Diagrams Summary Note: – You can model 80% of most systems by using about 20 % UML. – In this course, we focus on those 20%. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 17

Structural Diagrams Overview: Modeling – Describe the static structure of the system using objects, attributes, and associations. – A set of classes and their relationships. An interface is a collection of operations that specify a service of a class. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Object Diagram – A set of objects and their relationships. Activity Diagrams Summary Class Diagram Component Diagram – A set of components and their relationships. – Component: Physical realization of a logical grouping of elements (e. g. , classes, interfaces). Deployment Diagram – A set of nodes and their relationships. – Exists at run time; Represents computational resources. – Node typically encloses one or more components. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 18

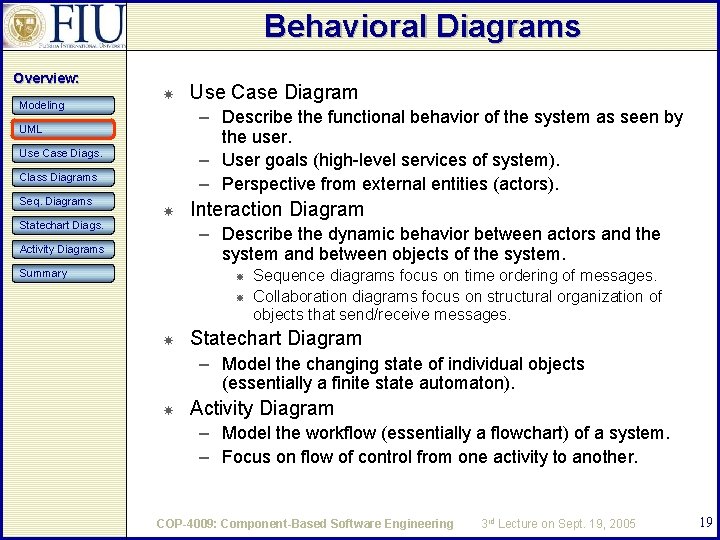

Behavioral Diagrams Overview: Modeling – Describe the functional behavior of the system as seen by the user. – User goals (high-level services of system). – Perspective from external entities (actors). UML Use Case Diags. Class Diagrams Seq. Diagrams Use Case Diagram Statechart Diags. Interaction Diagram – Describe the dynamic behavior between actors and the system and between objects of the system. Activity Diagrams Summary Sequence diagrams focus on time ordering of messages. Collaboration diagrams focus on structural organization of objects that send/receive messages. Statechart Diagram – Model the changing state of individual objects (essentially a finite state automaton). Activity Diagram – Model the workflow (essentially a flowchart) of a system. – Focus on flow of control from one activity to another. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 19

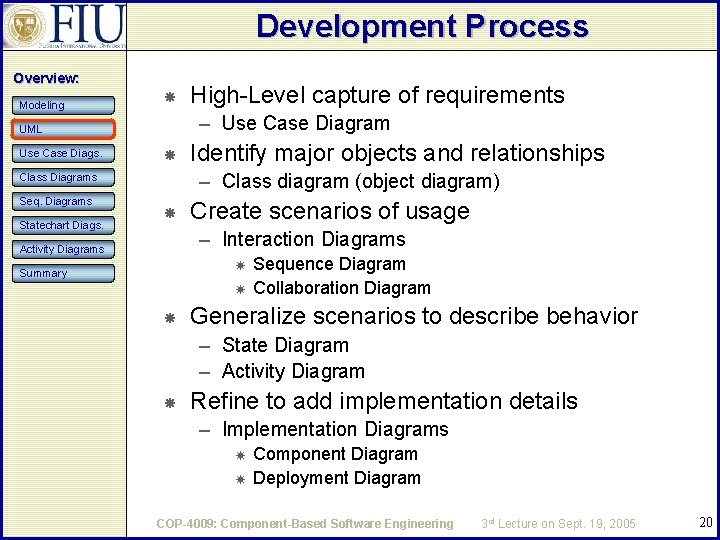

Development Process Overview: Modeling – Use Case Diagram UML Use Case Diags. Statechart Diags. Identify major objects and relationships – Class diagram (object diagram) Class Diagrams Seq. Diagrams High-Level capture of requirements Create scenarios of usage – Interaction Diagrams Activity Diagrams Summary Sequence Diagram Collaboration Diagram Generalize scenarios to describe behavior – State Diagram – Activity Diagram Refine to add implementation details – Implementation Diagrams Component Diagram Deployment Diagram COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 20

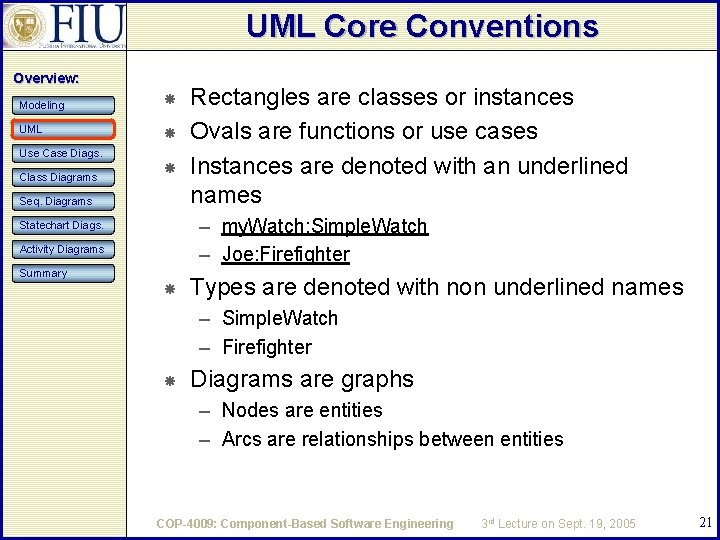

UML Core Conventions Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Rectangles are classes or instances Ovals are functions or use cases Instances are denoted with an underlined names – my. Watch: Simple. Watch – Joe: Firefighter Statechart Diags. Activity Diagrams Summary Types are denoted with non underlined names – Simple. Watch – Firefighter Diagrams are graphs – Nodes are entities – Arcs are relationships between entities COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 21

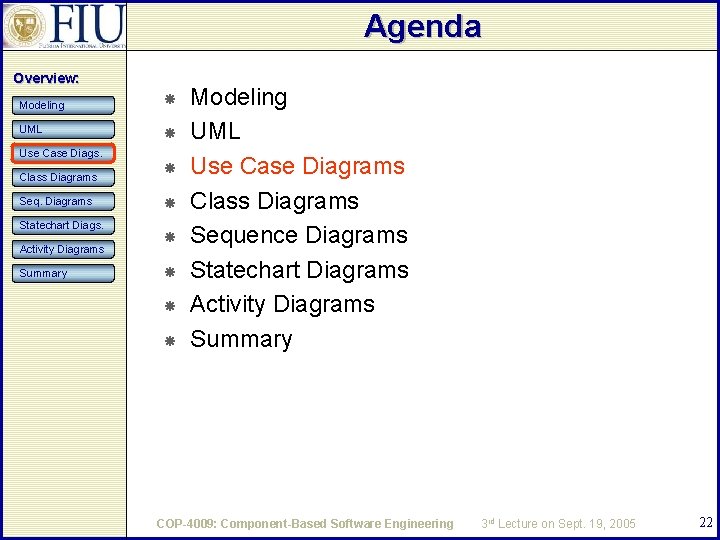

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 22

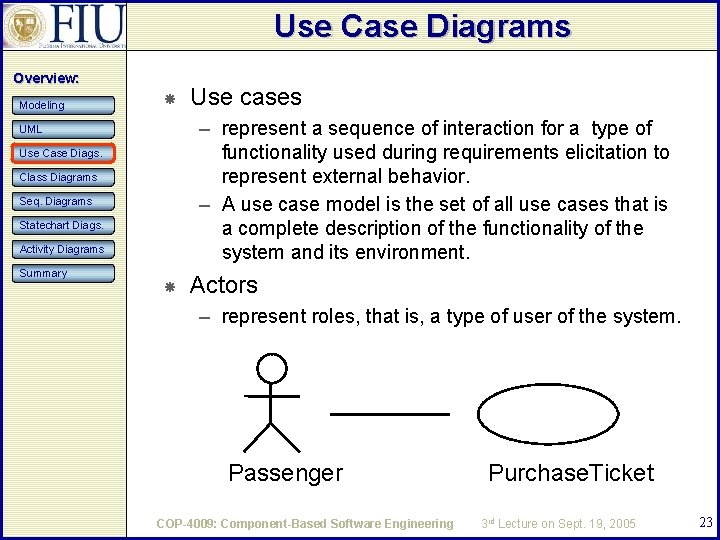

Use Case Diagrams Overview: Modeling – represent a sequence of interaction for a type of functionality used during requirements elicitation to represent external behavior. – A use case model is the set of all use cases that is a complete description of the functionality of the system and its environment. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Use cases Actors – represent roles, that is, a type of user of the system. Passenger COP-4009: Component-Based Software Engineering Purchase. Ticket 3 rd Lecture on Sept. 19, 2005 23

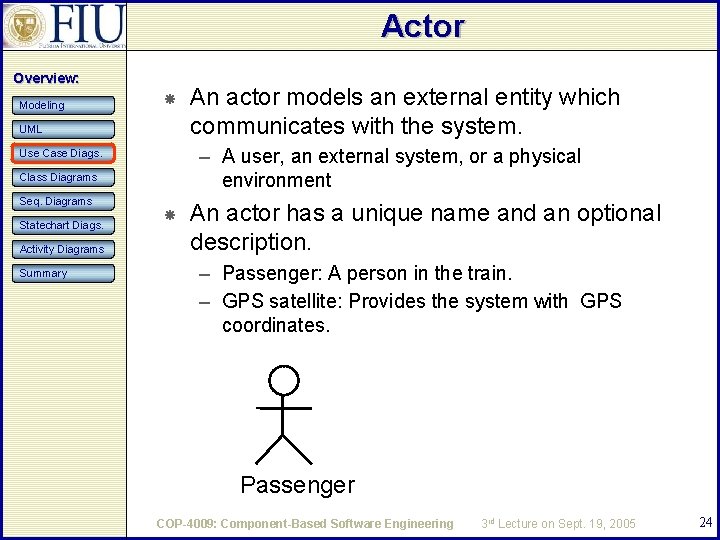

Actor Overview: Modeling UML – A user, an external system, or a physical environment Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary An actor models an external entity which communicates with the system. An actor has a unique name and an optional description. – Passenger: A person in the train. – GPS satellite: Provides the system with GPS coordinates. Passenger COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 24

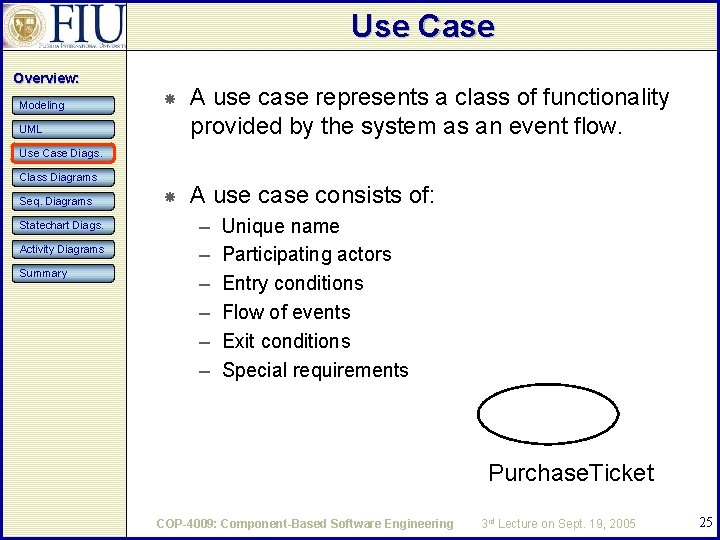

Use Case Overview: Modeling A use case represents a class of functionality provided by the system as an event flow. A use case consists of: UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary – – – Unique name Participating actors Entry conditions Flow of events Exit conditions Special requirements Purchase. Ticket COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 25

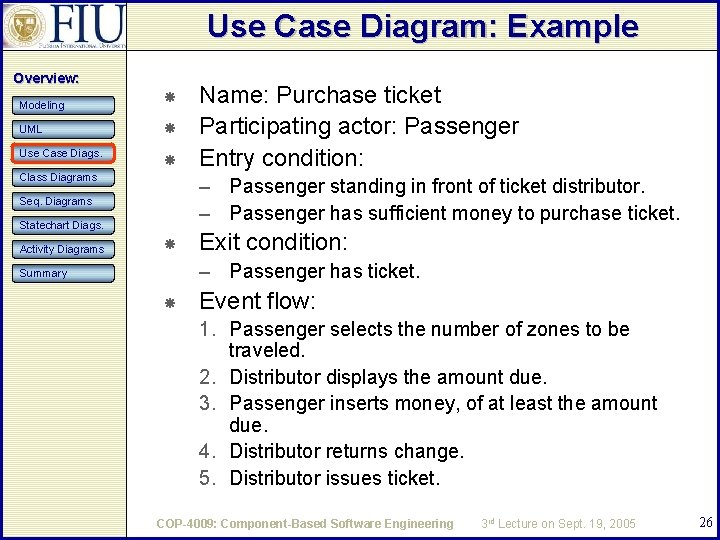

Use Case Diagram: Example Overview: Modeling UML Use Case Diags. Class Diagrams – Passenger standing in front of ticket distributor. – Passenger has sufficient money to purchase ticket. Seq. Diagrams Statechart Diags. Activity Diagrams Name: Purchase ticket Participating actor: Passenger Entry condition: Exit condition: – Passenger has ticket. Summary Event flow: 1. Passenger selects the number of zones to be traveled. 2. Distributor displays the amount due. 3. Passenger inserts money, of at least the amount due. 4. Distributor returns change. 5. Distributor issues ticket. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 26

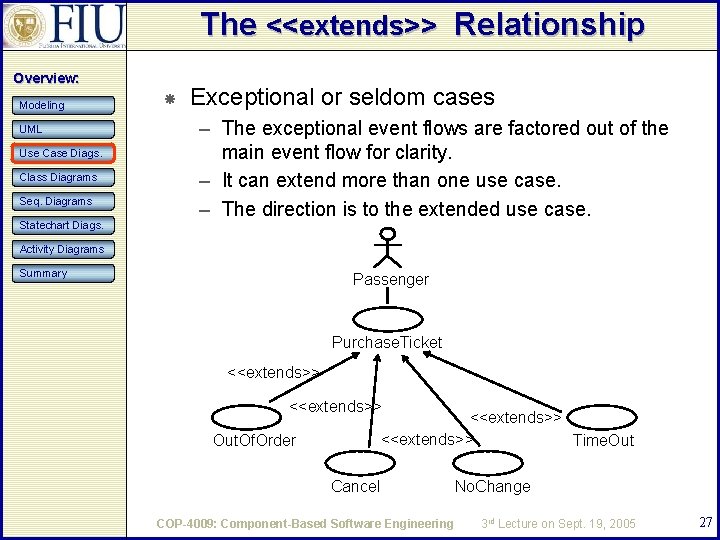

The <<extends>> Relationship Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Exceptional or seldom cases – The exceptional event flows are factored out of the main event flow for clarity. – It can extend more than one use case. – The direction is to the extended use case. Activity Diagrams Summary Passenger Purchase. Ticket <<extends>> Out. Of. Order <<extends>> Time. Out Cancel COP-4009: Component-Based Software Engineering No. Change 3 rd Lecture on Sept. 19, 2005 27

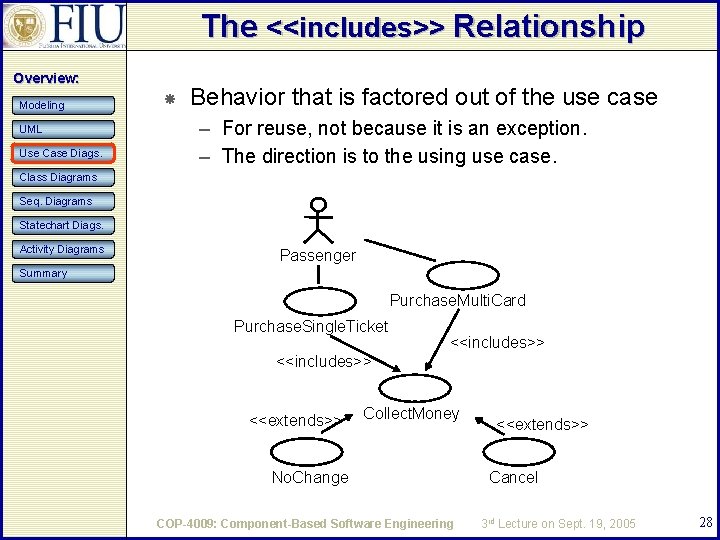

The <<includes>> Relationship Overview: Modeling UML Use Case Diags. Behavior that is factored out of the use case – For reuse, not because it is an exception. – The direction is to the using use case. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Passenger Summary Purchase. Multi. Card Purchase. Single. Ticket <<includes>> <<extends>> Collect. Money No. Change COP-4009: Component-Based Software Engineering <<extends>> Cancel 3 rd Lecture on Sept. 19, 2005 28

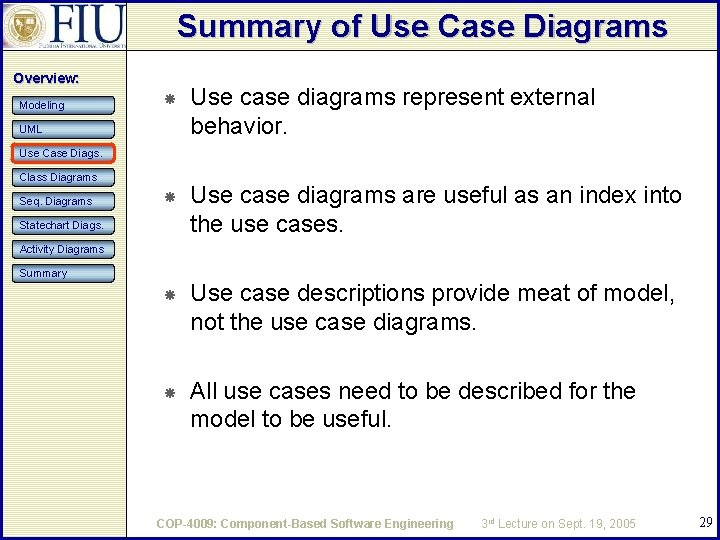

Summary of Use Case Diagrams Overview: Modeling Use case diagrams represent external behavior. Use case diagrams are useful as an index into the use cases. Use case descriptions provide meat of model, not the use case diagrams. All use cases need to be described for the model to be useful. UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 29

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 30

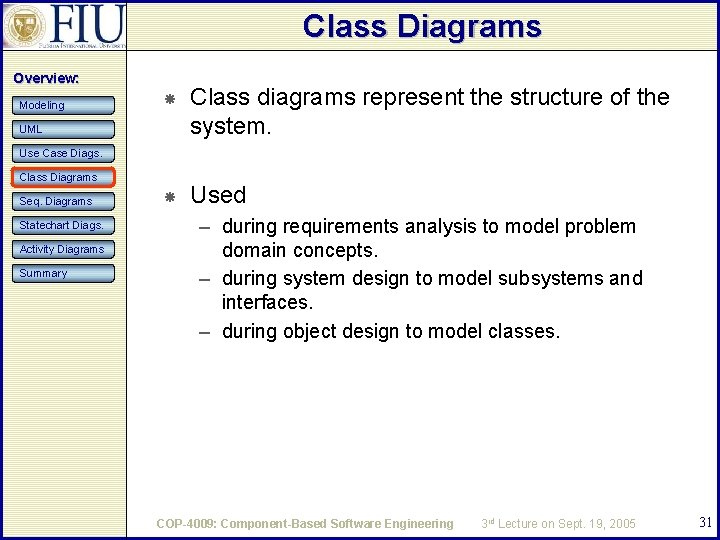

Class Diagrams Overview: Modeling Class diagrams represent the structure of the system. Used UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary – during requirements analysis to model problem domain concepts. – during system design to model subsystems and interfaces. – during object design to model classes. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 31

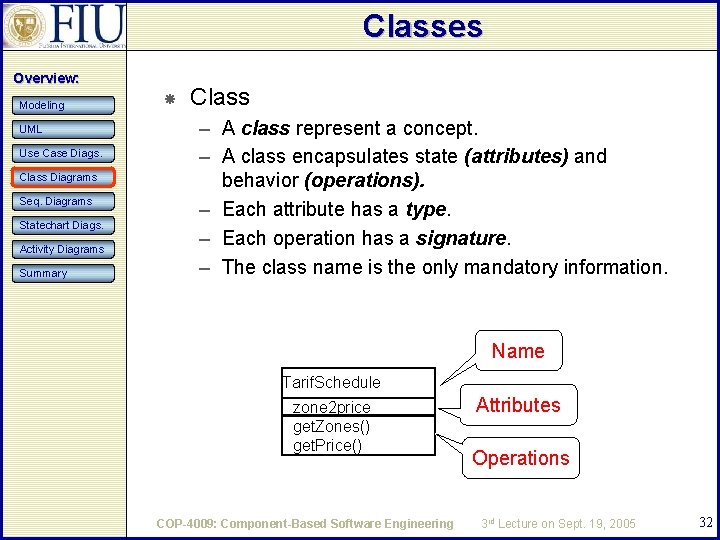

Classes Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Class – A class represent a concept. – A class encapsulates state (attributes) and behavior (operations). – Each attribute has a type. – Each operation has a signature. – The class name is the only mandatory information. Name Tarif. Schedule zone 2 price get. Zones() get. Price() COP-4009: Component-Based Software Engineering Attributes Operations 3 rd Lecture on Sept. 19, 2005 32

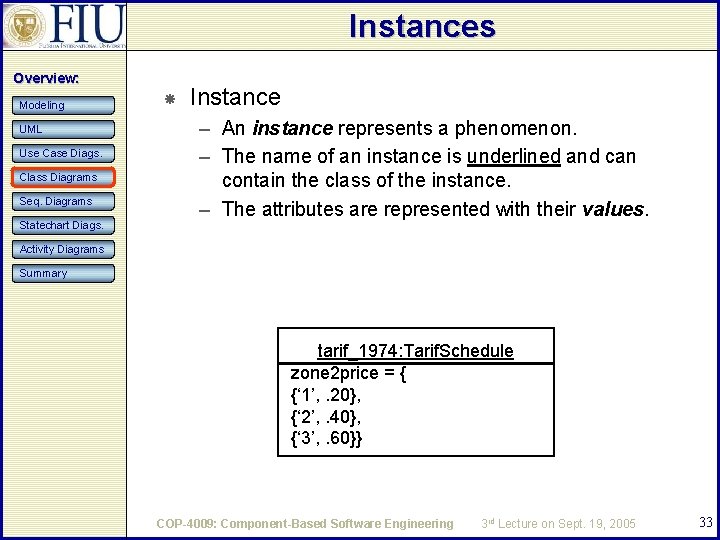

Instances Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Instance – An instance represents a phenomenon. – The name of an instance is underlined and can contain the class of the instance. – The attributes are represented with their values. Activity Diagrams Summary tarif_1974: Tarif. Schedule zone 2 price = { {‘ 1’, . 20}, {‘ 2’, . 40}, {‘ 3’, . 60}} COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 33

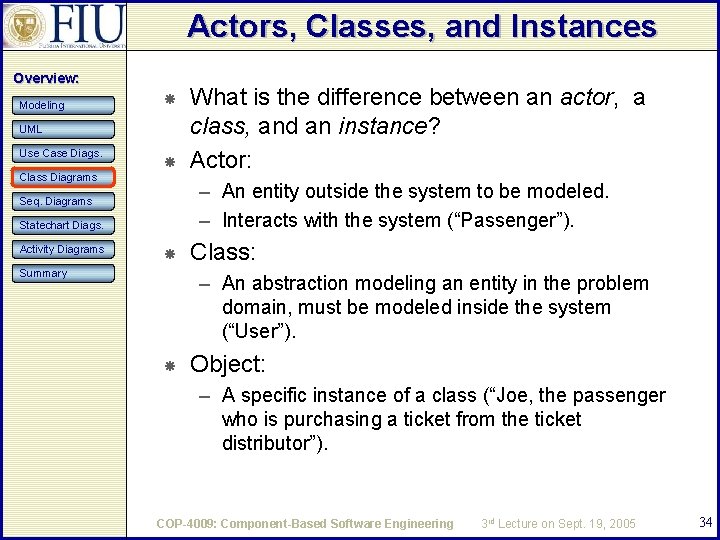

Actors, Classes, and Instances Overview: Modeling UML Use Case Diags. Class Diagrams – An entity outside the system to be modeled. – Interacts with the system (“Passenger”). Seq. Diagrams Statechart Diags. Activity Diagrams What is the difference between an actor, a class, and an instance? Actor: Summary Class: – An abstraction modeling an entity in the problem domain, must be modeled inside the system (“User”). Object: – A specific instance of a class (“Joe, the passenger who is purchasing a ticket from the ticket distributor”). COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 34

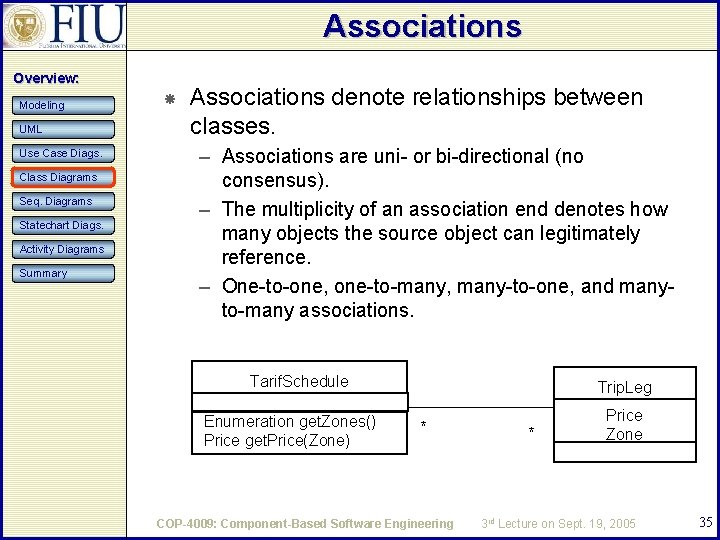

Associations Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Associations denote relationships between classes. – Associations are uni- or bi-directional (no consensus). – The multiplicity of an association end denotes how many objects the source object can legitimately reference. – One-to-one, one-to-many, many-to-one, and manyto-many associations. Tarif. Schedule Enumeration get. Zones() Price get. Price(Zone) Trip. Leg * COP-4009: Component-Based Software Engineering * Price Zone 3 rd Lecture on Sept. 19, 2005 35

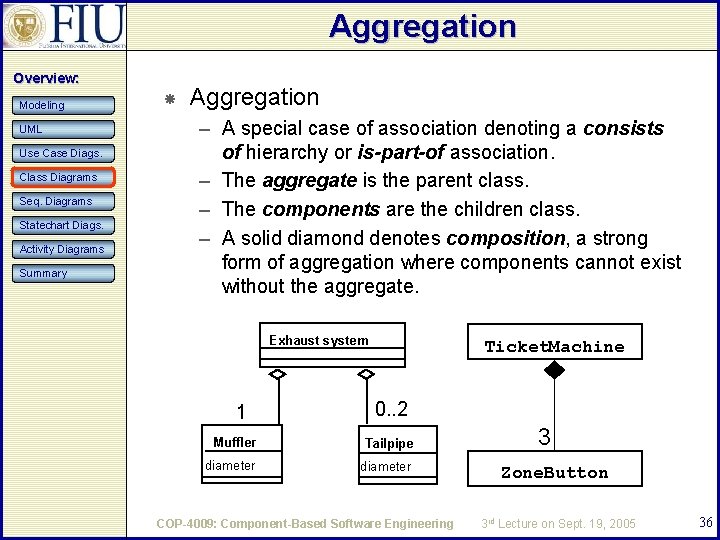

Aggregation Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Aggregation – A special case of association denoting a consists of hierarchy or is-part-of association. – The aggregate is the parent class. – The components are the children class. – A solid diamond denotes composition, a strong form of aggregation where components cannot exist without the aggregate. Exhaust system 1 Ticket. Machine 0. . 2 Muffler Tailpipe diameter COP-4009: Component-Based Software Engineering 3 Zone. Button 3 rd Lecture on Sept. 19, 2005 36

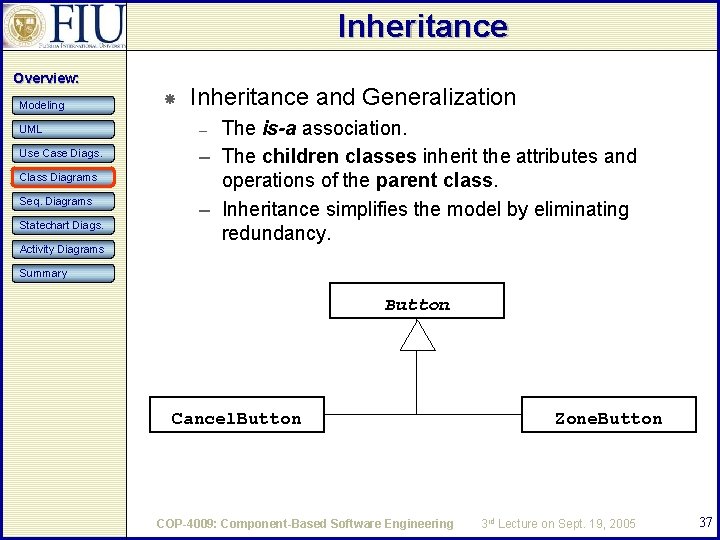

Inheritance Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Inheritance and Generalization The is-a association. – The children classes inherit the attributes and operations of the parent class. – Inheritance simplifies the model by eliminating redundancy. – Summary Button Cancel. Button COP-4009: Component-Based Software Engineering Zone. Button 3 rd Lecture on Sept. 19, 2005 37

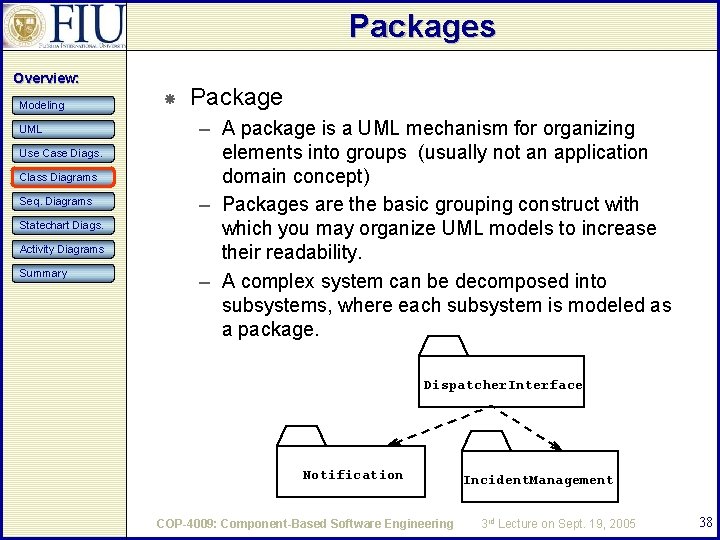

Packages Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Package – A package is a UML mechanism for organizing elements into groups (usually not an application domain concept) – Packages are the basic grouping construct with which you may organize UML models to increase their readability. – A complex system can be decomposed into subsystems, where each subsystem is modeled as a package. Dispatcher. Interface Notification COP-4009: Component-Based Software Engineering Incident. Management 3 rd Lecture on Sept. 19, 2005 38

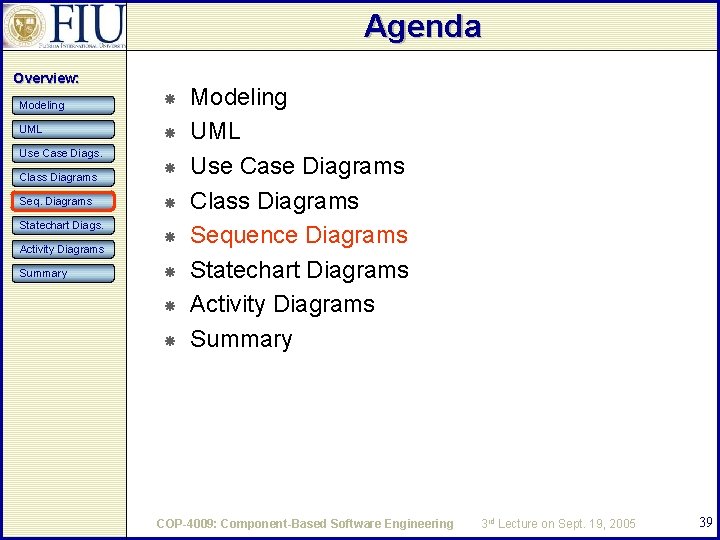

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 39

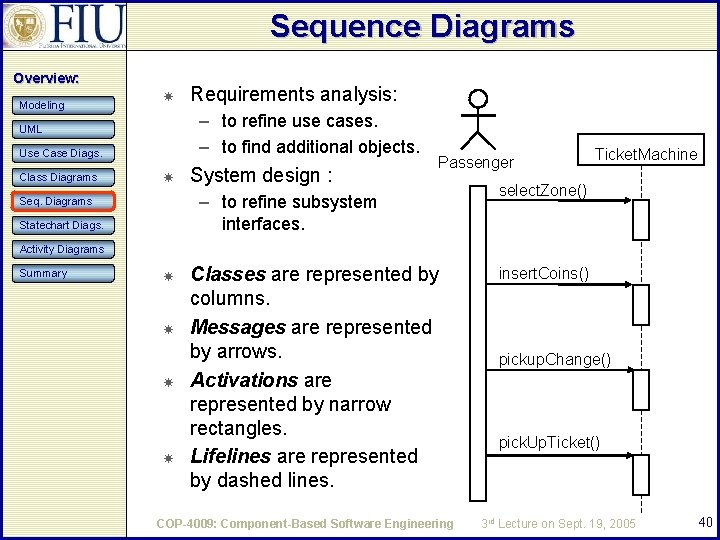

Sequence Diagrams Overview: Modeling – to refine use cases. – to find additional objects. UML Use Case Diags. Class Diagrams Requirements analysis: System design : Passenger – to refine subsystem interfaces. Seq. Diagrams Statechart Diags. Ticket. Machine select. Zone() Activity Diagrams Summary Classes are represented by columns. Messages are represented by arrows. Activations are represented by narrow rectangles. Lifelines are represented by dashed lines. COP-4009: Component-Based Software Engineering insert. Coins() pickup. Change() pick. Up. Ticket() 3 rd Lecture on Sept. 19, 2005 40

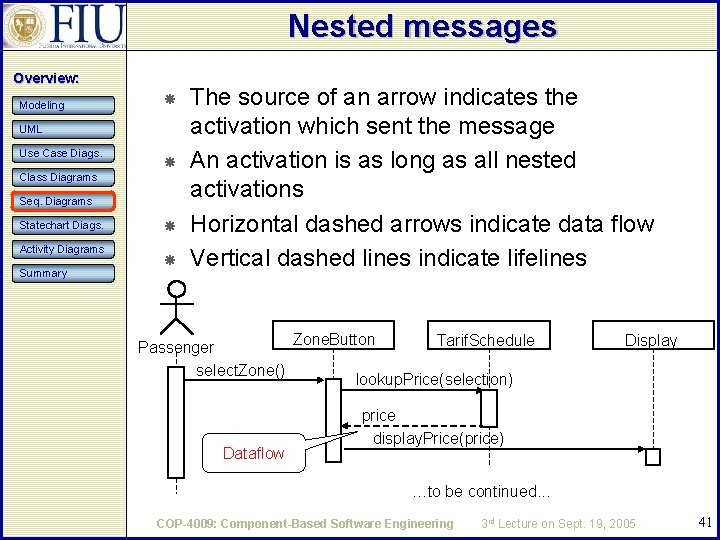

Nested messages Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary The source of an arrow indicates the activation which sent the message An activation is as long as all nested activations Horizontal dashed arrows indicate data flow Vertical dashed lines indicate lifelines Zone. Button Tarif. Schedule Passenger select. Zone() lookup. Price(selection) Dataflow Display price display. Price(price) …to be continued. . . COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 41

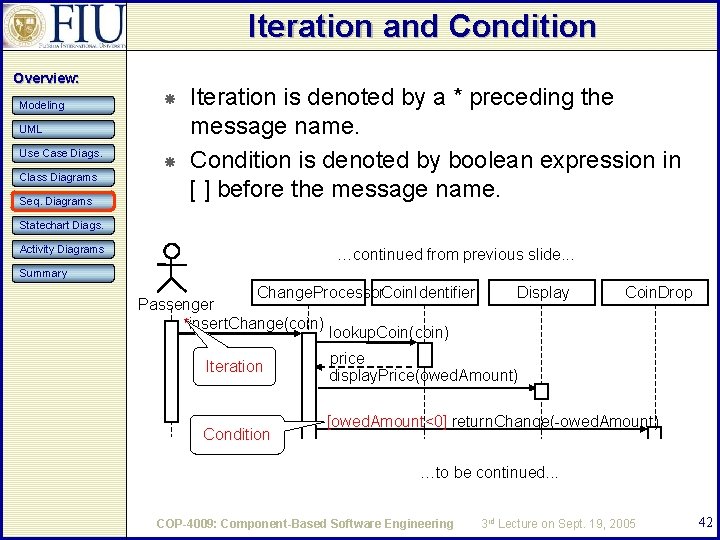

Iteration and Condition Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Iteration is denoted by a * preceding the message name. Condition is denoted by boolean expression in [ ] before the message name. Statechart Diags. Activity Diagrams …continued from previous slide. . . Summary Change. Processor. Coin. Identifier Passenger *insert. Change(coin) lookup. Coin(coin) Iteration Condition Display Coin. Drop price display. Price(owed. Amount) [owed. Amount<0] return. Change(-owed. Amount) …to be continued. . . COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 42

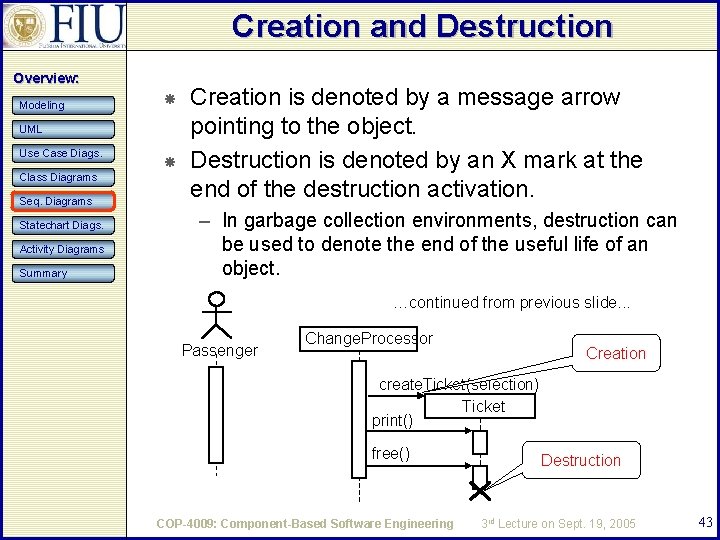

Creation and Destruction Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Creation is denoted by a message arrow pointing to the object. Destruction is denoted by an X mark at the end of the destruction activation. – In garbage collection environments, destruction can be used to denote the end of the useful life of an object. …continued from previous slide. . . Passenger Change. Processor Creation create. Ticket(selection) Ticket print() free() COP-4009: Component-Based Software Engineering Destruction 3 rd Lecture on Sept. 19, 2005 43

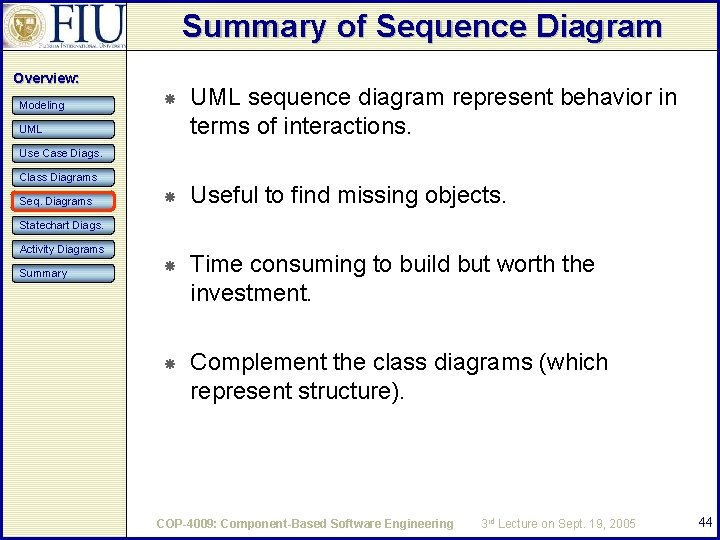

Summary of Sequence Diagram Overview: Modeling UML sequence diagram represent behavior in terms of interactions. Useful to find missing objects. Time consuming to build but worth the investment. Complement the class diagrams (which represent structure). UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 44

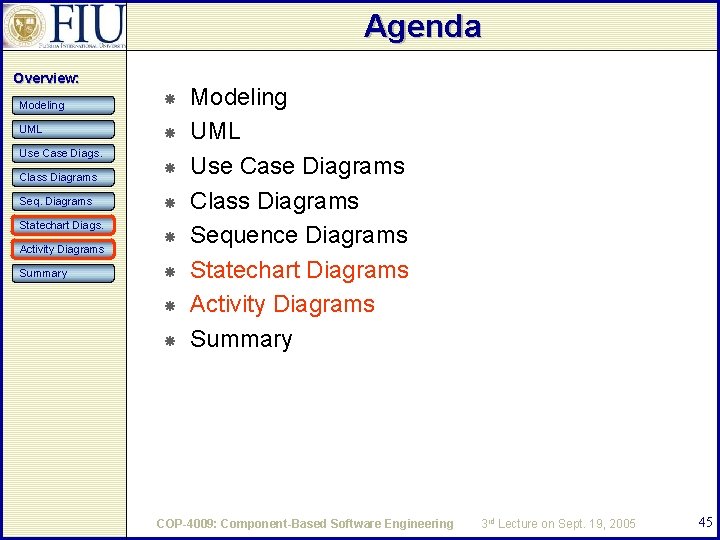

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 45

State Chart Diagrams Overview: Modeling • Represent behavior as states and transitions UML Use Case Diags. Event Initial state State Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Transition Final state COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 46

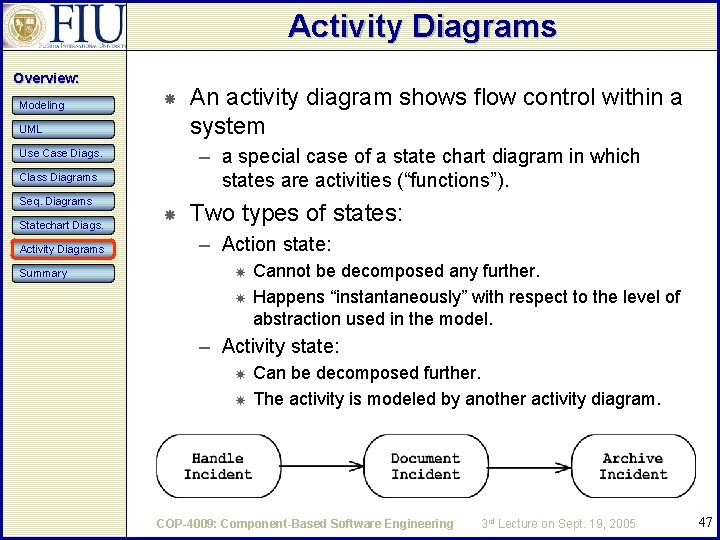

Activity Diagrams Overview: Modeling UML – a special case of a state chart diagram in which states are activities (“functions”). Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary An activity diagram shows flow control within a system Two types of states: – Action state: Cannot be decomposed any further. Happens “instantaneously” with respect to the level of abstraction used in the model. – Activity state: Can be decomposed further. The activity is modeled by another activity diagram. COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 47

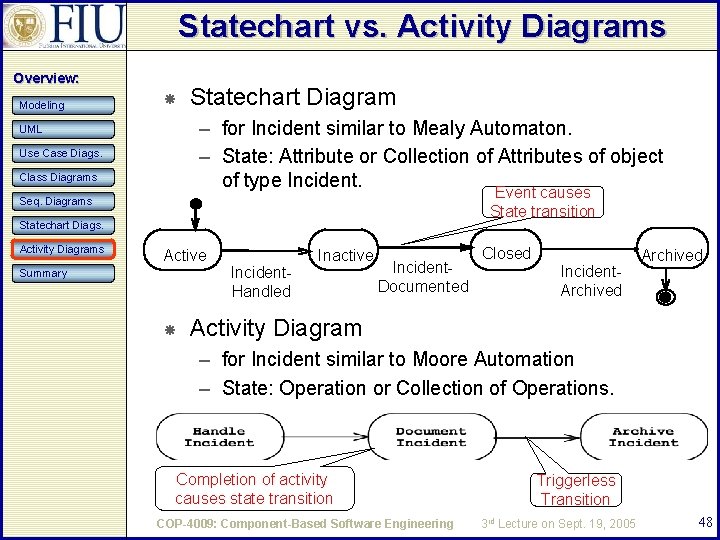

Statechart vs. Activity Diagrams Overview: Modeling Statechart Diagram – for Incident similar to Mealy Automaton. – State: Attribute or Collection of Attributes of object of type Incident. UML Use Case Diags. Class Diagrams Event causes State transition Seq. Diagrams Statechart Diags. Activity Diagrams Active Summary Incident. Handled Inactive Incident. Documented Closed Incident. Archived Activity Diagram – for Incident similar to Moore Automation – State: Operation or Collection of Operations. Completion of activity causes state transition COP-4009: Component-Based Software Engineering Triggerless Transition 3 rd Lecture on Sept. 19, 2005 48

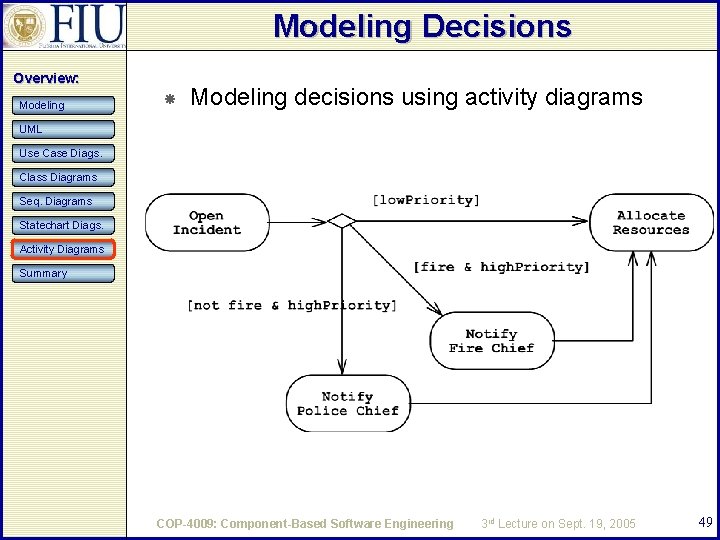

Modeling Decisions Overview: Modeling decisions using activity diagrams UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 49

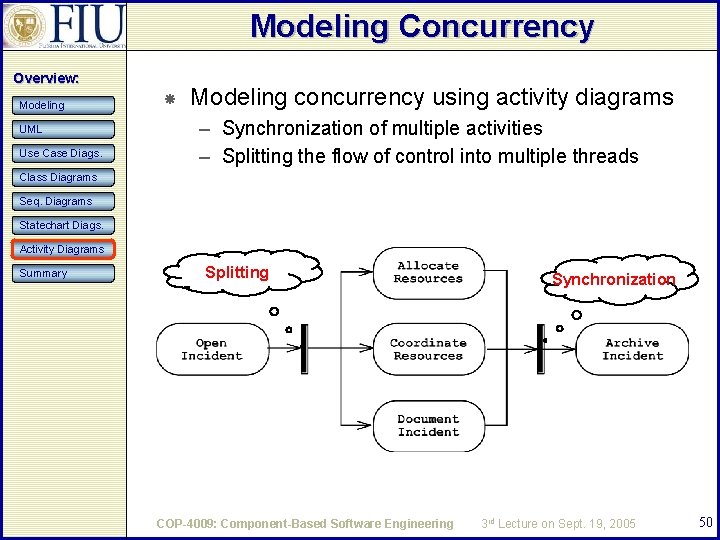

Modeling Concurrency Overview: Modeling UML Use Case Diags. Modeling concurrency using activity diagrams – Synchronization of multiple activities – Splitting the flow of control into multiple threads Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Splitting COP-4009: Component-Based Software Engineering Synchronization 3 rd Lecture on Sept. 19, 2005 50

Activity Diagrams: Swimlanes Overview: Modeling UML Use Case Diags. Actions may be grouped into swimlanes to denote the object or subsystem that implements the actions. Class Diagrams Seq. Diagrams Statechart Diags. Allocate Resources Activity Diagrams Dispatcher Summary Open Incident Coordinate Resources Archive Incident Field. Officer Document Incident COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 51

Agenda Overview: Modeling UML Use Case Diags. Class Diagrams Seq. Diagrams Statechart Diags. Activity Diagrams Summary Modeling UML Use Case Diagrams Class Diagrams Sequence Diagrams Statechart Diagrams Activity Diagrams Summary COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 52

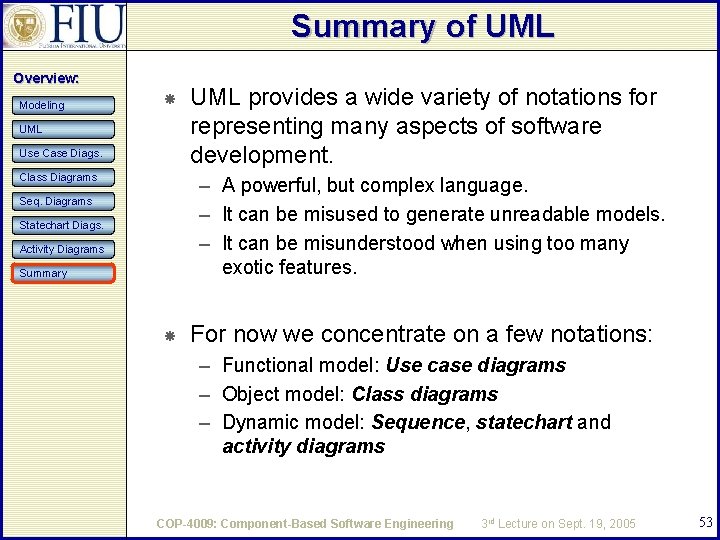

Summary of UML Overview: Modeling UML Use Case Diags. Class Diagrams UML provides a wide variety of notations for representing many aspects of software development. – A powerful, but complex language. – It can be misused to generate unreadable models. – It can be misunderstood when using too many exotic features. Seq. Diagrams Statechart Diags. Activity Diagrams Summary For now we concentrate on a few notations: – Functional model: Use case diagrams – Object model: Class diagrams – Dynamic model: Sequence, statechart and activity diagrams COP-4009: Component-Based Software Engineering 3 rd Lecture on Sept. 19, 2005 53
