Coordination Chemistry II Bonding Chapter 10 Thermodynamic Data

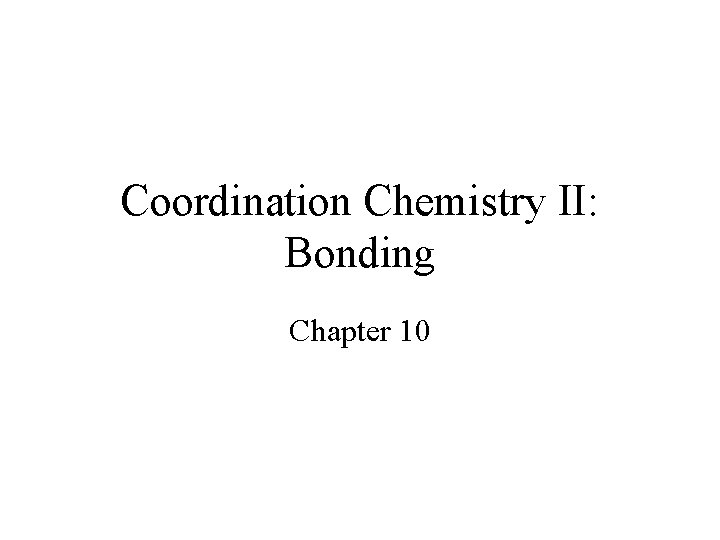

Coordination Chemistry II: Bonding Chapter 10

Thermodynamic Data • Stability constants or formation constants are often used to indicate bond strengths. – What does a high formation constant mean? • Thermodynamic data is most valuable in predicting relationships among similar complexes. • Formation constants can be affected by enthalpy and entropy changes. – Table 10 -2 and the chelate effect.

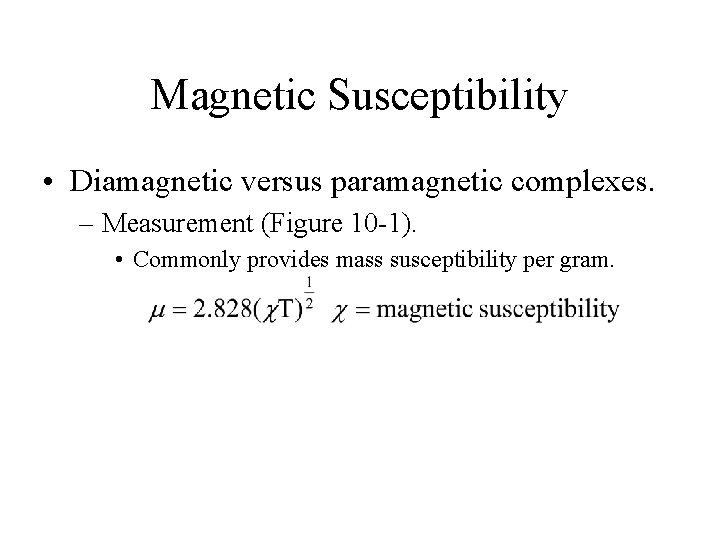

Magnetic Susceptibility • Diamagnetic versus paramagnetic complexes. – Measurement (Figure 10 -1). • Commonly provides mass susceptibility per gram.

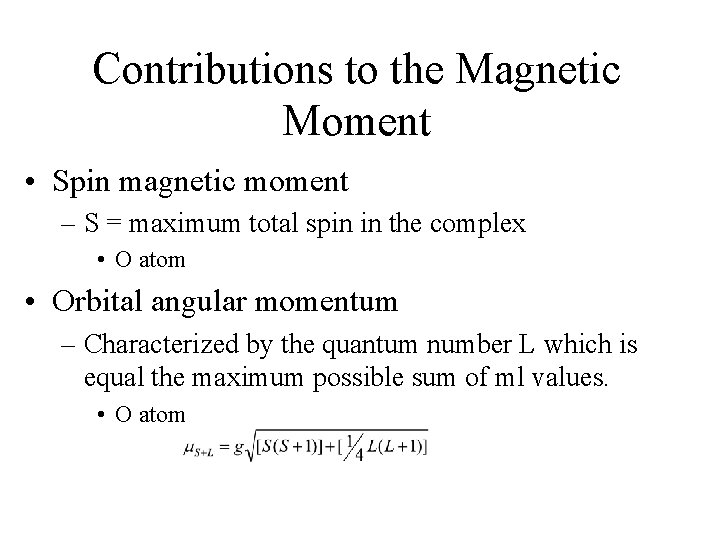

Contributions to the Magnetic Moment • Spin magnetic moment – S = maximum total spin in the complex • O atom • Orbital angular momentum – Characterized by the quantum number L which is equal the maximum possible sum of ml values. • O atom

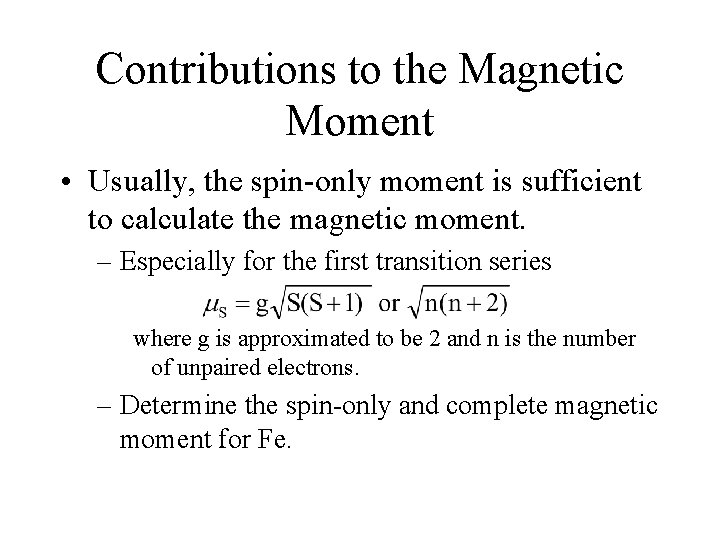

Contributions to the Magnetic Moment • Usually, the spin-only moment is sufficient to calculate the magnetic moment. – Especially for the first transition series where g is approximated to be 2 and n is the number of unpaired electrons. – Determine the spin-only and complete magnetic moment for Fe.

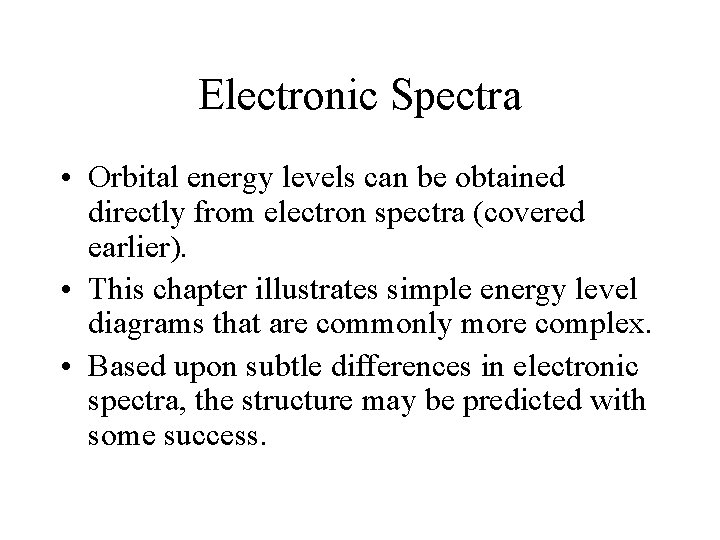

Electronic Spectra • Orbital energy levels can be obtained directly from electron spectra (covered earlier). • This chapter illustrates simple energy level diagrams that are commonly more complex. • Based upon subtle differences in electronic spectra, the structure may be predicted with some success.

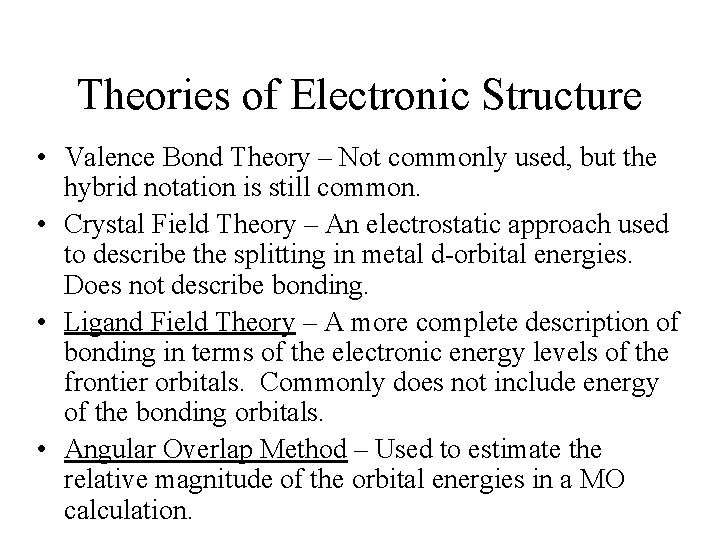

Theories of Electronic Structure • Valence Bond Theory – Not commonly used, but the hybrid notation is still common. • Crystal Field Theory – An electrostatic approach used to describe the splitting in metal d-orbital energies. Does not describe bonding. • Ligand Field Theory – A more complete description of bonding in terms of the electronic energy levels of the frontier orbitals. Commonly does not include energy of the bonding orbitals. • Angular Overlap Method – Used to estimate the relative magnitude of the orbital energies in a MO calculation.

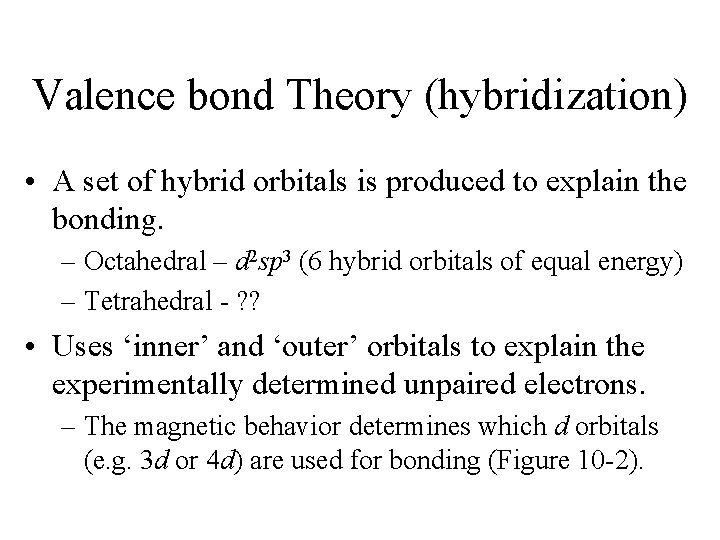

Valence bond Theory (hybridization) • A set of hybrid orbitals is produced to explain the bonding. – Octahedral – d 2 sp 3 (6 hybrid orbitals of equal energy) – Tetrahedral - ? ? • Uses ‘inner’ and ‘outer’ orbitals to explain the experimentally determined unpaired electrons. – The magnetic behavior determines which d orbitals (e. g. 3 d or 4 d) are used for bonding (Figure 10 -2).

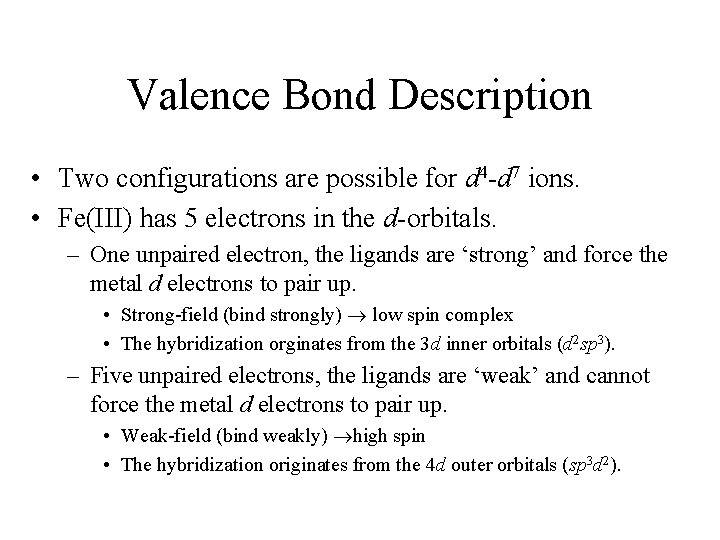

Valence Bond Description • Two configurations are possible for d 4 -d 7 ions. • Fe(III) has 5 electrons in the d-orbitals. – One unpaired electron, the ligands are ‘strong’ and force the metal d electrons to pair up. • Strong-field (bind strongly) low spin complex • The hybridization orginates from the 3 d inner orbitals (d 2 sp 3). – Five unpaired electrons, the ligands are ‘weak’ and cannot force the metal d electrons to pair up. • Weak-field (bind weakly) high spin • The hybridization originates from the 4 d outer orbitals (sp 3 d 2).

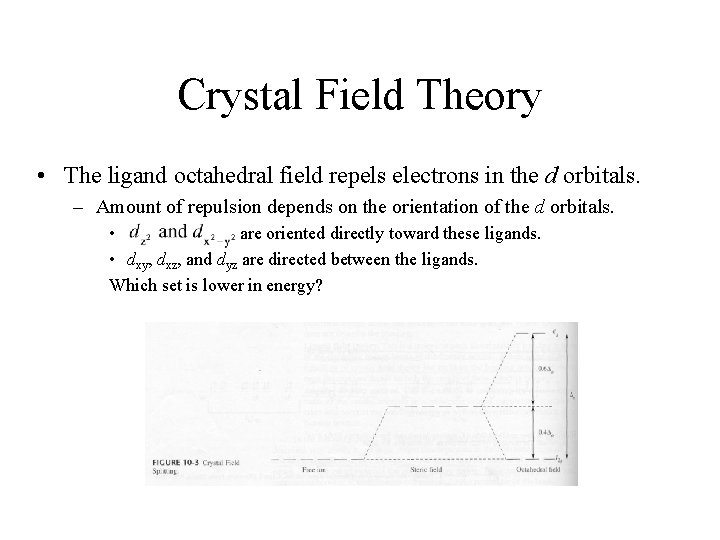

Crystal Field Theory • The ligand octahedral field repels electrons in the d orbitals. – Amount of repulsion depends on the orientation of the d orbitals. • are oriented directly toward these ligands. • dxy, dxz, and dyz are directed between the ligands. Which set is lower in energy?

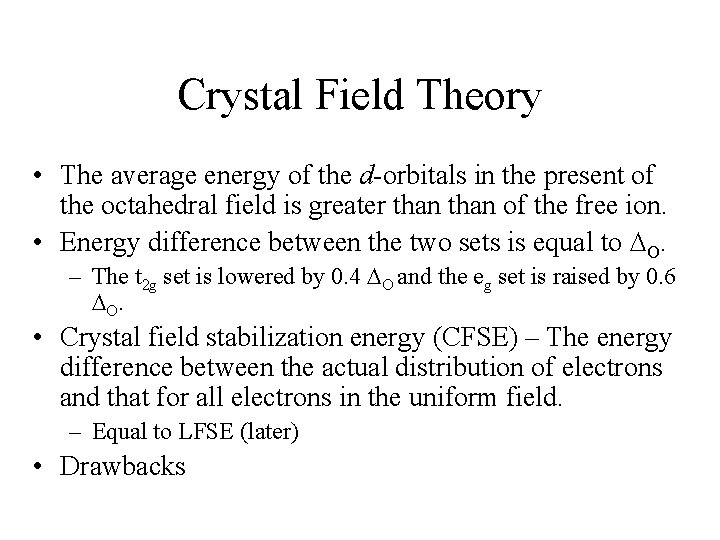

Crystal Field Theory • The average energy of the d-orbitals in the present of the octahedral field is greater than of the free ion. • Energy difference between the two sets is equal to O. – The t 2 g set is lowered by 0. 4 O and the eg set is raised by 0. 6 O. • Crystal field stabilization energy (CFSE) – The energy difference between the actual distribution of electrons and that for all electrons in the uniform field. – Equal to LFSE (later) • Drawbacks

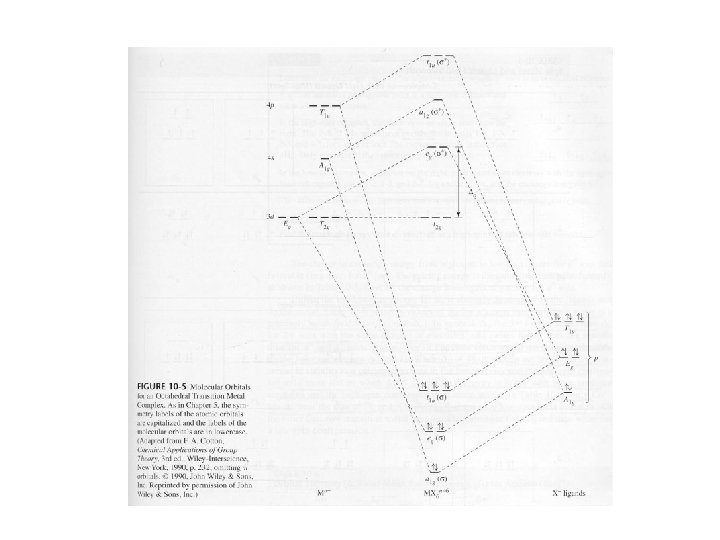

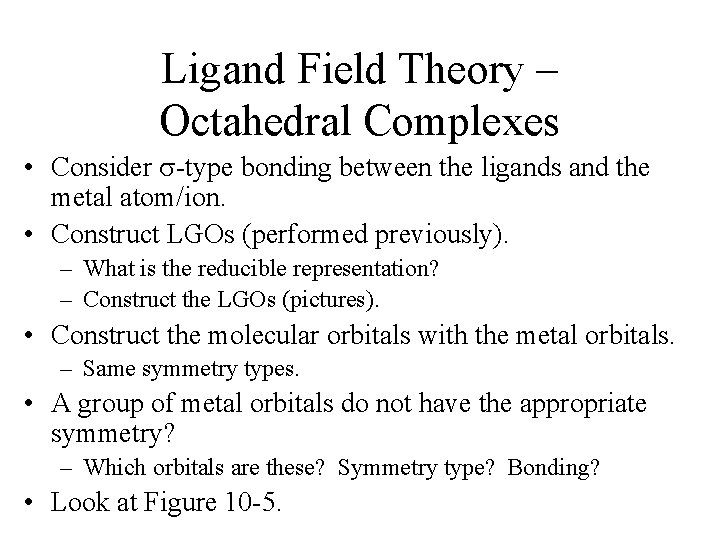

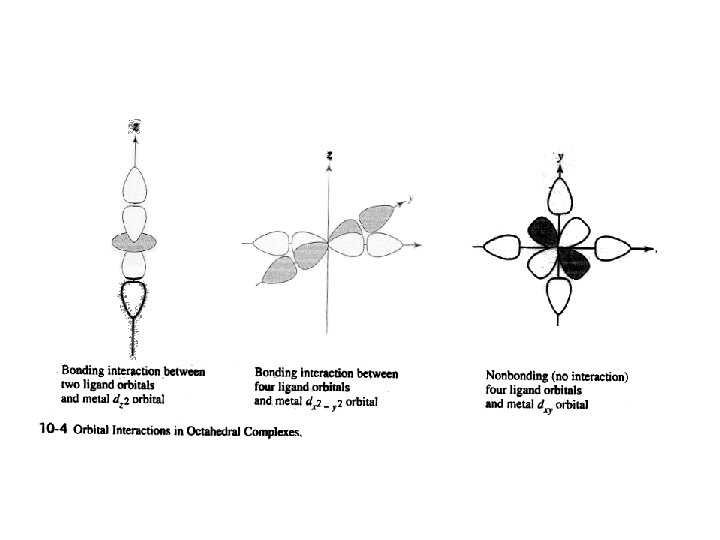

Ligand Field Theory – Octahedral Complexes • Consider -type bonding between the ligands and the metal atom/ion. • Construct LGOs (performed previously). – What is the reducible representation? – Construct the LGOs (pictures). • Construct the molecular orbitals with the metal orbitals. – Same symmetry types. • A group of metal orbitals do not have the appropriate symmetry? – Which orbitals are these? Symmetry type? Bonding? • Look at Figure 10 -5.

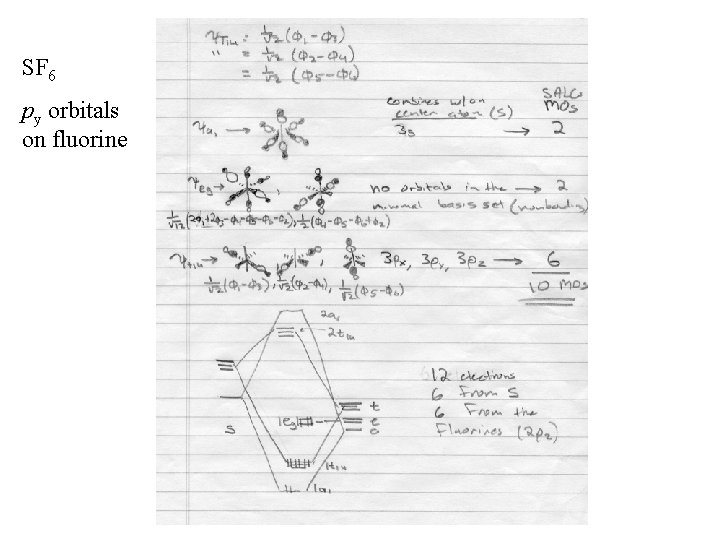

SF 6 py orbitals on fluorine

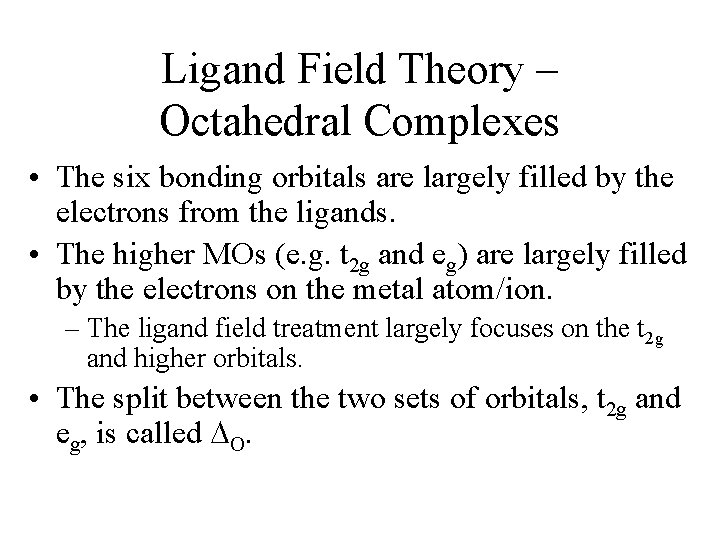

Ligand Field Theory – Octahedral Complexes • The six bonding orbitals are largely filled by the electrons from the ligands. • The higher MOs (e. g. t 2 g and eg) are largely filled by the electrons on the metal atom/ion. – The ligand field treatment largely focuses on the t 2 g and higher orbitals. • The split between the two sets of orbitals, t 2 g and eg, is called O.

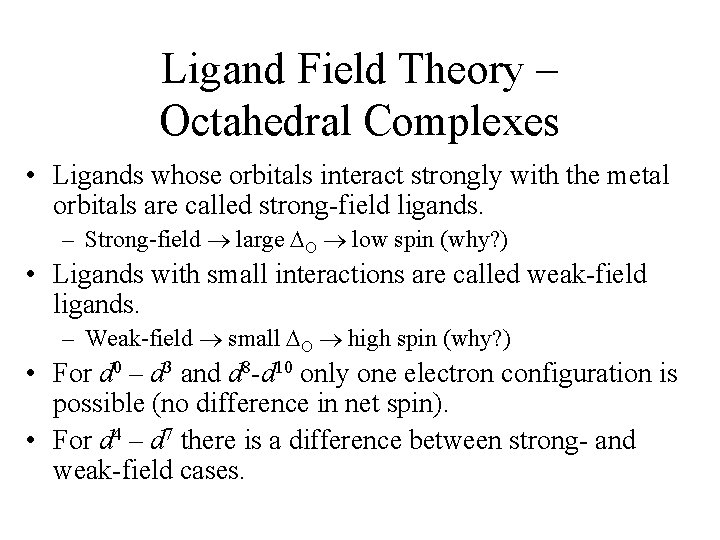

Ligand Field Theory – Octahedral Complexes • Ligands whose orbitals interact strongly with the metal orbitals are called strong-field ligands. – Strong-field large O low spin (why? ) • Ligands with small interactions are called weak-field ligands. – Weak-field small O high spin (why? ) • For d 0 – d 3 and d 8 -d 10 only one electron configuration is possible (no difference in net spin). • For d 4 – d 7 there is a difference between strong- and weak-field cases.

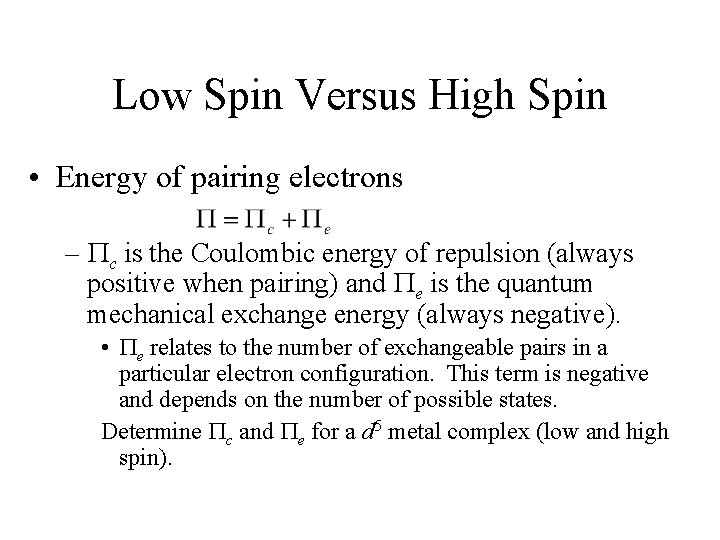

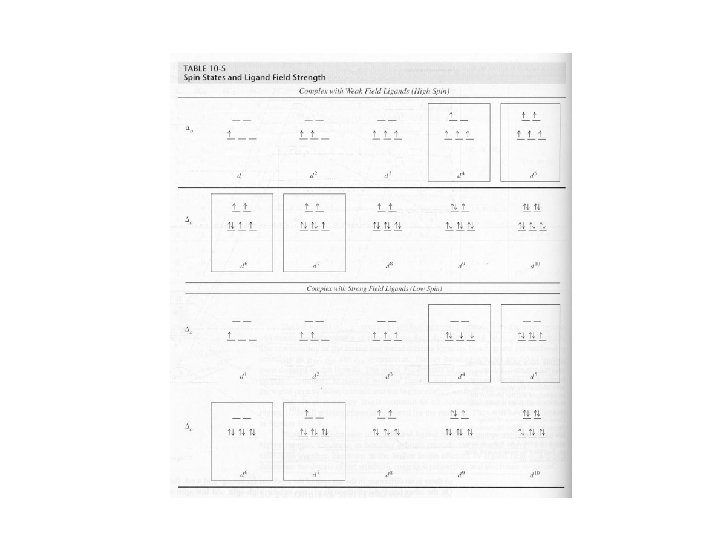

Low Spin Versus High Spin • Energy of pairing electrons – c is the Coulombic energy of repulsion (always positive when pairing) and e is the quantum mechanical exchange energy (always negative). • e relates to the number of exchangeable pairs in a particular electron configuration. This term is negative and depends on the number of possible states. Determine c and e for a d 5 metal complex (low and high spin).

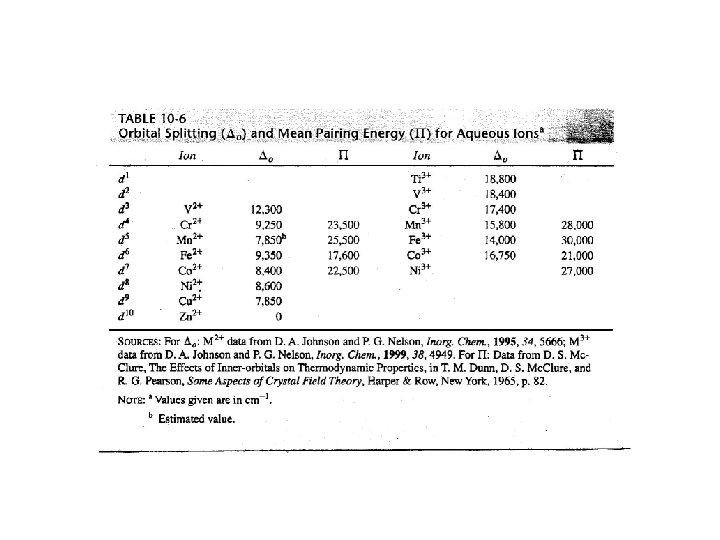

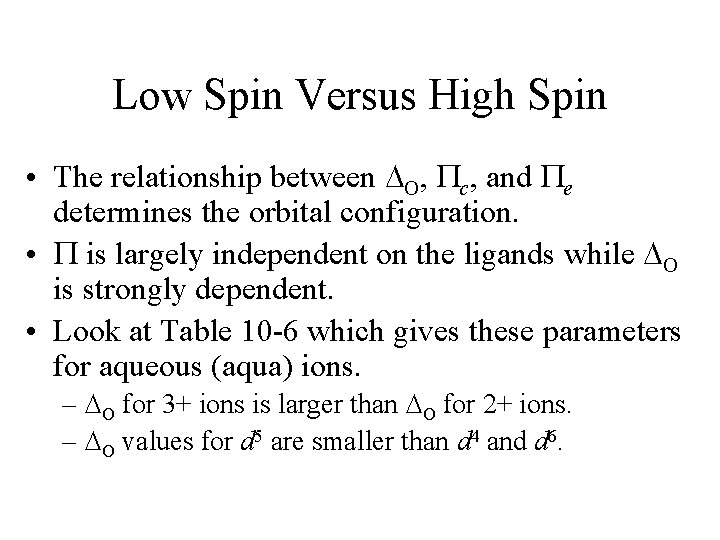

Low Spin Versus High Spin • The relationship between O, c, and e determines the orbital configuration. • is largely independent on the ligands while O is strongly dependent. • Look at Table 10 -6 which gives these parameters for aqueous (aqua) ions. – O for 3+ ions is larger than O for 2+ ions. – O values for d 5 are smaller than d 4 and d 6.

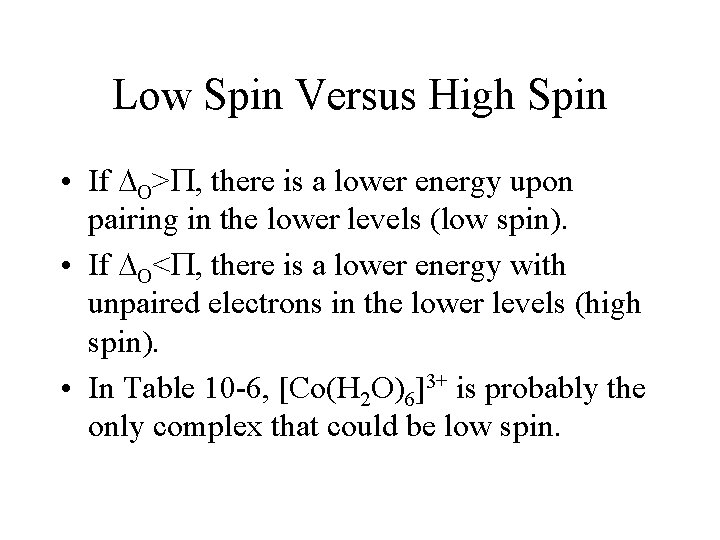

Low Spin Versus High Spin • If O> , there is a lower energy upon pairing in the lower levels (low spin). • If O< , there is a lower energy with unpaired electrons in the lower levels (high spin). • In Table 10 -6, [Co(H 2 O)6]3+ is probably the only complex that could be low spin.

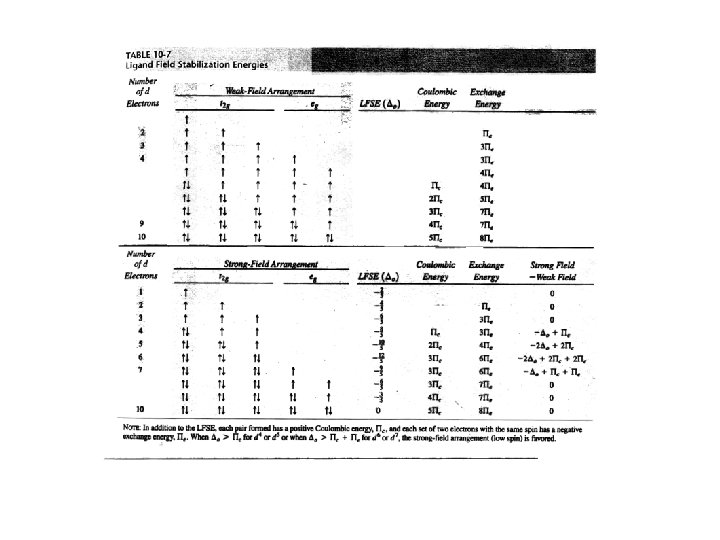

Ligand Field Stabilization Energies (LFSE) • The difference (1) the total energy of a coordination complex with the electron configuration resulting from ligand field splitting of the orbitals and (2) the total energy for the same complex with all the orbitals equally populated is the LFSE. • -2/5 O + 3/5 O (d 4 to d 7 complexes) • Table 10 -7

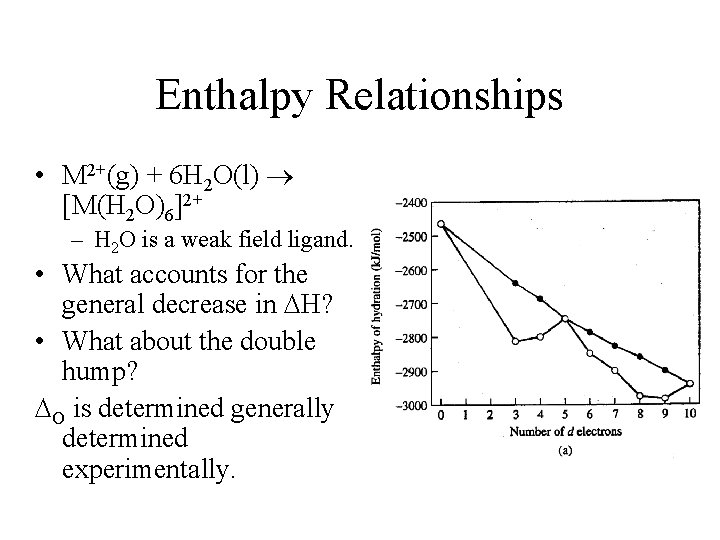

Enthalpy Relationships • M 2+(g) + 6 H 2 O(l) [M(H 2 O)6]2+ – H 2 O is a weak field ligand. • What accounts for the general decrease in H? • What about the double hump? O is determined generally determined experimentally.

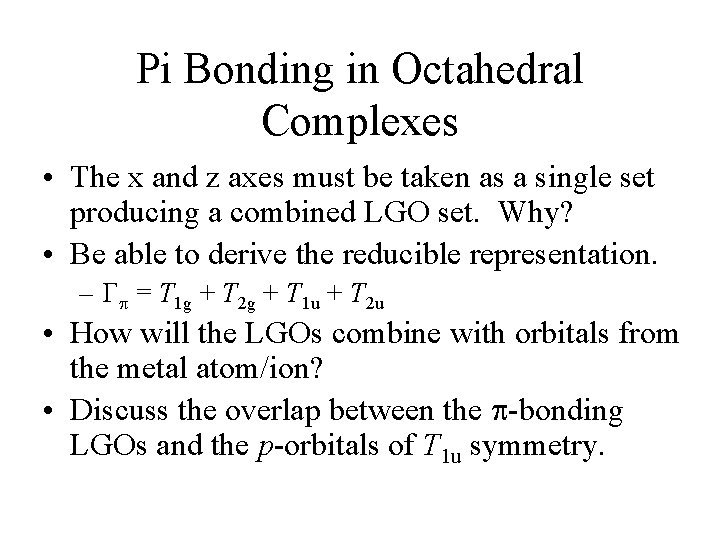

Pi Bonding in Octahedral Complexes • The x and z axes must be taken as a single set producing a combined LGO set. Why? • Be able to derive the reducible representation. – = T 1 g + T 2 g + T 1 u + T 2 u • How will the LGOs combine with orbitals from the metal atom/ion? • Discuss the overlap between the -bonding LGOs and the p-orbitals of T 1 u symmetry.

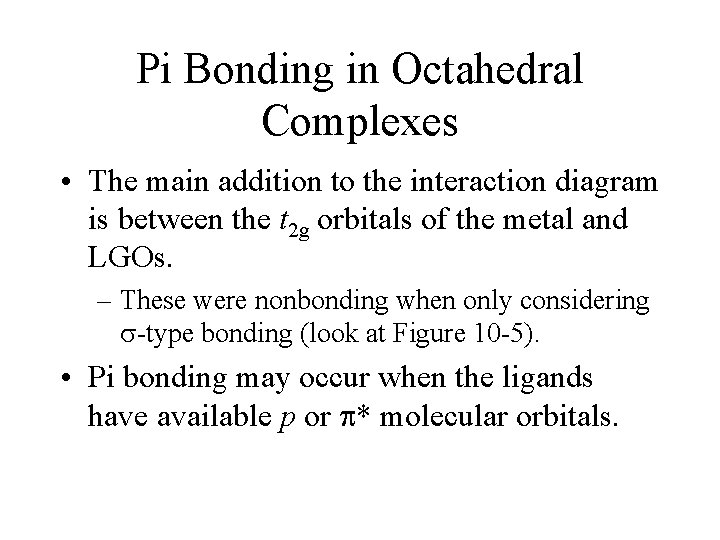

Pi Bonding in Octahedral Complexes • The main addition to the interaction diagram is between the t 2 g orbitals of the metal and LGOs. – These were nonbonding when only considering -type bonding (look at Figure 10 -5). • Pi bonding may occur when the ligands have available p or * molecular orbitals.

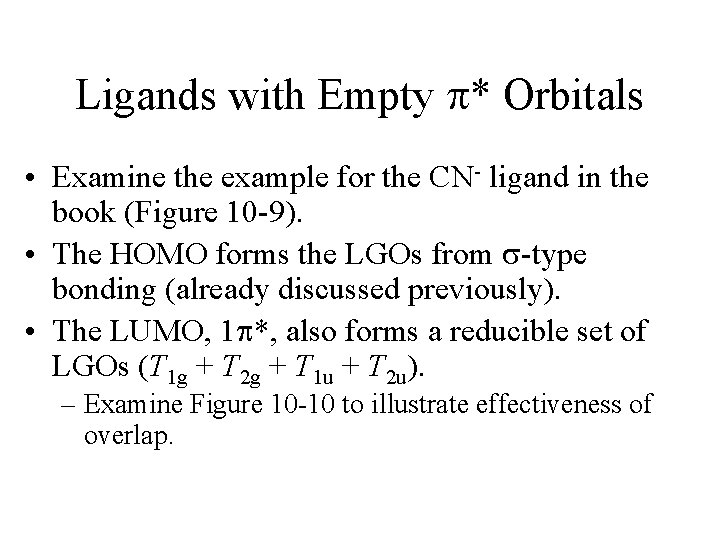

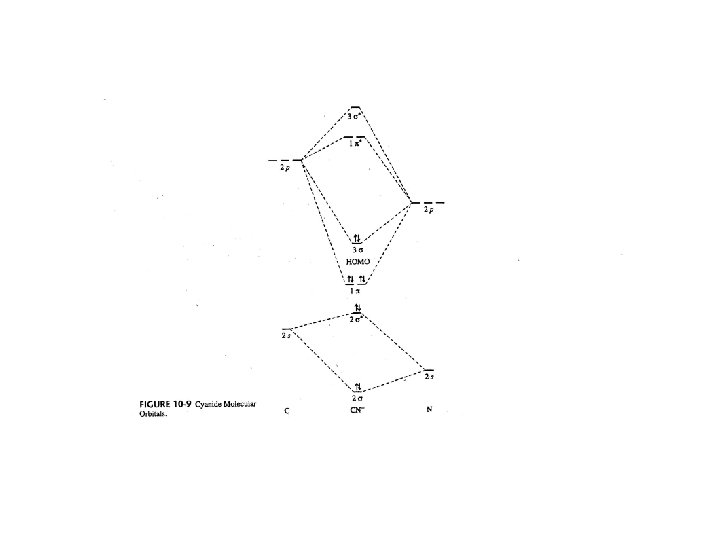

Ligands with Empty * Orbitals • Examine the example for the CN- ligand in the book (Figure 10 -9). • The HOMO forms the LGOs from -type bonding (already discussed previously). • The LUMO, 1 *, also forms a reducible set of LGOs (T 1 g + T 2 g + T 1 u + T 2 u). – Examine Figure 10 -10 to illustrate effectiveness of overlap.

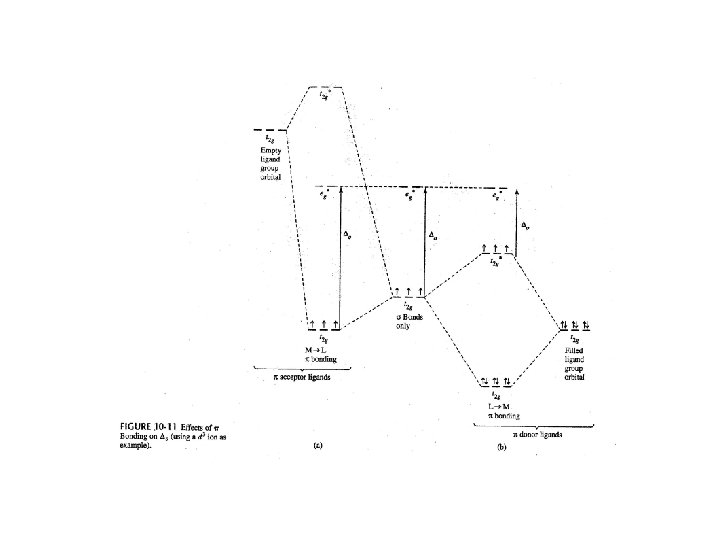

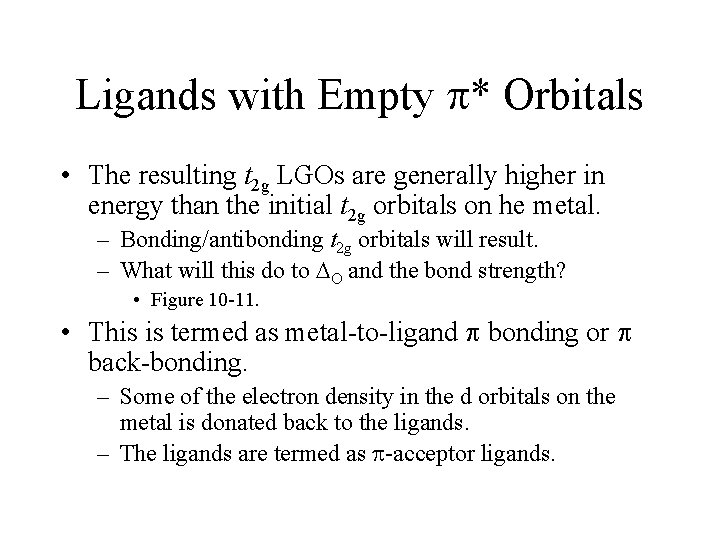

Ligands with Empty * Orbitals • The resulting t 2 g LGOs are generally higher in energy than the initial t 2 g orbitals on he metal. – Bonding/antibonding t 2 g orbitals will result. – What will this do to O and the bond strength? • Figure 10 -11. • This is termed as metal-to-ligand bonding or back-bonding. – Some of the electron density in the d orbitals on the metal is donated back to the ligands. – The ligands are termed as -acceptor ligands.

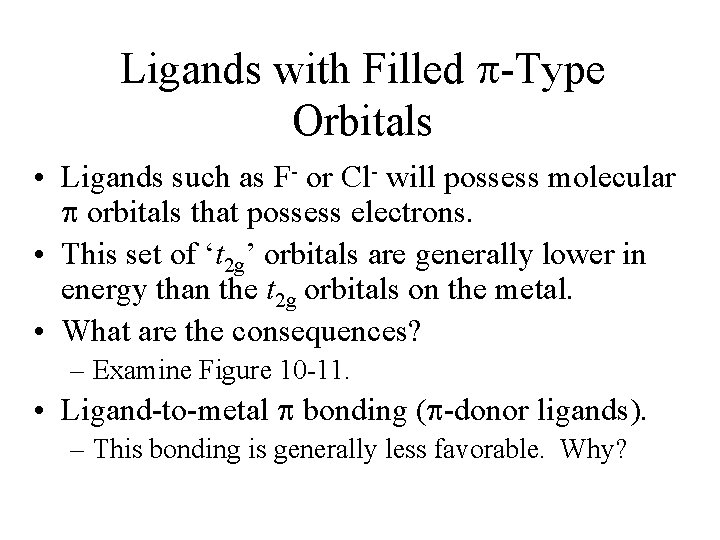

Ligands with Filled -Type Orbitals • Ligands such as F- or Cl- will possess molecular orbitals that possess electrons. • This set of ‘t 2 g’ orbitals are generally lower in energy than the t 2 g orbitals on the metal. • What are the consequences? – Examine Figure 10 -11. • Ligand-to-metal bonding ( -donor ligands). – This bonding is generally less favorable. Why?

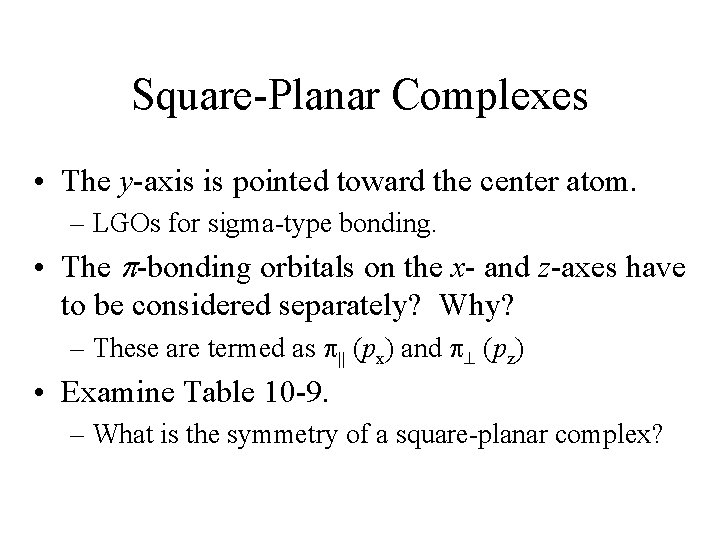

Square-Planar Complexes • The y-axis is pointed toward the center atom. – LGOs for sigma-type bonding. • The -bonding orbitals on the x- and z-axes have to be considered separately? Why? – These are termed as (px) and (pz) • Examine Table 10 -9. – What is the symmetry of a square-planar complex?

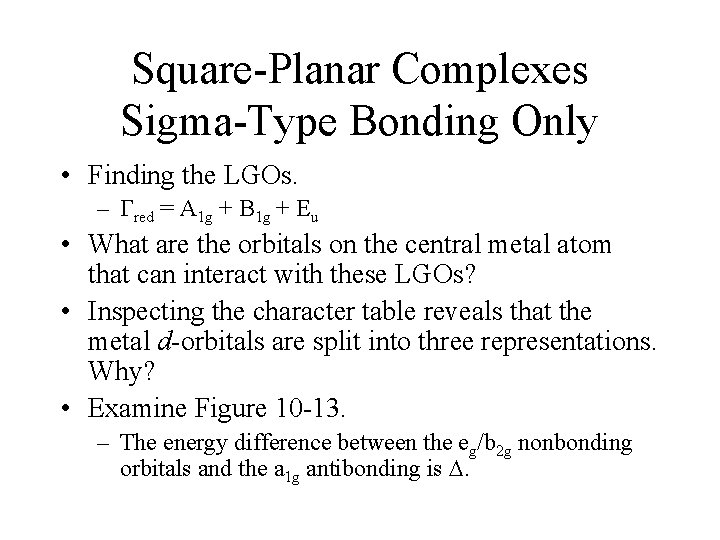

Square-Planar Complexes Sigma-Type Bonding Only • Finding the LGOs. – red = A 1 g + B 1 g + Eu • What are the orbitals on the central metal atom that can interact with these LGOs? • Inspecting the character table reveals that the metal d-orbitals are split into three representations. Why? • Examine Figure 10 -13. – The energy difference between the eg/b 2 g nonbonding orbitals and the a 1 g antibonding is .

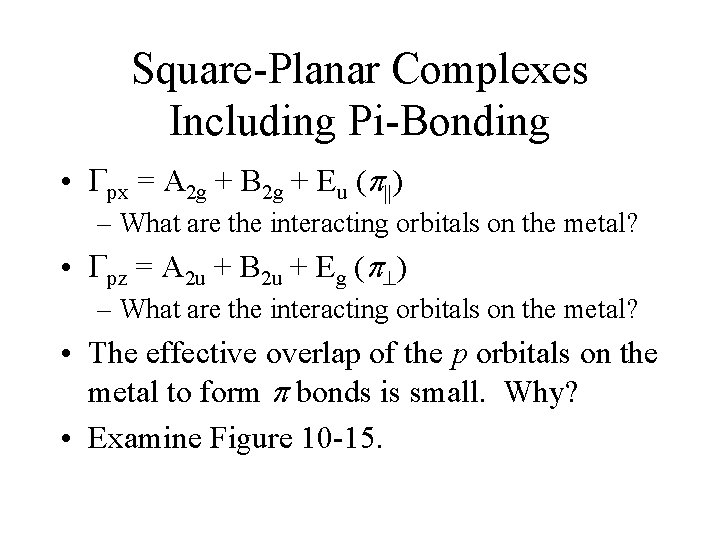

Square-Planar Complexes Including Pi-Bonding • px = A 2 g + B 2 g + Eu ( ) – What are the interacting orbitals on the metal? • pz = A 2 u + B 2 u + Eg ( ) – What are the interacting orbitals on the metal? • The effective overlap of the p orbitals on the metal to form bonds is small. Why? • Examine Figure 10 -15.

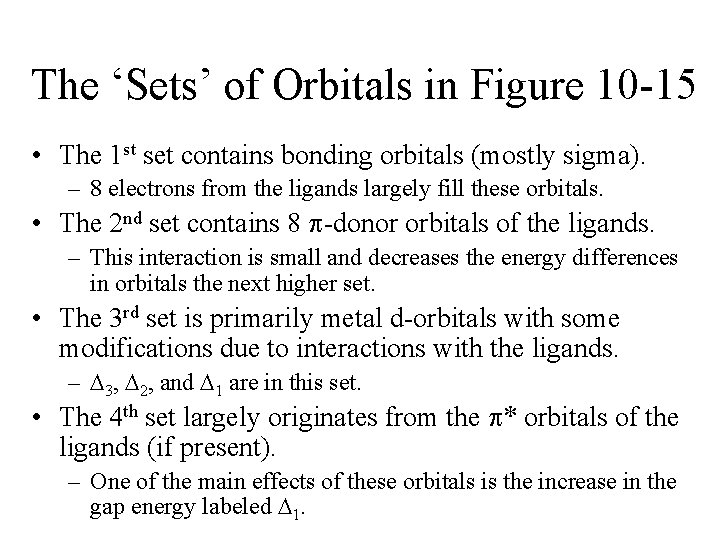

The ‘Sets’ of Orbitals in Figure 10 -15 • The 1 st set contains bonding orbitals (mostly sigma). – 8 electrons from the ligands largely fill these orbitals. • The 2 nd set contains 8 -donor orbitals of the ligands. – This interaction is small and decreases the energy differences in orbitals the next higher set. • The 3 rd set is primarily metal d-orbitals with some modifications due to interactions with the ligands. – 3, 2, and 1 are in this set. • The 4 th set largely originates from the * orbitals of the ligands (if present). – One of the main effects of these orbitals is the increase in the gap energy labeled 1.

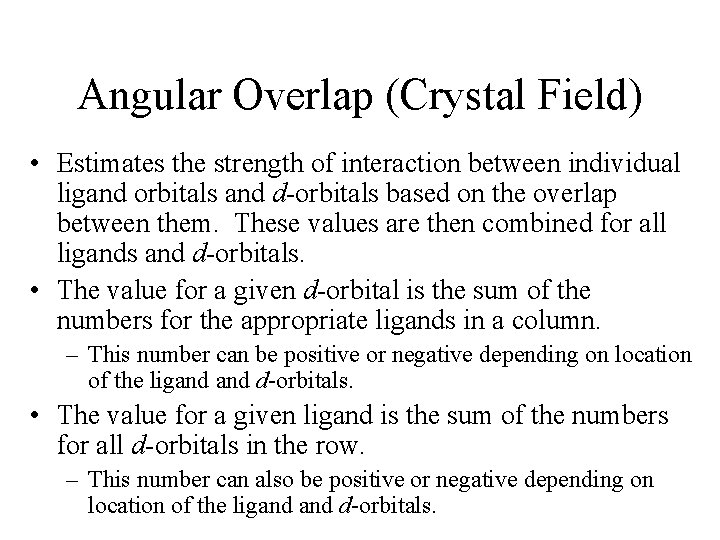

Angular Overlap (Crystal Field) • Estimates the strength of interaction between individual ligand orbitals and d-orbitals based on the overlap between them. These values are then combined for all ligands and d-orbitals. • The value for a given d-orbital is the sum of the numbers for the appropriate ligands in a column. – This number can be positive or negative depending on location of the ligand d-orbitals. • The value for a given ligand is the sum of the numbers for all d-orbitals in the row. – This number can also be positive or negative depending on location of the ligand d-orbitals.

Angular Overlap • Sigma-donor interaction (no pi-orbitals are available). – [M(NH 3)6]n+ • The strongest interaction is between the metal dz 2 orbital and a ligand p-orbital (or appropriate MO). • Describe the interaction based on this method. – Table 10 -11 and Figure 10 -20.

Angular Overlap • Pi-acceptor ligands (available -type orbitals). • Strongest interaction is between dxz and * on the ligand. • The * orbitals are almost always higher in energy. – Reverse the signs. • Figure 10 -22 and Table 10 -12 – There is a lowering of 4 e due to this interaction. • Why is magnitude e always smaller than that of e ? • Understand -donor interactions.

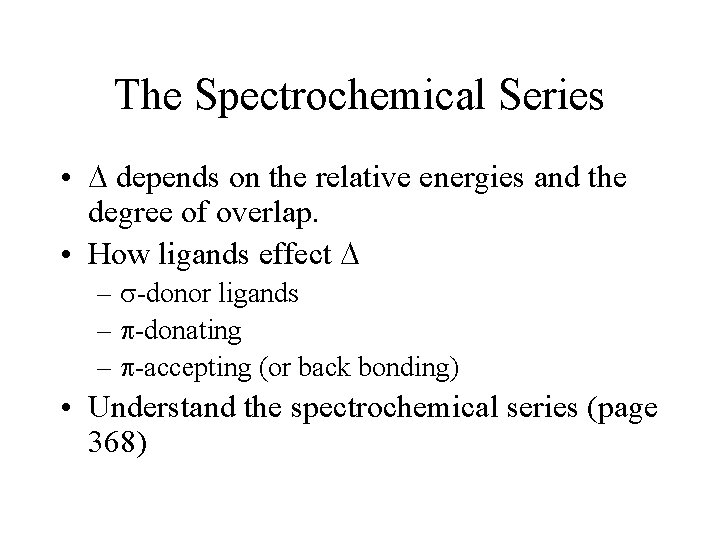

The Spectrochemical Series • depends on the relative energies and the degree of overlap. • How ligands effect – -donor ligands – -donating – -accepting (or back bonding) • Understand the spectrochemical series (page 368)

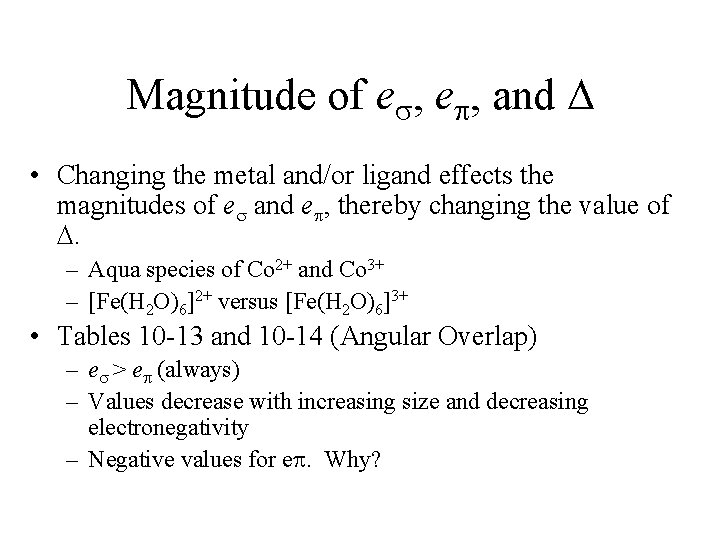

Magnitude of e , and • Changing the metal and/or ligand effects the magnitudes of e and e , thereby changing the value of . – Aqua species of Co 2+ and Co 3+ – [Fe(H 2 O)6]2+ versus [Fe(H 2 O)6]3+ • Tables 10 -13 and 10 -14 (Angular Overlap) – e > e (always) – Values decrease with increasing size and decreasing electronegativity – Negative values for e. Why?

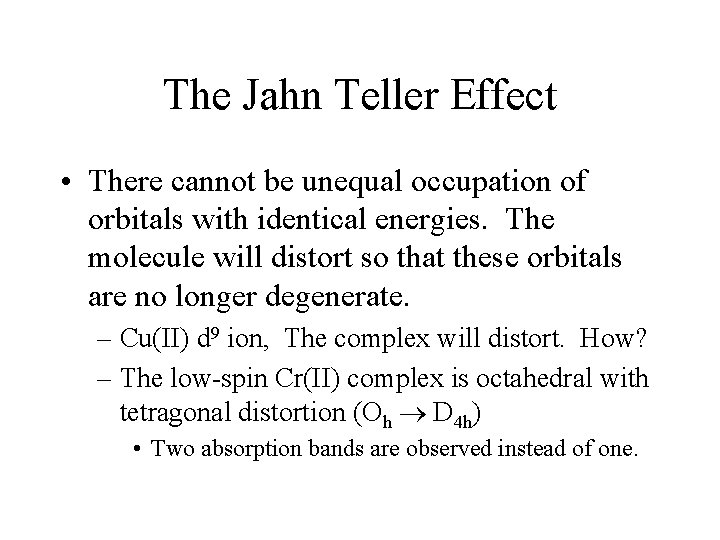

The Jahn Teller Effect • There cannot be unequal occupation of orbitals with identical energies. The molecule will distort so that these orbitals are no longer degenerate. – Cu(II) d 9 ion, The complex will distort. How? – The low-spin Cr(II) complex is octahedral with tetragonal distortion (Oh D 4 h) • Two absorption bands are observed instead of one.

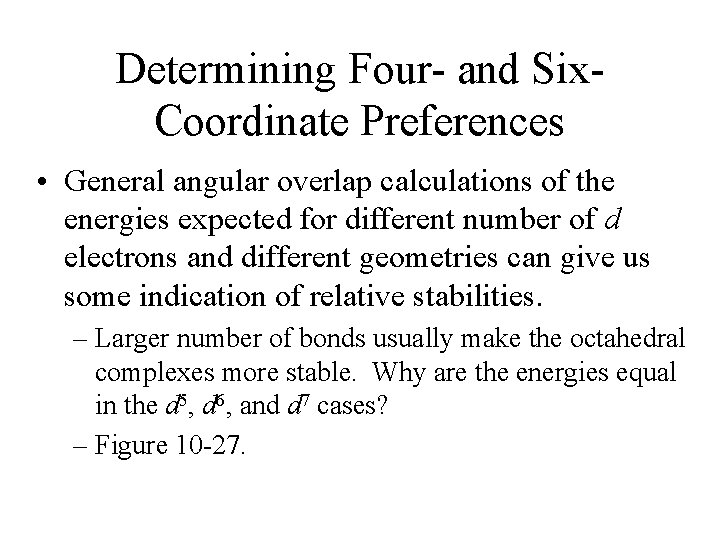

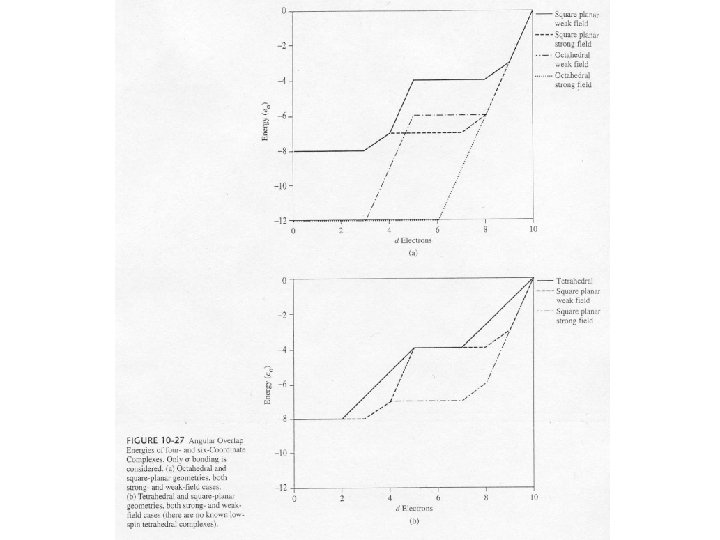

Determining Four- and Six. Coordinate Preferences • General angular overlap calculations of the energies expected for different number of d electrons and different geometries can give us some indication of relative stabilities. – Larger number of bonds usually make the octahedral complexes more stable. Why are the energies equal in the d 5, d 6, and d 7 cases? – Figure 10 -27.

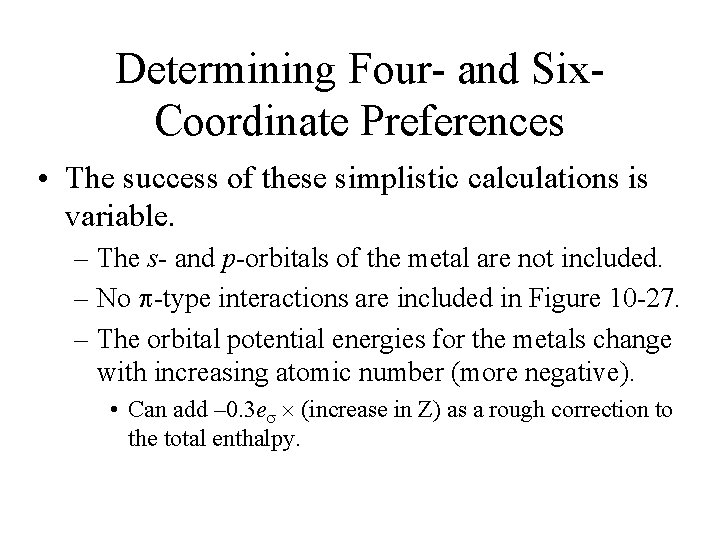

Determining Four- and Six. Coordinate Preferences • The success of these simplistic calculations is variable. – The s- and p-orbitals of the metal are not included. – No -type interactions are included in Figure 10 -27. – The orbital potential energies for the metals change with increasing atomic number (more negative). • Can add – 0. 3 e (increase in Z) as a rough correction to the total enthalpy.

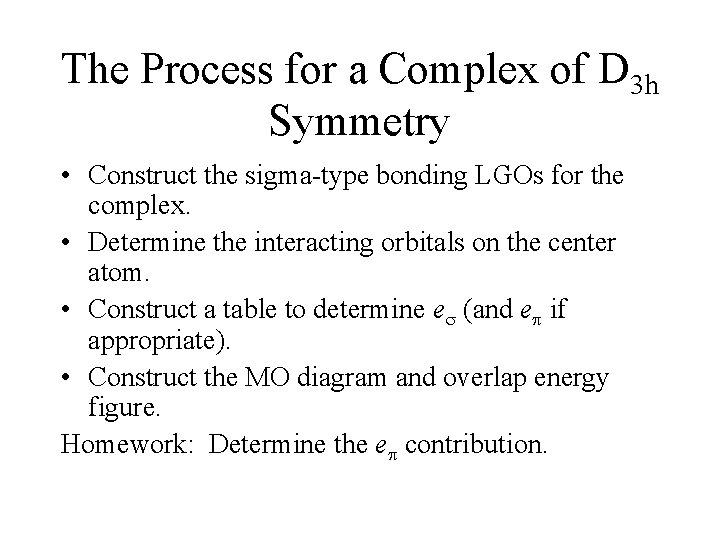

The Process for a Complex of D 3 h Symmetry • Construct the sigma-type bonding LGOs for the complex. • Determine the interacting orbitals on the center atom. • Construct a table to determine e (and e if appropriate). • Construct the MO diagram and overlap energy figure. Homework: Determine the e contribution.
