Coordinates Plotting Worksheet A Worksheets increase in difficulty

Coordinates – Plotting – Worksheet A Worksheets increase in difficulty and are in 2 sizes.

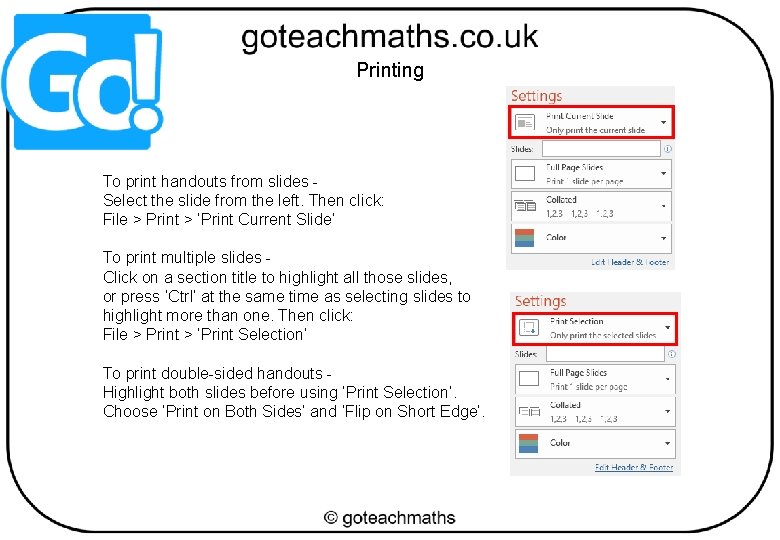

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

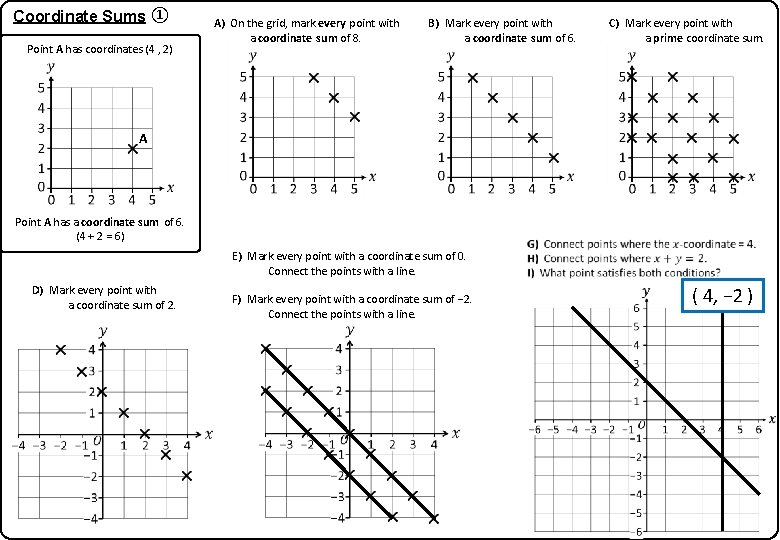

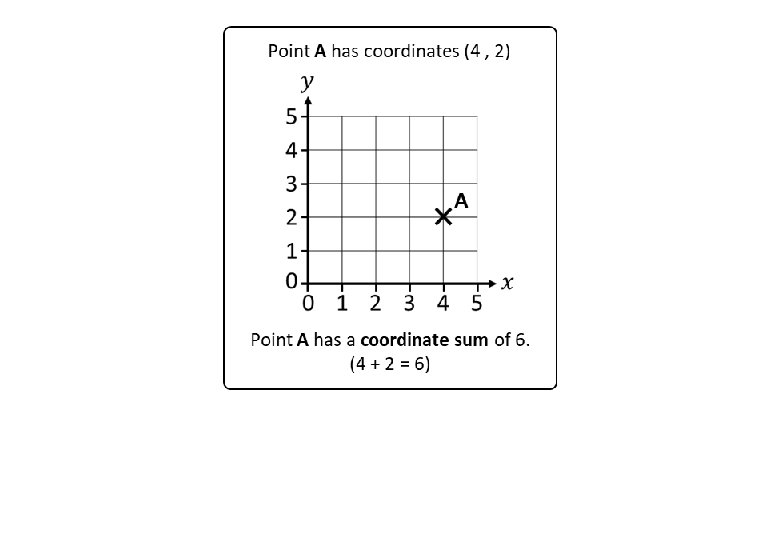

Coordinate Sums ① Point A has coordinates (4 , 2) A) On the grid, mark every point with a coordinate sum of 8. B) Mark every point with a coordinate sum of 6. C) Mark every point with a prime coordinate sum. A Point A has a coordinate sum of 6. (4 + 2 = 6) E) Mark every point with a coordinate sum of 0. Connect the points with a line. D) Mark every point with a coordinate sum of 2. F) Mark every point with a coordinate sum of − 2. Connect the points with a line. ( 4, − 2 )

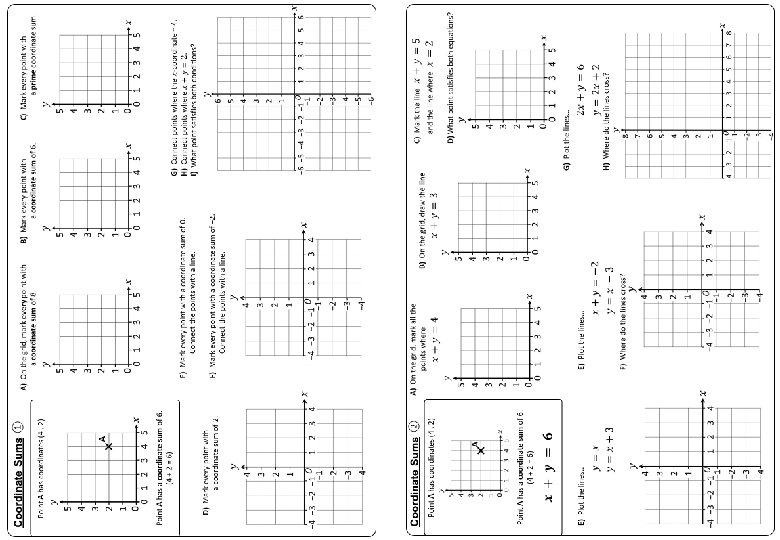

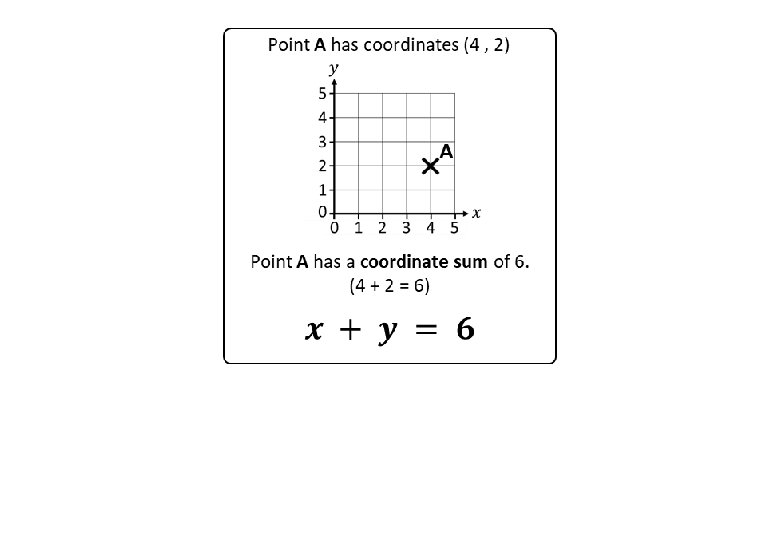

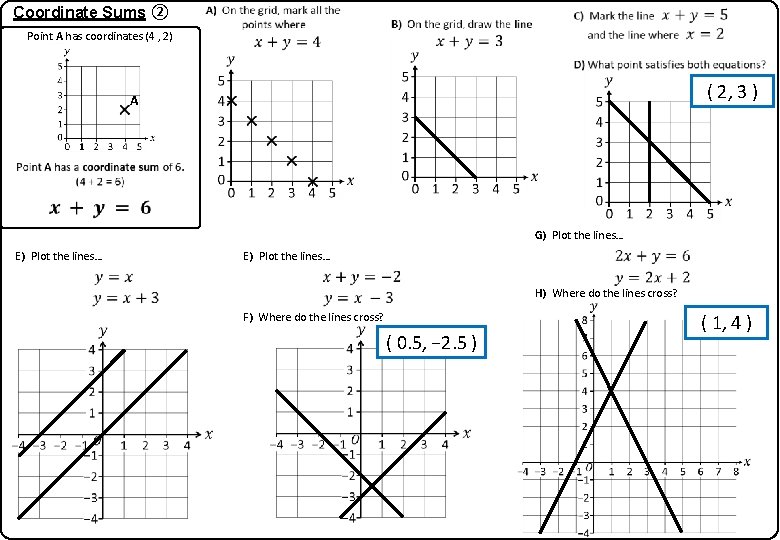

Coordinate Sums ② Point A has coordinates (4 , 2) ( 2, 3 ) A G) Plot the lines… E) Plot the lines… H) Where do the lines cross? F) Where do the lines cross? ( 0. 5, − 2. 5 ) ( 1, 4 )

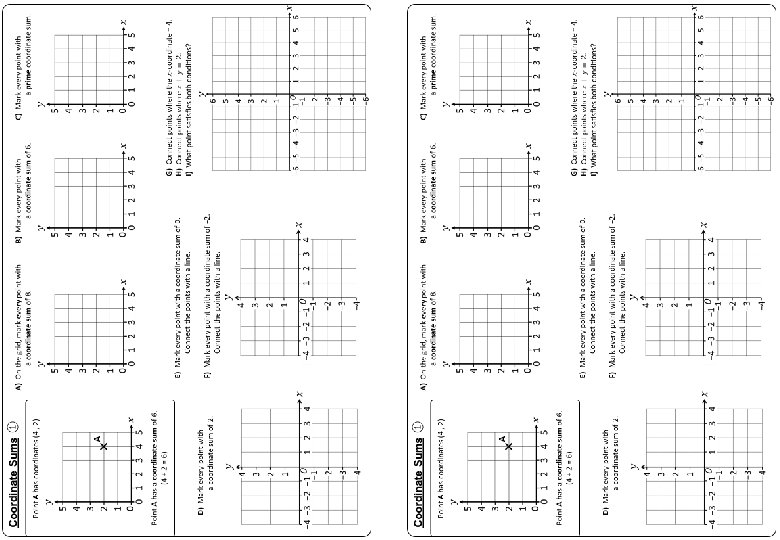

Coordinate Sums ① Point A has coordinates (4 , 2) A) On the grid, mark every point with a coordinate sum of 8. B) Mark every point with a coordinate sum of 6. A Point A has a coordinate sum of 6. (4 + 2 = 6) E) Mark every point with a coordinate sum of 0. Connect the points with a line. D) Mark every point with a coordinate sum of 2. F) Mark every point with a coordinate sum of − 2. Connect the points with a line. C) Mark every point with a prime coordinate sum.

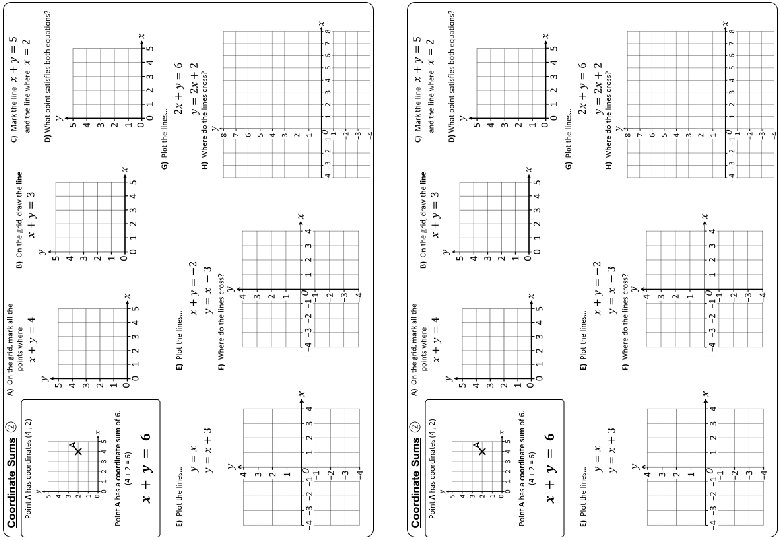

Coordinate Sums ② Point A has coordinates (4 , 2) A G) Plot the lines… E) Plot the lines… F) Where do the lines cross? H) Where do the lines cross?
