Coordinates Geometry Foundation GCSE Questions These questions are
- Slides: 7
Coordinates & Geometry – Foundation – GCSE Questions These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in a variety of sizes.
Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.
GCSE 1 GCSE Edexcel Foundation: May 2018 Paper 1, Q 24 1 A pattern is made from four identical squares. The sides of the squares are parallel to the axes. Edexcel Foundation: May 2018 Paper 1, Q 24 A pattern is made from four identical squares. The sides of the squares are parallel to the axes. y y B (32, 21) × × C × A (4, 5) C × × A (4, 5) O O x Point A has the coordinates (4, 5) Point B has the coordinates (32, 21) Point C is marked on the diagram. Work out the coordinates of Point C. ( , × ) (Total for Question 1 is 5 marks) x ( , ) (Total for Question 1 is 5 marks)

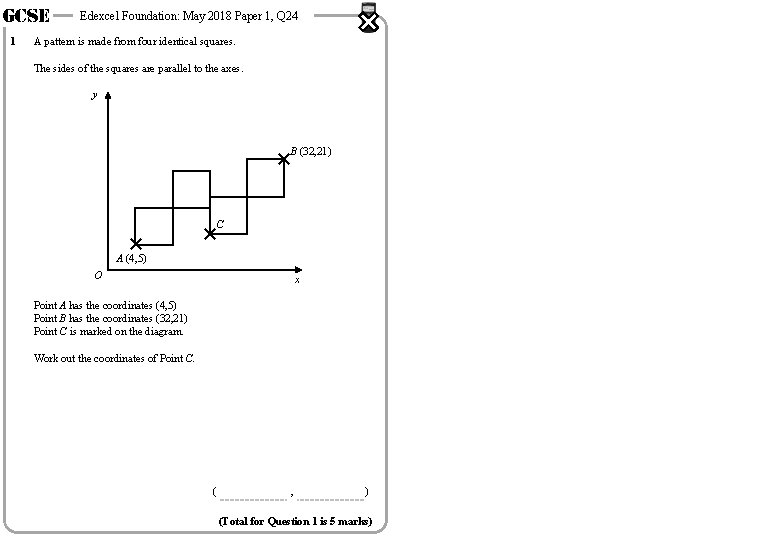

GCSE 1 Edexcel Foundation: May 2018 Paper 1, Q 24 A pattern is made from four identical squares. The sides of the squares are parallel to the axes. y B (32, 21) × C × A (4, 5) × O x Point A has the coordinates (4, 5) Point B has the coordinates (32, 21) Point C is marked on the diagram. Work out the coordinates of Point C. ( , ) (Total for Question 1 is 5 marks)
GCSE 1 Edexcel Foundation: May 2018 Paper 1, Q 24 A pattern is made from four identical squares. The sides of the squares are parallel to the axes. y x coordinates 32 – 4 = 28 total 2 x 7 = 14 B (32, 21) × C × A (4, 5) × O 2 x 7 = 14 x Point A has the coordinates (4, 5) Point B has the coordinates (32, 21) Point C is marked on the diagram. x coordinate 4 + 14 = 18 y coordinate 21 – 14 = 7 Work out the coordinates of Point C. 28 ÷ 4 = 7 7 7 ( 18 , 7 ) (Total for Question 1 is 5 marks)
Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
