Coordinate systems Geodetic Datum Ellipsoid Projection TWD 67
- Slides: 34

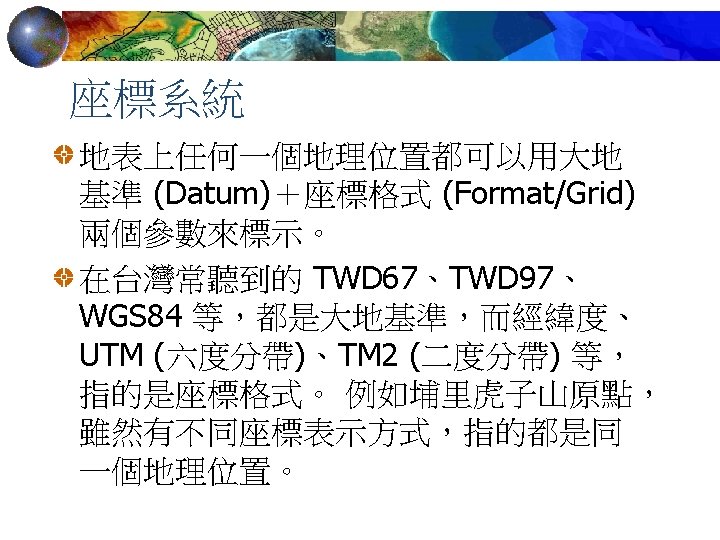

坐標系統 Coordinate systems

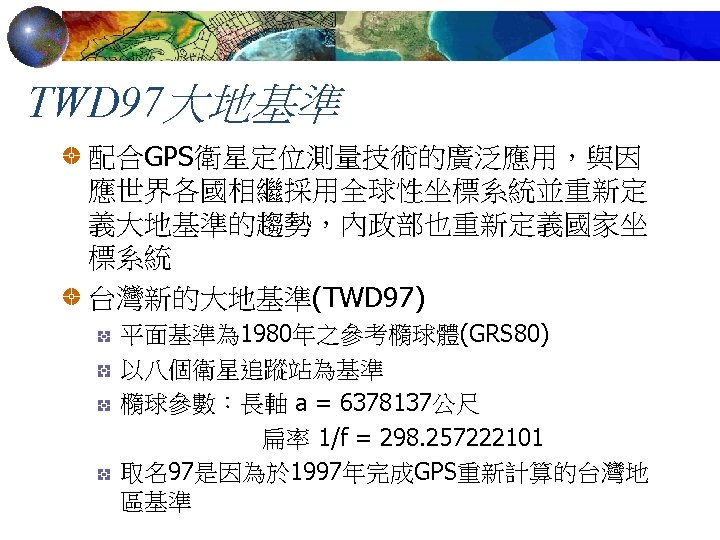

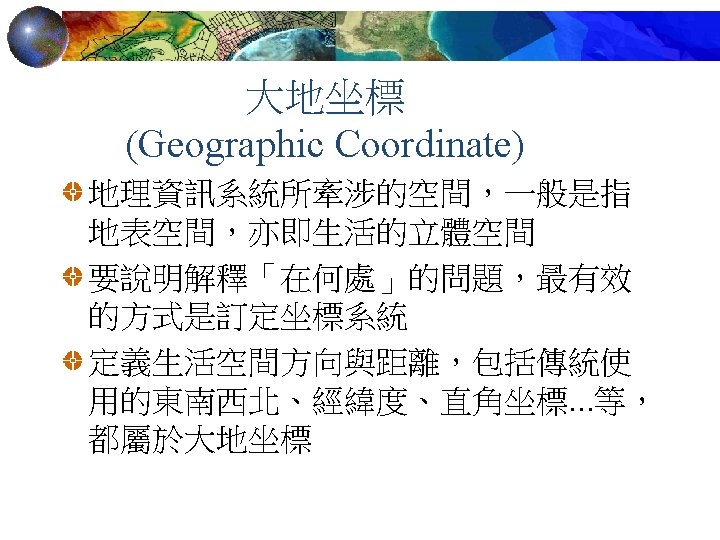

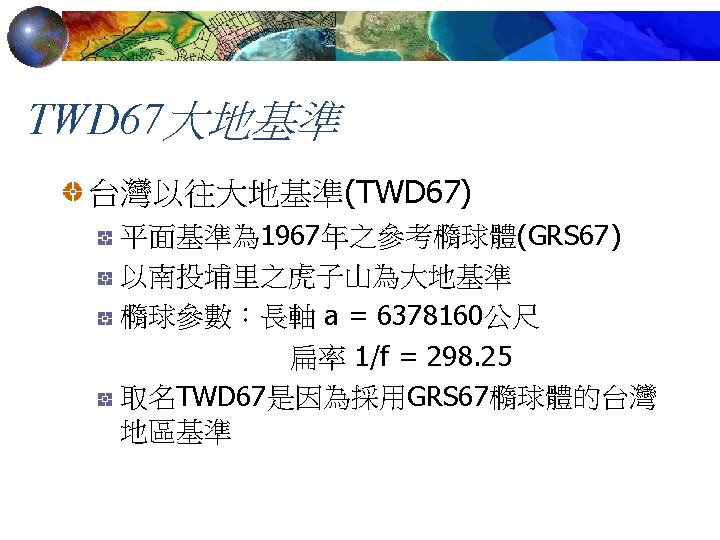

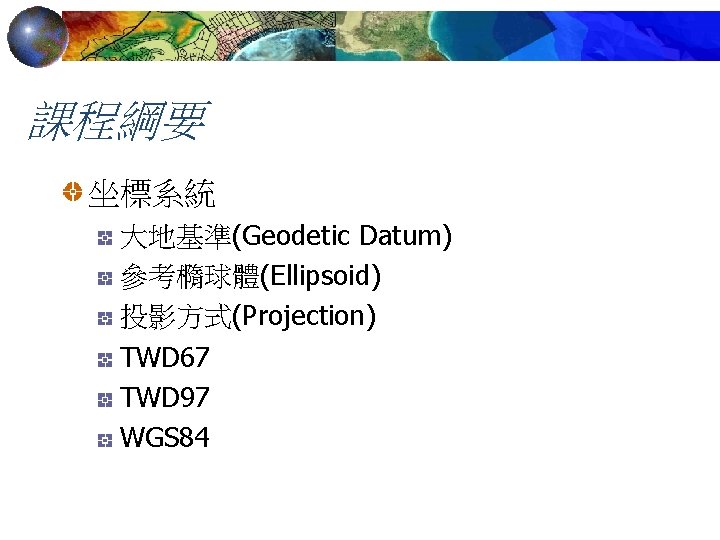

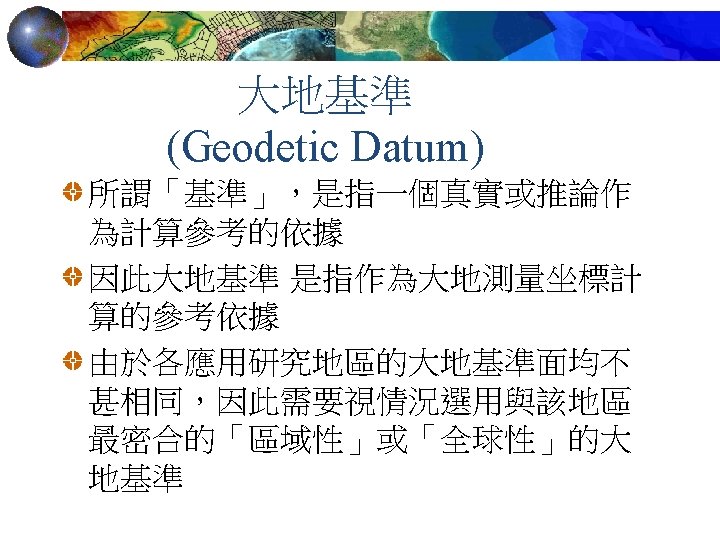

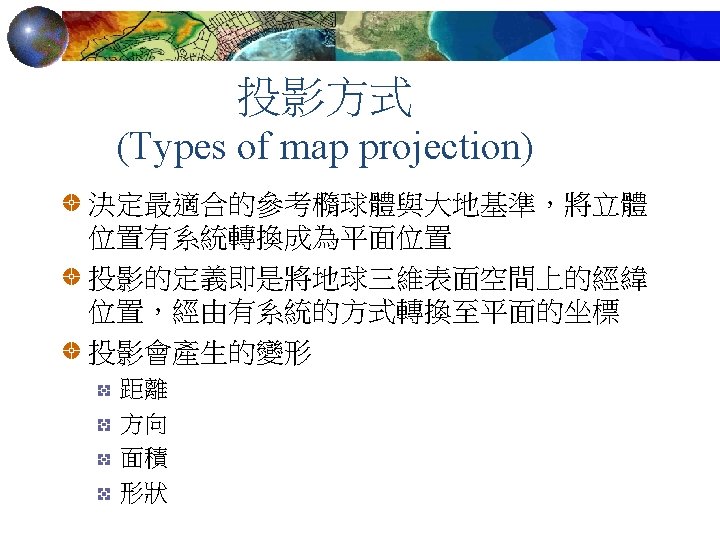

課程綱要 坐標系統 大地基準(Geodetic Datum) 參考橢球體(Ellipsoid) 投影方式(Projection) TWD 67 TWD 97 WGS 84

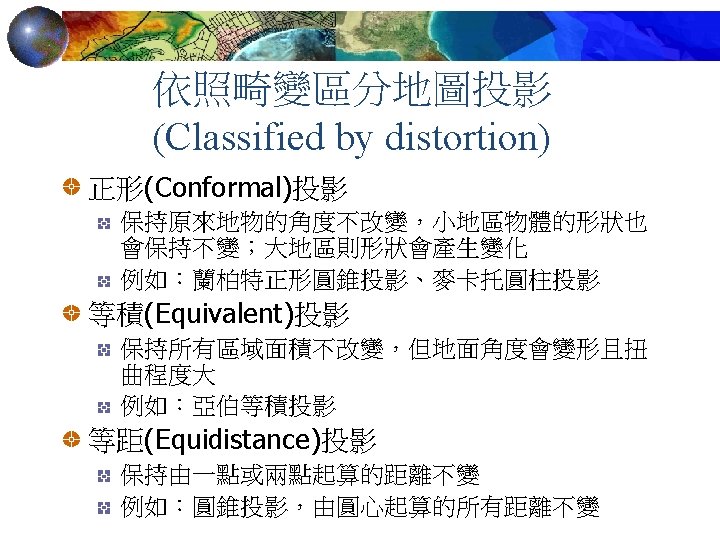

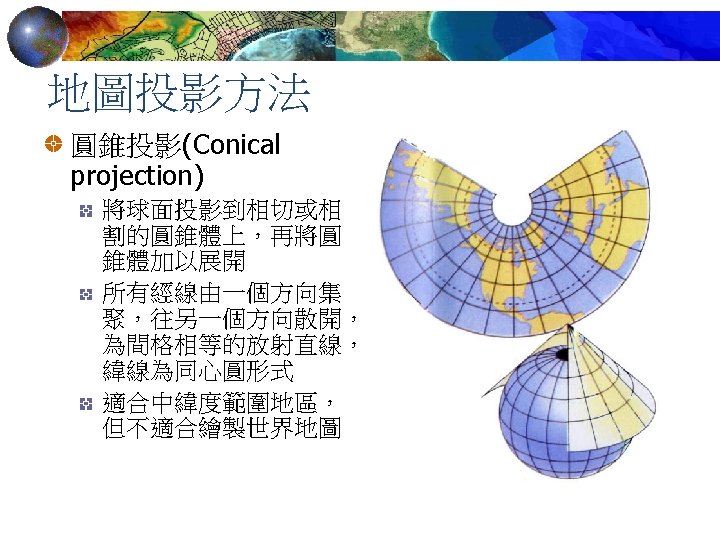

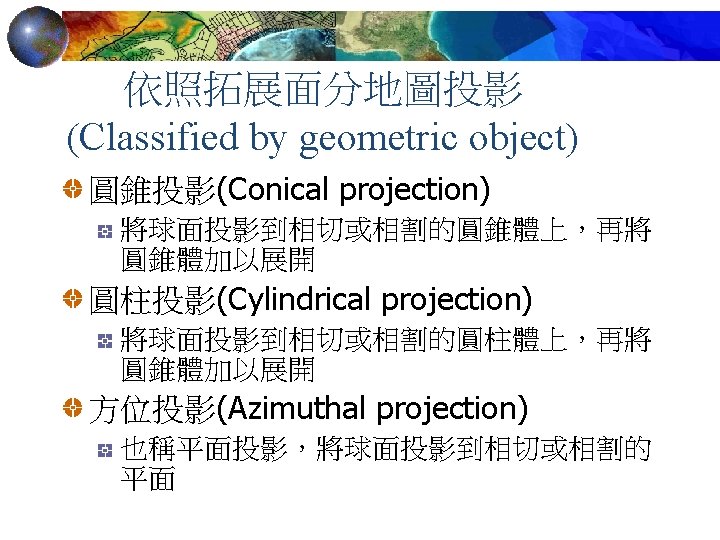

藍伯特投影(Lambert Conformal Conic) 圓錐投影(Conic Projection) 等積投影 (Equal Area ): 形狀正確, 面積正確
麥卡托投影(Mercator projection) 正形投影(conformal): 角度正確, 方向正確 圓柱形投影(Cylindrical Projection)

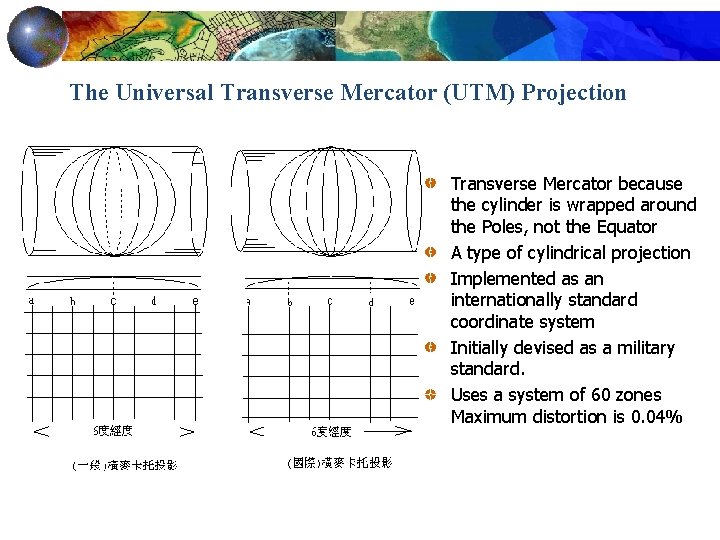

The Universal Transverse Mercator (UTM) Projection Transverse Mercator because the cylinder is wrapped around the Poles, not the Equator A type of cylindrical projection Implemented as an internationally standard coordinate system Initially devised as a military standard. Uses a system of 60 zones Maximum distortion is 0. 04%

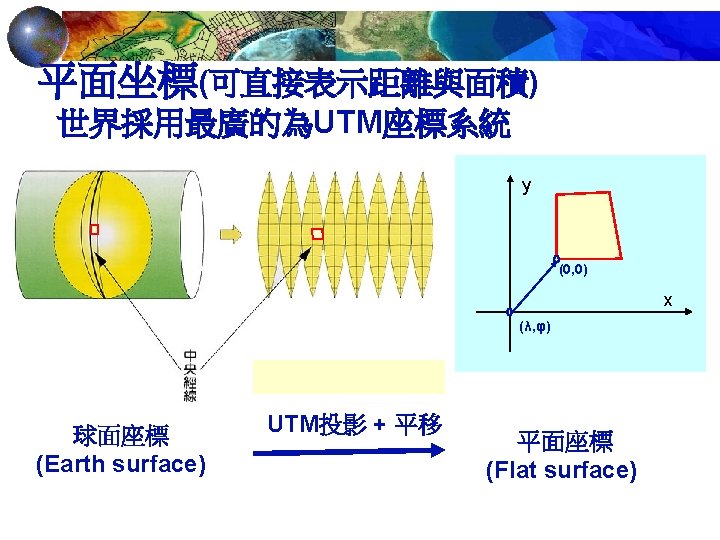

Universal Transverse Mercator (UTM) Projection 國際橫麥卡托投影

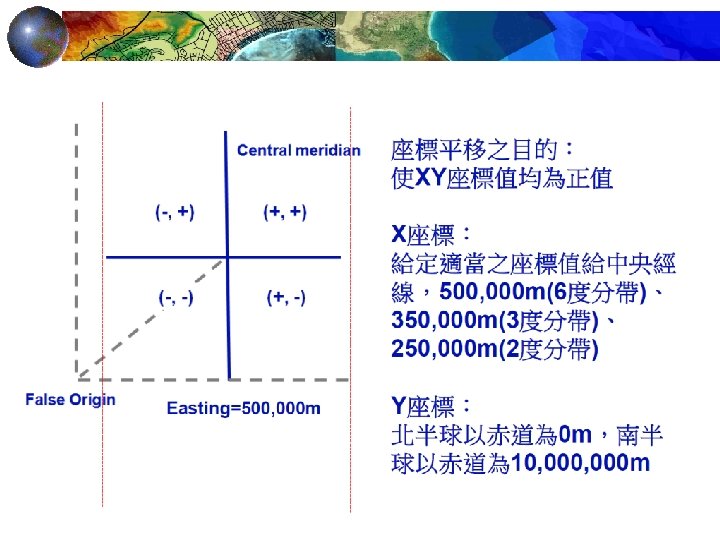

UTM Coordinates In the N Hemisphere define the Equator as 0 m. N The central meridian (中央經線) of the zone is given a false Easting of 500, 000 m. E Eastings and northings are both in meters allowing easy estimation of distance on the projection A UTM georeference consists of a zone number, a six-digit easting and a sevendigit northing E. g. , 14, 468324 E, 5362789 N

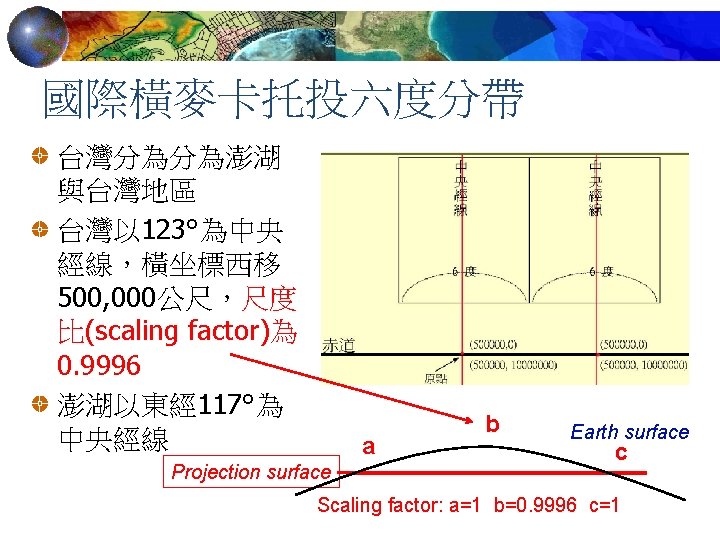

如何將台灣常用的分帶座標系統設定至MAPINFO之座標系統中? 將下段文字貼到"Mapinfow. prj"檔內即可 "--- 橫麥卡托(Transverse Mercator) ---" "39台灣2度分帶(公尺) ", 8, 39, 7, 121. 00000, 0. 9999, 250000, 0 "32澎湖2度分帶(公尺) ", 8, 32, 7, 119. 00000, 0. 9999, 250000, 0 "39台灣3度分帶(公尺) ", 8, 39, 7, 121. 00000, 0. 00000, 1. 0000, 350000, 0 "台灣6度分帶(公尺) ", 8, 39, 7, 123. 00000, 0. 9996, 500000, 0 "澎湖6度分帶(公尺) ", 8, 39, 7, 117. 00000, 0. 9996, 500000, 0 "台灣6度分帶(公尺)for 1/10萬 ", 8, 39, 7, 121. 00000, 0. 9996, 500000, 0 "32台灣3度分帶(公尺) ", 8, 32, 7, 121. 00000, 0. 00000, 1. 0000, 350000, 0 TM二度分帶座標系統參數列表 Equidistant Conic Map. Info Parameter Projection Transverse Mercator (Kauss-Kruger) 8 Datum Hu-Tzu-Shan or GRS 67 39 or 32 Units meters 7 Standard Parallels 121. 00000 or 119. 00000 121. 000000 or 119. 00000 Scale Factor 0. 0000, 0. 9999 0. 0000, 0. 9999 False Easting 250000 False Northing 0 0
Super. GIS 座標系統設定 7 parameters for UTM
