Coordinate Geometry

Definition n Grid – A pattern of horizontal and vertical lines, usually forming squares. Copyright © 2000 by Monica Yuskaitis

Definition n Coordinate grid – a grid used to locate a point by its distances from 2 intersecting straight lines. A B C D E What are the coordinates for the house? 1 2 3 4 5 Copyright © 2000 by Monica Yuskaitis

Definition n x axis – a horizontal number line on a coordinate grid. 0 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

Hint n x is the shortest and likes to lie down horizontally. 0 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

Definition n y axis – a vertical number line on a coordinate grid. y 6 5 4 3 2 1 0 Copyright © 2000 by Monica Yuskaitis

Hint n y is the tallest and stands upright or vertically. y 6 5 4 3 2 1 0 Copyright © 2000 by Monica Yuskaitis

Definition n Coordinates – an ordered pair of numbers that give the location of a point on a grid. (3, 4) 6 5 (3, 4) 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis

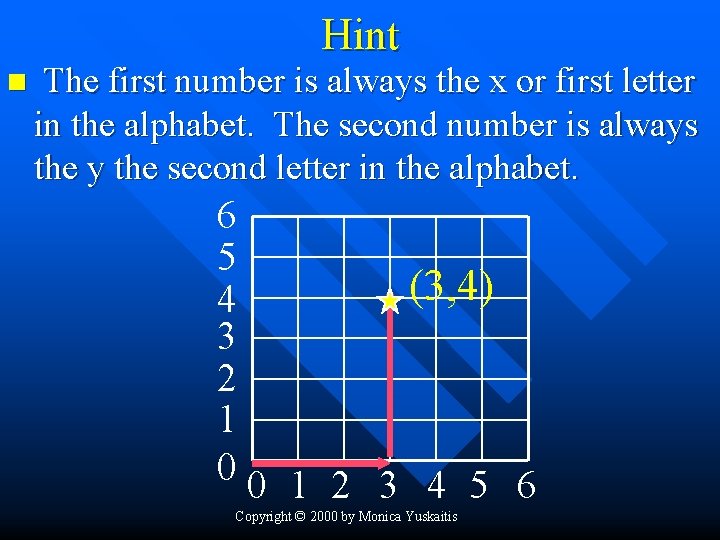

Hint n The first number is always the x or first letter in the alphabet. The second number is always the y the second letter in the alphabet. 6 5 (3, 4) 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis

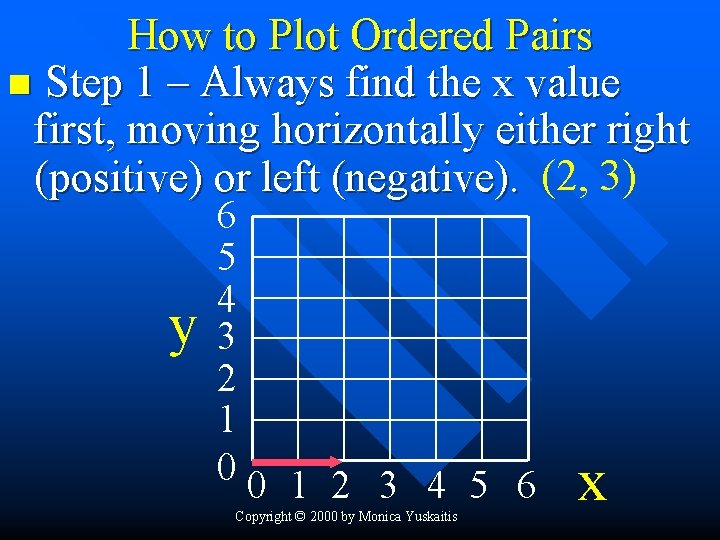

How to Plot Ordered Pairs n Step 1 – Always find the x value first, moving horizontally either right (positive) or left (negative). (2, 3) y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

How to Plot Ordered Pairs n Step 2 – Starting from your new position find the y value by moving vertically either up (positive) or down (negative). 6 (2, 3) 5 4 (2, 3) y 3 2 1 00 1 2 3 4 5 6 x Copyright © 2000 by Monica Yuskaitis

How to Find Ordered Pairs n Step 1 – Find how far over horizontally the point is by counting to the right (positive) or the left (negative). (5, ) 6 5 4 y 3 2 1 00 1 2 3 4 5 6 x Copyright © 2000 by Monica Yuskaitis

How to Find Ordered Pairs n Step 2 – Now count how far vertically the point is by counting up (5, 4) (positive) or down (negative). y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

What is the ordered pair? (3, 5) y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

What is the ordered pair? (2, 6) y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

What is the ordered pair? (4, 0) y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

What is the ordered pair? (0, 5) y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

What is the ordered pair? (1, 1) y 6 5 4 3 2 1 00 1 2 3 4 5 6 Copyright © 2000 by Monica Yuskaitis x

Four Quadrants of Coordinate Grid n When the number lines are extended into the negative number lines you add 3 more quadrants to the coordinate grid. y 3 2 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

Four Quadrants of Coordinate Grid n If the x is negative you move to the left of the 0. x = -2 y 3 2 1 0 -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis x

Four Quadrants of Coordinate Grid n If the y is negative you move down below the zero. y = -3 y 3 2 1 0 -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis x

How to Plot in 4 Quadrants n Step 1 - Plot the x number first moving to the left when the number is negative. (-3, -2) 3 y 2 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

How to Plot in 4 Quadrants n Step 2 - Plot the y number moving from your new position down 2 when the number is y 3 negative. 2 (-3, -2) 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

How to Plot in 4 Quadrants n When x is positive and y is negative, plot the ordered pair in this manner. y 3 2 (2, -2) 1 0 -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis x

How to Plot in 4 Quadrants n When x is negative and y is positive, plot the ordered pair in this manner. y 3 2 (-2, 2) 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

Plot This Ordered Pair (-3, -3) y 3 2 1 0 -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis x

Plot This Ordered Pair (-1, 2) y 3 2 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

Plot This Ordered Pair (1, -1) y 3 2 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

Plot This Ordered Pair (2, -2) y 3 2 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis

Plot This Ordered Pair (-3, -2) y 3 2 1 0 x -1 -2 -3 -3 -2 -1 0 1 2 3 Copyright © 2000 by Monica Yuskaitis
