Coolant Fill Coolant Check and Fill Oil Fill

Coolant Fill Coolant Check and Fill

Oil Fill & Dip Stick Delo 400 – 40 wt. Engine Oil Main Engine Oil Fill

Engine Oil Dipstick “Full Mark When Not Running Operating Range When Running (Below 900 rpm) Operating range when Not running

Engine Oil Suction (Drain) Suction Connection

Reverse Gear (starboard side) Oil Fill Plug – use 40 wt engine oil Vent Dipstick – Check When Not Running Dipstick – check when engine is NOT running

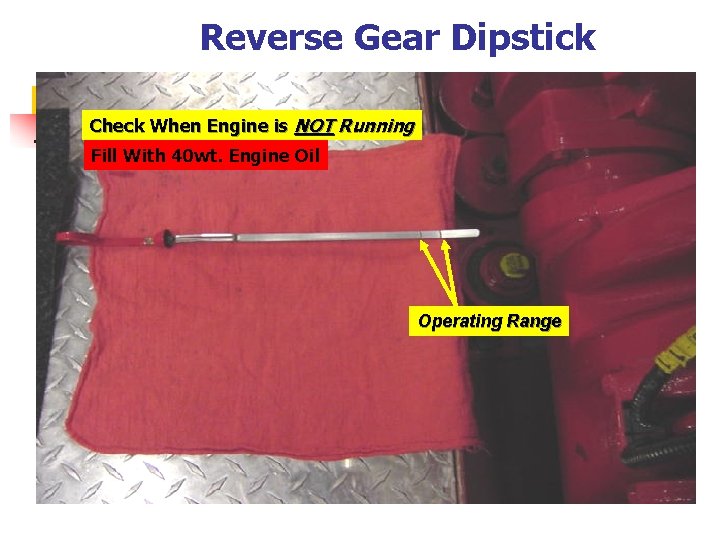

Reverse Gear Dipstick Check When Engine is NOT Running Fill With 40 wt. Engine Oil Operating Range

Generator Coolant Do Not Check When Hot

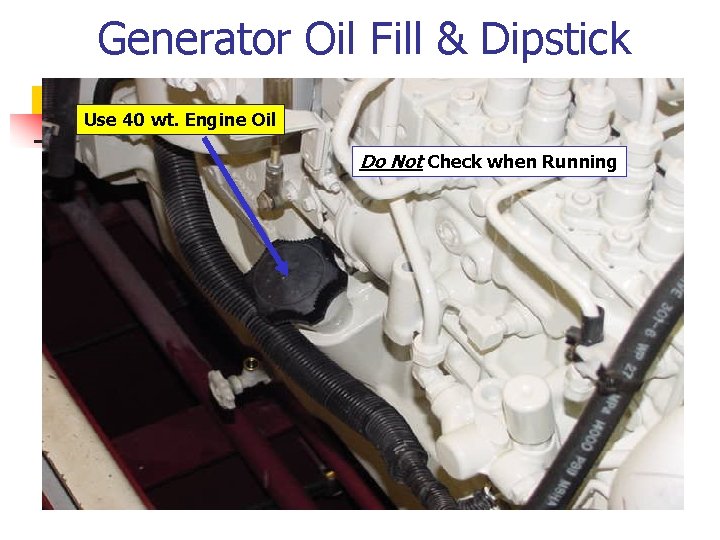

Generator Oil Fill & Dipstick Use 40 wt. Engine Oil Do Not Check when Running

Generator Dipstick Operating Range – “Check When Not Running”

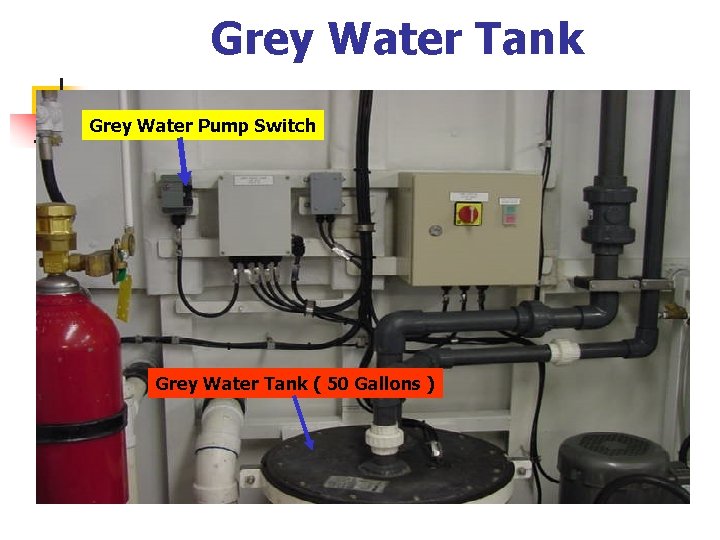

Grey Water Tank Grey Water Pump Switch Grey Water Tank ( 50 Gallons )

Fresh Water Tank Level Fill at the Yellow Mark Down about 250 Gallons

Fresh Water Fill (port side forward) 1” to ¾” Reducer is in the Equipment Room

Storage Tank Control Valves Forward Tank Valve Closed Main Tank Valve Closed (under engine room floor)

Day Tank Fuel Level Fill At The “RED” Mark

Foam Tank Valves (normally closed) Valves Normally Closed

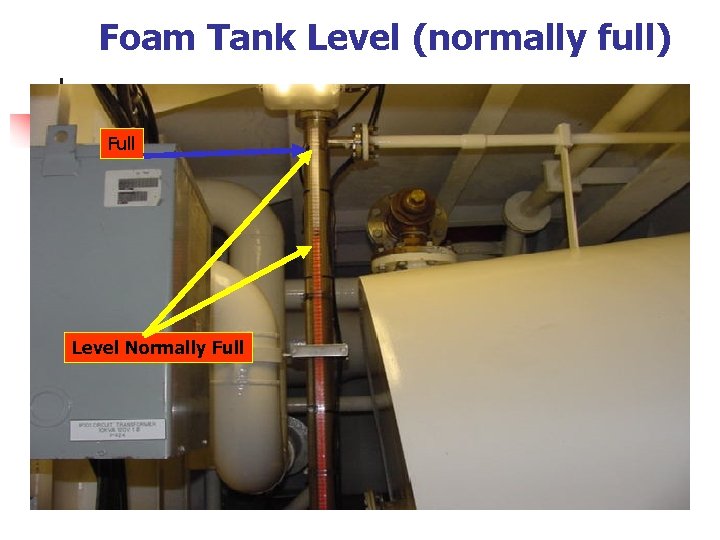

Foam Tank Level (normally full) Full Level Normally Full

Battery Status Touch Screen

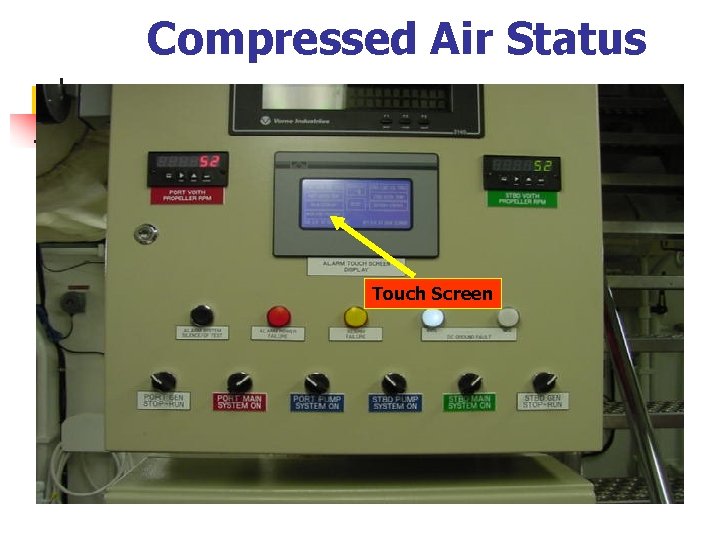

Compressed Air Status Touch Screen

Main Engine Brain Switches Turn - on Mains every A. M. and Pumps as needed Pump Engines Main Engines
