Cool: gen CIS 764, Fall 2007 Presentation By Mandar Haridas

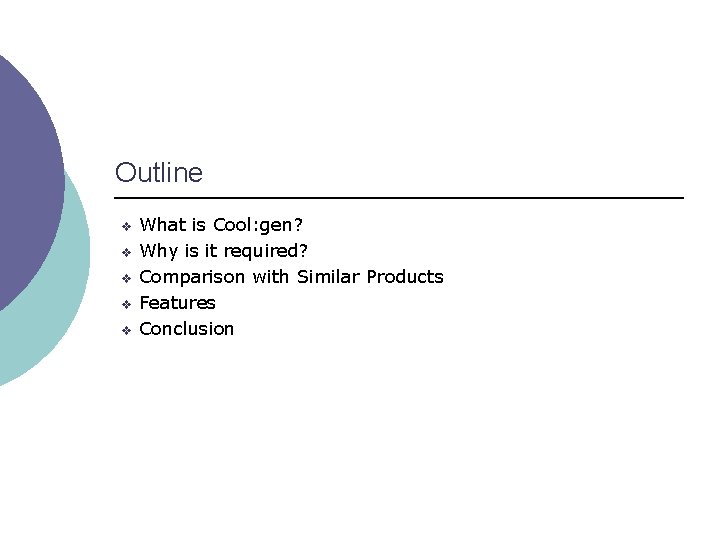

Outline v v v What is Cool: gen? Why is it required? Comparison with Similar Products Features Conclusion

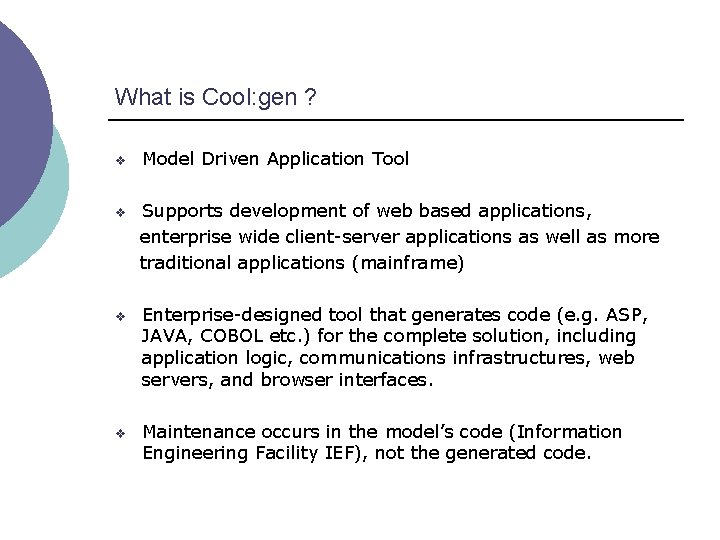

What is Cool: gen ? v Model Driven Application Tool v Supports development of web based applications, enterprise wide client-server applications as well as more traditional applications (mainframe) v Enterprise-designed tool that generates code (e. g. ASP, JAVA, COBOL etc. ) for the complete solution, including application logic, communications infrastructures, web servers, and browser interfaces. v Maintenance occurs in the model’s code (Information Engineering Facility IEF), not the generated code.

What is it used for ? v Cool: gen provides an environment of application development tools linked together by an underlying framework that provides flexibility in development. v It also includes a set of Encyclopedia tools that provide model management, public interfaces to third-party products and reverse engineering of non- Cool: gen applications. v Deployment options include choosing operating systems, languages, middleware, and databases v Intended to shield the developer from the complexities of building complete multi-tier cross-platform applications.

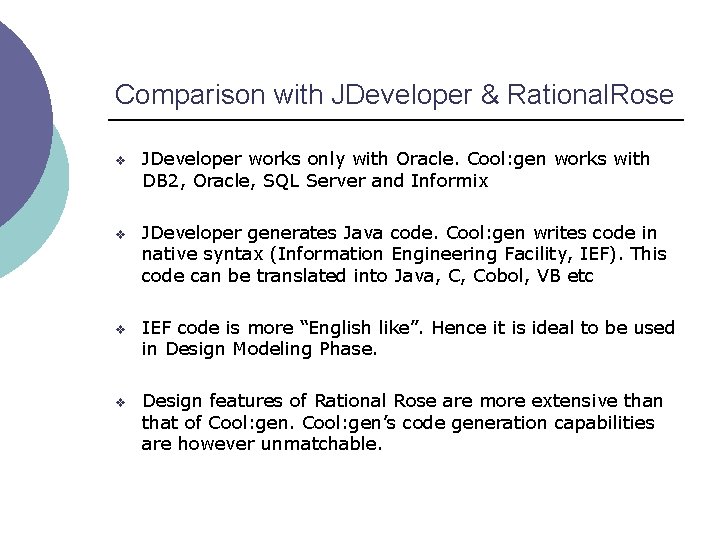

Comparison with JDeveloper & Rational. Rose v JDeveloper works only with Oracle. Cool: gen works with DB 2, Oracle, SQL Server and Informix v JDeveloper generates Java code. Cool: gen writes code in native syntax (Information Engineering Facility, IEF). This code can be translated into Java, C, Cobol, VB etc v IEF code is more “English like”. Hence it is ideal to be used in Design Modeling Phase. v Design features of Rational Rose are more extensive than that of Cool: gen’s code generation capabilities are however unmatchable.

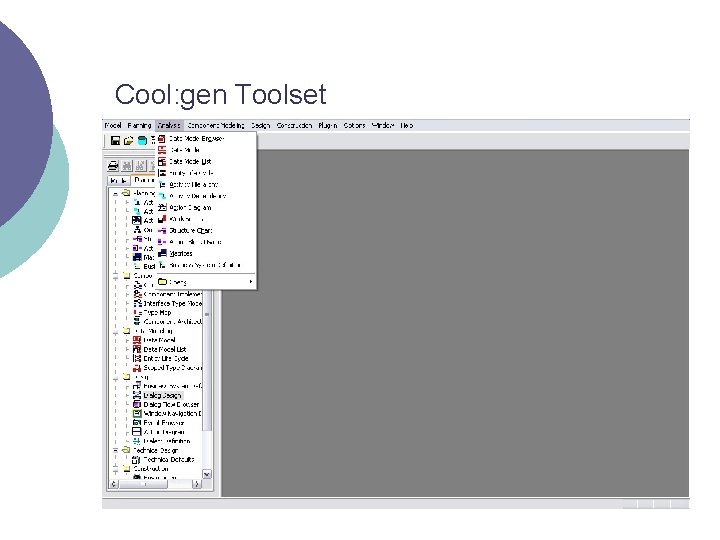

Cool: gen Toolset

Data Model in Cool: gen

Page Flow Diagram Feature (Dialog Design)

IEF Model

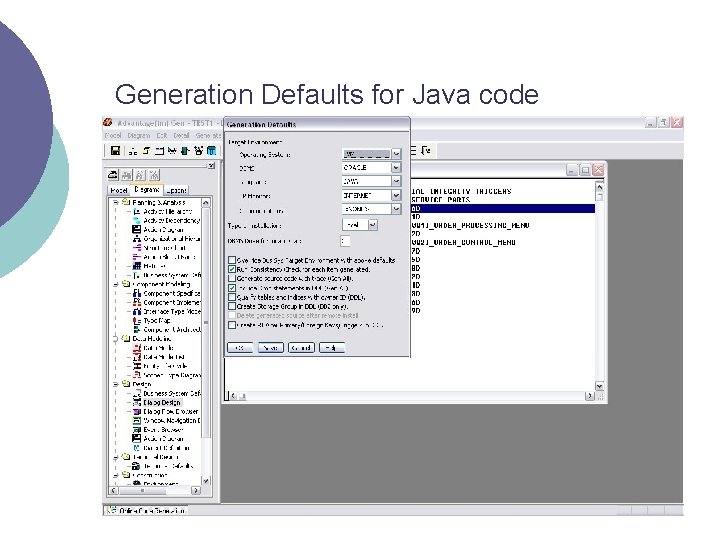

Generation Defaults for Java code

Generation possible for different DBMS

Features and Benefits …. v Ensures integrity and consistency in total delivery process at all times. v Provides 100% generation of data, complex logic, communications and presentation application components from high-level graphically rich specifications. v Provides applications for a variety of platforms, operating systems, databases and languages. v Provides technology independence to guard against environmental lock-in and to supportability and interoperability among the multiple environments.

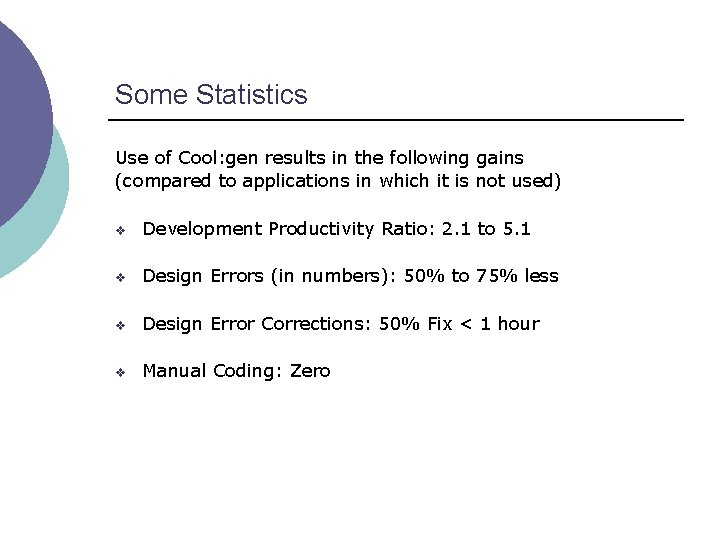

Some Statistics Use of Cool: gen results in the following gains (compared to applications in which it is not used) v Development Productivity Ratio: 2. 1 to 5. 1 v Design Errors (in numbers): 50% to 75% less v Design Error Corrections: 50% Fix < 1 hour v Manual Coding: Zero

Conclusion v Provides a uniform integrated structured v Model/framework to develop new applications, provides a sound approach for organizations to quickly transition to new platforms without deep technical expertise on the new target environment and without rewriting code v With Cool: gen, maintenance of applications is very easy as every process is defined during the design stage and any changes in the design will automatically reflect in the end product. No manual coding required. v Accelerated systems development: It uses state-of-the-art multi-platform GUI controls and RAD tools to deliver powerful applications fast.

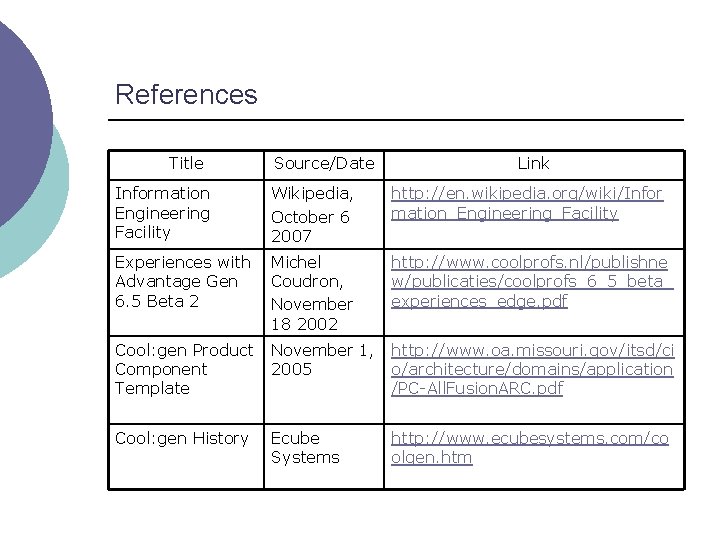

References Title Source/Date Link Information Engineering Facility Wikipedia, October 6 2007 http: //en. wikipedia. org/wiki/Infor mation_Engineering_Facility Experiences with Advantage Gen 6. 5 Beta 2 Michel Coudron, November 18 2002 http: //www. coolprofs. nl/publishne w/publicaties/coolprofs_6_5_beta_ experiences_edge. pdf Cool: gen Product Component Template November 1, http: //www. oa. missouri. gov/itsd/ci 2005 o/architecture/domains/application /PC-All. Fusion. ARC. pdf Cool: gen History Ecube Systems http: //www. ecubesystems. com/co olgen. htm
