Convex Hull Problem Presented By Erion Lin Outline

Convex Hull Problem Presented By Erion Lin

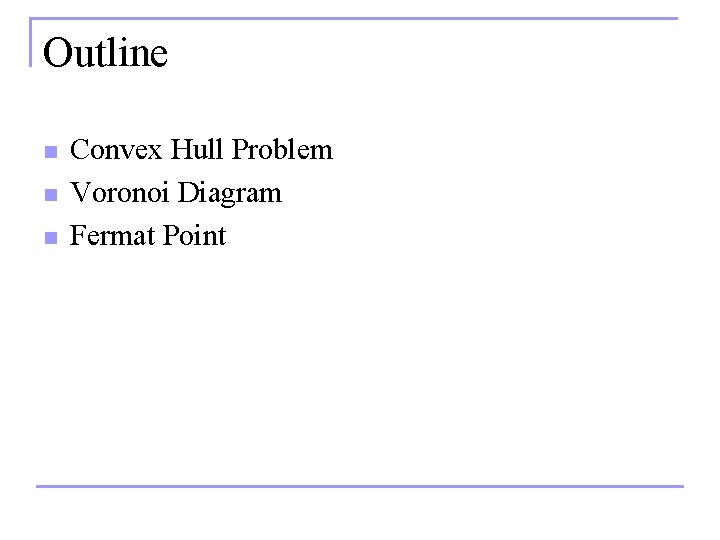

Outline n n n Convex Hull Problem Voronoi Diagram Fermat Point

Convex Hull Problem n n Definitions Algorithm

Definitions

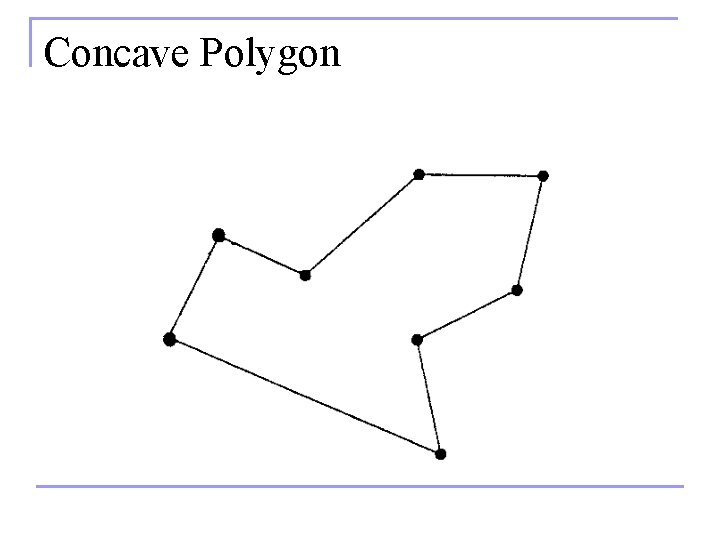

Concave Polygon

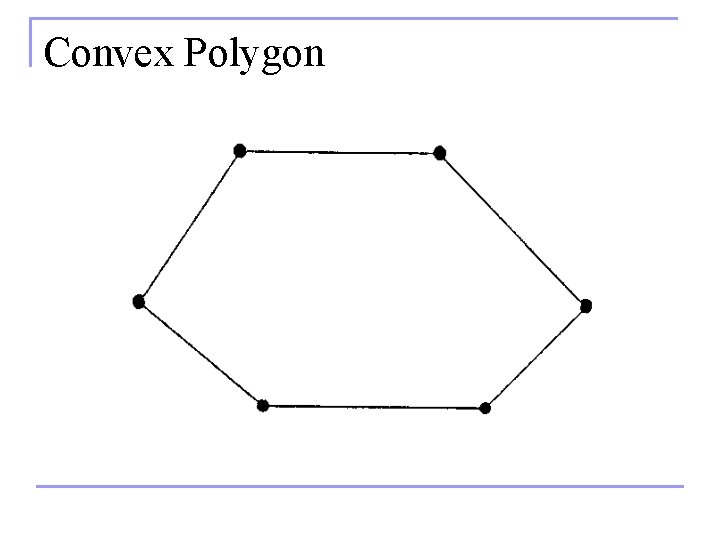

Convex Polygon

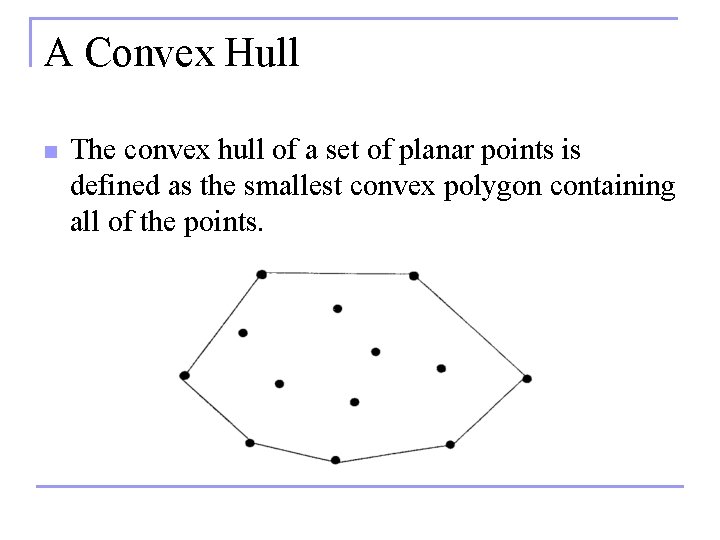

A Convex Hull n The convex hull of a set of planar points is defined as the smallest convex polygon containing all of the points.

Algorithm

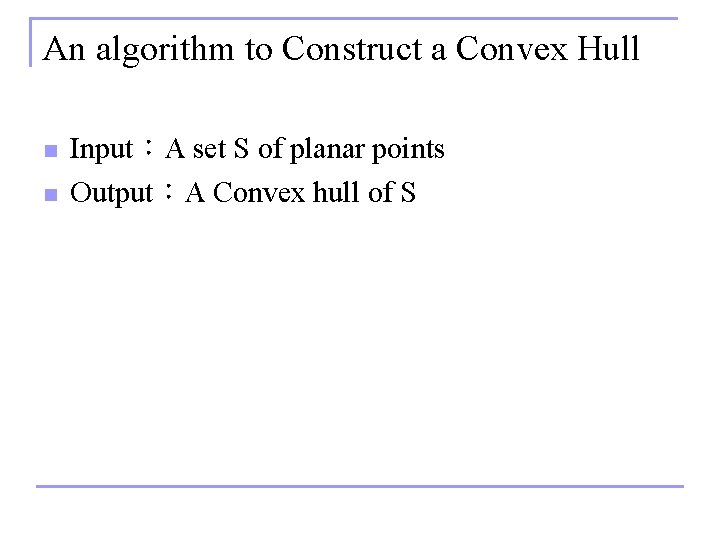

An algorithm to Construct a Convex Hull n n Input：A set S of planar points Output：A Convex hull of S

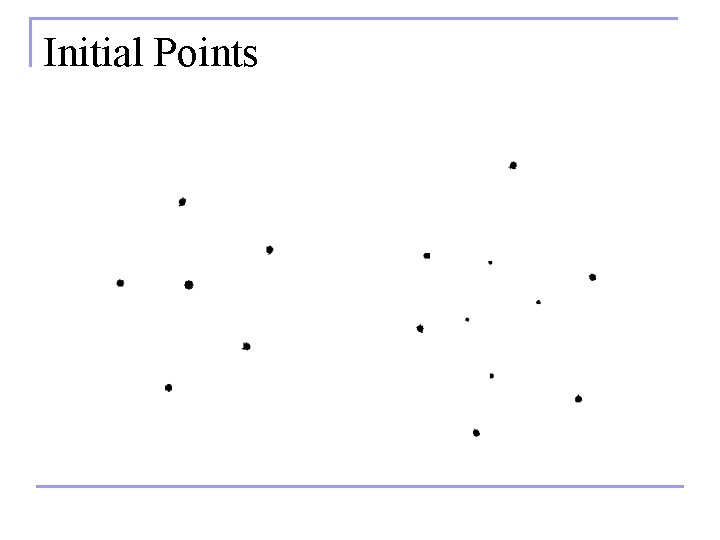

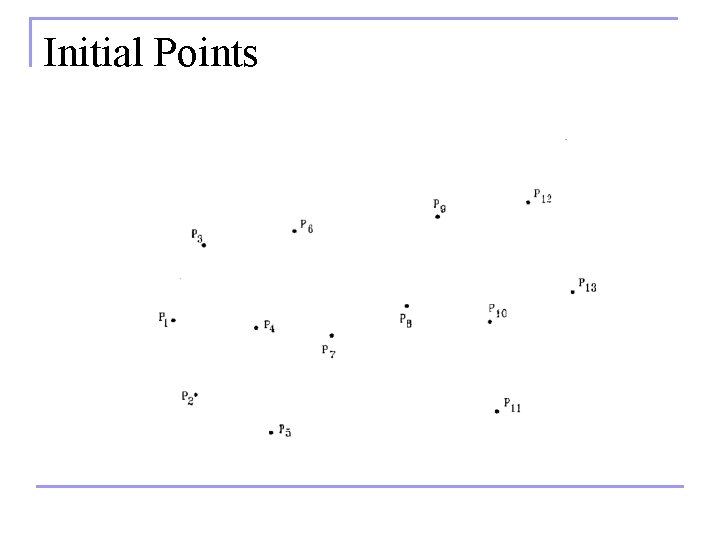

Initial Points

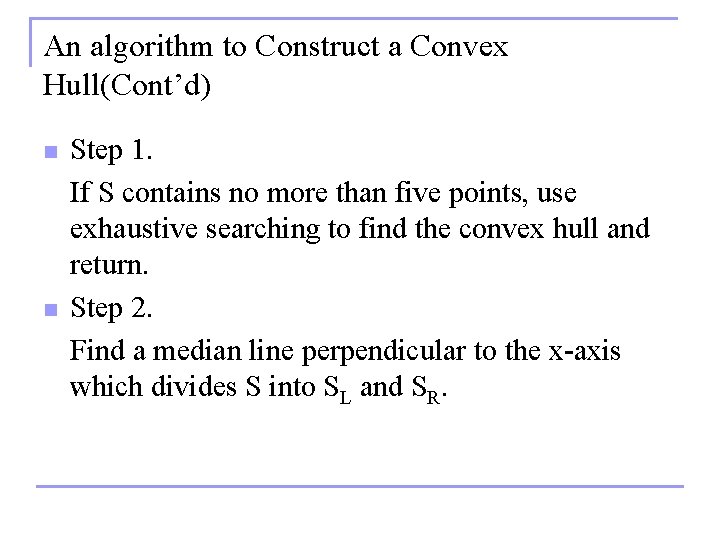

An algorithm to Construct a Convex Hull(Cont’d) n n Step 1. If S contains no more than five points, use exhaustive searching to find the convex hull and return. Step 2. Find a median line perpendicular to the x-axis which divides S into SL and SR.

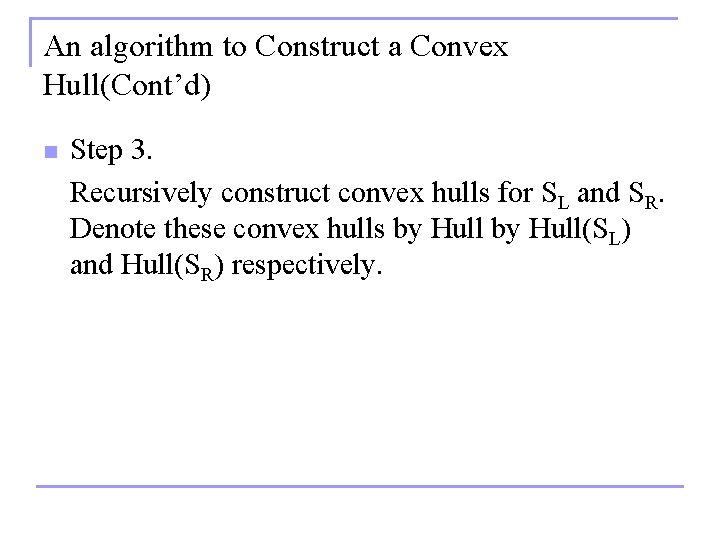

An algorithm to Construct a Convex Hull(Cont’d) n Step 3. Recursively construct convex hulls for SL and SR. Denote these convex hulls by Hull(SL) and Hull(SR) respectively.

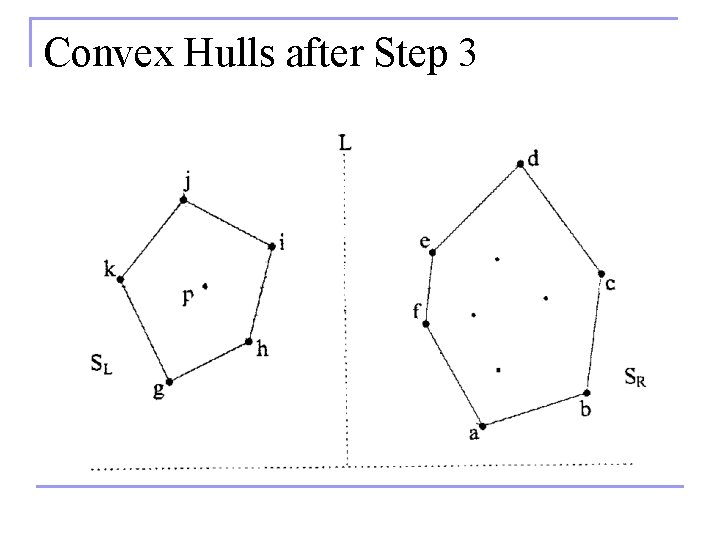

Convex Hulls after Step 3

An algorithm to Construct a Convex Hull(Cont’d) n Step 4. Find an interior point P of SL. Find the vertices v 1 and v 2 of Hull(SR) which divide the vertices of Hull(SR) into two sequences of vertices which have increasing polar angles with respect to P. Without loss of generality, let us assume that v 1 has y-value greater than v 2. Then form three sequences as follows：

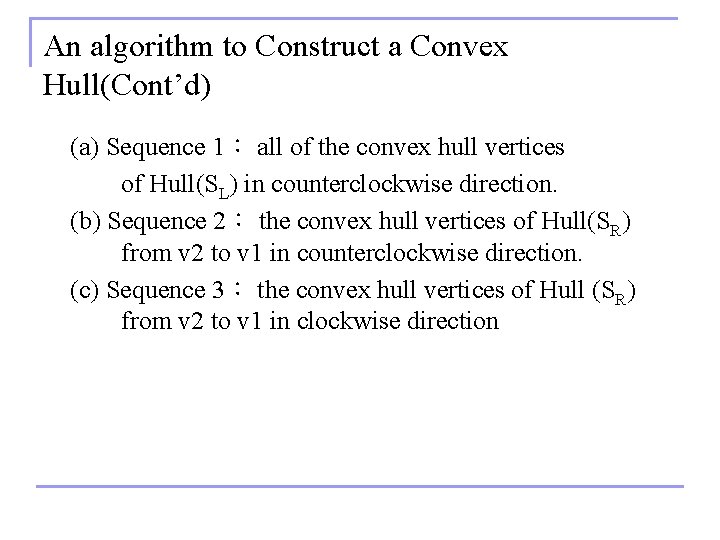

An algorithm to Construct a Convex Hull(Cont’d) (a) Sequence 1： all of the convex hull vertices of Hull(SL) in counterclockwise direction. (b) Sequence 2： the convex hull vertices of Hull(SR) from v 2 to v 1 in counterclockwise direction. (c) Sequence 3： the convex hull vertices of Hull (SR) from v 2 to v 1 in clockwise direction

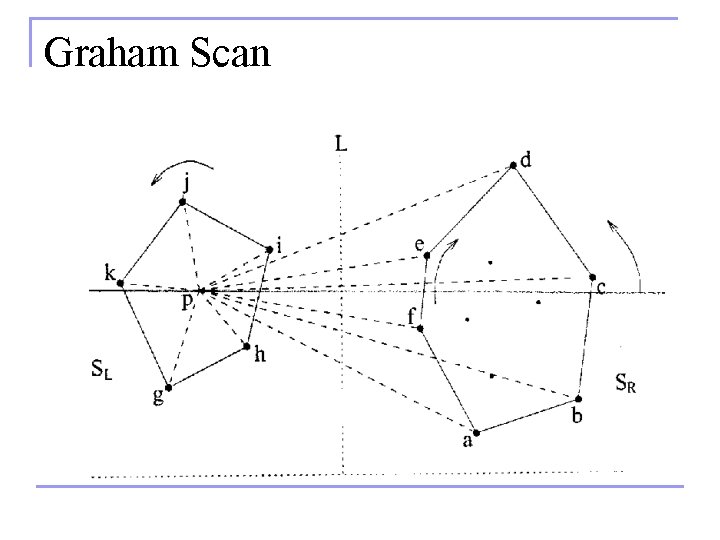

Graham Scan

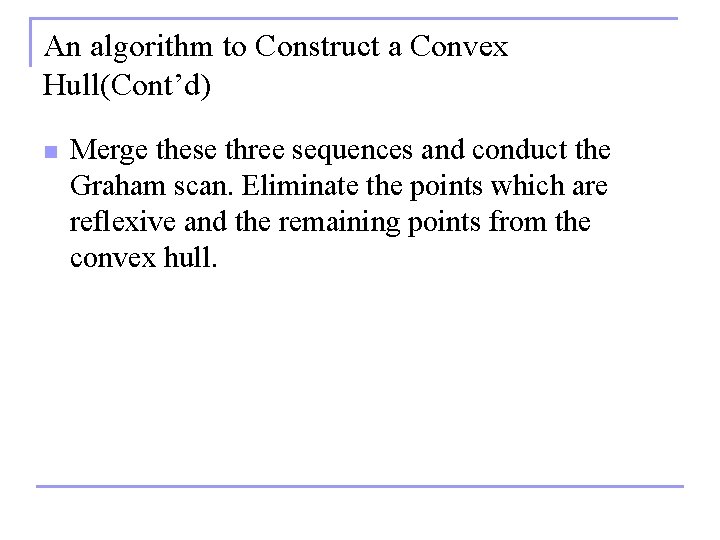

An algorithm to Construct a Convex Hull(Cont’d) n Merge these three sequences and conduct the Graham scan. Eliminate the points which are reflexive and the remaining points from the convex hull.

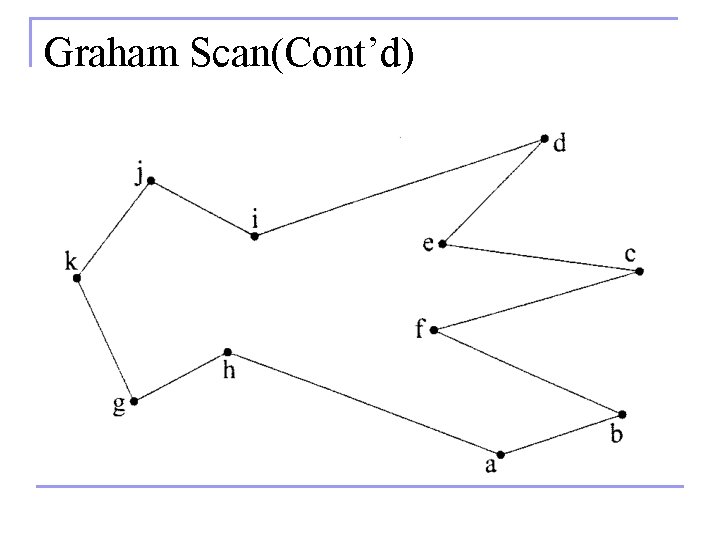

Graham Scan(Cont’d)

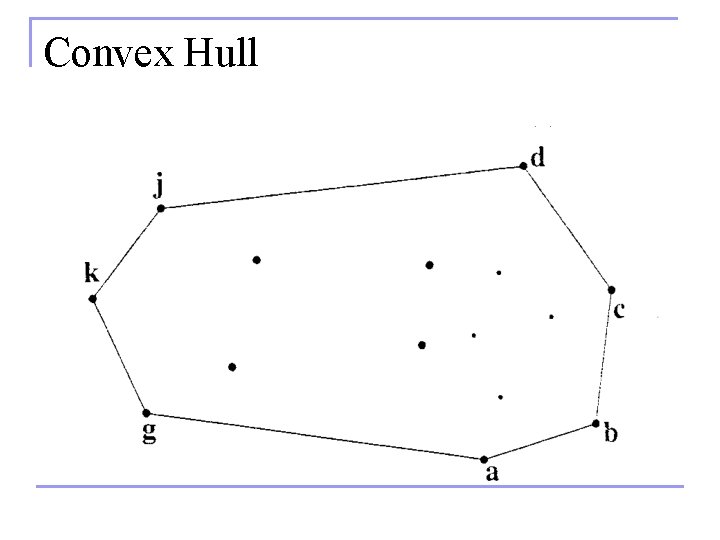

Convex Hull

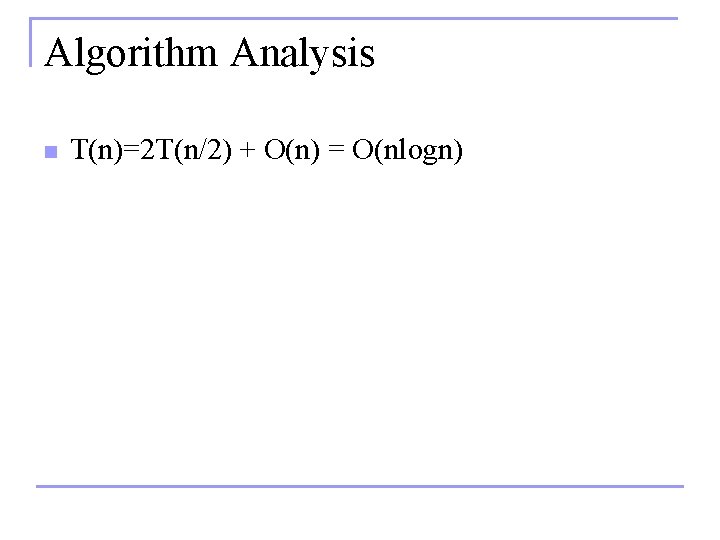

Algorithm Analysis n T(n)=2 T(n/2) + O(n) = O(nlogn)

Outline n n n Convex Hull Problem Voronoi Diagram Fermat Point

Voronoi Diagram n n n Definitions Algorithms Applications

Definitions

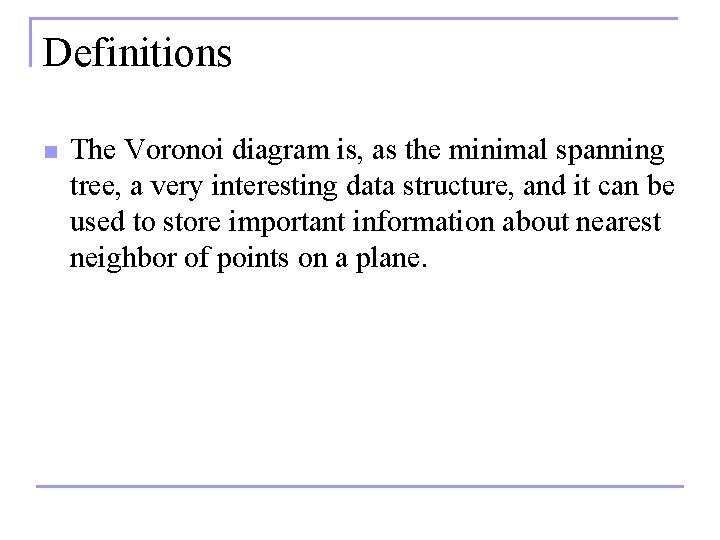

Definitions n The Voronoi diagram is, as the minimal spanning tree, a very interesting data structure, and it can be used to store important information about nearest neighbor of points on a plane.

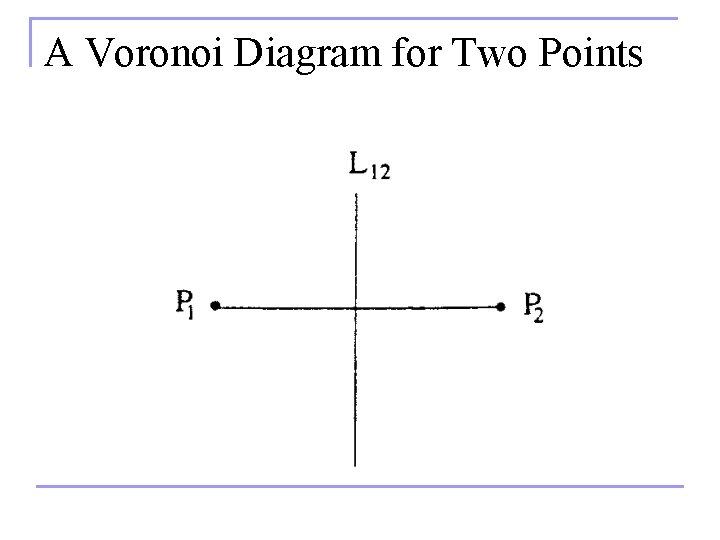

A Voronoi Diagram for Two Points

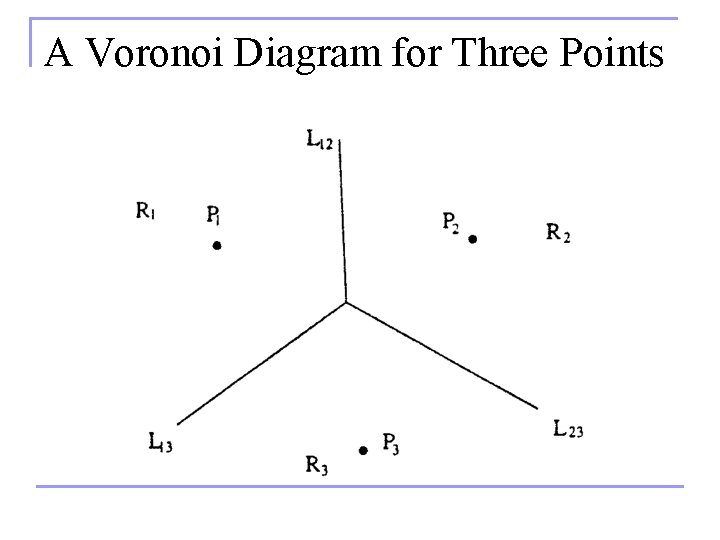

A Voronoi Diagram for Three Points

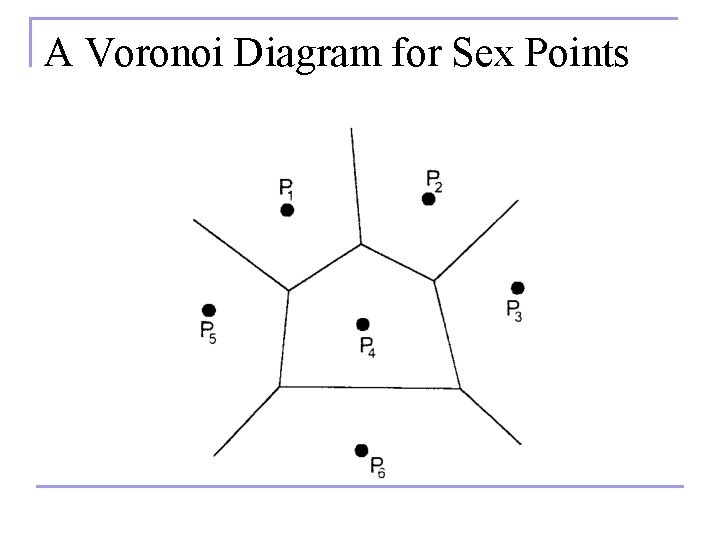

A Voronoi Diagram for Sex Points

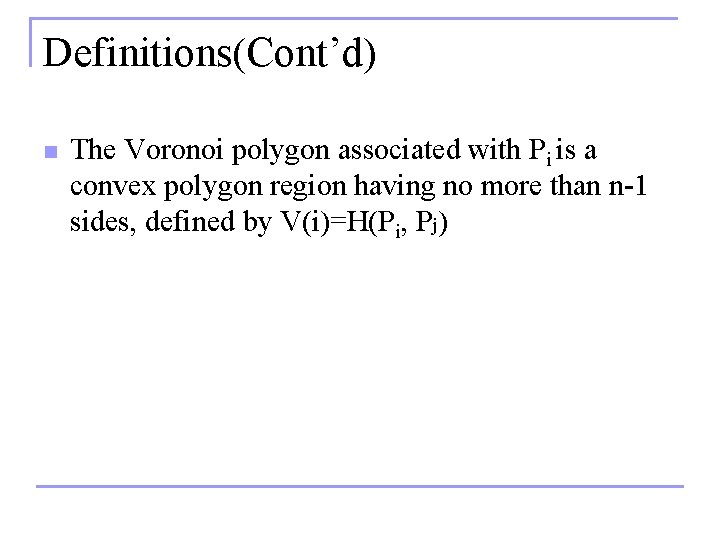

Definitions(Cont’d) n The Voronoi polygon associated with Pi is a convex polygon region having no more than n-1 sides, defined by V(i)=H(Pi, Pj)

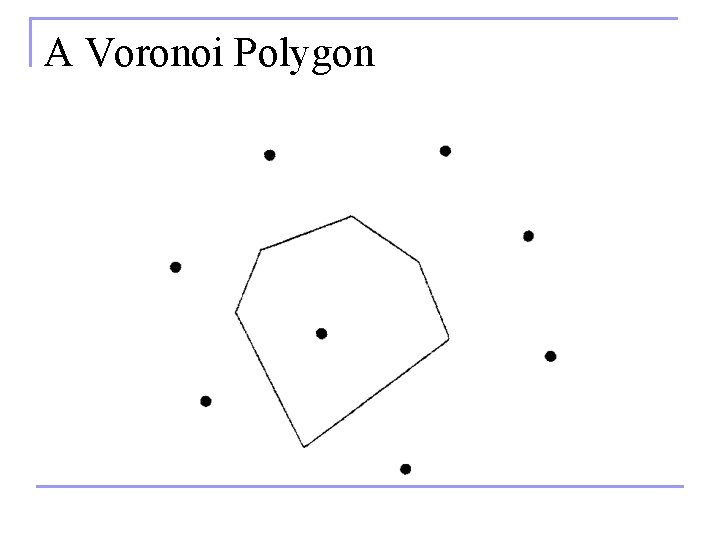

A Voronoi Polygon

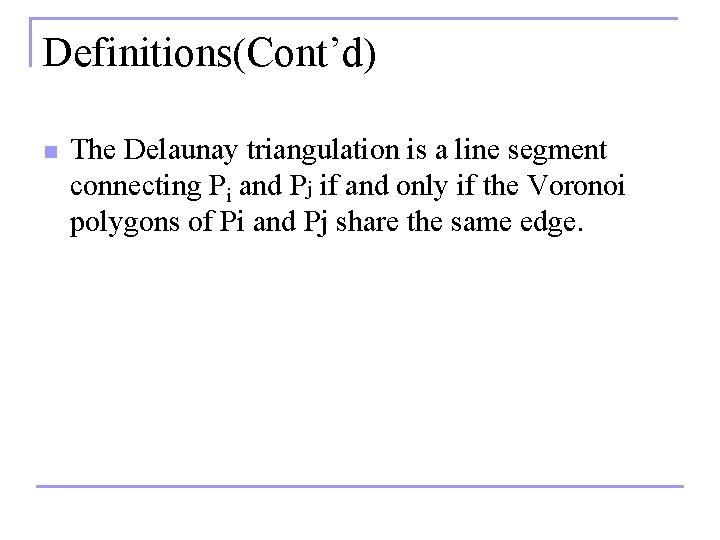

Definitions(Cont’d) n The Delaunay triangulation is a line segment connecting Pi and Pj if and only if the Voronoi polygons of Pi and Pj share the same edge.

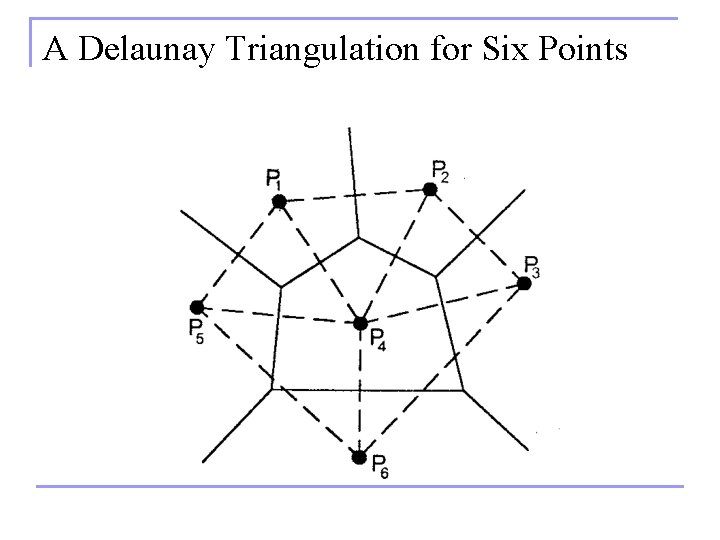

A Delaunay Triangulation for Six Points

Algorithms

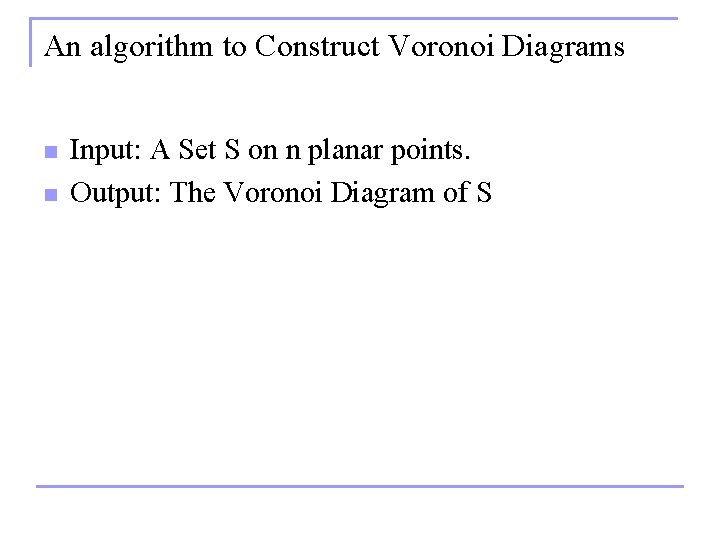

An algorithm to Construct Voronoi Diagrams n n Input: A Set S on n planar points. Output: The Voronoi Diagram of S

Initial Points

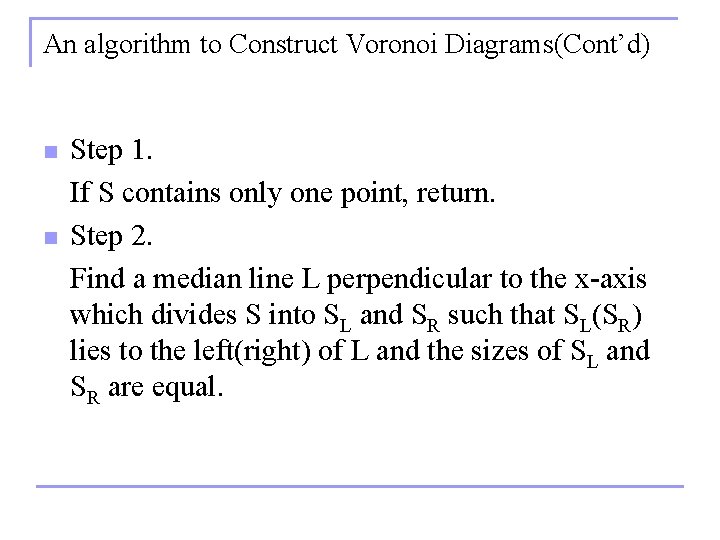

An algorithm to Construct Voronoi Diagrams(Cont’d) n n Step 1. If S contains only one point, return. Step 2. Find a median line L perpendicular to the x-axis which divides S into SL and SR such that SL(SR) lies to the left(right) of L and the sizes of SL and SR are equal.

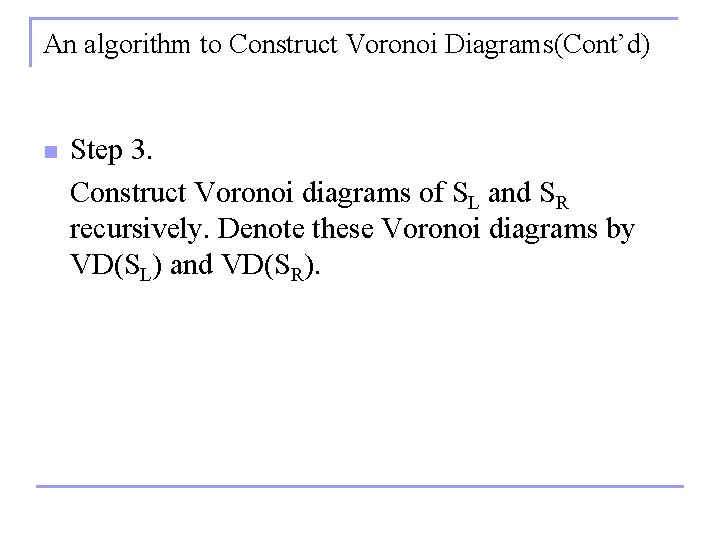

An algorithm to Construct Voronoi Diagrams(Cont’d) n Step 3. Construct Voronoi diagrams of SL and SR recursively. Denote these Voronoi diagrams by VD(SL) and VD(SR).

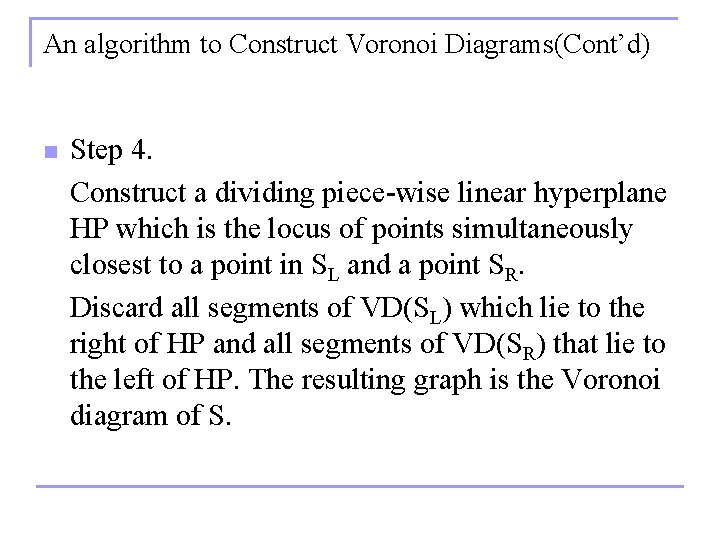

An algorithm to Construct Voronoi Diagrams(Cont’d) n Step 4. Construct a dividing piece-wise linear hyperplane HP which is the locus of points simultaneously closest to a point in SL and a point SR. Discard all segments of VD(SL) which lie to the right of HP and all segments of VD(SR) that lie to the left of HP. The resulting graph is the Voronoi diagram of S.

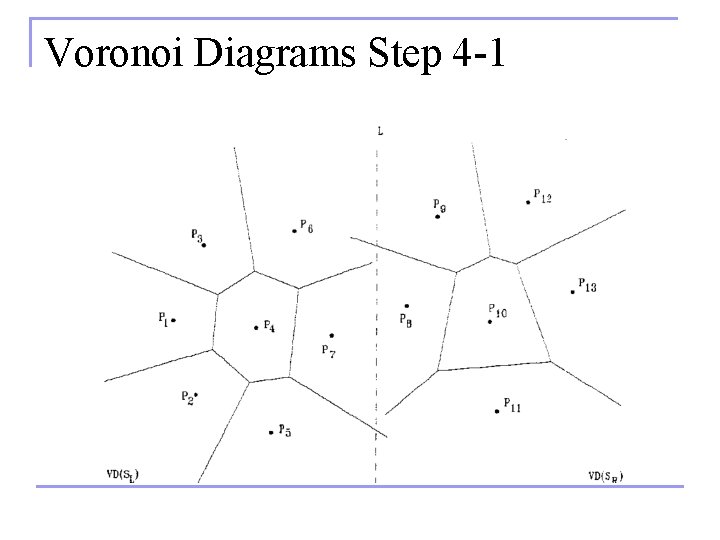

Voronoi Diagrams Step 4 -1

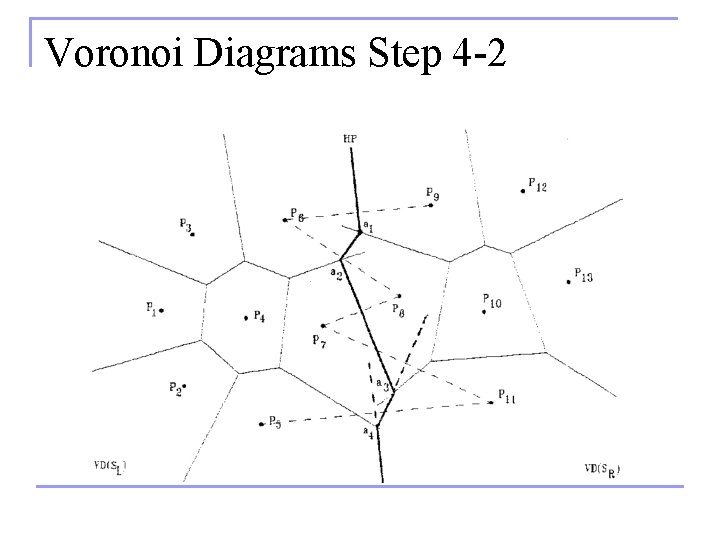

Voronoi Diagrams Step 4 -2

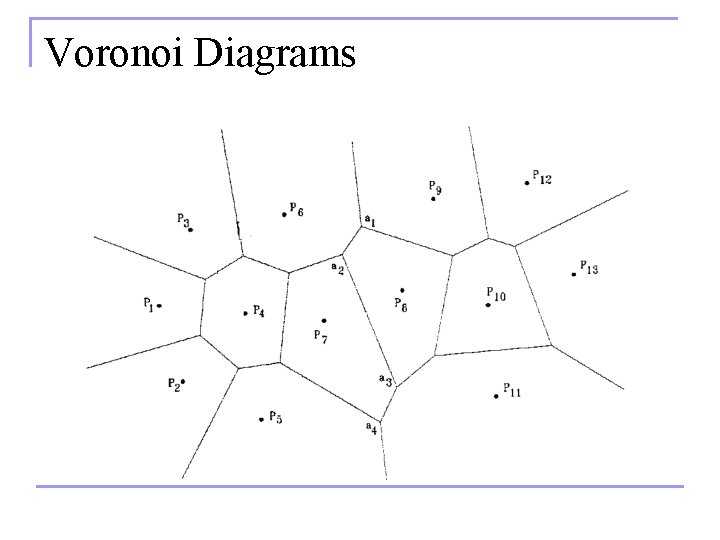

Voronoi Diagrams

Algorithm Analysis n T(n)=2 T(n/2) + O(n) = O(nlogn)

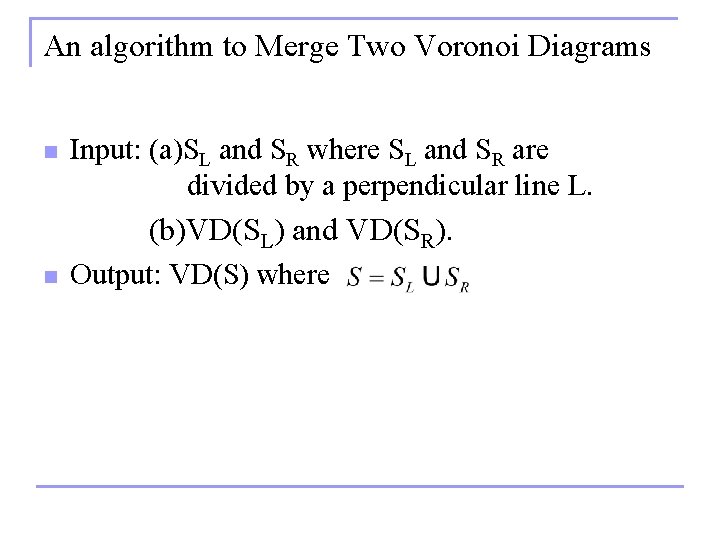

An algorithm to Merge Two Voronoi Diagrams n Input: (a)SL and SR where SL and SR are divided by a perpendicular line L. (b)VD(SL) and VD(SR). n Output: VD(S) where

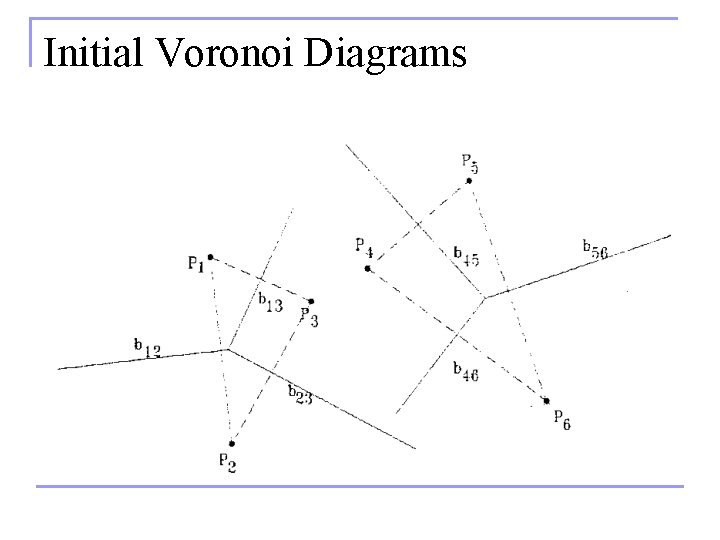

Initial Voronoi Diagrams

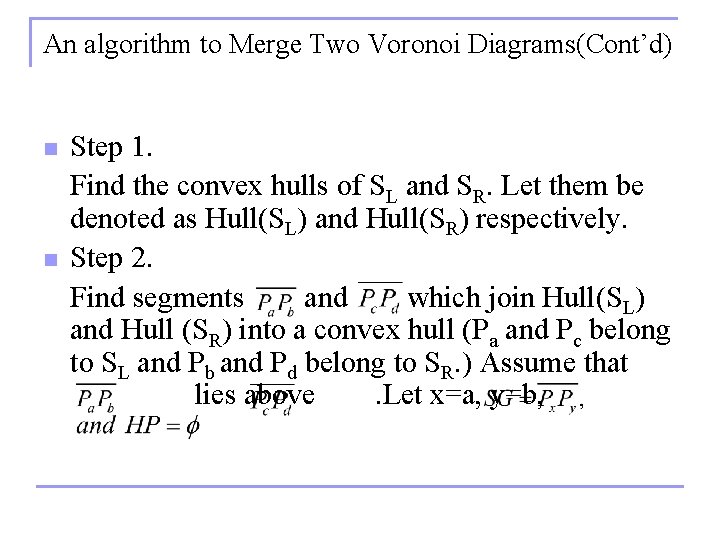

An algorithm to Merge Two Voronoi Diagrams(Cont’d) Step 1. Find the convex hulls of SL and SR. Let them be denoted as Hull(SL) and Hull(SR) respectively. n Step 2. Find segments and which join Hull(SL) and Hull (SR) into a convex hull (Pa and Pc belong to SL and Pb and Pd belong to SR. ) Assume that lies above . Let x=a, y=b, n

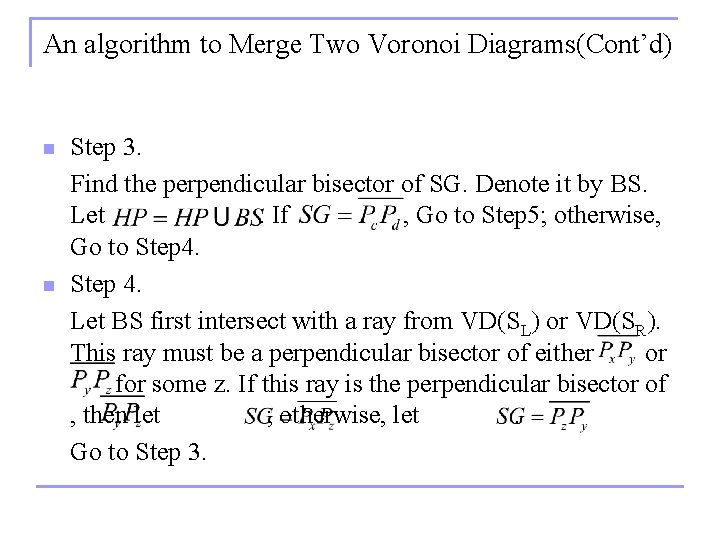

An algorithm to Merge Two Voronoi Diagrams(Cont’d) n n Step 3. Find the perpendicular bisector of SG. Denote it by BS. Let . If , Go to Step 5; otherwise, Go to Step 4. Let BS first intersect with a ray from VD(SL) or VD(SR). This ray must be a perpendicular bisector of either or for some z. If this ray is the perpendicular bisector of , then let ; otherwise, let . Go to Step 3.

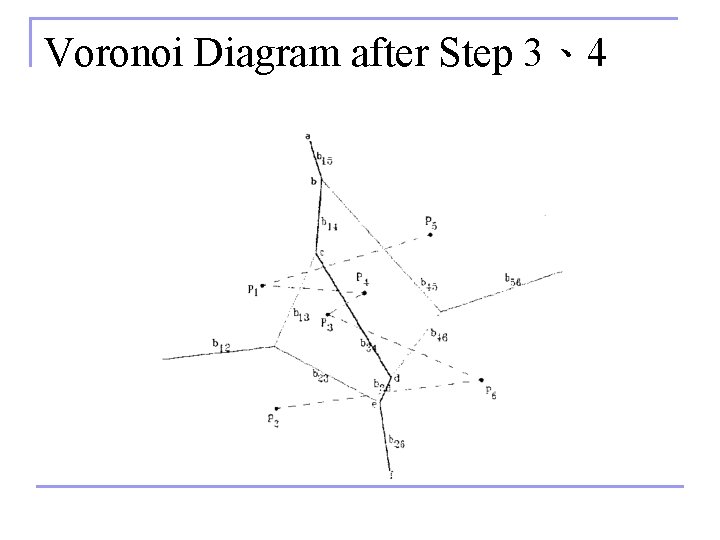

Voronoi Diagram after Step 3、4

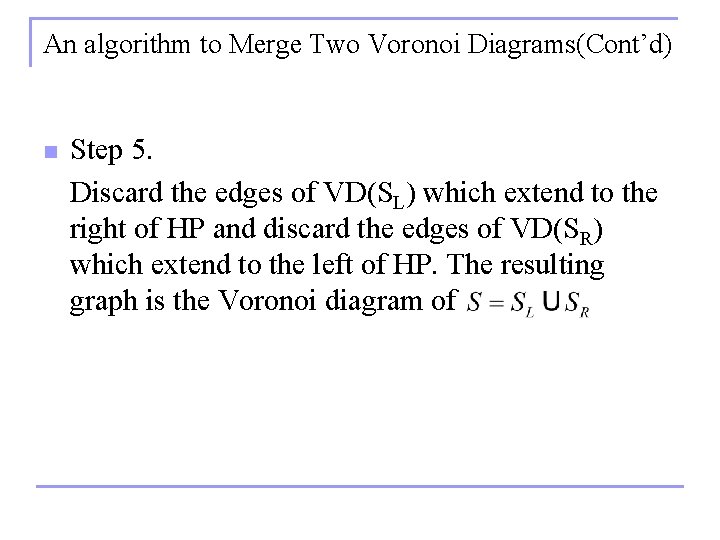

An algorithm to Merge Two Voronoi Diagrams(Cont’d) n Step 5. Discard the edges of VD(SL) which extend to the right of HP and discard the edges of VD(SR) which extend to the left of HP. The resulting graph is the Voronoi diagram of

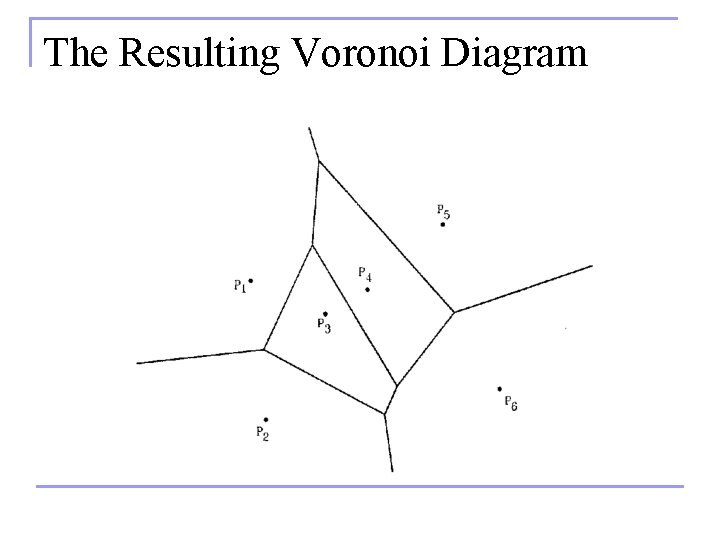

The Resulting Voronoi Diagram

Applications

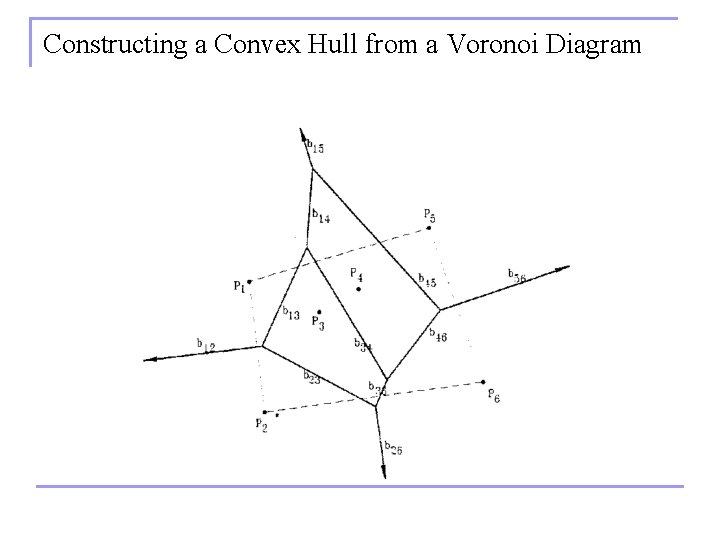

Constructing a Convex Hull from a Voronoi Diagram

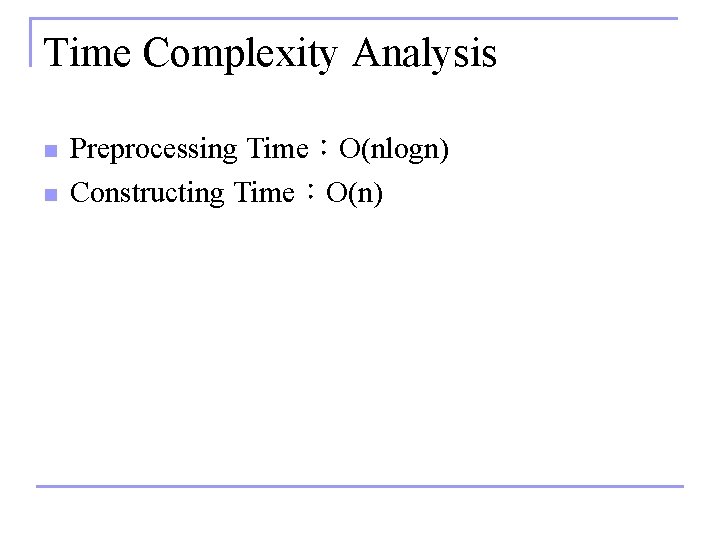

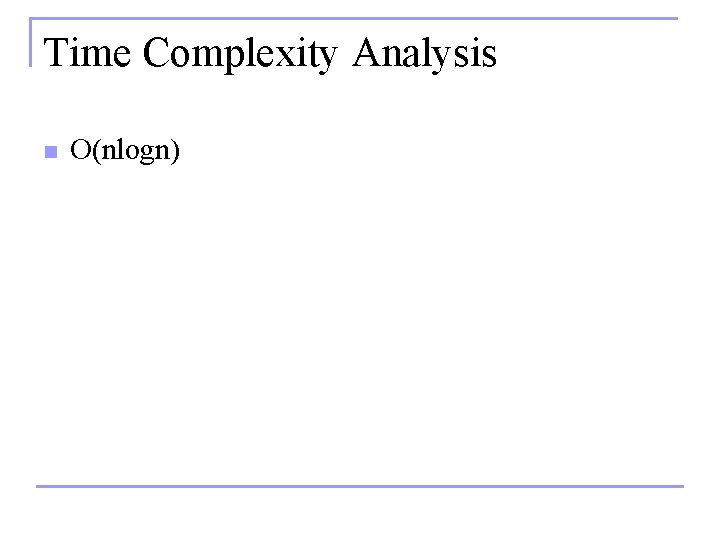

Time Complexity Analysis n n Preprocessing Time：O(nlogn) Constructing Time：O(n)

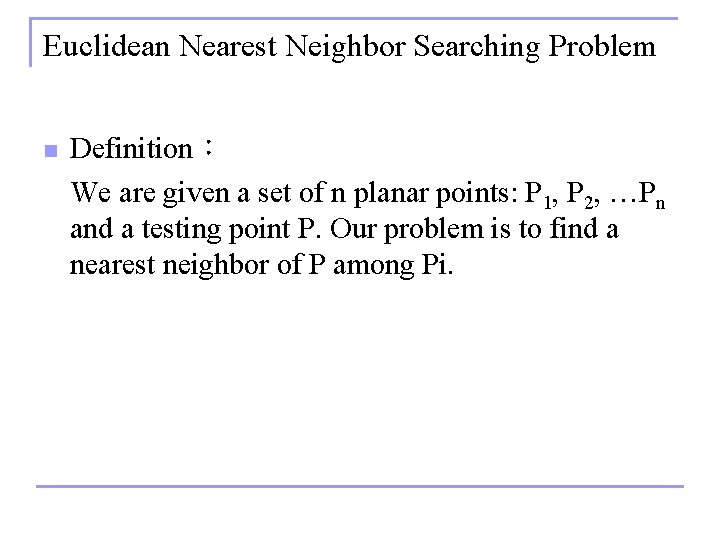

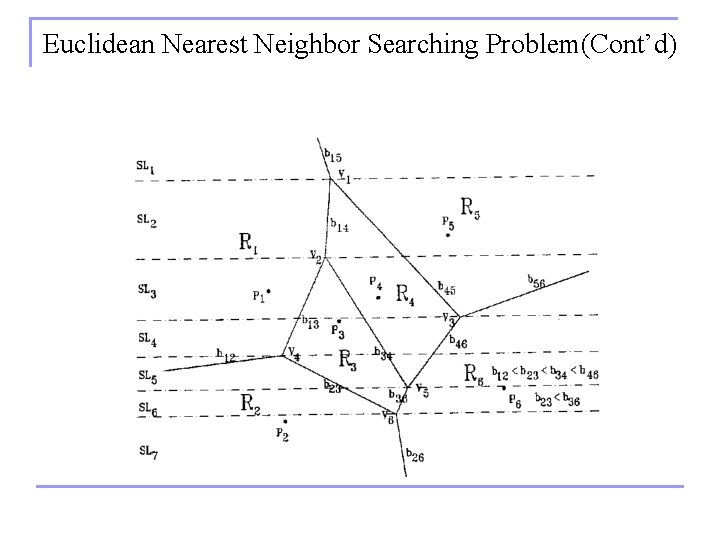

Euclidean Nearest Neighbor Searching Problem n Definition： We are given a set of n planar points: P 1, P 2, …Pn and a testing point P. Our problem is to find a nearest neighbor of P among Pi.
