Conventional Control panels CONVENTIONAL FIRE CONTROL PANEL SIMPLE

  • Slides: 56
Download presentation
Conventional Control panels

Conventional Control panels

 • CONVENTIONAL FIRE CONTROL PANEL • SIMPLE • COST EFFECTIVE

• CONVENTIONAL FIRE CONTROL PANEL • SIMPLE • COST EFFECTIVE

 • 2 Models Available : • Smart. Line 020 : 4 Zones expandable

• 2 Models Available : • Smart. Line 020 : 4 Zones expandable up to 20 • Smart. Line 036 : 4 Zones expandable up to 36 • Each Component Approved by IMQ

Smart. Lines Panels can manage up to 36 ZONE… Panel can discern on the

Smart. Lines Panels can manage up to 36 ZONE… Panel can discern on the same line if the alarm comes from a detector or a call point in order For each zone are available two terminals where a two pole line with detectors or call skip the prealarm on acll points can be connected:

Zone balancing : Panel will comply with any conventional detector Balancing each zone can

Zone balancing : Panel will comply with any conventional detector Balancing each zone can be balance adjustedzones A WIZARDofcan automatically

Wide range of Manual call Points available:

Wide range of Manual call Points available:

Beam detectors available to be connected on zones: • Latest technology trans reflective beam

Beam detectors available to be connected on zones: • Latest technology trans reflective beam detector • Approved according EN 54 -12 (CPD) • Motorized head : automatic allignment during commissioning and normal operation • IP 65 rated • Two separate unit supplied : Active element and control keyboard • 5 to 40 m distance (standard version) • Expansion kit for distance from 40 to 80 m • Expansion kit for distance from 80 to 100 m

Duct adapter available: • Single pipe system • Easy to install • Ordering Codes:

Duct adapter available: • Single pipe system • Easy to install • Ordering Codes: • EBDDH- : Universal adapter (Base not included , to be fitted in) • TV-0. 6 : 60 Cm sampling pipe • TV-1. 5 : 150 Cm sampling pipe • TV-2. 8 : 280 Cm sampling pipe • DDH-BRACKET : circular duct adapter • DDH-F 1/10 : 10 dust filters

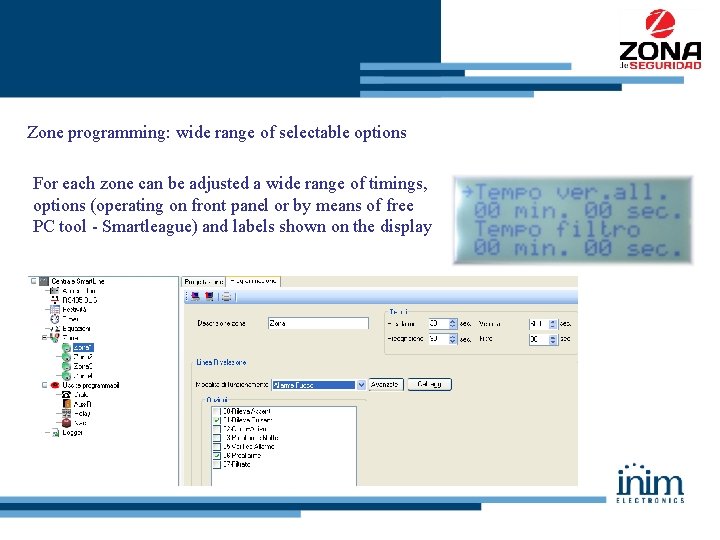

Zone programming: wide range of selectable options For each zone can be adjusted a

Zone programming: wide range of selectable options For each zone can be adjusted a wide range of timings, options (operating on front panel or by means of free PC tool - Smartleague) and labels shown on the display

I/O terminals: User definable Input/output terminals For each zone is available an extra terminal

I/O terminals: User definable Input/output terminals For each zone is available an extra terminal which by default is an output activated in case of zone itself alarm…. But can be redefined and used as alarm or input

GAS detection : On each one of the I/O terminal can be connected a

GAS detection : On each one of the I/O terminal can be connected a 4 -20 m. A interfaced gas detector For each detector thresholds can be adjusted from the control panel Panel will show in the display the real time value of each detector expressed in the proper unit

GAS Detection: Inim can offer a wide range of GAS detectors in IP 55

GAS Detection: Inim can offer a wide range of GAS detectors in IP 55 of Explosion proof enclosure (ATEX approved)

TIMERs : a tool for advanced configurations Smart. Line panel provide 8 timers for

TIMERs : a tool for advanced configurations Smart. Line panel provide 8 timers for automatic operations : • Switch from day to night mode and viceversa • Automatic zones reinclusion • Enable disable filters for false alarm • Ecc.

Logic Equations : Smart. Line panel provide 7 Logic equations user definable for output

Logic Equations : Smart. Line panel provide 7 Logic equations user definable for output acivations: • AND, OR, NOT etc. operators available • Zones States, timer etc. available as operand • Delays appliable

RS 485 BUS: RS 485 BUS

RS 485 BUS: RS 485 BUS

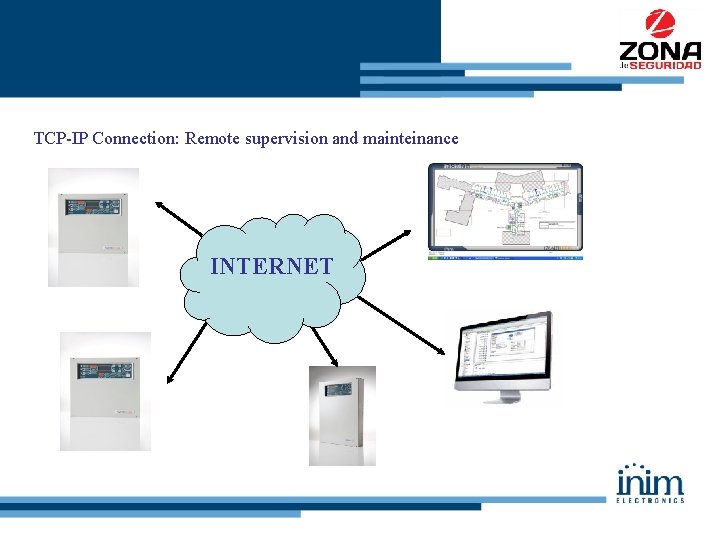

TCP-IP Connection: Remote supervision and mainteinance INTERNET

TCP-IP Connection: Remote supervision and mainteinance INTERNET

 • Switching power supply included (1, 4 A o 4 A According to

• Switching power supply included (1, 4 A o 4 A According to model) • Battery charger with temperature compensation • Battery efficiency control • Certificata EN 54 -2 EN 54 -4 EN 12094 -1

 • RS 232 port for UP/DOWNLoad • Full programmable by front panel

• RS 232 port for UP/DOWNLoad • Full programmable by front panel

 • Up to 2 expansion module for Smart. Line 020 (up to 20

• Up to 2 expansion module for Smart. Line 020 (up to 20 Zones) or 4 expansion module for Smart. Line 036 (up to 36 zones ) • Each Expansion module have an extra supervised output user definable • 8 Zones expansion modules

QUICK GUIDE ON SYSTEM STARTUP …. .

QUICK GUIDE ON SYSTEM STARTUP …. .

Detectors Wiring Balance other zones with a 3. 9 kΩ resistance 3. 9 kΩ

Detectors Wiring Balance other zones with a 3. 9 kΩ resistance 3. 9 kΩ End of Line resistance on the last detector

Callpoints Wiring Balance other zones with a 3. 9 kΩ resistance 3. 9 kΩ

Callpoints Wiring Balance other zones with a 3. 9 kΩ resistance 3. 9 kΩ End of Line resistance on the last callpoint

Fault Zone Open Zone <Zone 01> 01/04 01 If Zones aren’t balanced panel displays

Fault Zone Open Zone <Zone 01> 01/04 01 If Zones aren’t balanced panel displays “Zone open” Initial Wirings

NAC Wiring NAC output activates on Alarm: it can activate alarm devices 47 kΩ

NAC Wiring NAC output activates on Alarm: it can activate alarm devices 47 kΩ End of Line resistance on the last device

Fault Open I/O Panel NAC 01/01 If NAC isn’t balanced panel displays “Open I/O

Fault Open I/O Panel NAC 01/01 If NAC isn’t balanced panel displays “Open I/O Panel NAC” Initial Wirings

Other wirings 19 -20 DIALER Terminals activated on Alarm. DIALER Output can activate an

Other wirings 19 -20 DIALER Terminals activated on Alarm. DIALER Output can activate an external dialler.

Initial Wirings Balance Dialler with a 10 kΩ resistance (between terminals 19 and 23

Initial Wirings Balance Dialler with a 10 kΩ resistance (between terminals 19 and 23 )

Fault Zone Open Zone <Zone 01> 01/04 01 If Zones aren’t balanced panel displays

Fault Zone Open Zone <Zone 01> 01/04 01 If Zones aren’t balanced panel displays “Zone open” Initial Wirings

Expansion Boards Wiring To next expansion board

Expansion Boards Wiring To next expansion board

Smart. Line Expansion Zones are similar to panel ones Balance Zones with a 3.

Smart. Line Expansion Zones are similar to panel ones Balance Zones with a 3. 9 kΩ resistance

Expansion NAC output is programmable (at default output is activated on Alarm) Balance NAC

Expansion NAC output is programmable (at default output is activated on Alarm) Balance NAC with a 47 kΩ resistance

Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings Disablement Maintenance Programming

Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings Disablement Maintenance Programming Configuration Progr. Zone Progr. Output Progr. Timer Acquire int. bus Acquire ext. bus Current Devices Extin. module Expansion Ok to execute O O Current Devices Extin. module Expansion Ok to execute O 1

RS 485 Bus Wiring Up to 4 Repeater 2 Power Station Smart. Level Power

RS 485 Bus Wiring Up to 4 Repeater 2 Power Station Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater

It have to address RS 485 Bus devices Address DIP Switch Position Smart. Level

It have to address RS 485 Bus devices Address DIP Switch Position Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater

It have to address RS 485 Bus devices Control Panel IN PROGRAMMING Ver: 2.

It have to address RS 485 Bus devices Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Enable panel programming phase Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater

Control Centrale Panel IN IN PROGRAMMAZ. !! PROGRAMMING Ver: 2. 03 01/01/12 17: 45

Control Centrale Panel IN IN PROGRAMMAZ. !! PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings Disablement Maintenance Programming Configuration Progr. Zone Progr. Output Progr. Timer Acquire int. bus Acquire ext. bus Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater Current Devices Repeater Power Station Ok to execute O O Current Devices Repeater Power Station Ok to execute 2 1

SMARTLet. Loose/ONE Optional module for Gas extinction management

SMARTLet. Loose/ONE Optional module for Gas extinction management

 • EN 12094 -1 Approved

• EN 12094 -1 Approved

 • Supervised output for GAS release • Supervised input for Manual release •

• Supervised output for GAS release • Supervised input for Manual release • Supervised input for manual abort • Supervised input for pressure supervision switch • Supervised output for preextinction signals • Supervised output for Gas released signals

QUICK GUIDE ON EXTINCTION MODULE START-UP

QUICK GUIDE ON EXTINCTION MODULE START-UP

Smart. Let. Loose/ONE Extinction Board Wiring Smart. Line panel

Smart. Let. Loose/ONE Extinction Board Wiring Smart. Line panel

Manual Extinguish Connect a callpoint or a generic NO contact to have a manual

Manual Extinguish Connect a callpoint or a generic NO contact to have a manual Extinguish input NO contact 15 kΩ resistance 47 kΩ resistance

Stop-Extinguish Connect a callpoint or a generic NO contact to have a manual Stop.

Stop-Extinguish Connect a callpoint or a generic NO contact to have a manual Stop. Extinguish input NO contact 15 kΩ resistance 47 kΩ resistance

Pressure Switch A generic NO contact connected to PRESS teminals can be to used

Pressure Switch A generic NO contact connected to PRESS teminals can be to used as: gas pressure - Supervisory: monitor NO contact 15 kΩ resistance 47 kΩ resistance

Pre-Extinguish PRE-EXT output (terminals 10 -11) is activated on Pre-Extinguish: it can activate some

Pre-Extinguish PRE-EXT output (terminals 10 -11) is activated on Pre-Extinguish: it can activate some devices 47 kΩ End of Line resistance on the last device

Released RELEASED output (terminals 12 -13) is activated when gas extinguishant is released: it

Released RELEASED output (terminals 12 -13) is activated when gas extinguishant is released: it can activate some devices. 47 kΩ End of Line resistance on the last device

Electrovalve Wiring 24 V Electrovalve

Electrovalve Wiring 24 V Electrovalve

Any unused input have to be balanced Balance MAN-EXT terminals with a 47 kΩ

Any unused input have to be balanced Balance MAN-EXT terminals with a 47 kΩ resistance Balance STOP_EXT terminals with a 47 kΩ resistance Balance PRESS terminals with a 47 kΩ resistance

If terminals aren’t balanced panel displays: Fault 01/03 Open I/O Manual. Extinguish Extin. module

If terminals aren’t balanced panel displays: Fault 01/03 Open I/O Manual. Extinguish Extin. module Fault 02/03 Open I/O Lock extinguish Extin. module Fault 03/03 Open I/O Pressure switch Extin. module

Any unused output have to be balanced Balance PRE-EXT terminals with a 47 kΩ

Any unused output have to be balanced Balance PRE-EXT terminals with a 47 kΩ resistance Balance RELEASED terminals with a 47 kΩ resistance

If terminals aren’t balanced panel displays: Fault 01/02 Open I/O Pre-extinguish Extin. module. Fault

If terminals aren’t balanced panel displays: Fault 01/02 Open I/O Pre-extinguish Extin. module. Fault Open I/O Released Extin. module 02/02

Electrovalve Wiring If terminals aren’t connected panel displays: Fault Open I/O Valve output Extin.

Electrovalve Wiring If terminals aren’t connected panel displays: Fault Open I/O Valve output Extin. module 01/01

Extinction Board Configuration Extinction Board have to be configured from panel

Extinction Board Configuration Extinction Board have to be configured from panel

Smart. Line Panel Enable panel programming phase Extinction Board have to be configured from

Smart. Line Panel Enable panel programming phase Extinction Board have to be configured from panel

Smart. Line Panel Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings

Smart. Line Panel Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings Disablement Maintenance Programming Configuration Progr. Zone Progr. Output Progr. Timer Extinction Board have to be configured from panel Acquire int. bus Acquire ext. bus Current Devices Extin. module Expansion Ok to execute O O Current Devices Extin. module Expansion Ok to execute 1 O

THANK YOU FOR ATTENTION

THANK YOU FOR ATTENTION
