CONTROLS AND COMMUNICATIONS THE HARDWARE INFRASTRUCTURE LHC Hardware Commissioning Review “Controls and Communications” Session Part I : “The Hardware Infrastructure” M. Vanden Eynden on behalf of the AB/CO Group 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 1

CONTROLS AND COMMUNICATIONS AGENDA THE HARDWARE INFRASTRUCTURE • LHC control system at glance • What is needed for HW commissioning? – Hardware Components – Timing Distribution Network – World. FIP Infrastructure • Summary 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 2

THE HARDWARE INFRASTRUCTURE PUBLIC ETHERNET NETWORK WHAT IS NEEDED FOR HARDWARE COMMISSIONING ? CERN GIGABIT ETHERNET TECHNICAL NETWORK FIXED DISPLAYS OPERATOR CONSOLES (16 + FCR) TCP/IP communication services FILE SERVERS (>4) APPLICATION SERVERS SCADA SERVERS TCP/IP communication services TIMING GENERATION RT Lynx/OS VME FRONT ENDS WORLDFIP Front Ends (136) T T PLCs BEAM POSITION MONITORS, BEAM LOSS MONITORS, BEAM INTERLOCKS, RF SYSTEMS, ETC… T T T QUENCH PROTECTION AGENTS, POWER CONVERTERS FUNCTIONS GENERATORS, … FIP/IO T (160) PROFIBUS T T World. FIP SEGMENT (1, 2. 5 MBits/sec) TCP/IP communication services OPTICAL FIBERS CONTROLS AND COMMUNICATIONS OPERATOR CONSOLES ACTUATORS AND SENSORS CRYOGENICS, VACUUM, ETC… LHC MACHINE 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 3

THE HARDWARE INFRASTRUCTURE CONTROLS AND COMMUNICATIONS WHAT IS NEEDED ? • Apart from the VME systems, almost all categories of LHC hardware components must be installed and tested for the Hardware commissioning phase • Ethernet, Timing and World. FIP Networks must be installed and qualified • Basic installation principle – Linked to the hardware Commissioning planning, get the control system installed and tested between 1 and 2 months before individual system tests 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 4

THE HARDWARE INFRASTRUCTURE CONTROLS AND COMMUNICATIONS WHAT IS NEEDED ? Example: Architecture for Power Converters control Client application (JAPC) Controls Ethernet LHC Timing CMW Commands FGC Gateway 50 Hz status Lynx. OS PC gateway Commands World. FIP bus (50 Hz cycle) FGC FGC FGC … 30 FGCs 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 5

CONTROLS AND COMMUNICATIONS AGENDA THE HARDWARE INFRASTRUCTURE • LHC Control System Architecture at a Glance • LHC Hardware commissioning – – What is needed? Hardware Components Timing Distribution Network World. FIP Infrastructure • Summary 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 6

THE HARDWARE INFRASTRUCTURE THE HARDWARE COMPONENTS CONTROLS AND COMMUNICATIONS • World. FIP Gateways – Procurement • 160 units manufactured, received at CERN, ready for testing – Qualification and diagnostics at installation time • • • 5/11/2005 Test complete system boot procedure Test local machine timing reception Test World. FIP segments (more info later) Test remote reboot procedure and terminal service Declare gateways in the system administration/diagnostic tools (Xcluc) and in the asset management system (AB-CAM) LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 7

THE HARDWARE INFRASTRUCTURE THE HARDWARE COMPONENTS CONTROLS AND COMMUNICATIONS • World. FIP Gateways – All gateways installed and tested in SR 8 for LSS 8 tests (10 for PO, 3 for QPS) World. FIP CU/Fb Repeaters Fully cabled controls rack in SR 8 – Gateways for Cryogenic control will be installed later this summer in SH 8 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 8

THE HARDWARE INFRASTRUCTURE THE HARDWARE COMPONENTS CONTROLS AND COMMUNICATIONS • World. FIP Gateways – Potential Show Stopper • Full. FIP 2 Bus Arbiter Card – A non-systematic de-synchronization in the execution of the World. FIP cycles has been observed and reported to Alstom. • Answer expected from Alstom in July 2005 • Consequences should be precisely evaluated with PO, QPS people • May require a dismantling of the Full. FIP 2 cards installed in the Gateways (SR 8) for EPROM re-programming → Installation of the gateways in next surface points (7, 1, …) should wait until the problem is fixed and consequences are understood 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 9

THE HARDWARE INFRASTRUCTURE THE HARDWARE COMPONENTS CONTROLS AND COMMUNICATIONS • Remote Reboot Systems (30 units) – all hardware components available, tested in SR 8 • Terminal servers (~20 units) – all hardware components available, tested in SR 8 • Technical consoles (16) – all hardware components available, up and running in SR 8 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 10

THE HARDWARE INFRASTRUCTURE - QRL: for test (Profibus) Point 1. 8 CO Pointready 2 Point 4 Point 6 Point 8 Central HP storage - LSS 8 L: 4 FIP/Ethernet Gateways to be installed CO has software still to be developed HP storage QSCA QSCC LN 2 QSRB QSCC QSC QSCA LN 2 HP storage QSCB QSCC QSC QSCB LN 2 QURA QSCC QSCA QSCB QSCC QSC LN 2 QSRB QSRA QURA QSRB Shaft QSRA QSC QSCC LN 2 QSRB QSRA HP storage (buildings+areas) QSCB QSCC QSC HP storage Surface QUI QURC Sector 1 -2 QURC QUI QURC QURC QRL QRL Sector 2 -3 Sector 3 -4 Sector 4 -5 Sector 5 -6 Sector 6 -7 Sector 7 -8 Sector 8 -1 Tunnel QRL QUI Cavern CONTROLS AND COMMUNICATIONS CRYOGENIC CONTROL To port to Unity V 2 PVSS To Deploy in Unity V 2 To be Developed by CO To be. Developed & Deployed by ACR/IN and AB/CO 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 11

THE HARDWARE INFRASTRUCTURE CONTROLS AND COMMUNICATIONS THE HARDWARE COMPONENTS - ASSET MANAGEMENT CYFRE Rack in SR 8 with Front End Computers 04 May 2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 12

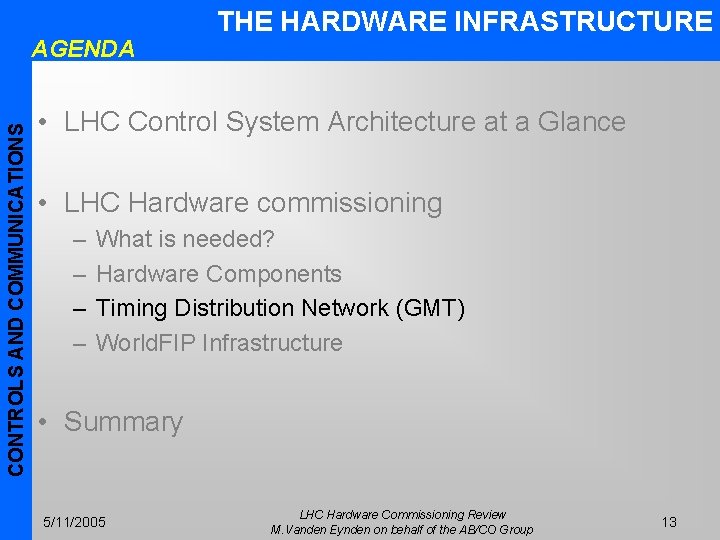

CONTROLS AND COMMUNICATIONS AGENDA THE HARDWARE INFRASTRUCTURE • LHC Control System Architecture at a Glance • LHC Hardware commissioning – – What is needed? Hardware Components Timing Distribution Network (GMT) World. FIP Infrastructure • Summary 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 13

THE HARDWARE INFRASTRUCTURE CONTROLS AND COMMUNICATIONS TIMING DISTRIBUTION NETWORK (GMT) • Current Status – LHC Master Timing Generator installed and operational in MNR – GMT reception in SR 8 has been successfully validated with all QPS and PO gateways using the “legacy solution” (VME technology, FOXCOM multi-mode optical Tx/Rx modules) • Future plans – – Deploy in June 2005 the new timing distribution hardware in SR 8 Finalize definition of timing data (events) for HW commissioning Proceed with the timing hardware installation in Points 7, 1, … Move MTG cluster to C. C. C by end of 2005 (impact to be discussed with HW commissioning WG) 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 14

CONTROLS AND COMMUNICATIONS AGENDA THE HARDWARE INFRASTRUCTURE • LHC Control System Architecture at a Glance • LHC Hardware commissioning – – What is needed? Hardware Components Timing Distribution Network World. FIP Infrastructure • Summary 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 15

THE HARDWARE INFRASTRUCTURE WORLDFIP INFRASTRUCTURE CONTROLS AND COMMUNICATIONS • Large scale critical network 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 16

THE HARDWARE INFRASTRUCTURE WORLDFIP INFRASTRUCTURE CONTROLS AND COMMUNICATIONS • Qualification and Diagnostics in LHC – Electrical and Dynamic qualification Final qualification of the World. FIP segments is vital and requires: 1. The cabling to be finalized 2. The real agents to be installed and connected to the bus (FGCs, QPS) 3. Allocated slots on the planning 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 17

THE HARDWARE INFRASTRUCTURE CONTROLS AND COMMUNICATIONS SUMMARY (1/2) • Hardware Systems and Components – All hardware choices for the LHC control system are made and their procurement is on track. Large quantities are already in stock – The technical problem with the Alstom World. FIP bus arbiter module has to be understood by end July 2005, to be able to proceed with the installation of the World. FIP Gateways in the next LHC sectors (SR 7, SR 1) – The Timing system is up and running in LHC PT 8 but the impact of interrupting the timing system by end 2005 for installation in the C. C. C should be carefully evaluated and planned. • Installation – The Control system hardware Installation in PT 8 is almost complete, thanks to a solid installation organization and correct staffing. All installed systems are under monitoring and declared in the asset management system (No VME involved!). 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 18

SUMMARY (2/2) THE HARDWARE INFRASTRUCTURE CONTROLS AND COMMUNICATIONS • Qualifications and Planning Issues – Hardware tests: all possible tests and qualifications are made during installation BUT the final World. FIP qualification is only possible once the cabling is complete and the real equipment is connected to the bus. – Planning: Clear interfaces are established with the project planning but dedicated slots of time to qualify the World. FIP mission critical systems have to be agreed together with the concerned equipment groups and with the HW commissioning WG. In all cases, the final qualification may result in late problems discovery that impact on the foreseen HW commissioning program. 5/11/2005 LHC Hardware Commissioning Review M. Vanden Eynden on behalf of the AB/CO Group 19
