Control Structures in C Risanuri Hidayat Ir M
- Slides: 29

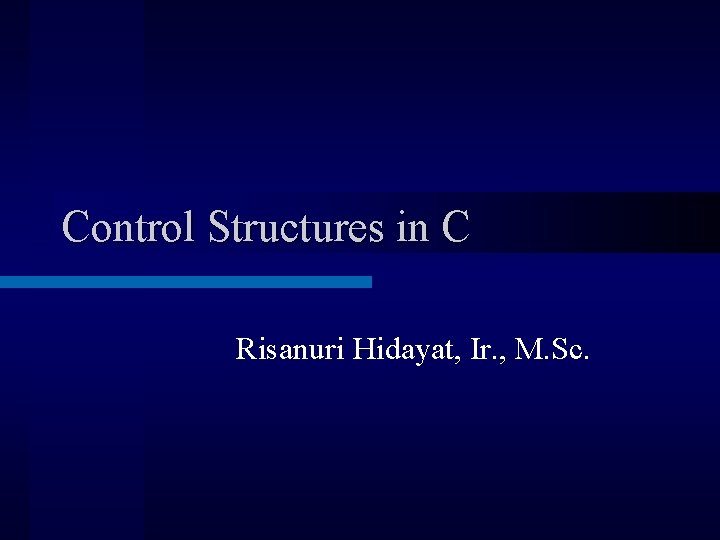

Control Structures in C Risanuri Hidayat, Ir. , M. Sc.
Condition Operator Meaning Example == Equal to count == 10 != Not equal to flag != DONE < Less than a<b <= Less than or equal to <= LIMIT > Greater than pointer > end_of_list >= Greater than or equal to lap >= start

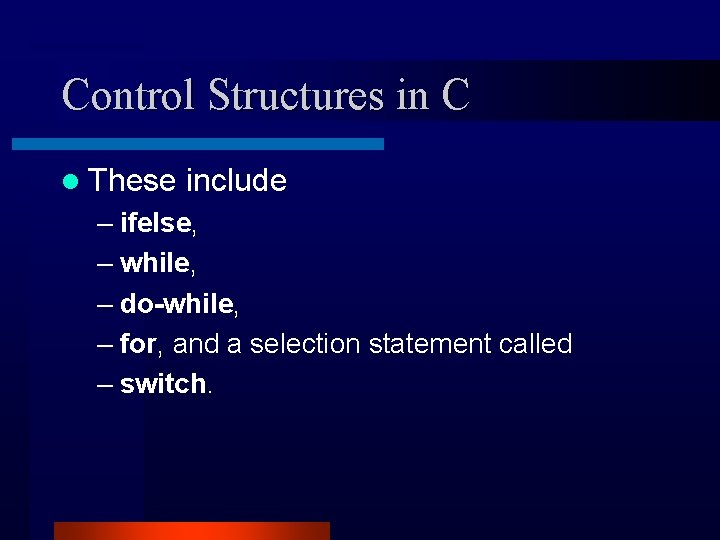

Control Structures in C l These include – ifelse, – while, – do-while, – for, and a selection statement called – switch.

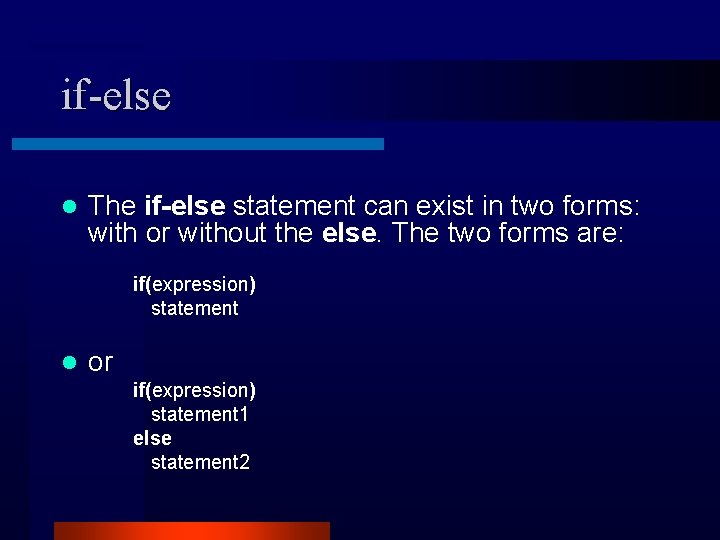

if-else l The if-else statement can exist in two forms: with or without the else. The two forms are: if(expression) statement l or if(expression) statement 1 else statement 2

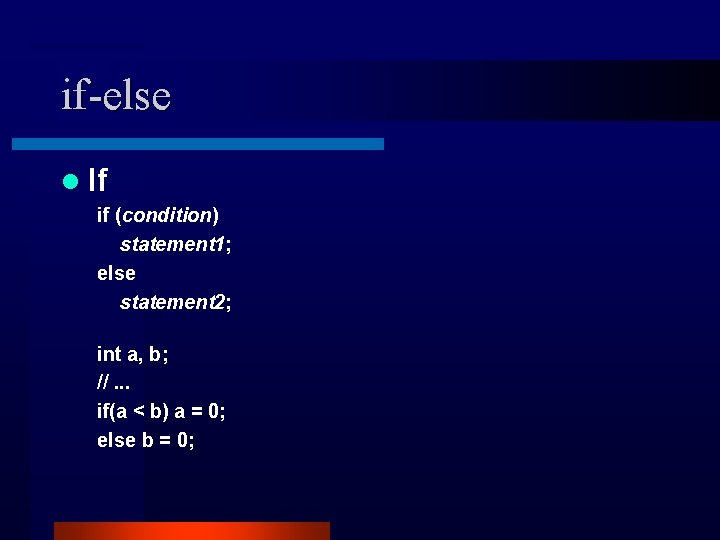

if-else l If if (condition) statement 1; else statement 2; int a, b; //. . . if(a < b) a = 0; else b = 0;

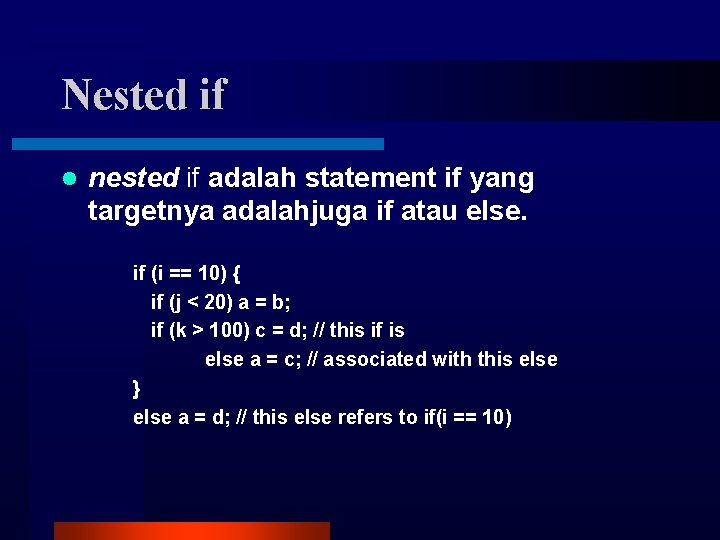

Nested if l nested if adalah statement if yang targetnya adalahjuga if atau else. if (i == 10) { if (j < 20) a = b; if (k > 100) c = d; // this if is else a = c; // associated with this else } else a = d; // this else refers to if(i == 10)

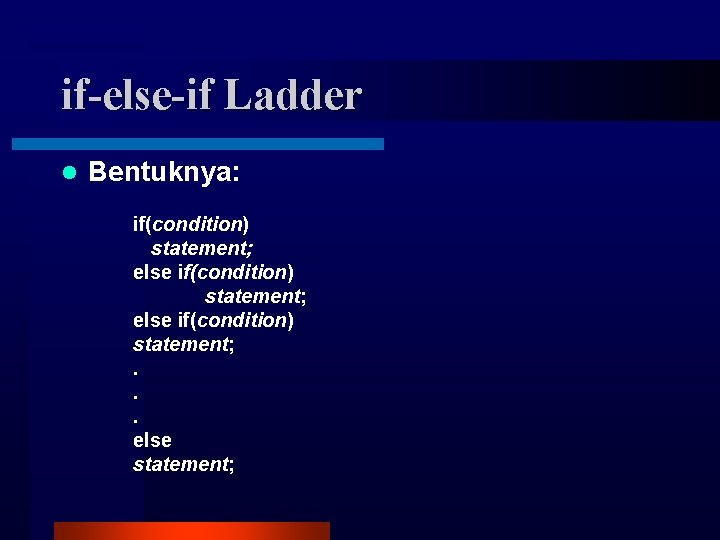

if-else-if Ladder l Bentuknya: if(condition) statement; else if(condition) statement; . . . else statement;

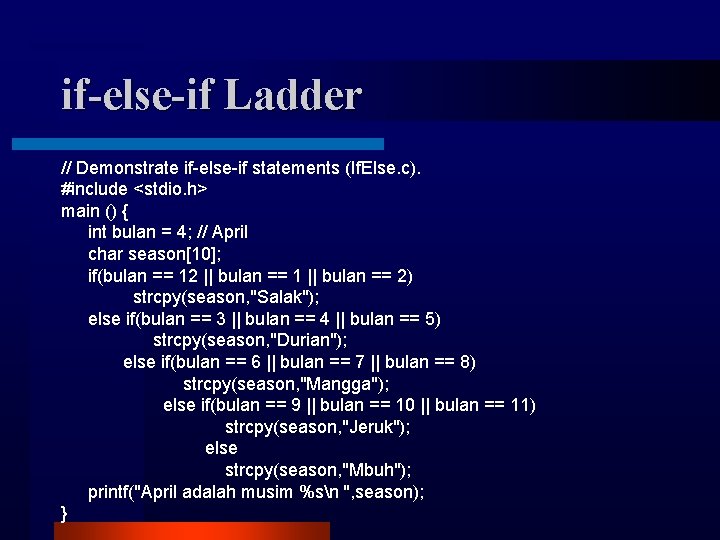

if-else-if Ladder // Demonstrate if-else-if statements (If. Else. c). #include <stdio. h> main () { int bulan = 4; // April char season[10]; if(bulan == 12 || bulan == 1 || bulan == 2) strcpy(season, "Salak"); else if(bulan == 3 || bulan == 4 || bulan == 5) strcpy(season, "Durian"); else if(bulan == 6 || bulan == 7 || bulan == 8) strcpy(season, "Mangga"); else if(bulan == 9 || bulan == 10 || bulan == 11) strcpy(season, "Jeruk"); else strcpy(season, "Mbuh"); printf("April adalah musim %sn ", season); }
switch l switch merupakan statement percabangan dengan banyak cabang. Bentuknya seperti berikut: switch (expression) { case value 1: // statement sequence break; case value 2: // statement sequence break; . . . case value. N: // statement sequence break; default: // default statement sequence }
switch l expression harus bertype byte, short, int, or char; // A simple example of the switch(switch. c) #include <stdio. h> main() { int i; for(i=0; i<6; i++) switch(i) { case 0: printf("i is zero. n"); break; case 1: printf("i is one. n"); break; case 2: printf("i is two. n"); break; case 3: printf("i is three. n"); break; default: printf("i is greater than 3. n"); } // switch } // main

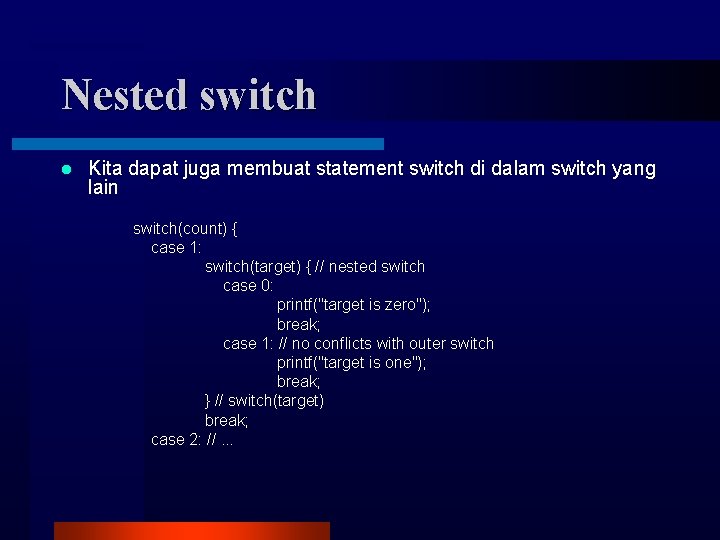

Nested switch l Kita dapat juga membuat statement switch di dalam switch yang lain switch(count) { case 1: switch(target) { // nested switch case 0: printf("target is zero"); break; case 1: // no conflicts with outer switch printf("target is one"); break; } // switch(target) break; case 2: //. . .

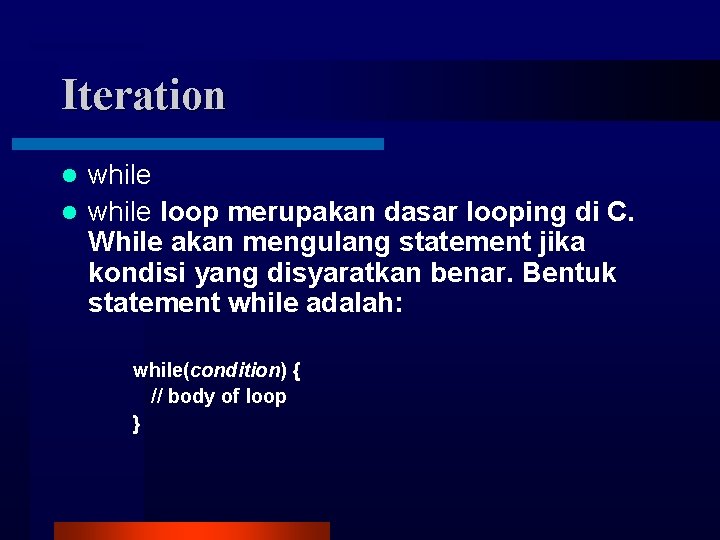

Iteration while loop merupakan dasar looping di C. While akan mengulang statement jika kondisi yang disyaratkan benar. Bentuk statement while adalah: l while(condition) { // body of loop }
while // Demonstrate the while loop (while. c). #include <stdio. h> main() { int n = 10; while(n > 0) { printf("tick %d n", n); n--; } // while } // main

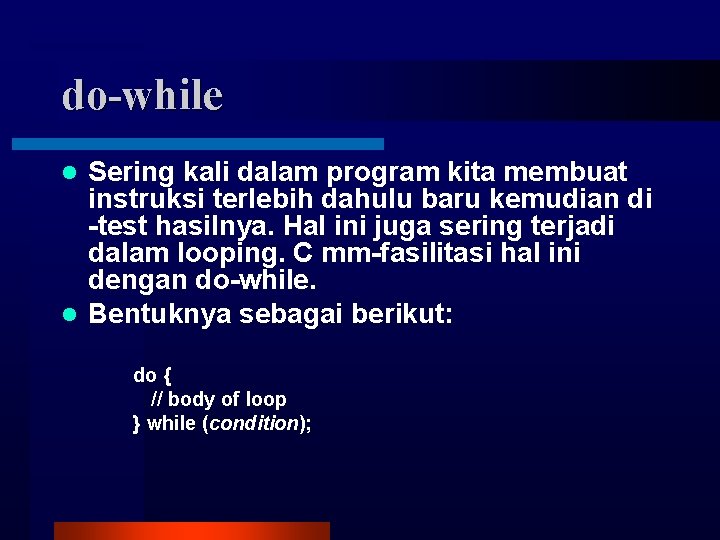

do-while Sering kali dalam program kita membuat instruksi terlebih dahulu baru kemudian di -test hasilnya. Hal ini juga sering terjadi dalam looping. C mm-fasilitasi hal ini dengan do-while. l Bentuknya sebagai berikut: l do { // body of loop } while (condition);
do-while // Demonstrate the do-while loop (dowhile. c). #include <stdio. h> main() { int n = 10; do { printf("tick %d n", n); n--; } while(n > 0); } // main
for l For merupakan statement loop yang paling sering digunakan dalam berbagai bahasa, termasuk C. l Berikut ini bentuk umumnya: for(initialization; condition; iteration) { // body }

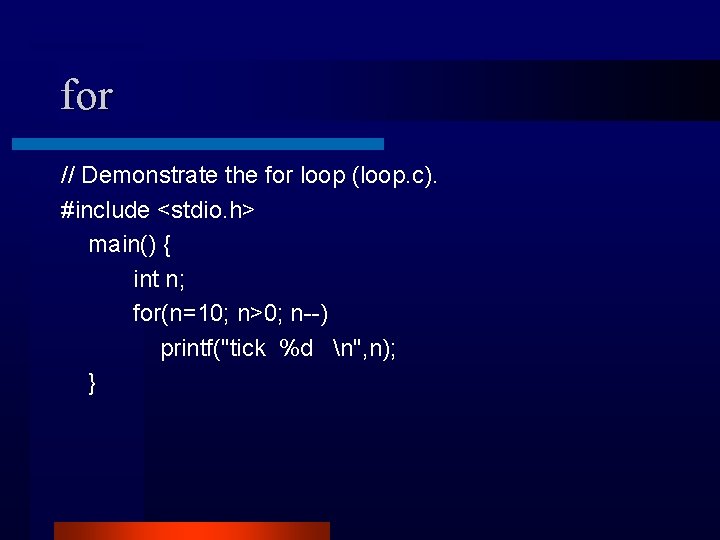

for // Demonstrate the for loop (loop. c). #include <stdio. h> main() { int n; for(n=10; n>0; n--) printf("tick %d n", n); }
for // Using the comma (comma. c) #include <stdio. h> main() { int a, b; for(a=1, b=4; a<b; a++, b--) { printf("a = %d n", a); printf("b = %d n", b); } }
Nested Loops l Like all other programming languages, C allows loops to be nested. That is, one loop may be inside another. For example, here is a program that nests for loops: // Loops may be nested (nestedfor. c). #include <stdio. h> main() { int i, j; for(i=0; i<10; i++) { for(j=i; j<10; j++) printf(". "); printf("n"); } }
Jump l. C supports four jump statements: • • break, continue, return goto. l These statements transfer control to another part of your program.
break l In C, the break statement has two uses. – First, as you have seen, it terminates a statement sequence in a switch statement. – Second, it can be used to exit a loop.

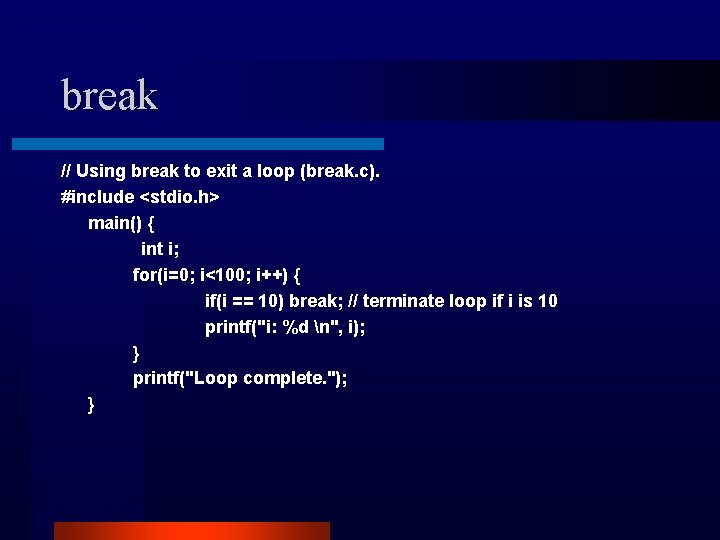

break // Using break to exit a loop (break. c). #include <stdio. h> main() { int i; for(i=0; i<100; i++) { if(i == 10) break; // terminate loop if i is 10 printf("i: %d n", i); } printf("Loop complete. "); }
break // Using break to exit a while loop (break 2. c). #include <stdio. h> main() { int i = 0; while(i < 100) { if(i == 10) break; // terminate loop if i is 10 printf("i: %d n", i); i++; } printf("Loop complete. "); }
continue go immediately to next iteration of loop l In while and do-while loops, a continue statement causes control to be transferred directly to the conditional expression that controls the loop. l In a for loop, control goes first to the iteration portion of the for statement and then to the conditional expression. l

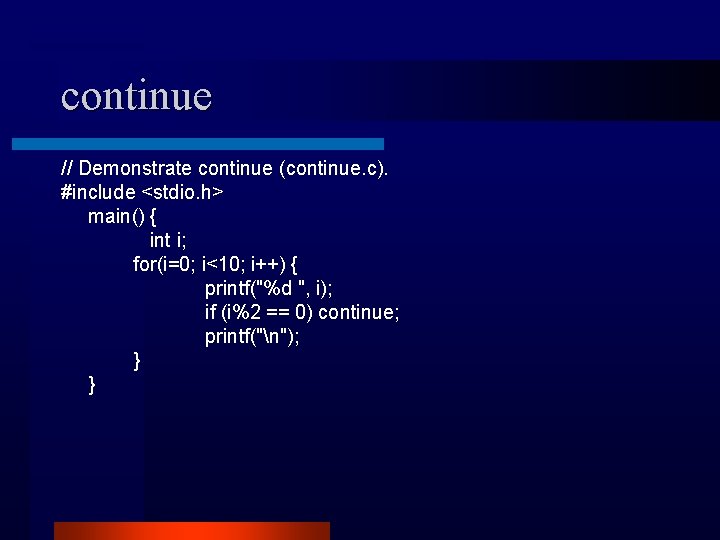

continue // Demonstrate continue (continue. c). #include <stdio. h> main() { int i; for(i=0; i<10; i++) { printf("%d ", i); if (i%2 == 0) continue; printf("n"); } }

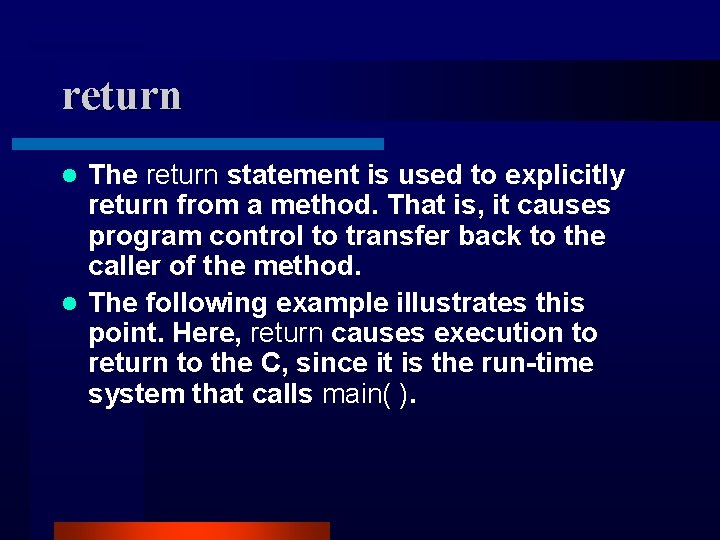

return The return statement is used to explicitly return from a method. That is, it causes program control to transfer back to the caller of the method. l The following example illustrates this point. Here, return causes execution to return to the C, since it is the run-time system that calls main( ). l

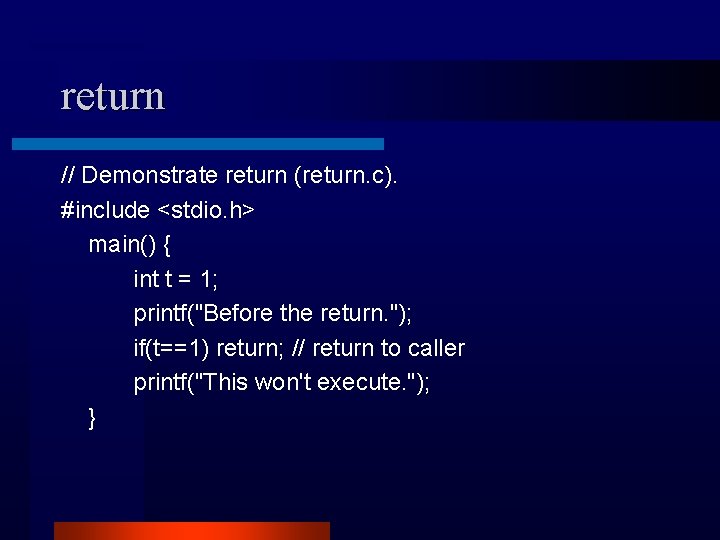

return // Demonstrate return (return. c). #include <stdio. h> main() { int t = 1; printf("Before the return. "); if(t==1) return; // return to caller printf("This won't execute. "); }

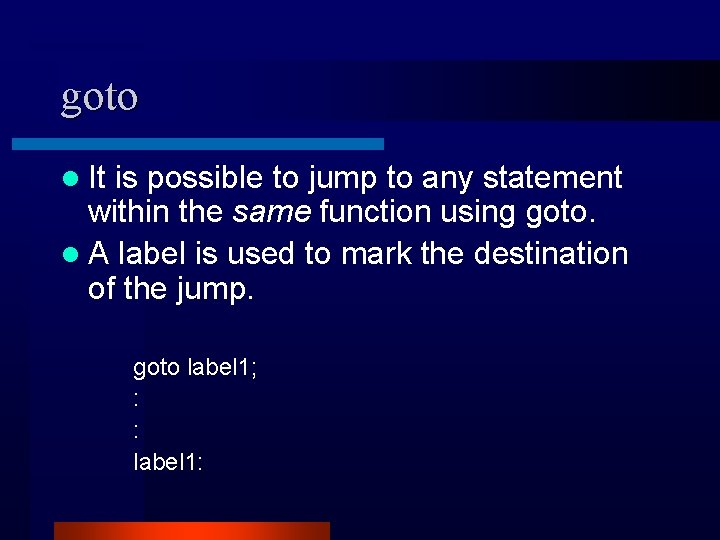

goto l It is possible to jump to any statement within the same function using goto. l A label is used to mark the destination of the jump. goto label 1; : : label 1:
goto // Using continue with a label (goto. c). #include <stdio. h> main() { int i, j; for (i=0; i<10; i++) { for(j=0; j<10; j++) { if(j > i) { printf("n"); goto outer; } printf(" %d", (i * j)); } outer: printf(". . outer. . n"); } }
