Control Chart Internal Quality Control of Laboratory Data (at NIFC) Tran Cao Son, Ph. D. National Institute for Food Control, Vietnam Ministry of Health APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam

National Institute for Food Control GOVERMENT MARD MOH VFA (Vietnam food Administration) MOIT NIFC 4 regional labs under MOH (Nha Trang, HCM, Tay Nguyen, Hanoi) 63 provincial centers NIFC - national reference food safety laboratory! APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam

Control chart ▪ Control chart was first developed by Walter Shewhart since 1930 ▪ Control chart: a record of the results of periodic inspections over time. ▪ Control chart can be classified into two types: X-chart and R-chart APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 3

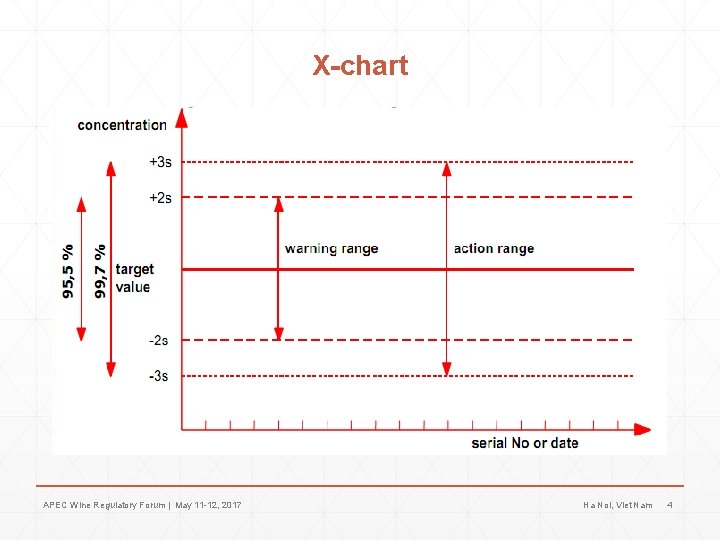

X-chart APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 4

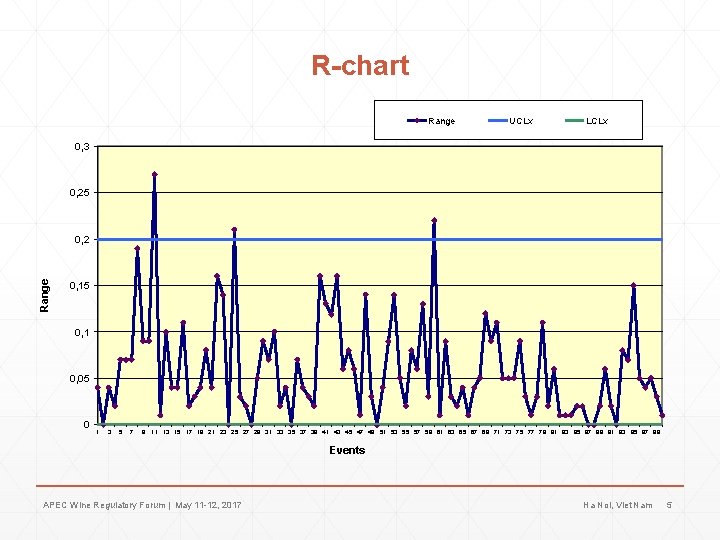

R-chart Range UCLx LCLx 0, 3 0, 25 Range 0, 2 0, 15 0, 1 0, 05 0 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85 87 89 91 93 95 97 99 Events APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 5

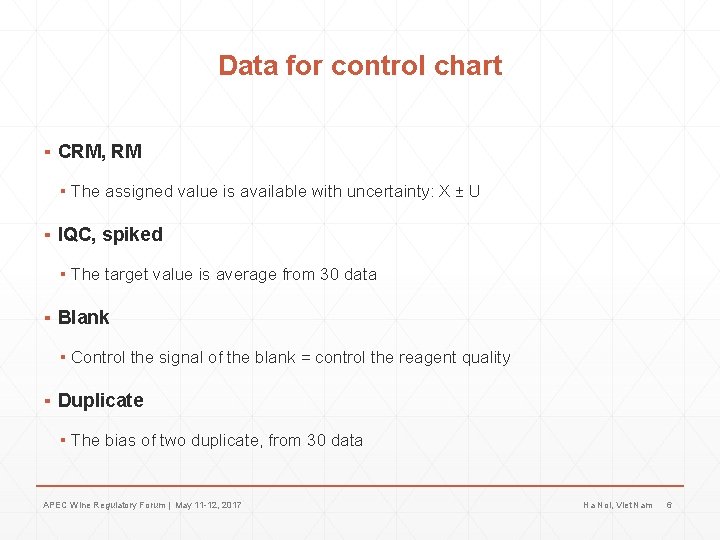

Data for control chart ▪ CRM, RM ▪ The assigned value is available with uncertainty: X ± U ▪ IQC, spiked ▪ The target value is average from 30 data ▪ Blank ▪ Control the signal of the blank = control the reagent quality ▪ Duplicate ▪ The bias of two duplicate, from 30 data APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 6

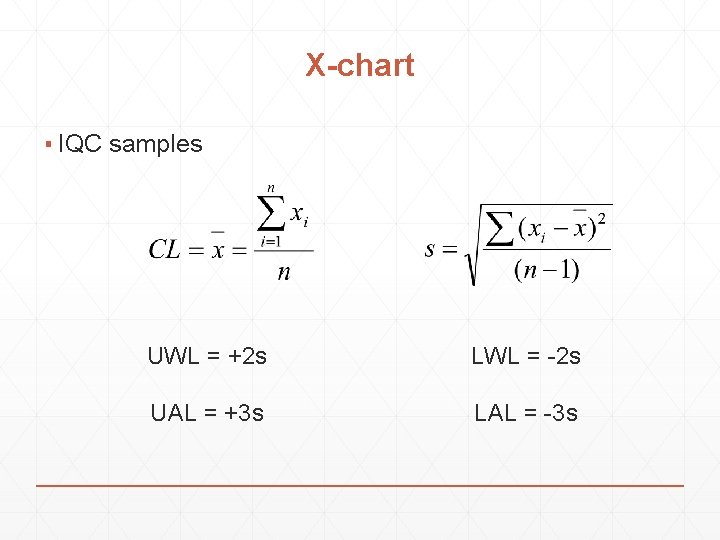

X-chart ▪ IQC samples UWL = +2 s LWL = -2 s UAL = +3 s LAL = -3 s

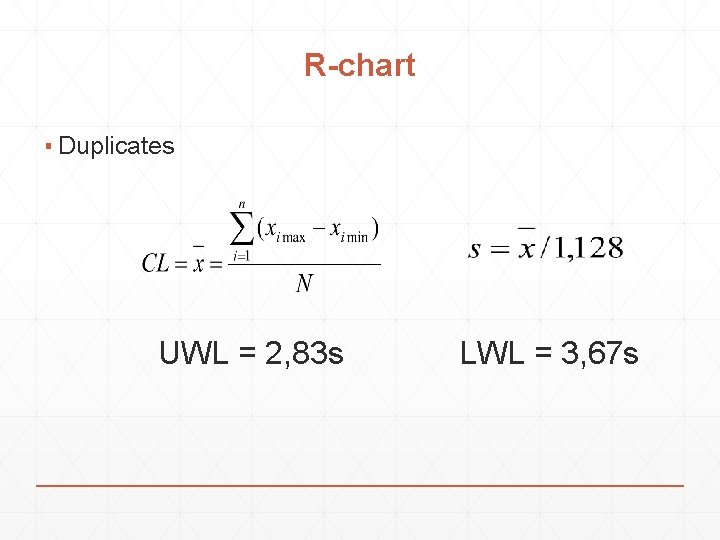

R-chart ▪ Duplicates UWL = 2, 83 s LWL = 3, 67 s

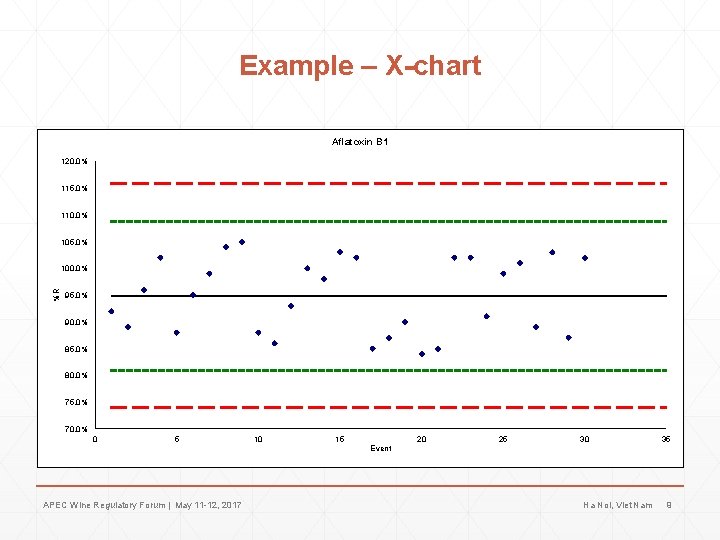

Example – X-chart Aflatoxin B 1 120, 0% 115, 0% 110, 0% 105, 0% %R 100, 0% 95, 0% 90, 0% 85, 0% 80, 0% 75, 0% 70, 0% 0 5 10 15 20 25 30 35 Event APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 9

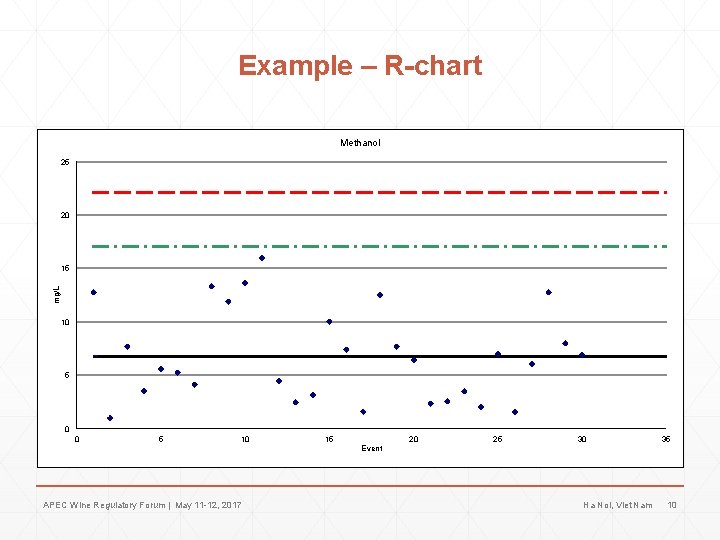

Example – R-chart Methanol 25 20 mg/L 15 10 5 0 0 5 10 15 20 25 30 35 Event APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 10

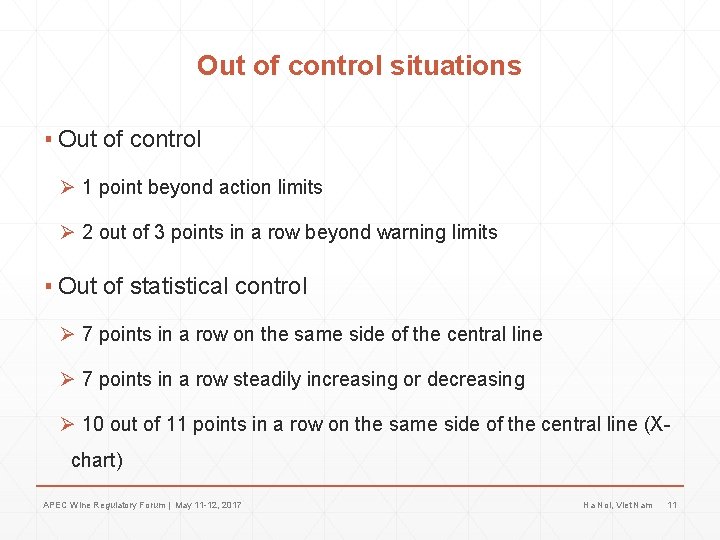

Out of control situations ▪ Out of control Ø 1 point beyond action limits Ø 2 out of 3 points in a row beyond warning limits ▪ Out of statistical control Ø 7 points in a row on the same side of the central line Ø 7 points in a row steadily increasing or decreasing Ø 10 out of 11 points in a row on the same side of the central line (Xchart) APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 11

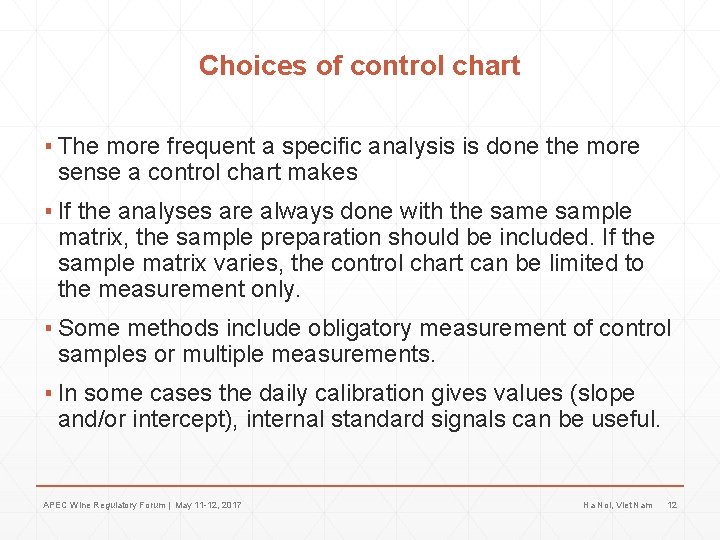

Choices of control chart ▪ The more frequent a specific analysis is done the more sense a control chart makes ▪ If the analyses are always done with the sample matrix, the sample preparation should be included. If the sample matrix varies, the control chart can be limited to the measurement only. ▪ Some methods include obligatory measurement of control samples or multiple measurements. ▪ In some cases the daily calibration gives values (slope and/or intercept), internal standard signals can be useful. APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 12

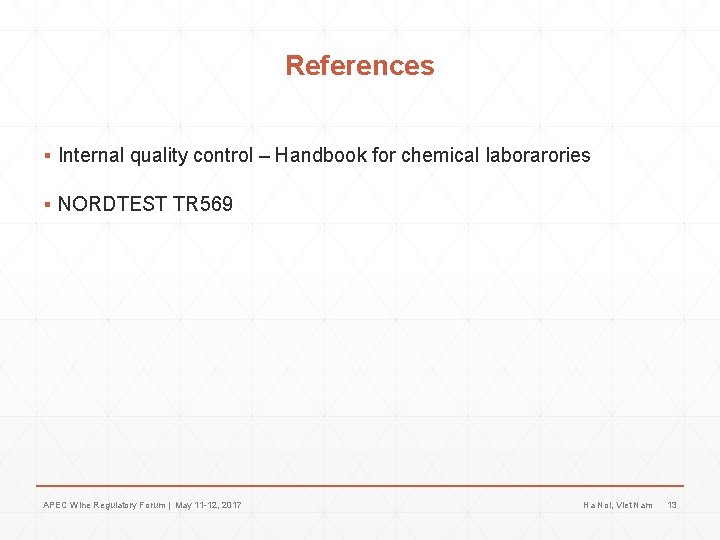

References ▪ Internal quality control – Handbook for chemical laborarories ▪ NORDTEST TR 569 APEC Wine Regulatory Forum | May 11 -12, 2017 Ha Noi, Viet Nam 13
