Contrasting Precision Ag Technology Between Different Crop Species

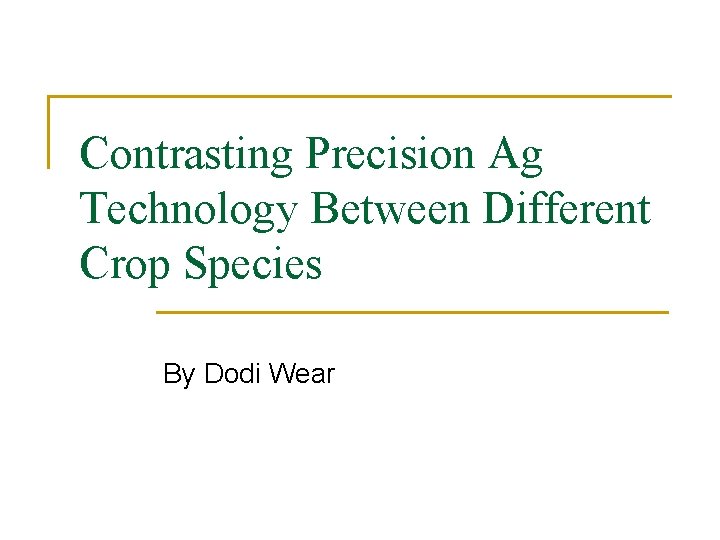

Contrasting Precision Ag Technology Between Different Crop Species By Dodi Wear

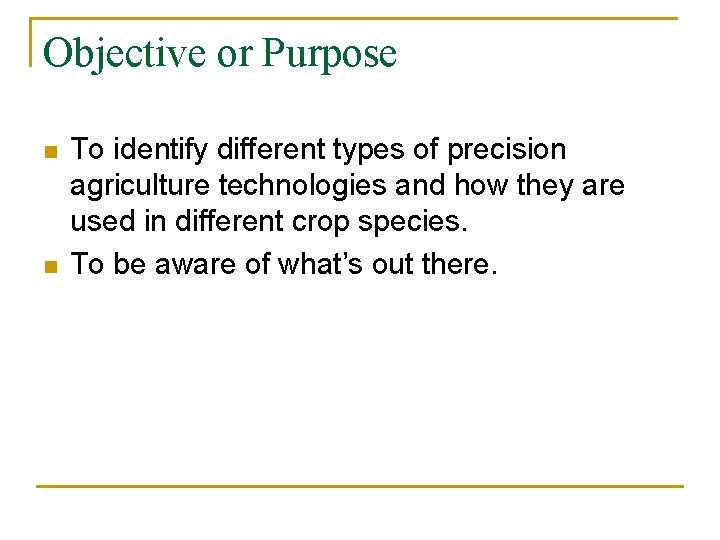

Objective or Purpose n n To identify different types of precision agriculture technologies and how they are used in different crop species. To be aware of what’s out there.

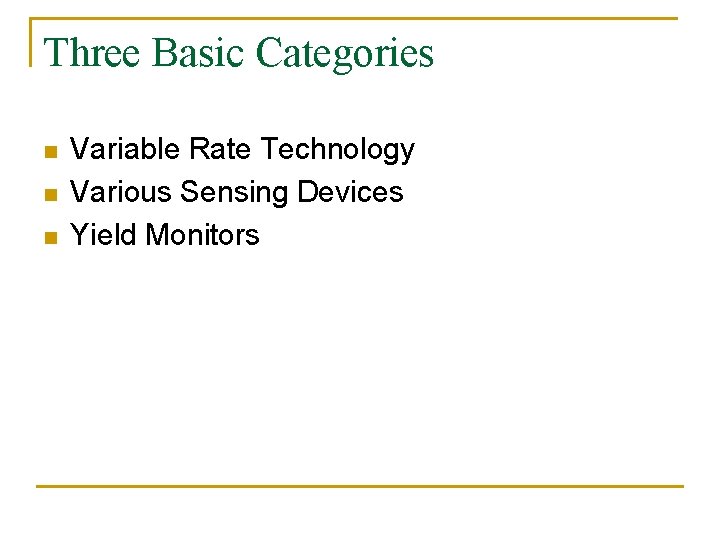

Three Basic Categories n n n Variable Rate Technology Various Sensing Devices Yield Monitors

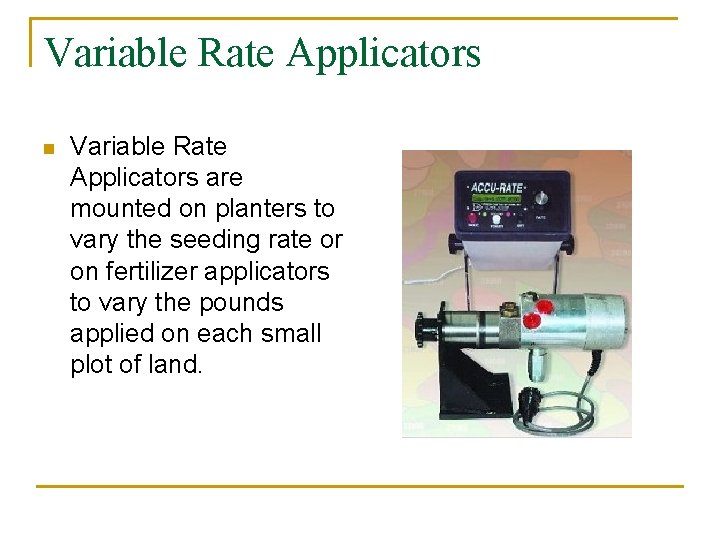

Variable Rate Applicators n Variable Rate Applicators are mounted on planters to vary the seeding rate or on fertilizer applicators to vary the pounds applied on each small plot of land.

Variable Rate Applicators n VR fertilizer application was the first PA practice to reach the level that it could be used through the complete production cycle of gathering the data, developing a management plan based on information generated by the data, and implementing this plan through site-specific fertilizer application.

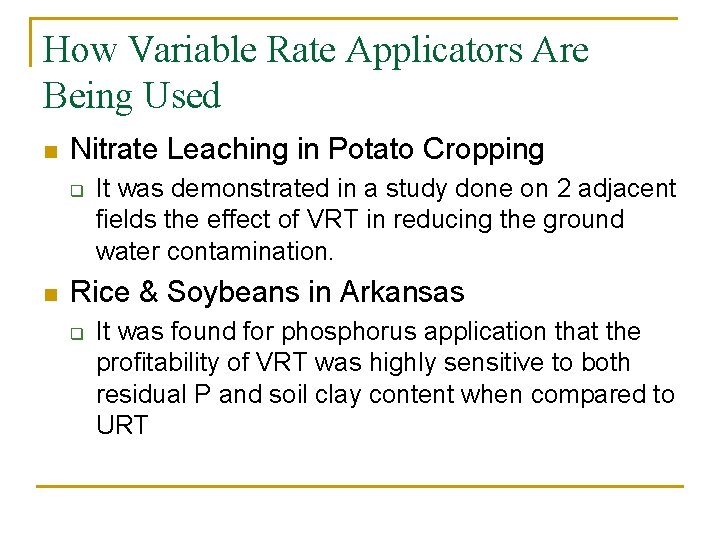

How Variable Rate Applicators Are Being Used n Nitrate Leaching in Potato Cropping q n It was demonstrated in a study done on 2 adjacent fields the effect of VRT in reducing the ground water contamination. Rice & Soybeans in Arkansas q It was found for phosphorus application that the profitability of VRT was highly sensitive to both residual P and soil clay content when compared to URT

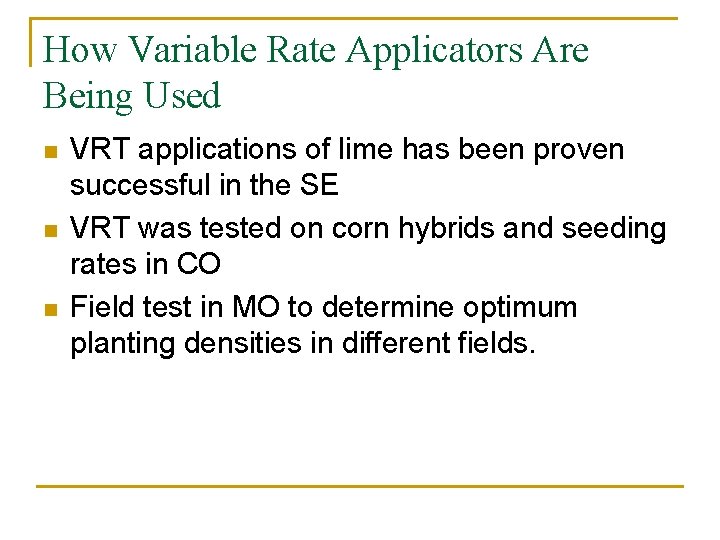

How Variable Rate Applicators Are Being Used n n n VRT applications of lime has been proven successful in the SE VRT was tested on corn hybrids and seeding rates in CO Field test in MO to determine optimum planting densities in different fields.

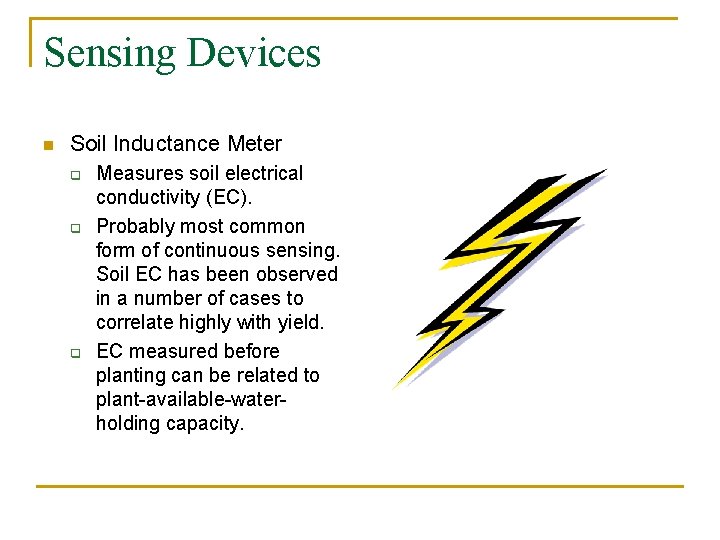

Sensing Devices n Soil Inductance Meter q q q Measures soil electrical conductivity (EC). Probably most common form of continuous sensing. Soil EC has been observed in a number of cases to correlate highly with yield. EC measured before planting can be related to plant-available-waterholding capacity.

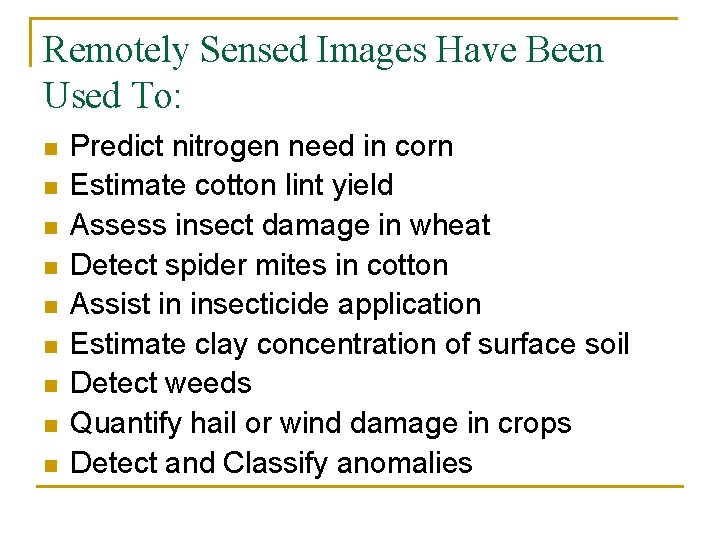

Remotely Sensed Images Have Been Used To: n n n n n Predict nitrogen need in corn Estimate cotton lint yield Assess insect damage in wheat Detect spider mites in cotton Assist in insecticide application Estimate clay concentration of surface soil Detect weeds Quantify hail or wind damage in crops Detect and Classify anomalies

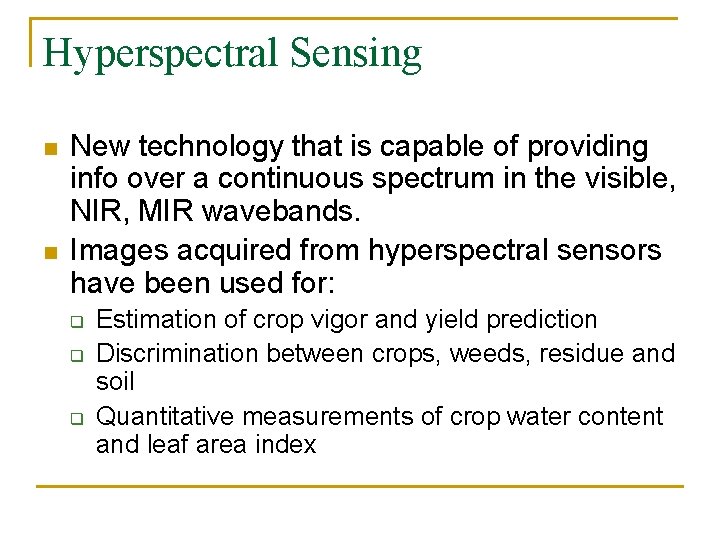

Hyperspectral Sensing n n New technology that is capable of providing info over a continuous spectrum in the visible, NIR, MIR wavebands. Images acquired from hyperspectral sensors have been used for: q q q Estimation of crop vigor and yield prediction Discrimination between crops, weeds, residue and soil Quantitative measurements of crop water content and leaf area index

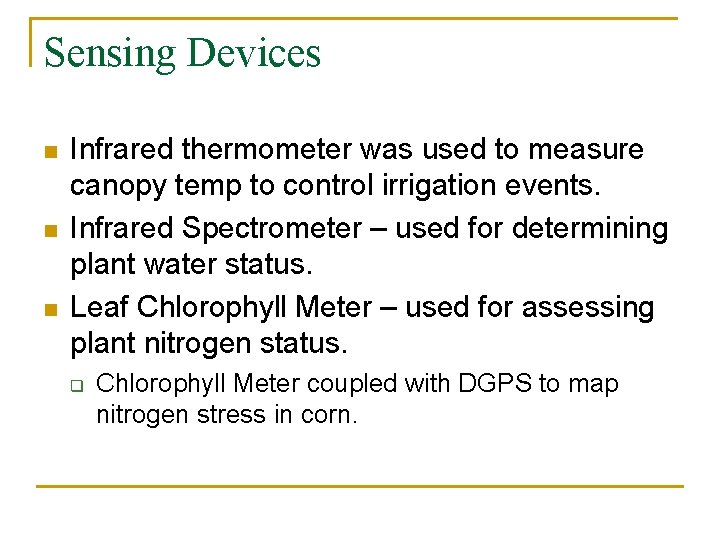

Sensing Devices n n n Infrared thermometer was used to measure canopy temp to control irrigation events. Infrared Spectrometer – used for determining plant water status. Leaf Chlorophyll Meter – used for assessing plant nitrogen status. q Chlorophyll Meter coupled with DGPS to map nitrogen stress in corn.

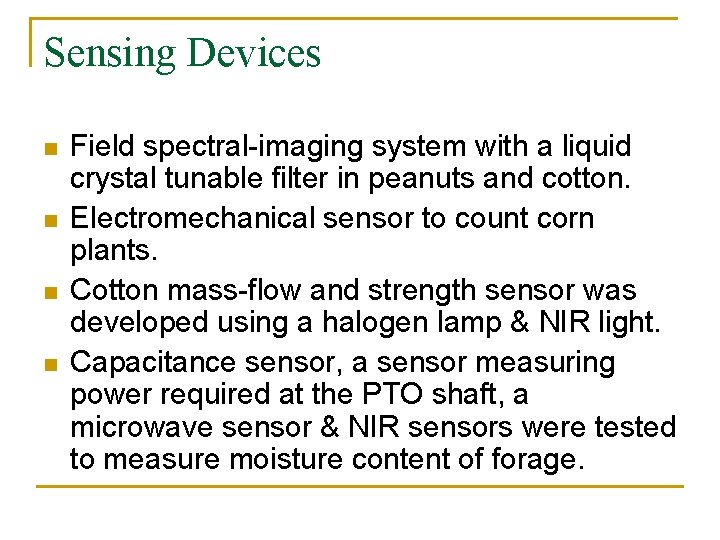

Sensing Devices n n Field spectral-imaging system with a liquid crystal tunable filter in peanuts and cotton. Electromechanical sensor to count corn plants. Cotton mass-flow and strength sensor was developed using a halogen lamp & NIR light. Capacitance sensor, a sensor measuring power required at the PTO shaft, a microwave sensor & NIR sensors were tested to measure moisture content of forage.

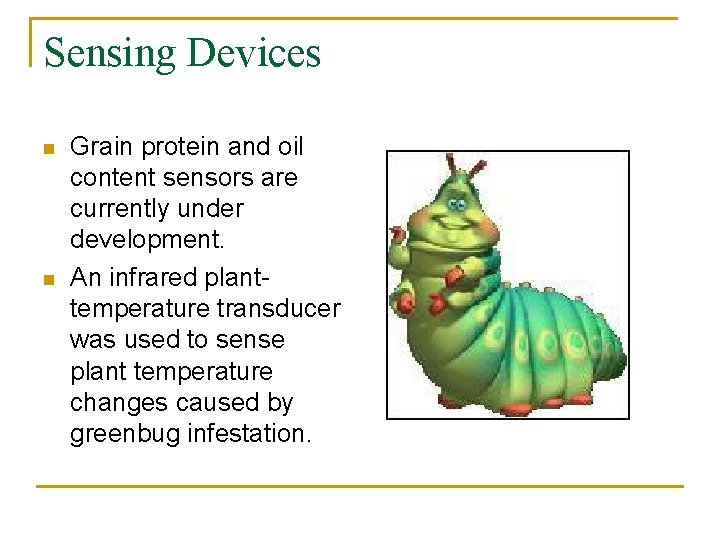

Sensing Devices n n Grain protein and oil content sensors are currently under development. An infrared planttemperature transducer was used to sense plant temperature changes caused by greenbug infestation.

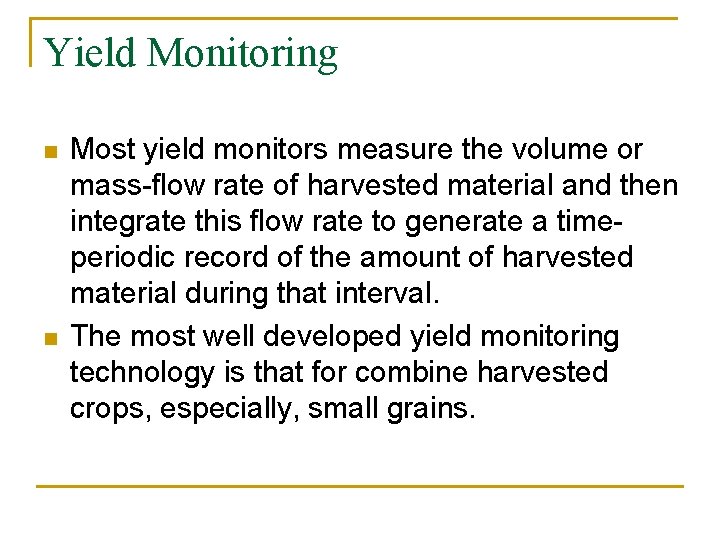

Yield Monitoring n n Most yield monitors measure the volume or mass-flow rate of harvested material and then integrate this flow rate to generate a timeperiodic record of the amount of harvested material during that interval. The most well developed yield monitoring technology is that for combine harvested crops, especially, small grains.

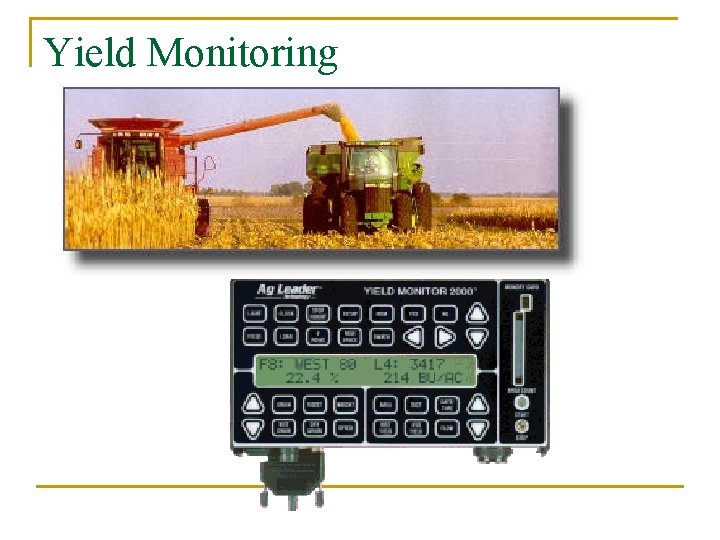

Yield Monitoring

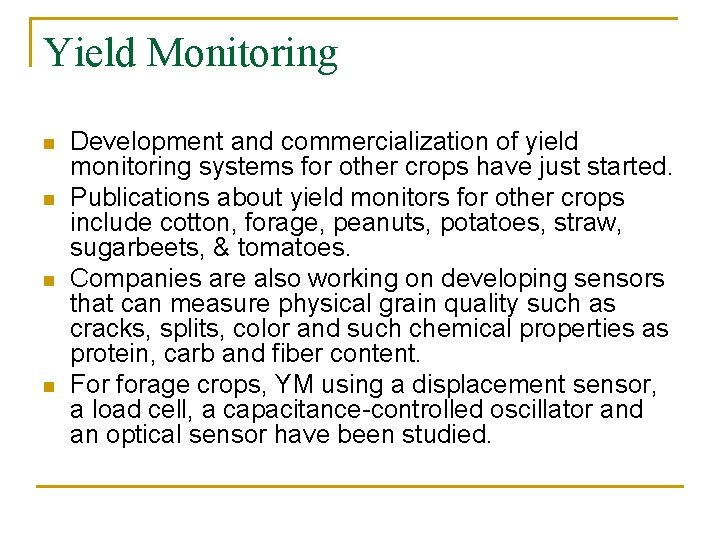

Yield Monitoring n n Development and commercialization of yield monitoring systems for other crops have just started. Publications about yield monitors for other crops include cotton, forage, peanuts, potatoes, straw, sugarbeets, & tomatoes. Companies are also working on developing sensors that can measure physical grain quality such as cracks, splits, color and such chemical properties as protein, carb and fiber content. For forage crops, YM using a displacement sensor, a load cell, a capacitance-controlled oscillator and an optical sensor have been studied.

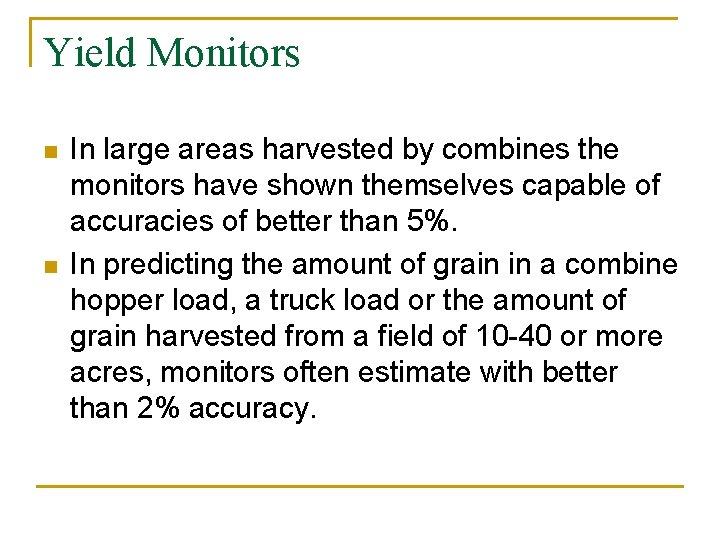

Yield Monitors n n In large areas harvested by combines the monitors have shown themselves capable of accuracies of better than 5%. In predicting the amount of grain in a combine hopper load, a truck load or the amount of grain harvested from a field of 10 -40 or more acres, monitors often estimate with better than 2% accuracy.

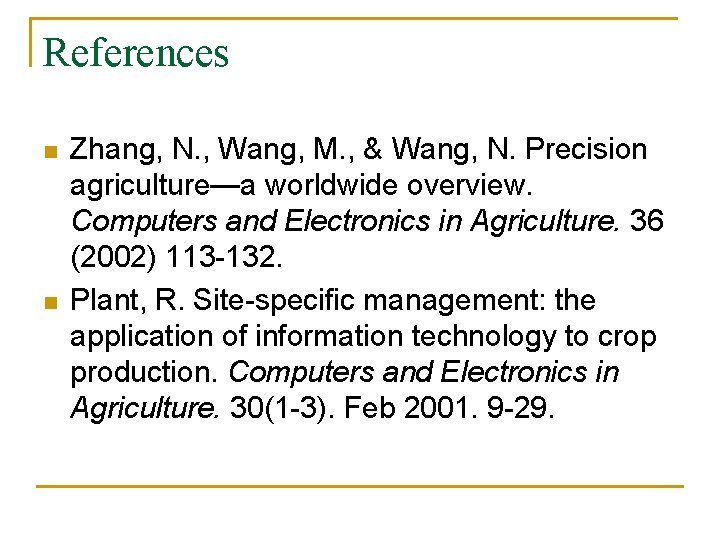

References n n Zhang, N. , Wang, M. , & Wang, N. Precision agriculture—a worldwide overview. Computers and Electronics in Agriculture. 36 (2002) 113 -132. Plant, R. Site-specific management: the application of information technology to crop production. Computers and Electronics in Agriculture. 30(1 -3). Feb 2001. 9 -29.
