CONTRAST RADIOGRAPHY Basic Radiographic Opacities Radiographic image It
CONTRAST RADIOGRAPHY
Basic Radiographic Opacities Radiographic image: It is produced when x- ray goes through the body part: penetration and absorption, hence== What you got? ? Basic radiographic opacities Air Fat Water Bone Metal/+Contrast BLACK GREY WHITE

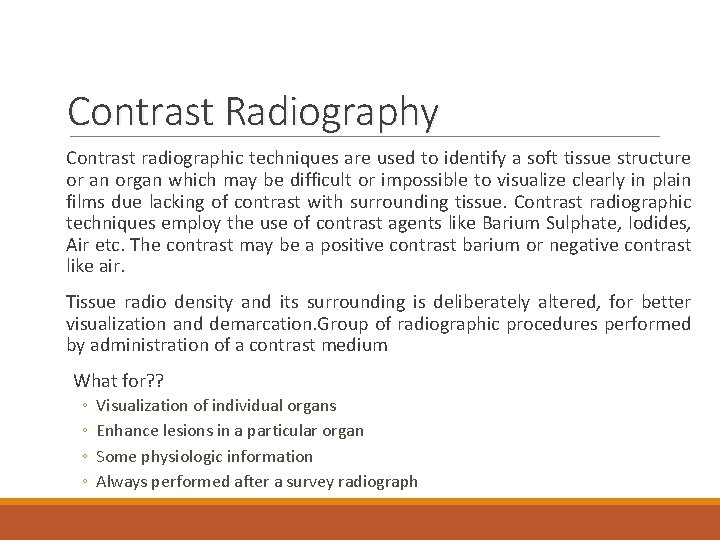

Contrast Radiography Contrast radiographic techniques are used to identify a soft tissue structure or an organ which may be difficult or impossible to visualize clearly in plain films due lacking of contrast with surrounding tissue. Contrast radiographic techniques employ the use of contrast agents like Barium Sulphate, Iodides, Air etc. The contrast may be a positive contrast barium or negative contrast like air. Tissue radio density and its surrounding is deliberately altered, for better visualization and demarcation. Group of radiographic procedures performed by administration of a contrast medium What for? ? ◦ ◦ Visualization of individual organs Enhance lesions in a particular organ Some physiologic information Always performed after a survey radiograph
Advantages: ◦ Structures or organs can be evaluated more effectively for their size, shape and positions. ◦ Valuable information can be gained regarding serosal and mucosal surfaces of hollow organs. ◦ In some instances some idea of the function of the organ can be formed Ideal Contrast Medium: Any contrast medium used should have following qualities. ◦ It should have desired Z number. ◦ It should be inert or its metabolic byproducts should not be toxic. ◦ It should be retained in the area of interest only for the desired periods. ◦

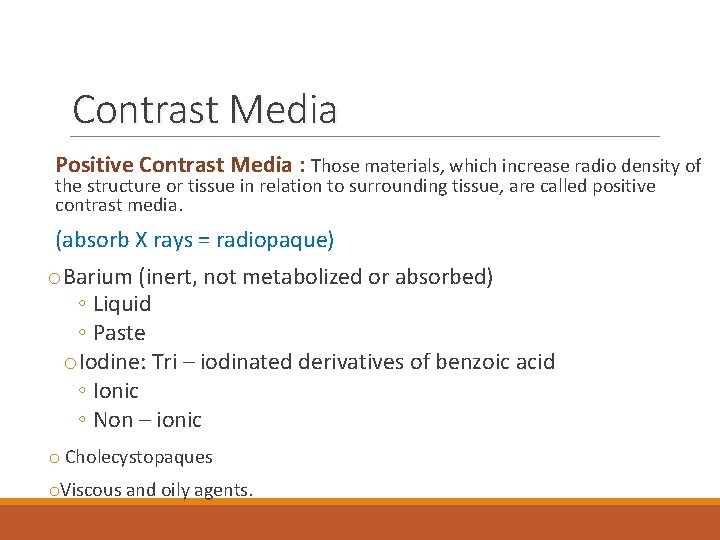

Contrast Media Positive Contrast Media : Those materials, which increase radio density of the structure or tissue in relation to surrounding tissue, are called positive contrast media. (absorb X rays = radiopaque) o. Barium (inert, not metabolized or absorbed) ◦ Liquid ◦ Paste o. Iodine: Tri – iodinated derivatives of benzoic acid ◦ Ionic ◦ Non – ionic o Cholecystopaques o. Viscous and oily agents.
Negative Contrast Media : Those materials, which relatively decrease the radio density, are negative contrast media. (do not absorb X rays = radiolucent) ◦ Air ◦ Carbon dioxide ◦ Nitrous oxide
Barium Sulphate preparation • Insoluble • Non absorbable by GIT Barium sulphate is exclusively used for outlining alimentary tract. It is insoluble and not absorbed in the body. Therefore its use should be avoided if perforations are suspected. It is available as powder, suspension or paste. Not used with ruptured GIT as it will lead to inflammation, formation of granulomatus mass and fibroma.

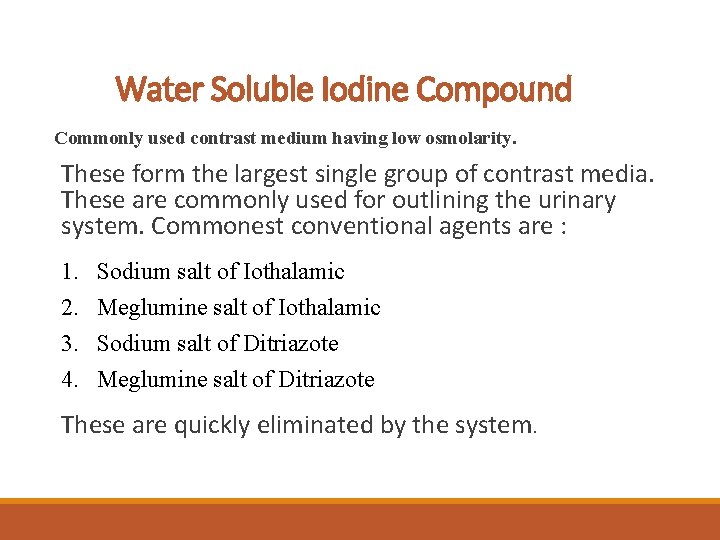

Water Soluble Iodine Compound Commonly used contrast medium having low osmolarity. These form the largest single group of contrast media. These are commonly used for outlining the urinary system. Commonest conventional agents are : 1. 2. 3. 4. Sodium salt of Iothalamic Meglumine salt of Iothalamic Sodium salt of Ditriazote Meglumine salt of Ditriazote These are quickly eliminated by the system.

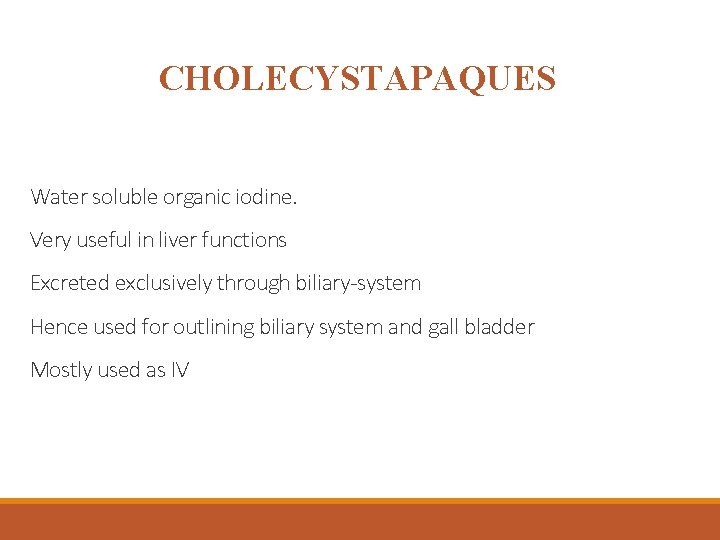

CHOLECYSTAPAQUES Water soluble organic iodine. Very useful in liver functions Excreted exclusively through biliary-system Hence used for outlining biliary system and gall bladder Mostly used as IV

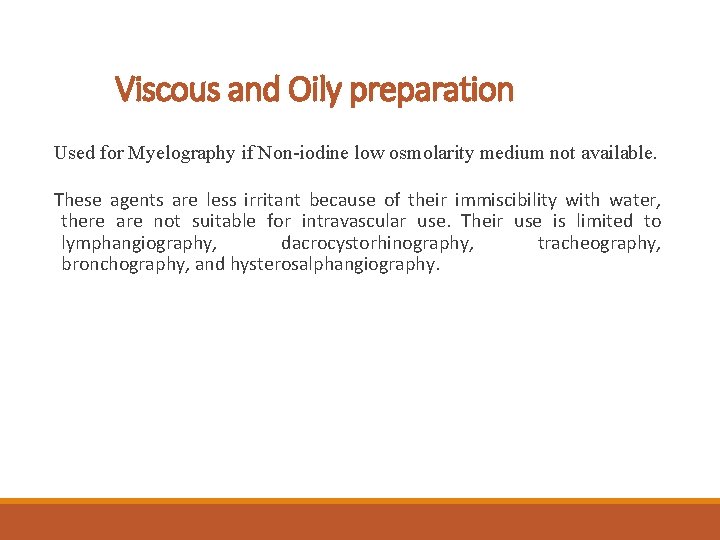

Viscous and Oily preparation Used for Myelography if Non-iodine low osmolarity medium not available. These agents are less irritant because of their immiscibility with water, there are not suitable for intravascular use. Their use is limited to lymphangiography, dacrocystorhinography, tracheography, bronchography, and hysterosalphangiography.

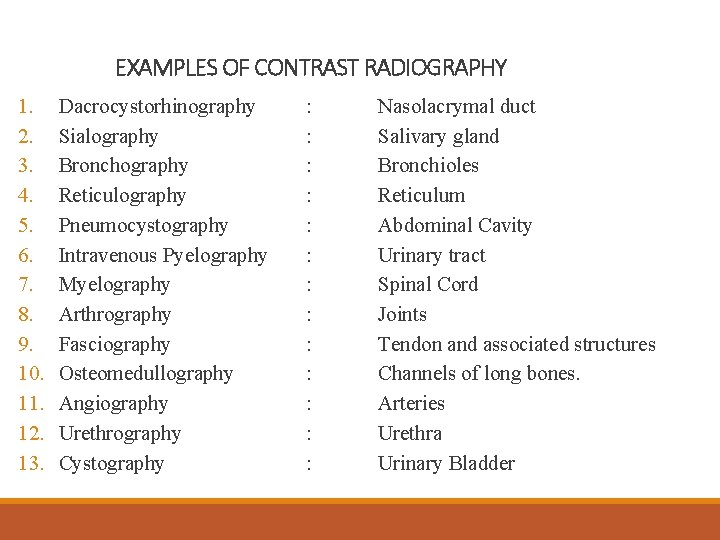

EXAMPLES OF CONTRAST RADIOGRAPHY 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Dacrocystorhinography Sialography Bronchography Reticulography Pneumocystography Intravenous Pyelography Myelography Arthrography Fasciography Osteomedullography Angiography Urethrography Cystography : : : : Nasolacrymal duct Salivary gland Bronchioles Reticulum Abdominal Cavity Urinary tract Spinal Cord Joints Tendon and associated structures Channels of long bones. Arteries Urethra Urinary Bladder

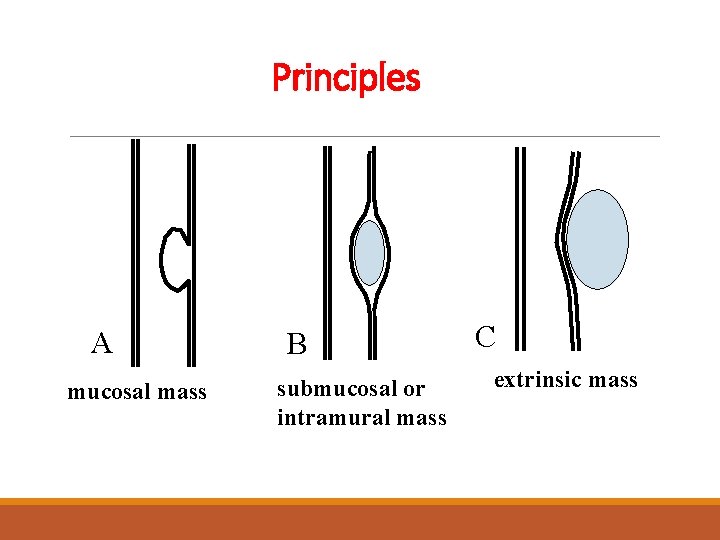

Principles A mucosal mass B submucosal or intramural mass C extrinsic mass
Mucosal Mass A B

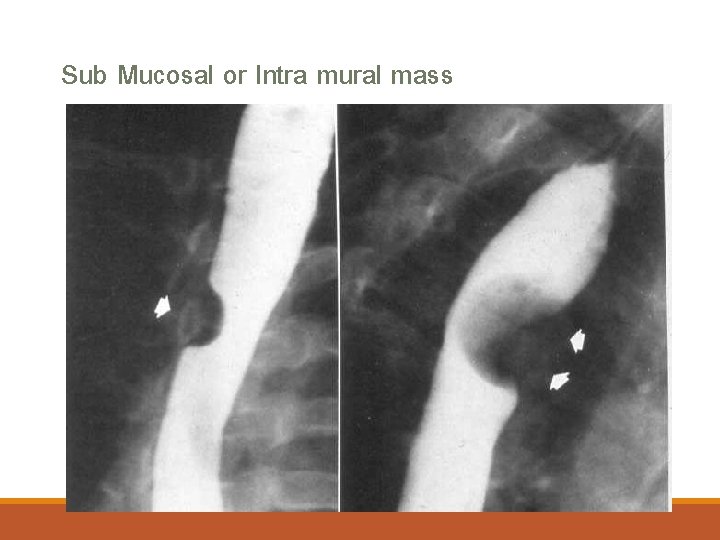

Sub Mucosal or Intra mural mass

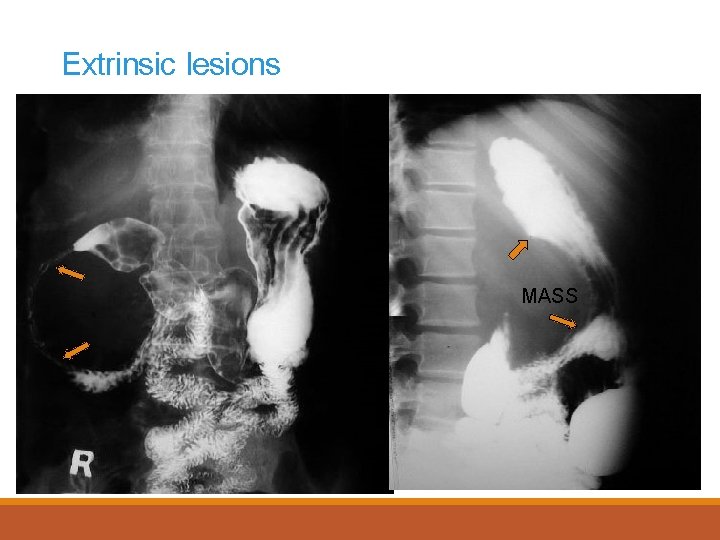

Extrinsic lesions MASS
Contrast studies for the GI tract Esophagogram, esophagram, esophogram ◦ Indications: ◦ Suspected esophageal disease ◦ Confirm questionable findings on survey rads ◦ Esophageal motility ◦ Procedure ◦ Survey rads ◦ Sedation not recommended (Acepromazine) ◦ Interpretation ◦ No distention, you can see the bolus ◦ Longitudinal folds and herringbone pattern (cats)
Normal Barium Swallow

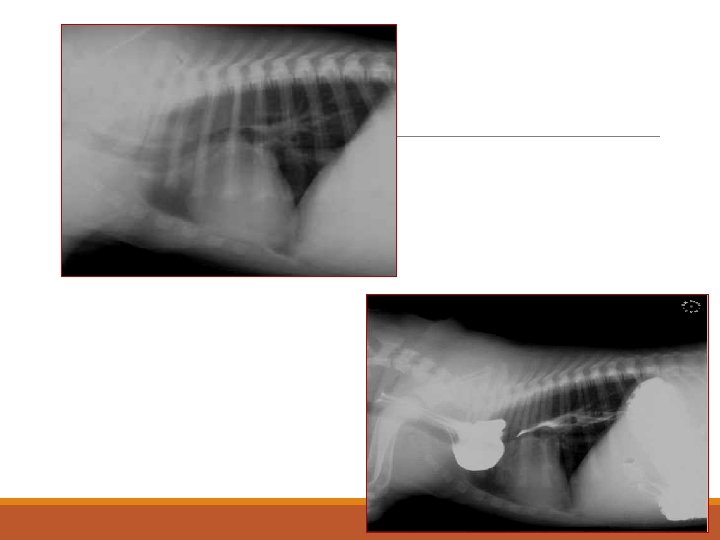

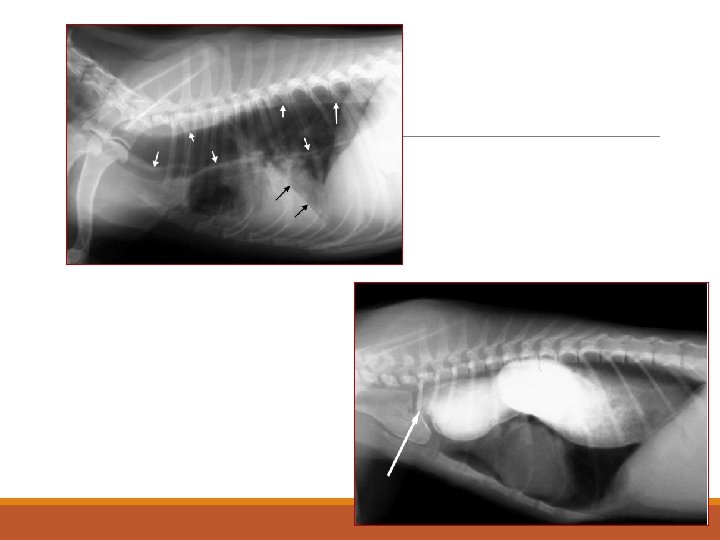

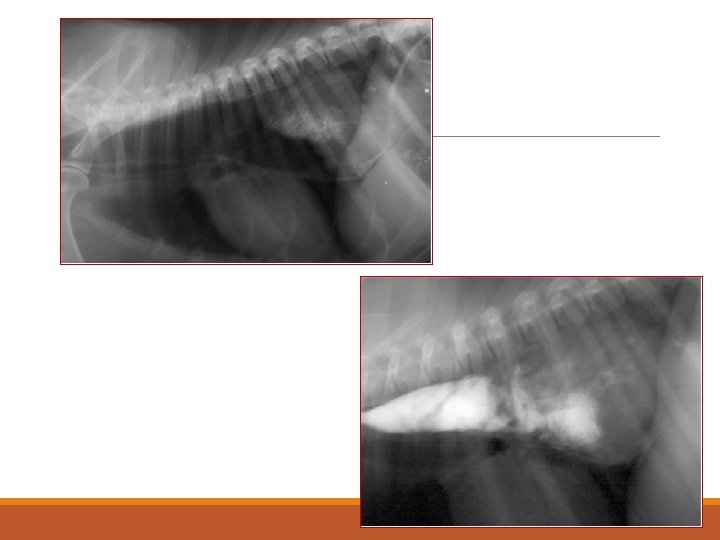

Megaesophagus

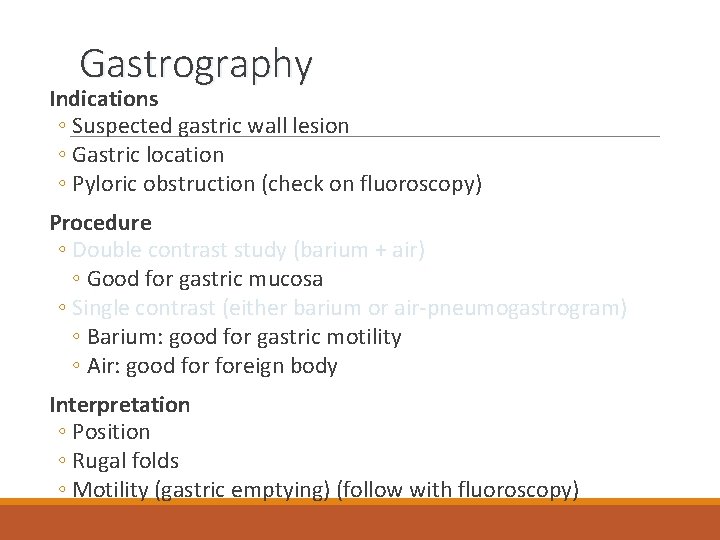

Gastrography Indications ◦ Suspected gastric wall lesion ◦ Gastric location ◦ Pyloric obstruction (check on fluoroscopy) Procedure ◦ Double contrast study (barium + air) ◦ Good for gastric mucosa ◦ Single contrast (either barium or air-pneumogastrogram) ◦ Barium: good for gastric motility ◦ Air: good foreign body Interpretation ◦ Position ◦ Rugal folds ◦ Motility (gastric emptying) (follow with fluoroscopy)

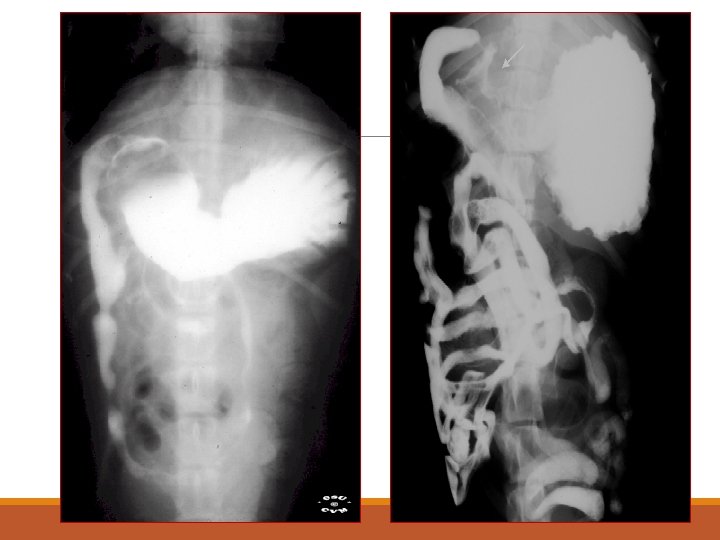

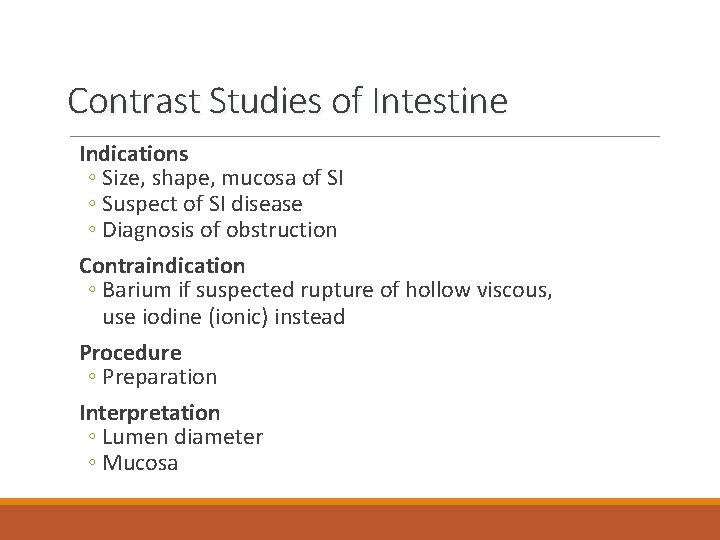

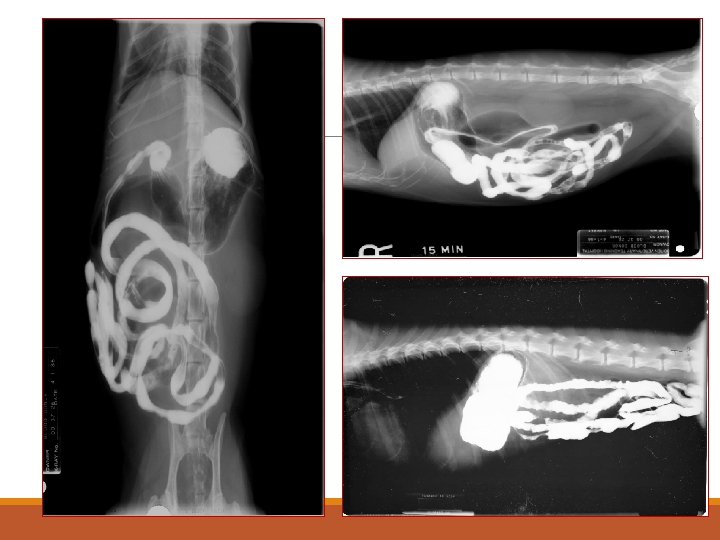

Contrast Studies of Intestine Indications ◦ Size, shape, mucosa of SI ◦ Suspect of SI disease ◦ Diagnosis of obstruction Contraindication ◦ Barium if suspected rupture of hollow viscous, use iodine (ionic) instead Procedure ◦ Preparation Interpretation ◦ Lumen diameter ◦ Mucosa

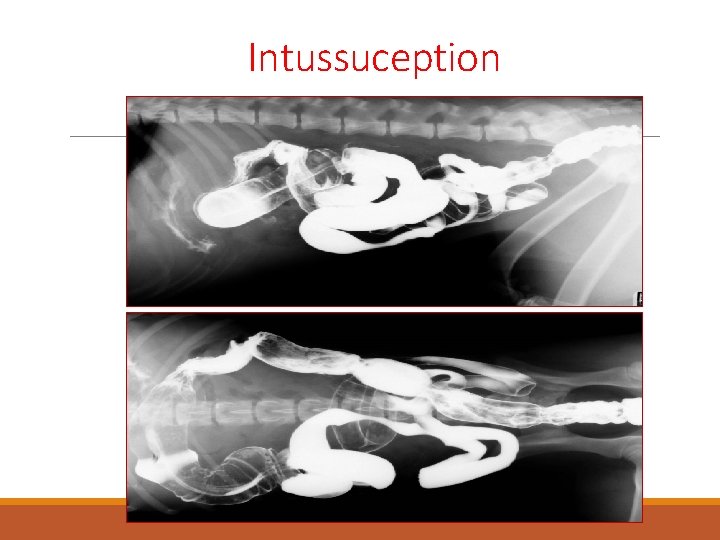

Intussuception

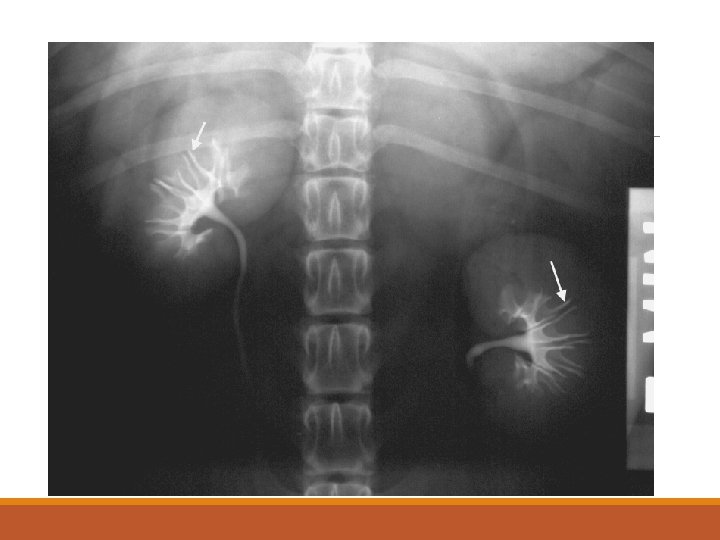

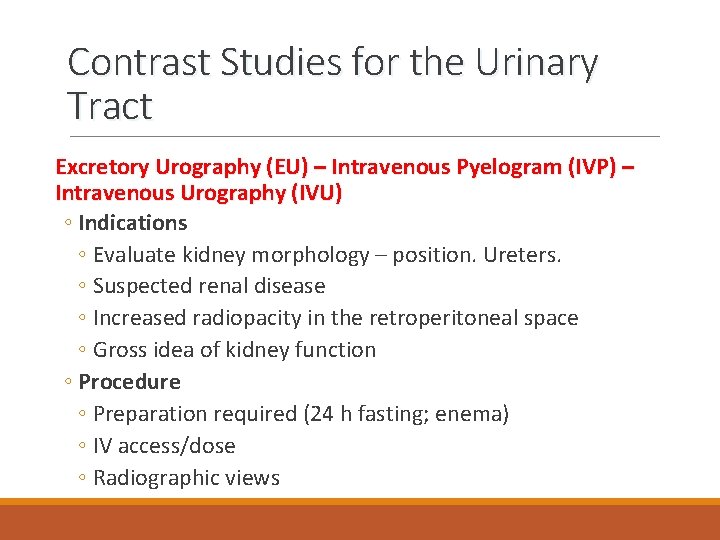

Contrast Studies for the Urinary Tract Excretory Urography (EU) – Intravenous Pyelogram (IVP) – Intravenous Urography (IVU) ◦ Indications ◦ Evaluate kidney morphology – position. Ureters. ◦ Suspected renal disease ◦ Increased radiopacity in the retroperitoneal space ◦ Gross idea of kidney function ◦ Procedure ◦ Preparation required (24 h fasting; enema) ◦ IV access/dose ◦ Radiographic views

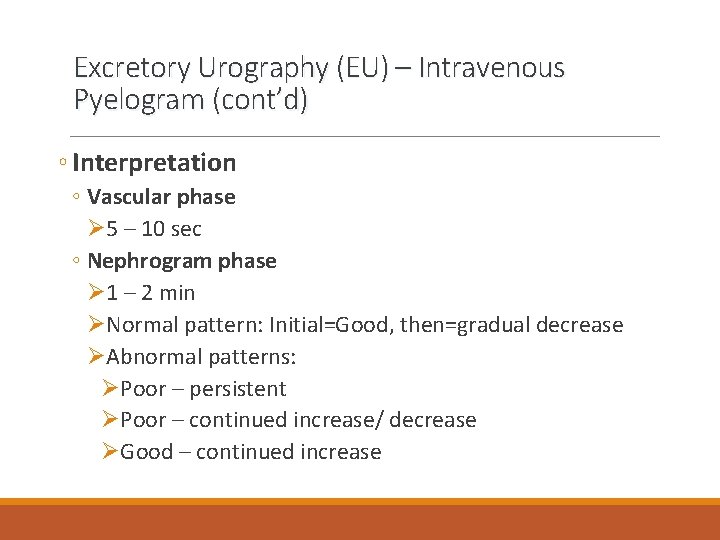

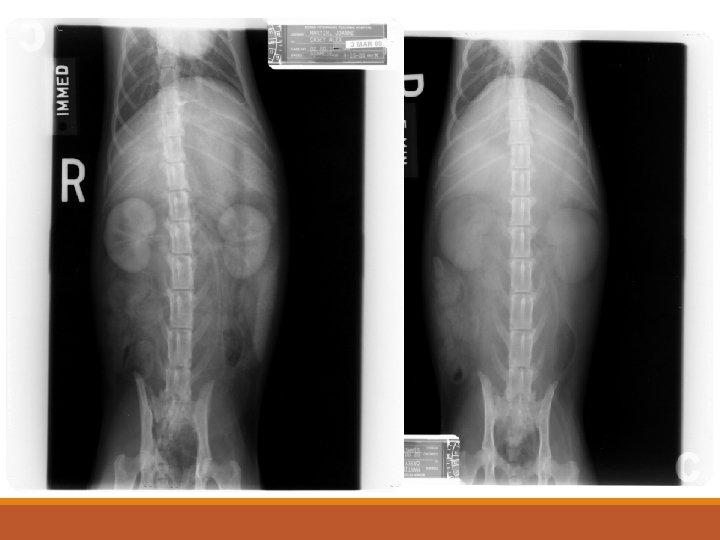

Excretory Urography (EU) – Intravenous Pyelogram (cont’d) ◦ Interpretation ◦ Vascular phase Ø 5 – 10 sec ◦ Nephrogram phase Ø 1 – 2 min ØNormal pattern: Initial=Good, then=gradual decrease ØAbnormal patterns: ØPoor – persistent ØPoor – continued increase/ decrease ØGood – continued increase

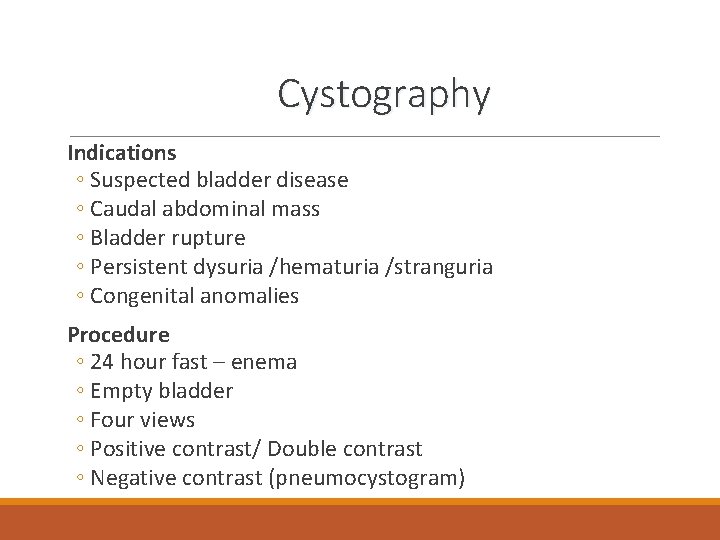

Cystography Indications ◦ Suspected bladder disease ◦ Caudal abdominal mass ◦ Bladder rupture ◦ Persistent dysuria /hematuria /stranguria ◦ Congenital anomalies Procedure ◦ 24 hour fast – enema ◦ Empty bladder ◦ Four views ◦ Positive contrast/ Double contrast ◦ Negative contrast (pneumocystogram)

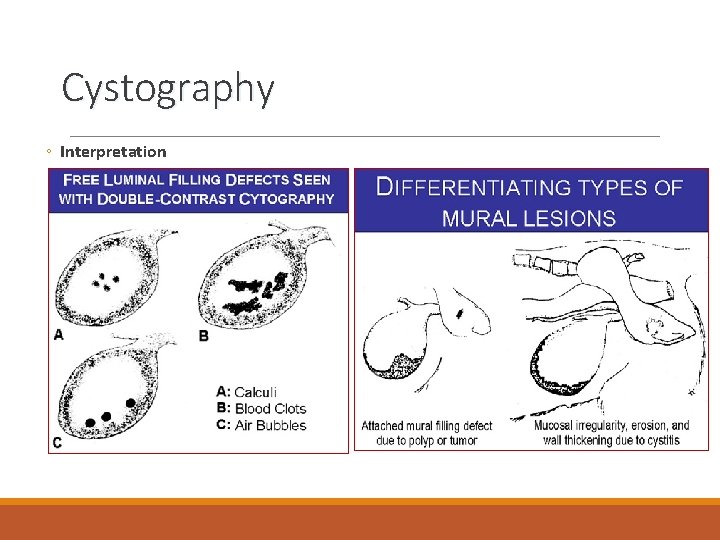

Cystography ◦ Interpretation
Retrograde cystography • Negative contrast cystography Catheterise the bladder (using sterile technique) Drain all the urine Instill air or gas into the bladder until it becomes slightly turgid (judged by palpation of the bladder through the abdominal wall) Take lateral and ventrodorsal radiographs
Pneumocystogram

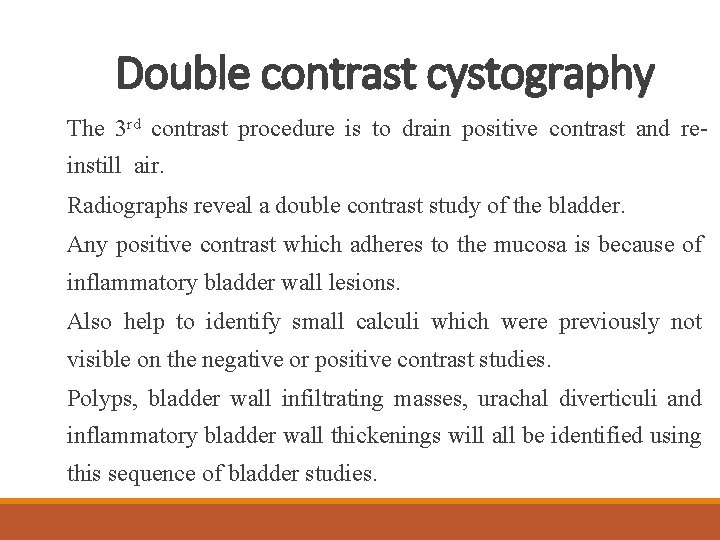

Double contrast cystography The 3 rd contrast procedure is to drain positive contrast and reinstill air. Radiographs reveal a double contrast study of the bladder. Any positive contrast which adheres to the mucosa is because of inflammatory bladder wall lesions. Also help to identify small calculi which were previously not visible on the negative or positive contrast studies. Polyps, bladder wall infiltrating masses, urachal diverticuli and inflammatory bladder wall thickenings will all be identified using this sequence of bladder studies.

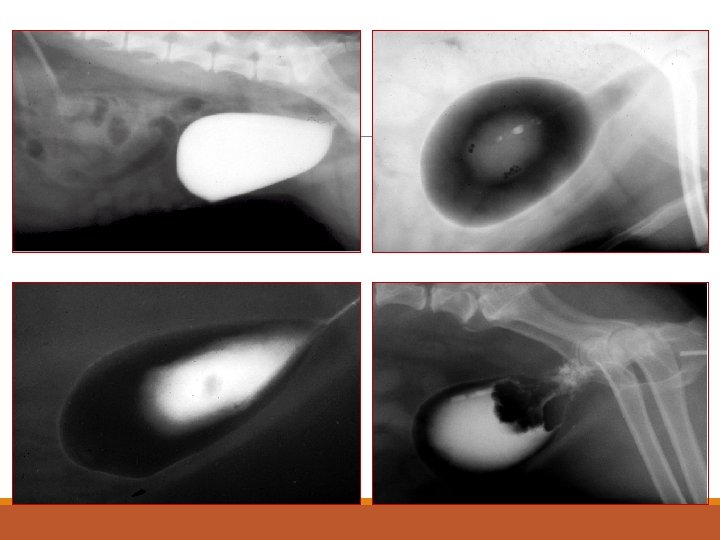

Bladder images demonstrating a mass infiltrating the ventral bladder wall. Negative Double contrast

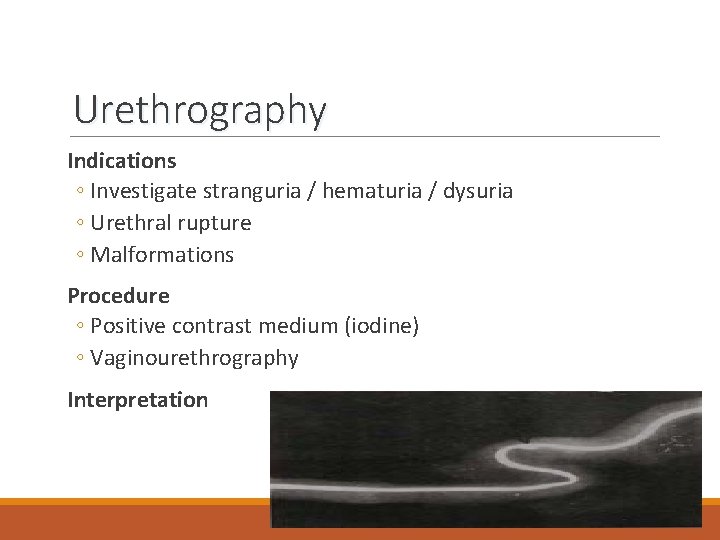

Urethrography Indications ◦ Investigate stranguria / hematuria / dysuria ◦ Urethral rupture ◦ Malformations Procedure ◦ Positive contrast medium (iodine) ◦ Vaginourethrography Interpretation
Contrast radiography of genital tract Substance should be water soluble to permit its absorption and elimination from the uterus And also comparatively viscous so that it does not easily spill back from the uterus. The amount required will vary with the size and nature of the uterine condition, and it is usual to introduce 1 to 6 ml (depending on the size of the dog) and to administer additional amounts if radiography indicates that this is required.

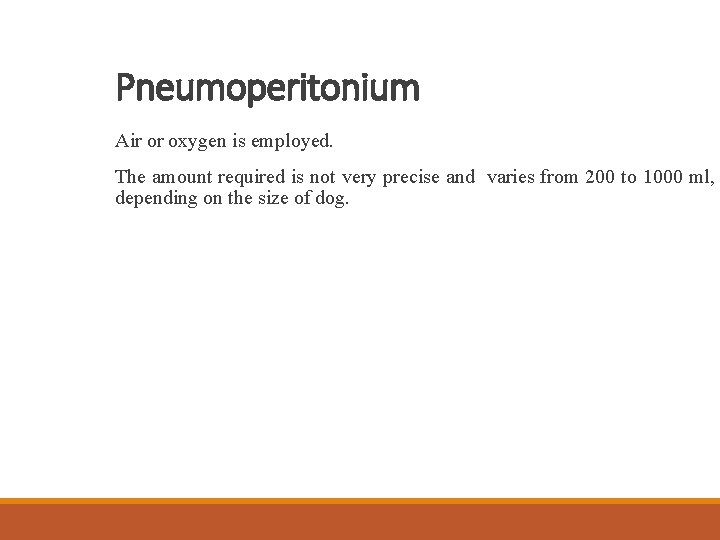

Pneumoperitonium Air or oxygen is employed. The amount required is not very precise and varies from 200 to 1000 ml, depending on the size of dog.
