Contour Changes XT Motor Control Industrial Control Division

Overview • Update to EN 60947 -1 requires contour changes to multiple XT devices

What’s Driving Change? Change of the annex R within CE standard (EN 60947 -1

Solution to Annex R Change of the device contour: • Overload relay XTOM, XTOB…B

Impact of Contour Changes • Most of the changes are visual and do not

Devices Most Influenced Dimensional change Additional contours Compatibility issues - XTPAXSA - XTPR…B /

Compatibility of Combinations MMP XTPR→ 32 A XTPE→ 32 A Connector XTPAXTPCB / XTPAXTPCRB

Connection set motor starter XTPAXTPC(R)B Old New • Contour adaptation to manual motor protector

Wiring kit direct starter 10 hp (480/277 V) Alternative without compatibility issues XTPAXTPCB XTPAXEMCB

New Side mounted auxillary contact XTPAXSA for 45 mm MMP Old • Height change

New Side mounted trip indicator XTPAXSATR for 45 mm MMP Old • Height change

New Front mounted auxiliary contact XTPAXFA for 45 mm MMP Old • • Depth

Manual motor protector XTPR, XTPB Old New © 2017 Eaton. All Rights Reserved. .

Manual motor protector XTPE…B Old • Phase barriers on line and load side (~1

Line side adapter Old New © 2017 Eaton. All Rights Reserved. . • Contour

Connection sets motor starters XTPAXTPCC, XTPAXTPCRC, XTPAXECMC Old New © 2017 Eaton. All Rights

Wiring kit direct starter 20 hp @ 480/277 V More compact, easier Alternative wiring

Marking Device marking Packaging label • Marking of all changed products (marking via “Donut”

Summary • Slight contour changes on several XT devices • Compatibility issues only when

© 2014 2017 Eaton. All Rights Reserved. . 20

Slides: 20

Download presentation

Overview • Update to EN 60947 -1 requires contour changes to multiple XT devices before 10/16/2017 • Compatibility issues only when utilizing a “new” front mounted auxiliary, XTPAXFA, with an “old” tool-less connector • Packaging updated to indicate “new” devices © 2017 Eaton. All Rights Reserved. . 2

What’s Driving Change? Change of the annex R within CE standard (EN 60947 -1 / low voltage switch gears, general rules) • Defines zones around handles and selectors of switch gears and test conditions • Relevant for high voltage tests (Uimp) between circuits and device enclosure • New description of the test conditions causes a change of devices / combinations with handles • Standard is mandatory beginning with October 16 th, 2017 © 2014 2017 Eaton. All Rights Reserved. . 3

Solution to Annex R Change of the device contour: • Overload relay XTOM, XTOB…B / C / D / G • Motor protective circuit breaker XTPR, XTPB, XTPE • Accessories motor protective circuit breaker XTPAX… • Motor starter combinations XTSC, XTSE, • Contactors XTMC, XTCE…C / D • Accessories contactors © 2014 2017 Eaton. All Rights Reserved. . 4

Impact of Contour Changes • Most of the changes are visual and do not influence the fit or function of the devices • Relevant changes • Dimensions • • Additional contours Compatibility Issues are limited to existing tool-less connector with new MMP front mount aux contacts • Production changes will begin in the 3 rd Quarter 2017 © 2014 2017 Eaton. All Rights Reserved. . 5

Devices Most Influenced Dimensional change Additional contours Compatibility issues - XTPAXSA - XTPR…B / XTPB - XTPAXSATR - XTPE…B - XTPAXTPCRB - XTPAXFA - XTPAXLSA - XTPAXTPCC - XTPAXTPCRC - XTPAXECMC © 2014 2017 Eaton. All Rights Reserved. . 6

Compatibility of Combinations MMP XTPR→ 32 A XTPE→ 32 A Connector XTPAXTPCB / XTPAXTPCRB Contactor XTCE 007… 15 Front mounted aux. Contact XTPAXFA Compatibility Old New New Not OK New Old Old Old OK Old New New OK New Old OK New New OK The “new” tool less connector resolves compatibility issues in all cases The standard connector, XTPAXEMCB, has not changed and is compatible in all cases © 2014 2017 Eaton. All Rights Reserved. . 7

Connection set motor starter XTPAXTPC(R)B Old New • Contour adaptation to manual motor protector and front mounted auxiliary contact • Additional R 02 marking on device Old versions of tool less connector are not compatible with front mounted axillary contact © 2017 Eaton. All Rights Reserved. . 8

New Side mounted auxillary contact XTPAXSA for 45 mm MMP Old • Height change of the auxillary contact • Old 90 mm • New 94. 6 mm Height change of MMP: 1. 6 mm © 2017 Eaton. All Rights Reserved. . • Old 93 mm • New 94. 6 mm 10

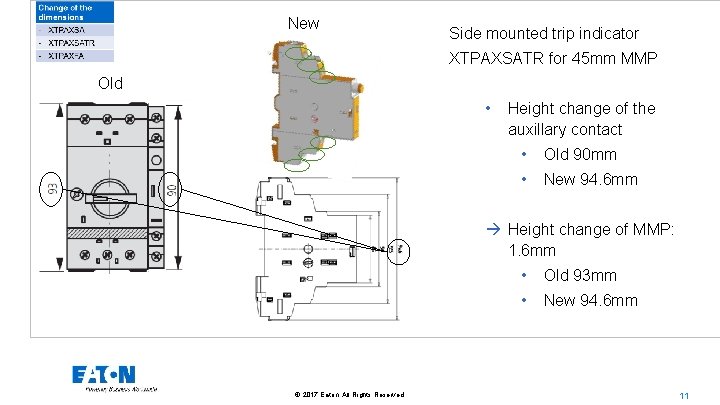

New Side mounted trip indicator XTPAXSATR for 45 mm MMP Old • Height change of the auxillary contact • Old 90 mm • New 94. 6 mm Height change of MMP: 1. 6 mm © 2017 Eaton. All Rights Reserved. . • Old 93 mm • New 94. 6 mm 11
