Continuous Random Variables Section 7 1 2 Starter

Continuous Random Variables Section 7. 1. 2

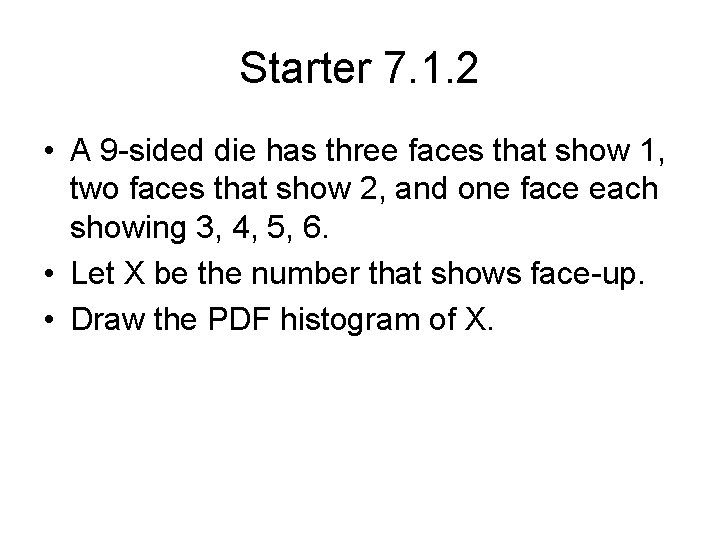

Starter 7. 1. 2 • A 9 -sided die has three faces that show 1, two faces that show 2, and one face each showing 3, 4, 5, 6. • Let X be the number that shows face-up. • Draw the PDF histogram of X.

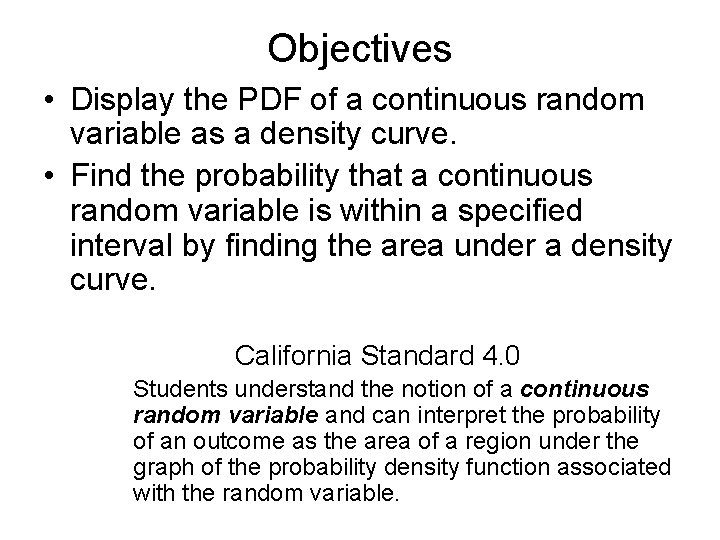

Objectives • Display the PDF of a continuous random variable as a density curve. • Find the probability that a continuous random variable is within a specified interval by finding the area under a density curve. California Standard 4. 0 Students understand the notion of a continuous random variable and can interpret the probability of an outcome as the area of a region under the graph of the probability density function associated with the random variable.

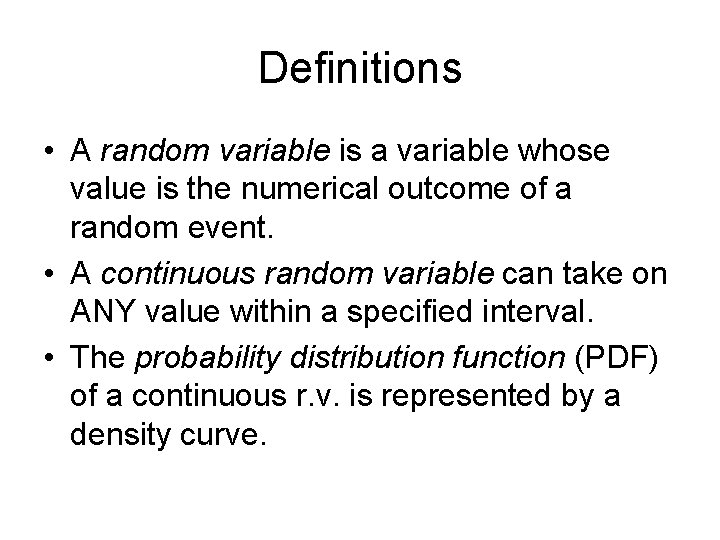

Definitions • A random variable is a variable whose value is the numerical outcome of a random event. • A continuous random variable can take on ANY value within a specified interval. • The probability distribution function (PDF) of a continuous r. v. is represented by a density curve.

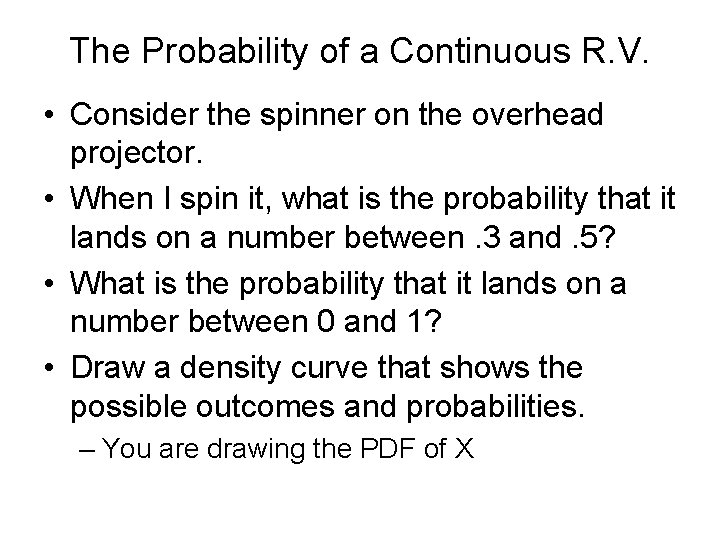

The Probability of a Continuous R. V. • Consider the spinner on the overhead projector. • When I spin it, what is the probability that it lands on a number between. 3 and. 5? • What is the probability that it lands on a number between 0 and 1? • Draw a density curve that shows the possible outcomes and probabilities. – You are drawing the PDF of X

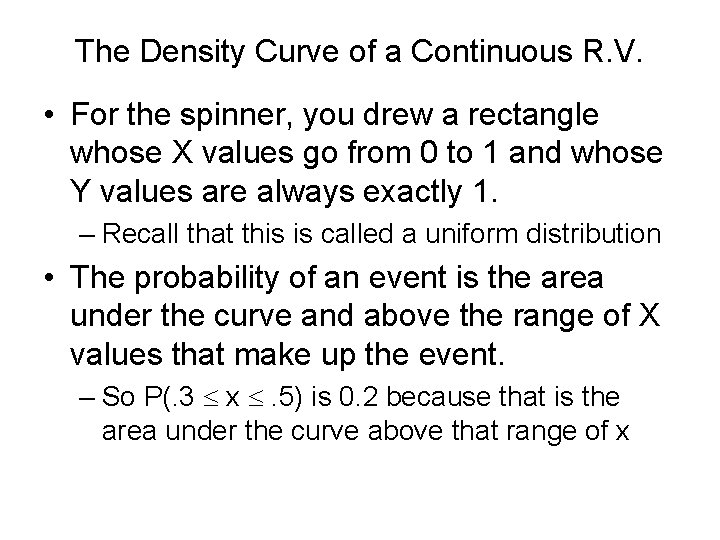

The Density Curve of a Continuous R. V. • For the spinner, you drew a rectangle whose X values go from 0 to 1 and whose Y values are always exactly 1. – Recall that this is called a uniform distribution • The probability of an event is the area under the curve and above the range of X values that make up the event. – So P(. 3 x . 5) is 0. 2 because that is the area under the curve above that range of x

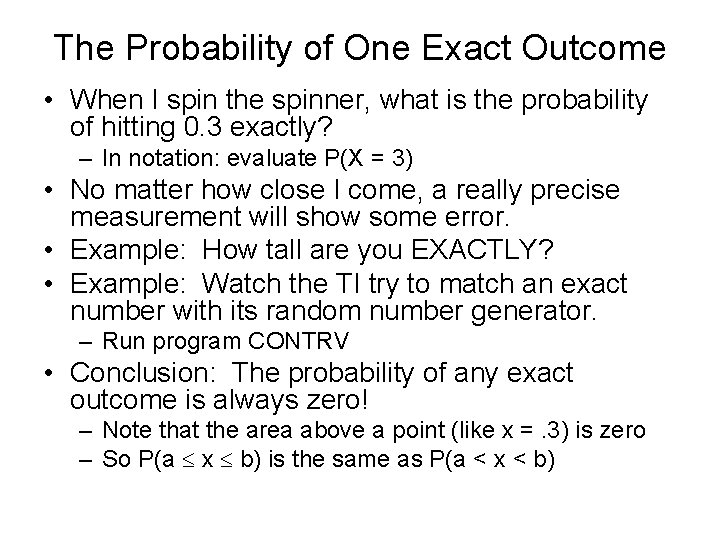

The Probability of One Exact Outcome • When I spin the spinner, what is the probability of hitting 0. 3 exactly? – In notation: evaluate P(X = 3) • No matter how close I come, a really precise measurement will show some error. • Example: How tall are you EXACTLY? • Example: Watch the TI try to match an exact number with its random number generator. – Run program CONTRV • Conclusion: The probability of any exact outcome is always zero! – Note that the area above a point (like x =. 3) is zero – So P(a x b) is the same as P(a < x < b)

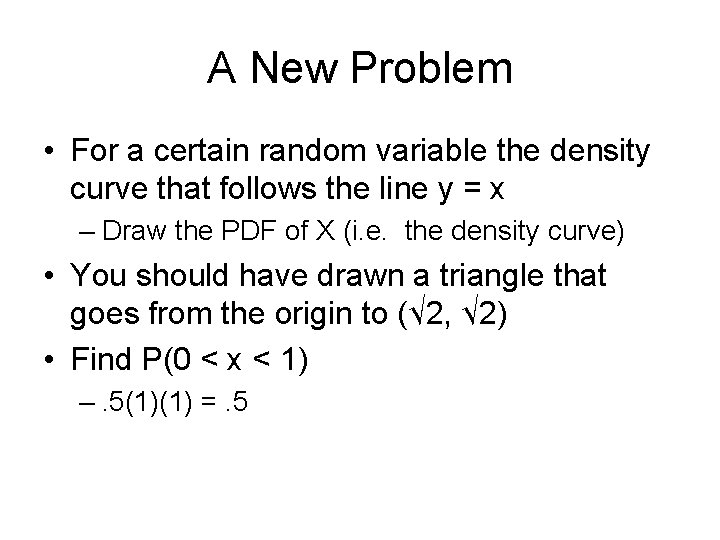

A New Problem • For a certain random variable the density curve that follows the line y = x – Draw the PDF of X (i. e. the density curve) • You should have drawn a triangle that goes from the origin to (√ 2, √ 2) • Find P(0 < x < 1) –. 5(1)(1) =. 5

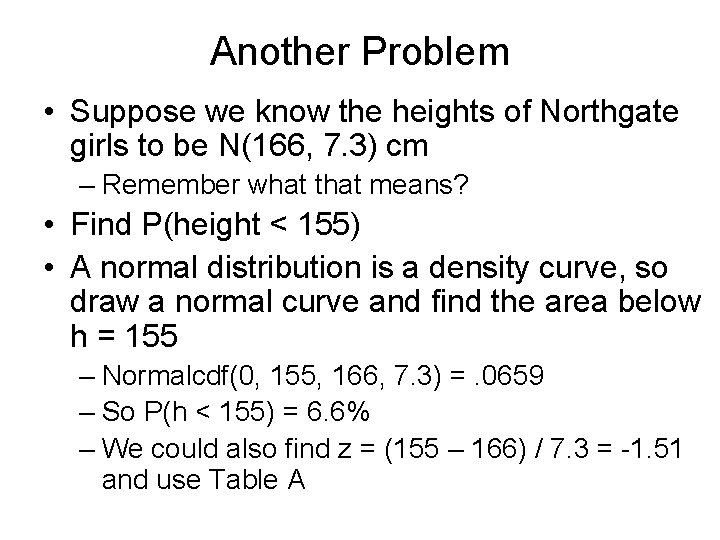

Another Problem • Suppose we know the heights of Northgate girls to be N(166, 7. 3) cm – Remember what that means? • Find P(height < 155) • A normal distribution is a density curve, so draw a normal curve and find the area below h = 155 – Normalcdf(0, 155, 166, 7. 3) =. 0659 – So P(h < 155) = 6. 6% – We could also find z = (155 – 166) / 7. 3 = -1. 51 and use Table A

Objectives • Display the PDF of a continuous random variable as a density curve. • Find the probability that a continuous random variable is within a specified interval by finding the area under a density curve. California Standard 4. 0 Students understand the notion of a continuous random variable and can interpret the probability of an outcome as the area of a region under the graph of the probability density function associated with the random variable.

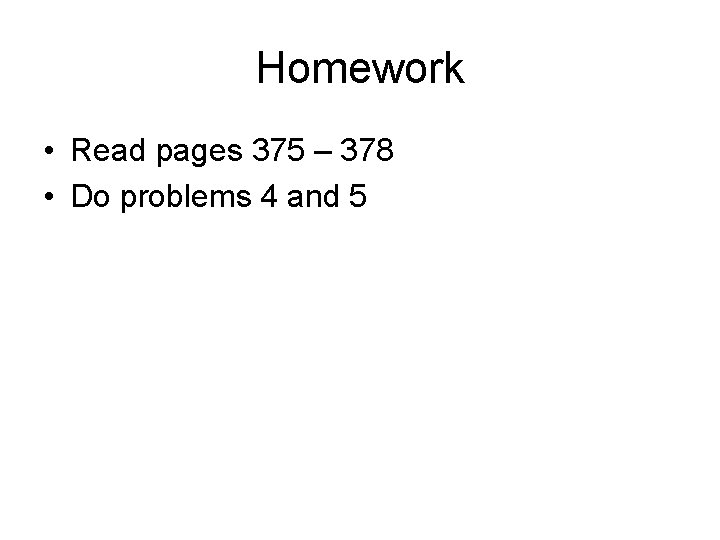

Homework • Read pages 375 – 378 • Do problems 4 and 5
