Continuous Passive Motion CPM CPM TKRTotal Knee Replacement

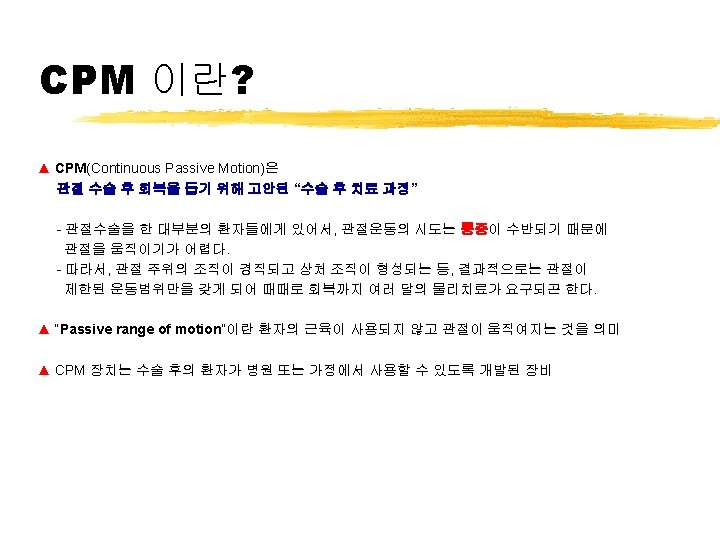

Continuous Passive Motion

CPM 사용은 언제? ▲ 정형외과 전문의들은 통상적으로 다음의 수술들 후, 관절이 고유의 운동범위 및 기능을 상실한 경우 CPM을 처방 # TKR(Total Knee Replacement) # Ligament Reconstruction - ACL(Anterior Cruciate Ligament) # Tendon Repair # Joint Manipulation under Anesthesia # Arthroscopic Debridement of adhesions # Stabilized Intra-articular Fracture # Articulator Cartilage Regeneration Techniques and Meniscal Repair

Specifications Technical Operation Ø Ø Knee flexion ROM limit : Knee extension limit : Knee speed range : Maximum patient weight : 120 -10 30 /min. to 150 /min. 159 kg. (350 lbs. ) Unit Ø Ø Ø Power : Weight : Length : Safety Class : Safety tests : 110 -230 VAC~50/60 Hz, 40 Watts 12. 5 kg. (28 lbs. ) 94 cm (37 in. ) Class 1, Type B CE, UL 2601 -1 CAN/CSA 601. 1 IEC/EN 601 -1, IEC/EN 60601 -1 -1
