Context for IRWIN development Wildland Fire IT What

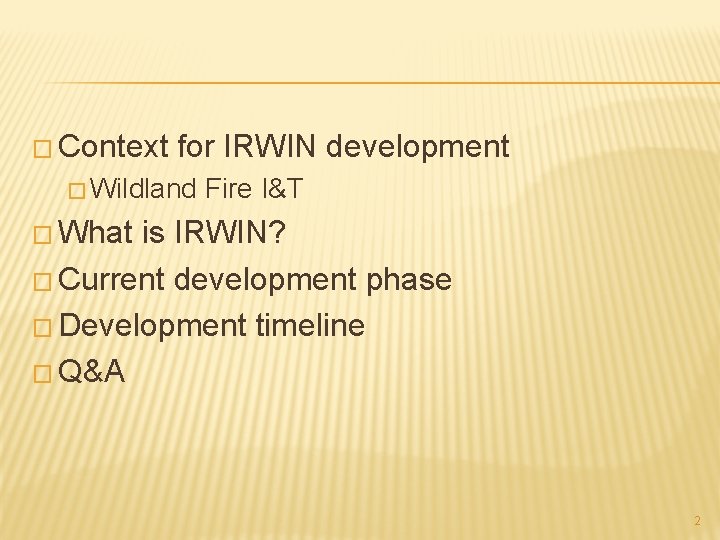

� Context for IRWIN development � Wildland Fire I&T � What is IRWIN? � Current development phase � Development timeline � Q&A 2

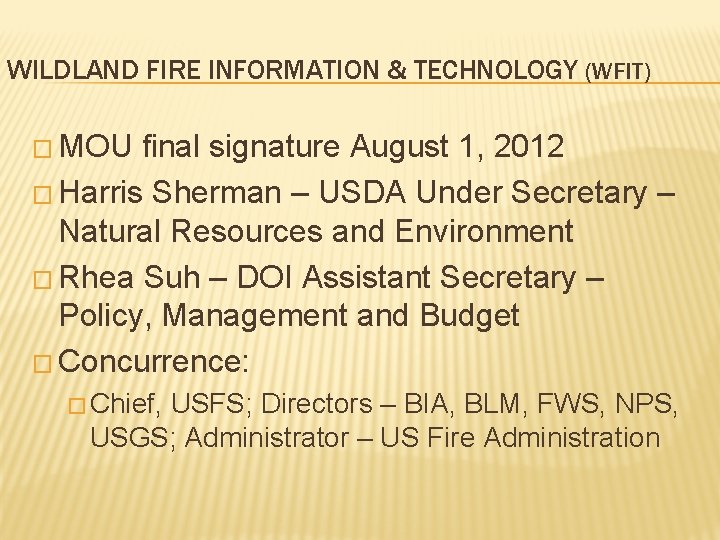

WILDLAND FIRE INFORMATION & TECHNOLOGY (WFIT) � MOU final signature August 1, 2012 � Harris Sherman – USDA Under Secretary – Natural Resources and Environment � Rhea Suh – DOI Assistant Secretary – Policy, Management and Budget � Concurrence: � Chief, USFS; Directors – BIA, BLM, FWS, NPS, USGS; Administrator – US Fire Administration

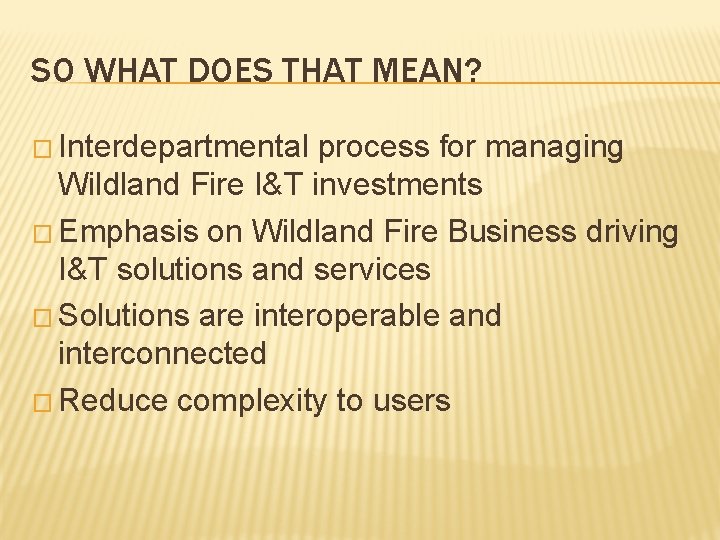

SO WHAT DOES THAT MEAN? � Interdepartmental process for managing Wildland Fire I&T investments � Emphasis on Wildland Fire Business driving I&T solutions and services � Solutions are interoperable and interconnected � Reduce complexity to users

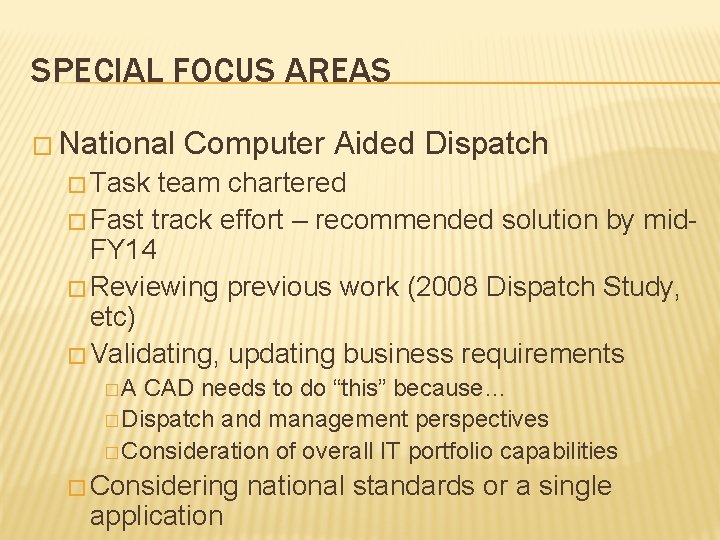

SPECIAL FOCUS AREAS � National Computer Aided Dispatch � Task team chartered � Fast track effort – recommended solution by mid. FY 14 � Reviewing previous work (2008 Dispatch Study, etc) � Validating, updating business requirements �A CAD needs to do “this” because… � Dispatch and management perspectives � Consideration of overall IT portfolio capabilities � Considering application national standards or a single

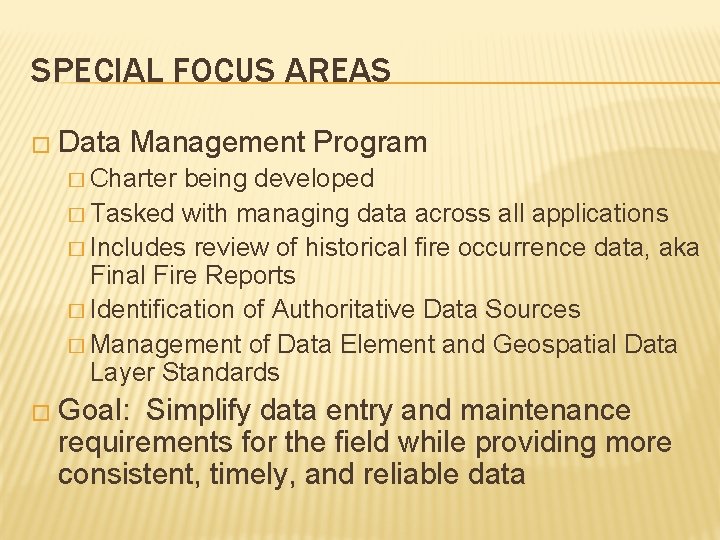

SPECIAL FOCUS AREAS � Data Management Program � Charter being developed � Tasked with managing data across all applications � Includes review of historical fire occurrence data, aka Final Fire Reports � Identification of Authoritative Data Sources � Management of Data Element and Geospatial Data Layer Standards � Goal: Simplify data entry and maintenance requirements for the field while providing more consistent, timely, and reliable data

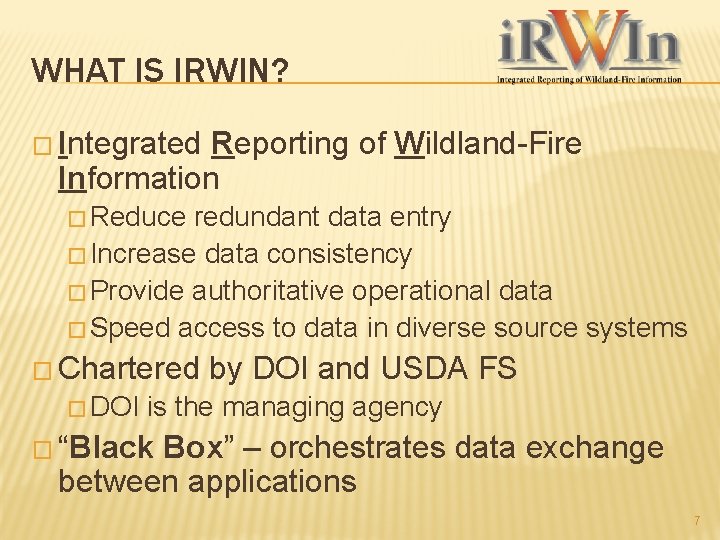

WHAT IS IRWIN? � Integrated Reporting of Wildland-Fire Information � Reduce redundant data entry � Increase data consistency � Provide authoritative operational data � Speed access to data in diverse source systems � Chartered � DOI by DOI and USDA FS is the managing agency � “Black Box” – orchestrates data exchange between applications 7

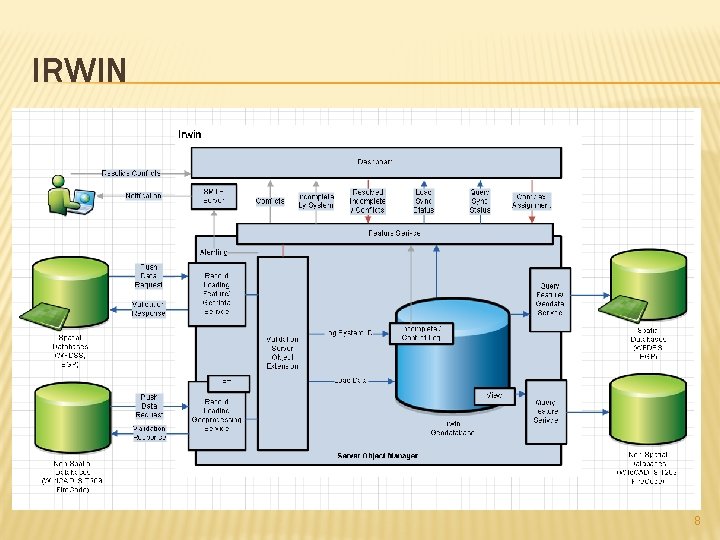

IRWIN 8

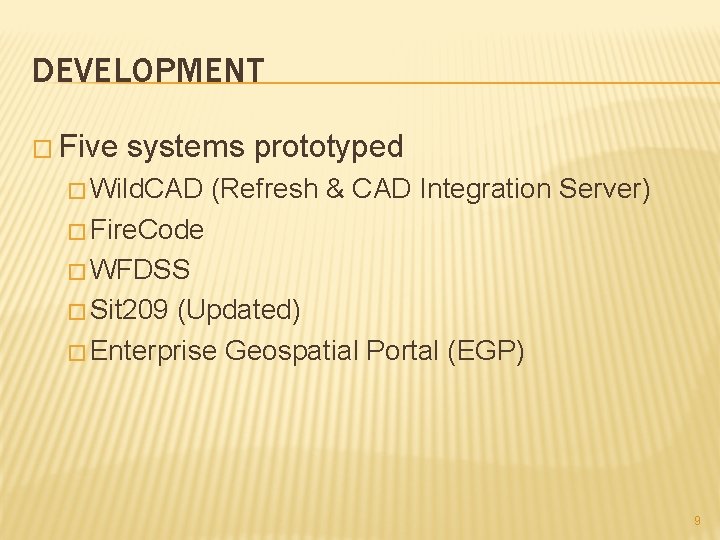

DEVELOPMENT � Five systems prototyped � Wild. CAD (Refresh & CAD Integration Server) � Fire. Code � WFDSS � Sit 209 (Updated) � Enterprise Geospatial Portal (EGP) 9

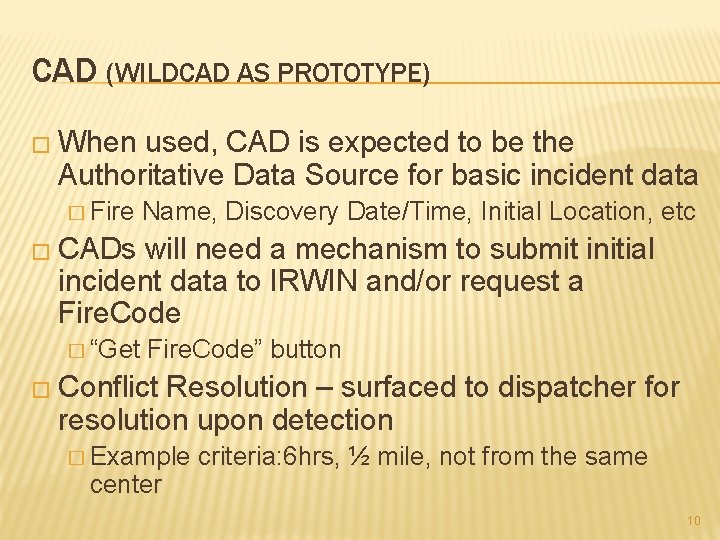

CAD (WILDCAD AS PROTOTYPE) � When used, CAD is expected to be the Authoritative Data Source for basic incident data � Fire Name, Discovery Date/Time, Initial Location, etc � CADs will need a mechanism to submit initial incident data to IRWIN and/or request a Fire. Code � “Get Fire. Code” button � Conflict Resolution – surfaced to dispatcher for resolution upon detection � Example center criteria: 6 hrs, ½ mile, not from the same 10

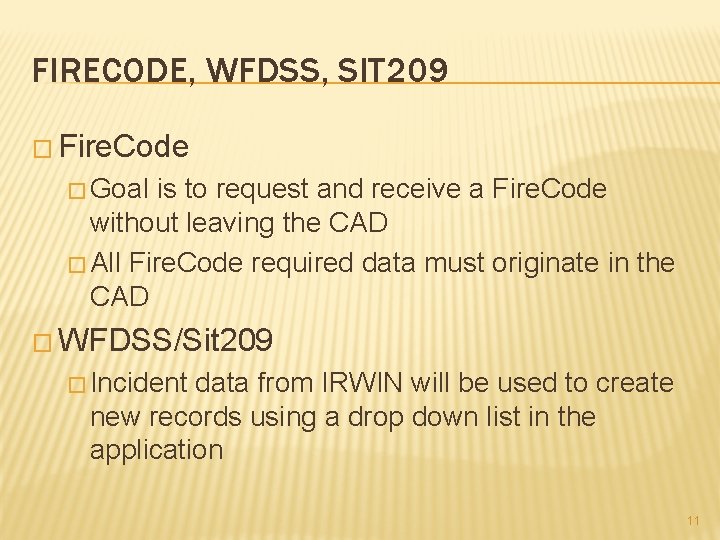

FIRECODE, WFDSS, SIT 209 � Fire. Code � Goal is to request and receive a Fire. Code without leaving the CAD � All Fire. Code required data must originate in the CAD � WFDSS/Sit 209 � Incident data from IRWIN will be used to create new records using a drop down list in the application 11

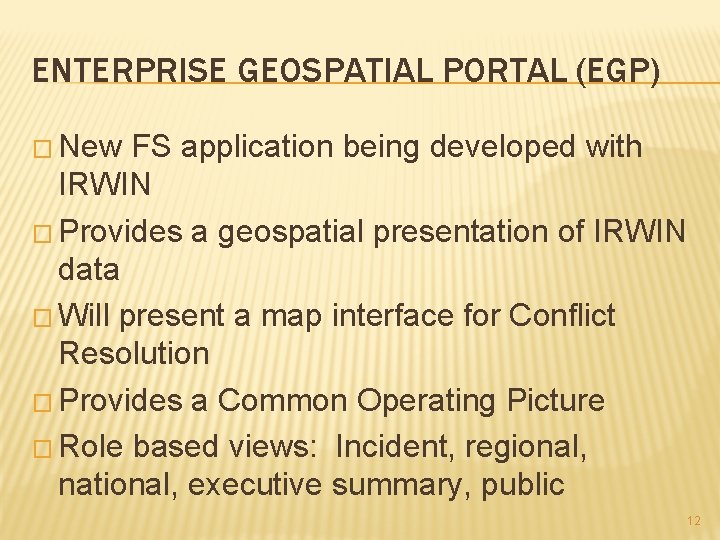

ENTERPRISE GEOSPATIAL PORTAL (EGP) � New FS application being developed with IRWIN � Provides a geospatial presentation of IRWIN data � Will present a map interface for Conflict Resolution � Provides a Common Operating Picture � Role based views: Incident, regional, national, executive summary, public 12

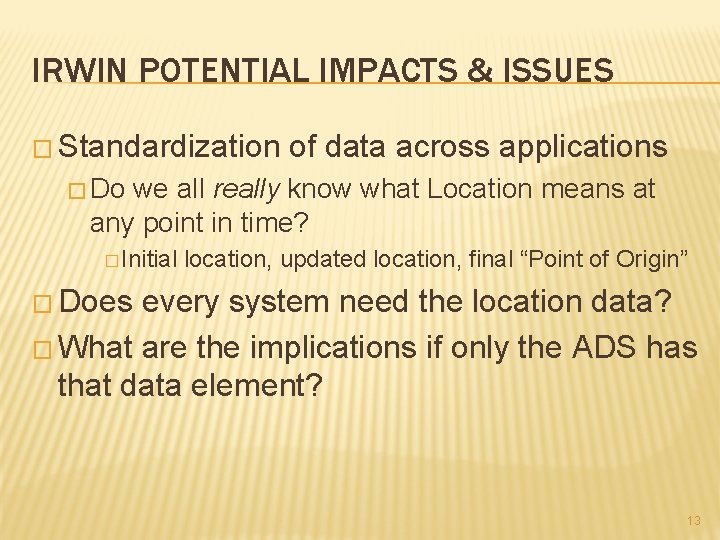

IRWIN POTENTIAL IMPACTS & ISSUES � Standardization of data across applications � Do we all really know what Location means at any point in time? � Initial location, updated location, final “Point of Origin” � Does every system need the location data? � What are the implications if only the ADS has that data element? 13

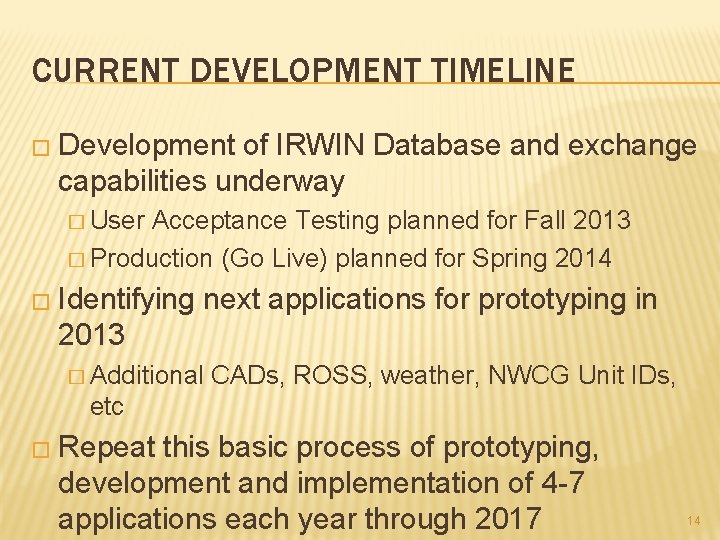

CURRENT DEVELOPMENT TIMELINE � Development of IRWIN Database and exchange capabilities underway � User Acceptance Testing planned for Fall 2013 � Production (Go Live) planned for Spring 2014 � Identifying next applications for prototyping in 2013 � Additional CADs, ROSS, weather, NWCG Unit IDs, etc � Repeat this basic process of prototyping, development and implementation of 4 -7 applications each year through 2017 14

QUESTIONS OR COMMENTS?

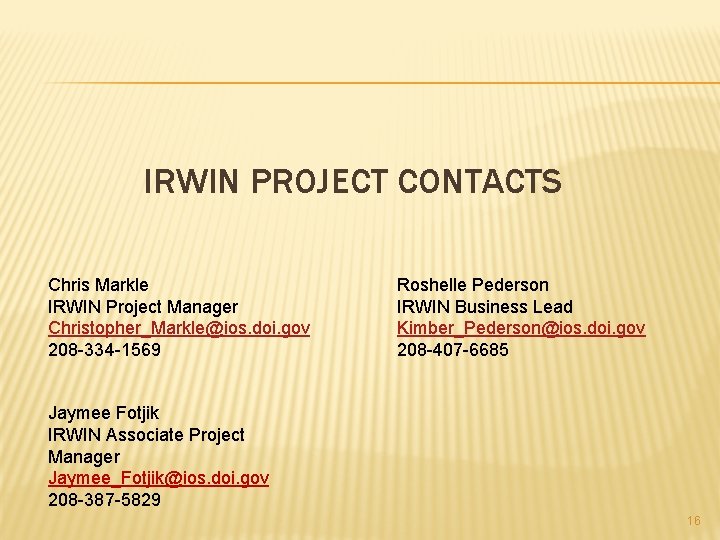

IRWIN PROJECT CONTACTS Chris Markle IRWIN Project Manager Christopher_Markle@ios. doi. gov 208 -334 -1569 Roshelle Pederson IRWIN Business Lead Kimber_Pederson@ios. doi. gov 208 -407 -6685 Jaymee Fotjik IRWIN Associate Project Manager Jaymee_Fotjik@ios. doi. gov 208 -387 -5829 16

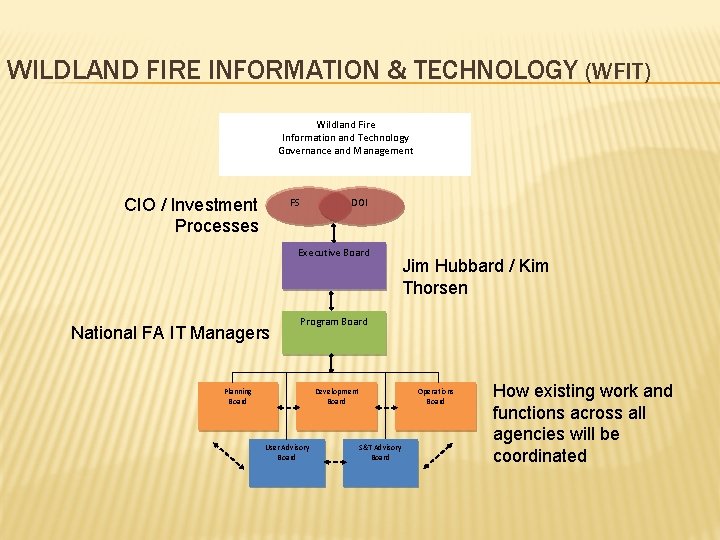

WILDLAND FIRE INFORMATION & TECHNOLOGY (WFIT) Wildland Fire Information and Technology Governance and Management CIO / Investment Processes FS DOI Executive Board National FA IT Managers Jim Hubbard / Kim Thorsen Program Board Planning Board Development Board User Advisory Board Operations Board S&T Advisory Board How existing work and functions across all agencies will be coordinated

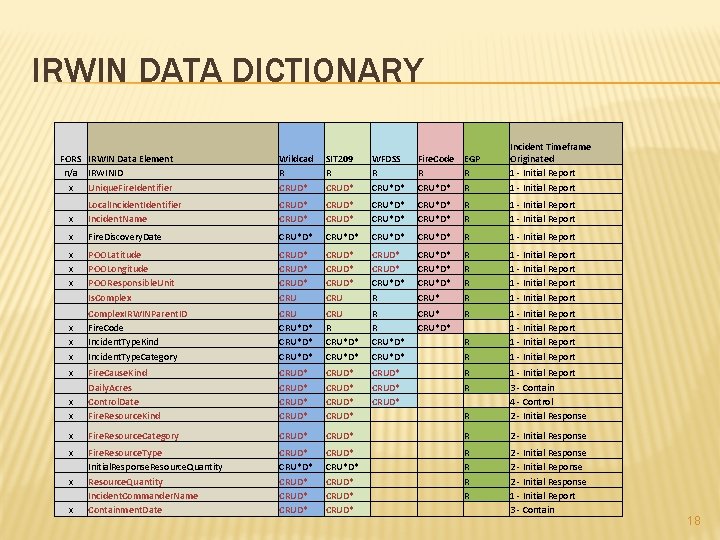

IRWIN DATA DICTIONARY FORS IRWIN Data Element n/a IRWINID x Unique. Fire. Identifier Wildcad R CRUD* SIT 209 R CRUD* WFDSS R CRU*D* Fire. Code EGP R R CRU*D* R Incident Timeframe Originated 1 - Initial Report x Local. Incident. Identifier Incident. Name CRUD* CRU*D* R R 1 - Initial Report x Fire. Discovery. Date CRU*D* R 1 - Initial Report x x x POOLatitude POOLongitude POOResponsible. Unit Is. Complex CRUD* CRUD* CRU*D* R CRU*D* CRU* R R 1 - Initial Report x x Complex. IRWINParent. ID Fire. Code Incident. Type. Kind CRU*D* CRU R CRU*D* R R CRU*D* R R 1 - Initial Report x Incident. Type. Category CRU*D* R 1 - Initial Report x x x Fire. Cause. Kind Daily. Acres Control. Date Fire. Resource. Kind CRUD* CRUD* CRUD* R R R 1 - Initial Report 3 - Contain 4 - Control 2 - Initial Response x Fire. Resource. Category CRUD* R 2 - Initial Response x x x Fire. Resource. Type Initial. Response. Resource. Quantity Incident. Commander. Name Containment. Date CRUD* CRU*D* CRUD* CRUD* R R 2 - Initial Response 1 - Initial Report 3 - Contain 18
