RFID Introduction

What is RFID? RFID — Radio Frequency Identification — Is an Automatic Data Collection (ADC) technology that uses radio-frequency waves to transfer data between a reader and a movable item to identify, categorize, and track. RFID is fast, reliable, and does not require physical sight or contact between reader/scanner and the tagged item. This non-line of sight advantage means that tags can be read through a variety of substances such as snow, fog, ice, paint, dirt, grime, and other visually and environmentally challenging conditions. In these conditions, barcodes or other optically read technologies would be useless. RFID tags can be read at very high speeds responding in less than 100 milliseconds and in challenging circumstances. Because of its versatility and performance, RFID has become indispensable for a wide range of automated data collection and identification applications that would not be possible otherwise.

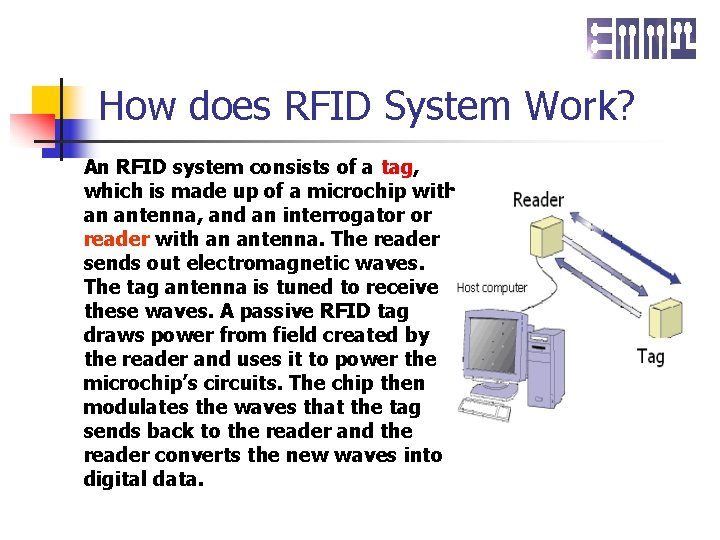

How does RFID System Work? An RFID system consists of a tag, which is made up of a microchip with an antenna, and an interrogator or reader with an antenna. The reader sends out electromagnetic waves. The tag antenna is tuned to receive these waves. A passive RFID tag draws power from field created by the reader and uses it to power the microchip’s circuits. The chip then modulates the waves that the tag sends back to the reader and the reader converts the new waves into digital data.

Why RFID? u. Eliminate human errors u. No line of sight required u. Performs in a rugged, harsh environment u. Dynamic multi-block Read/Write capability u. Simultaneously reading & identification of multiple tags in field

EAN. UCC numbers map into EPC An Example of How GTIN Integration Works With the EPC Illustrative Example (EAN-13): 12 34567 89012 8 EAN 13 0 1 2 3 4 5 6 7 8 9 0 1 2 8 Company Prefix Digit) 1 2 3 4 5 6 7 EPC： 3 Header 1234567 8 9 0 1 2 8 89012 EPC Manager Number GTIN Object Class Number Global Consistent Identification Item Reference Check Remove Check Digit 0000000123456 Serial Number

RFID Tag In courtesy of AUTO-ID Lab

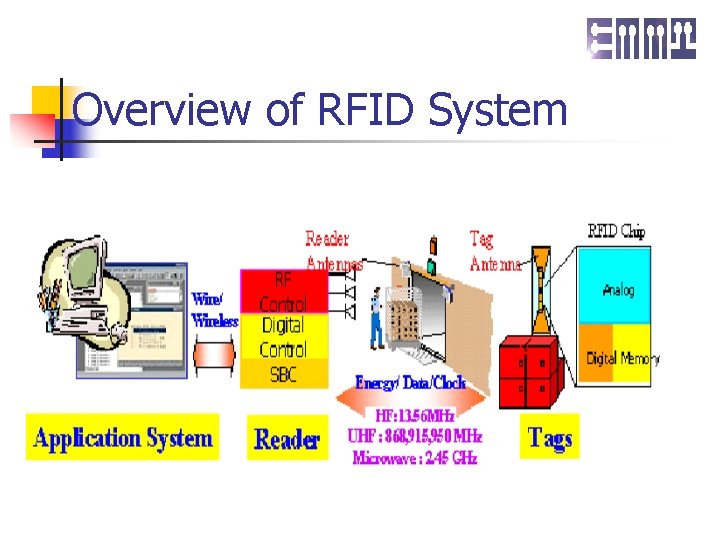

Overview of RFID System

RFID System Block Diagram APPLICATION RFID READER Response Unit QUERIES WRITE DATA Encode Logic & Memory Forma tter Comp uter READ DATA COMMANDS READ DATA Decode Physical Reader WRITE DATA RFID TAGS Chip DATA PROTOCOL PROCESSOR Antenna TAG DRIVER Package Application Program Interface Air Interface

n n Information stored on EPC IS Accessed through ONS Middleware between readers and information systems inexpensive tags Minimum data on the tag EPC Information Service (PML) ONS Middleware Integration Layer RFID Network Readers RFID Tag Tag Enterprise Applications • ERP • Warehouse Management Systems • Inventory Management • Data Warehouse • Merchandise Management • Store Systems • Etc.

Current RFID standards and specs Protocol Middleware ID

Electromagnetic spectrum Electric Waves Radio Waves Infra-red Visible Light Ultra. Violet X-Rays Gamma Rays Cosmic Rays Radio Spectrum 9 k. Hz VLF 30 k. HZ 3000 k. HZ LF MF HF Long Wave Medium Wave Short wave VLF LF MF HF The "RFID" Frequencies 125 -134 k. Hz 30 MHz VHF 300 MHZ UHF Very Low Frequency Medium Frequency High Frequency 13, 56 Mhz 860 -960 MHz 3000 MHZ 30 GHz SHF VHF UHF SHF EHF 2, 45 and 5, 8 GHz 300 GHZ EHF 3000 GHz Not designated Very High Frequency Ultra High Frequency Super High Frequency Extremely High Frequency

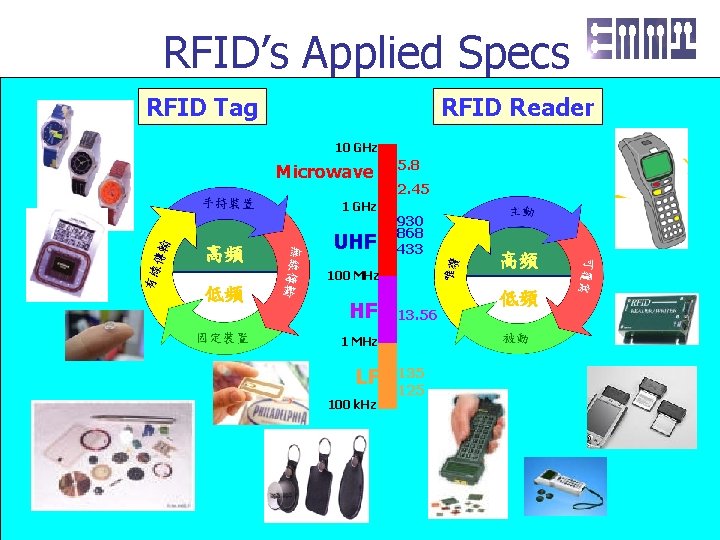

RFID’s Applied Specs RFID Tag RFID Reader 10 GHz Microwave 1 GHz 高頻 UHF 5. 8 2. 45 930 868 433 100 MHz 低頻 HF 13. 56 1 MHz LF 100 k. Hz 135 125 高頻 低頻

RFID’s Applied Frequencies ISO 18000 -1~7 <135 k~5. 8 GHz Passive and Active MIT EPC UHF (Passive) Current ISO 11784/11785 available 125 k. Hz international (Passive) standards 10 k. Hz Main Applications 125, 135 100 k. Hz Animal Tracking ISO 15693 13. 56 MHz (Passive) 1 MHz 13. 56 10 MHz Smart Card Access Control EAN/UCC GTAG 915 MHz(USA) 868 MHz(Europe) 950 MHz(Japan) (Passive and Active) 433 868 -930 2. 45 5. 8 10 GHz 100 MHz 1 GHz Item Management Summarized by ITRI

RFID Application

Typical Application of RFID Real-Time Supply Chain Managemenet… Real-time logistics data

Typical Application of RFID …in the warehouse…

Typical Application of RFID …and on the shelf

Typical Application of RFID Theft Prevention

Typical Application of RFID Product Authentication

Typical Application of RFID From product creation …

Typical Application of RFID Waste Disposal

Typical Application of RFID food freshness monitoring n n 76 Million cases of foodborne disease 325, 000 hospitalizations 5000 deaths* 1. 8 Million deaths from foodborne illness worldwide n n n 91 Million tons of food disposed Transported to landfills 26% of food supply* * United States figures

Typical Application of RFID food freshness monitoring Current Type 3 Tag w/Temp Sensor Next Generation Application Specific Integrated Circuit (ASIC) 350 Micron Nano. Block™ chips

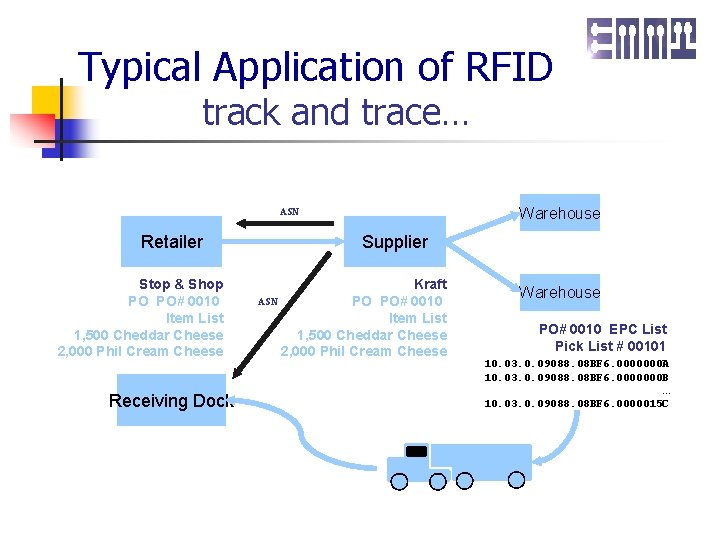

Typical Application of RFID track and trace… Warehouse ASN Retailer Stop & Shop PO PO# 0010 Item List 1, 500 Cheddar Cheese 2, 000 Phil Cream Cheese Receiving Dock Supplier Kraft ASN PO PO# 0010 Item List 1, 500 Cheddar Cheese 2, 000 Phil Cream Cheese Warehouse PO# 0010 EPC List Pick List # 00101 10. 03. 0. 09088. 08 BF 6. 0000000 A 10. 03. 0. 09088. 08 BF 6. 0000000 B … 10. 03. 0. 09088. 08 BF 6. 0000015 C

Typical Application of RFID smart store … “instant” checkout Cheerios Tide Charmin 4 pkg Jiffy 1 lb Celestial Seasons Uncle Ben’s rice 10 lb Pure sugar 5 lb Spray & Wash 16 oz Bounty Std roll Sliced almonds 2 lb 2. 59 3. 45 5. 59 4. 29 3. 99 4. 99 3. 96 4. 99 2. 12 5. 29 ----41. 26 1. 65 ----Total 42. 91 Subtotal Plus 4% Sales Tax

Typical Application of RFID security control …

Typical Application of RFID Toll Gate Control

Typical Application of RFID Automatic inventory u Automatic payment u Automatic bagging u Variable weight items u Coupons u Impulse sales u Customer flow u Exception handling u Receipts u and more… u

Worldwide adoption. Wal-Mart. Do. D. FDA – Top 100 suppliers by January 2005 – Suggests RFID as a weapon in battling counterfeit drugs. Target –Top suppliers by Spring 2005. Albertson, s –Top 100 suppliers by April 2005. Tesco (UK) –Top suppliers by September 2004. Best. Buy –Major suppliers by January 2006; all cases and pallets by May 2007. Metro Group – 100 top suppliers tag by November 2004

Healthy, Vibrant Business u Increasing interest/participation from vertical industries including: - Fast Moving Consumer Goods - Healthcare and Life Sciences Action Group - Footwear and Apparel Action Group - Assistance/Role in future Action Groups - Aerospace and Defense - Automotive and Industrial - High-Technology - Logistics and Transportation

RFID in consumer packaged goods Number of CPG items tagged (billions) 800 400 0 2001 2010 2021 Field tests Reusable asset tagging Trade unit tagging 50 Item tagging 40 Number of 30 CPG items tagged 20 (billions) 10 0 2002 2003 2004 2005 2006 2007 2008 2009
