Content Level Access to Digital Library of India

Content Level Access to Digital Library of India Pages Praveen Krishnan, Ravi Shekhar, C. V. Jawahar CVIT, IIIT Hyderabad

Digital Library of India (DLI) http: //www. dli. iiit. ac. in/ Vision : To enhance access to information and knowledge to masses. • Partner to Million Book Universal Digital Library Programme. Information for people Dataset for researchers IIIT Hyderabad Vamshi Ambati, N. Balakrishnan, Raj Reddy, Lakshmi Pratha, C V Jawahar: The Digital Library of India Project: Process, Policies and Architecture, ICDL , 2007.

Digital Library of India (DLI) Vision : To enhance access to information and knowledge to masses. Content Languages Statistics IIIT Hyderabad • #Books 4 Lakhs • 41 different languages • #Pages 134 Million • Includes - Hindi, Telugu, Marathi. . • #Words 26 Billion - English, French, Greek. . Source: http: //www. new 1. dli. ernet. in/

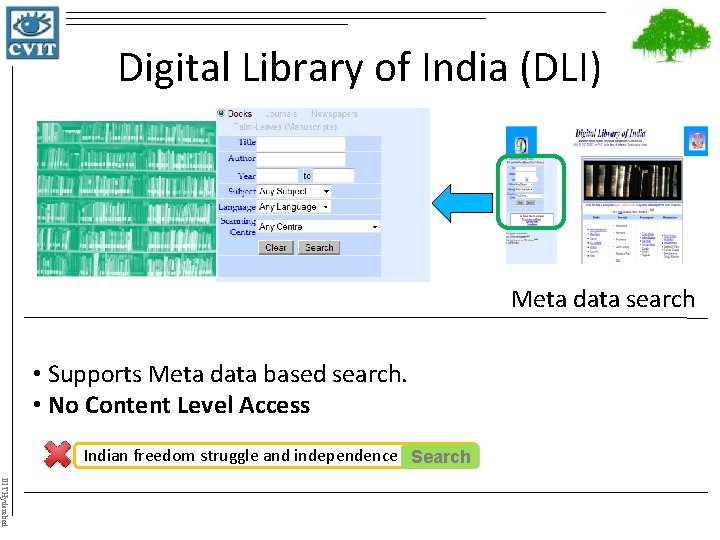

Digital Library of India (DLI) Meta data search • Supports Meta data based search. • No Content Level Access Indian freedom struggle and independence Search IIIT Hyderabad

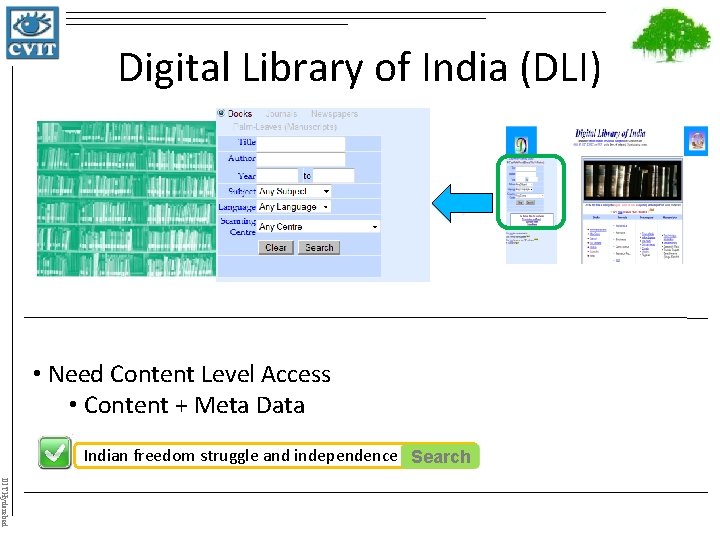

Digital Library of India (DLI) • Need Content Level Access • Content + Meta Data Indian freedom struggle and independence Search IIIT Hyderabad

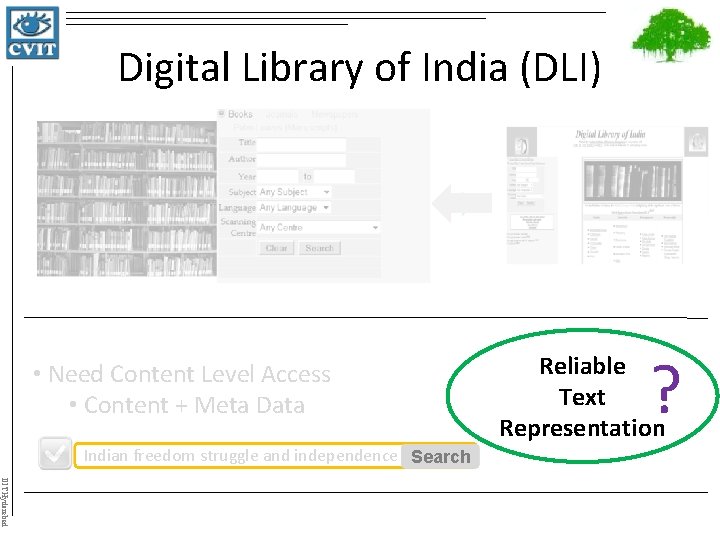

Digital Library of India (DLI) • Need Content Level Access • Content + Meta Data Indian freedom struggle and independence Search ? Reliable Text Representation IIIT Hyderabad

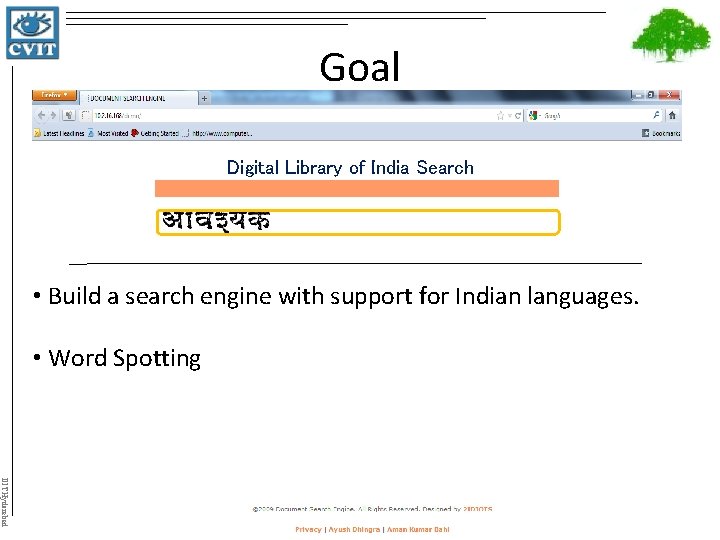

Goal Digital Library of India Search • Build a search engine with support for Indian languages. • Word Spotting IIIT Hyderabad

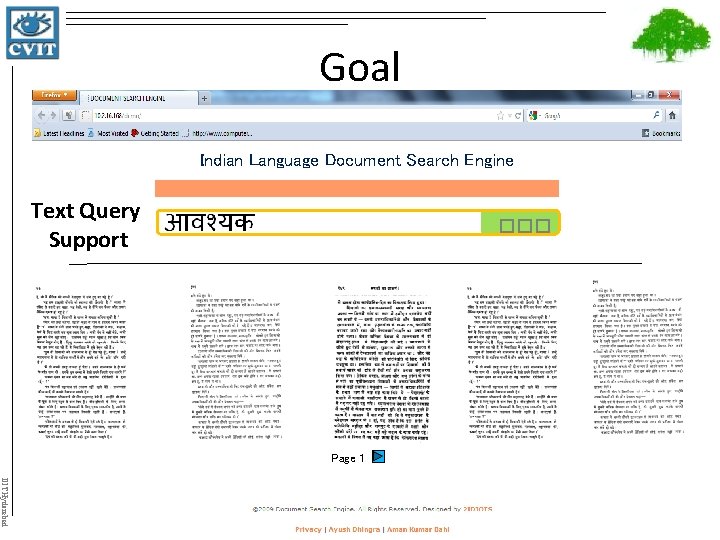

Goal Indian Language Document Search Engine Text Query Support ��� Page 1 IIIT Hyderabad

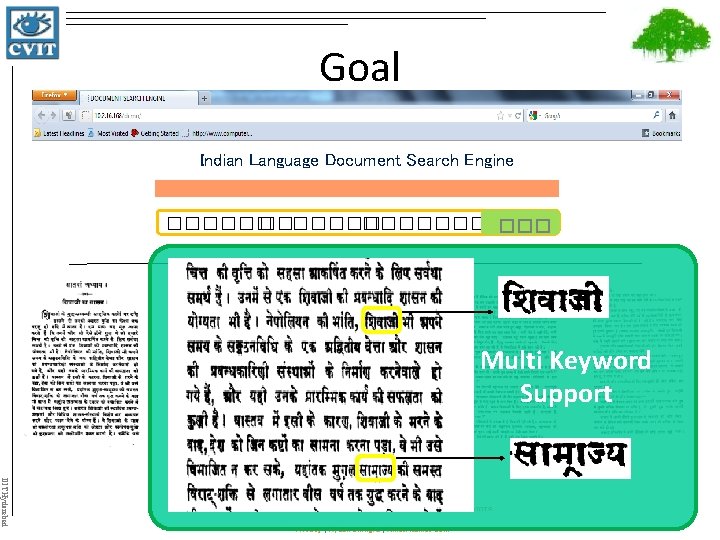

Goal Indian Language Document Search Engine ������� ��� Multi Keyword Support Page 1 IIIT Hyderabad

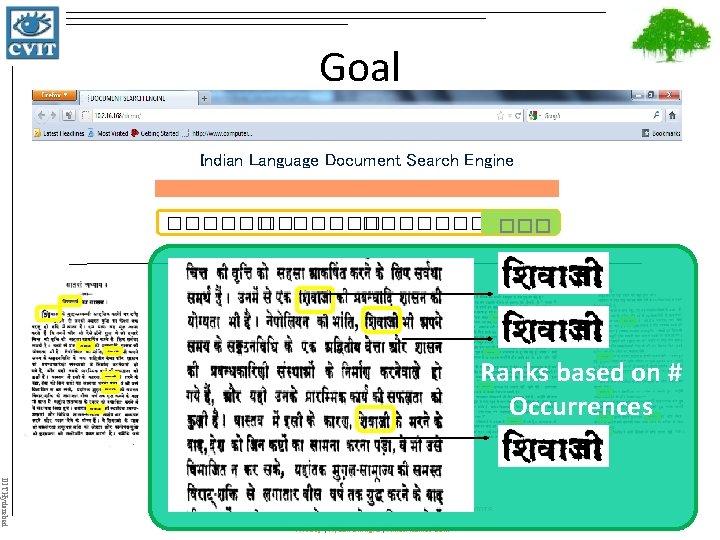

Goal Indian Language Document Search Engine ������� ��� Ranks based on # Occurrences Page 1 IIIT Hyderabad

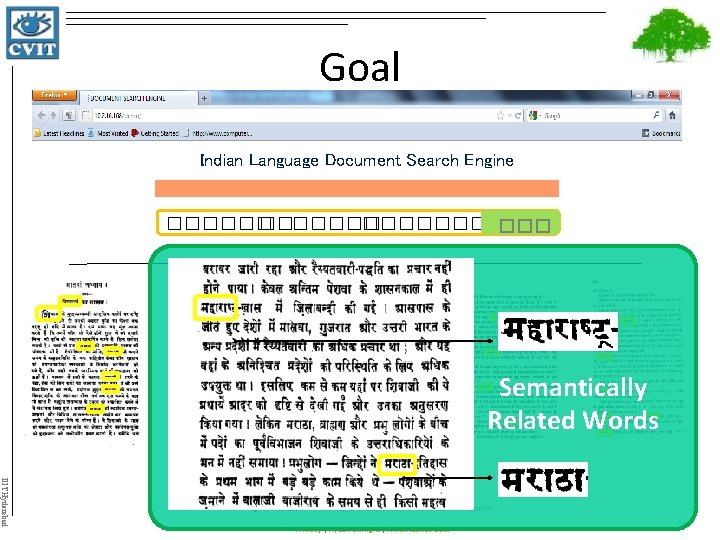

Goal Indian Language Document Search Engine ������� ��� Semantically Related Words Page 1 IIIT Hyderabad

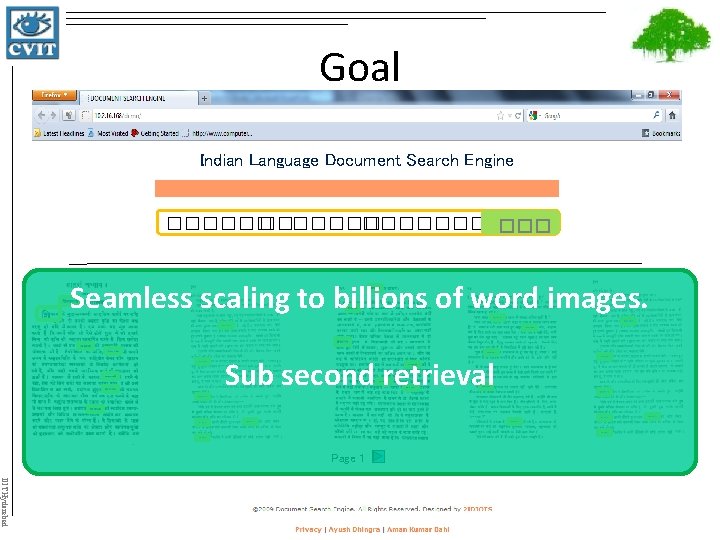

Goal Indian Language Document Search Engine ������� ��� Seamless scaling to billions of word images. Sub second retrieval Page 1 IIIT Hyderabad

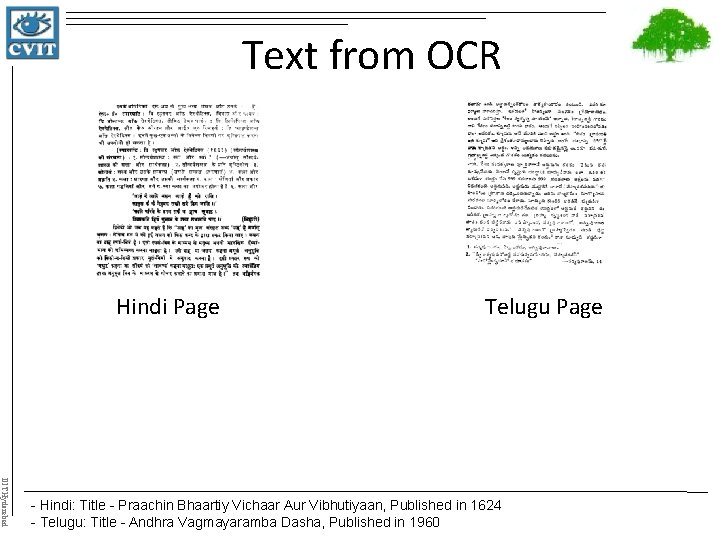

Text from OCR Hindi Page Telugu Page IIIT Hyderabad - Hindi: Title - Praachin Bhaartiy Vichaar Aur Vibhutiyaan, Published in 1624 - Telugu: Title - Andhra Vagmayaramba Dasha, Published in 1960

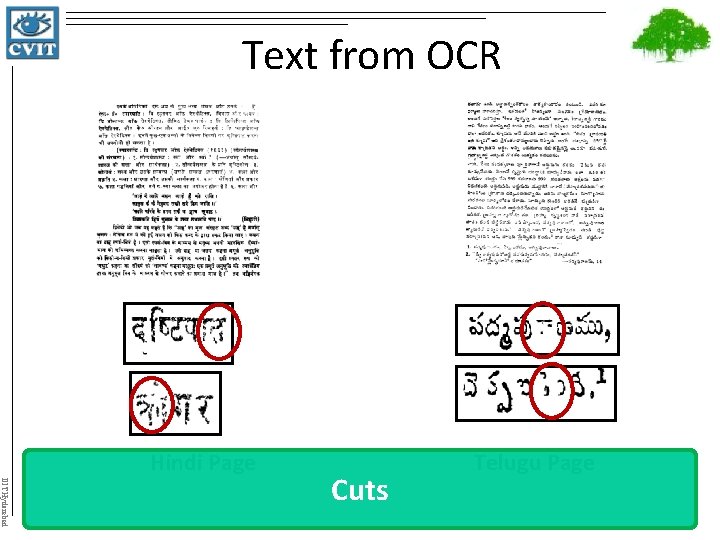

Text from OCR Hindi Page IIIT Hyderabad Cuts Telugu Page

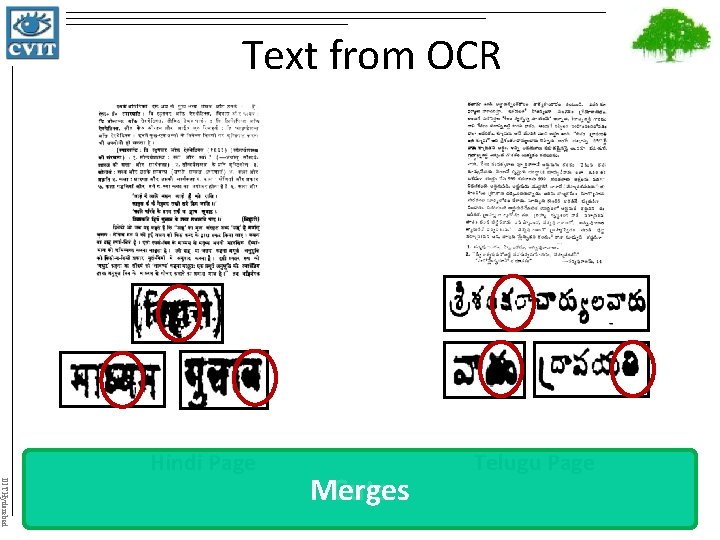

Text from OCR Hindi Page IIIT Hyderabad Merges Cuts Telugu Page

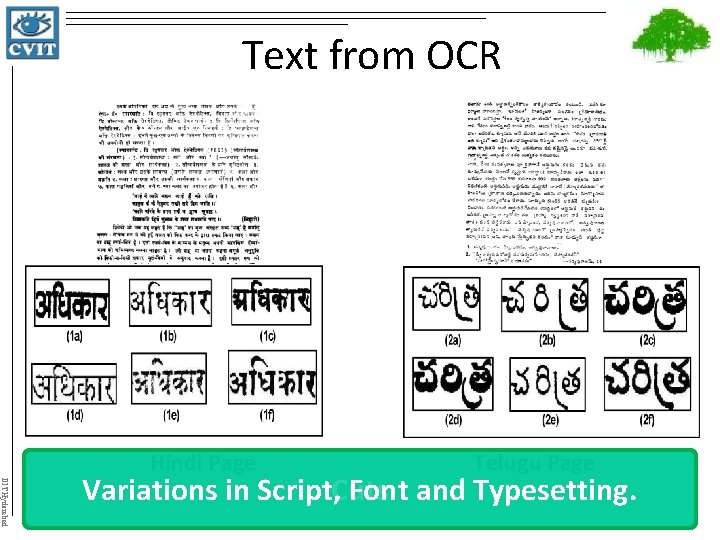

Text from OCR Hindi Page Telugu Page IIIT Hyderabad Variations in Script, Cuts Font and Typesetting.

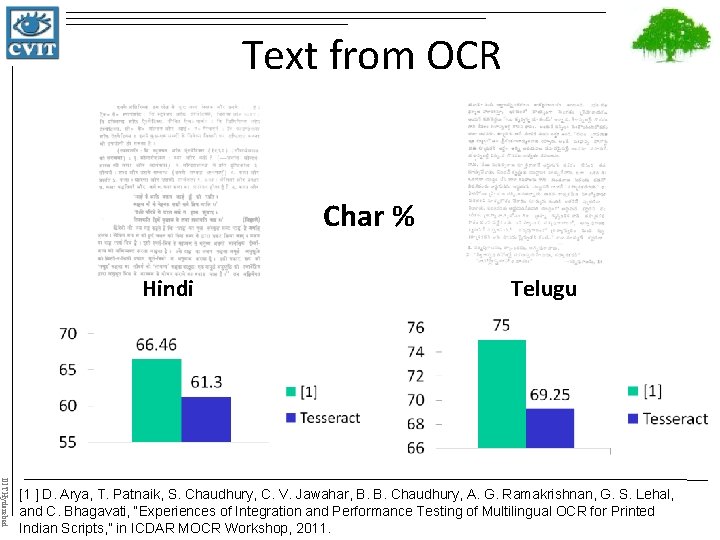

Text from OCR Char % Hindi Telugu IIIT Hyderabad [1 ] D. Arya, T. Patnaik, S. Chaudhury, C. V. Jawahar, B. B. Chaudhury, A. G. Ramakrishnan, G. S. Lehal, and C. Bhagavati, “Experiences of Integration and Performance Testing of Multilingual OCR for Printed Indian Scripts, ” in ICDAR MOCR Workshop, 2011.

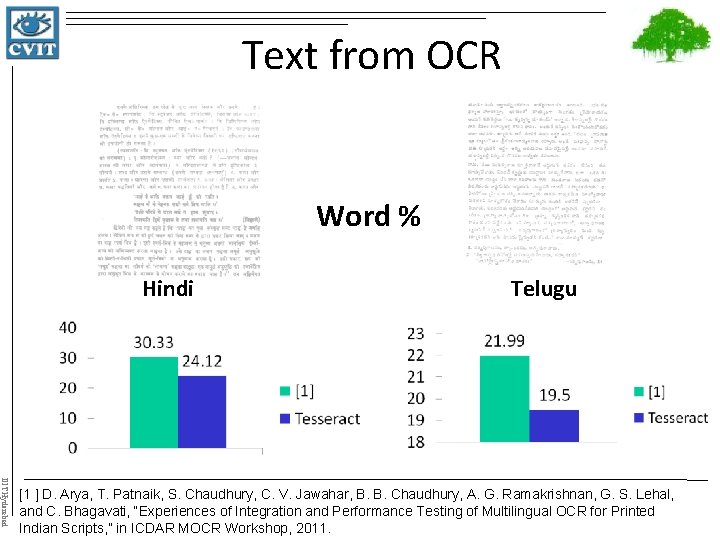

Text from OCR Word % Hindi Telugu IIIT Hyderabad [1 ] D. Arya, T. Patnaik, S. Chaudhury, C. V. Jawahar, B. B. Chaudhury, A. G. Ramakrishnan, G. S. Lehal, and C. Bhagavati, “Experiences of Integration and Performance Testing of Multilingual OCR for Printed Indian Scripts, ” in ICDAR MOCR Workshop, 2011.

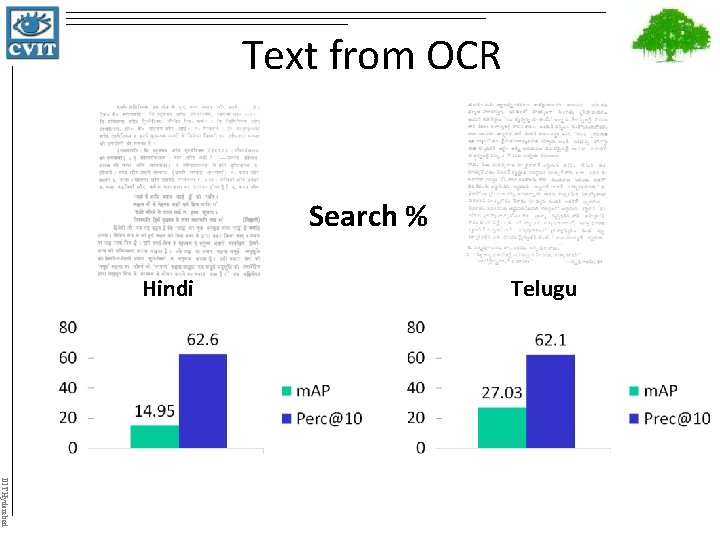

Text from OCR Search % Hindi Telugu IIIT Hyderabad

Bo. VW for Image Retrieval Text Retrieval Query Image Recognition Ranked Retrieved Results IIIT Hyderabad Josef Sivic, Andrew Zisserman: Video Google: A Text Retrieval Approach to Object Matching in Videos. ICCV 2003

Bo. VW for Image Retrieval • Fixed Length Representation • Invariant to popular deformation Query Image Ranked Retrieved Results IIIT Hyderabad Josef Sivic, Andrew Zisserman: Video Google: A Text Retrieval Approach to Object Matching in Videos. ICCV 2003

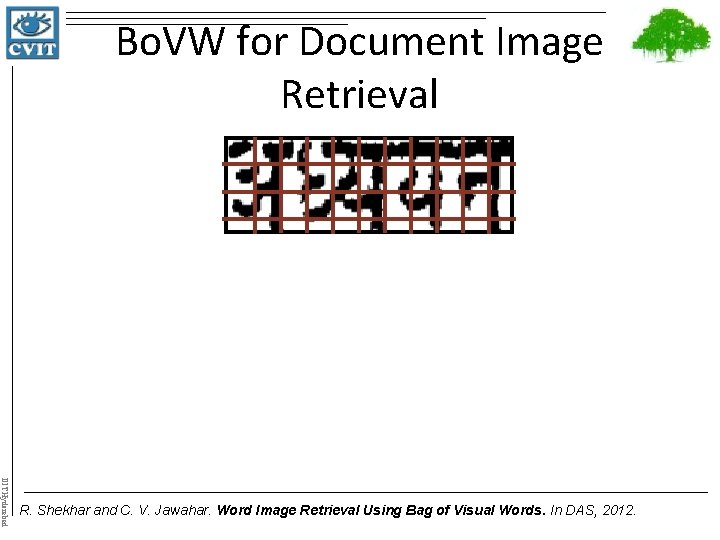

Bo. VW for Document Image Retrieval IIIT Hyderabad R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012.

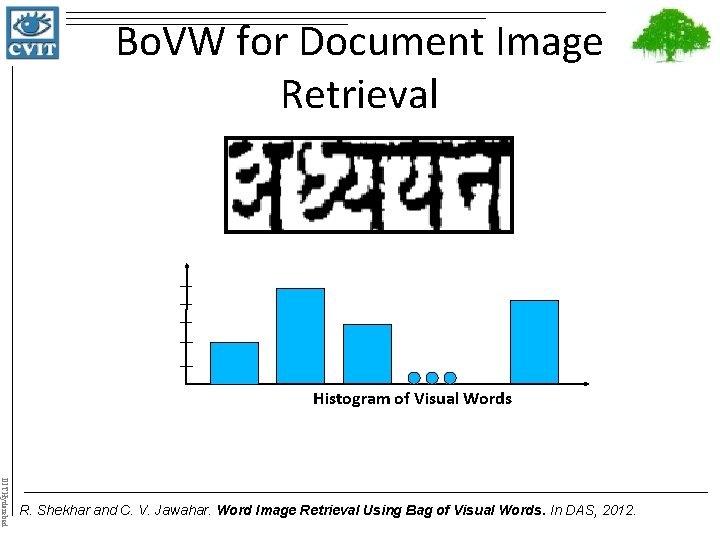

Bo. VW for Document Image Retrieval Histogram of Visual Words IIIT Hyderabad R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012.

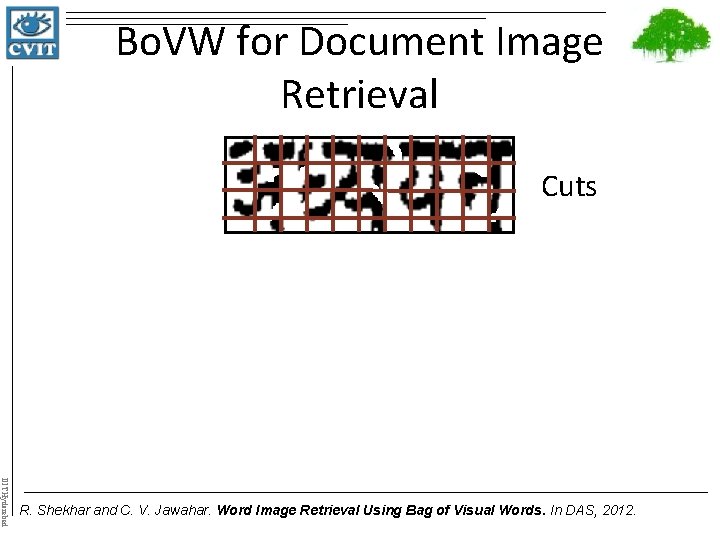

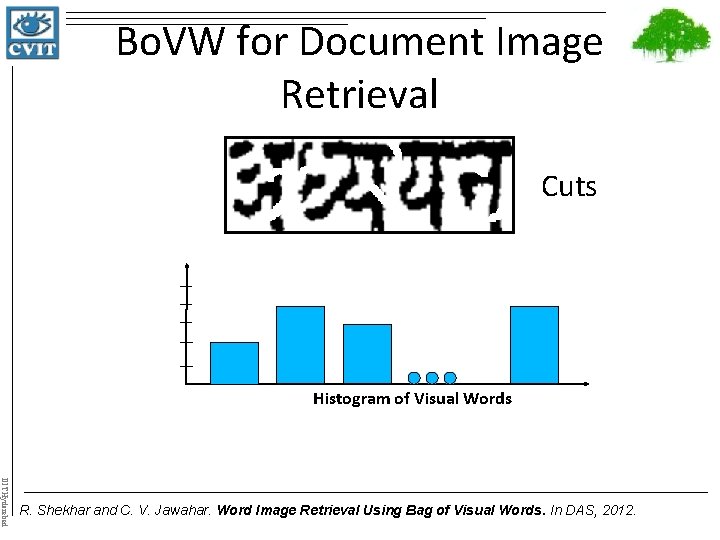

Bo. VW for Document Image Retrieval Cuts IIIT Hyderabad R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012.

Bo. VW for Document Image Retrieval Cuts Histogram of Visual Words IIIT Hyderabad R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012.

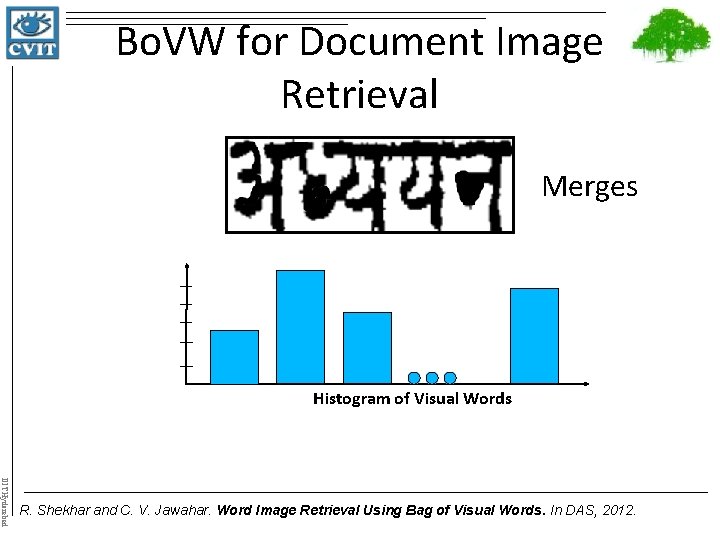

Bo. VW for Document Image Retrieval Merges IIIT Hyderabad R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012.

Bo. VW for Document Image Retrieval Merges Histogram of Visual Words IIIT Hyderabad R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012.

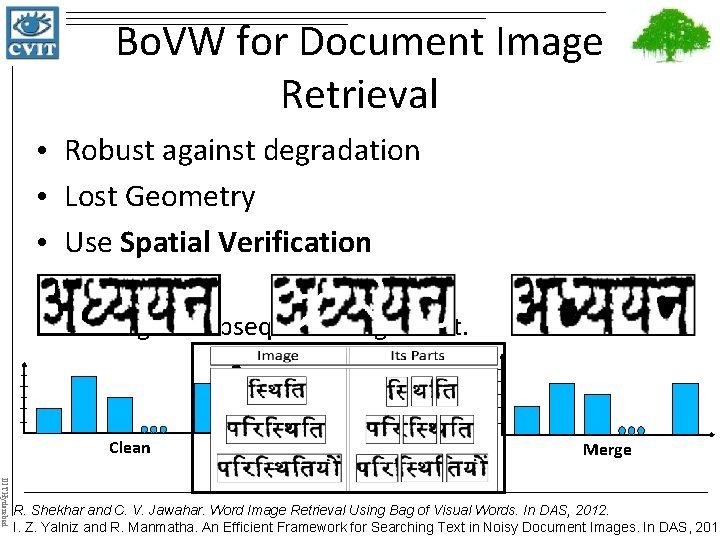

Bo. VW for Document Image Retrieval • Robust against degradation • Lost Geometry • Use Spatial Verification – SIFT based. – Longest Subsequence alignment. y 1 0. 5 Clean 0 0. 5 IIIT Hyderabad V 1 1 V 2 V 6 1. 5 Cuts 2 V 4 2. 5 V 8 3 V 9 x Merge R. Shekhar and C. V. Jawahar. Word Image Retrieval Using Bag of Visual Words. In DAS, 2012. I. Z. Yalniz and R. Manmatha. An Efficient Framework for Searching Text in Noisy Document Images. In DAS, 2012

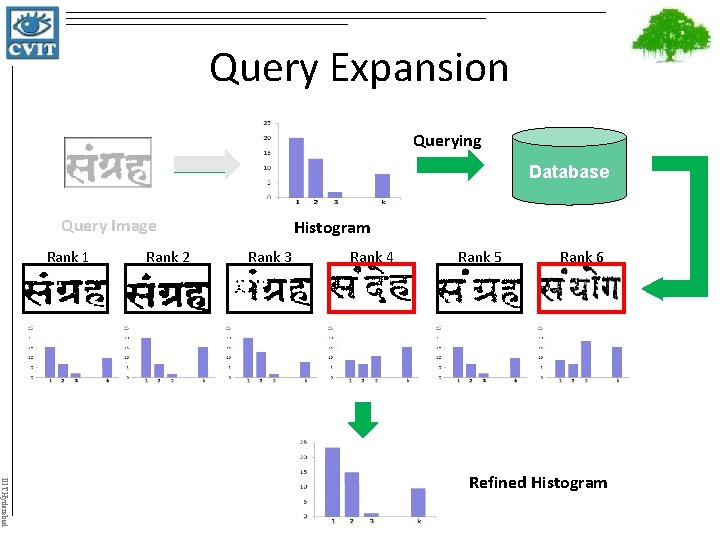

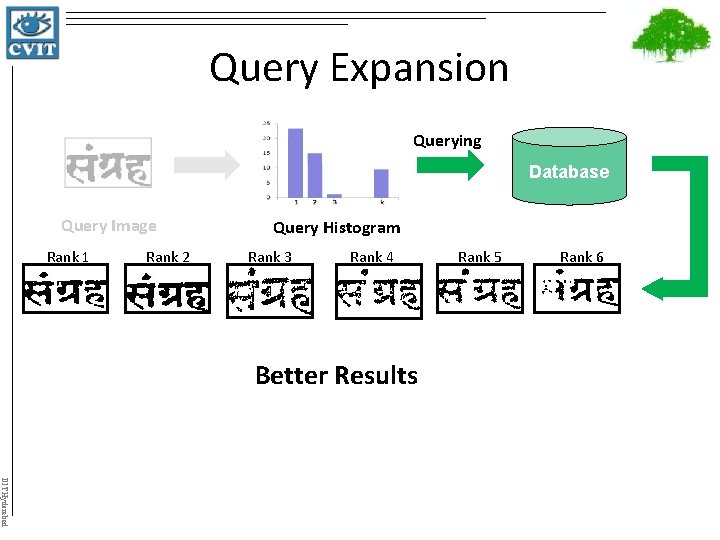

Query Expansion Querying Database Query Image Rank 1 Rank 2 Histogram Rank 3 Rank 4 Rank 5 Rank 6 IIIT Hyderabad Refined Histogram

Query Expansion Querying Database Query Image Rank 1 Rank 2 Query Histogram Rank 3 Rank 4 Better Results Rank 5 Rank 6 IIIT Hyderabad

Text Query Support • Originally formulated in a “query by example” setting. Input Query Image Histogram IIIT Hyderabad

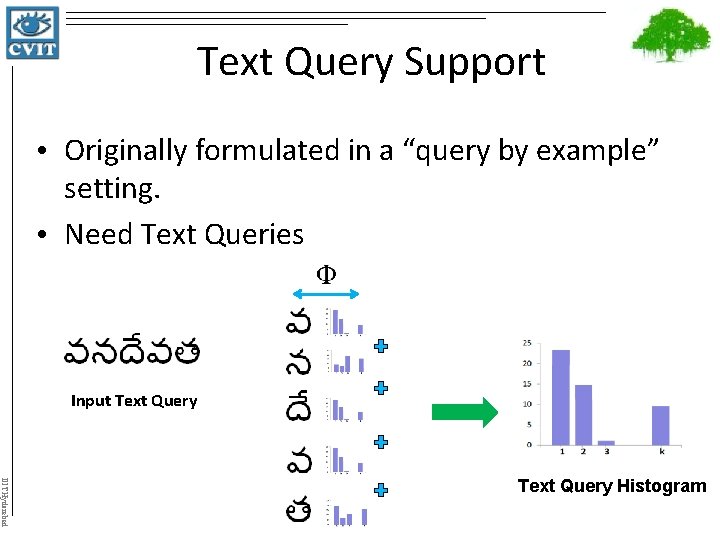

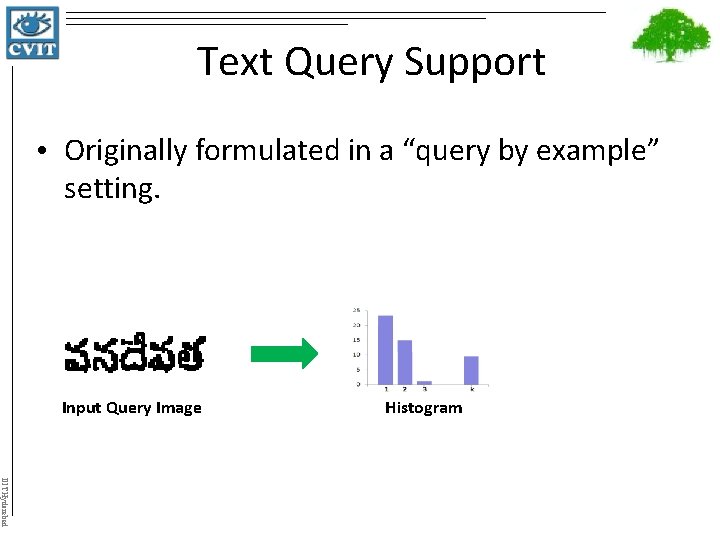

Text Query Support • Originally formulated in a “query by example” setting. • Need Text Queries Input Text Query IIIT Hyderabad Text Query Histogram

Observations • Are the results of OCR and Bo. VW complementary? IIIT Hyderabad Bo. VW OCR Bo. VW

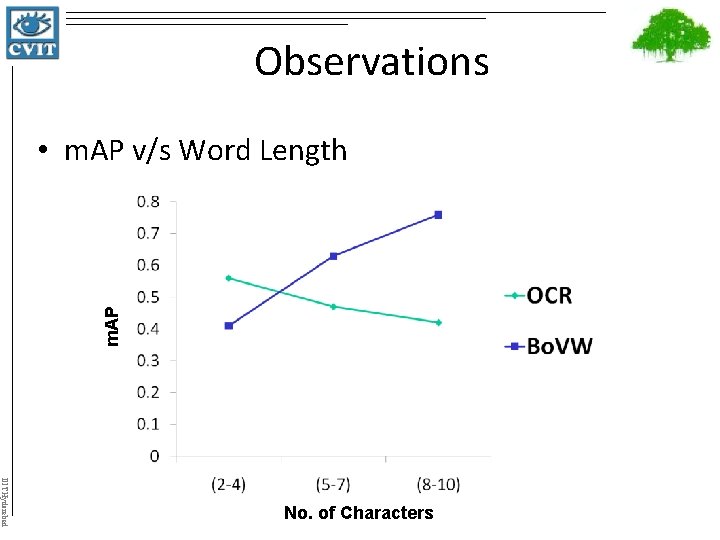

Observations m. AP • m. AP v/s Word Length IIIT Hyderabad No. of Characters

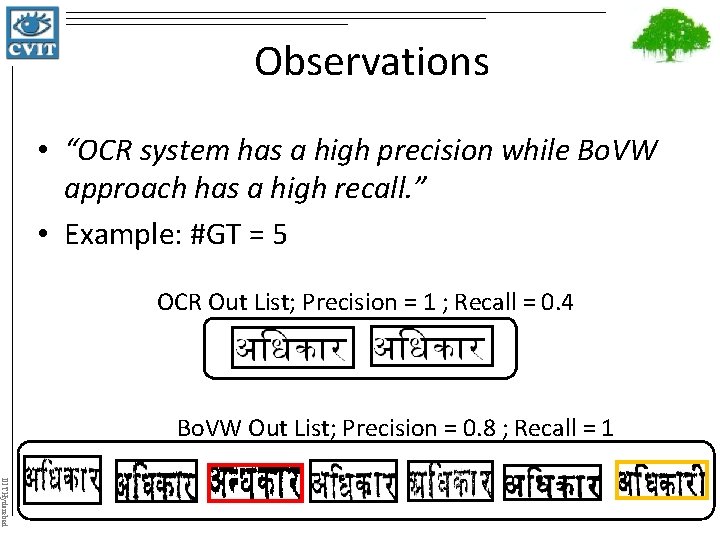

Observations • “OCR system has a high precision while Bo. VW approach has a high recall. ” • Example: #GT = 5 OCR Out List; Precision = 1 ; Recall = 0. 4 Bo. VW Out List; Precision = 0. 8 ; Recall = 1 IIIT Hyderabad

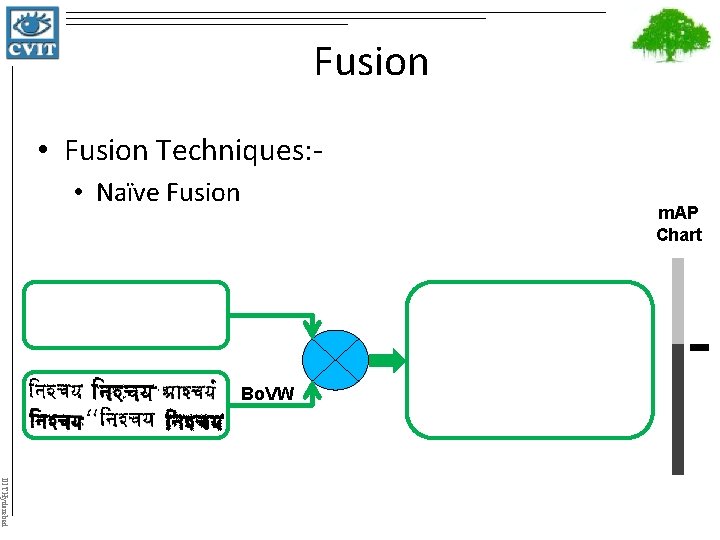

Fusion • Fusion Techniques: • Naïve Fusion m. AP Chart OCR IIIT Hyderabad

Fusion • Fusion Techniques: • Naïve Fusion m. AP Chart Bo. VW IIIT Hyderabad

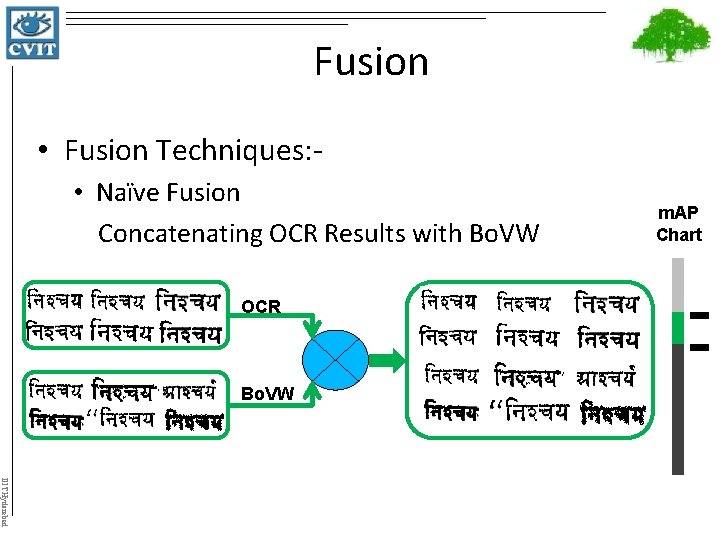

Fusion • Fusion Techniques: • Naïve Fusion Concatenating OCR Results with Bo. VW OCR Bo. VW m. AP Chart IIIT Hyderabad

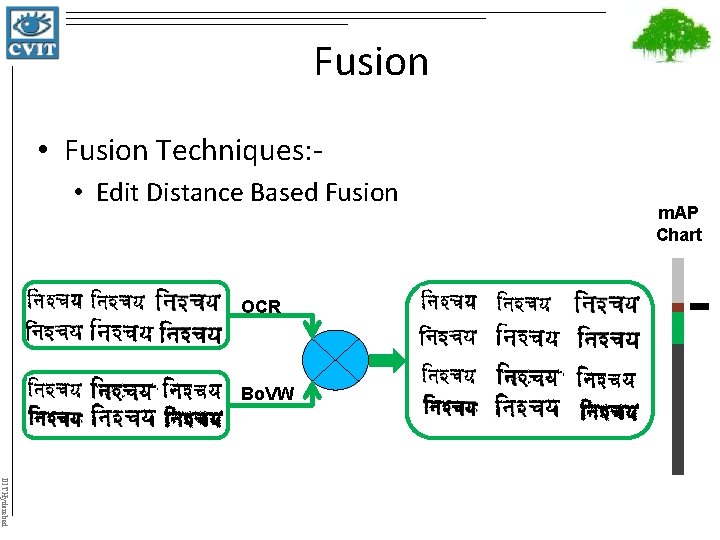

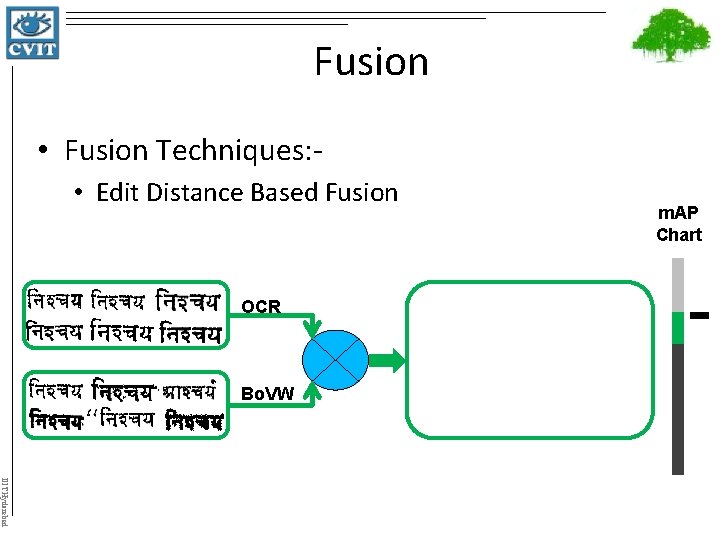

Fusion • Fusion Techniques: • Edit Distance Based Fusion OCR Bo. VW m. AP Chart IIIT Hyderabad

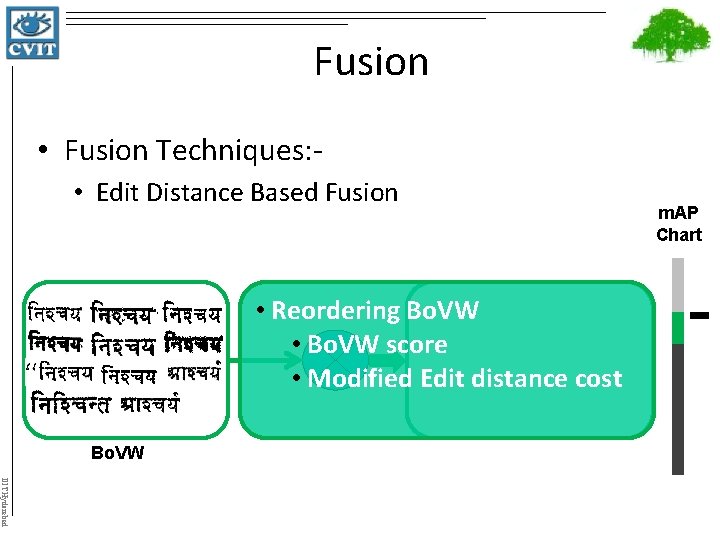

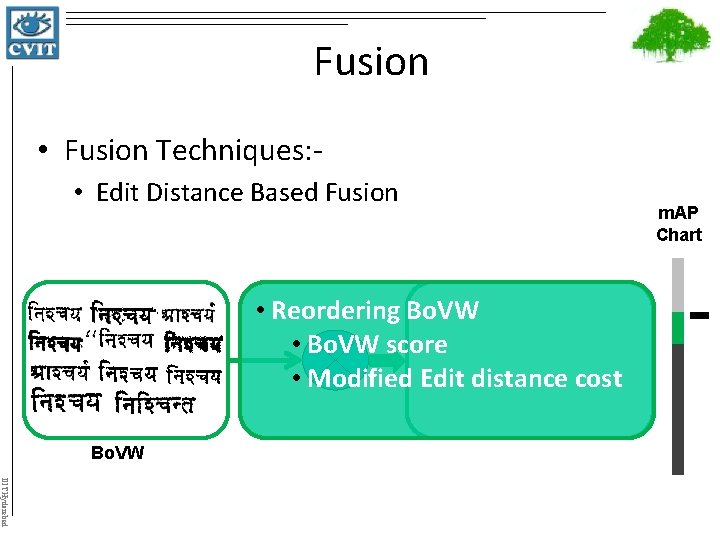

Fusion • Fusion Techniques: • Edit Distance Based Fusion • Reordering Bo. VW • Bo. VW score • Modified Edit distance cost Bo. VW m. AP Chart IIIT Hyderabad

Fusion • Fusion Techniques: • Edit Distance Based Fusion • Reordering Bo. VW • Bo. VW score • Modified Edit distance cost Bo. VW m. AP Chart IIIT Hyderabad

Fusion • Fusion Techniques: • Edit Distance Based Fusion OCR Bo. VW m. AP Chart IIIT Hyderabad

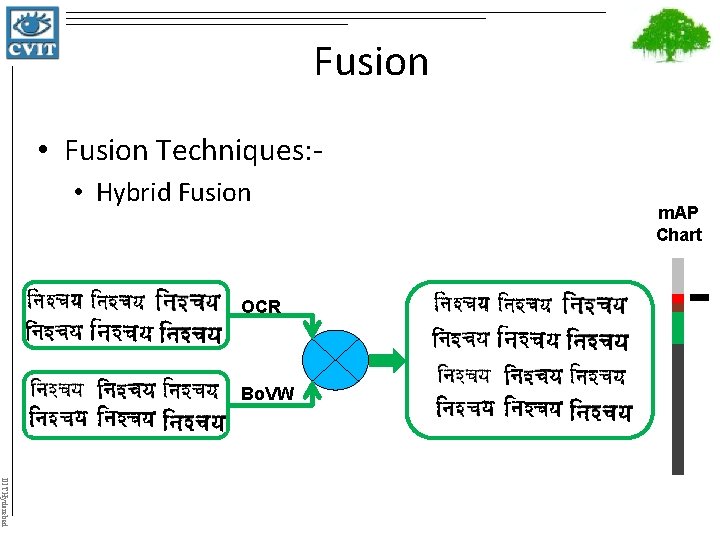

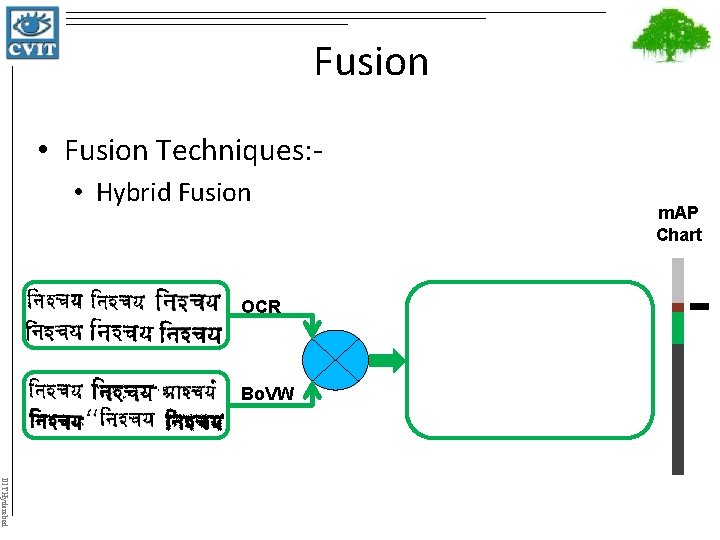

Fusion • Fusion Techniques: • Hybrid Fusion OCR Bo. VW m. AP Chart IIIT Hyderabad

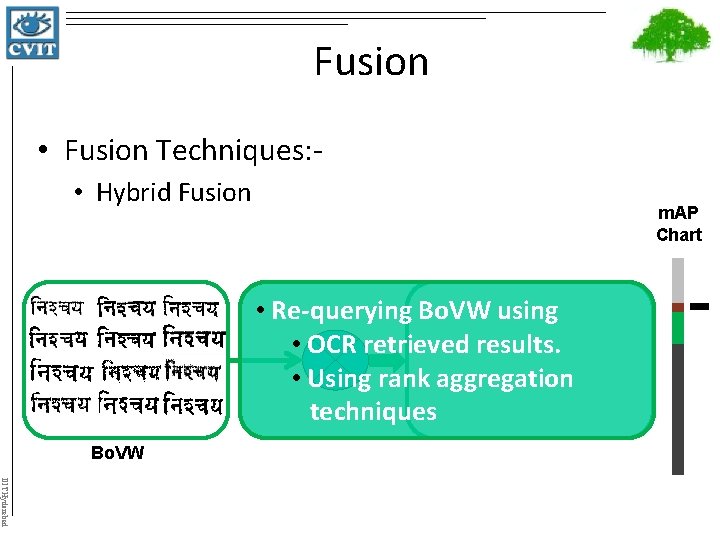

Fusion • Fusion Techniques: • Hybrid Fusion m. AP Chart • Re-querying Bo. VW using • OCR retrieved results. • Using rank aggregation techniques Bo. VW IIIT Hyderabad

Fusion • Fusion Techniques: • Hybrid Fusion m. AP Chart • Re-querying Bo. VW using • OCR retrieved results. • Using rank aggregation techniques Bo. VW IIIT Hyderabad

Fusion • Fusion Techniques: • Hybrid Fusion OCR Bo. VW m. AP Chart IIIT Hyderabad

Experimental Results IIIT Hyderabad

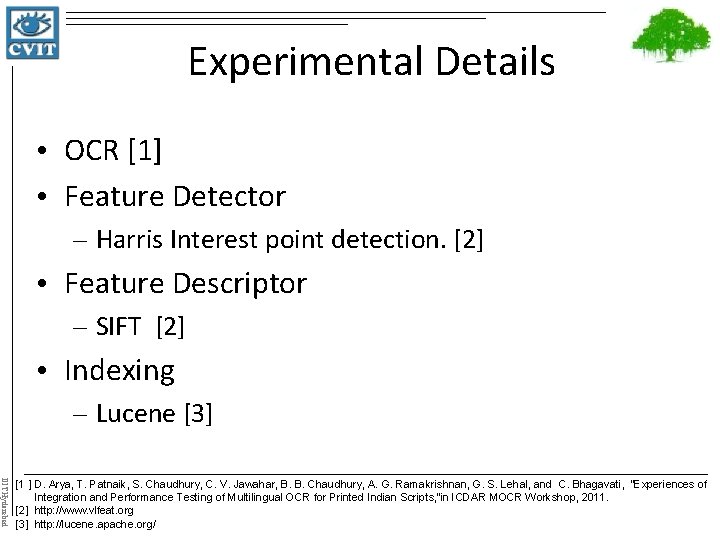

Experimental Details • OCR [1] • Feature Detector – Harris Interest point detection. [2] • Feature Descriptor – SIFT [2] • Indexing – Lucene [3] IIIT Hyderabad [1 ] D. Arya, T. Patnaik, S. Chaudhury, C. V. Jawahar, B. B. Chaudhury, A. G. Ramakrishnan, G. S. Lehal, and C. Bhagavati, “Experiences of Integration and Performance Testing of Multilingual OCR for Printed Indian Scripts, ”in ICDAR MOCR Workshop, 2011. [2] http: //www. vlfeat. org [3] http: //lucene. apache. org/

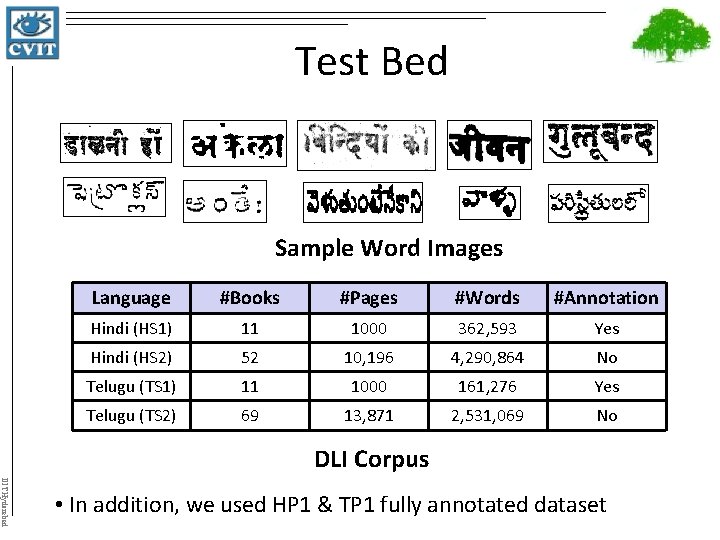

Test Bed Sample Word Images Language #Books #Pages #Words #Annotation Hindi (HS 1) 11 1000 362, 593 Yes Hindi (HS 2) 52 10, 196 4, 290, 864 No Telugu (TS 1) 11 1000 161, 276 Yes Telugu (TS 2) 69 13, 871 2, 531, 069 No DLI Corpus IIIT Hyderabad • In addition, we used HP 1 & TP 1 fully annotated dataset

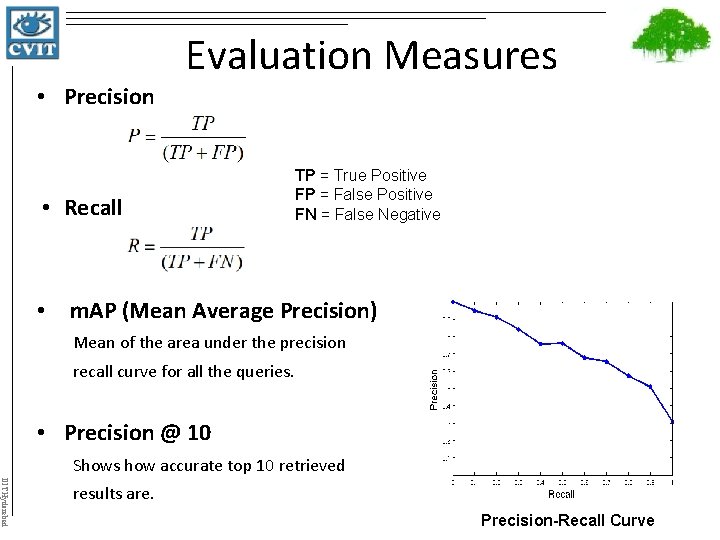

Evaluation Measures • Precision • Recall TP = True Positive FP = False Positive FN = False Negative • m. AP (Mean Average Precision) Mean of the area under the precision recall curve for all the queries. • Precision @ 10 Shows how accurate top 10 retrieved IIIT Hyderabad results are. Precision-Recall Curve

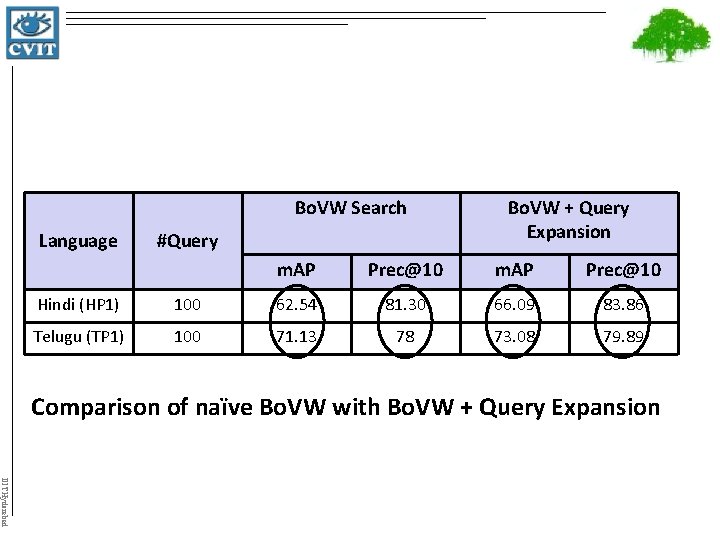

Bo. VW Search Language #Query Bo. VW + Query Expansion m. AP Prec@10 Hindi (HP 1) 100 62. 54 81. 30 66. 09 83. 86 Telugu (TP 1) 100 71. 13 78 73. 08 79. 89 Comparison of naïve Bo. VW with Bo. VW + Query Expansion IIIT Hyderabad

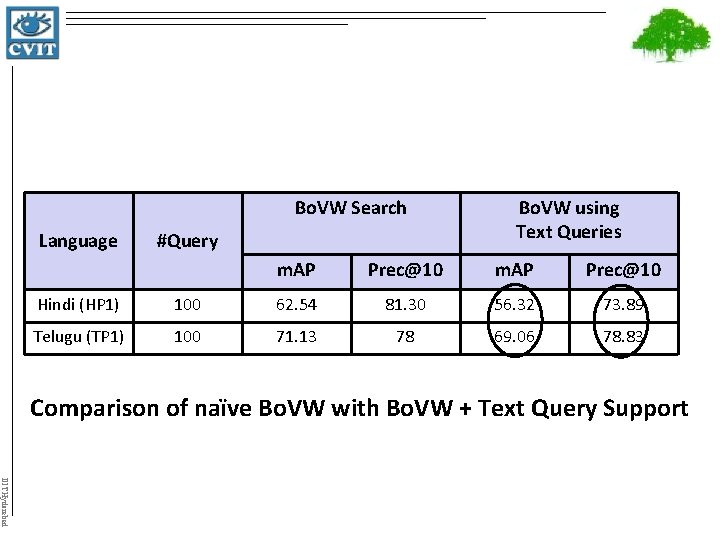

Bo. VW Search Language #Query Bo. VW using Text Queries m. AP Prec@10 Hindi (HP 1) 100 62. 54 81. 30 56. 32 73. 89 Telugu (TP 1) 100 71. 13 78 69. 06 78. 83 Comparison of naïve Bo. VW with Bo. VW + Text Query Support IIIT Hyderabad

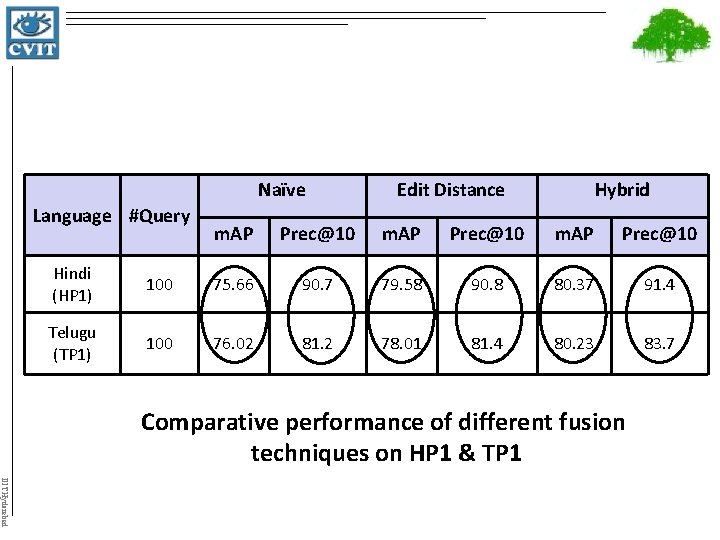

Naïve Language #Query Edit Distance Hybrid m. AP Prec@10 Hindi (HP 1) 100 75. 66 90. 7 79. 58 90. 8 80. 37 91. 4 Telugu (TP 1) 100 76. 02 81. 2 78. 01 81. 4 80. 23 83. 7 Comparative performance of different fusion techniques on HP 1 & TP 1 IIIT Hyderabad

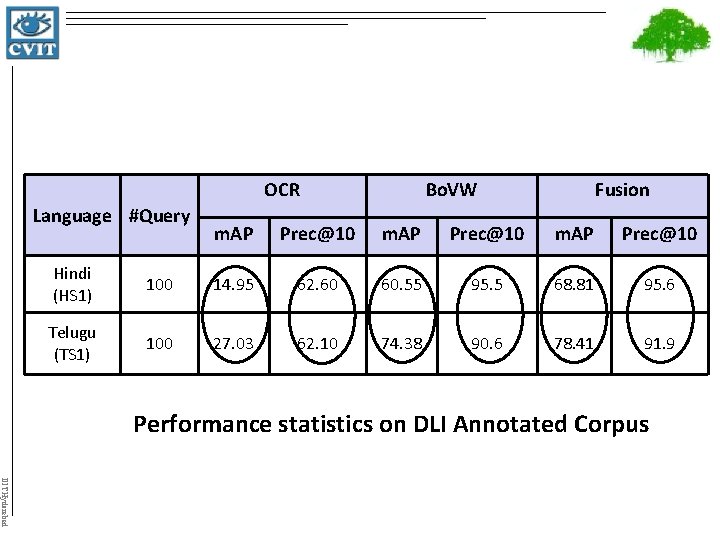

OCR Language #Query Bo. VW Fusion m. AP Prec@10 Hindi (HS 1) 100 14. 95 62. 60 60. 55 95. 5 68. 81 95. 6 Telugu (TS 1) 100 27. 03 62. 10 74. 38 90. 6 78. 41 91. 9 Performance statistics on DLI Annotated Corpus IIIT Hyderabad

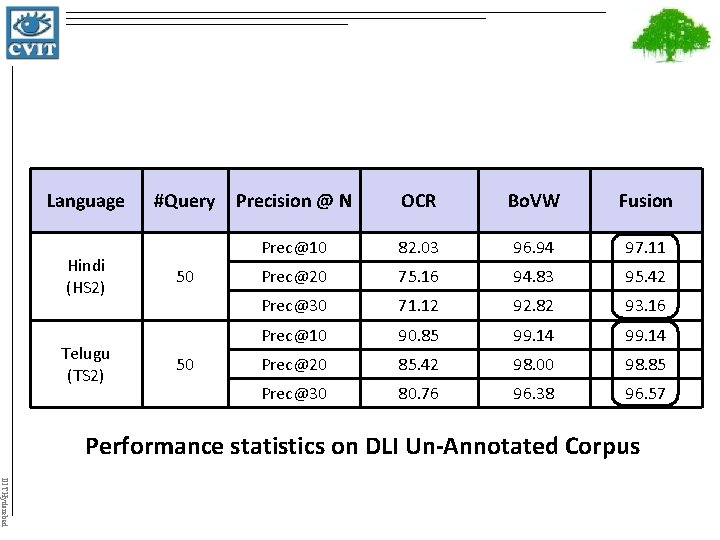

Language Hindi (HS 2) Telugu (TS 2) #Query 50 50 Precision @ N OCR Bo. VW Fusion Prec@10 82. 03 96. 94 97. 11 Prec@20 75. 16 94. 83 95. 42 Prec@30 71. 12 92. 82 93. 16 Prec@10 90. 85 99. 14 Prec@20 85. 42 98. 00 98. 85 Prec@30 80. 76 96. 38 96. 57 Performance statistics on DLI Un-Annotated Corpus IIIT Hyderabad

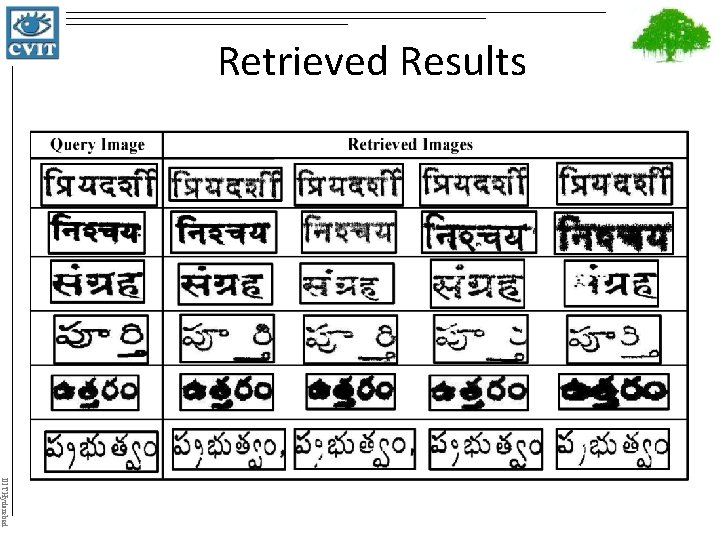

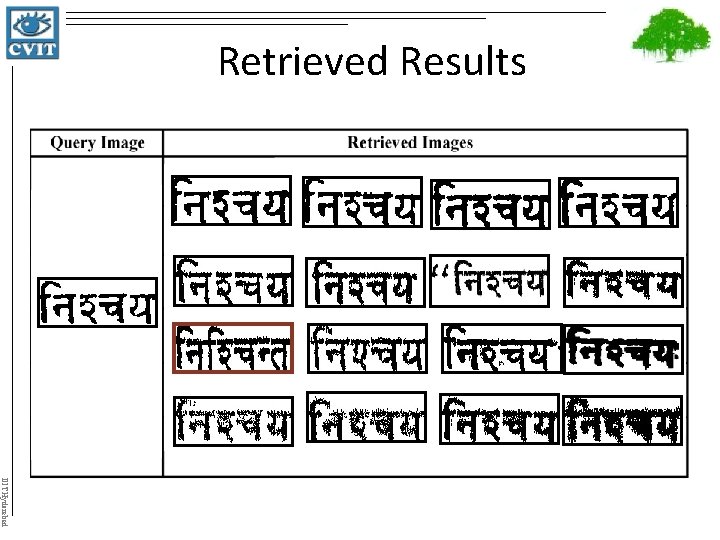

Retrieved Results IIIT Hyderabad

Retrieved Results IIIT Hyderabad

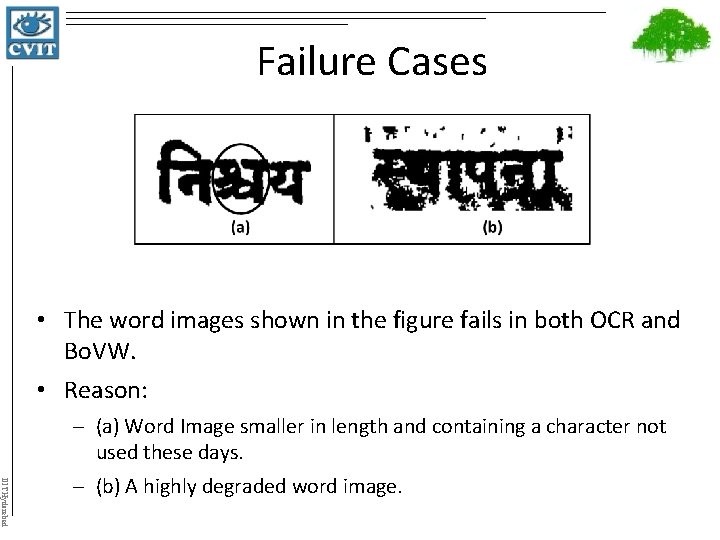

Failure Cases • The word images shown in the figure fails in both OCR and Bo. VW. • Reason: IIIT Hyderabad – (a) Word Image smaller in length and containing a character not used these days. – (b) A highly degraded word image.

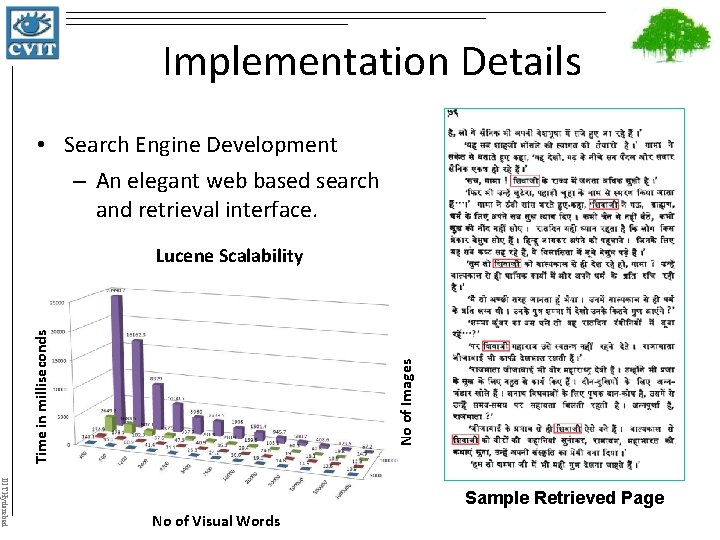

Implementation Details • Search Engine Development – An elegant web based search and retrieval interface. No of Images Time in milliseconds Lucene Scalability IIIT Hyderabad Sample Retrieved Page No of Visual Words

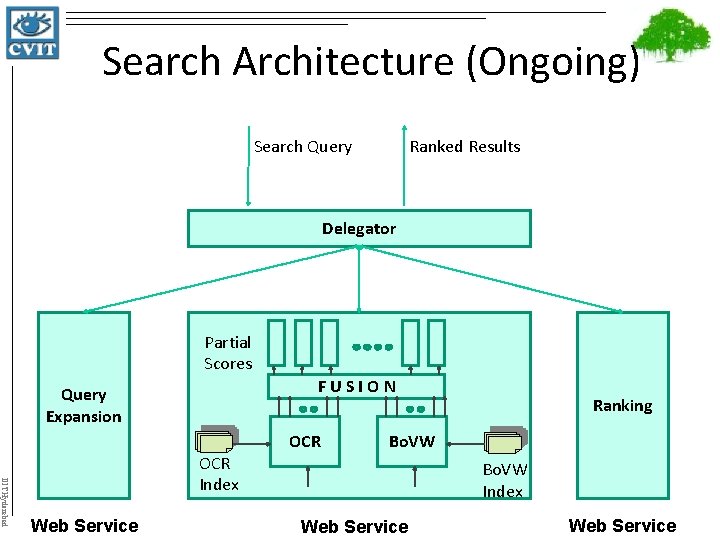

Search Architecture (Ongoing) Search Query Ranked Results Delegator Partial Scores FUSION Query Expansion IIIT Hyderabad OCR Index Web Service OCR Ranking Bo. VW Index Web Service

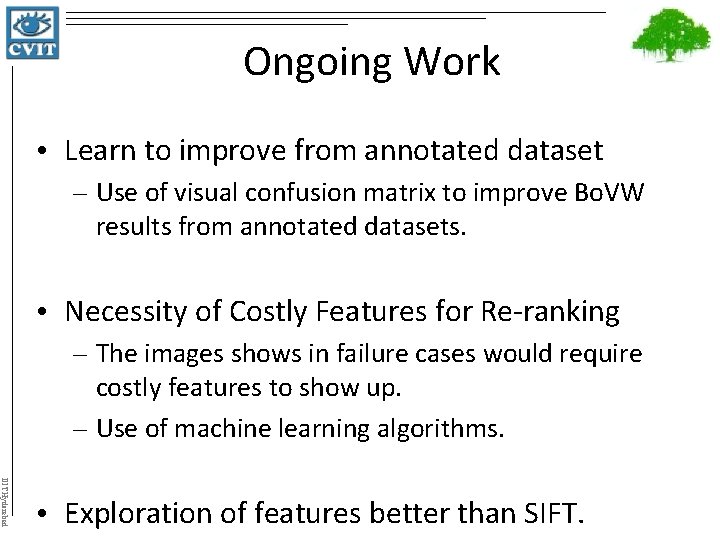

Ongoing Work • Learn to improve from annotated dataset – Use of visual confusion matrix to improve Bo. VW results from annotated datasets. • Necessity of Costly Features for Re-ranking – The images shows in failure cases would require costly features to show up. – Use of machine learning algorithms. IIIT Hyderabad • Exploration of features better than SIFT.
