Contamination control at the exit from radiation controlled area and NPP site at Bohunice NPP Svitek Jaroslav, Bohunice NPP, Slovak Republic

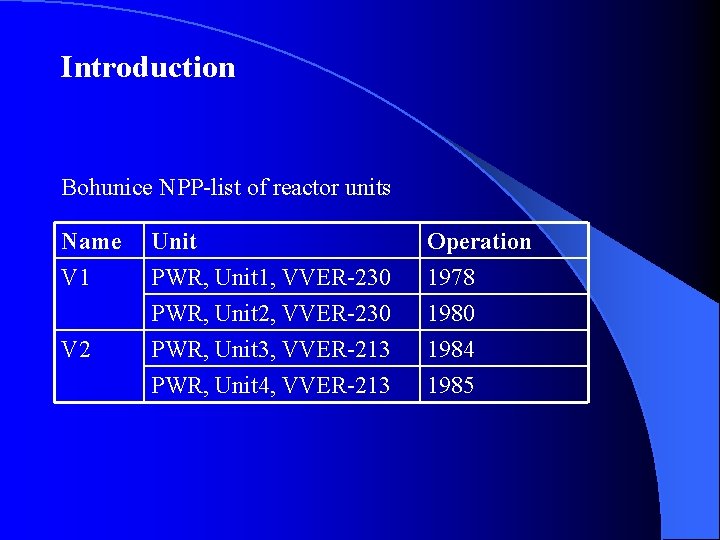

Introduction Bohunice NPP-list of reactor units Name V 1 V 2 Unit PWR, Unit 1, VVER-230 PWR, Unit 2, VVER-230 PWR, Unit 3, VVER-213 Operation 1978 1980 1984 PWR, Unit 4, VVER-213 1985

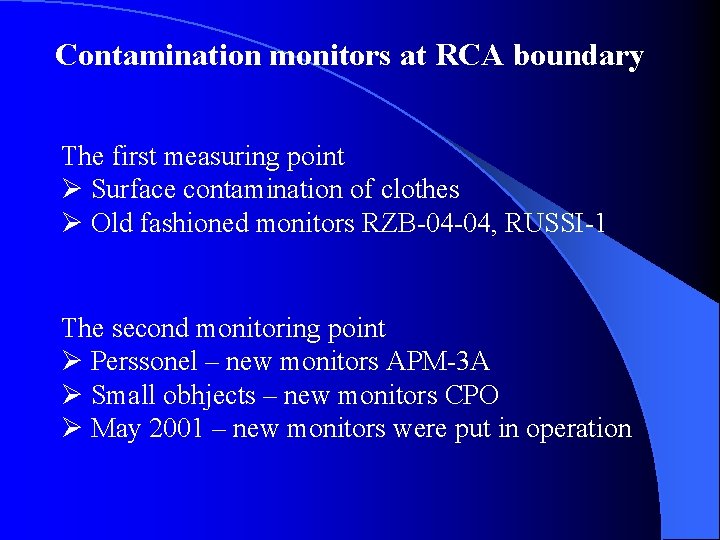

Contamination monitors at RCA boundary The first measuring point Ø Surface contamination of clothes Ø Old fashioned monitors RZB-04 -04, RUSSI-1 The second monitoring point Ø Perssonel – new monitors APM-3 A Ø Small obhjects – new monitors CPO Ø May 2001 – new monitors were put in operation

RUSSI-01, RZB-04 -04 monitors Ø Ø Ø Ø 15 pcs detectors Each detector contains 2 pcs GM tubes type SBT 10 1071 cm 2 total monitoring area Measuring time – 5 seconds Alarm level set – 3 Bq/ cm 2 Entry/exit barriers Calibration source - 90 Sr

APM-3 A monitor - 1 Ø Two steps monitor Ø Alpha, beta and gamma-ray sensitive Ø 20 pcs LFP-800 detectors for monitoring of hands, bodies and feet Ø 2 pcs LFP-330 detectors for monitoring of heads Ø 4 pcs LFP- 800 detectors for monitoring of small objects ( items monitor ) Ø Feet, hands and body photosenzors Ø Over 2 x 16000 cm 2 of active monitoring area for total coverage of the body Ø 3200 cm 2 of active monitoring area in items monitor

APM-3 A monitor - 2 Ø Entry/exit barriers Ø Low P-10 gas consumption Ø Reader for ID-cards Ø Alarm set point – 45 Bq/cm 2 Ø Calibration source - 137 Cs

CPO monitor Ø Two large area scintillation detectors (1225 cm 2 each) Ø Lead shielding (25 mm) Ø Entry/exit barriers Ø Audible warning. Ø Calibration source - 60 Co Ø Alarm level set 90 Bq

Activity monitor at NPP site - PM 7 monitor Ø Walk through mode Ø Lead shielding Ø RDA of PM 7 monitor - (9. 2 – 10. 4) k. Bq Ø 6 pcs plastic scintillation detectors Ø Calibration source - 137 Cs Ø In operation since January 1998

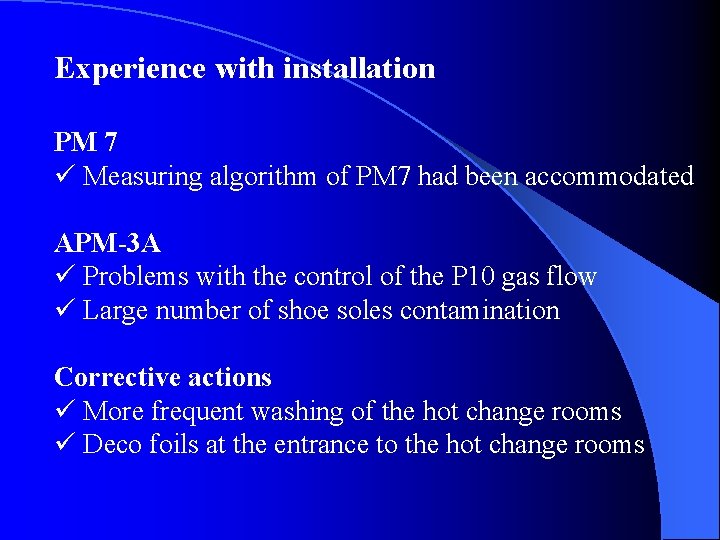

Experience with installation PM 7 ü Measuring algorithm of PM 7 had been accommodated APM-3 A ü Problems with the control of the P 10 gas flow ü Large number of shoe soles contamination Corrective actions ü More frequent washing of the hot change rooms ü Deco foils at the entrance to the hot change rooms

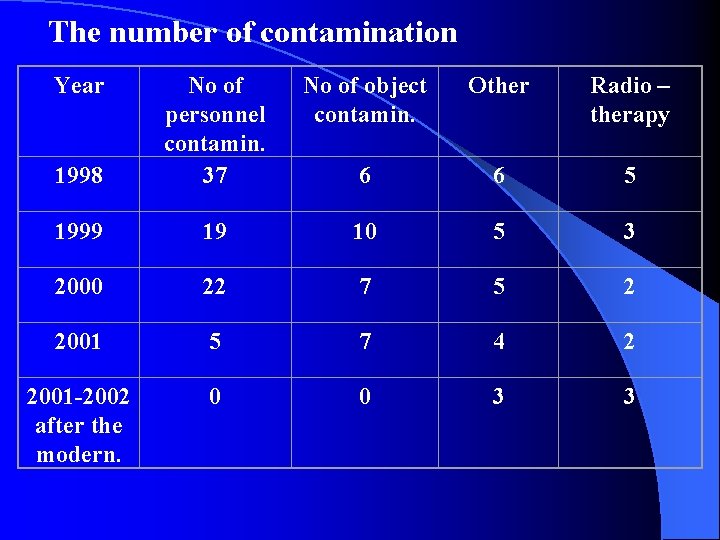

The number of contamination Year No of object contamin. Other Radio – therapy 1998 No of personnel contamin. 37 6 6 5 1999 19 10 5 3 2000 22 7 5 2 2001 5 7 4 2 2001 -2002 after the modern. 0 0 3 3

Analysis of the events revealed: ü More than 70% events of personnel contamination was caused by insufficient characteristics of old equipment RZB-04 -04 and RUSSI-1 at the exit from RCA ü Less than 30% of personnel contamination was caused by human error - by violation of RP rules at the exit from RCA ü Up to 60% of events was caused by the contractors workers ü Up to 80% of all events was found at JE V-1 which was caused by a large extend of reconstruction works during the reconstruction and the higher contamination of the primary circuit ü All contamination events represent only negligible risk on the human health

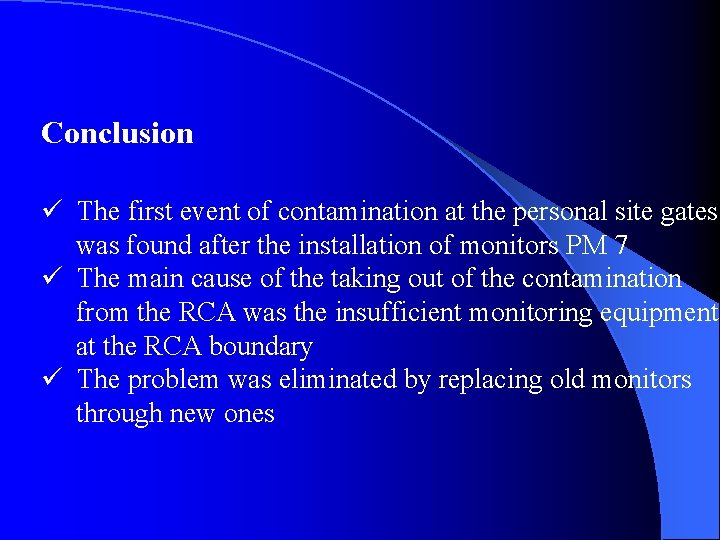

Conclusion ü The first event of contamination at the personal site gates was found after the installation of monitors PM 7 ü The main cause of the taking out of the contamination from the RCA was the insufficient monitoring equipment at the RCA boundary ü The problem was eliminated by replacing old monitors through new ones
