Constructions MATHSWATCH CLIP 47 145 146 147 GRADE

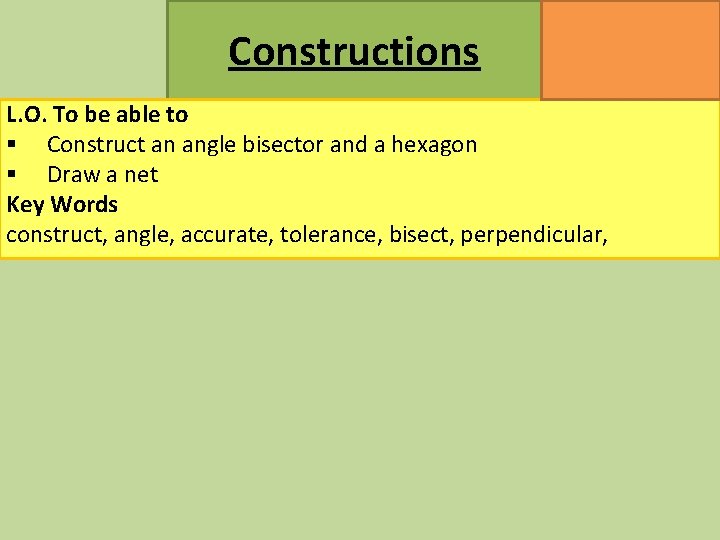

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 L. O. To be able to § Construct an angle bisector and a hexagon § Draw a net Key Words construct, angle, accurate, tolerance, bisect, perpendicular,

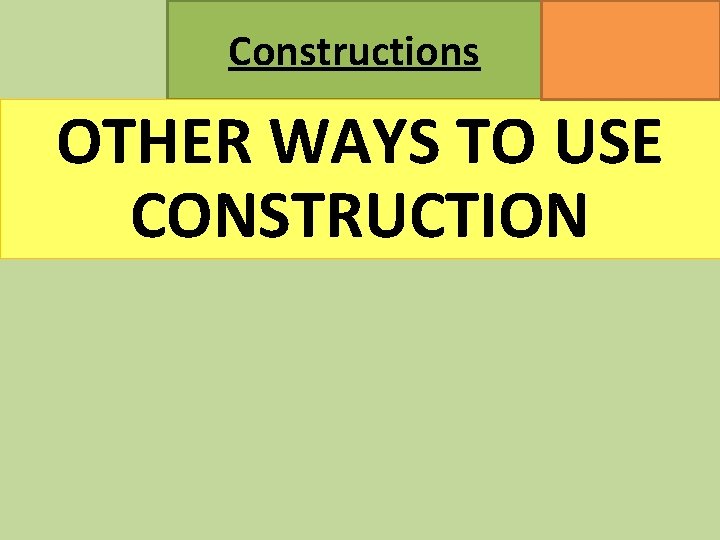

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 OTHER WAYS TO USE CONSTRUCTION

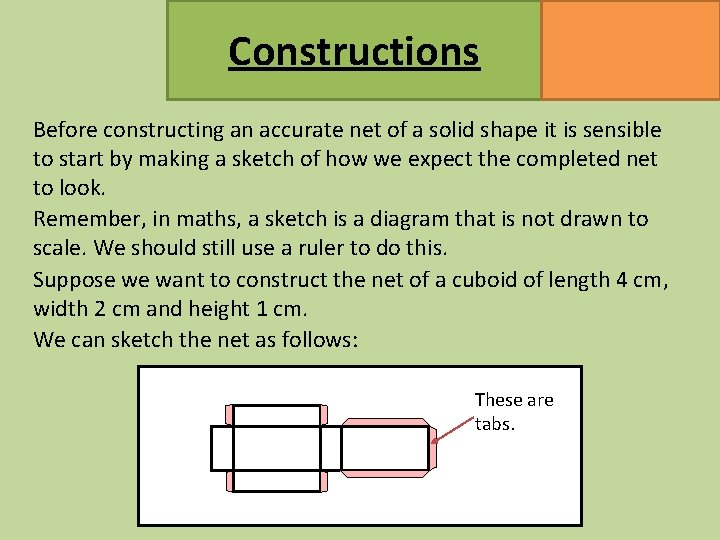

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Before constructing an accurate net of a solid shape it is sensible to start by making a sketch of how we expect the completed net to look. Remember, in maths, a sketch is a diagram that is not drawn to scale. We should still use a ruler to do this. Suppose we want to construct the net of a cuboid of length 4 cm, width 2 cm and height 1 cm. We can sketch the net as follows: These are tabs.

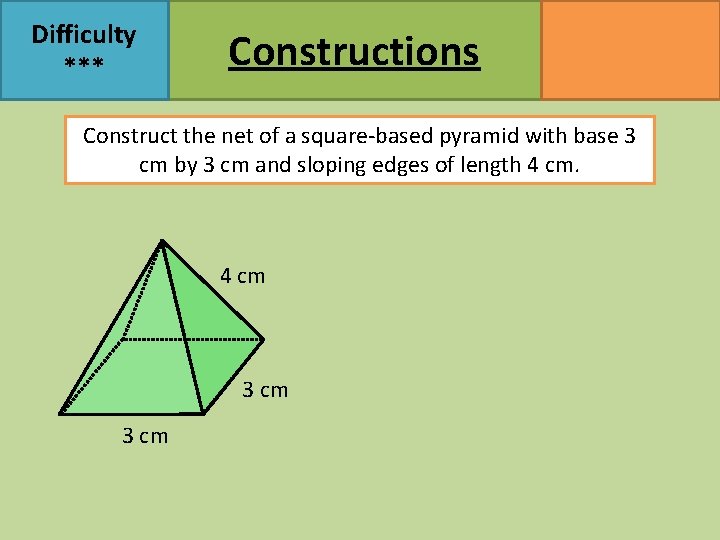

Difficulty *** Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Construct the net of a square-based pyramid with base 3 cm by 3 cm and sloping edges of length 4 cm 3 cm

Difficulty *** Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Construct the net of a square-based pyramid with base 3 cm by 3 cm and sloping edges of length 4 cm. 3 cm 4 cm Your sketch should look something like this. 3 cm

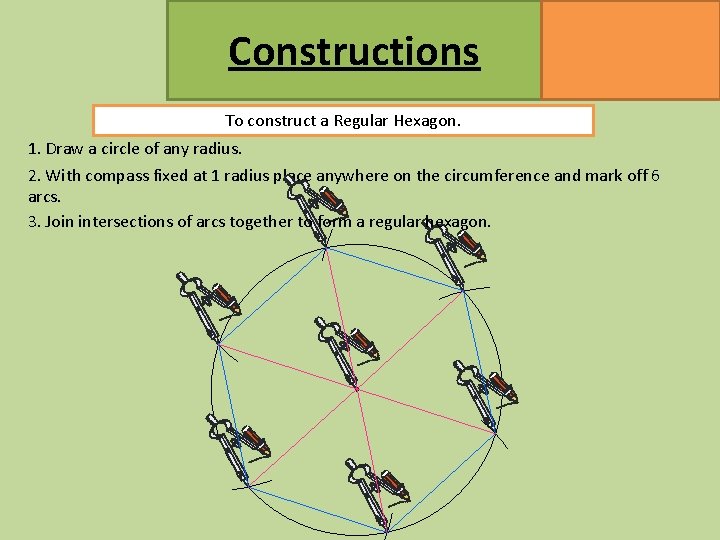

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 To construct a Regular Hexagon. 1. Draw a circle of any radius. 2. With compass fixed at 1 radius place anywhere on the circumference and mark off 6 arcs. 3. Join intersections of arcs together to form a regular hexagon.

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 https: //corbettmaths. com/2013/03/26/hexagon-inscribed-within-a-circle/

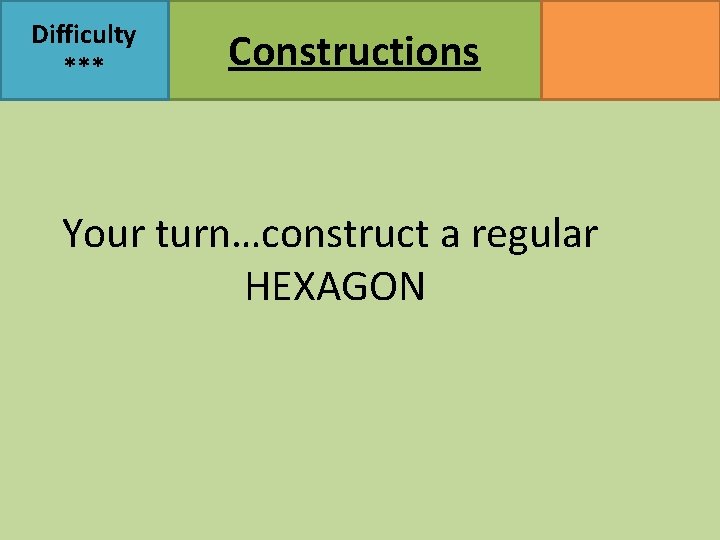

Difficulty *** Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Your turn…construct a regular HEXAGON

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 https: //corbettmaths. com/2012/08/24/constructing-equilateral-triangles-and-60 degree-angles/

MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Constructions To construct an angle of 60 o. 1. Draw base line AB of any length. 2. Place compass at A, set to distance AB and draw arc. 3. Place compass at B, with same distance set and draw an arc to intersect first one. 4. Draw straight line from A through point of intersection. Angle BAC = 60 o. C A B

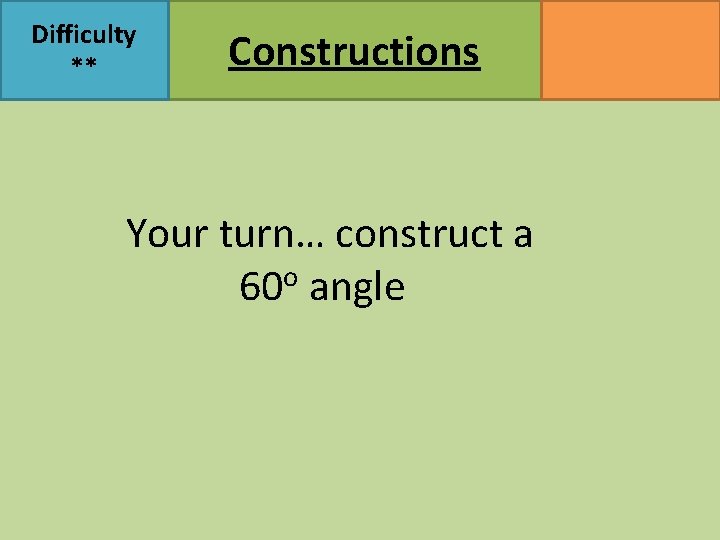

Difficulty ** Constructions Your turn… construct a 60 o angle MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 https: //corbettmaths. com/2013/03/25/construct-a-30 -degree-angle/

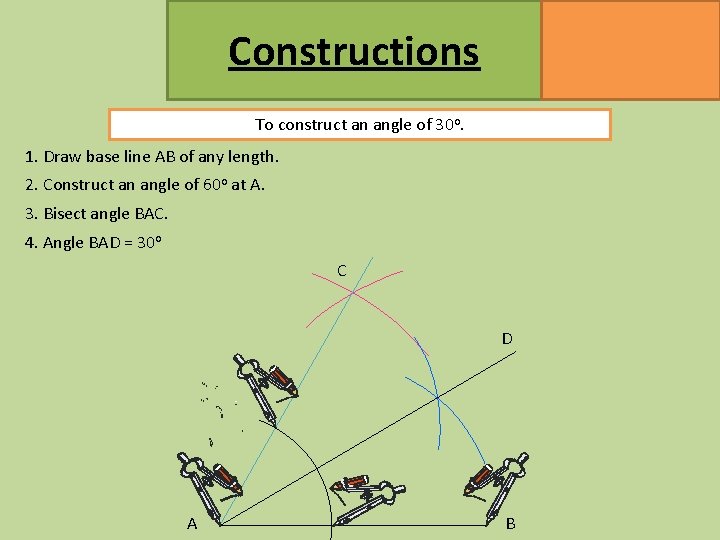

MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Constructions To construct an angle of 30 o. 1. Draw base line AB of any length. 2. Construct an angle of 60 o at A. 3. Bisect angle BAC. 4. Angle BAD = 30 o C D A B

Difficulty ** Constructions Your turn… construct a 30 o angle MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4

Constructions https: //corbettmaths. com/2013/04/14/construct-a-45 -degree-angle/ MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4

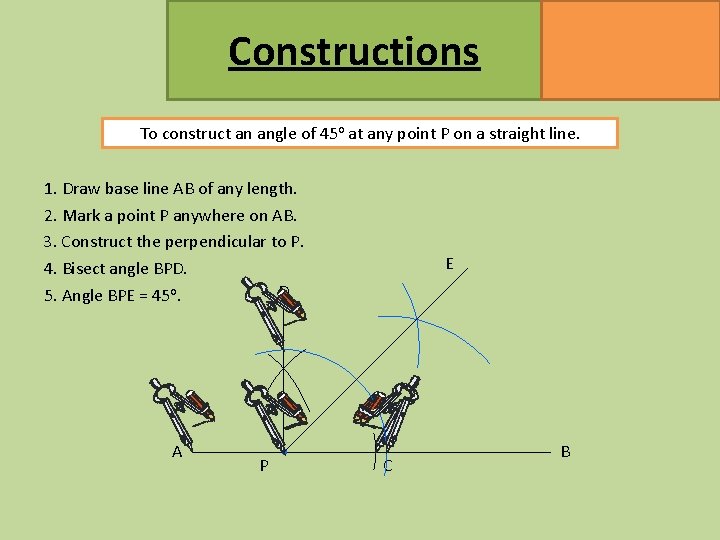

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 To construct an angle of 45 o at any point P on a straight line. 1. Draw base line AB of any length. 2. Mark a point P anywhere on AB. 3. Construct the perpendicular to P. 4. Bisect angle BPD. D 5. Angle BPE = 45 o. A P E C B

Difficulty *** Constructions Your turn… construct a 45 o angle MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4

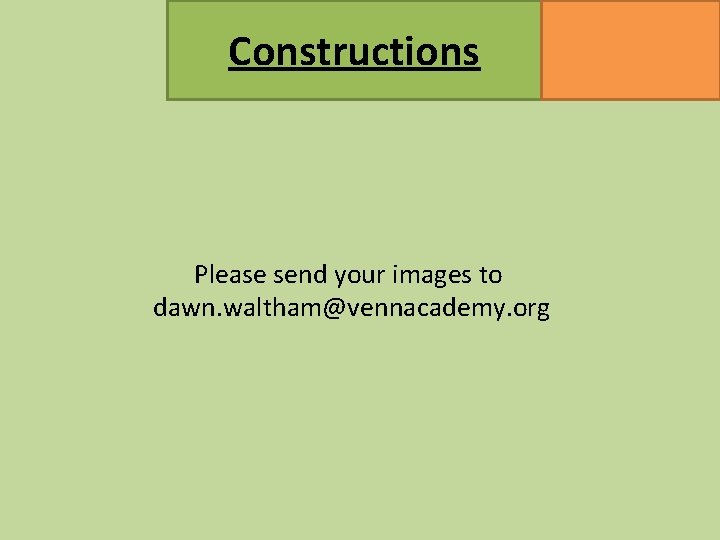

Constructions MATHSWATCH CLIP 47, 145, 146, 147 GRADE 2, 4 Please send your images to dawn. waltham@vennacademy. org
