CONSTRUCTION MANAGEMENT PLAN Binu Korah MBA P Eng

CONSTRUCTION MANAGEMENT PLAN Binu Korah, MBA, P. Eng,

CONSTRUCTION MANAGEMENT PLAN �Construction Management Plan consists of; Ø Construction details Ø Traffic Management Plan Ø Public Communication Plan

CONSTRUCTION MANAGEMENT PLAN 1) CONSTRUCTION DETAILS; § Surface Encroachments § § § Shoring, Tiebacks and Pile construction (e. g. caisson piling) § § § § City ROW Private properties Utility relocation Plan Condition Survey Storage and Loading Areas Hoarding and Safety Fencing Aerial/Carne Encroachments Soil Management Plan including Dust Control Plan Restoration Plan including Landscaping Plan

SURFACE ENCROACHMENT

Caisson Pile & Tie-Backs

Caisson Piles & Tie Backs

Tiebacks Source: photo taken from Google

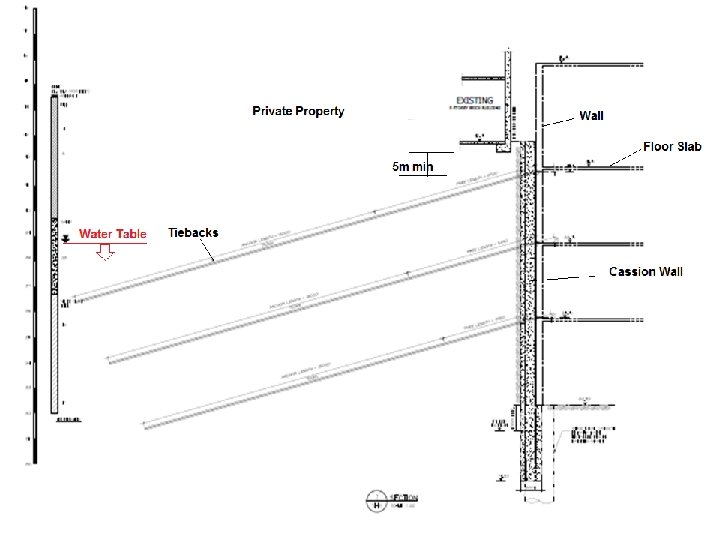

Tiebacks to City Roads/Neighbouring Properties Source: photo taken from Google

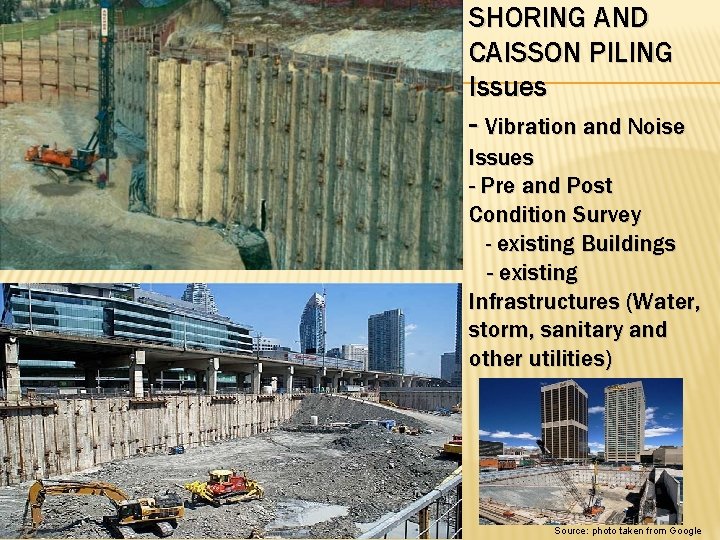

SHORING AND CAISSON PILING Issues - Vibration and Noise Issues - Pre and Post Condition Survey - existing Buildings - existing Infrastructures (Water, storm, sanitary and other utilities) Source: photo taken from Google

DEEP EXCAVATION & CAISSON PILING ISSUES Source: photo taken from Google

Dewatering Issues: - Hydrogeo. Study

DEWATERING ISSUES Source: photo taken from Google

STORAGE AND LOADING AREA Source: photo taken from Google

AERIAL/CRANE ENCROACHMENT Source: photo taken from Google

CRANE ENCROACHMENT – FLYING OBJECTS Source: photo taken from Google

Landscaping, Utility installation and Final Restoration Details of City Streets SOIL CELLS Source: photo taken from Google

TRAFFIC MANAGEMENT PLAN § § How to access the site Detour Plans § § § § Neighbourhood Impacts Pedestrian movements Planned City projects Streetlight requirements Parking Management Plan for staff/workers Signs and Safety Measures Lane Closures etc. § Duration of Construction

TRAFFIC MANAGEMENT PLAN

TRAFFIC MANAGEMENT PLAN –Detour Plans

COMMUNICATION PLAN � Inform the Ward Councillor � Business Community and Residents � Pre Construction Meeting � Emergency response unit/agencies – Fire, Police, Ambulance, Transit etc. � Builders website – Construction updates and contact information � Working hours

Conclusion � � Construction Management Plan Report � Construction details including pre condition survey, utility plan, Excavation Plans (shoring, tiebacks, hording, Mud mat/washing bay details), Storage and Loading area, Crane locations etc � Vibration and Noise Report � Hydrogeological studies - Dewatering � Geotechnical studies � Traffic Management Plan � Utility relocation/protection Plan - consent from utility companies � Streetlight/signals – temporary and permanent design details � Agreement with Neighbouring property owners � Communication Plan � Dust Control Plan Shoring Agreement
