Constraint management Constraint Something that limits the performance
- Slides: 22
Constraint management
Constraint Something that limits the performance of a process or system in achieving its goals. l Categories: l l l Market (demand side) Resources (supply side) l l l l Labour Equipment Space Material and energy Financial Supplier Competency and knowledge Policy and legal environment
Steps of managing constraints l Identify (the most pressing ones) l Maximizing the benefit, given the constraints (programming) l Analyzing the other portions of the process (if they supportive or not) l Explore and evaluate how to overcome the constraints (long term, strategic solution) l Repeat the process
Linear programming
Linear programming… l …is a quantitative management tool to obtain optimal solutions to problems that involve restrictions and limitations (called constrained optimization problems). l …consists of a sequence of steps that lead to an optimal solution to linearconstrained problems, if an optimum exists.
Typical areas of problems l Determining optimal schedules l Establishing locations l Identifying optimal worker-job assignments l Determining optimal diet plans l Identifying optimal mix of products in a factory (!!!) l etc.
Linear programming models l …are mathematical representations of constrained optimization problems. l BASIC CHARACTERISTICS: Components l Assumptions l

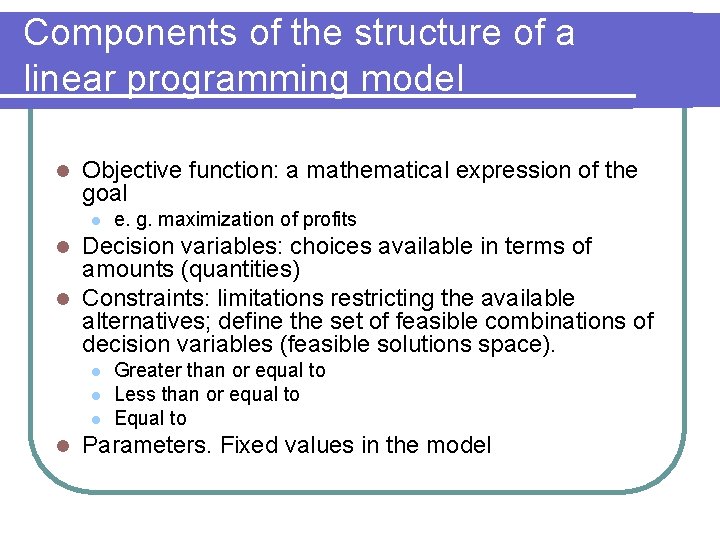

Components of the structure of a linear programming model l Objective function: a mathematical expression of the goal l e. g. maximization of profits Decision variables: choices available in terms of amounts (quantities) l Constraints: limitations restricting the available alternatives; define the set of feasible combinations of decision variables (feasible solutions space). l l l Greater than or equal to Less than or equal to Equal to Parameters. Fixed values in the model
Assumptions of the linear programming model l Linearity: the impact of decision variables is linear in constraints and the objective functions l Divisibility: noninteger values are acceptable l Certainty: values of parameters are known and constant l Nonnegativity: negative values of decision variables are not accepted
Model formulation l l 1. 2. 3. The procesess of assembling information about a problem into a model. This way the problem became solved mathematically. Identifying decision variables (e. g. quantity of a product) Identifying constraints Solve the problem.
2. Identify constraints Suppose that we have 250 labor hours in a week. Producing time of different product is the following: X 1: 2 hs, X 2: 4 hs, X 3: 8 hs l The ratio of X 1 must be at least 3 to 2. l X 1 cannot be more than 20% of the mix. Suppose that the mix consist of a variables x 1, x 2 and x 3 l
Graphical linear programming 1. 2. 3. 4. 5. Set up the objective function and the constraints into mathematical format. Plot the constraints. Identify the feasible solution space. Plot the objective function. Determine the optimum solution. 1. 2. Sliding the line of the objective function away from the origin to the farthes/closest point of the feasible solution space. Enumeration approach.

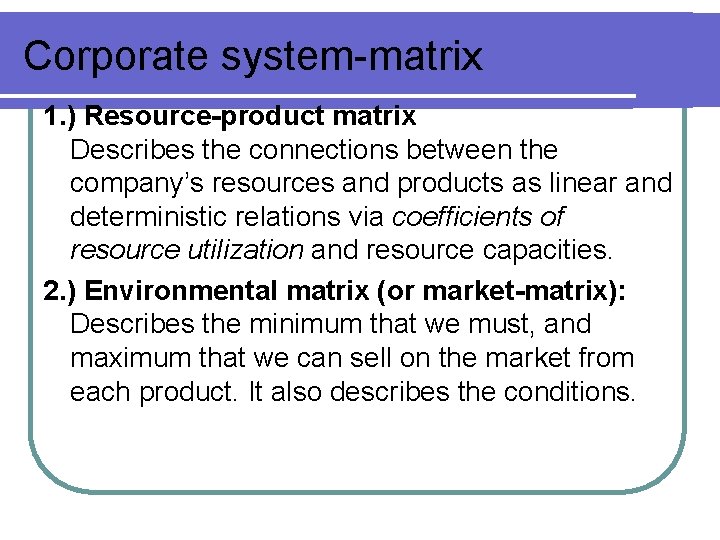

Corporate system-matrix 1. ) Resource-product matrix Describes the connections between the company’s resources and products as linear and deterministic relations via coefficients of resource utilization and resource capacities. 2. ) Environmental matrix (or market-matrix): Describes the minimum that we must, and maximum that we can sell on the market from each product. It also describes the conditions.
Contribution margin l Unit Price - Variable Costs Per Unit = Contribution Margin Per Unit l Contribution Margin Per Unit x Units Sold = Product’s Contribution to Profit l Contributions to Profit From All Products – Firm’s Fixed Costs = Total Firm Profit
Resource-Product Relation types P 1 P 6 P 7 R 5 a 56 a 57 R 6 a 67 R 1 P 2 P 3 P 4 P 5 a 43 a 44 a 45 a 11 R 2 a 22 R 3 a 32 R 4 Non-convertible relations Partially convertible relations
Product-mix in a pottery – corporate system matrix Jug Plate Capacity Clay (kg/pcs) 1, 0 0, 5 50 kg/week 100 HUF/kg Weel time (hrs/pcs) Paint (kg/pcs) 0, 5 1, 0 50 hrs/week 800 HUF/hr 0 0, 1 10 kg/week 100 HUF/kg Minimum (pcs/week) 10 10 Maximum 100 Price (HUF/pcs) 700 1060 Contribution margin (HUF/pcs) 200 (pcs/week) e 1 : 1*P 1+0, 5*P 2 < 50 e 2 : 0, 5*P 1+1*P 2 < 50 e 3 : 0, 1*P 2 < 10 m 1, m 2: 10 < P 1 < 100 m 3, m 4: 10 < P 2 < 100 of. CM: 200 P 1+200 P 2=MAX

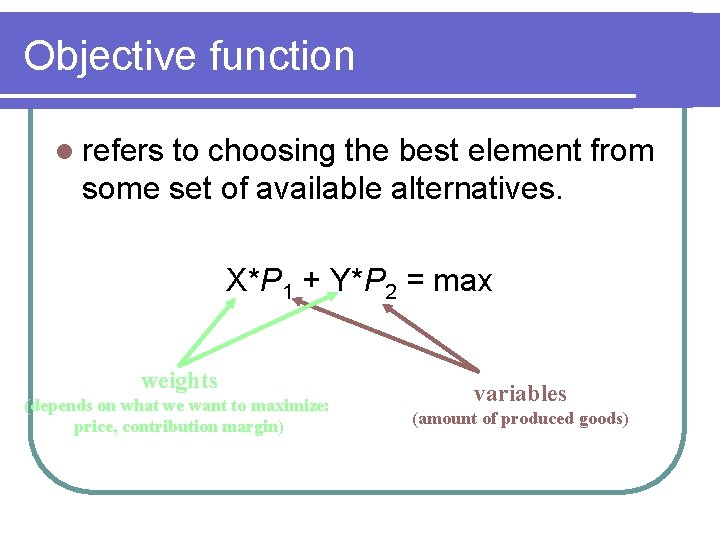

Objective function l refers to choosing the best element from some set of available alternatives. X*P 1 + Y*P 2 = max weights (depends on what we want to maximize: price, contribution margin) variables (amount of produced goods)
Solution with linear programming T 1 33 jugs and 33 plaits a per week e 1 100 of. F e 3 e 1 : 1*P 1+0, 5*P 2 < 50 e 2 : 0, 5*P 1+1*P 2 < 50 e 3 : 0, 1*P 2 < 10 m 1, m 2: 10 < P 1 < 100 m 3, m 4: 10 < P 2 < 100 of. CM: 200 P 1+200 P 2=MAX 33, 3 e 2 100 33, 3 Contribution margin: 13 200 HUF / week T 2
What is the product-mix, that maximizes the revenues and the contribution to profit! P 1 P 2 b (hrs/y) R 1 2 3 6 000 R 2 2 2 5 000 MIN (pcs/y) 50 100 MAX (pcs/y) 1 500 2000 p (HUF/pcs) 50 150 f (HUF/pcs) 30 20
l P 1&P 2: linear programming r 1: 2*T 5 + 3*T 6 ≤ 6000 r 2: 2*T 5 + 2*T 6 ≤ 5000 m 1, m 2: 50 ≤ T 5 ≤ 1500 p 3, m 4: 100 ≤ T 6 ≤ 2000 of. TR: 50*T 5 + 150*T 6 = max of. CM: 30*T 5 + 20*T 6 = max
T 1 r 1 3000 Contr. max: P 5=1500, P 6=1000 Rev. max: P 5=50, P 6=1966 r 2 2500 of. CM of. TR 2000 2500 T 2
Thank you for your attention!
