Consensus Hierarchy Part 1 1 Consensus in Shared
- Slides: 51
Consensus Hierarchy Part 1 1
Consensus in Shared Memory Consider processors in shared memory: which try to solve the consensus problem 2
Local memory Shared memory Local memory Every process starts with an initial value stored in local memory (0 or 1) 3
communication through shared memory 4

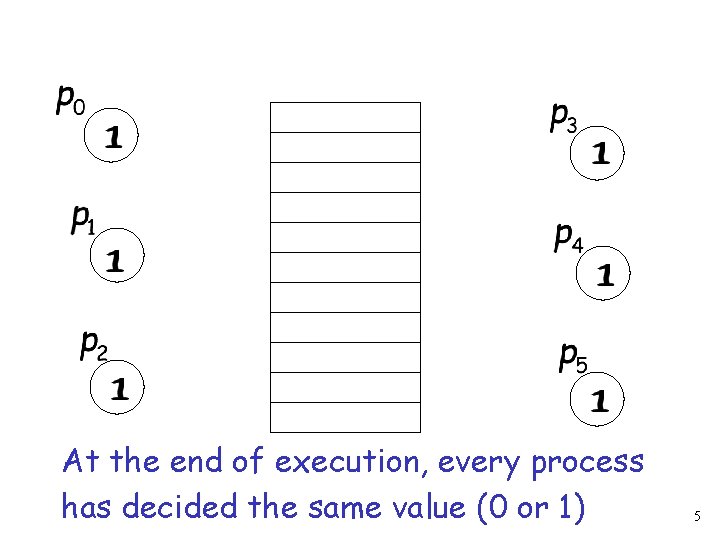

At the end of execution, every process has decided the same value (0 or 1) 5
Validity condition: If every process starts with the same value, the every process should decide that value Additional condition: The decided value is one of the initial values 6

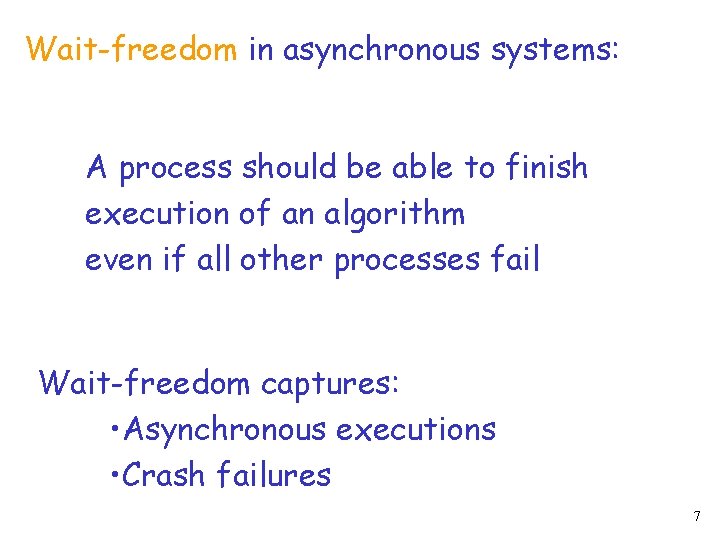

Wait-freedom in asynchronous systems: A process should be able to finish execution of an algorithm even if all other processes fail Wait-freedom captures: • Asynchronous executions • Crash failures 7
Object Types Read/Write FIFO Test&Set n-register assignment Compare&Swap 8

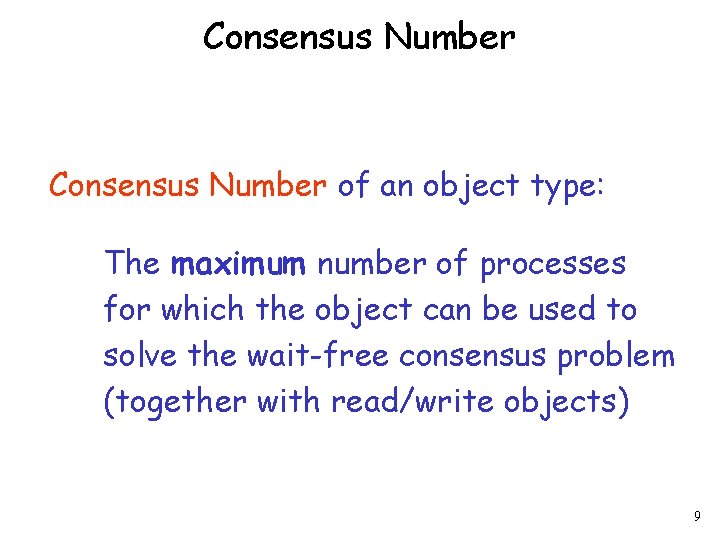

Consensus Number of an object type: The maximum number of processes for which the object can be used to solve the wait-free consensus problem (together with read/write objects) 9
Object Type Consensus Number Read/Write 1 FIFO, Test&Set 2 n-register assignment 2 n-2 Compare&Swap (infinity) 10
int Test-and-Set(boolean lock) { boolean initial = lock; lock = true; return initial; } int compare_and_swap ( int* register, int oldval, int newval) { int old_reg_val = *register; if (old_reg_val == oldval) *register = newval; return old_reg_val; } Mutual Exclusion (Shared ) boolean lock = false; function Critical_Section() { while Test. And. Set(lock) skip //spin until lock is acquired //Critical-section code - only one process can be in this section at a time begin { … } //end-of critical section – release lock = false //release lock when finished with the critical section } 11
Simulation: Object Type B Object Type A Read/Write Object of type A simulates object of Type B (using auxiliary read/write objects) 12
Theorem: Objects of Type A with consensus number cannot simulate in wait-free manner another object of Type B with consensus number Proof: Since otherwise, object A would have consensus number End of Proof 13
Universal object: can simulate in a wait-free manner any other arbitrary object Example: Compare&Swap (infinity consensus number) 14
We can show: Objects with consensus number can simulate in a wait-free manner any other arbitrary object of up to processors 15

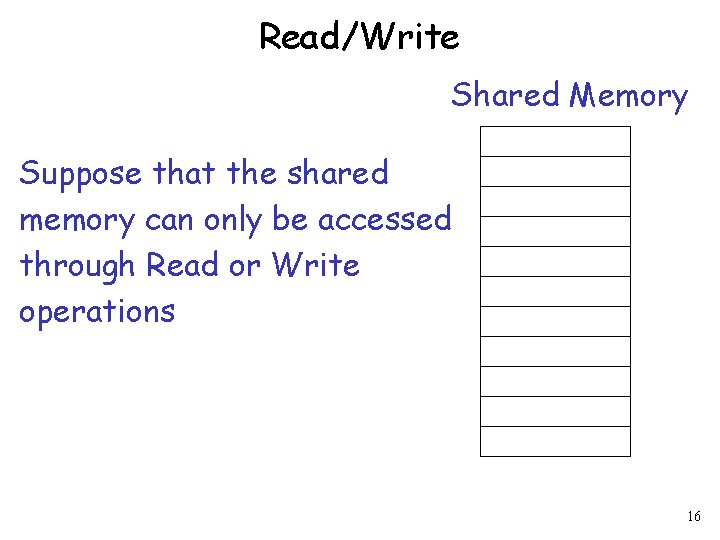

Read/Write Shared Memory Suppose that the shared memory can only be accessed through Read or Write operations 16

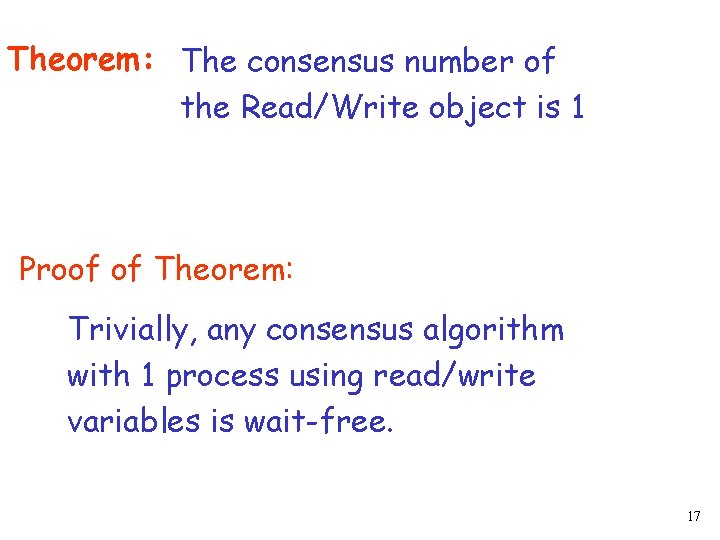

Theorem: The consensus number of the Read/Write object is 1 Proof of Theorem: Trivially, any consensus algorithm with 1 process using read/write variables is wait-free. 17
It remains to show: Wait-free consensus cannot be solved using only read/write objects for processors Approach: We will show that any algorithm that solves wait-free consensus for has an execution that never terminates 18
System configuration: Is the set of all variables in the system, including local and shared 19
A distributed system execution can be always be viewed as a: sequence of configurations Initial configuration Final configuration Processor action: Read or Write 20
Valence of system configurations bivalent univalent bivalent 1 -valent consensus reached consensus not reached univalent 0 -valent consensus reached Consensus value at possible execution paths 21
A terminating execution: Final configuration Initial configuration Bivalent Univalent 22
To prove theorem, we will show that there is always an execution where every configuration is bivalent Initial configuration Bivalent Never-ending execution 23
Similar configurations for processor Same shared variables Local variables of others may differ 24

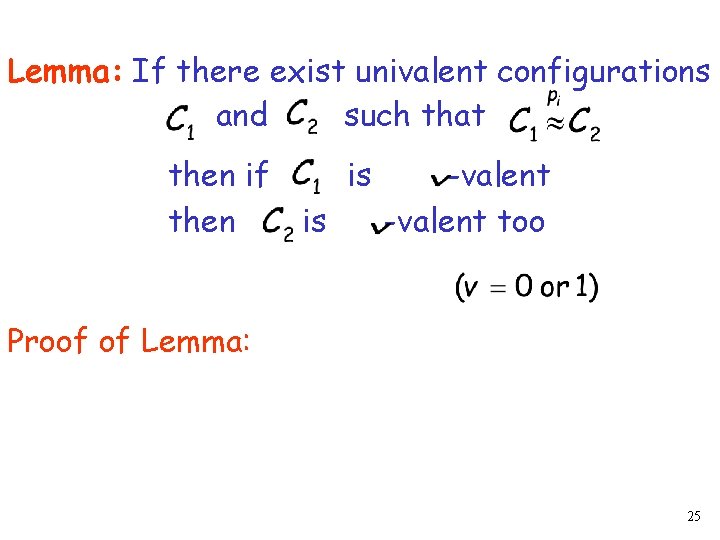

Lemma: If there exist univalent configurations and such that then if then is is -valent too Proof of Lemma: 25
Univalent All possible executions from Execution with only taking actions final decision for each Possible execution 26

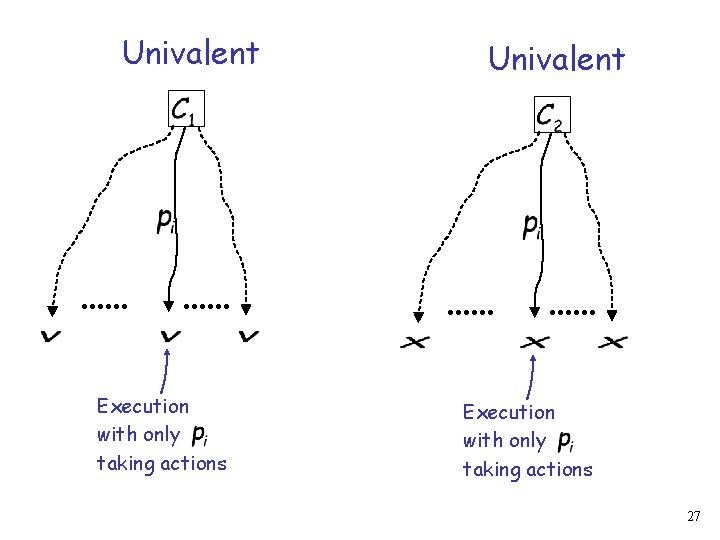

Univalent Execution with only taking actions 27
Univalent Execution with only taking actions 28

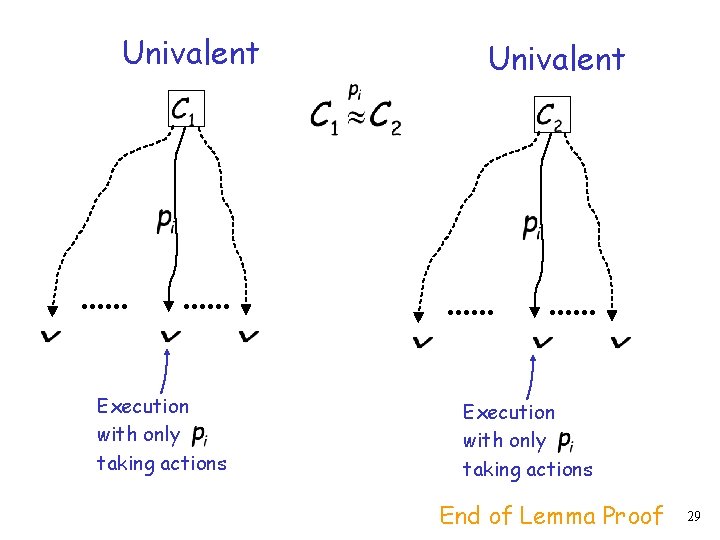

Univalent Execution with only taking actions End of Lemma Proof 29
Lemma: There exists a bivalent initial configuration Proof of Lemma: 30

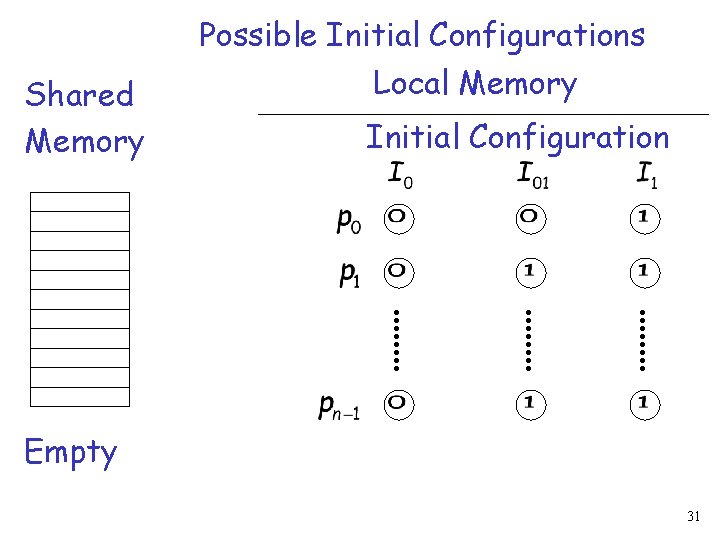

Shared Memory Possible Initial Configurations Local Memory Initial Configuration Empty 31

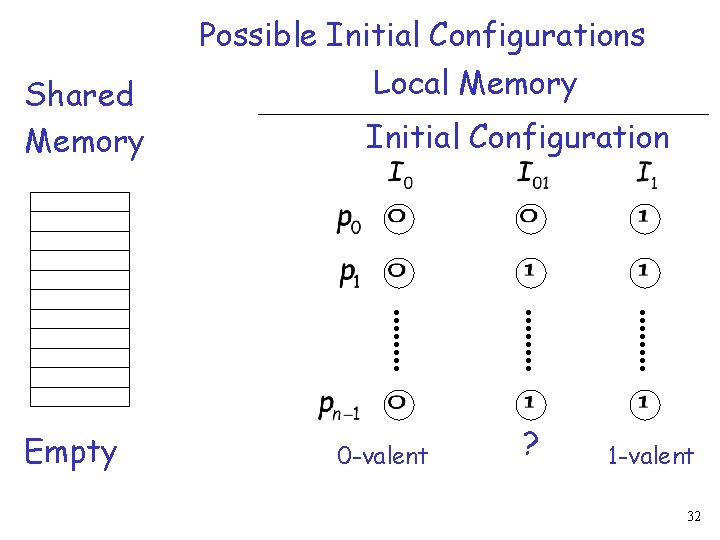

Shared Memory Empty Possible Initial Configurations Local Memory Initial Configuration 0 -valent ? 1 -valent 32
Shared Memory Empty Possible Initial Configurations Local Memory Initial Configuration 0 -valent No, because 1 -valent? 1 -valent 33

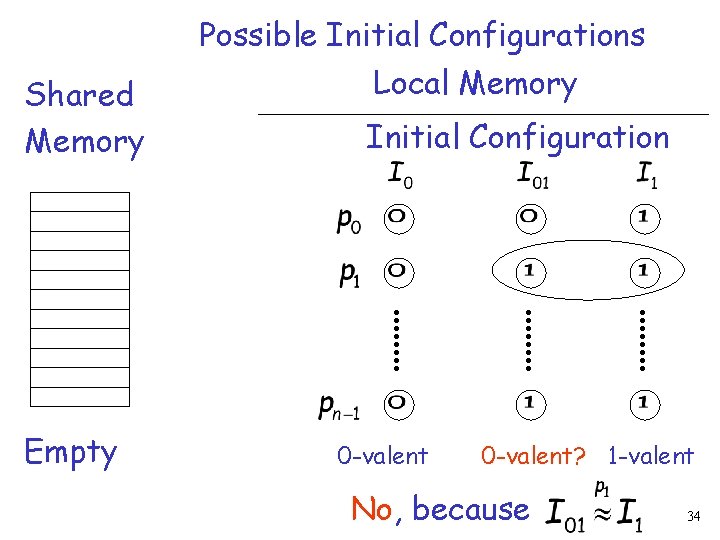

Shared Memory Empty Possible Initial Configurations Local Memory Initial Configuration 0 -valent? 1 -valent No, because 34
Shared Memory Empty Possible Initial Configurations Local Memory Initial Configuration 0 -valent bivalent 1 -valent End of Lemma Proof 35
Critical processor for a configuration: the configuration is bivalent, and after the processor takes step the configuration becomes univalent Bivalent Univalent 36

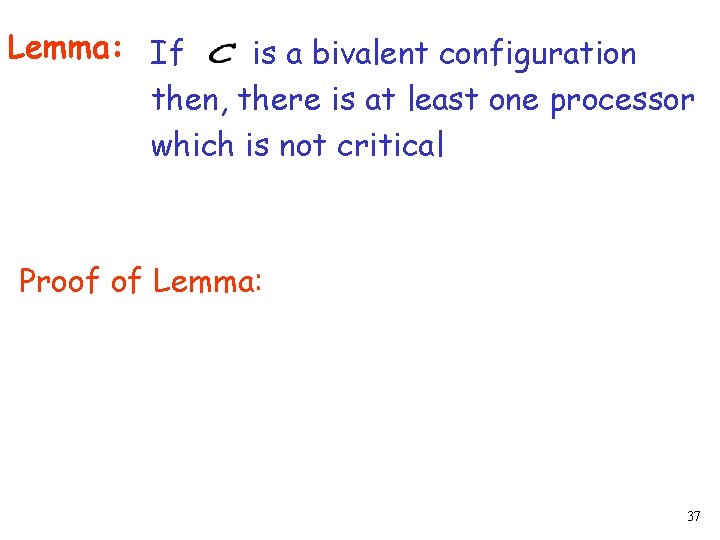

Lemma: If is a bivalent configuration then, there is at least one processor which is not critical Proof of Lemma: 37
Assume for contradiction that all processors are critical univalent bivalent univalent Possible executions univalent 38
It cannot be that all have the same valence valent bivalent 39
It cannot be that all have the same valence Contradiction bivalent valent 40
There must exist two processors with different valences bivalent 41
Case 1: suppose that they access different shared variables bivalent Re Re ad dx a x y y 42

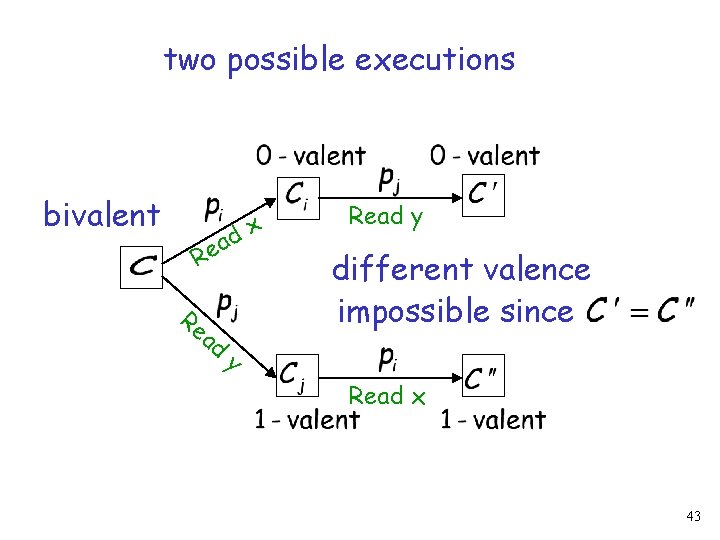

two possible executions bivalent Re Re ad dx a Read y different valence impossible since y Read x 43
same result holds for any kind of operation (Read or Write) that the processors apply to x and y 44
Case 2: suppose that they access the same shared variable subcase: read/read bivalent Re Re ad dx a x x 45
two possible executions bivalent Re Re ad dx a Read x different valence impossible since x Read x 46

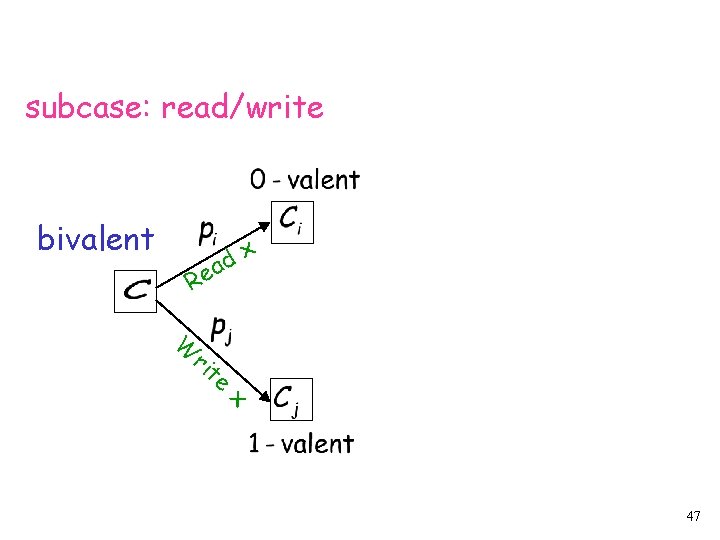

subcase: read/write bivalent Re W ri x d a te x 47
two possible executions bivalent Re W ri dx a te x Write x different valence impossible since Read x 48

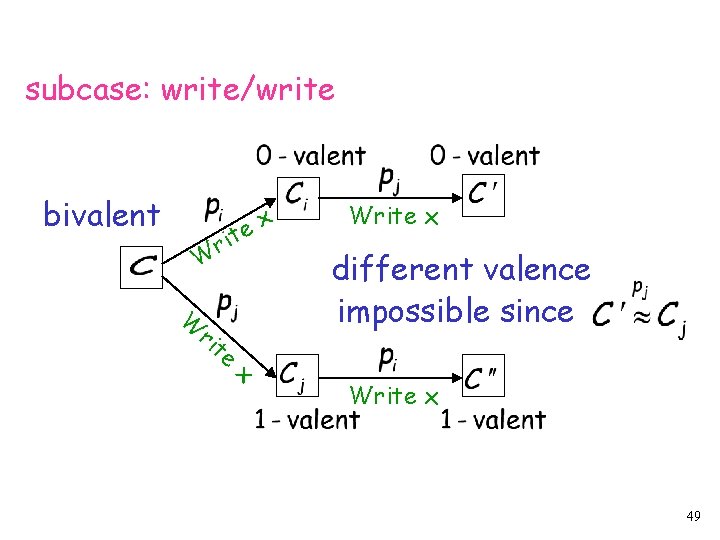

subcase: write/write bivalent x e it r W W ri te x Write x different valence impossible since Write x 49

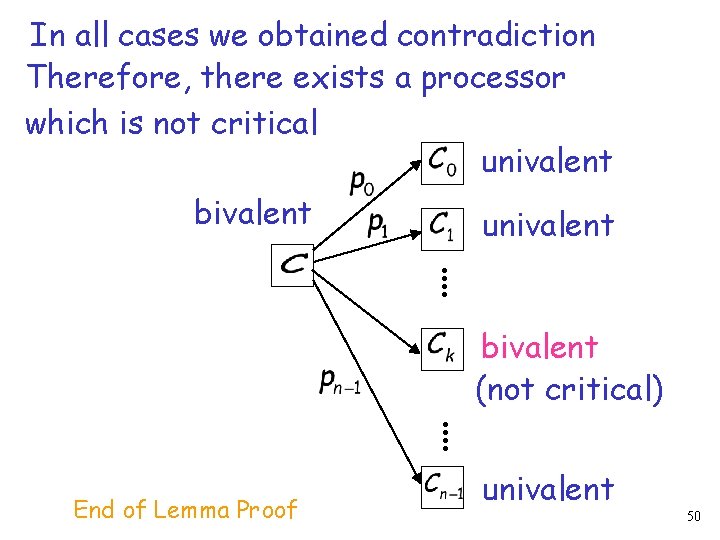

In all cases we obtained contradiction Therefore, there exists a processor which is not critical univalent bivalent (not critical) End of Lemma Proof univalent 50
Therefore, we can construct an execution bivalent Initial configuration bivalent Never ends Consensus can never be reached End of Theorem Proof 51
