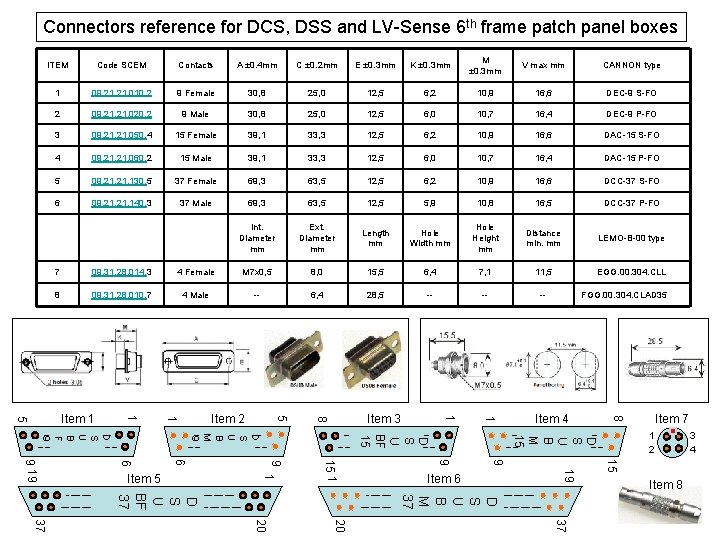

Connectors reference for DCS, DSS and LV-Sense 6 th frame patch panel boxes ITEM Code SCEM Contacts A ± 0. 4 mm C ± 0. 2 mm E ± 0. 3 mm K ± 0. 3 mm M ± 0. 3 mm V max mm CANNON type 1 09. 21. 010. 2 9 Female 30, 8 25, 0 12, 5 6, 2 10, 9 16, 6 DEC-9 S-FO 2 09. 21. 020. 2 9 Male 30, 8 25, 0 12, 5 6, 0 10, 7 16, 4 DEC-9 P-FO 3 09. 21. 050. 4 15 Female 39, 1 33, 3 12, 5 6, 2 10, 9 16, 6 DAC-15 S-FO 4 09. 21. 060. 2 15 Male 39, 1 33, 3 12, 5 6, 0 10, 7 16, 4 DAC-15 P-FO 5 09. 21. 130. 5 37 Female 69, 3 63, 5 12, 5 6, 2 10, 9 16, 6 DCC-37 S-FO 6 09. 21. 140. 3 37 Male 69, 3 63, 5 12, 5 5, 9 10, 8 16, 5 DCC-37 P-FO Int. Diameter mm Ext. Diameter mm Length mm Hole Width mm Hole Height mm Distance min. mm LEMO-B-00 type EGG. 00. 304. CLL 7 09. 31. 28. 014. 3 4 Female M 7 x 0, 5 8, 0 15, 5 6, 4 7, 1 11, 5 8 09. 31. 28. 010. 7 4 Male -- 6, 4 28, 5 -- -- -- Item 4 1 2 D S U B M 15 19 15 9 9 1 15 1 9 6 6 Item 7 8 1 D S U BF 15 D S U B M 9 D S U B F 9 9 19 Item 5 1 Item 3 8 5 Item 2 1 1 5 Item 1 FGG. 00. 304. CLAD 35 Item 8 3 4 D S U B M 37 D S U BF 37 37 20 20 37

DCS & DSS 6 th frame Patch Panel box. Up side 19 1 D S U B M 37 37 20 Front View 8 1 D S U B M 15 15 9 6 th Frame fixation points Box screws. Box thickness to be evaluated (60 mm ? ? ). 6 9 1 2 1 D S U B F 9 #2 3 4 Spare 5 1 5 #1 6 9 #3 1 2 1 D S U B F 9 Rear View #2 5 1 #1 5 Up side #3 3 4 1 2 #4 3 4 1 2 #5 3 4 1 2 3 4

DCS & DSS 6 th frame Patch Panel box wire connections. D C S Wires color from Platform Cable 04. 21. 48. 336. 5 From DSUBM 37 To DSUBF 9_1 White 19 Brown Wires color to L. V. terminal Wires color from Platform Cable From DSUBM 37 To DSUBF 9_3 5 White/Pink 9 3 18 4 Pink/Brown 8 2 Green 17 3 ----------------- 1 Yellow 16 2 White/Blue 29 9 ----------------- 1 Brown/Blue 28 8 Grey 37 9 White/Red 27 7 Pink 36 8 Brown/Red 26 6 Blue 35 7 From DSUBM 37 To LEMO_1 Red 34 6 White/Black 7 1 From DSUBM 37 To DSUBF 9_2 Brown/Black 6 2 Black 15 5 Grey/Green 25 3 Violet 14 4 Yellow/Grey 24 4 Grey/Pink 13 3 From DSUBM 37 To LEMO_2 Red/Blue 12 2 Pink/Green 5 1 ----------------- 1 Yellow/Pink 4 2 White/Green 33 9 Green/Blue 23 3 Brown/Green 32 8 Yellow/Blue 22 4 White/Yellow 31 7 From DSUBM 37 To LEMO_3 Yellow/Brown 30 6 Green/Red 3 1 From DSUBM 37 To DSUBF 9_3 Yellow/Red 2 2 White/Grey 11 5 Green/Black 21 3 Grey/Brown 10 4 Yellow/Black 20 4 Cable Shield 1 --------- Not connected Wires color to L. V. terminal Not connected ---------

DCS Platform IPP and IPP 6 th frame Cable connections D C S Wires color from Platform Cable 04. 21. 48. 336. 5 From DSUBM 37 Wires color from Platform Cable 4. 21. 48. 336. 5 From DSUBM 37 White 19 White/Pink 9 Brown 18 Pink/Brown 8 Green 17 ----------------- Yellow 16 White/Blue 29 ----------------- Brown/Blue 28 Grey 37 White/Red 27 Pink 36 Brown/Red 26 Blue 35 Red 34 White/Black 7 From DSUBM 37 Brown/Black 6 Black 15 Grey/Green 25 Violet 14 Yellow/Grey 24 Grey/Pink 13 Red/Blue 12 Pink/Green 5 ----------------- Yellow/Pink 4 White/Green 33 Green/Blue 23 Brown/Green 32 Yellow/Blue 22 White/Yellow 31 Yellow/Brown 30 Green/Red 3 From DSUBM 37 Yellow/Red 2 White/Grey 11 Green/Black 21 Grey/Brown 10 Yellow/Black 20 Cable Shield 1 From DSUBM 37

DCS & DSS 6 th frame Patch Panel box wire connections. D S S Wires color from Platform Cable From DSUBM 15 To LEMO_4 White 5 Brown Wires color to L. V. terminal Wires color from Platform Cable From DSUBM 15 To DSUBF 9 Spare Wires color to L. V. terminal 1 Black 8 5 4 2 Violet 7 4 Green 12 3 Grey/Pink 6 3 Yellow 11 4 Red/Blue 15 9 From DSUBM 15 To LEMO_5 White/Green 14 8 Grey 3 1 Brown/Green 13 7 Pink 2 2 Cable Shield 1 ----------------- Blue 10 3 ----------------- 6 Not connected Red 9 4 ----------------- 2 Not connected ----------------- 1 Not connected

DSS Platform IPP and IPP 6 th frame Cable connections D S S Wires color from Platform Cable 04. 21. 48. 314. 1 From DSUBM 15 White 5 Black 8 Brown 4 Violet 7 Green 12 Grey/Pink 6 Yellow 11 Red/Blue 15 From DSUBM 15 White/Green 14 Grey 3 Brown/Green 13 Pink 2 Cable Shield 1 Blue 10 ----------------- Red 9 -----------------

L. V Sense 6 th frame Patch Panel box connectors. 1 Front View 15 1 8 15 9 6 th Frame fixation points D S U B F 15 #2 Box screws. 1 Rear View 15 15 9 8 D S U B M 15 #2 9 8 1 15 D S U B M 15 #3 9 D S U B M 15 #1 1 15 Box thickness to be evaluated (60 mm ? ? ). 8 8 8 9 D S U B F 15 9 #3 D S U B F 15 1 #1

L. V. Sense 6 th frame Patch Panel box wires connection. Wires color from Platform Cable 04. 21. 44. 140. 2 L. V. Sense Patch Panel box internal cabling From DSUBF 15_x To DSUBM 15_x Signal Name DSUBF 15_1 Signal Name DSUBF 15_2 Signal Name DSUBF 15_3 White 1 1 CH 0 P CH 4 P CH 8 P Brown 2 2 CH 0 N CH 4 N CH 8 N White 3 3 CH 1 P CH 5 P CH 9 P Green 4 4 CH 1 N CH 5 N CH 9 N White 5 5 CH 2 P CH 6 P CH 10 P Orange 6 6 CH 2 N CH 6 N CH 10 N White 7 7 CH 3 P CH 7 P CH 11 P Blue 8 8 CH 3 N CH 7 N CH 11 N White 9 9 Spare 1_1 Spare 1_2 Spare 1_3 Grey 10 10 Spare 2_1 Spare 2_2 Spare 2_3 Red 11 11 Spare 3_2 Spare 3_3 Blue 12 12 Spare 4_1 Spare 4_2 Spare 4_3 Red 13 13 Spare 5_1 Spare 5_2 Spare 5_3 Orange 14 14 Spare 6_1 Spare 6_2 Spare 6_3 Shield 15 15 Cable Shield Red-Green pair Not Connected Cable part number 04. 21. 44. 140. 2 Wires color to L. V. terminal

Sense Platform IPP and IPP 6 th frame Three Cables part number 04. 21. 44. 140. 2 Wires color from Platform Cable 04. 21. 44. 140. 2 From DSUBF 15_x White 1 Brown 2 White 3 Green 4 White 5 Orange 6 White 7 Blue 8 White 9 Grey 10 Red 11 Blue 12 Red 13 Orange 14 Shield 15 Red-Green pair Not connected

DCS + Sensors position Cable connections from Platform to T 1 6 th frame 4. 5 m D C S + S E N S. / P O S. From DSUBF 37 (platform) Wires color from Platform Cable 04. 21. 48. 336. 5 To DSUBF 37 (6 th frame) From DSUBF 37 (platform) Wires color from Platform Cable 4. 21. 48. 336. 5 To DSUBF 37 (6 th frame) 19 White 19 8 Pink/Brown 8 18 Brown 18 29 White/Blue 29 17 Green 17 28 Brown/Blue 28 16 Yellow 16 27 White/Red 27 37 Grey 37 26 Brown/Red 26 36 Pink 36 7 White/Black 7 35 Blue 35 6 Brown/Black 6 34 Red 34 25 Grey/Green 25 15 Black 15 24 Yellow/Grey 24 14 Violet 14 5 Pink/Green 5 13 Grey/Pink 13 4 Yellow/Pink 4 12 Red/Blue 12 23 Green/Blue 23 33 White/Green 33 22 Yellow/Blue 22 32 Brown/Green 32 3 Green/Red 3 31 White/Yellow 31 2 Yellow/Red 2 30 Yellow/Brown 30 21 Green/Black 21 11 White/Grey 11 20 Yellow/Black 20 10 Grey/Brown 10 1 Cable Shield 1 9 White/Pink 9

DSS Cable connections from Platform to T 1 6 th frame 4. 5 m D S S From DSUBF 37 Wires color from Platform Cable 04. 21. 48. 314. 1 To DSUBF 15 5 White 5 4 Brown 4 12 Green 12 11 Yellow 11 3 Grey 3 2 Pink 2 10 Blue 10 9 Red 9 8 Black 8 7 Violet 7 6 Grey/Pink 6 15 Red/Blue 15 14 White/Green 14 13 Brown/Green 13 1 Cable Shield 1

LV Sense Cable connections from Platform to T 1 6 th frame X = 1, 2, 3 1 m 4. 5 m MARATON sense connector_x Wires color from Platform Cable 04. 21. 44. 140. 2 To DSUBM 15_x (platform) From DSUBF 15_x (platform) Wires color from Platform Cable 04. 21. 44. 140. 2 To DSUBM 15_x (6 th frame) 1 (U 0_P) (U 4_P) (U 8_P) White 1 1 White 1 2 (U 0_N) (U 4_N) (U 8_N) Brown 2 2 Brown 2 3 (U 1_P) (U 5_P) (U 9_P) White 3 3 White 3 4 (U 1_N) (U 5_N) (U 9_N) Green 4 4 Green 4 5 (U 2_P) (U 6_P) (U 10_P) White 5 5 White 5 6 (U 2_N) (U 6_N) (U 10_N) Orange 6 6 Orange 6 7 (U 3_P) (U 7_P) (U 11_P) White 7 7 White 7 8 (U 3_N) (U 7_N) (U 11_N) Blue 8 8 Blue 8 ------- White 9 9 White 9 ------- Grey 10 10 Grey 10 ------- Red 11 11 Red 11 ------- Blue 12 12 Blue 12 ------- Red 13 13 Red 13 ------- Orange 14 14 Orange 14 Fast. On Shield 15 15 Shield 15 ------- Red-Green pair Not connected Three Cables part number 04. 21. 44. 140. 2
