Connectix Cabling Systems Cabling Standards and CPR Update

Connectix Cabling Systems™ Cabling Standards and CPR Update Jason Holroyd CNID CEP Connectix Cabling Systems Director of Business Development Cabling Standards Update Jason Holroyd, CNID Director of Business Development

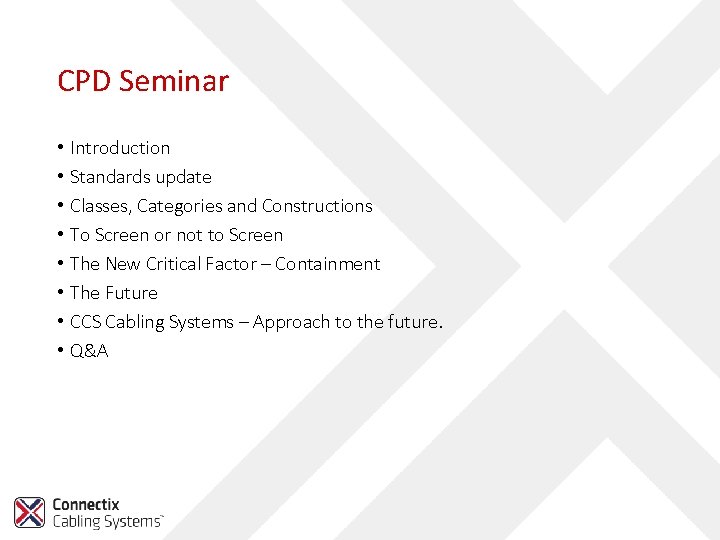

CPD Seminar • • Introduction Standards update Classes, Categories and Constructions To Screen or not to Screen The New Critical Factor – Containment The Future CCS Cabling Systems – Approach to the future. Q&A

Commitment to Standards • Compliance to Expert Panel TCT/7/-/2 "Telecommunications - Installation requirements – Cabling infrastructure, design, planning and commissioning“ • Compliance to Expert Panel TCT/7/-/3 “Telecommunications - Installation requirements - Cabling infrastructure, design, planning and commissioning (Data Centres)“ • Compliance with IST/046 “Sustainability for, and by IT” • Reports into – International (ISO) Committees – European (CENELEC) Committees

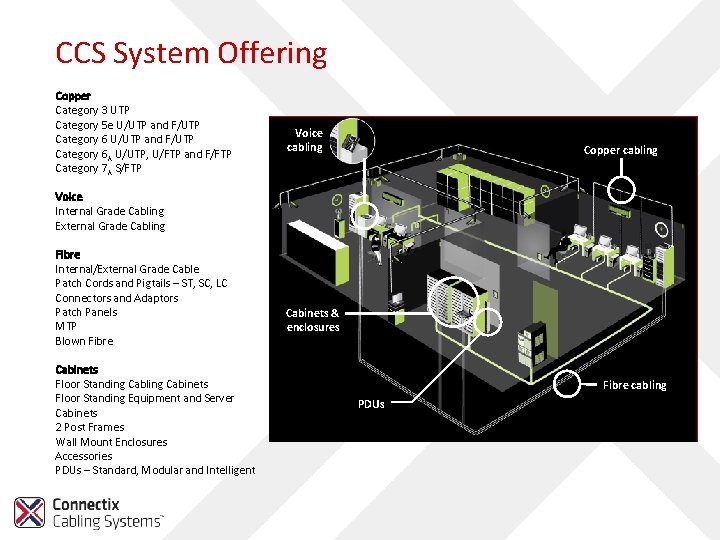

CCS System Offering Copper Category 3 UTP Category 5 e U/UTP and F/UTP Category 6 A U/UTP, U/FTP and F/FTP Category 7 A S/FTP Voice cabling Copper cabling Voice Internal Grade Cabling External Grade Cabling Fibre Internal/External Grade Cable Patch Cords and Pigtails – ST, SC, LC Connectors and Adaptors Patch Panels MTP Blown Fibre Cabinets Floor Standing Cabling Cabinets Floor Standing Equipment and Server Cabinets 2 Post Frames Wall Mount Enclosures Accessories PDUs – Standard, Modular and Intelligent Cabinets & enclosures Fibre cabling PDUs

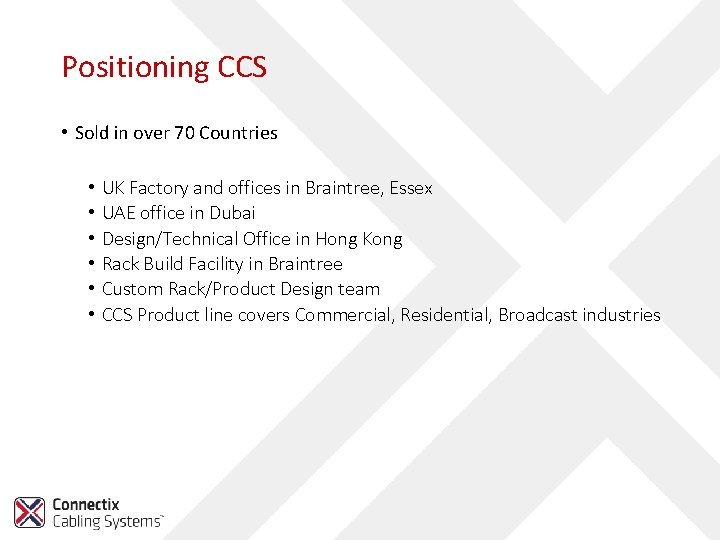

Positioning CCS • Sold in over 70 Countries • • • UK Factory and offices in Braintree, Essex UAE office in Dubai Design/Technical Office in Hong Kong Rack Build Facility in Braintree Custom Rack/Product Design team CCS Product line covers Commercial, Residential, Broadcast industries

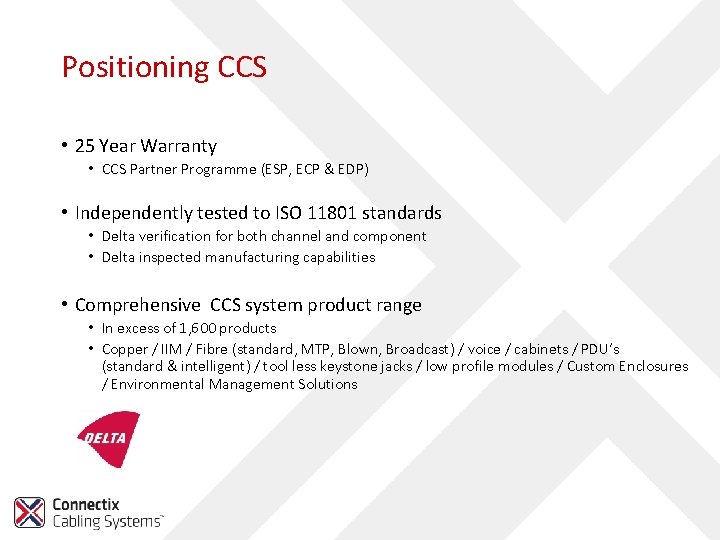

Positioning CCS • 25 Year Warranty • CCS Partner Programme (ESP, ECP & EDP) • Independently tested to ISO 11801 standards • Delta verification for both channel and component • Delta inspected manufacturing capabilities • Comprehensive CCS system product range • In excess of 1, 600 products • Copper / IIM / Fibre (standard, MTP, Blown, Broadcast) / voice / cabinets / PDU’s (standard & intelligent) / tool less keystone jacks / low profile modules / Custom Enclosures / Environmental Management Solutions

Current Standards Update

Current Standards EN

ISO • ISO/IEC 11801 Ed. 2: 2002 • Information technology –Generic cabling for customer premises • Amendment 1 – ISO/IEC 11801: Ed. 2. 1: 2008 • Class EA and Class FA channels • New channel parameters • Amendments to channel Classes D, E and F • Amendment 2 – ISO/IEC 11801 Ed 2. 2: 2010 • Published April 2010 • Contains • • Class EA and Class FA links OM 4 40 & 100 Gigabit Ethernet Fibre Channel

EN – CENELEC • Automatically adopted by the member state as a standard – in the UK case British Standards • BS EN 50173 Information technology – Generic cabling systems • BS EN 50174 Information technology – Cabling installation

EN – CENELEC • Automatically adopted by the member state as a standard – in the UK case British Standards • BS EN 50173 Information technology – Generic cabling systems • BS EN 50173 -1: 2011 Part 1: General requirements • The combination of the standard and the amendments + A 1: 2009 + A 2: 2011 • • • BS EN 50173 -2: 2007 BS EN 50173 -3: 2007 BS EN 50173 -4: 2007 BS EN 50173 -5: 2007 BS EN 50173 -6: 2013 Part 2: Office premises Part 3: Industrial premises Part 4: Homes Part 5: Data centres Part 6: Distributed Building Services • BS EN 50174 Information technology – Cabling installation

EN – CENELEC • Automatically adopted by the member state as a standard – in the UK case British Standards • BS EN 50173 Information technology – Generic cabling systems • BS EN 50174 Information technology – Cabling installation • • BS EN 50174 -1: 2009 Part 1: Installation specification and quality assurance BS EN 50174 -2: 2009 + A 1: 2011 Part 2: Installation planning and practices inside buildings BS EN 50174 -3: 2013 Part 3: Installation planning and practices outside buildings

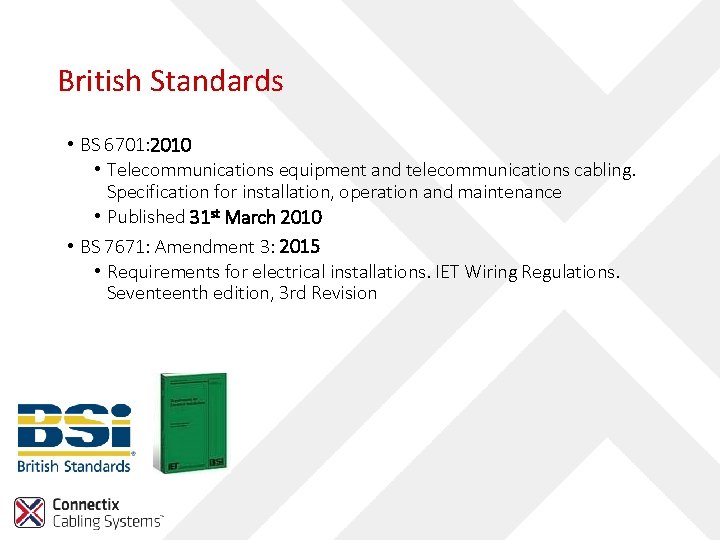

British Standards • BS 6701: 2010 • Telecommunications equipment and telecommunications cabling. Specification for installation, operation and maintenance • Published 31 st March 2010 • BS 7671: Amendment 3: 2015 • Requirements for electrical installations. IET Wiring Regulations. Seventeenth edition, 3 rd Revision

TIA • ANSI/TIA-568 -D Published 2015 • ANSI/TIA-568. 0 -D Generic Telecommunications Cabling for Customer Premises Ed. D: 2015 • ANSI/TIA-568. 1 -D Commercial Building Telecommunications Cabling Standard Ed. D: 2015 • ANSI/TIA-568 -C. 2 Balanced Twisted-Pair Telecommunications Cabling and Components Standard Ed. C: 2014 • ANSI/TIA-568. 3 -D Optical Fibre Cabling Components Standard Ed. 3: 2016 • ANSI/TIA-568 -C. 4 Coaxial and Broadband Components (Released August 2011)

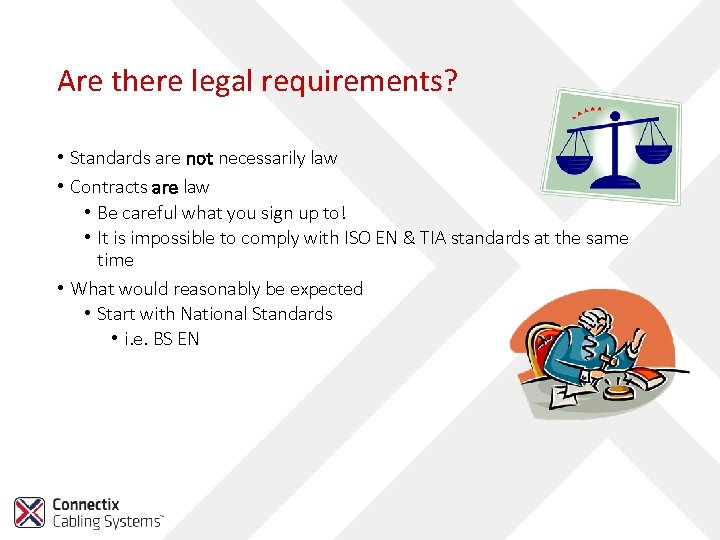

Are there legal requirements? • Standards are not necessarily law • Contracts are law • Be careful what you sign up to! • It is impossible to comply with ISO EN & TIA standards at the same time • What would reasonably be expected • Start with National Standards • i. e. BS EN

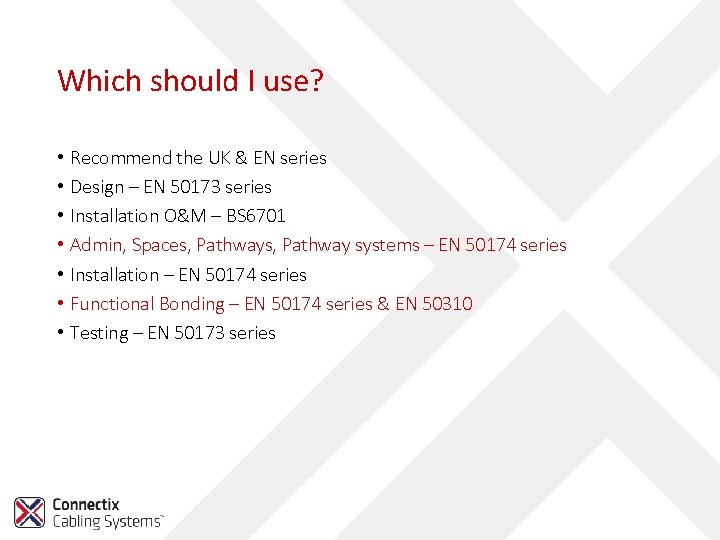

Which should I use? • • Recommend the UK & EN series Design – EN 50173 series Installation O&M – BS 6701 Admin, Spaces, Pathway systems – EN 50174 series Installation – EN 50174 series Functional Bonding – EN 50174 series & EN 50310 Testing – EN 50173 series

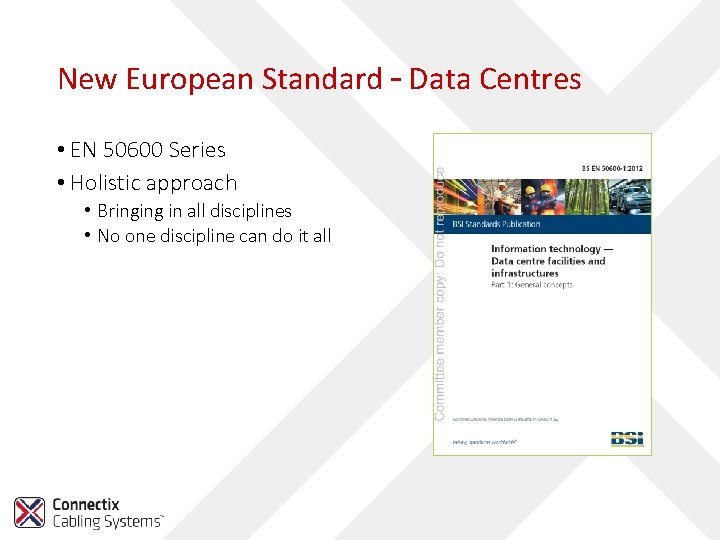

New European Standard – Data Centres • EN 50600 Series • Holistic approach • Bringing in all disciplines • No one discipline can do it all

EN 50600 • Data centre facilities an infrastructure • Part 1 – General concepts • Part 2. 1 – Building construction • Part 2. 2 – Power supply and distribution • Part 2. 3 – Environmental control • Part 2. 4 – Telecommunications cabling • Part 2. 5 – Security systems • Part 2. 6 – Management and operational information

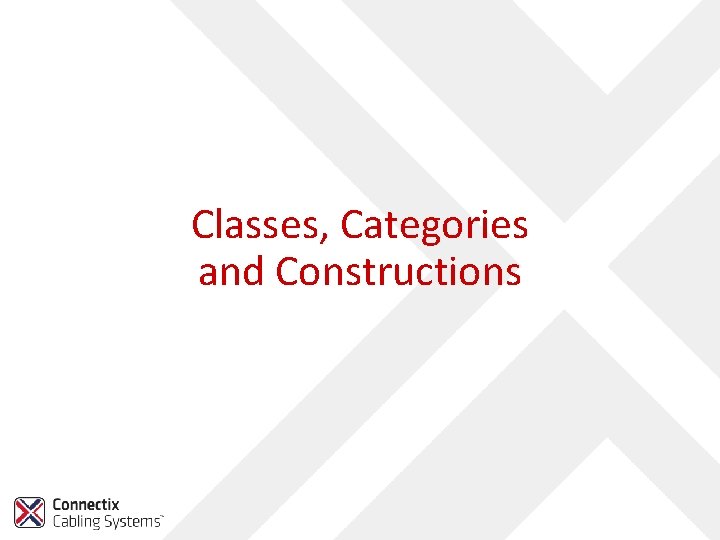

Classes, Categories and Constructions

Application Classes • The ISO and EN Standards use Application Classes for the definition of Channels & Links: • Class C 16 MHz • Class D 100 MHz • Class E 250 MHz • Class EA 500 MHz • Class F 600 MHz • Class FA 1 GHz

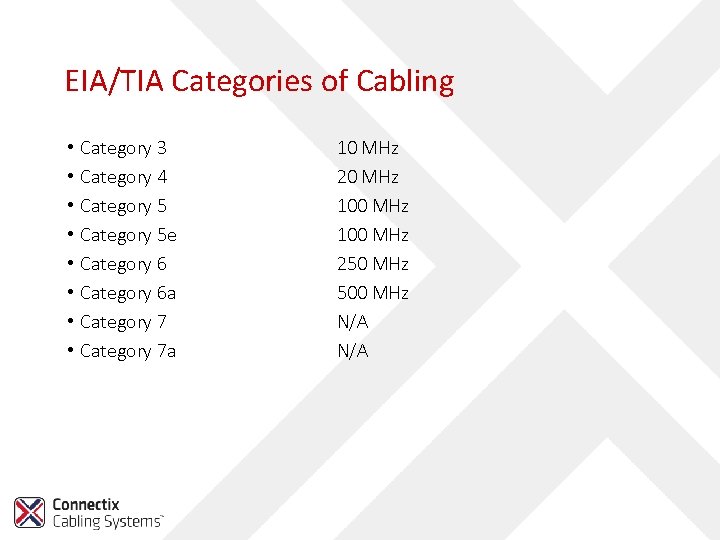

EIA/TIA Categories of Cabling • • Category 3 Category 4 Category 5 e Category 6 a Category 7 a 10 MHz 20 MHz 100 MHz 250 MHz 500 MHz N/A

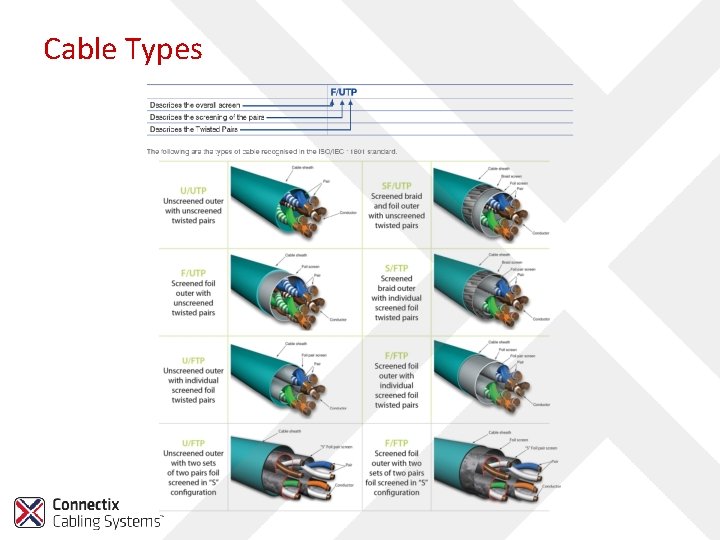

Cable Types

Class EA – To Screen or Not to Screen

Reminder of the Standards • IEEE 802. 3 an – 2006 was ratified in June 2006 • It defined an application standard for 10 Gb/s data transmission over copper twisted pair of up to 100 metres and includes both UTP and STP • With the ratification of ISO/IEC 11801 Class EA the IEEE agreed to use this for all future development involving 10 G Ethernet over copper.

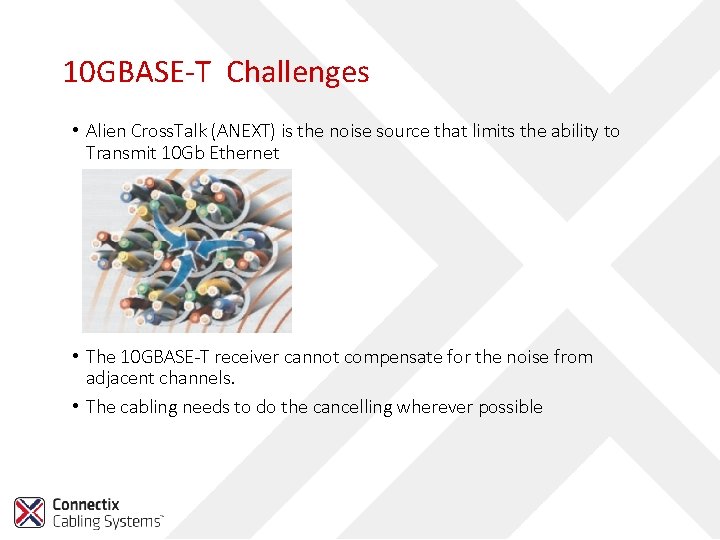

10 GBASE-T Challenges • Alien Cross. Talk (ANEXT) is the noise source that limits the ability to Transmit 10 Gb Ethernet • The 10 GBASE-T receiver cannot compensate for the noise from adjacent channels. • The cabling needs to do the cancelling wherever possible

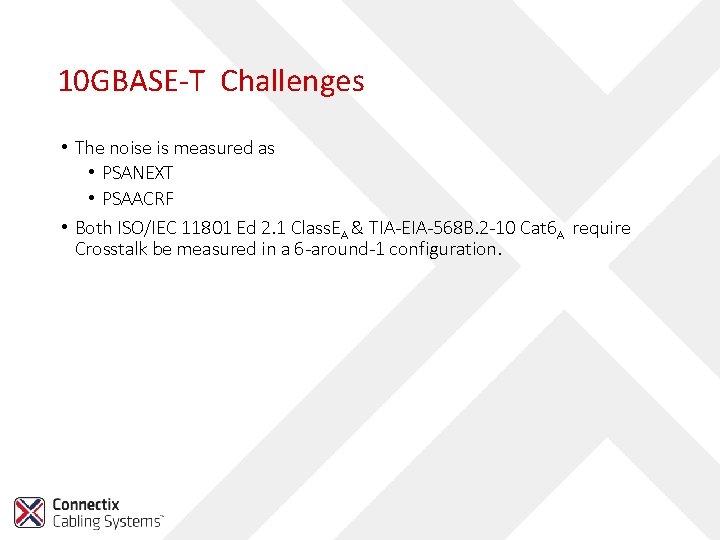

10 GBASE-T Challenges • The noise is measured as • PSANEXT • PSAACRF • Both ISO/IEC 11801 Ed 2. 1 Class. EA & TIA-EIA-568 B. 2 -10 Cat 6 A require Crosstalk be measured in a 6 -around-1 configuration.

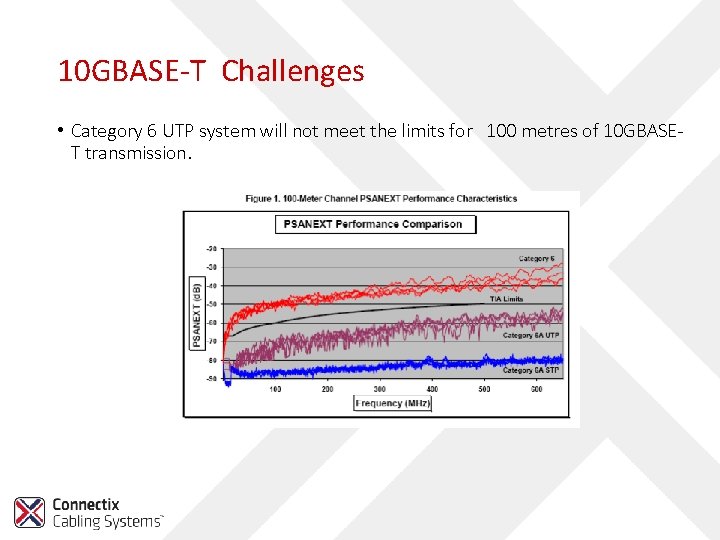

10 GBASE-T Challenges • Category 6 UTP system will not meet the limits for 100 metres of 10 GBASET transmission.

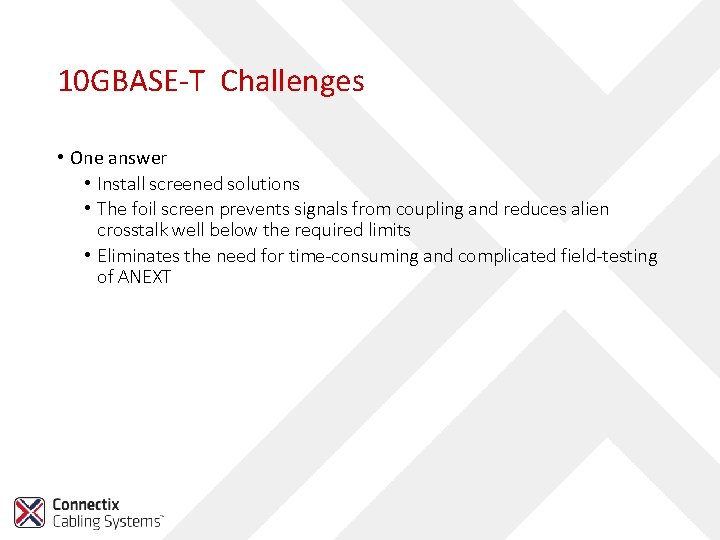

10 GBASE-T Challenges • One answer • Install screened solutions • The foil screen prevents signals from coupling and reduces alien crosstalk well below the required limits • Eliminates the need for time-consuming and complicated field-testing of ANEXT

Independent Testing • An independent test carried out by GHMT funded by some leading manufacturers demonstrated the benefits of a screened solution.

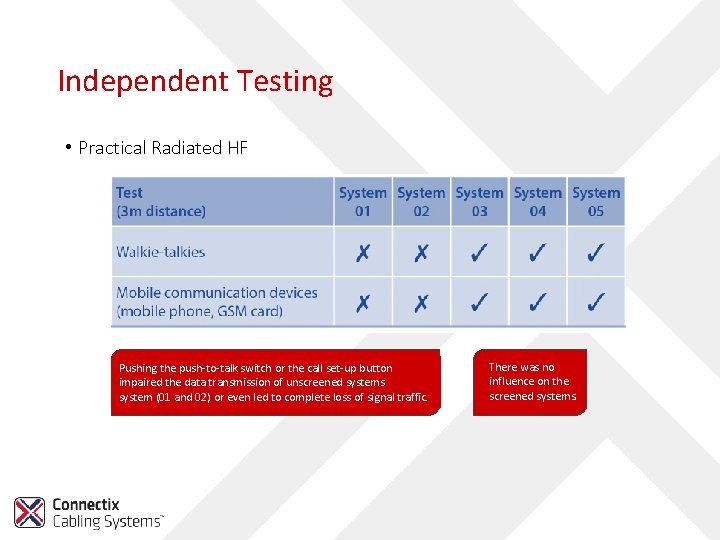

Independent Testing • Practical Radiated HF Pushing the push-to-talk switch or the call set-up button impaired the data transmission of unscreened systems system (01 and 02) or even led to complete loss of signal traffic. There was no influence on the screened systems.

Independent Testing • Fast Transients Powering of fluorescent lamps U/UTP systems failed this test for all electromagnetic environments. STP systems pass this test for all electromagnetic environments.

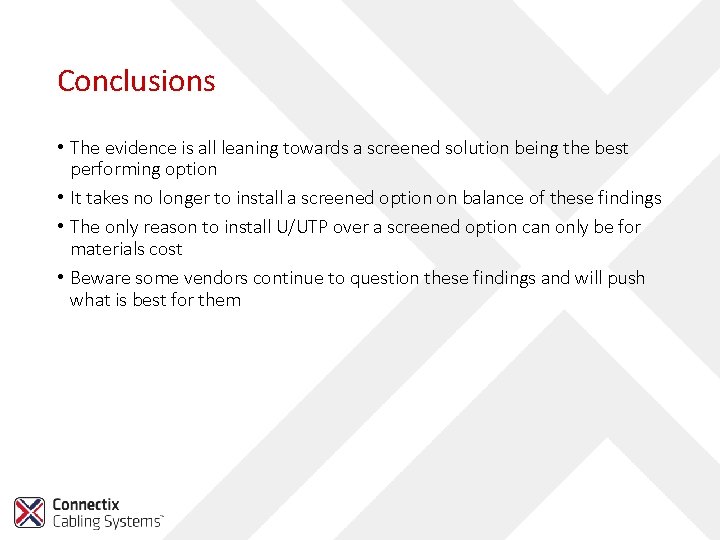

Conclusions • The evidence is all leaning towards a screened solution being the best performing option • It takes no longer to install a screened option on balance of these findings • The only reason to install U/UTP over a screened option can only be for materials cost • Beware some vendors continue to question these findings and will push what is best for them

Future Developments

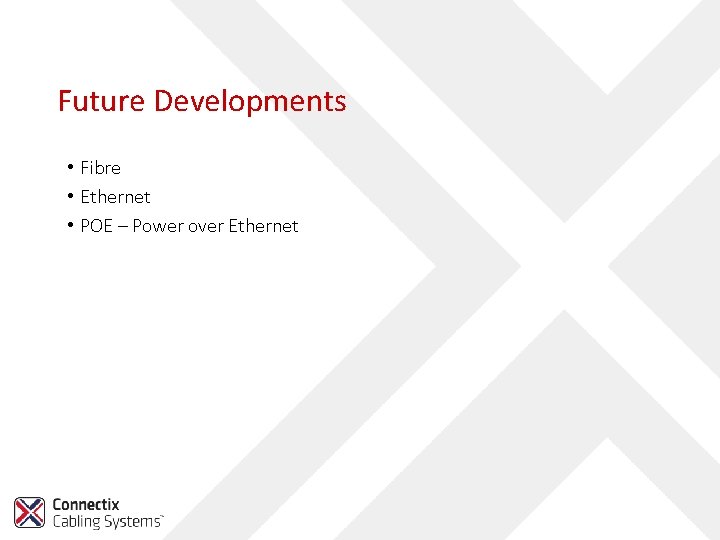

Future Developments • Fibre • Ethernet • POE – Power over Ethernet

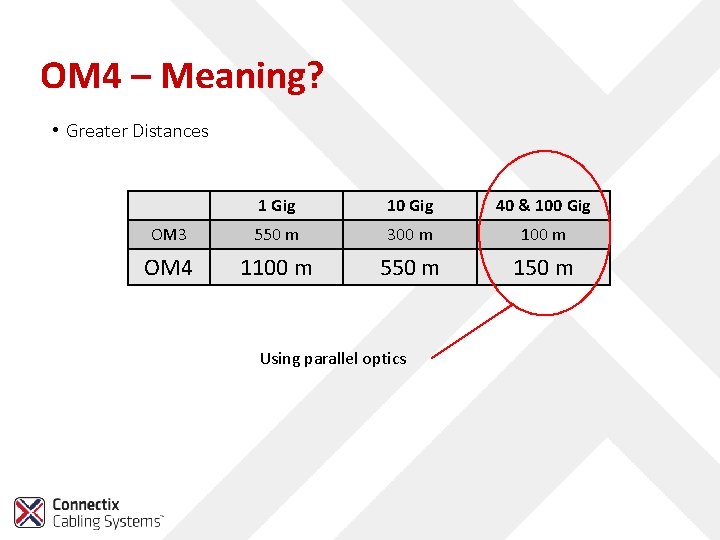

OM 4 – Meaning? • Greater Distances 1 Gig 10 Gig 40 & 100 Gig OM 3 550 m 300 m 100 m OM 4 1100 m 550 m 150 m Using parallel optics

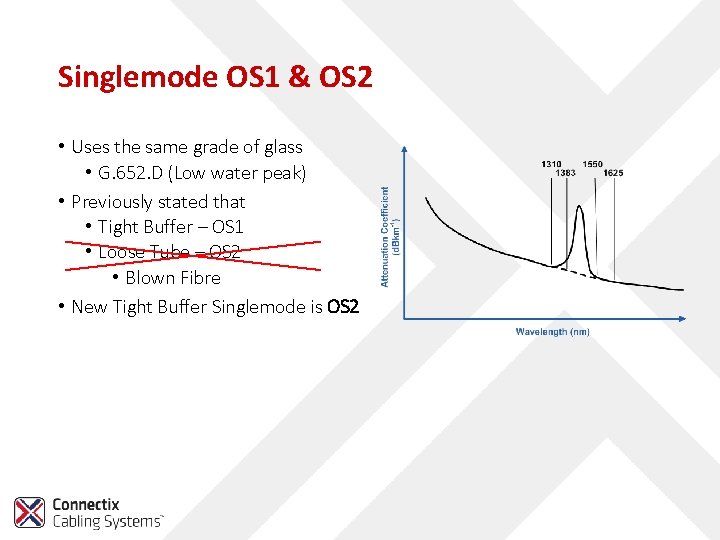

Singlemode OS 1 & OS 2 • Uses the same grade of glass • G. 652. D (Low water peak) • Previously stated that • Tight Buffer – OS 1 • Loose Tube – OS 2 • Blown Fibre • New Tight Buffer Singlemode is OS 2

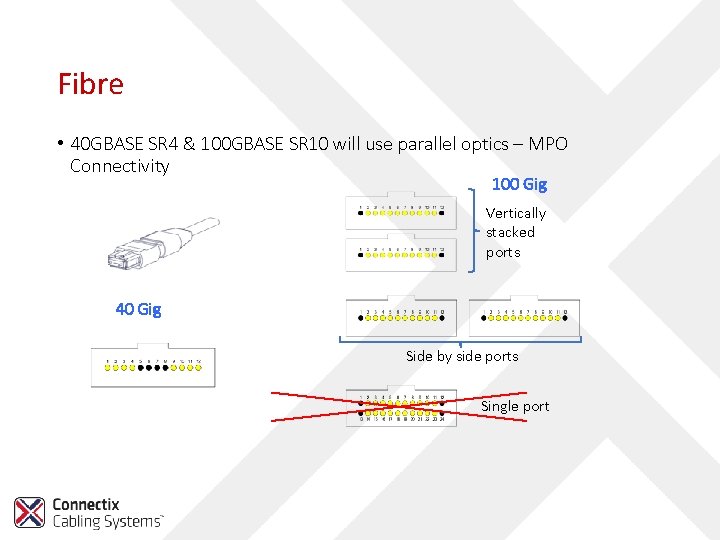

Fibre • 40 GBASE SR 4 & 100 GBASE SR 10 will use parallel optics – MPO Connectivity 100 Gig Vertically stacked ports 40 Gig Side by side ports Single port

Ethernet

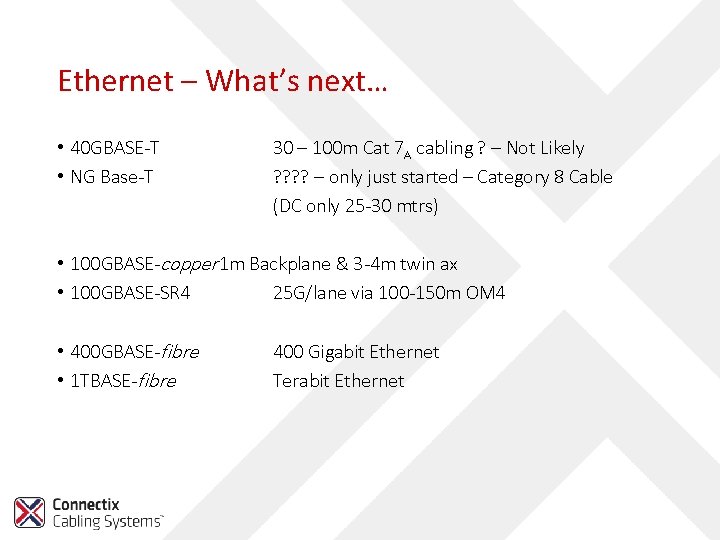

Ethernet – What’s next… • 40 GBASE-T • NG Base-T 30 – 100 m Cat 7 A cabling ? – Not Likely ? ? – only just started – Category 8 Cable (DC only 25 -30 mtrs) • 100 GBASE-copper 1 m Backplane & 3 -4 m twin ax • 100 GBASE-SR 4 25 G/lane via 100 -150 m OM 4 • 400 GBASE-fibre • 1 TBASE-fibre 400 Gigabit Ethernet Terabit Ethernet

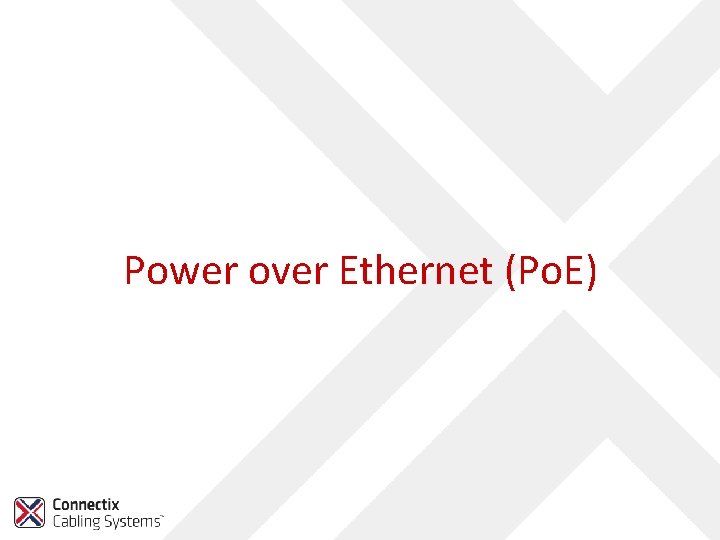

Power over Ethernet (Po. E)

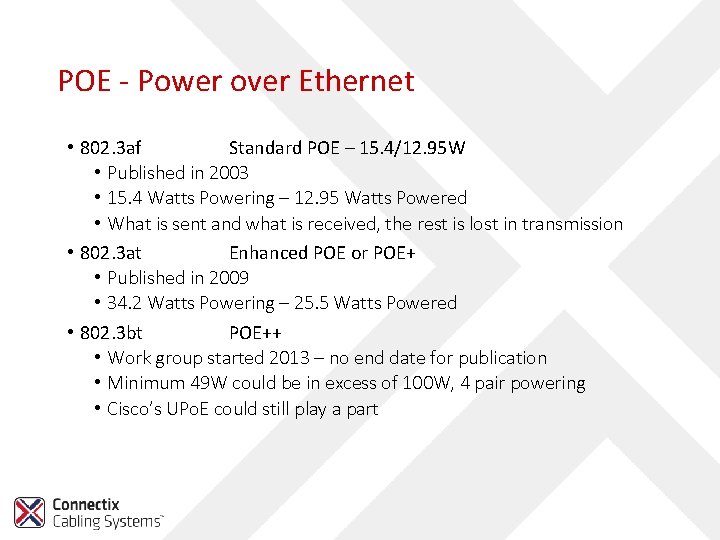

POE - Power over Ethernet • 802. 3 af Standard POE – 15. 4/12. 95 W • Published in 2003 • 15. 4 Watts Powering – 12. 95 Watts Powered • What is sent and what is received, the rest is lost in transmission • 802. 3 at Enhanced POE or POE+ • Published in 2009 • 34. 2 Watts Powering – 25. 5 Watts Powered • 802. 3 bt POE++ • Work group started 2013 – no end date for publication • Minimum 49 W could be in excess of 100 W, 4 pair powering • Cisco’s UPo. E could still play a part

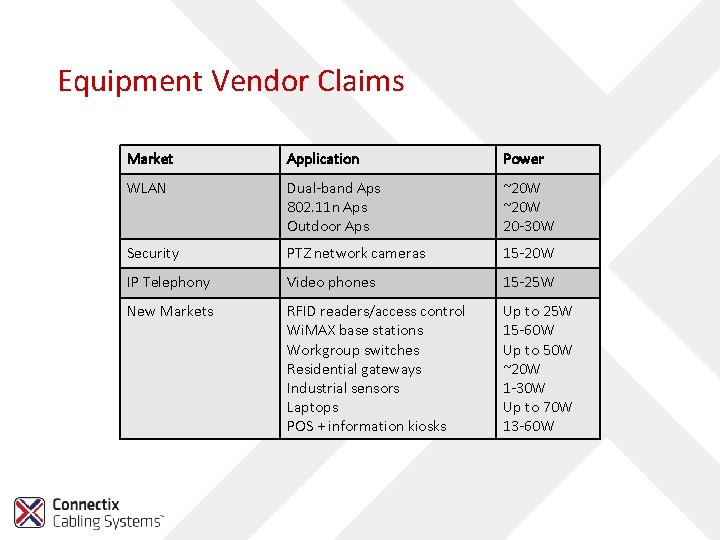

Equipment Vendor Claims Market Application Power WLAN Dual-band Aps 802. 11 n Aps Outdoor Aps ~20 W 20 -30 W Security PTZ network cameras 15 -20 W IP Telephony Video phones 15 -25 W New Markets RFID readers/access control Wi. MAX base stations Workgroup switches Residential gateways Industrial sensors Laptops POS + information kiosks Up to 25 W 15 -60 W Up to 50 W ~20 W 1 -30 W Up to 70 W 13 -60 W

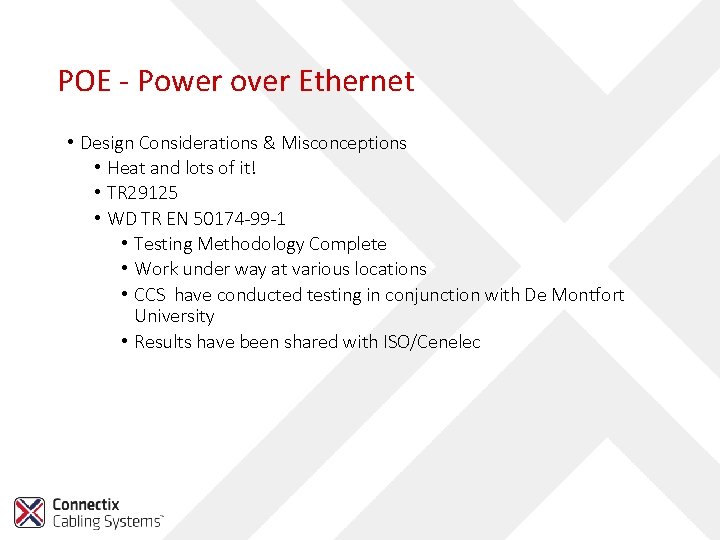

POE - Power over Ethernet • Design Considerations & Misconceptions • Heat and lots of it! • TR 29125 • WD TR EN 50174 -99 -1 • Testing Methodology Complete • Work under way at various locations • CCS have conducted testing in conjunction with De Montfort University • Results have been shared with ISO/Cenelec

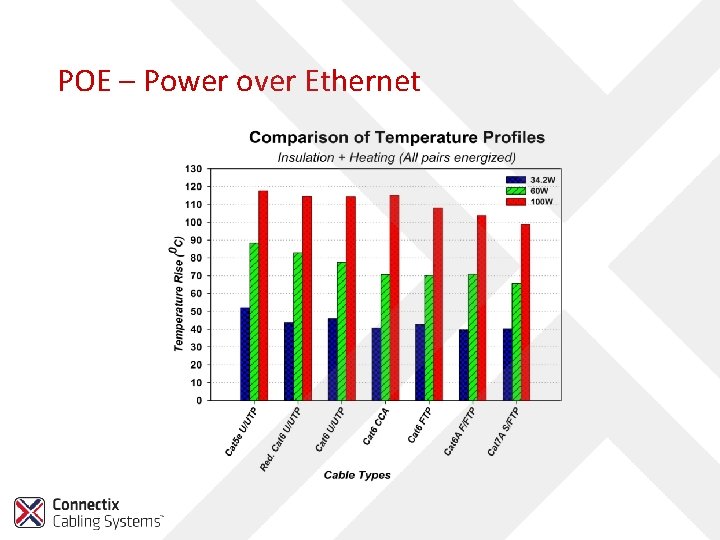

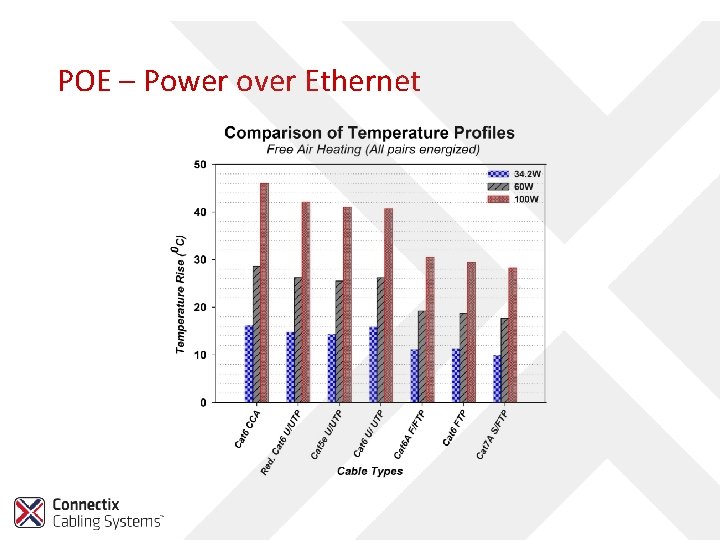

POE – Power over Ethernet

POE – Power over Ethernet

Containment ‘The Critical Issue’

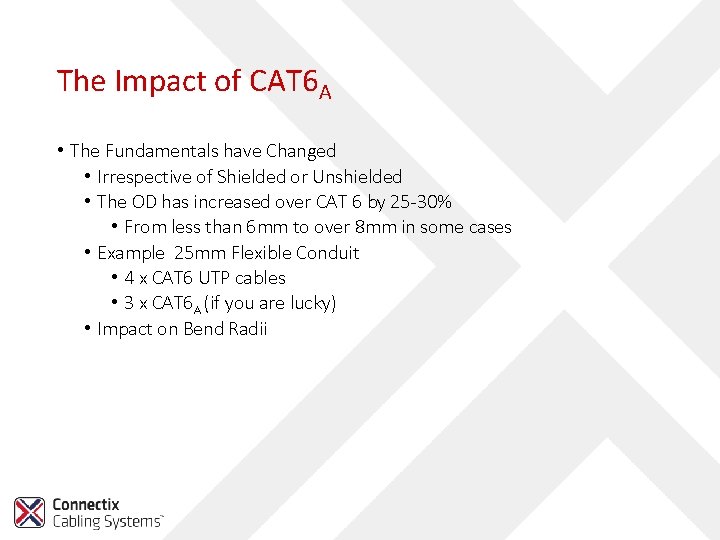

The Impact of CAT 6 A • The Fundamentals have Changed • Irrespective of Shielded or Unshielded • The OD has increased over CAT 6 by 25 -30% • From less than 6 mm to over 8 mm in some cases • Example 25 mm Flexible Conduit • 4 x CAT 6 UTP cables • 3 x CAT 6 A (if you are lucky) • Impact on Bend Radii

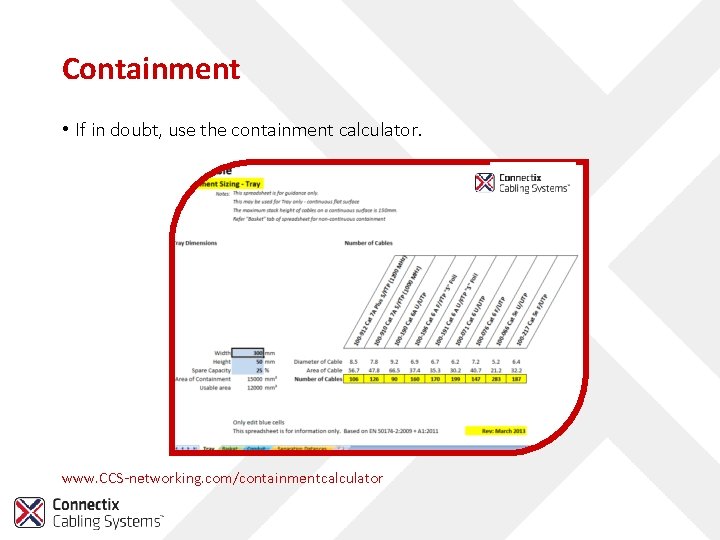

Containment • If in doubt, use the containment calculator. www. CCS-networking. com/containmentcalculator

The Impact of CAT 6 A • Impact on Bend Radii • Do the maths! • 8 times OD during installation, 4 times OD when installed (under tension and relaxed) • Over to 64 mm when pulling in and 32 mm when installed • Double check the claims of the containment manufacturers • One of whom claimed capacity for up to 14 CAT 6 A cables unfortunately in reality could only accommodate 3 in the bends.

The Impact of CAT 6 A Part 1 of BS/EN 50174 states The Design of the termination points SHALL: • Allow safe access • Ensure link performance (Keep MBR) • Have adequate clearance to install components in accordance with cable manufacturer’s instructions.

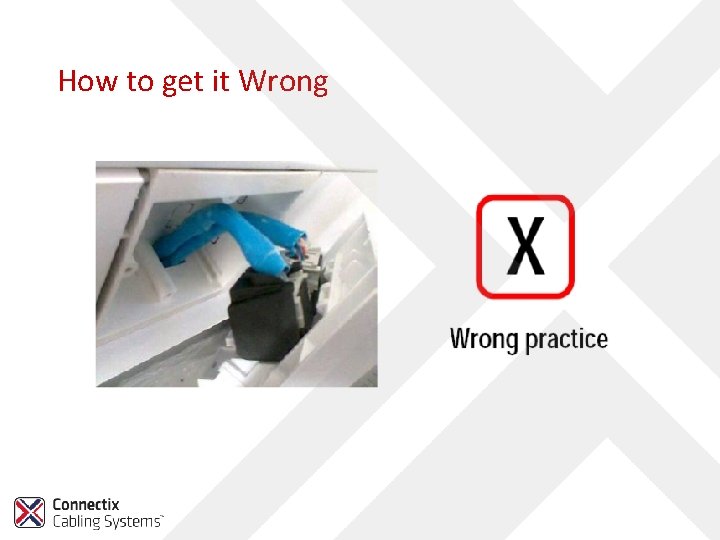

How to get it Wrong

Importance of Independent Testing

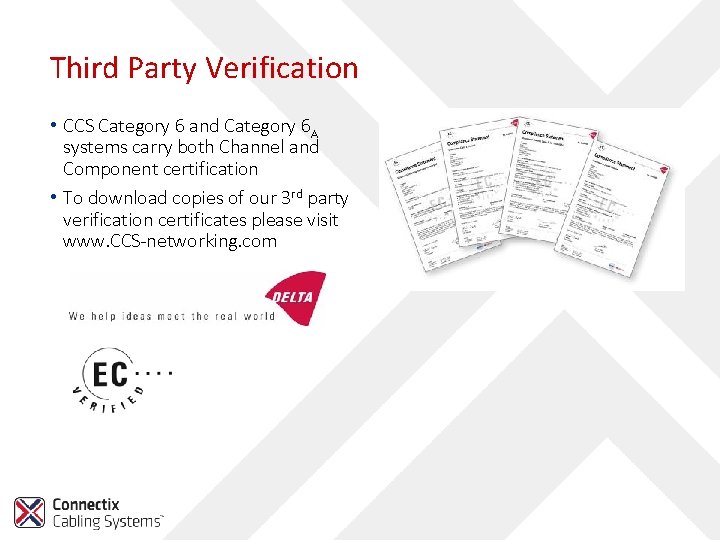

Third Party Verification • CCS Category 6 and Category 6 A systems carry both Channel and Component certification • To download copies of our 3 rd party verification certificates please visit www. CCS-networking. com

Questions?
