CONNECTION METHOD XBand Microwave Motion Sensor Modules Model

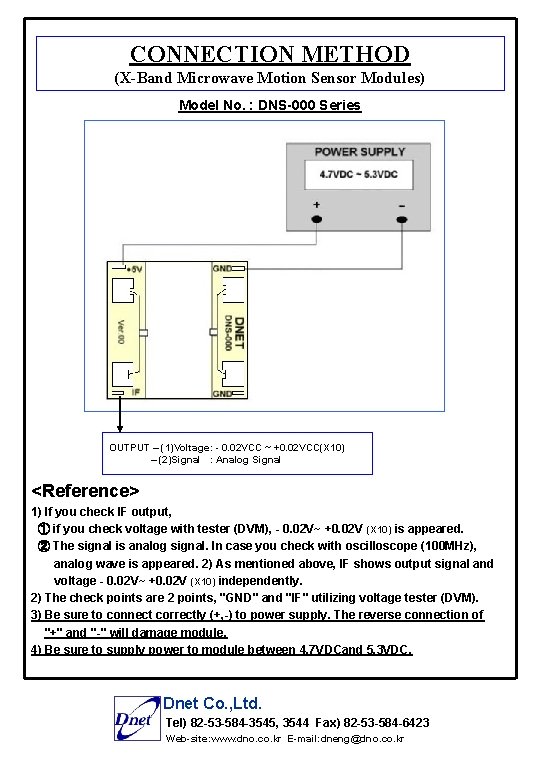

CONNECTION METHOD (X-Band Microwave Motion Sensor Modules) Model No. : DNS-000 Series OUTPUT – (1)Voltage: - 0. 02 VCC ~ +0. 02 VCC(X 10) – (2)Signal : Analog Signal <Reference> 1) If you check IF output, ① if you check voltage with tester (DVM), - 0. 02 V~ +0. 02 V (X 10) is appeared. ② The signal is analog signal. In case you check with oscilloscope (100 MHz), analog wave is appeared. 2) As mentioned above, IF shows output signal and voltage - 0. 02 V~ +0. 02 V (X 10) independently. 2) The check points are 2 points, "GND" and "IF" utilizing voltage tester (DVM). 3) Be sure to connect correctly (+, -) to power supply. The reverse connection of "+" and "-" will damage module. 4) Be sure to supply power to module between 4. 7 VDCand 5. 3 VDC. Dnet Co. , Ltd. Tel) 82 -53 -584 -3545, 3544 Fax) 82 -53 -584 -6423 Web-site: www. dno. co. kr E-mail: dneng@dno. co. kr

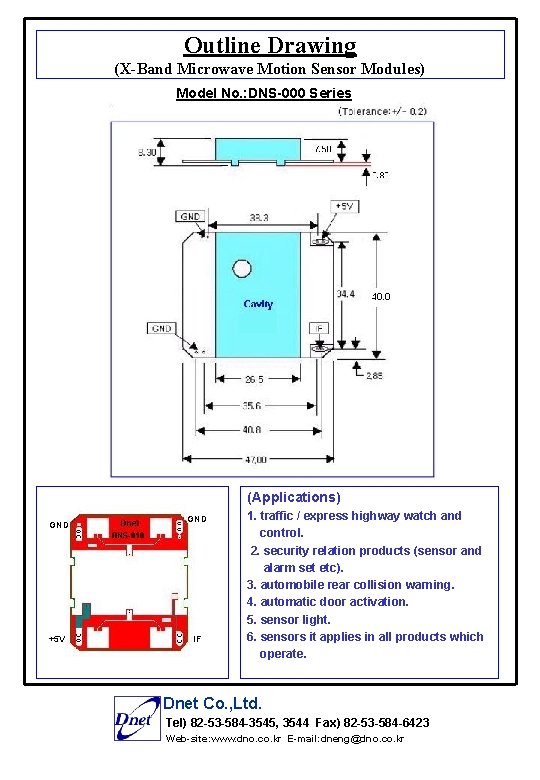

Outline Drawing (X-Band Microwave Motion Sensor Modules) Model No. : DNS-000 Series (Applications) GND +5 V GND IF 1. traffic / express highway watch and control. 2. security relation products (sensor and alarm set etc). 3. automobile rear collision warning. 4. automatic door activation. 5. sensor light. 6. sensors it applies in all products which operate. Dnet Co. , Ltd. Tel) 82 -53 -584 -3545, 3544 Fax) 82 -53 -584 -6423 Web-site: www. dno. co. kr E-mail: dneng@dno. co. kr
