Connection Assets The definition of connection assets needs

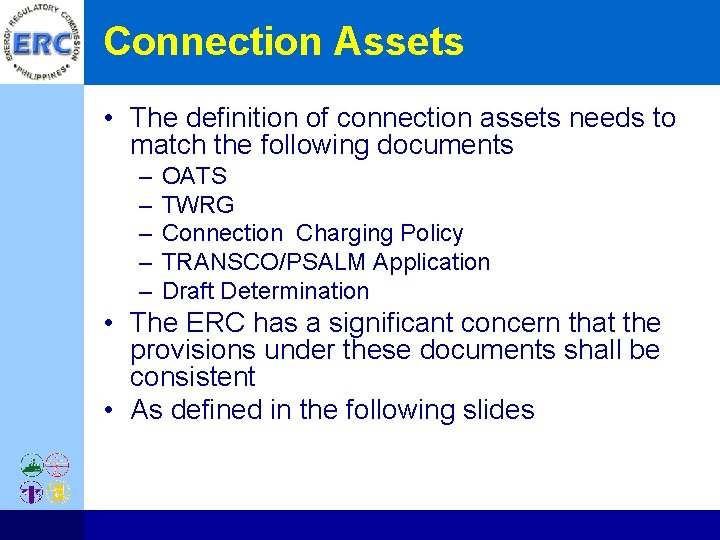

Connection Assets • The definition of connection assets needs to match the following documents – – – OATS TWRG Connection Charging Policy TRANSCO/PSALM Application Draft Determination • The ERC has a significant concern that the provisions under these documents shall be consistent • As defined in the following slides

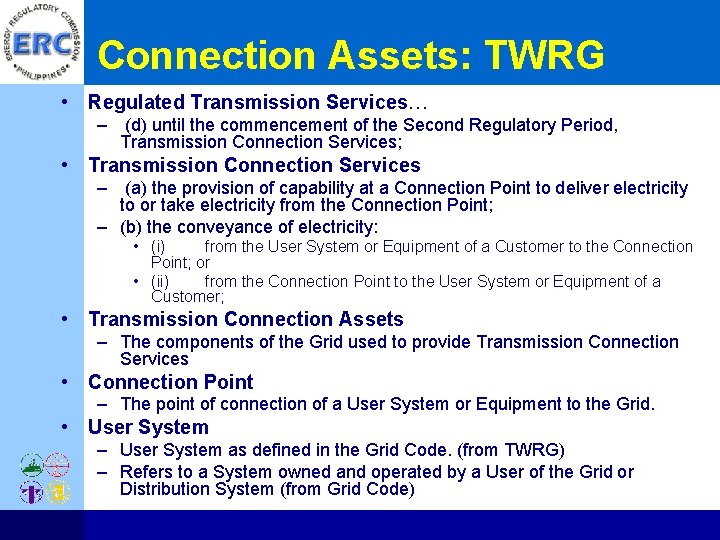

Connection Assets: TWRG • Regulated Transmission Services… – (d) until the commencement of the Second Regulatory Period, Transmission Connection Services; • Transmission Connection Services – (a) the provision of capability at a Connection Point to deliver electricity to or take electricity from the Connection Point; – (b) the conveyance of electricity: • (i) from the User System or Equipment of a Customer to the Connection Point; or • (ii) from the Connection Point to the User System or Equipment of a Customer; • Transmission Connection Assets – The components of the Grid used to provide Transmission Connection Services • Connection Point – The point of connection of a User System or Equipment to the Grid. • User System – User System as defined in the Grid Code. (from TWRG) – Refers to a System owned and operated by a User of the Grid or Distribution System (from Grid Code)

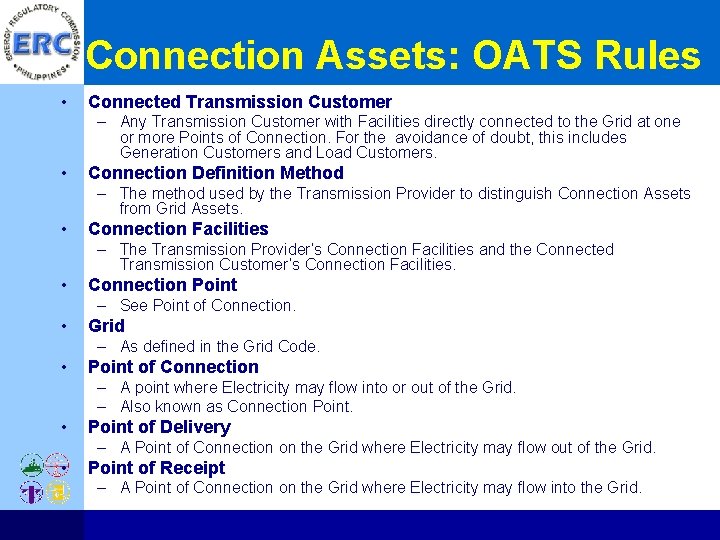

Connection Assets: OATS Rules • Connected Transmission Customer – Any Transmission Customer with Facilities directly connected to the Grid at one or more Points of Connection. For the avoidance of doubt, this includes Generation Customers and Load Customers. • Connection Definition Method – The method used by the Transmission Provider to distinguish Connection Assets from Grid Assets. • Connection Facilities – The Transmission Provider’s Connection Facilities and the Connected Transmission Customer’s Connection Facilities. • Connection Point – See Point of Connection. • Grid – As defined in the Grid Code. • Point of Connection – A point where Electricity may flow into or out of the Grid. – Also known as Connection Point. • Point of Delivery – A Point of Connection on the Grid where Electricity may flow out of the Grid. • Point of Receipt – A Point of Connection on the Grid where Electricity may flow into the Grid.

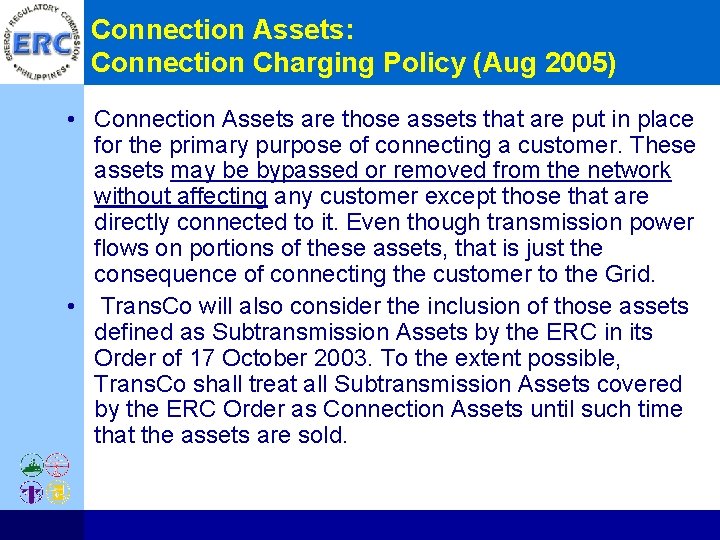

Connection Assets: Connection Charging Policy (Aug 2005) • Connection Assets are those assets that are put in place for the primary purpose of connecting a customer. These assets may be bypassed or removed from the network without affecting any customer except those that are directly connected to it. Even though transmission power flows on portions of these assets, that is just the consequence of connecting the customer to the Grid. • Trans. Co will also consider the inclusion of those assets defined as Subtransmission Assets by the ERC in its Order of 17 October 2003. To the extent possible, Trans. Co shall treat all Subtransmission Assets covered by the ERC Order as Connection Assets until such time that the assets are sold.

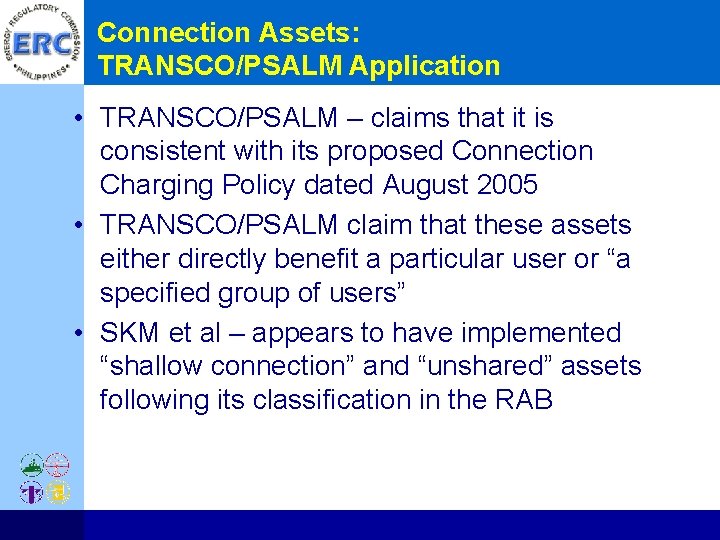

Connection Assets: TRANSCO/PSALM Application • TRANSCO/PSALM – claims that it is consistent with its proposed Connection Charging Policy dated August 2005 • TRANSCO/PSALM claim that these assets either directly benefit a particular user or “a specified group of users” • SKM et al – appears to have implemented “shallow connection” and “unshared” assets following its classification in the RAB

Connection Assets – Draft Determination • To use SKM definition as implicitly provided in its spreadsheet on substation assets.

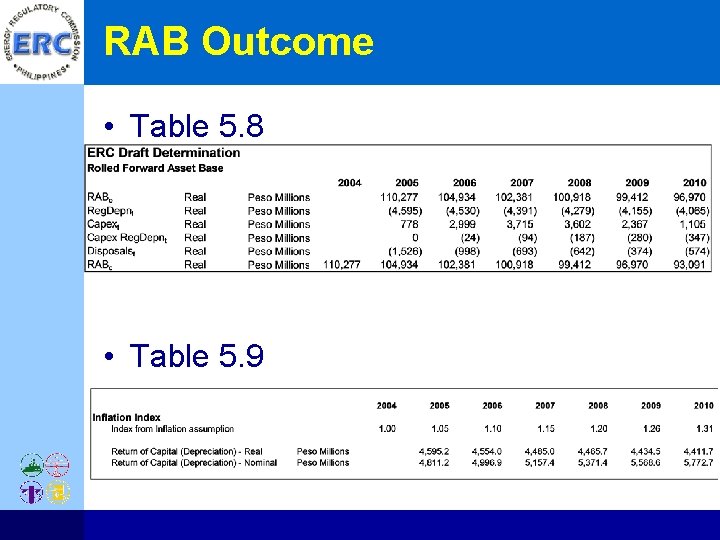

RAB Outcome • Table 5. 8 • Table 5. 9

Weighted Average Cost of Capital David Dawson ERC Regulatory Expert

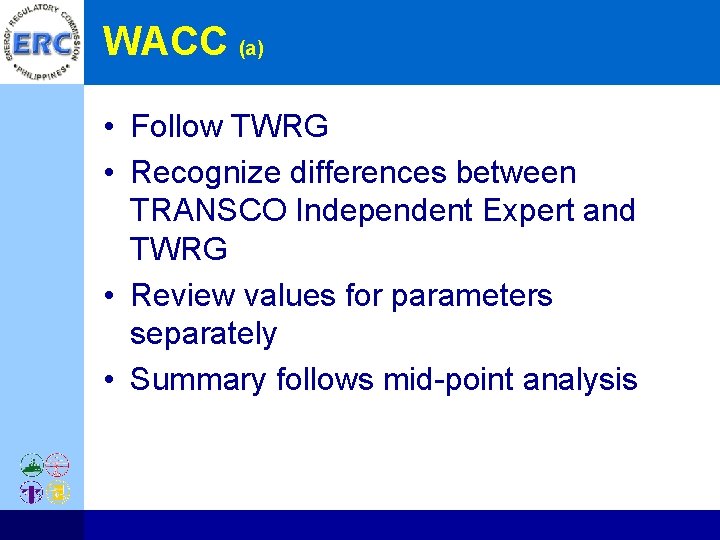

WACC (a) • Follow TWRG • Recognize differences between TRANSCO Independent Expert and TWRG • Review values for parameters separately • Summary follows mid-point analysis

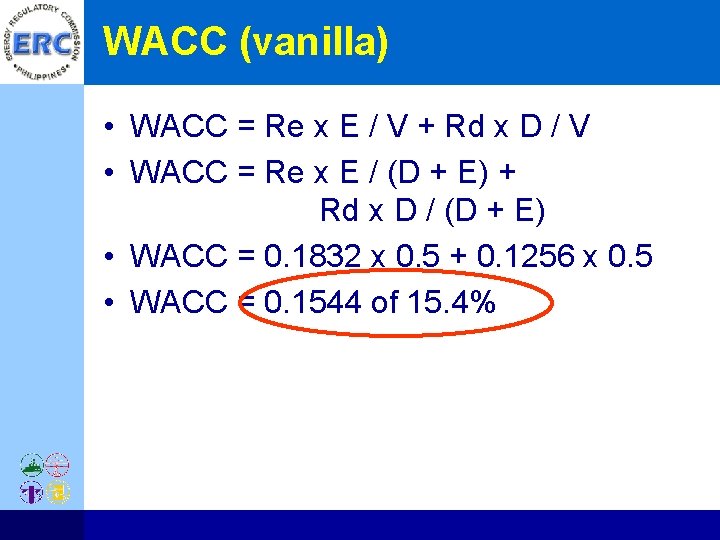

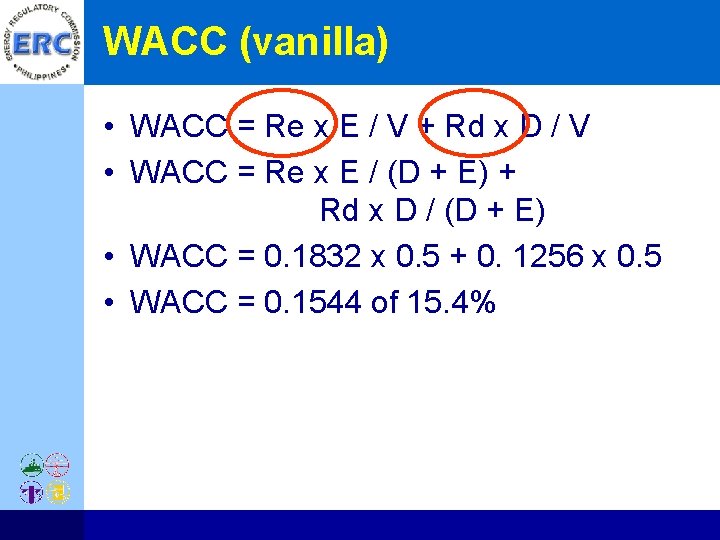

WACC (vanilla) • WACC = Re x E / V + Rd x D / V • WACC = Re x E / (D + E) + Rd x D / (D + E) • WACC = 0. 1832 x 0. 5 + 0. 1256 x 0. 5 • WACC = 0. 1544 of 15. 4%

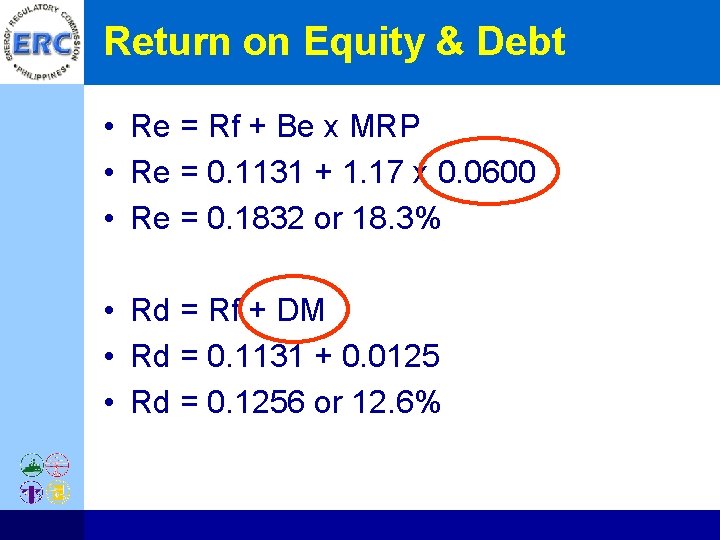

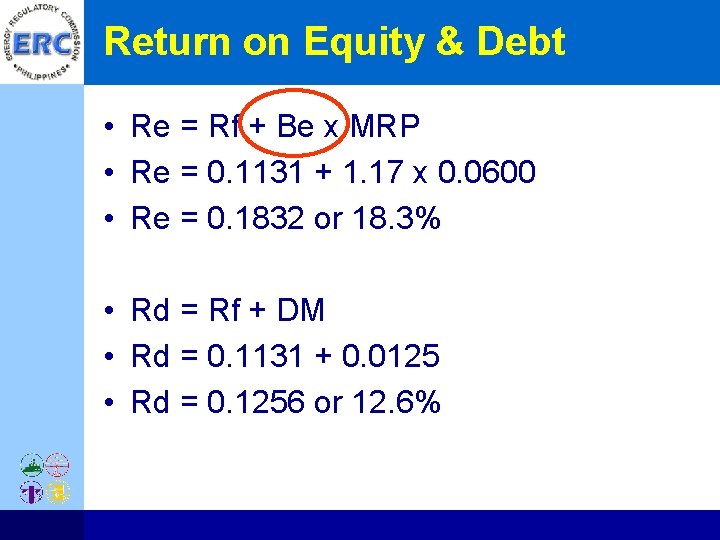

Return on Equity & Debt • Re = Rf + Be x MRP • Re = 0. 1131 + 1. 17 x 0. 0600 • Re = 0. 1832 or 18. 3% • Rd = Rf + DM • Rd = 0. 1131 + 0. 0125 • Rd = 0. 1256 or 12. 6%

Risk Free Rate (a) • Two measures explored: – Internal measure using Philippine Treasury Bonds – External measure using US Treasury Bonds • Internal: • Use Philippines 10 y Treasury Bond for August 2005 • Rf = 0. 1173 or 11. 7%

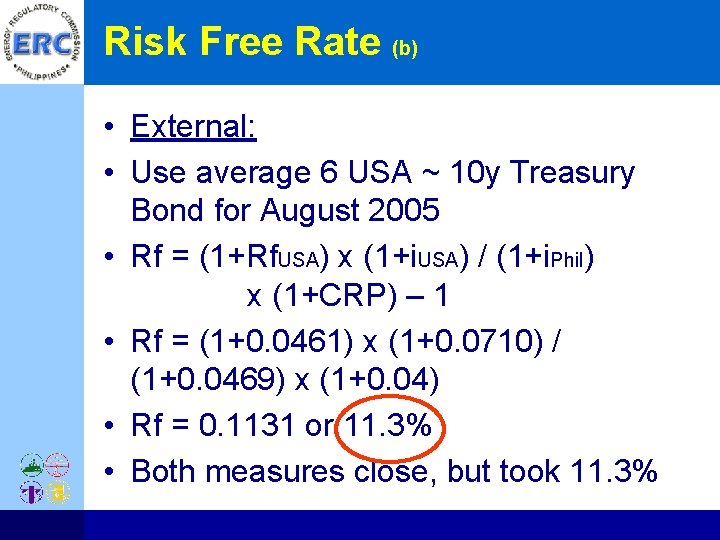

Risk Free Rate (b) • External: • Use average 6 USA ~ 10 y Treasury Bond for August 2005 • Rf = (1+Rf. USA) x (1+i. USA) / (1+i. Phil) x (1+CRP) – 1 • Rf = (1+0. 0461) x (1+0. 0710) / (1+0. 0469) x (1+0. 04) • Rf = 0. 1131 or 11. 3% • Both measures close, but took 11. 3%

Inflation Rates • Spread for “long-term” average versus “spot” average is similar • Spot data better matches bond data which is average spot as well

CRP (a) • Two measures explored: – Philippine vs USA US$ bond yields – CRP statistical method using Country Ratings • US$ Bond yields, ~ 20 year bonds • CRP = 8. 2% - 4. 8% = 3. 4%

CRP (b) • Statistical on Country Rating = 4. 0%

Return on Equity & Debt • Re = Rf + Be x MRP • Re = 0. 1131 + 1. 17 x 0. 0600 • Re = 0. 1832 or 18. 3% • Rd = Rf + DM • Rd = 0. 1131 + 0. 0125 • Rd = 0. 1256 or 12. 6%

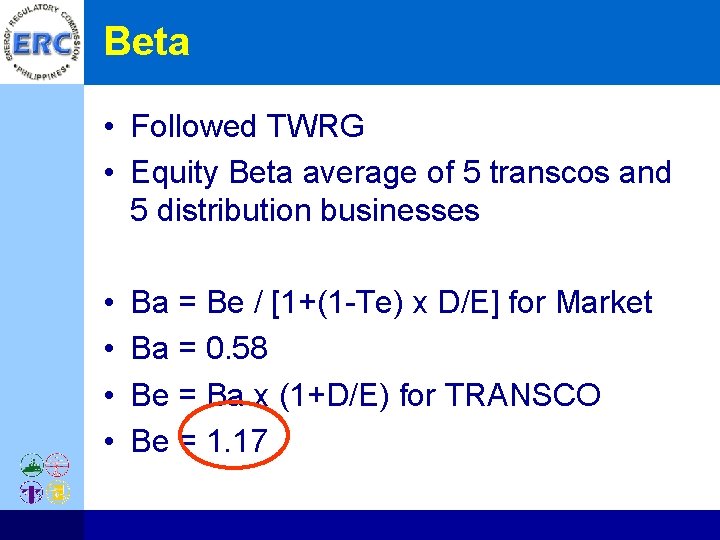

Beta • Followed TWRG • Equity Beta average of 5 transcos and 5 distribution businesses • • Ba = Be / [1+(1 -Te) x D/E] for Market Ba = 0. 58 Be = Ba x (1+D/E) for TRANSCO Be = 1. 17

Return on Equity & Debt • Re = Rf + Be x MRP • Re = 0. 1131 + 1. 17 x 0. 0600 • Re = 0. 1832 or 18. 3% • Rd = Rf + DM • Rd = 0. 1131 + 0. 0125 • Rd = 0. 1256 or 12. 6%

WACC (vanilla) • WACC = Re x E / V + Rd x D / V • WACC = Re x E / (D + E) + Rd x D / (D + E) • WACC = 0. 1832 x 0. 5 + 0. 1256 x 0. 5 • WACC = 0. 1544 of 15. 4%

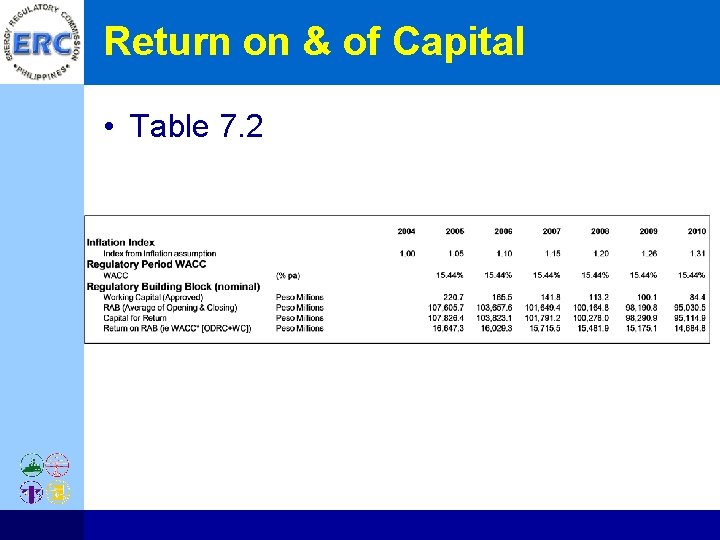

Return on & of Capital • Table 7. 2

Performance Incentive Scheme Lawrence Luczon Engineer II

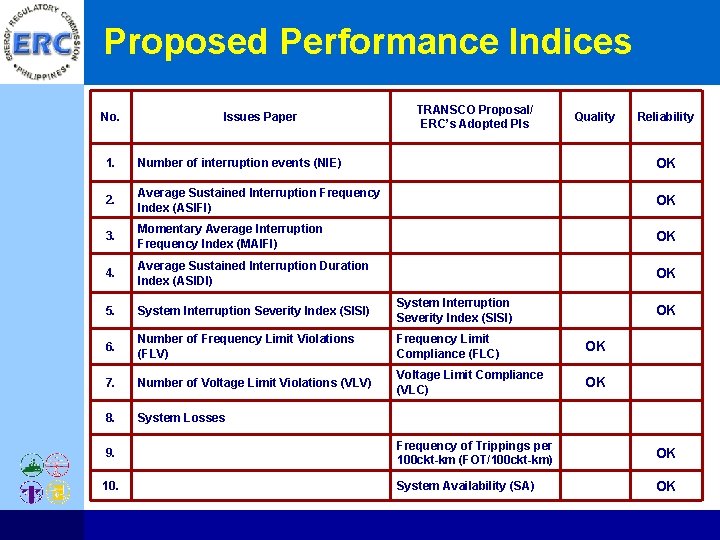

Proposed Performance Indices No. Issues Paper TRANSCO Proposal/ ERC’s Adopted PIs Quality Reliability 1. Number of interruption events (NIE) OK 2. Average Sustained Interruption Frequency Index (ASIFI) OK 3. Momentary Average Interruption Frequency Index (MAIFI) OK 4. Average Sustained Interruption Duration Index (ASIDI) OK 5. System Interruption Severity Index (SISI) 6. Number of Frequency Limit Violations (FLV) Frequency Limit Compliance (FLC) OK 7. Number of Voltage Limit Violations (VLV) Voltage Limit Compliance (VLC) OK 8. System Losses OK 9. Frequency of Trippings per 100 ckt-km (FOT/100 ckt-km) OK 10. System Availability (SA) OK

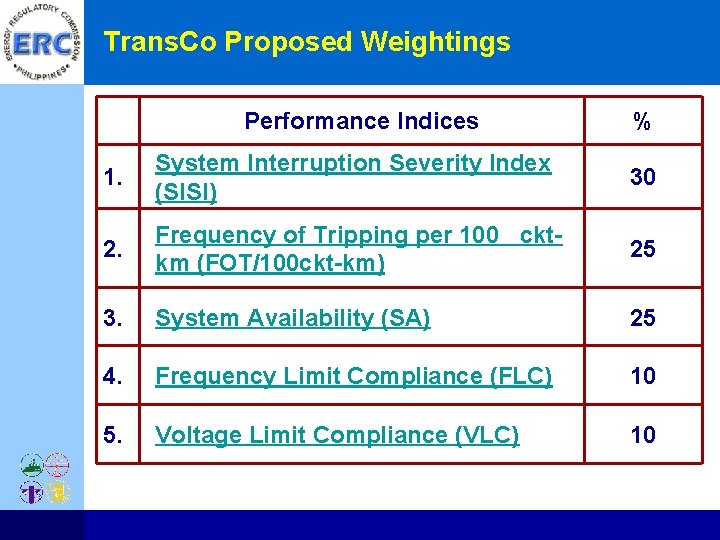

Trans. Co Proposed Weightings Performance Indices % 1. System Interruption Severity Index (SISI) 30 2. Frequency of Tripping per 100 cktkm (FOT/100 ckt-km) 25 3. System Availability (SA) 25 4. Frequency Limit Compliance (FLC) 10 5. Voltage Limit Compliance (VLC) 10

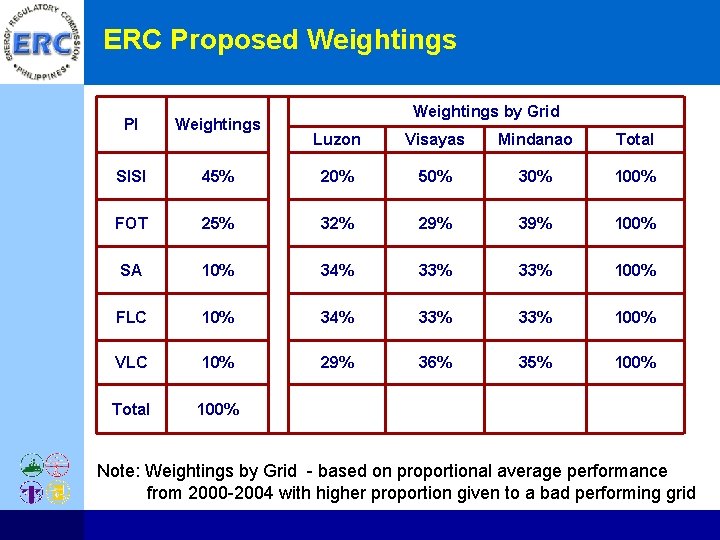

ERC Proposed Weightings PI Weightings SISI Weightings by Grid Luzon Visayas Mindanao Total 45% 20% 50% 30% 100% FOT 25% 32% 29% 39% 100% SA 10% 34% 33% 100% FLC 10% 34% 33% 100% VLC 10% 29% 36% 35% 100% Total 100% Note: Weightings by Grid - based on proportional average performance from 2000 -2004 with higher proportion given to a bad performing grid

Trans. Co Proposed Bandwidth

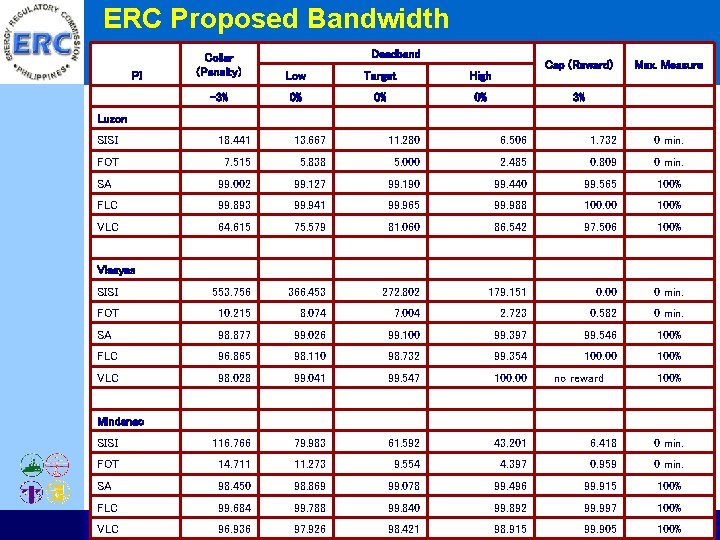

ERC Proposed Bandwidth Deadband Collar (Penalty) Low Target High -3% 0% 0% 0% 3% Luzon SISI 18. 441 13. 667 11. 280 6. 506 1. 732 0 min. FOT 7. 515 5. 838 5. 000 2. 485 0. 809 0 min. SA 99. 002 99. 127 99. 190 99. 440 99. 565 100% FLC 99. 893 99. 941 99. 965 99. 988 100. 00 100% VLC 64. 615 75. 579 81. 060 86. 542 97. 506 100% PI Cap (Reward) Max. Measure Visayas SISI 553. 756 366. 453 272. 802 179. 151 0. 00 0 min. FOT 10. 215 8. 074 7. 004 2. 723 0. 582 0 min. SA 98. 877 99. 026 99. 100 99. 397 99. 546 100% FLC 96. 865 98. 110 98. 732 99. 354 100. 00 100% VLC 98. 028 99. 041 99. 547 100. 00 no reward 100% Mindanao SISI 116. 766 79. 983 61. 592 43. 201 6. 418 0 min. FOT 14. 711 11. 273 9. 554 4. 397 0. 959 0 min. SA 98. 450 98. 869 99. 078 99. 496 99. 915 100% FLC 99. 684 99. 788 99. 840 99. 892 99. 997 100% VLC 96. 936 97. 926 98. 421 98. 915 99. 905 100%

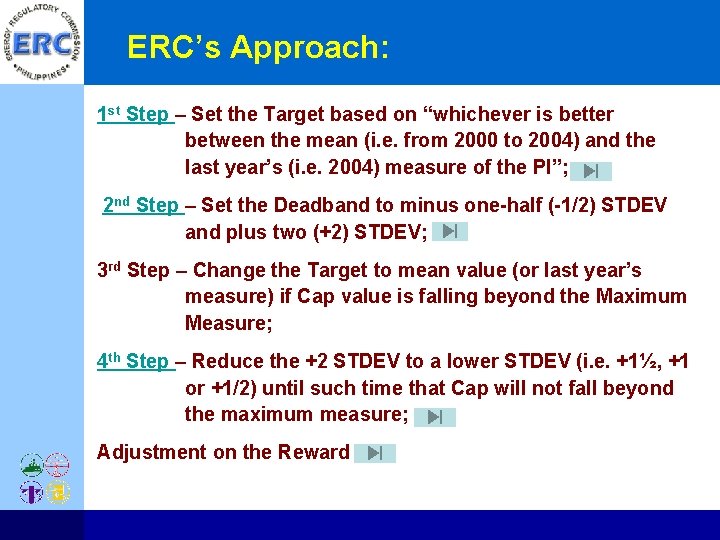

ERC’s Approach: 1 st Step – Set the Target based on “whichever is better between the mean (i. e. from 2000 to 2004) and the last year’s (i. e. 2004) measure of the PI”; 2 nd Step – Set the Deadband to minus one-half (-1/2) STDEV and plus two (+2) STDEV; 3 rd Step – Change the Target to mean value (or last year’s measure) if Cap value is falling beyond the Maximum Measure; 4 th Step – Reduce the +2 STDEV to a lower STDEV (i. e. +1½, +1 or +1/2) until such time that Cap will not fall beyond the maximum measure; Adjustment on the Reward

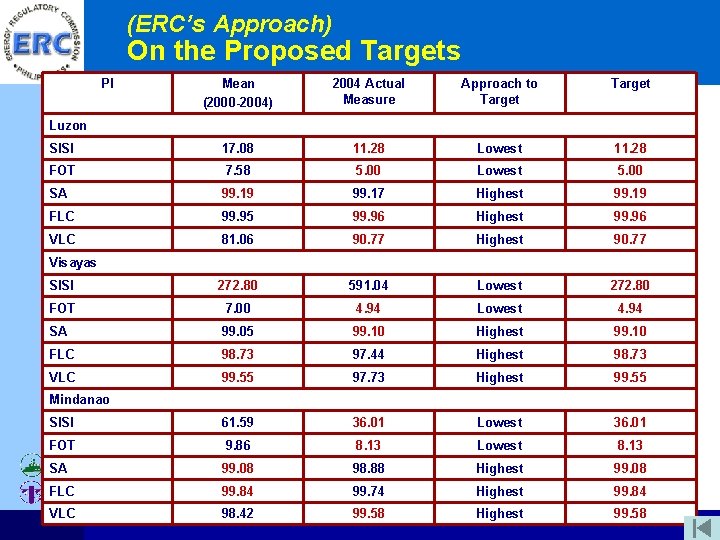

(ERC’s Approach) On the Proposed Targets PI Mean (2000 -2004) 2004 Actual Measure Approach to Target SISI 17. 08 11. 28 Lowest 11. 28 FOT 7. 58 5. 00 Lowest 5. 00 SA 99. 19 99. 17 Highest 99. 19 FLC 99. 95 99. 96 Highest 99. 96 VLC 81. 06 90. 77 Highest 90. 77 SISI 272. 80 591. 04 Lowest 272. 80 FOT 7. 00 4. 94 Lowest 4. 94 SA 99. 05 99. 10 Highest 99. 10 FLC 98. 73 97. 44 Highest 98. 73 VLC 99. 55 97. 73 Highest 99. 55 SISI 61. 59 36. 01 Lowest 36. 01 FOT 9. 86 8. 13 Lowest 8. 13 SA 99. 08 98. 88 Highest 99. 08 FLC 99. 84 99. 74 Highest 99. 84 VLC 98. 42 99. 58 Highest 99. 58 Luzon Visayas Mindanao

(ERC’s Approach) On the Deadband Cap Bonus / Penalty +3% 0% Deadband 1 σ ½ σ 2 σ Target -3% Collar Performance 1 σ

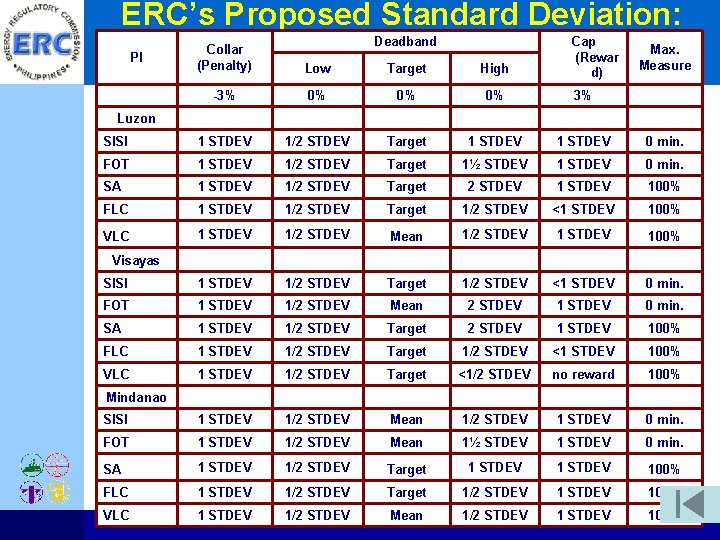

ERC’s Proposed Standard Deviation: Deadband Cap (Rewar d) Collar (Penalty) Low Target High -3% 0% 0% 0% 3% SISI 1 STDEV 1/2 STDEV Target 1 STDEV 0 min. FOT 1 STDEV 1/2 STDEV Target 1½ STDEV 1 STDEV 0 min. SA 1 STDEV 1/2 STDEV Target 2 STDEV 100% FLC 1 STDEV 1/2 STDEV Target 1/2 STDEV <1 STDEV 100% VLC 1 STDEV 1/2 STDEV Mean 1/2 STDEV 100% PI Luzon Visayas Max. Measure SISI 1 STDEV 1/2 STDEV Target 1/2 STDEV <1 STDEV 0 min. FOT 1 STDEV 1/2 STDEV Mean 2 STDEV 1 STDEV 0 min. SA 1 STDEV 1/2 STDEV Target 2 STDEV 100% FLC 1 STDEV 1/2 STDEV Target 1/2 STDEV <1 STDEV 100% VLC 1 STDEV 1/2 STDEV Target <1/2 STDEV no reward 100% Mindanao SISI 1 STDEV 1/2 STDEV Mean 1/2 STDEV 1 STDEV 0 min. FOT 1 STDEV 1/2 STDEV Mean 1½ STDEV 1 STDEV 0 min. SA 1 STDEV 1/2 STDEV Target 1 STDEV 100% FLC 1 STDEV 1/2 STDEV Target 1/2 STDEV 100% VLC 1 STDEV 1/2 STDEV Mean 1/2 STDEV 100%

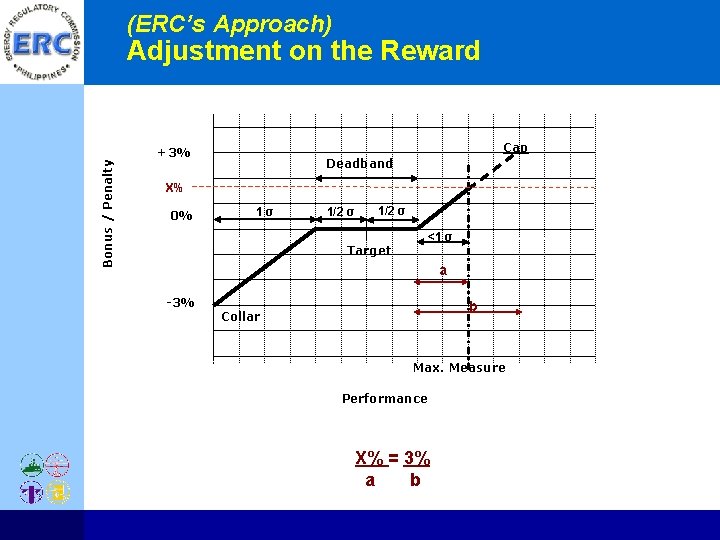

(ERC’s Approach) Bonus / Penalty Adjustment on the Reward Cap +3% Deadband X% 0% 1 σ 1/2 σ <1 σ Target a -3% b Collar Max. Measure Performance X% = 3% a b

(ERC’s Approach) Adjustment on the Reward Cap +3% Bonus / Penalty Deadband 1 σ ½ σ <½ σ 0% No reward Target -3% Collar Max. Measure Performance

END OF PRESENTATION
