Connecting to Microsoft SQL Server Tuc Goodwin Introduction

Connecting to Microsoft SQL Server Tuc Goodwin

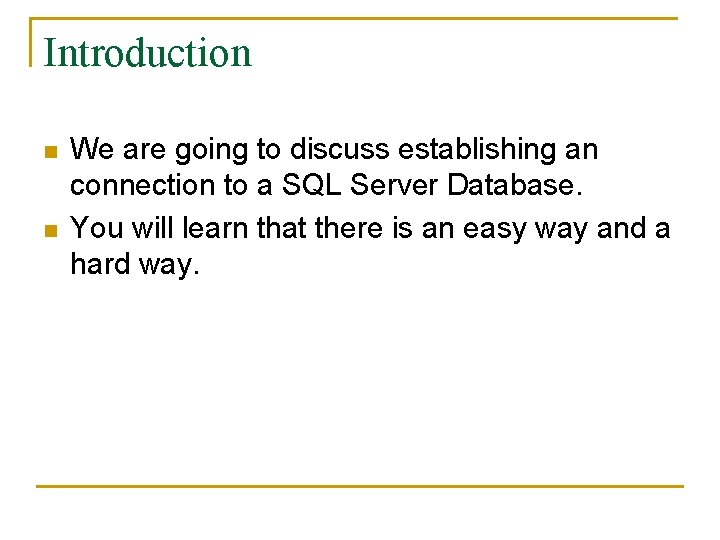

Introduction n n We are going to discuss establishing an connection to a SQL Server Database. You will learn that there is an easy way and a hard way.

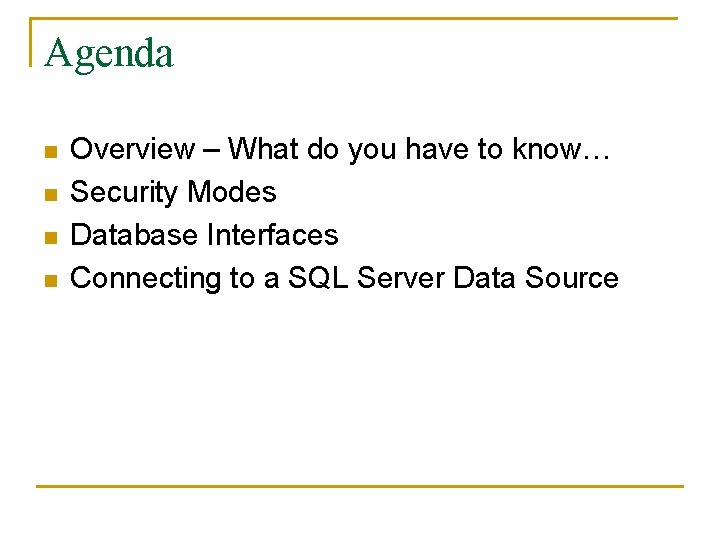

Agenda n n Overview – What do you have to know… Security Modes Database Interfaces Connecting to a SQL Server Data Source

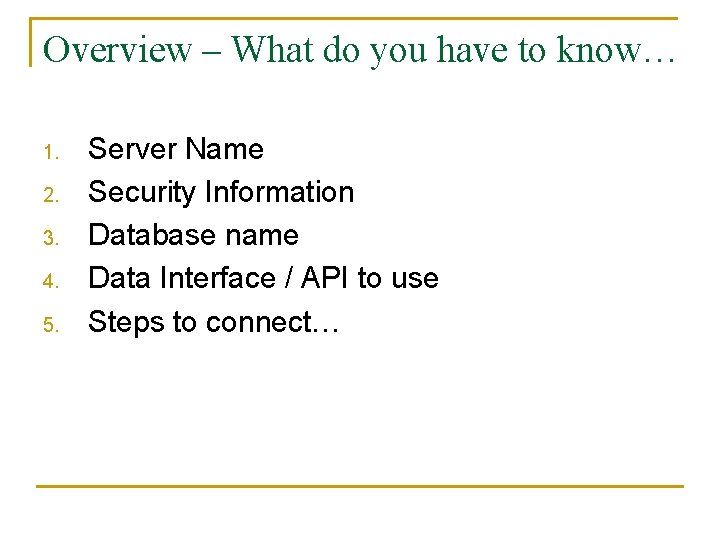

Overview – What do you have to know… 1. 2. 3. 4. 5. Server Name Security Information Database name Data Interface / API to use Steps to connect…

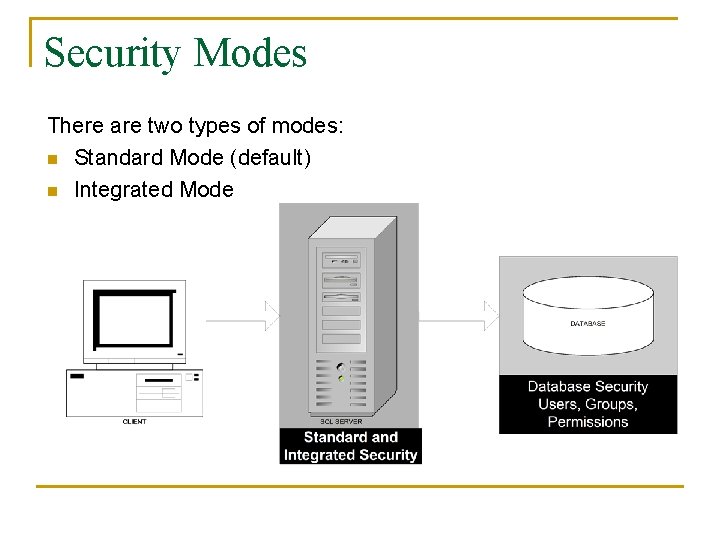

Security Modes There are two types of modes: n Standard Mode (default) n Integrated Mode

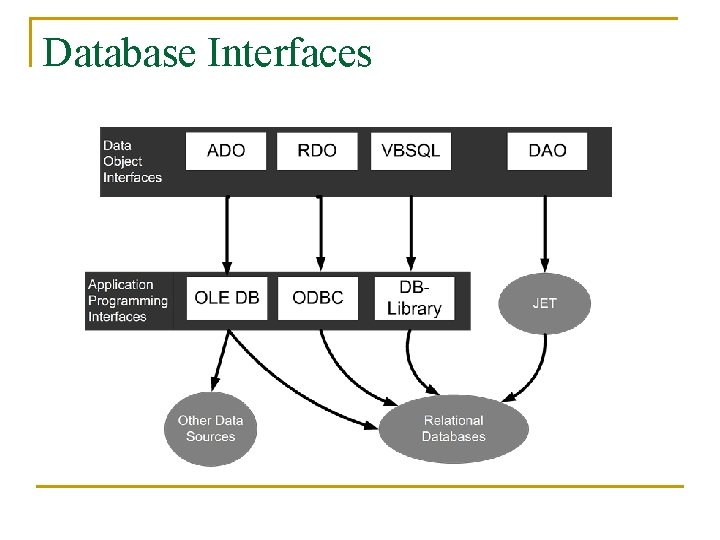

Database Interfaces

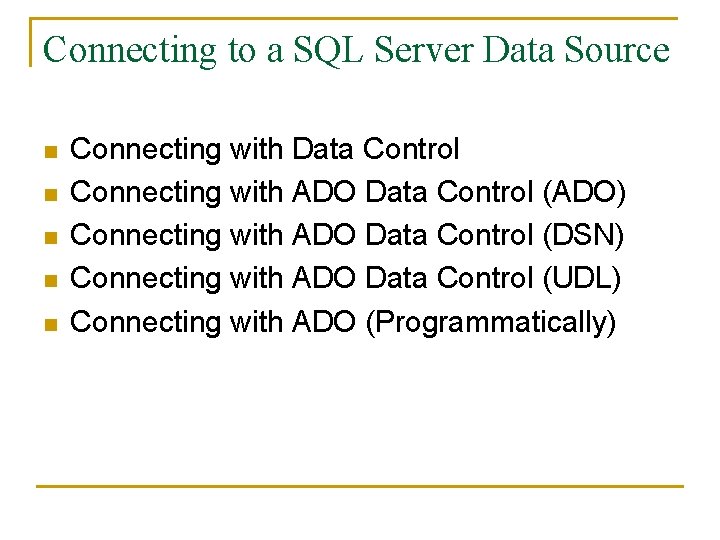

Connecting to a SQL Server Data Source n n n Connecting with Data Control Connecting with ADO Data Control (ADO) Connecting with ADO Data Control (DSN) Connecting with ADO Data Control (UDL) Connecting with ADO (Programmatically)

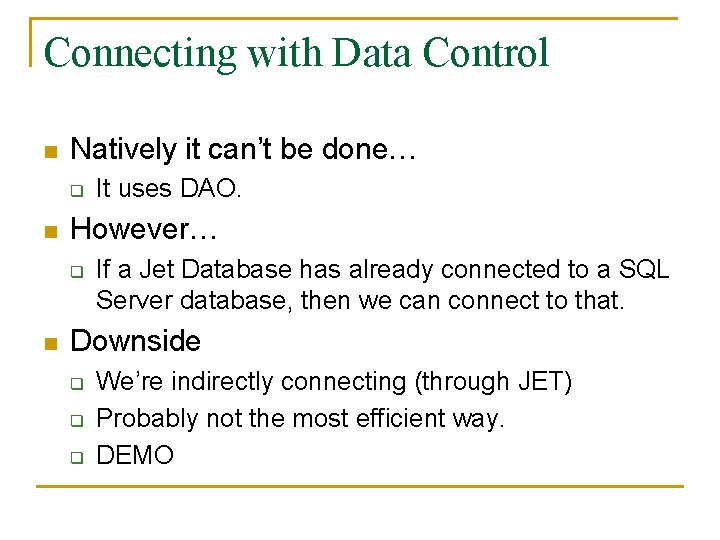

Connecting with Data Control n Natively it can’t be done… q n However… q n It uses DAO. If a Jet Database has already connected to a SQL Server database, then we can connect to that. Downside q q q We’re indirectly connecting (through JET) Probably not the most efficient way. DEMO

Connecting with ADO Data Control (ADO) n Natively it connects fine q n n n It’s ADO Set the Connection string property Set the Record. Source property DEMO

Connecting with ADO Data Control (DSN) n Natively it connects fine q n n It’s ODBC Set the Connection string property Set the Record. Source property

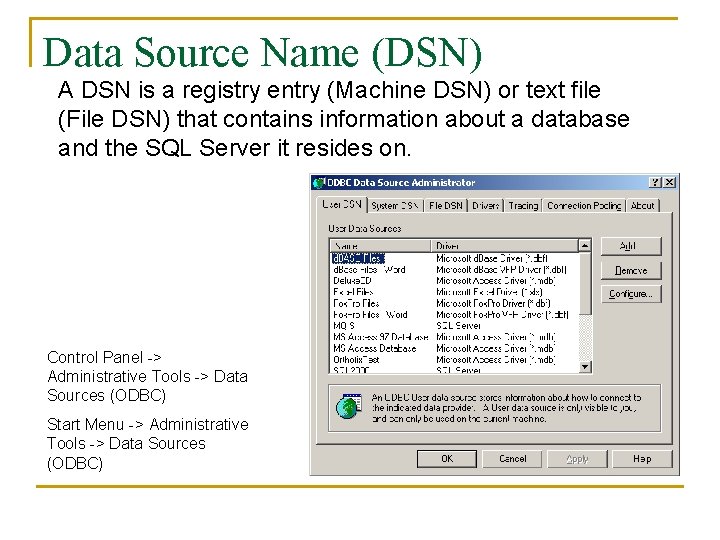

Data Source Name (DSN) A DSN is a registry entry (Machine DSN) or text file (File DSN) that contains information about a database and the SQL Server it resides on. Control Panel -> Administrative Tools -> Data Sources (ODBC) Start Menu -> Administrative Tools -> Data Sources (ODBC)

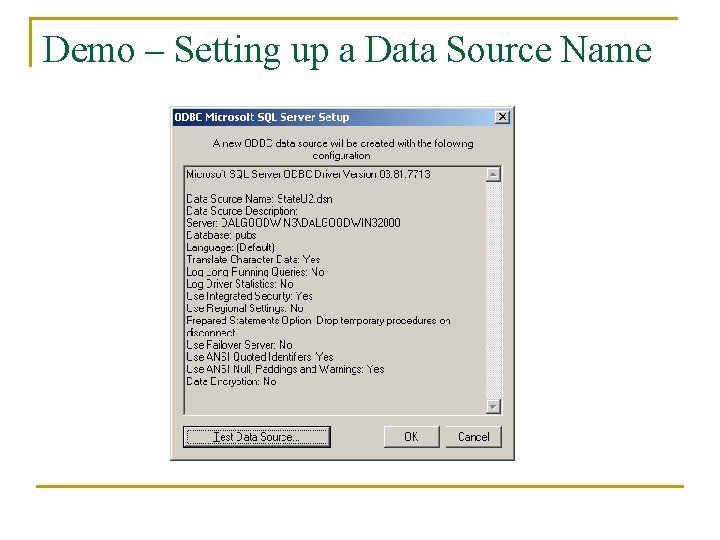

Demo – Setting up a Data Source Name

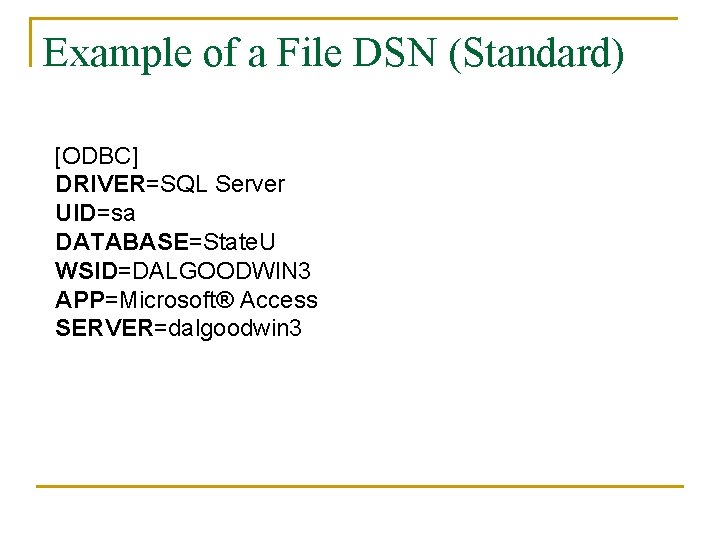

Example of a File DSN (Standard) [ODBC] DRIVER=SQL Server UID=sa DATABASE=State. U WSID=DALGOODWIN 3 APP=Microsoft® Access SERVER=dalgoodwin 3

Example of a File DSN (Integrated) [ODBC] DRIVER=SQL Server UID=tgoodwin Trusted_Connection=Yes DATABASE=pubs WSID=DALGOODWIN 3 APP=Microsoft Open Database Connectivity SERVER=DALGOODWIN 3DALGOODWIN 32000

DEMO – ADO Control with DSN

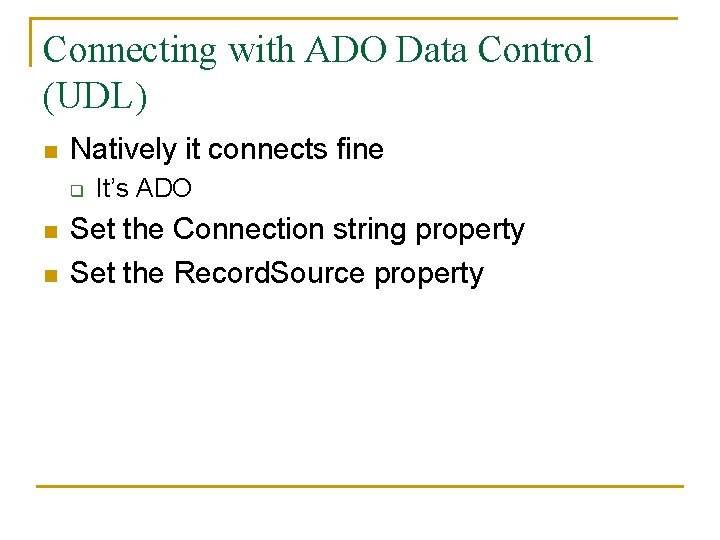

Connecting with ADO Data Control (UDL) n Natively it connects fine q n n It’s ADO Set the Connection string property Set the Record. Source property

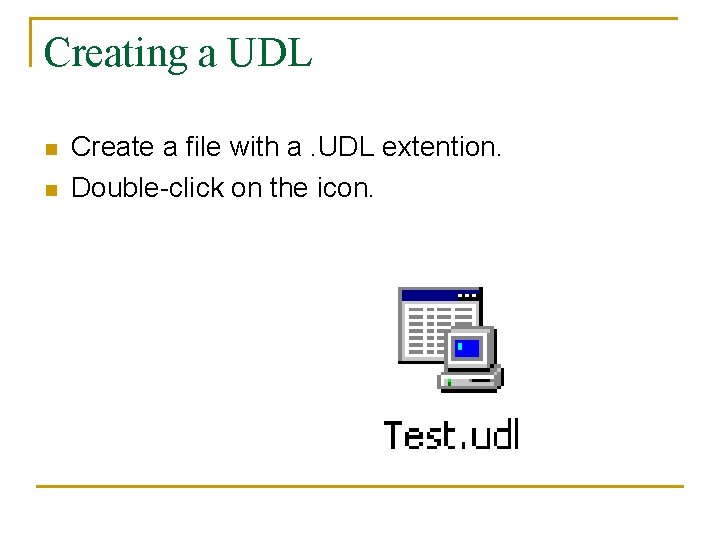

Creating a UDL n n Create a file with a. UDL extention. Double-click on the icon.

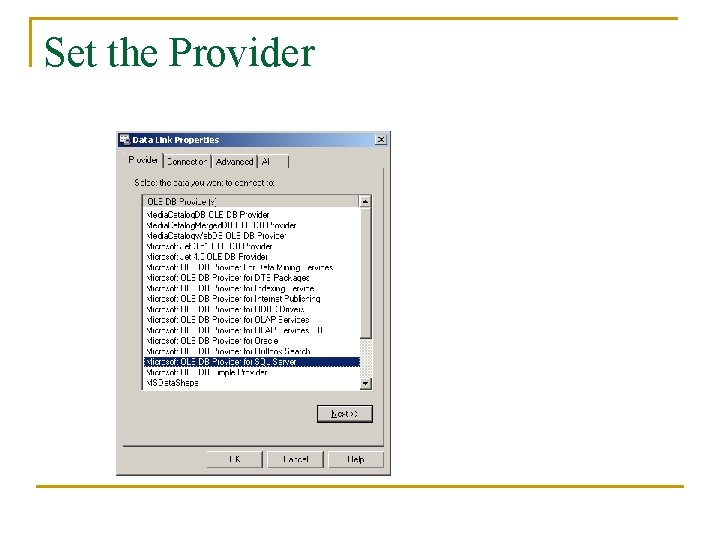

Set the Provider

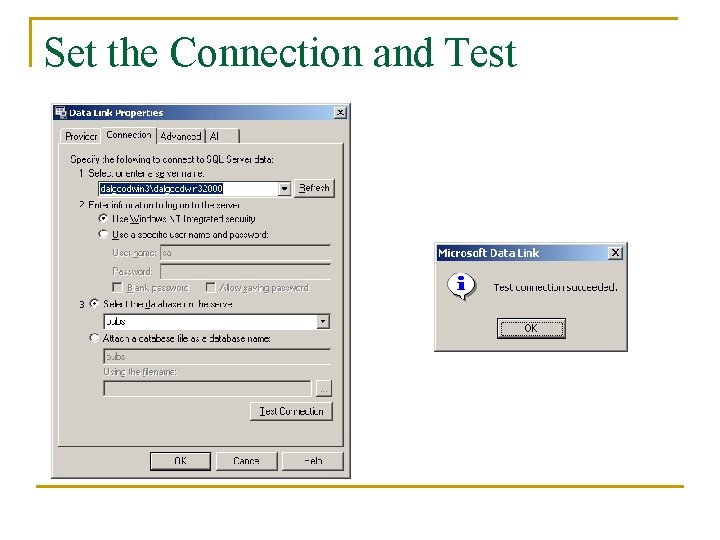

Set the Connection and Test

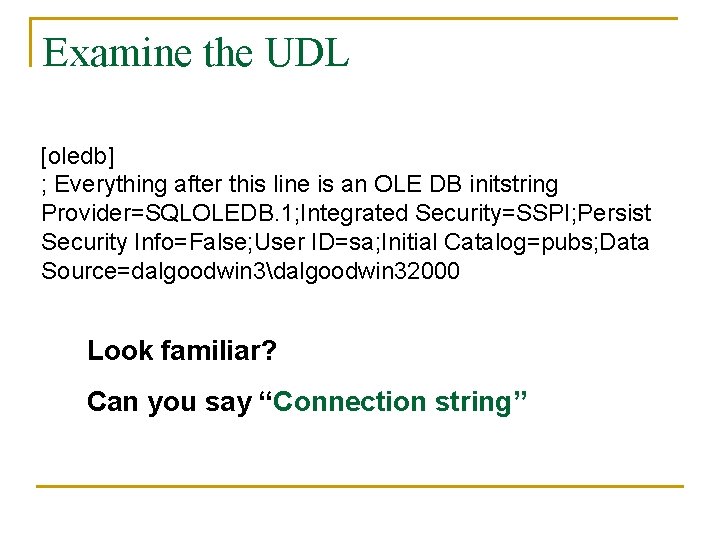

Examine the UDL [oledb] ; Everything after this line is an OLE DB initstring Provider=SQLOLEDB. 1; Integrated Security=SSPI; Persist Security Info=False; User ID=sa; Initial Catalog=pubs; Data Source=dalgoodwin 3dalgoodwin 32000 Look familiar? Can you say “Connection string”

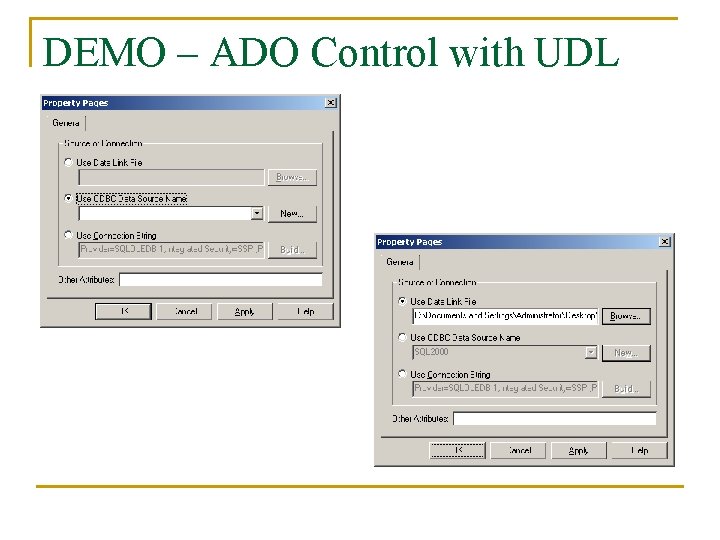

DEMO – ADO Control with UDL

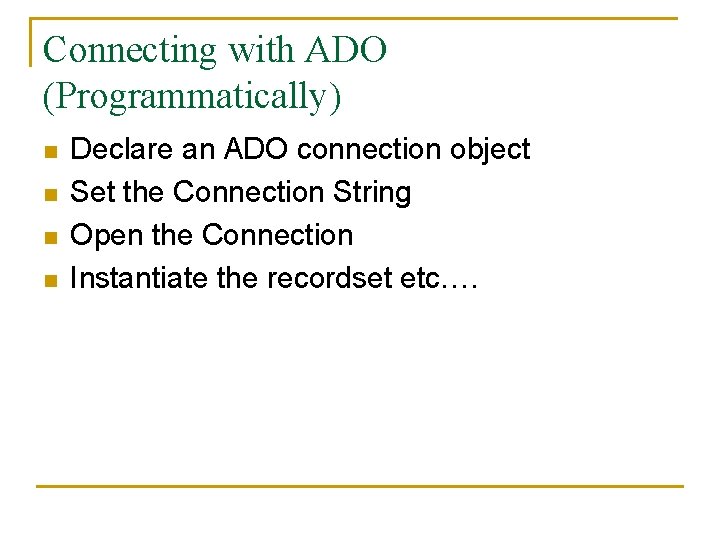

Connecting with ADO (Programmatically) n n Declare an ADO connection object Set the Connection String Open the Connection Instantiate the recordset etc….

DEMO – Connect with ADO

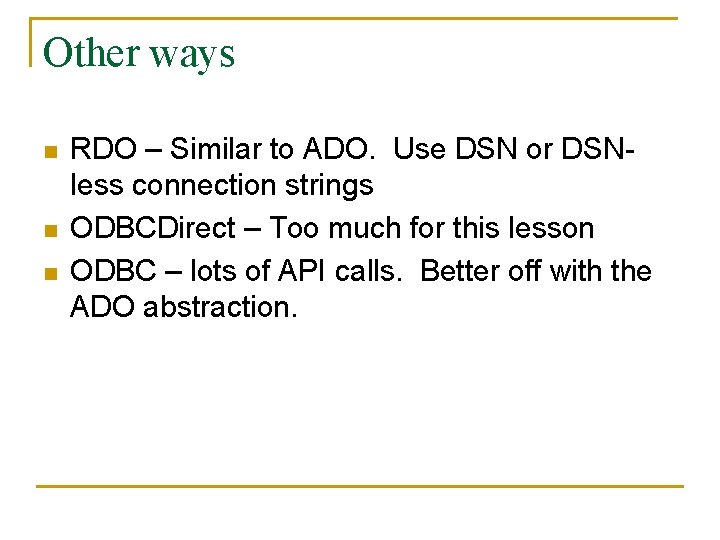

Other ways n n n RDO – Similar to ADO. Use DSN or DSNless connection strings ODBCDirect – Too much for this lesson ODBC – lots of API calls. Better off with the ADO abstraction.

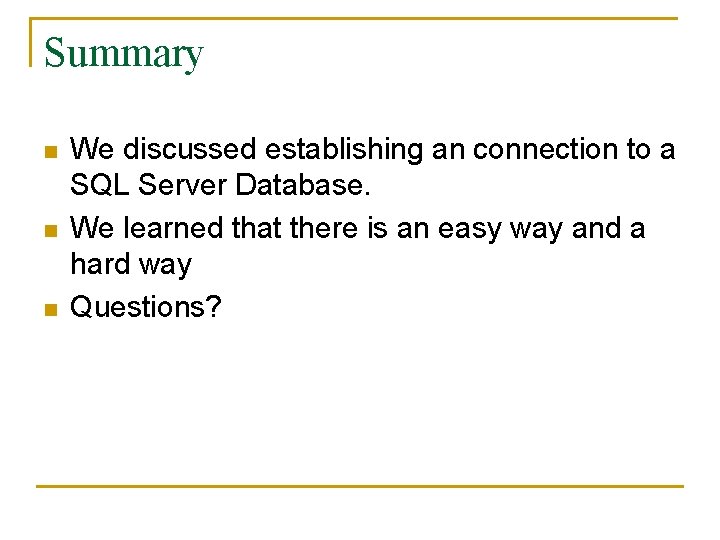

Summary n n n We discussed establishing an connection to a SQL Server Database. We learned that there is an easy way and a hard way Questions?
