Safety Break-away Couplings Industrial Version SBC 200 AL Industrial break-away couplings are utilized in industrial product transfer installations. The industrial couplings are specifically designed to be able to activate with a tensile force being applied at an angle up to 90 degrees to the hose or pipe. INSTALLATION BETWEEN A FIXED POINT (PIPE, PUMP OR MANIFOLD) AND HOSE. 4

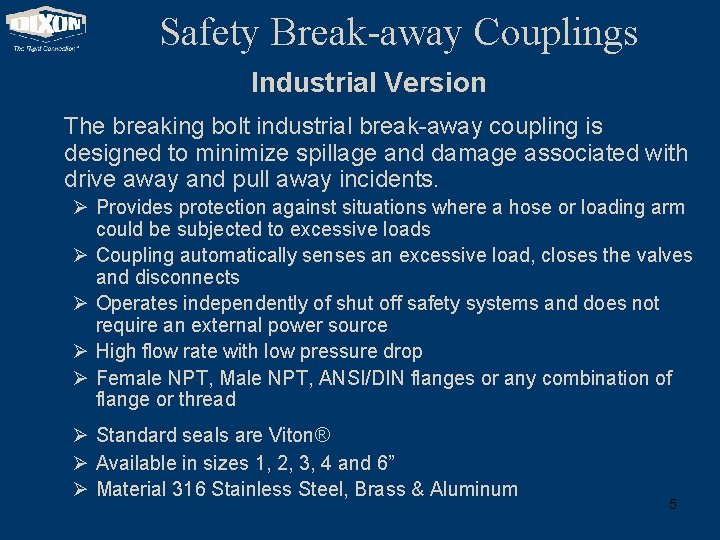

Safety Break-away Couplings Industrial Version The breaking bolt industrial break-away coupling is designed to minimize spillage and damage associated with drive away and pull away incidents. Ø Provides protection against situations where a hose or loading arm could be subjected to excessive loads Ø Coupling automatically senses an excessive load, closes the valves and disconnects Ø Operates independently of shut off safety systems and does not require an external power source Ø High flow rate with low pressure drop Ø Female NPT, Male NPT, ANSI/DIN flanges or any combination of flange or thread Ø Standard seals are Viton® Ø Available in sizes 1, 2, 3, 4 and 6” Ø Material 316 Stainless Steel, Brass & Aluminum 5

Safety Break-away Couplings Key Features Stainless steel breaking bolts Protecting ring in PUR (Vulkollan®) Coupling body and valves in stainless steel, brass and aluminum Viton® O-rings standard, other materials available upon request Stainless steel internal parts Connections: parallel BSP threads with flat sealing surface, tapered internal 6 NPT threads, flanges and Victaulic

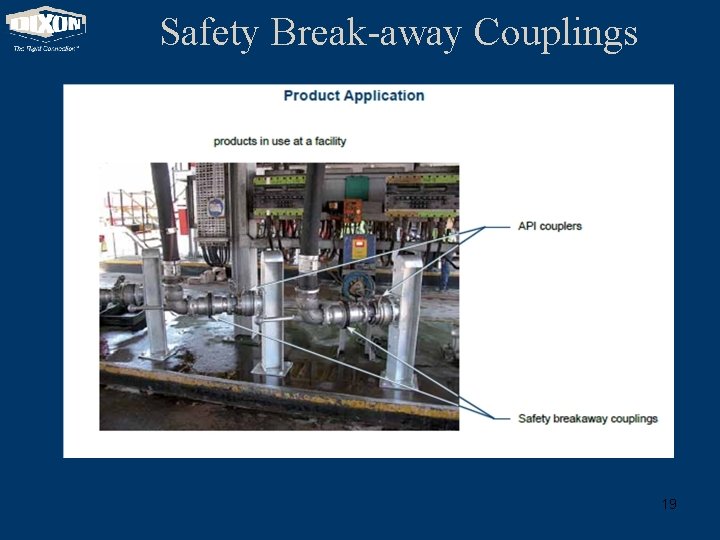

Safety Break-away Couplings Industrial break-aways are typically installed on a loading arm or manifold and hose assemblies, where at least one side of the coupling is attached to a rigid or fixed point. Release with a tensile force being applied at an angle to the plane of the coupling housing, up to 90 degrees. 7

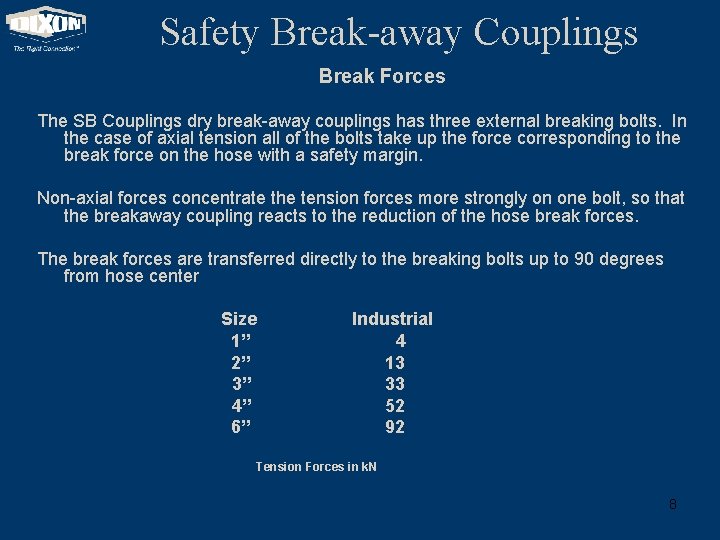

Safety Break-away Couplings Break Forces The SB Couplings dry break-away couplings has three external breaking bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces concentrate the tension forces more strongly on one bolt, so that the breakaway coupling reacts to the reduction of the hose break forces. The break forces are transferred directly to the breaking bolts up to 90 degrees from hose center Size 1” 2” 3” 4” 6” Industrial 4 13 33 52 92 Tension Forces in k. N 8

Safety Break-away Couplings Marine Version MSBC 400 SS Marine break-away couplings are designed specifically to be installed within a hose string between two lengths of hose. This coupling incorporates the same internal mechanism as the Industrial couplings, but has additional features that provide increased resistance to torsional and bending forces which may be applied to the coupling. This make the coupling react only to tension in the hose string and preventing premature activation in the unpredictable marine environment. 9

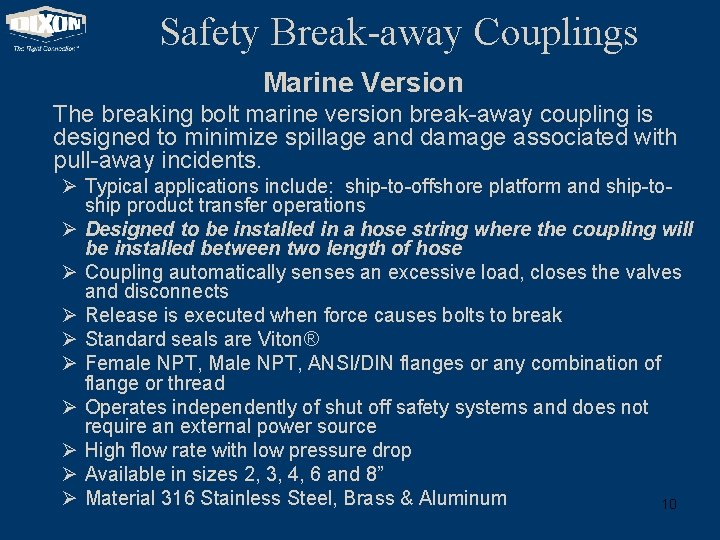

Safety Break-away Couplings Marine Version The breaking bolt marine version break-away coupling is designed to minimize spillage and damage associated with pull-away incidents. Ø Typical applications include: ship-to-offshore platform and ship-toship product transfer operations Ø Designed to be installed in a hose string where the coupling will be installed between two length of hose Ø Coupling automatically senses an excessive load, closes the valves and disconnects Ø Release is executed when force causes bolts to break Ø Standard seals are Viton® Ø Female NPT, Male NPT, ANSI/DIN flanges or any combination of flange or thread Ø Operates independently of shut off safety systems and does not require an external power source Ø High flow rate with low pressure drop Ø Available in sizes 2, 3, 4, 6 and 8” Ø Material 316 Stainless Steel, Brass & Aluminum 10

Safety Break-away Couplings Key Features Stainless steel breaking bolts Protecting ring in PUR (Vulkollan®) Coupling body and valves in stainless steel, brass and aluminum Viton® O-rings standard, other materials available upon request Stainless steel internal parts Connections: parallel BSP threads with flat sealing surface, tapered internal 11 NPT threads, flanges and Victaulic

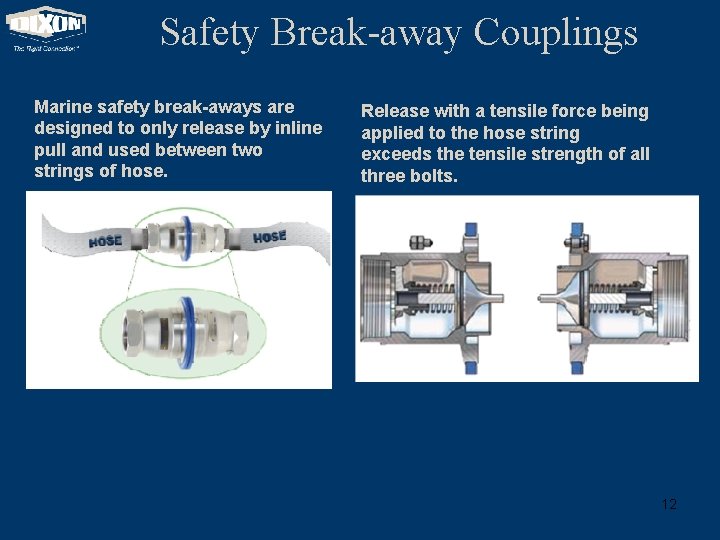

Safety Break-away Couplings Marine safety break-aways are designed to only release by inline pull and used between two strings of hose. Release with a tensile force being applied to the hose string exceeds the tensile strength of all three bolts. 12

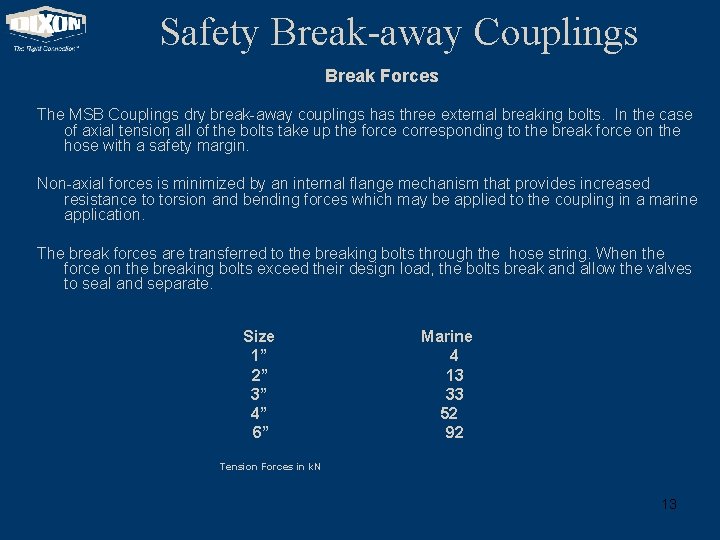

Safety Break-away Couplings Break Forces The MSB Couplings dry break-away couplings has three external breaking bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces is minimized by an internal flange mechanism that provides increased resistance to torsion and bending forces which may be applied to the coupling in a marine application. The break forces are transferred to the breaking bolts through the hose string. When the force on the breaking bolts exceed their design load, the bolts break and allow the valves to seal and separate. Size 1” 2” 3” 4” 6” Marine 4 13 33 52 92 Tension Forces in k. N 13

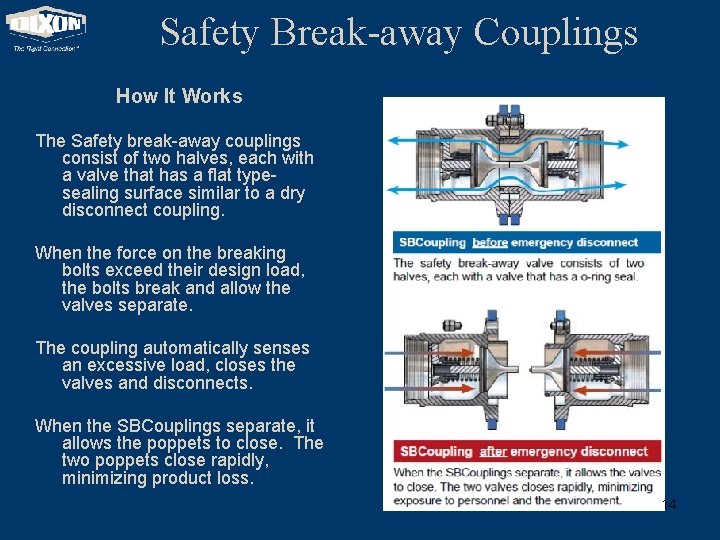

Safety Break-away Couplings How It Works The Safety break-away couplings consist of two halves, each with a valve that has a flat typesealing surface similar to a dry disconnect coupling. When the force on the breaking bolts exceed their design load, the bolts break and allow the valves separate. The coupling automatically senses an excessive load, closes the valves and disconnects. When the SBCouplings separate, it allows the poppets to close. The two poppets close rapidly, minimizing product loss. 14

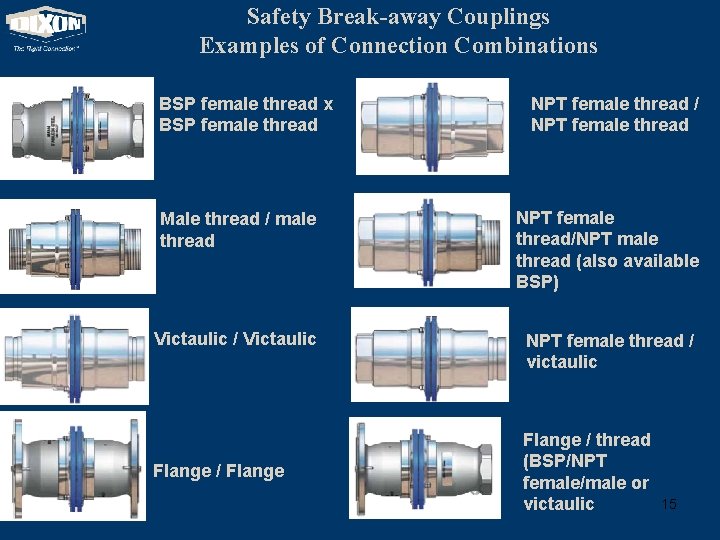

Safety Break-away Couplings Examples of Connection Combinations BSP female thread x BSP female thread NPT female thread / NPT female thread Male thread / male thread NPT female thread/NPT male thread (also available BSP) Victaulic / Victaulic NPT female thread / victaulic Flange / thread (BSP/NPT female/male or victaulic 15

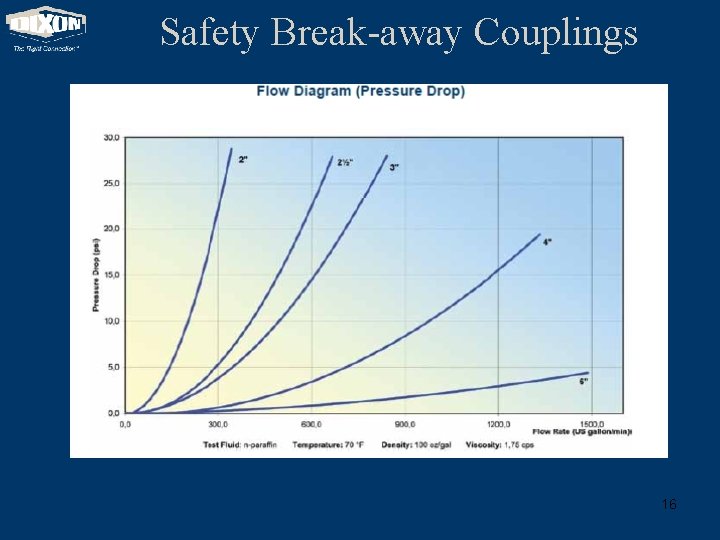

Safety Break-away Couplings 16

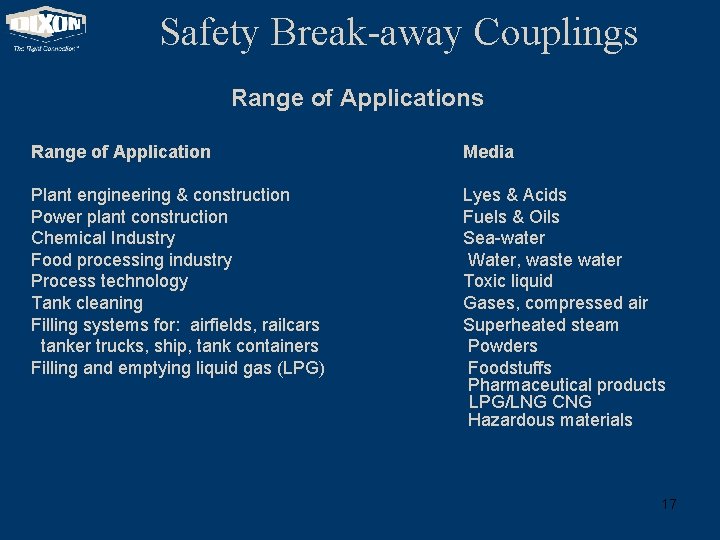

Safety Break-away Couplings Range of Application Media Plant engineering & construction Power plant construction Chemical Industry Food processing industry Process technology Tank cleaning Filling systems for: airfields, railcars tanker trucks, ship, tank containers Filling and emptying liquid gas (LPG) Lyes & Acids Fuels & Oils Sea-water Water, waste water Toxic liquid Gases, compressed air Superheated steam Powders Foodstuffs Pharmaceutical products LPG/LNG CNG Hazardous materials 17

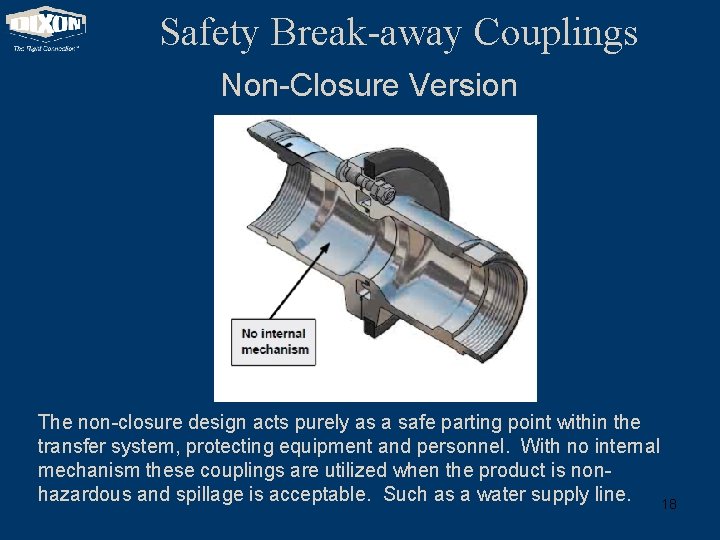

Safety Break-away Couplings Non-Closure Version The non-closure design acts purely as a safe parting point within the transfer system, protecting equipment and personnel. With no internal mechanism these couplings are utilized when the product is nonhazardous and spillage is acceptable. Such as a water supply line. 18
