connect your engineering data with EPICOR production data
- Slides: 22
“…connect your engineering data with EPICOR production data directly…”
QBuild Software Solution Products CADLink. CAD Interface system that connects your design information to Epicor 9, Vantage and Vista. ECN Manager Ties your Epicor Solution CAD information with your Engineering change process.
CAD Systems CADLink interface enables integration with the below leading CAD systems: ü Auto. CAD ü CATIA ü Inventor ü Pro-E ü Solid. Edge ü Solid. Works QBuild began in 1995 with a simple Auto. CAD ERP link. Today QBuild successfully integrates with a number of ERP systems, providing CAD ERP link with leading ERP providers including Epicor.
Linking Epicor and CAD Data
Benefits Reduce engineering costs – Reduce non value-added engineering activities – Double and triple data entries are eliminated Improve accuracy from engineering to production • • Reduce scrap Improve purchasing accuracy Eliminate “wrong build” situations Improve on time shipments
Features Direct link to Epicor – Push Epicor description on drawing – Push revision information to CAD and Epicor database – Item, BOM and operations updates from within your CAD system – Other database interfacing – Tie critical dimensions to Epicor BOM information
CADLink
CADLink
CADLink Discrepancy between CAD and Epicor Data are highlighted Bill Of Material information is pulled from Models or Drawings and displayed for the Engineer in this grid.

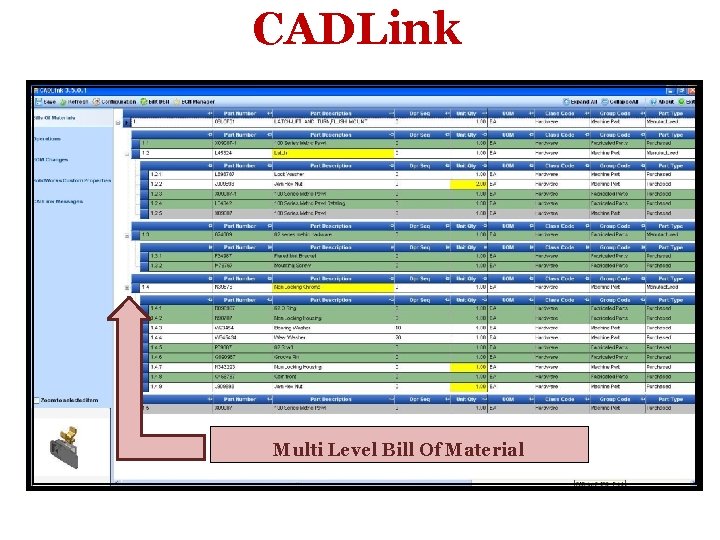

CADLink Multi Level Bill Of Material

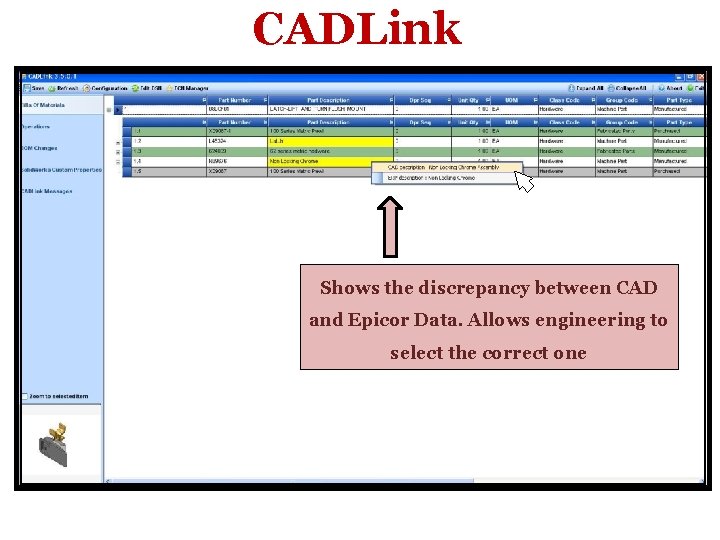

CADLink Shows the discrepancy between CAD and Epicor Data. Allows engineering to select the correct one

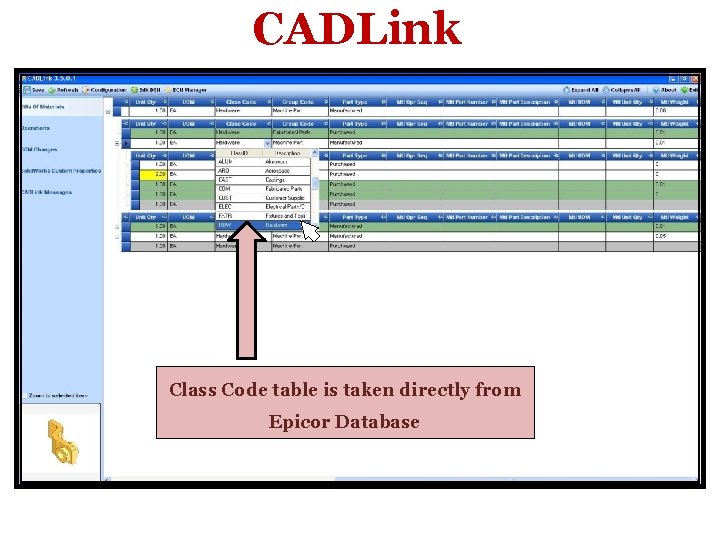

CADLink Class Code table is taken directly from Epicor Database
CADLink Group Code table is taken directly from Epicor Database
CADLink Epicor Raw Material data is accessible directly from CADLink
CADLink Epicor Routing data created directly from within CADLink
CADLink Engineering can select the specific operation for each assembly component
CADLink Bill of Material Changes Summary shows only the BOM changes that will be made to Epicor
CADLink Solid. Works Custom Properties for the entire assembly conveniently summarized in a single tab
CADLink can be configured to suit your requirements
ECN Manager • Extends CADLink functionality with change processing • Supports your engineering change processes • Promotes visibility of changes
QBuild Software Solution Products CADLink CAD Interface system that connects your design information to Epicor ECN Manager Ties your Epicor Solution CAD information with your Engineering change process
Contact for Sales and Consulting: Geovanna Pazmino Applications Engineer QBuild C O R P O R A T I O N 145 Renfrew Drive, Unit 140 | Markham, ON L 3 R 9 R 6 | CANADA Phone +1 905 479 7811 EXT 224 Fax +1 905 479 2636 Email: geovanna. pazmino@qbuildsoftware. com www. qbuildsoftware. com
