Congenital Anomalies Department of Neurosurgery Faculty of Medicine

Congenital Anomalies Department of Neurosurgery Faculty of Medicine, Alexandria University

Congenital Anomalies 1 - Spinal: Congenital Anomalies Spinal Dysraphism 2 - Cranial Craniosynostosis Hydrocephalus Encephalocele Arnold Chiari malformation Dandy walker cyst Arachnoid cyst

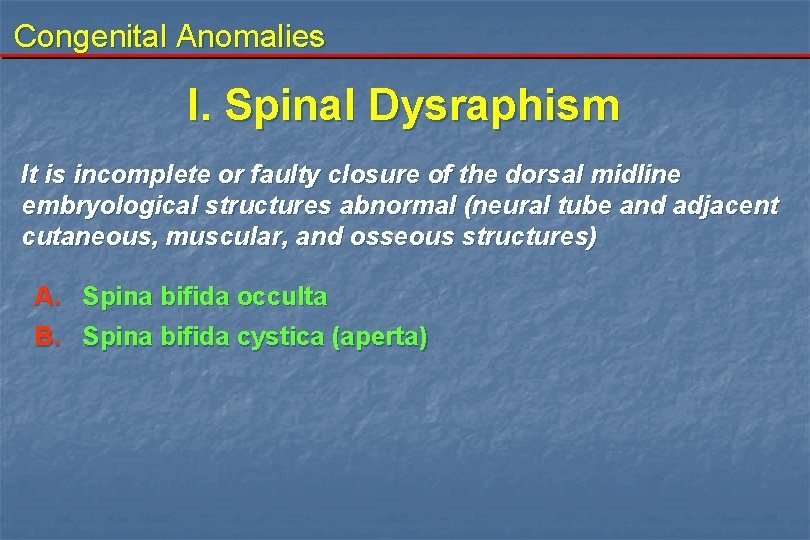

Congenital Anomalies I. Spinal Dysraphism It is incomplete or faulty closure of the dorsal midline embryological structures abnormal (neural tube and adjacent cutaneous, muscular, and osseous structures) A. Spina bifida occulta B. Spina bifida cystica (aperta)

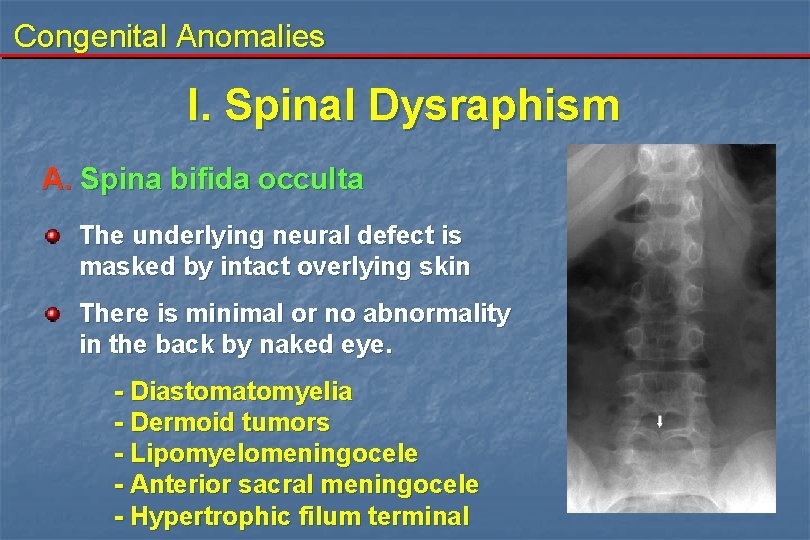

Congenital Anomalies I. Spinal Dysraphism A. Spina bifida occulta The underlying neural defect is masked by intact overlying skin There is minimal or no abnormality in the back by naked eye. - Diastomatomyelia - Dermoid tumors - Lipomyelomeningocele - Anterior sacral meningocele - Hypertrophic filum terminal

Congenital Anomalies I. Spinal Dysraphism Diastomatomyelia: - It consists of duplication of the spinal cord, separated by a bony spur which can stretch neural structure. Management: - Excision of the bony spur.

Congenital Anomalies I. Spinal Dysraphism Lipomyelomeningocele : - It consists of mass covered by skin and lipomatus tissue extends intradurally. Present with: - sphincteric disturbances - progressive motor deficit - sensory deficit - back pain - progressive scoliosis

Congenital Anomalies I. Spinal Dysraphism Lipomyelomeningocele : Management: - the primary aim is to untether the spinal cord. - remove the lipoma as completely as possible.

Congenital Anomalies I. Spinal Dysraphism Hypertrophic filum terminal Management: - Division of the hypertrophied filum terminal

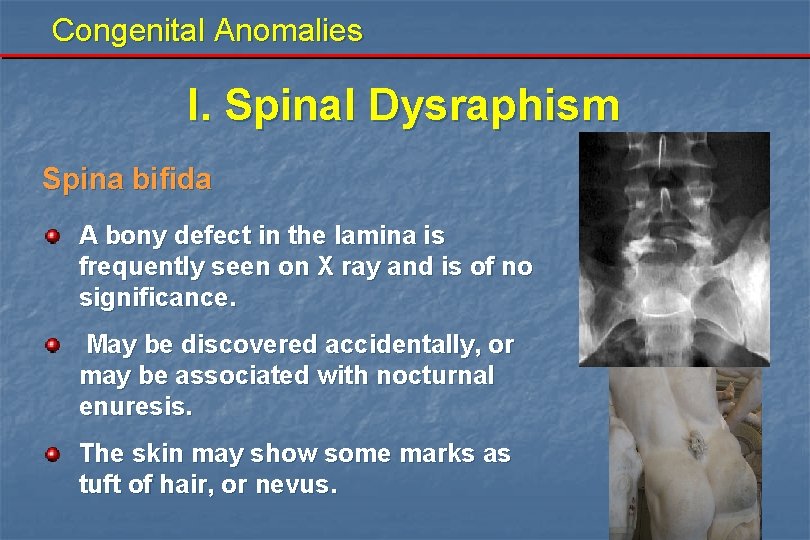

Congenital Anomalies I. Spinal Dysraphism Spina bifida A bony defect in the lamina is frequently seen on X ray and is of no significance. May be discovered accidentally, or may be associated with nocturnal enuresis. The skin may show some marks as tuft of hair, or nevus.

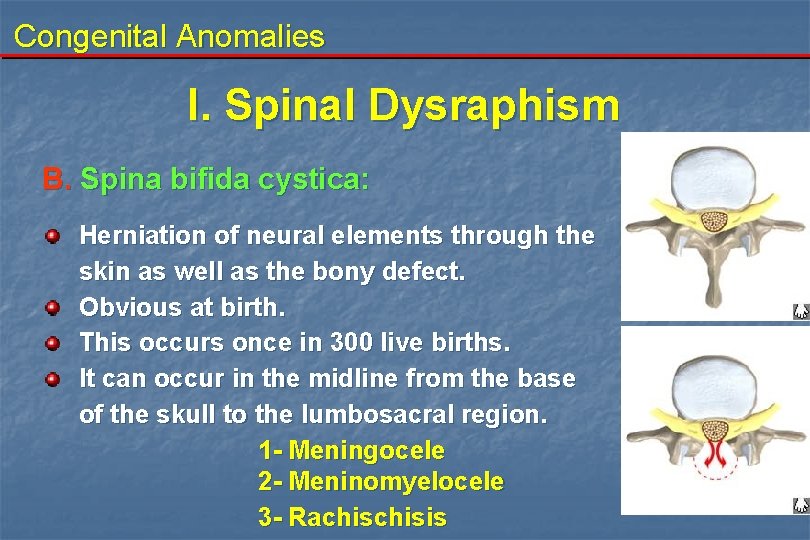

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: Herniation of neural elements through the skin as well as the bony defect. Obvious at birth. This occurs once in 300 live births. It can occur in the midline from the base of the skull to the lumbosacral region. 1 - Meningocele 2 - Meninomyelocele 3 - Rachisis

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: 1. Meningocele: - - It is cystic lesion containing only meninges and CSF without any nervous tissue. Survival without disability is the rule, and hydrocephalus seldom developed.

Congenital Anomalies Meningocele

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: 1. Meningocele: - - The swelling may already be covered with skin at birth or with membrane. Excision is simple and free from risk

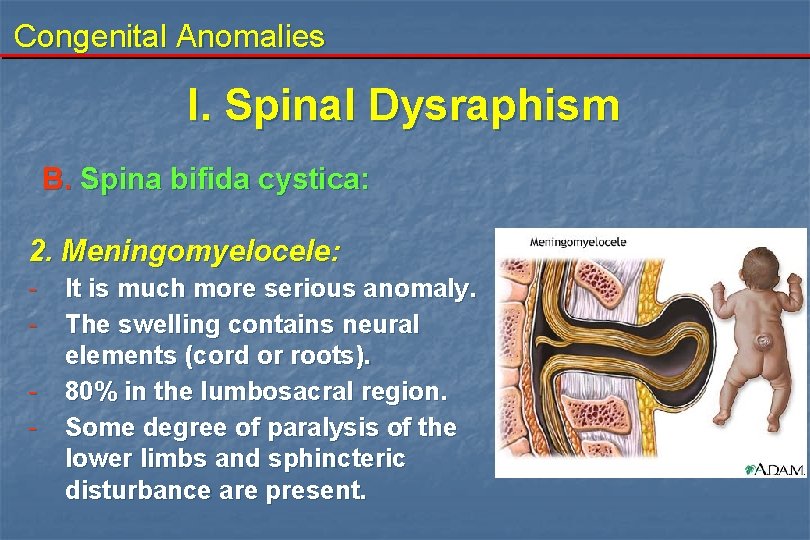

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: 2. Meningomyelocele: - It is much more serious anomaly. The swelling contains neural elements (cord or roots). 80% in the lumbosacral region. Some degree of paralysis of the lower limbs and sphincteric disturbance are present.

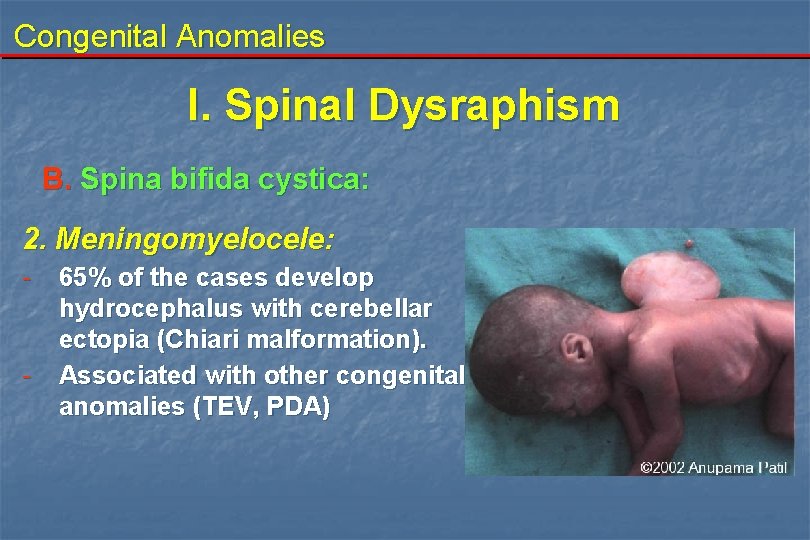

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: 2. Meningomyelocele: - - 65% of the cases develop hydrocephalus with cerebellar ectopia (Chiari malformation). Associated with other congenital anomalies (TEV, PDA)

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: 3. Rachisis: - Meninges are absent and CSF leaks

Congenital Anomalies I. Spinal Dysraphism Examination: 1 - Swelling: - - since birth - cystic swelling - in the midline , moe common in the lumbosacral region - cross flactuation with anterior fontanelle - bulge on crying - ruptures →CSF leak - transillumiation (depends upon the type) - ruptures →CSF leak 2 - Neurological: - motor - sphincteric 3 - Other systems (Head, GIT, GU, CVS, foot)

Congenital Anomalies I. Spinal Dysraphism Investigations: 1. Prenatal diagnosis: - Foetal U/S - alpha foetoprotein measured in: - maternal serum - amniotic fluid 2. Plain X-ray 3. CT scan 4. MRI

Congenital Anomalies I. Spinal Dysraphism B. Spina bifida cystica: Treatment: 1 - Treatment requires: - excision of the sac - replacement of the neural tissues into the spinal canal (in case of meningomyelocele) - watertight closure of the dura to prevent infection - coverage of the defect with muscle, fascia and skin 2 - Treatment of other associated anomalies 3 - Treatment requires a multidisciplinary approach

Congenital Anomalies I. Spinal Dysraphism 1 - Treatment requires: - excision of the sac

Congenital Anomalies I. Spinal Dysraphism 1 - Treatment requires: - replacement of the neural tissues into the spinal canal (in case of meningomyelocele)

Congenital Anomalies I. Spinal Dysraphism 1 - Treatment requires: - watertight closure of the dura to prevent infection

Congenital Anomalies I. Spinal Dysraphism 1 - Treatment requires: - coverage of the defect with muscle, fascia and skin

Congenital Anomalies II. Craniosynostosis Premature closure of one or more of the cranial sutures results in restricted growth of bone at the suture line.

TIMING OF CLOSURE

Congenital Anomalies II. Craniosynostosis The clinical features of Craniosynostosis are related to: A. The cranial deformity B. Underlying brain compression C. Presence of associated congenital anomalies

Congenital Anomalies II. Craniosynostosis Types of Craniosynostosis : A. Sagittal synostosis B. Coronal synostosis C. Lambdoid synostosis D. E. Metopic synostosis Pansynostosis

Congenital Anomalies II. Craniosynostosis 1. Sagittal synostosis: Most frequent. This deformity is called "Scaphecephaly". Head is elongated anteroposteriorly. Produces long narrow head with frontal bossing

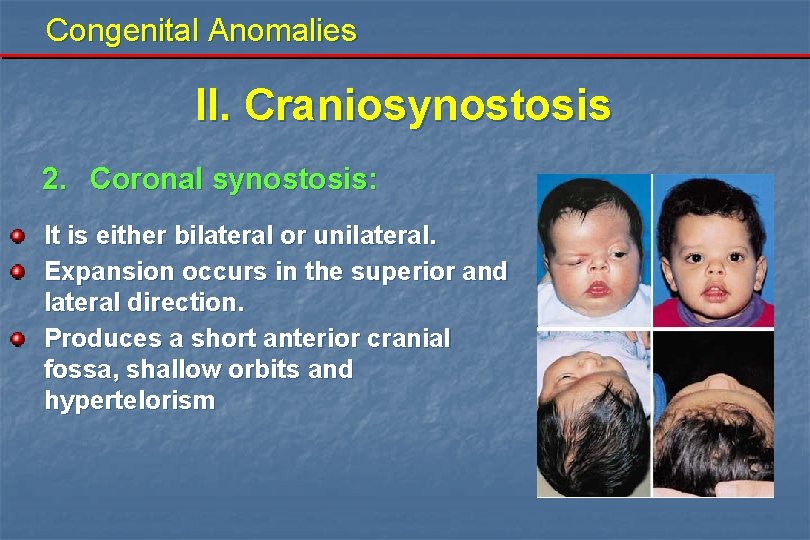

Congenital Anomalies II. Craniosynostosis 2. Coronal synostosis: It is either bilateral or unilateral. Expansion occurs in the superior and lateral direction. Produces a short anterior cranial fossa, shallow orbits and hypertelorism

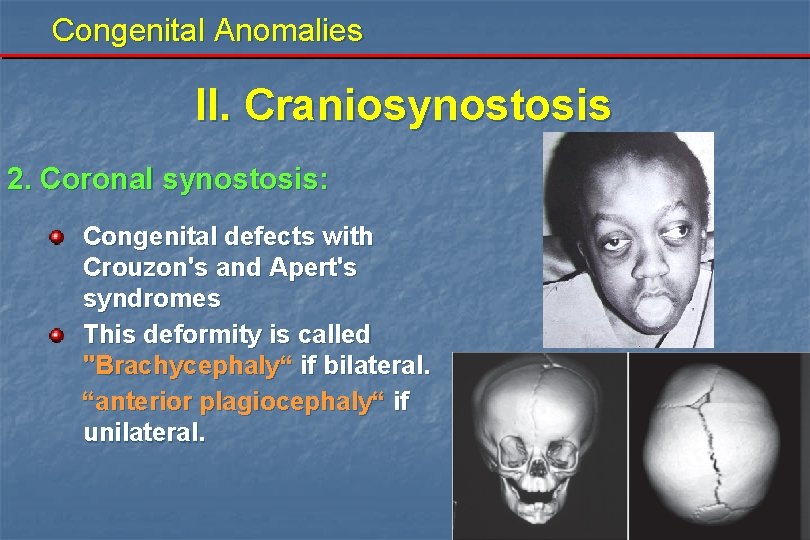

Congenital Anomalies II. Craniosynostosis 2. Coronal synostosis: Congenital defects with Crouzon's and Apert's syndromes This deformity is called "Brachycephaly“ if bilateral. “anterior plagiocephaly“ if unilateral.

Congenital Anomalies II. Craniosynostosis 3. Lambdoid synostosis: - Produces flattening of the posterior cranium The deformity is called “Posterior Brachycephaly“ if bilateral. “posterior Plagiocephaly“ if unilateral.

Congenital Anomalies II. Craniosynostosis 4. Metopic synostosis: - Produces a deformity called trigonocephaly

Congenital Anomalies II. Craniosynostosis 5. Pansynostosis: Produces a deformity called Oxycephaly

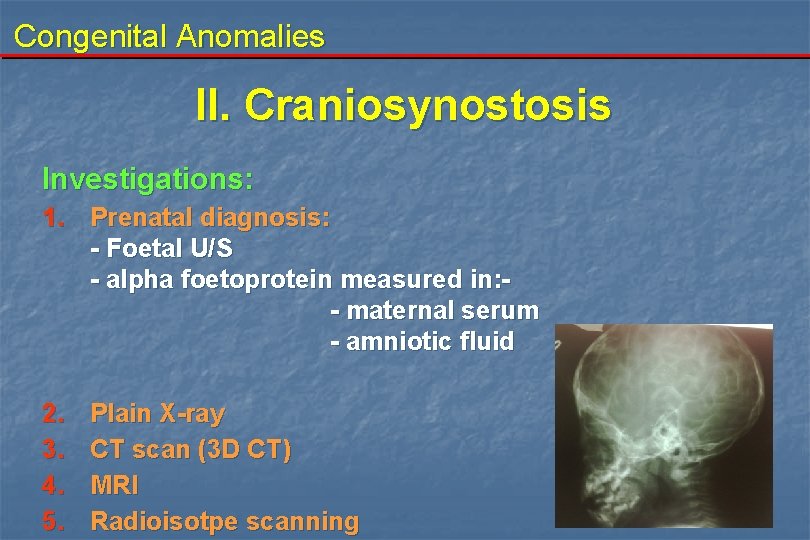

Congenital Anomalies II. Craniosynostosis Investigations: 1. Prenatal diagnosis: - Foetal U/S - alpha foetoprotein measured in: - maternal serum - amniotic fluid 2. 3. 4. 5. Plain X-ray CT scan (3 D CT) MRI Radioisotpe scanning

Congenital Anomalies II. Craniosynostosis Treatment: Surgery is performed to: 1 - correct the cranial deformity 2 - relieve the effects of cranial compression Surgery include: 1 - simple ressection of the suture 2 - extensive craniofacial surgery, correcting both cranial and orbital deformities.

Congenital Anomalies

Congenital Anomalies

Congenital Anomalies

Congenital Anomalies

Congenital Anomalies III. Hydrocephalus It is the abnormal enlargement of the ventricles due to abnormal increase in the CSF volume, with or without pressure rise, resulting from increased secretion, impaired absorption or obstruction of the CSF pathway.

Congenital Anomalies III. Hydrocephalus Cerebrospinal fluid formation and absorption: CSF is normally a clear colorless fluid with: A specific gravity of 1. 007 and a p. H of 7. 33 -7. 35. Produced by the choroid plexus of the lateral , 3 rd and 4 th ventricles. CSF forms at a rate of 500 ml/day. Normal CSF pressure is 10 -15 mm. Hg CSF flows in a caudal direction through the ventricular system.

Congenital Anomalies CSF pathway

Congenital Anomalies CSF pathway

Congenital Anomalies III. Hydrocephalus Classification: 1. Obstructive (non communicating) 2. Non obstructive (communicating)

III. Hydrocephalus 1 - Obstructive (non communicating): No communication between he CSF inside the ventricle and that in the subarachnoid space due to obstruction of CSF flow within the ventricular system; block proximal to the arachnoid granulation Causes: - Congenital aqueductal stenosis - Dandy- Walker syndrome - Acquired - Tumors - Intraventricular hemorrhage

III. Hydrocephalus 2 - Non obstructive (communicating): There is communication between he CSF inside the ventricle and that in the subarachnoid space due to obstruction of CSF flow outside the ventricular system; block at the arachnoid granulation Causes: - Congenital absence of AG - Excessive CSF production (choroid plexus tumors) - Acquired - Infection - SAH

Congenital Anomalies III. Hydrocephalus Clinical presentation of hydrocephalus: in infants and young children: - The cranium enlarges at a rate more than the facial growth. Progressive increase in the skull circumference (compared with the normal growth curve). Tense and bulging anterior fontanelle. Widely separated sutures. Thin scalp with dilated veins. Irritability and poor head control. 6 th nerve palsy.

Congenital Anomalies III. Hydrocephalus in infants and young children: - Macewen’s sign which is the cracked pot sound on percussing over the dilated ventricles. - Sun set sign: (upward gaze palsy = Parinaud’s syndrome) due to pressure of the supra pineal recess of the dilated third ventricle on the tectum of the midbrain. - Acute onset: Irregular respiration with apneic spells, impaired conscious level and vomiting. - Gradual onset: Mental retardation, failure to thrive, endocrinopathy, poor school performance.

Congenital Anomalies III. Hydrocephalus Clinical presentation of hydrocephalus: In adults: - Manifestations of increased ICP including: - headache - vomiting - blurring of vision due to papilloedema - drowsiness - gait disturbance, ataxia, nystagmus - diplopia due to 6 th nerve palsy

Congenital Anomalies III. Hydrocephalus Differential diagnosis: Chronic infantile subdural hematoma. Familial. Rickets. Space occupying lesion (tumors, abscess, cyst).

Congenital Anomalies III. Hydrocephalus Investigations: 1. Prenatal diagnosis: - Foetal U/S - alpha foetoprotein measured in: - maternal serum - amniotic fluid 2. Plain X-ray - copper beaten appearance - separated sutures 3. U/S - through the anterior fontanelle - less precise than CT

Congenital Anomalies III. Hydrocephalus Investigations: 4. CT scan: - Most commonly used - Detect the pattern of ventricular enlargement - Helps to determine the cause

Congenital Anomalies III. Hydrocephalus Investigations: 5. MRI: - Shows the pattern of ventricular enlargement - provides excellent information about the exact position and extent of lesions. - Demonstrate periventricular lucency - Phase contrast cine MRI technique can be used to study CSF flow dynamics

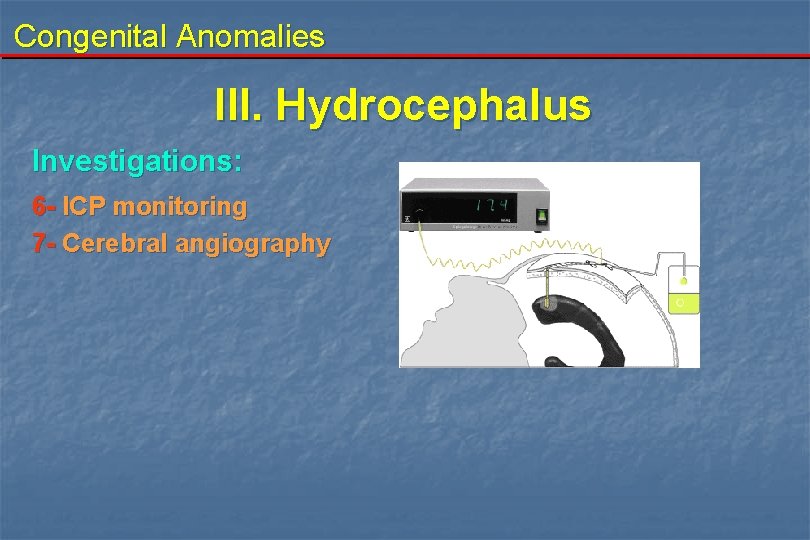

Congenital Anomalies III. Hydrocephalus Investigations: 6 - ICP monitoring 7 - Cerebral angiography

Congenital Anomalies III. Hydrocephalus Management: Surgical options for treating hydrocephalus: 1. Medical treatment - use as a temporary measure before surgery - consists of diuretic therapy 1. Surgical treatment a- Elimination of the obstructing cause b- Shunting techniques c- Endoscopic procedures

Congenital Anomalies III. Hydrocephalus 2. Surgical treatment a. Elimination of the obstructing cause: - For example the removal of the posterior fossa tumor may restore the C S F pathway.

Congenital Anomalies III. Hydrocephalus b- Shunting techniques: A. Obstructive (non communicating) hydrocephalus: n n B. Torkildsen shunt. Third ventriculostomy. Non obstructive (communicating) hydrocephalus: n n Thecoperitoneal shunt. Thecopleural shunt. C. All types of hydrocephalus: n n n Ventriculoperitoneal shunt. Ventriculoatrial shunt. Ventriculopleural shunt

Congenital Anomalies Ventriculoperitoneal shunt

Congenital Anomalies Thecoperitoneal shunt

Congenital Anomalies Torkildsen shunt

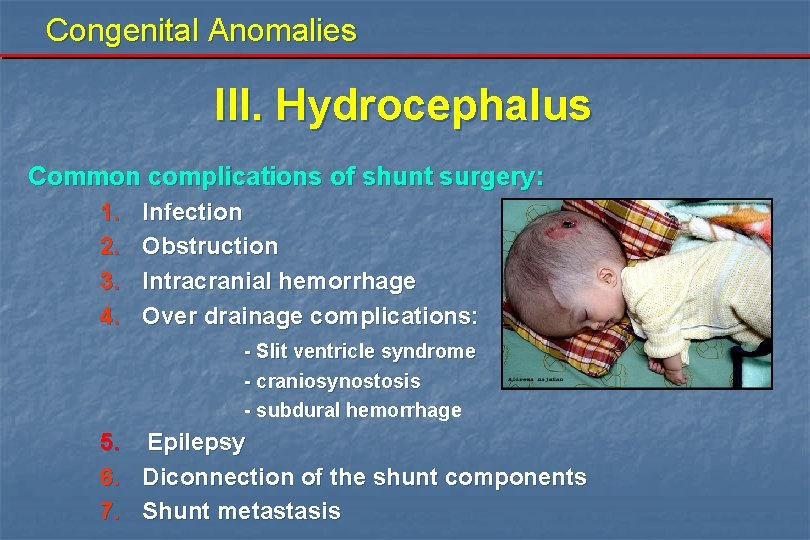

Congenital Anomalies III. Hydrocephalus Common complications of shunt surgery: 1. 2. 3. 4. Infection Obstruction Intracranial hemorrhage Over drainage complications: - Slit ventricle syndrome - craniosynostosis - subdural hemorrhage 5. Epilepsy 6. Diconnection of the shunt components 7. Shunt metastasis

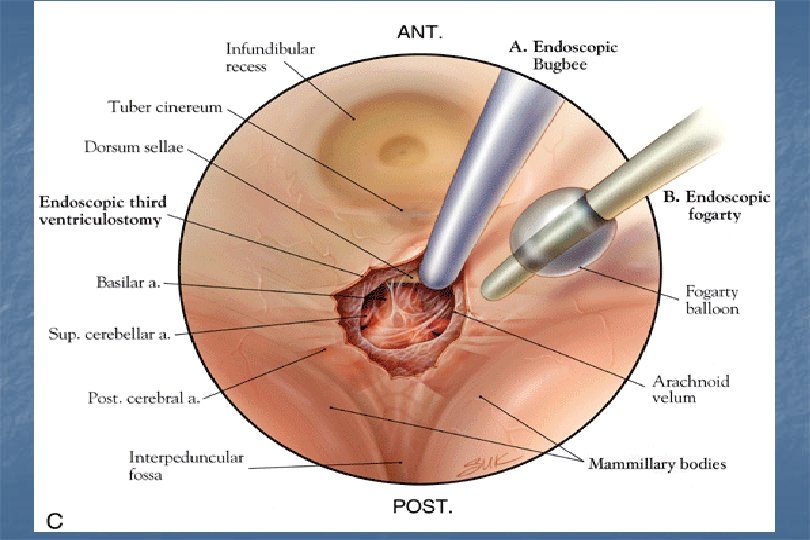

Congenital Anomalies III. Hydrocephalus c. Endoscopic procedures 1. Third ventriculostomy: Is an internal diversionary procedure in which the CSF is diverted from the ventricular system to the prepontine cistern, through a stoma done by cranioscope in the floor of the third ventricle. 2. Aquiductoplasty: Cases of aqueductal stenosis can be treated effectively by endoscopic reconstruction of the stenosed aqueduct.

Congenital Anomalies Third ventriculostomy

Congenital Anomalies III. Hydrocephalus Complications of Third ventriculostomy: - Hypothalamic injury - Traumatic basilar artery aneurysm - Uncontrolled bleeding - Cranial nerve palsies -

Congenital Anomalies Encephalocele

Congenital Anomalies Arnold Chiari malformation Downward herniation of the cerebellar tonsils and brain stem through the foramen magnum

Congenital Anomalies Dandy Walker cyst

Congenital Anomalies Arachnoid cyst

Data show design & preparation by : Dr. El-Sayed Amr - (012) 3106023

Congenital Anomalies III. Hydrocephalus Pathlogical effects: Raised ICP. White matter damage leading to scaring. Grey matter damage. In infants before sutures fusion; head expansion, massive ventricular dilatation leaving a thin rim of cerebral mantle. Death occurs in untreated cases. Sometimes hydrocephalus arrests.

Congenital Anomalies III. Hydrocephalus Investigations: Phase contrast cine MRI technique can be used to study CSF flow dynamics in normal as well as in communicating and noncommunicating hydrocephalus.

CSF pathway Lv TV FV CM

Congenital Anomalies I. Spinal Dysraphism A. Spina bifida occulta Surgery includes: 1. Excision of dermoid sinus and extraction of intraspinal dermoid. 2. Excision of intraspinal lipoma. 3. Division of hypertrophied filum terminal. 4. Excision of bony spur in diastomatomyelia.

Congenital Anomalies
