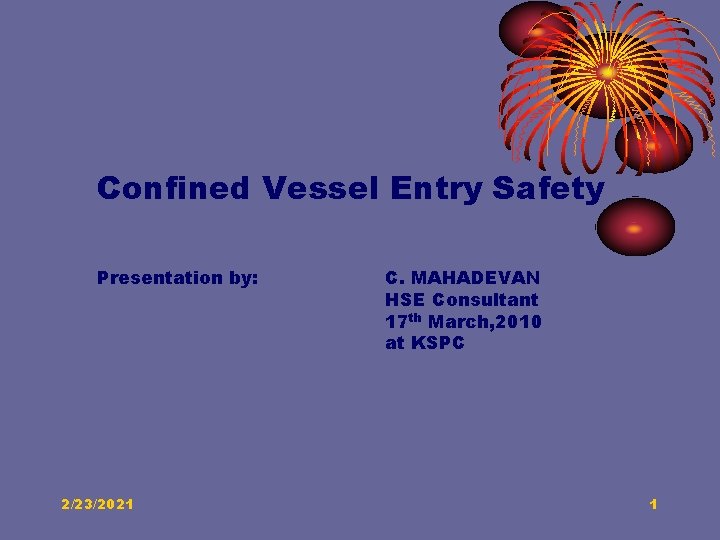

Confined Vessel Entry Safety Presentation by: 2/23/2021 C. MAHADEVAN HSE Consultant 17 th March, 2010 at KSPC 1

2/23/2021 2

. WHAT IS A CONFINED SPACE? A space large enough for entry and where dangerous fumes or a deficiency of Oxygen may be present involving risk to persons going inside. Or inside space of any tank, large pipeline, sewer etc in which any gas , fume, vapor, dust is likely to be present to such an extent so as to involve risk to persons going inside. WHAT IS ENTRY? Entry inside including insertion of a person’s head. 2/23/2021 3

. Important points before/ while entering a confined space: 1 Cleaning by 10% caustic soda solution for hydrocarbon / 2 with warming at 60 degree c where required. 2 Drain to effluent after neutralization. 3 Water wash at 60 degree c 4 Use of a suitable ladder to enter inside 5 If inside is dark, use only of 24 V lamp, single cable with out joint and bulb having a proper cover. Flame proof light for zone 1, 2 areas. 2/23/2021 4

6 Avoid persons having heart ailment. For going. inside. 7 Also have medical examination of those using self contained breathing apparatus frequently. (Lung Function test). 8 How long the confined vessel permit is valid? General shift or 8 hours? 9 Must be renewed every day with gas tests and checking for any other hazards. (Incident of H 2 S inside an empty vessel next day morning due to leak of nearby pipe line. ) 10 If any item falls inside a confined vessel, do not enter inside without informing any body and following the procedure. Tendency is to get 2/23/2021 inside without telling anybody to collect the item. 5

12 Beware of Nitrogen gas!. Colorless, odorless, INERT. But silent killer. 13 For purging LPG or other gases, nitrogen or CO 2 are used. Never allow entry after purging nitrogen or CO 2 WITHOUT again testing oxygen and ensuring it is 20%. 14 Once permit to work is issued, issuer should not do any other work in the equipment. Permit means handing over an equipment after making it as safe as possible, mentioning any residual Hazards and precautions to take. 15 Follow system of marking all equipment identification with numbers for easy follow up. 2/23/2021 16 Ensure to warn/ sound Emergency alarm during 6

STATUTORY REGULATIONS: FACTORIES ACT 1987, SECTION 36: PRECAUTION AGAINST DANGEROUS FUMES, GASES ETC. NO PERSON SHALL BE REQUIRED OR ALLOWEDTO ENTER CONFINED SPACE IF THERE IS RISK TO THE PERSON. VESSEL MUST HAVE MANOLE COVER OF ADEQUATE SIZE. DO NOT ALLOW PERSON TO ENTER TILL ALL PRACTICAL MEASURES ARE TAKEN TO REMOVE FUMES, GASES 7 2/23/2021 ETC ARE

SUCH PERSON MUST BE WEARING SUITABLE BREATHING APPARATUS AND A BELT SECURELY ATTACHED TO A ROPE, THE FREE END OF WHICH IS HELD BY THE STANDBY PERSON OUTSIDE CONFINED VESSEL. THERE MUST A WRITTEN PROCEDURE FOR CLOSED VESSEL ENTRY COVERING ALL THESE AND IT MUST BE STRICTLY FOLLOWED. THE PROCEDURE MUST BE AUDITED TO ENSURE IT IS 2/23/2021 FOLLOWED STRICTLY. KEEP RECORD OF SUCH AUDITS AND 8

. THE VESSEL, WHILE TRYING TO SCRAP IT OUT OR CLEAN IF SLUDGE IS PRESENT INSIDE IT, TOXIC GASES MAY COME , ENSURE TO WEAR A SUITABLE NOSE RESPIRATOR. ASK THE PERSON TO COME OUT IN CASE OF ANY EMERGENCY. STANDBY PERSON SHOULD NOT LEAVE TILL THE PERSON FROM INSIDE THE VESSEL HAS COME OUT. 2/23/2021 9

Statutory regulation: KERALA Factories Rules, section 88, Rule 181: Entry in to vessel (a) Before any person enters for any purpose except rescue, any absorber, boiler, culvert, drain, flue gas purifier, sewer, still, tank, tower, vitriol chamber, other place where there is reason to apprehend the presence of dangerous gas or fume, a responsible person appointed in writing by the occupier for the purpose, shall certify in writing in a book kept for the purpose either that such place is isolated and sealed from every source of such gas or fume and is free from 2/23/2021 danger, or that it is not so isolated and sealed and 10

No person shall enter any such place which is certified not to be isolated and sealed and free from danger unless : he is wearing a breathing apparatus and (when there are no cross stays or obstructions likely to cause entanglement) a life-belt, the free end of the rope attached to which shall be left with a man outside, whose sole duty shall be to keep watch and to draw out the wearer if he appears to be affected by gas or fume. The belt and rope shall be so adjusted and worn 2/23/2021 that the wearer can be drawn up head foremost through any manhole or opening. 11

KERALA Factories Rules, Section 88, Rule 181: RULE 77: Minimum dimension of manholes: Every chamber tank, vat, pipe, flue or other confined space in which persons have to enter and which may contain dangerous fume to such an extent so as to involve risk of the persons shall, unless there is other effective means of regress, be provided with 2/23/2021 which may be rectangular, oval a manhole or 12

Formats / registers of competent persons who authorizes entry must be maintained by companies. Any confined vessel entry details must be entered in the register with signature of competent person approving the entry. 2/23/2021 13

What are some emergency response precautions? Rescue procedures should begin immediately under two conditions: 1 Hazardous condition arises. 2 Worker inside is unable to leave the confined space. Entrust rescue procedures job to a qualified Safety watch in confined space. Shall be available immediately outside the confined space for to provide emergency assistance if needed. Safety watch should be familiar with the 2/23/2021 structural design of the confined space. 14

He will have an alarm for calling for help. Have all required rescue equipment like safety harness, lifting equipment, a life line immediately available and be trained to use them. Hold a basic first aid certificate. Can do cardiopulmonary Resuscitation (CPR) Rescue the victims from outside of the confined space, if possible. NO OTHER WORKER SHOULD ENTER A CONFINED SPACE TO ATTEMPT TO RESCUE unless that worker is fully trained in the rescue procedures and is wearing required PPE. More than 60% deaths in confined space are due to rescuers, who are not fully trained and adequately equipped. 2/23/2021 15

Another worker qualified in confined space rescue must be present outside before the first rescuer enters the confined space. Do not use the same air as the workers in confined space you are rescuing. Wear SCBA or supplied air respirator. Workers training is extremely important. Hands-on training should be an essential part of the confined space training. REMEMBER IF YOU GET IT WRONG YOU COULD KILL SOMEBODY!!! 2/23/2021 16
