CONFINED SPACE RESPIRATORY PROTECTION BiWeekly Safety Meeting November
![CONFINED SPACE / RESPIRATORY PROTECTION Bi-Weekly Safety Meeting November 1, 2012 CONFINED SPACE / RESPIRATORY PROTECTION Bi-Weekly Safety Meeting November 1, 2012](https://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-1.jpg)

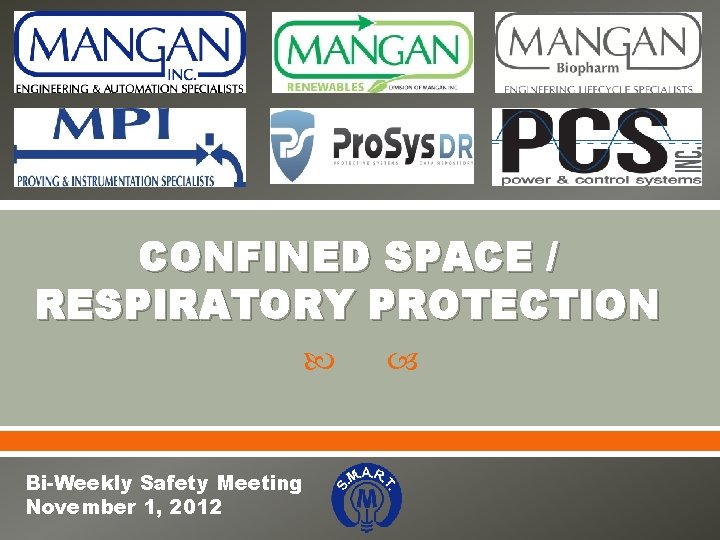

CONFINED SPACE / RESPIRATORY PROTECTION Bi-Weekly Safety Meeting November 1, 2012
![CONFINED SPACE - DEFINITION 1. Is large enough and so configured that an employee CONFINED SPACE - DEFINITION 1. Is large enough and so configured that an employee](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-2.jpg)

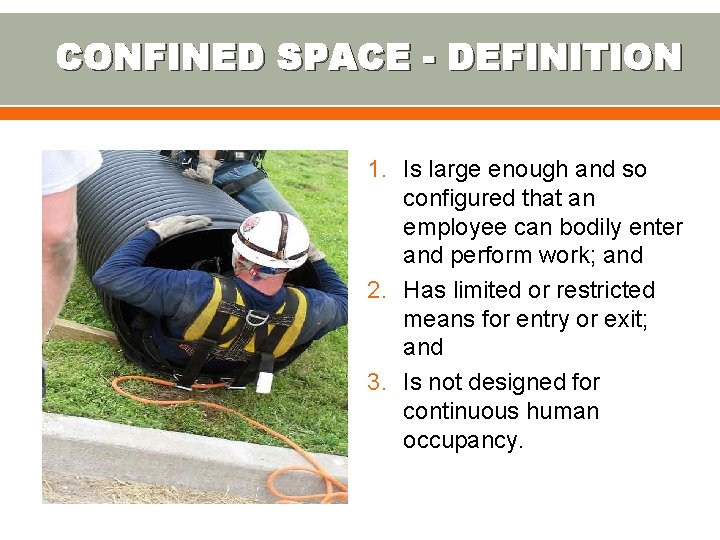

CONFINED SPACE - DEFINITION 1. Is large enough and so configured that an employee can bodily enter and perform work; and 2. Has limited or restricted means for entry or exit; and 3. Is not designed for continuous human occupancy.
![PERMIT-REQUIRED CONFINED SPACE - DEFINITON 1. Contains or has a potential to contain a PERMIT-REQUIRED CONFINED SPACE - DEFINITON 1. Contains or has a potential to contain a](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-3.jpg)
PERMIT-REQUIRED CONFINED SPACE - DEFINITON 1. Contains or has a potential to contain a hazardous atmosphere; 2. Contains a material that has the potential for engulfing an entrant; 3. Has an internal configuration such that an entrant could be trapped or asphyxiated by inwardly converging walls or by a floor which slopes downward and tapers to a smaller cross-section; or 4. Contains any other recognized serious safety or health hazard (such as unguarded machinery, exposed live wires, or heat stress).
![CONFINED SPACE - EXAMPLES q Confined spaces include… § Manholes § Tanks § Ducts CONFINED SPACE - EXAMPLES q Confined spaces include… § Manholes § Tanks § Ducts](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-4.jpg)

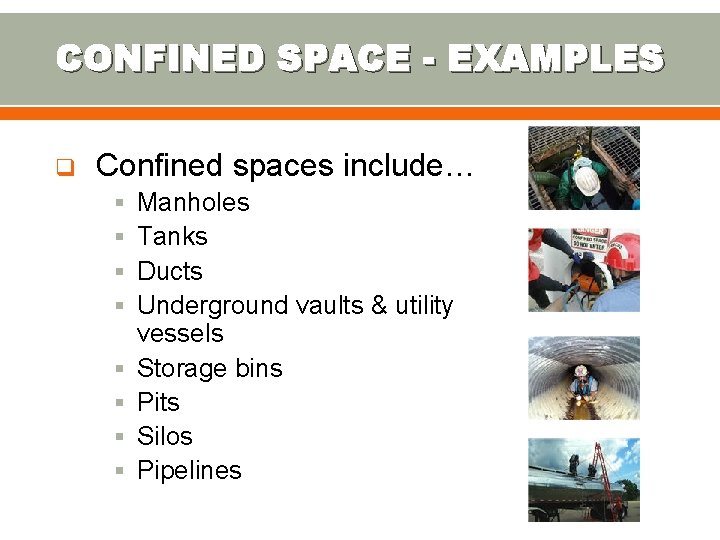

CONFINED SPACE - EXAMPLES q Confined spaces include… § Manholes § Tanks § Ducts § Underground vaults & utility § § vessels Storage bins Pits Silos Pipelines
![CONFINED SPACE - ENTRY Action by which person passes through an opening into a CONFINED SPACE - ENTRY Action by which person passes through an opening into a](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-5.jpg)

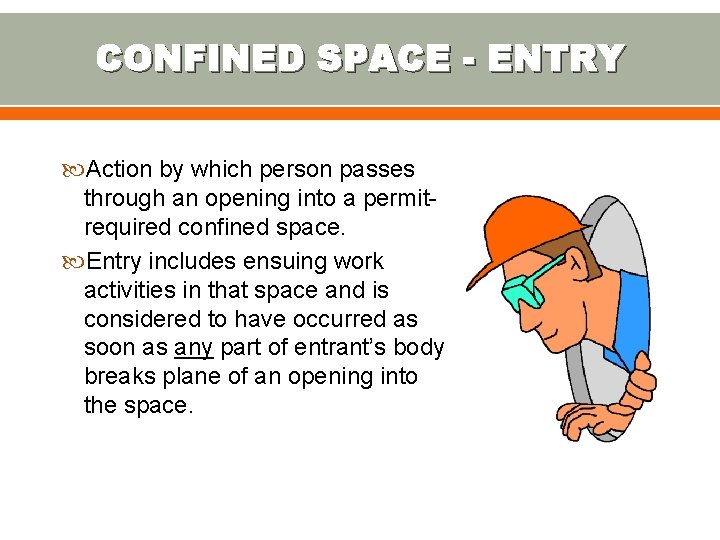

CONFINED SPACE - ENTRY Action by which person passes through an opening into a permitrequired confined space. Entry includes ensuing work activities in that space and is considered to have occurred as soon as any part of entrant’s body breaks plane of an opening into the space.
![CONFINED SPACE – MANGAN EMPLOYEES The “non-permit-required confined space” is the only type of CONFINED SPACE – MANGAN EMPLOYEES The “non-permit-required confined space” is the only type of](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-6.jpg)

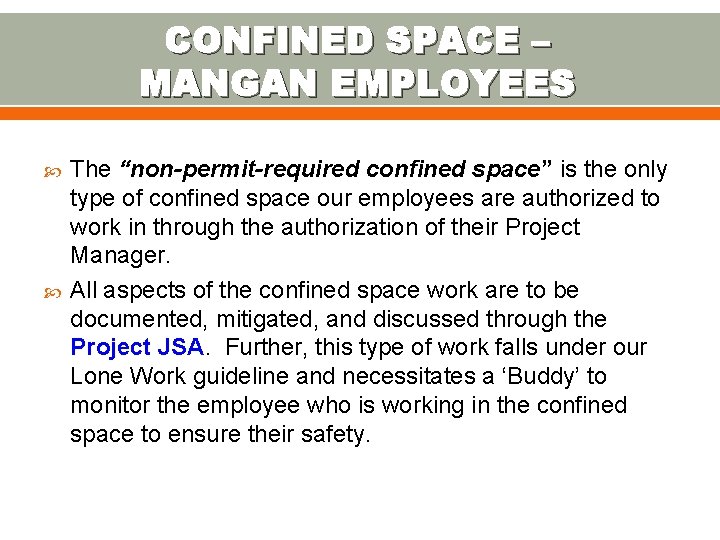

CONFINED SPACE – MANGAN EMPLOYEES The “non-permit-required confined space” is the only type of confined space our employees are authorized to work in through the authorization of their Project Manager. All aspects of the confined space work are to be documented, mitigated, and discussed through the Project JSA. Further, this type of work falls under our Lone Work guideline and necessitates a ‘Buddy’ to monitor the employee who is working in the confined space to ensure their safety.
![CONFINED SPACE – MANGAN EMPLOYEES Prior to ANY work in a “Permit Confined Space” CONFINED SPACE – MANGAN EMPLOYEES Prior to ANY work in a “Permit Confined Space”](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-7.jpg)

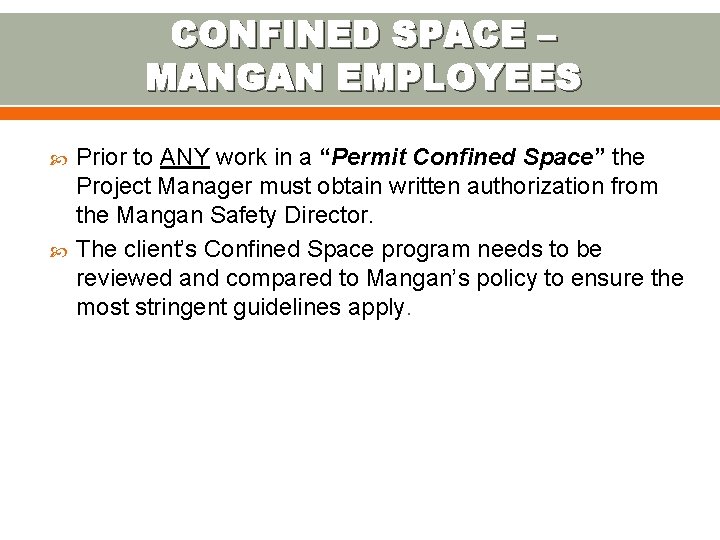

CONFINED SPACE – MANGAN EMPLOYEES Prior to ANY work in a “Permit Confined Space” the Project Manager must obtain written authorization from the Mangan Safety Director. The client’s Confined Space program needs to be reviewed and compared to Mangan’s policy to ensure the most stringent guidelines apply.
![CONFINED SPACE ATTENDANT q q A qualified employee stationed outside the permit space who CONFINED SPACE ATTENDANT q q A qualified employee stationed outside the permit space who](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-8.jpg)
CONFINED SPACE ATTENDANT q q A qualified employee stationed outside the permit space who monitors authorized entrants Knows hazards that may be faced before and after entry Has an awareness of possible behavioral effects of hazard exposure in authorized entrants Remains outside permit space during entry operations until relieved by another attendant
![CONFINED SPACE AUTHORIZED ENTRANT q q q A qualified employee authorized to enter a CONFINED SPACE AUTHORIZED ENTRANT q q q A qualified employee authorized to enter a](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-9.jpg)
CONFINED SPACE AUTHORIZED ENTRANT q q q A qualified employee authorized to enter a confined space Knows hazards that may be faced during entry, including signs, symptoms & consequences of exposure Communicates with attendant to monitor status
![CONFINED SPACE – ENTRY PERMIT ¨A written authorization is required to enter a Permit. CONFINED SPACE – ENTRY PERMIT ¨A written authorization is required to enter a Permit.](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-10.jpg)
CONFINED SPACE – ENTRY PERMIT ¨A written authorization is required to enter a Permit. Required Confined Space. ¨ It defines the conditions under which the permit space may be entered. ¨ It states the reasons for entering, identifies all hazards and identifies the Entry Supervisor.
![CONFINED SPACE ENTRY – RESCUE Means of emergency rescue must be readily available to CONFINED SPACE ENTRY – RESCUE Means of emergency rescue must be readily available to](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-11.jpg)

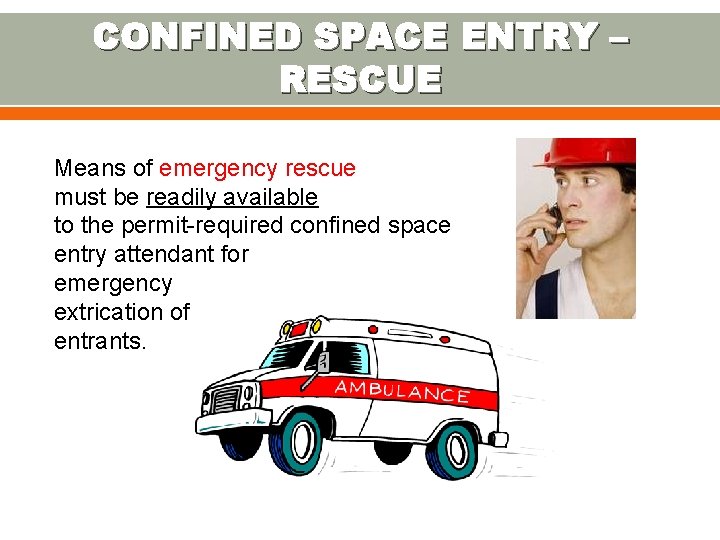

CONFINED SPACE ENTRY – RESCUE Means of emergency rescue must be readily available to the permit-required confined space entry attendant for emergency extrication of entrants.
![CONFINED SPACE – MANGAN EMPLOYEES All of this just to crawl into a small CONFINED SPACE – MANGAN EMPLOYEES All of this just to crawl into a small](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-12.jpg)

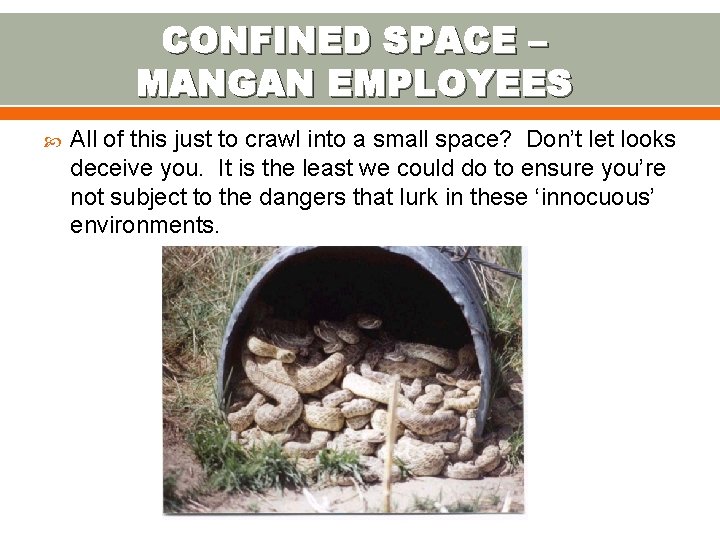

CONFINED SPACE – MANGAN EMPLOYEES All of this just to crawl into a small space? Don’t let looks deceive you. It is the least we could do to ensure you’re not subject to the dangers that lurk in these ‘innocuous’ environments.
![RESPIRATORY PROTECTION As a rule, Mangan does not accept work that requires respirator use. RESPIRATORY PROTECTION As a rule, Mangan does not accept work that requires respirator use.](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-13.jpg)

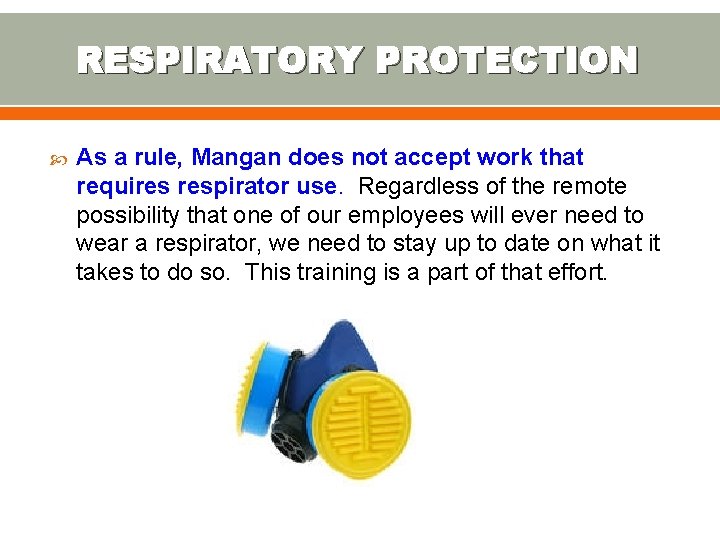

RESPIRATORY PROTECTION As a rule, Mangan does not accept work that requires respirator use. Regardless of the remote possibility that one of our employees will ever need to wear a respirator, we need to stay up to date on what it takes to do so. This training is a part of that effort.
![RESPIRATORY PROTECTION HAZARDS When a respirator is needed, it should be designed to protect RESPIRATORY PROTECTION HAZARDS When a respirator is needed, it should be designed to protect](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-14.jpg)

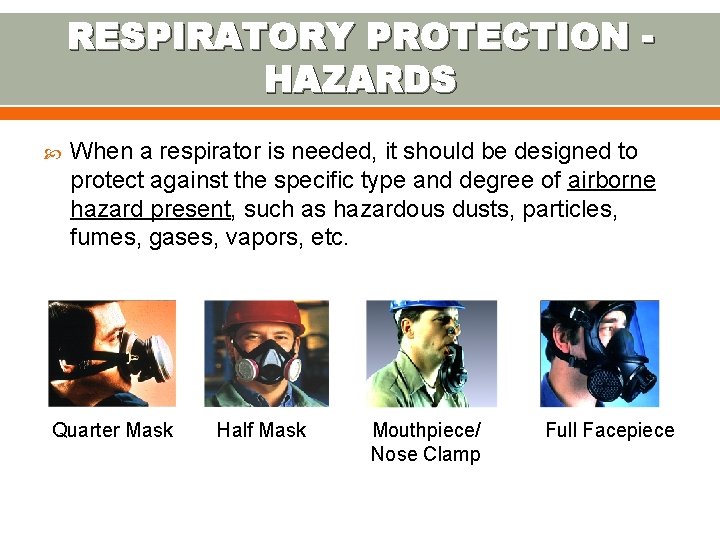

RESPIRATORY PROTECTION HAZARDS When a respirator is needed, it should be designed to protect against the specific type and degree of airborne hazard present, such as hazardous dusts, particles, fumes, gases, vapors, etc. Quarter Mask Half Mask Mouthpiece/ Nose Clamp Full Facepiece
![SUPPLIED AIR RESPIRATOR (SAR) Other work situations are hazardous because the air is oxygen-deficient SUPPLIED AIR RESPIRATOR (SAR) Other work situations are hazardous because the air is oxygen-deficient](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-15.jpg)

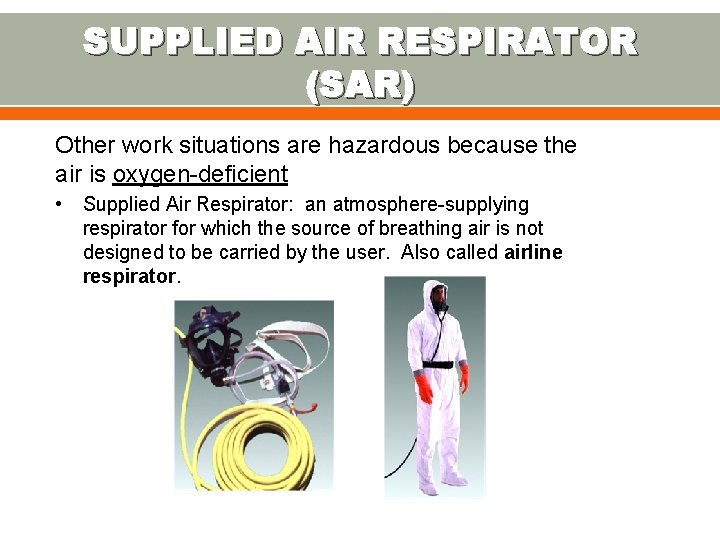

SUPPLIED AIR RESPIRATOR (SAR) Other work situations are hazardous because the air is oxygen-deficient • Supplied Air Respirator: an atmosphere-supplying respirator for which the source of breathing air is not designed to be carried by the user. Also called airline respirator.
![SELF-CONTAINED BREATHING APPARATUS (SCBA) An atmosphere-supplying respirator for which the breathing air source is SELF-CONTAINED BREATHING APPARATUS (SCBA) An atmosphere-supplying respirator for which the breathing air source is](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-16.jpg)

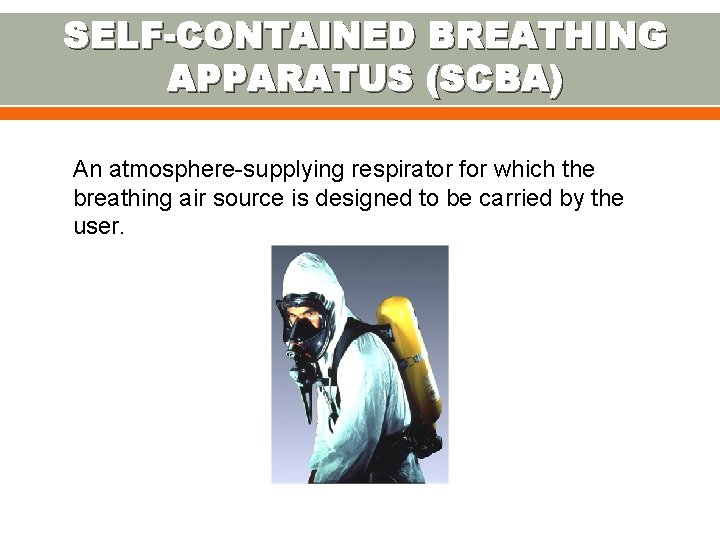

SELF-CONTAINED BREATHING APPARATUS (SCBA) An atmosphere-supplying respirator for which the breathing air source is designed to be carried by the user.
![ESCAPE-ONLY RESPIRATOR A respirator intended to be used only for emergency exit – “escape ESCAPE-ONLY RESPIRATOR A respirator intended to be used only for emergency exit – “escape](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-17.jpg)

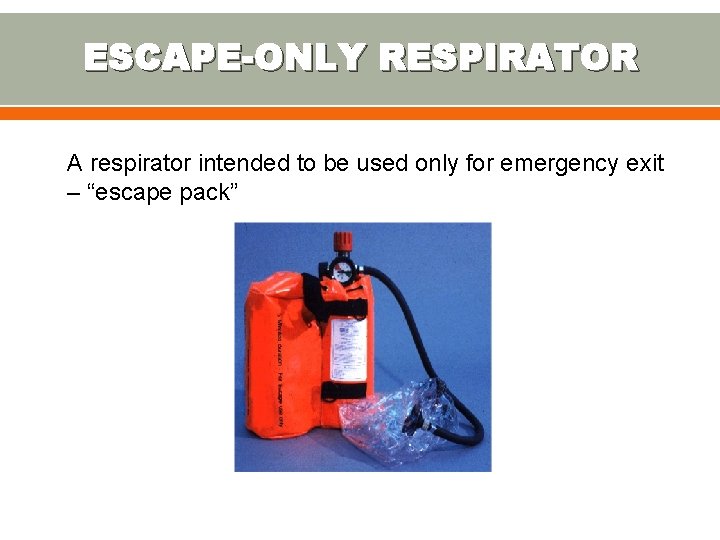

ESCAPE-ONLY RESPIRATOR A respirator intended to be used only for emergency exit – “escape pack”
![FACIAL HAIR POLICY Be sure you are familiar and in compliance with the client’s FACIAL HAIR POLICY Be sure you are familiar and in compliance with the client’s](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-18.jpg)

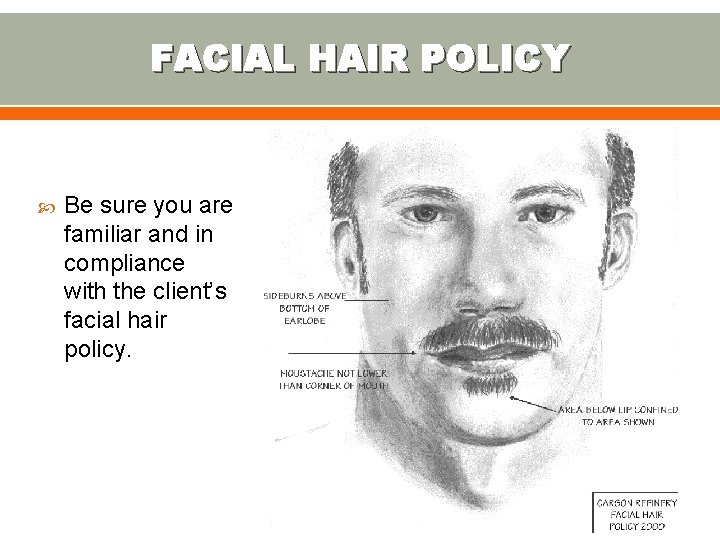

FACIAL HAIR POLICY Be sure you are familiar and in compliance with the client’s facial hair policy.
![RESPIRATOR USE - MANGAN If it is determined that respirators will be issued for RESPIRATOR USE - MANGAN If it is determined that respirators will be issued for](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-19.jpg)

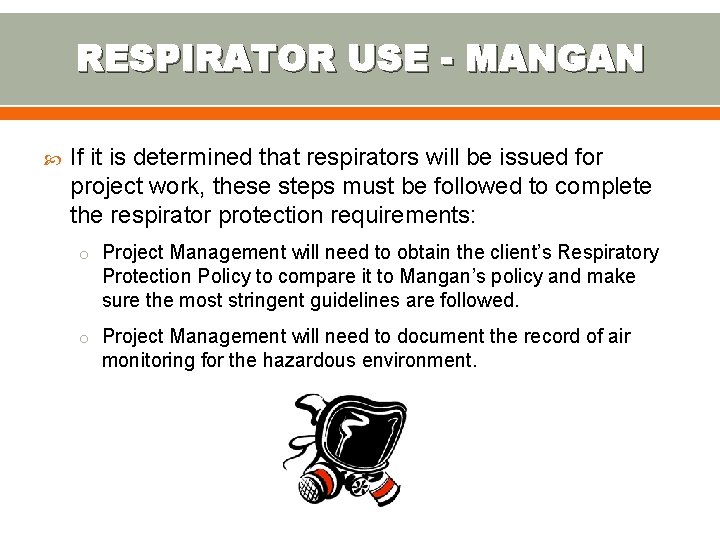

RESPIRATOR USE - MANGAN If it is determined that respirators will be issued for project work, these steps must be followed to complete the respirator protection requirements: o Project Management will need to obtain the client’s Respiratory Protection Policy to compare it to Mangan’s policy and make sure the most stringent guidelines are followed. o Project Management will need to document the record of air monitoring for the hazardous environment.
![RESPIRATOR USE - MANGAN Employees designated to wear a respirator must 1. Complete the RESPIRATOR USE - MANGAN Employees designated to wear a respirator must 1. Complete the](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-20.jpg)

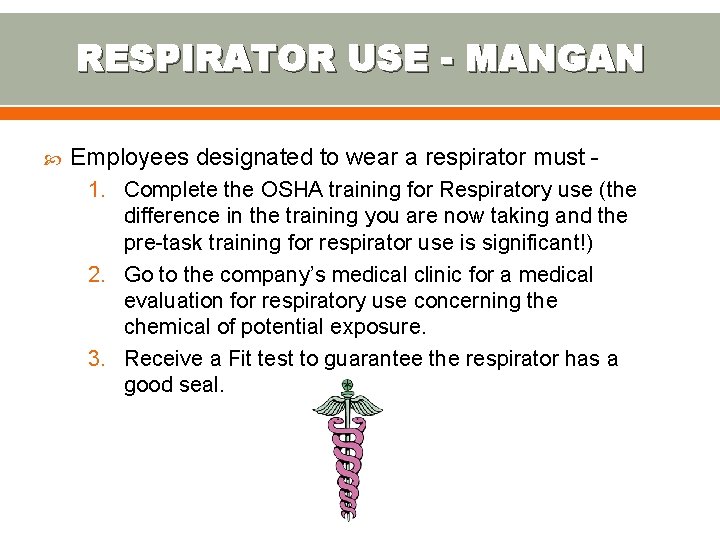

RESPIRATOR USE - MANGAN Employees designated to wear a respirator must 1. Complete the OSHA training for Respiratory use (the difference in the training you are now taking and the pre-task training for respirator use is significant!) 2. Go to the company’s medical clinic for a medical evaluation for respiratory use concerning the chemical of potential exposure. 3. Receive a Fit test to guarantee the respirator has a good seal.
![CONFINED SPACE/ RESPIRATORY PROTECTION COMMENTS QUESTIONS Email: safetytraining@manganinc. com CONFINED SPACE/ RESPIRATORY PROTECTION COMMENTS QUESTIONS Email: safetytraining@manganinc. com](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-21.jpg)

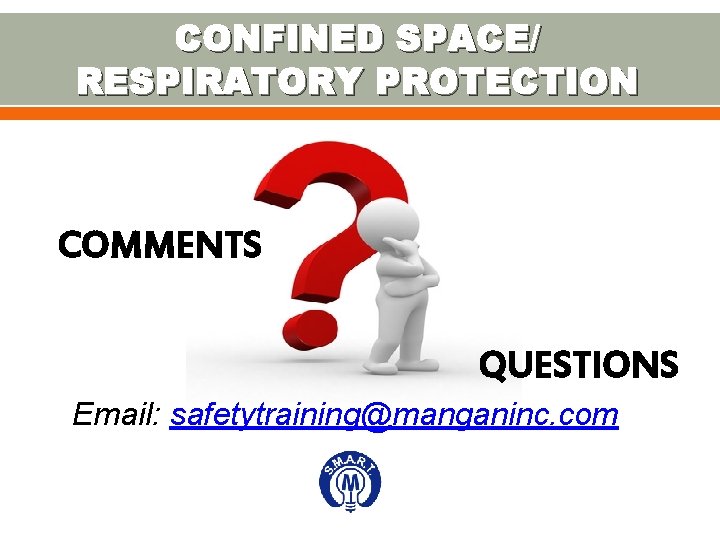

CONFINED SPACE/ RESPIRATORY PROTECTION COMMENTS QUESTIONS Email: safetytraining@manganinc. com
![INCIDENT REVIEW Long Beach Refinery Client 10/12/12 – Cut Finger, First Aid Injury, Vacuum INCIDENT REVIEW Long Beach Refinery Client 10/12/12 – Cut Finger, First Aid Injury, Vacuum](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-22.jpg)

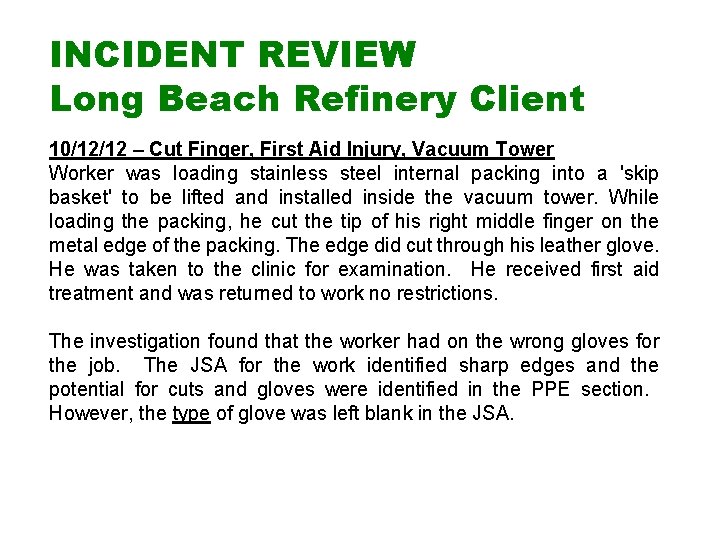

INCIDENT REVIEW Long Beach Refinery Client 10/12/12 – Cut Finger, First Aid Injury, Vacuum Tower Worker was loading stainless steel internal packing into a 'skip basket' to be lifted and installed inside the vacuum tower. While loading the packing, he cut the tip of his right middle finger on the metal edge of the packing. The edge did cut through his leather glove. He was taken to the clinic for examination. He received first aid treatment and was returned to work no restrictions. The investigation found that the worker had on the wrong gloves for the job. The JSA for the work identified sharp edges and the potential for cuts and gloves were identified in the PPE section. However, the type of glove was left blank in the JSA.
![INCIDENT REVIEW Long Beach Refinery Client In 2012, this client site has experienced 16 INCIDENT REVIEW Long Beach Refinery Client In 2012, this client site has experienced 16](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-23.jpg)

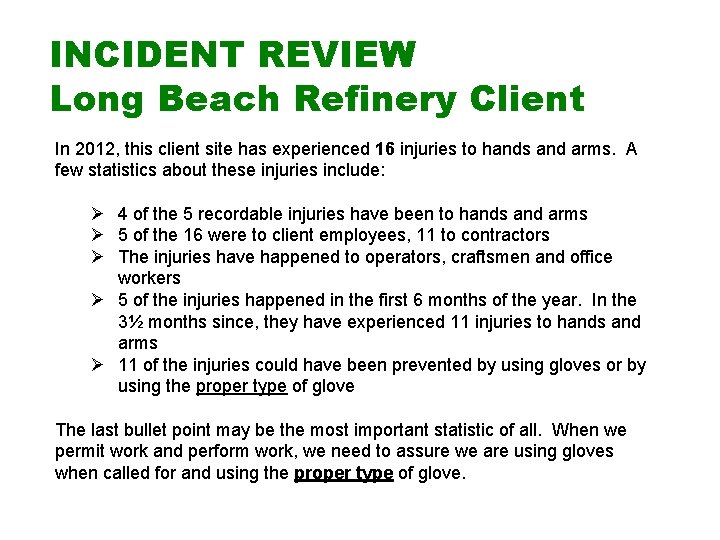

INCIDENT REVIEW Long Beach Refinery Client In 2012, this client site has experienced 16 injuries to hands and arms. A few statistics about these injuries include: Ø 4 of the 5 recordable injuries have been to hands and arms Ø 5 of the 16 were to client employees, 11 to contractors Ø The injuries have happened to operators, craftsmen and office workers Ø 5 of the injuries happened in the first 6 months of the year. In the 3½ months since, they have experienced 11 injuries to hands and arms Ø 11 of the injuries could have been prevented by using gloves or by using the proper type of glove The last bullet point may be the most important statistic of all. When we permit work and perform work, we need to assure we are using gloves when called for and using the proper type of glove.
![Pictured to the right is a leather glove of the type provided by the Pictured to the right is a leather glove of the type provided by the](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-24.jpg)

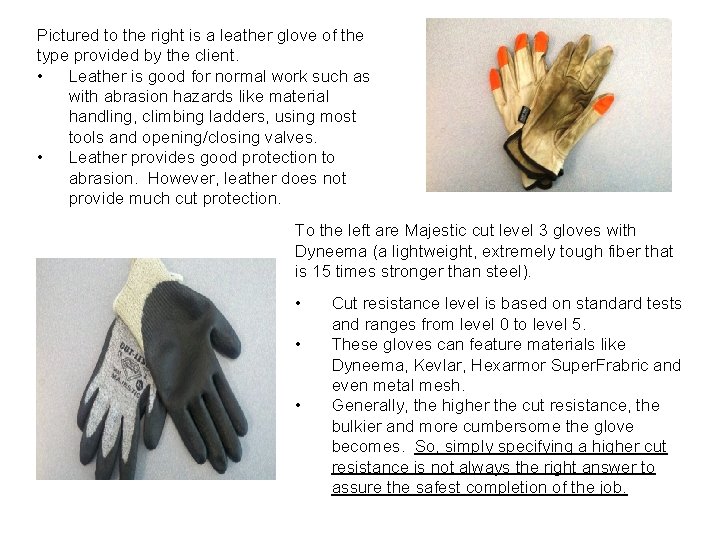

Pictured to the right is a leather glove of the type provided by the client. • Leather is good for normal work such as with abrasion hazards like material handling, climbing ladders, using most tools and opening/closing valves. • Leather provides good protection to abrasion. However, leather does not provide much cut protection. To the left are Majestic cut level 3 gloves with Dyneema (a lightweight, extremely tough fiber that is 15 times stronger than steel). • • • Cut resistance level is based on standard tests and ranges from level 0 to level 5. These gloves can feature materials like Dyneema, Kevlar, Hexarmor Super. Frabric and even metal mesh. Generally, the higher the cut resistance, the bulkier and more cumbersome the glove becomes. So, simply specifying a higher cut resistance is not always the right answer to assure the safest completion of the job.
![INCIDENT REVIEW Long Beach Refinery Client Remember: • Use gloves for every job where INCIDENT REVIEW Long Beach Refinery Client Remember: • Use gloves for every job where](http://slidetodoc.com/presentation_image_h2/6ad51cc792c76690c4d3b49a3a0a1c5a/image-25.jpg)

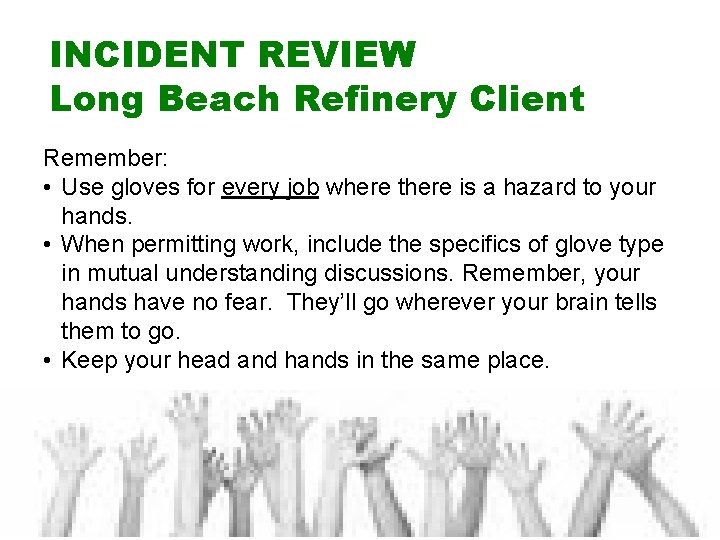

INCIDENT REVIEW Long Beach Refinery Client Remember: • Use gloves for every job where there is a hazard to your hands. • When permitting work, include the specifics of glove type in mutual understanding discussions. Remember, your hands have no fear. They’ll go wherever your brain tells them to go. • Keep your head and hands in the same place.
