Confined Space (Permit-required) Entry Supervisor

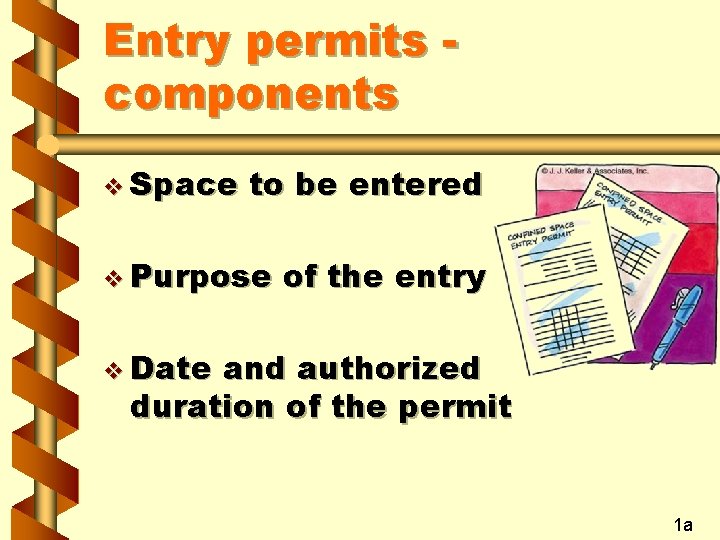

Entry permits components v Space to be entered v Purpose of the entry v Date and authorized duration of the permit 1 a
Entry permits components v Names of authorized entrants v Names of attendants v Name of entry supervisor v Hazards of the permit space 1 b

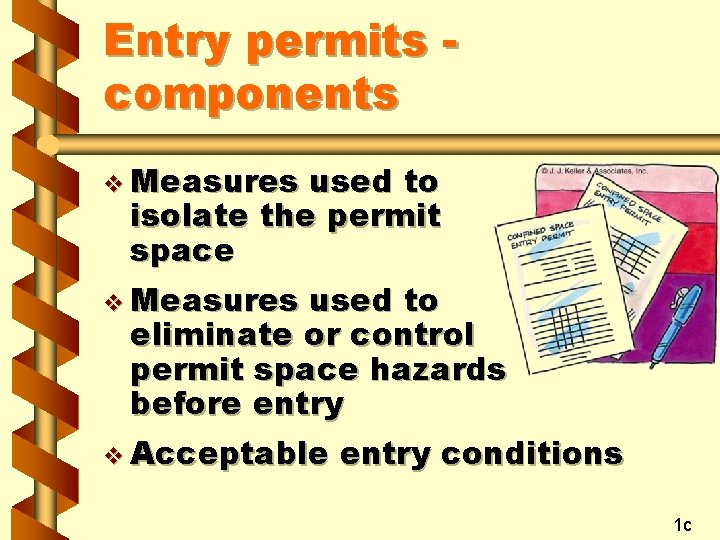

Entry permits components v Measures used to isolate the permit space v Measures used to eliminate or control permit space hazards before entry v Acceptable entry conditions 1 c

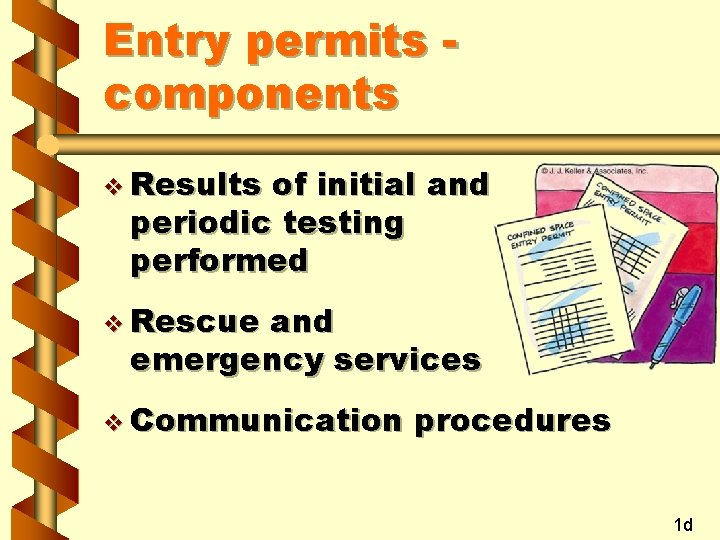

Entry permits components v Results of initial and periodic testing performed v Rescue and emergency services v Communication procedures 1 d

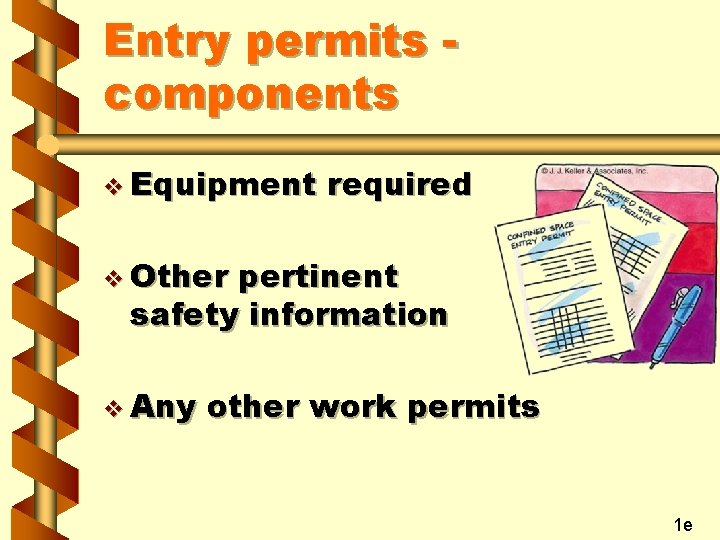

Entry permits components v Equipment required v Other pertinent safety information v Any other work permits 1 e

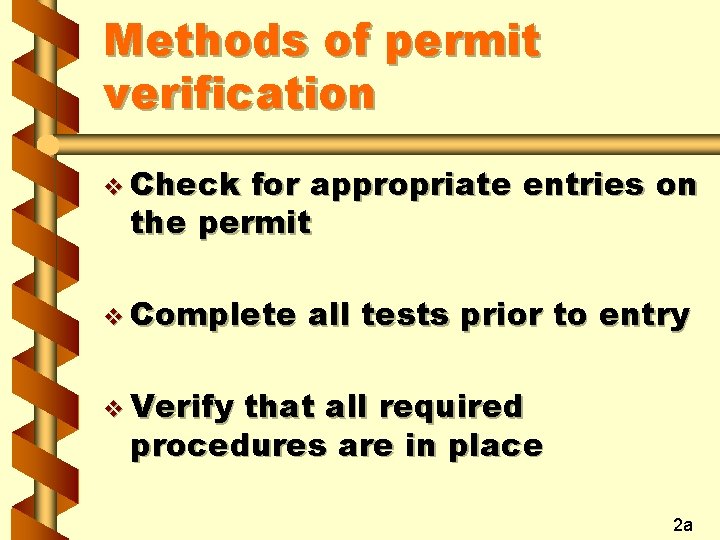

Methods of permit verification v Check for appropriate entries on the permit v Complete all tests prior to entry v Verify that all required procedures are in place 2 a

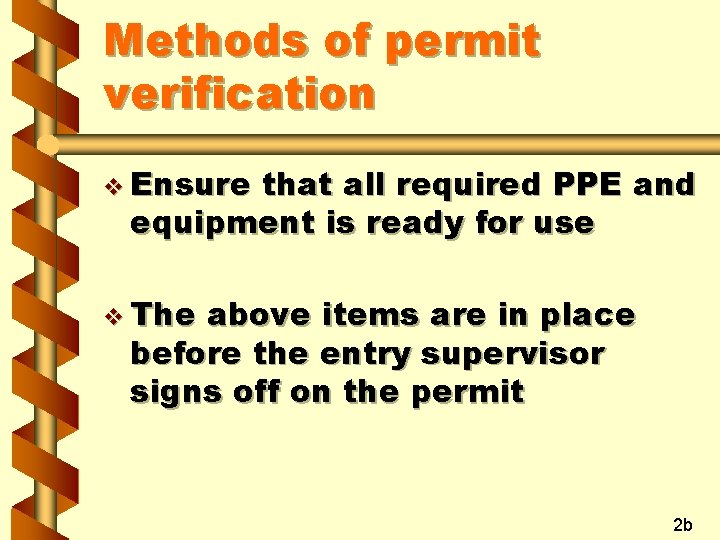

Methods of permit verification v Ensure that all required PPE and equipment is ready for use v The above items are in place before the entry supervisor signs off on the permit 2 b
Entry permit system v Know how to obtain a permit v Entry supervisors are responsible for endorsing the permit and allowing entry to begin 3 a
Entry permit system v Verify that all required information has been filled in v Verify that all necessary equipment is in place v Ensure that entry procedures are understood 3 b

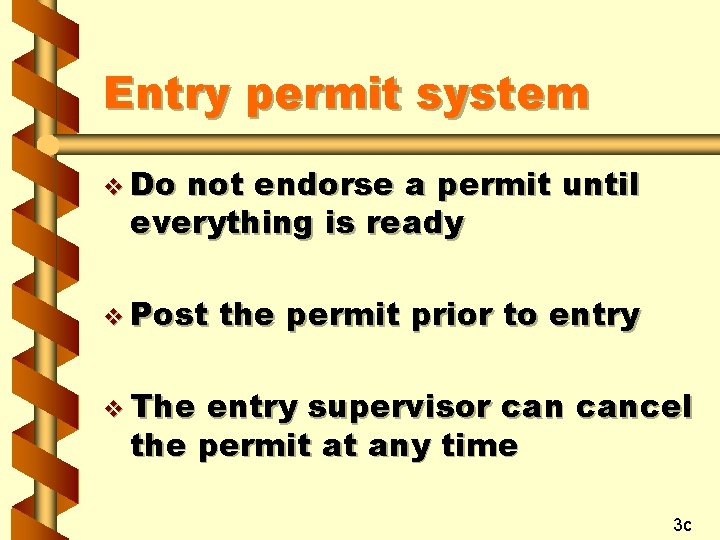

Entry permit system v Do not endorse a permit until everything is ready v Post the permit prior to entry v The entry supervisor cancel the permit at any time 3 c

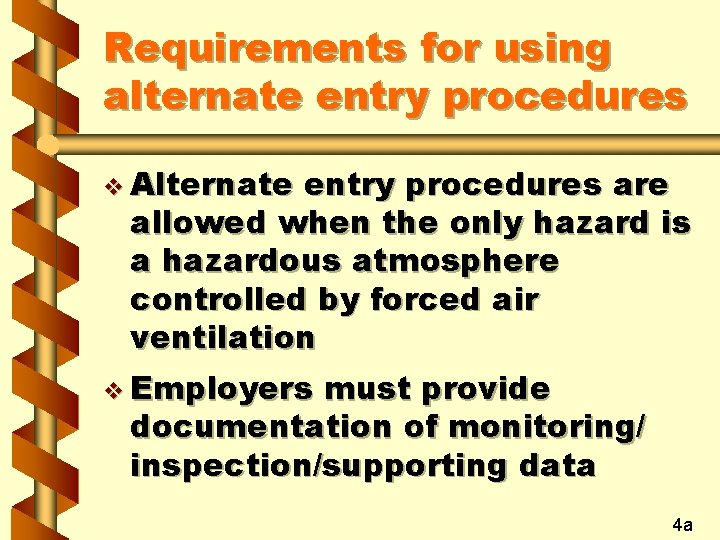

Requirements for using alternate entry procedures v Alternate entry procedures are allowed when the only hazard is a hazardous atmosphere controlled by forced air ventilation v Employers must provide documentation of monitoring/ inspection/supporting data 4 a
Requirements for using alternate entry procedures v Certification must contain the: • date • location • signature of the person providing the certification 4 b
Requirements for using alternate entry procedures v Make the certification available to the entrants v Authorized entrants must be able to observe air monitoring 4 c

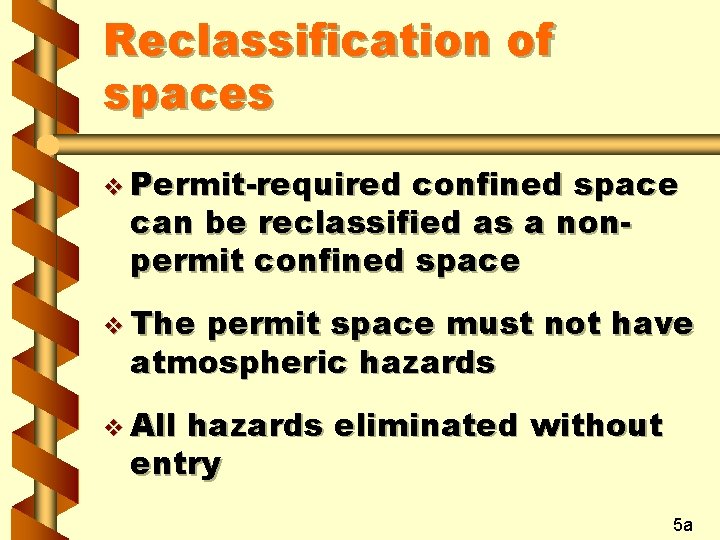

Reclassification of spaces v Permit-required confined space can be reclassified as a nonpermit confined space v The permit space must not have atmospheric hazards v All hazards eliminated without entry 5 a

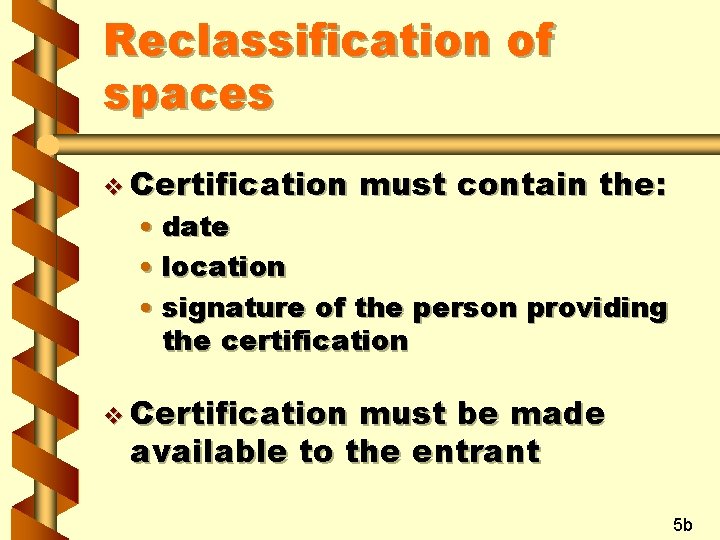

Reclassification of spaces v Certification must contain the: • date • location • signature of the person providing the certification v Certification must be made available to the entrant 5 b

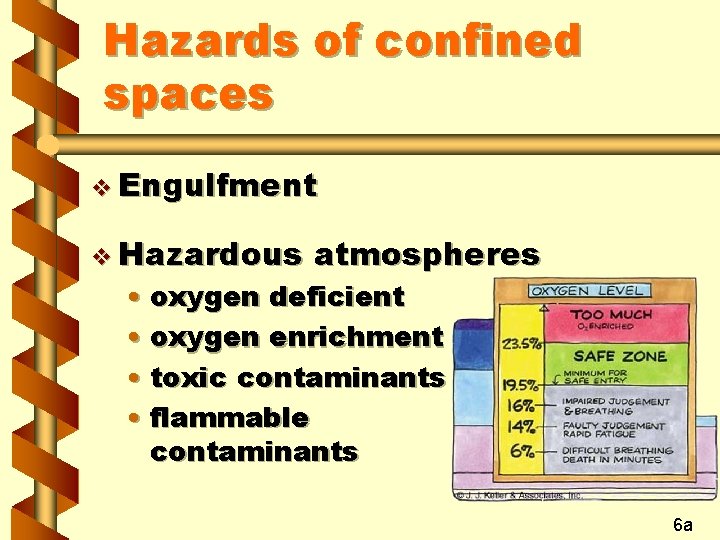

Hazards of confined spaces v Engulfment v Hazardous atmospheres • oxygen deficient • oxygen enrichment • toxic contaminants • flammable contaminants 6 a

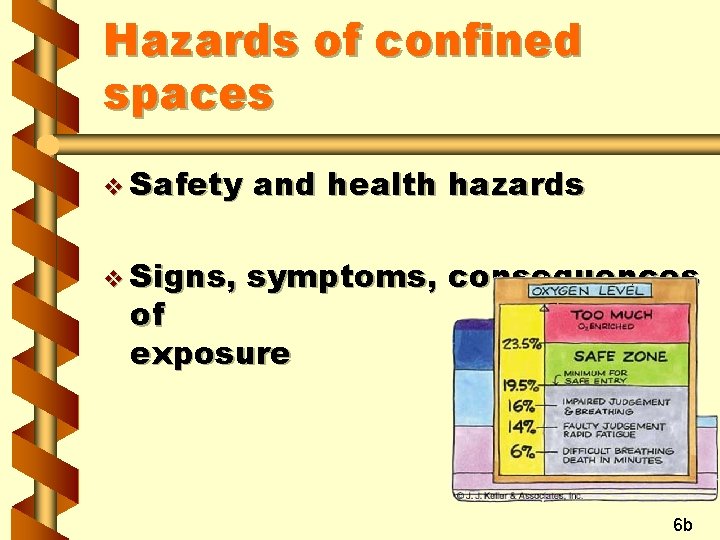

Hazards of confined spaces v Safety and health hazards v Signs, symptoms, consequences of exposure 6 b
Behavioral effects of hazards v Effects of oxygen deficient atmospheres v Signs that a person is breathing too much oxygen 7 a

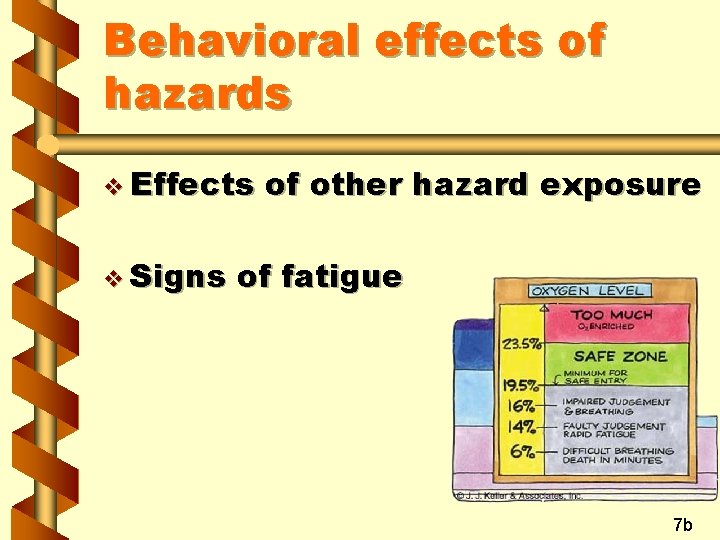

Behavioral effects of hazards v Effects v Signs of other hazard exposure of fatigue 7 b
Methods of removing unauthorized individuals v Attendants are responsible for informing entrants and entry supervisor if unauthorized persons enter the space v Entry supervisors must remove unauthorized individuals 8 a

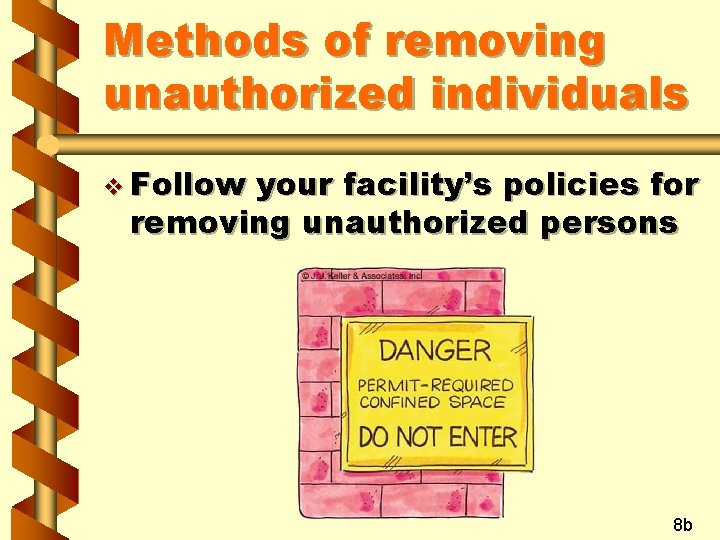

Methods of removing unauthorized individuals v Follow your facility’s policies for removing unauthorized persons 8 b

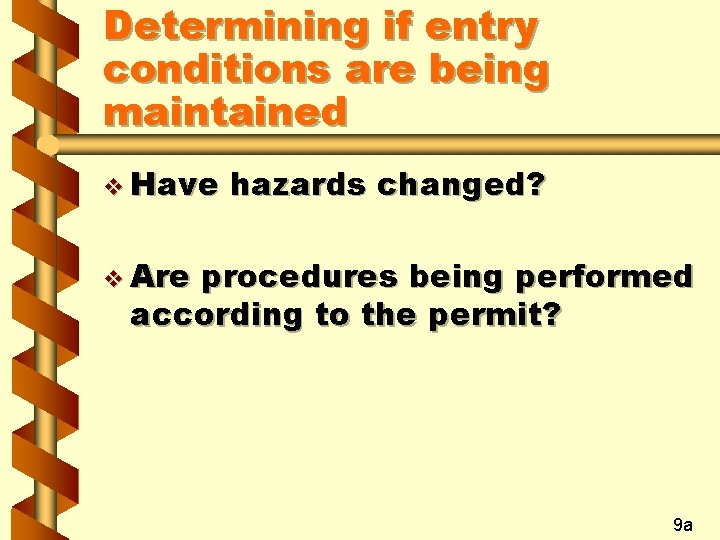

Determining if entry conditions are being maintained v Have hazards changed? v Are procedures being performed according to the permit? 9 a
Determining if entry conditions are being maintained v Are procedures not listed on the permit being performed? v Are entry conditions acceptable? 9 b

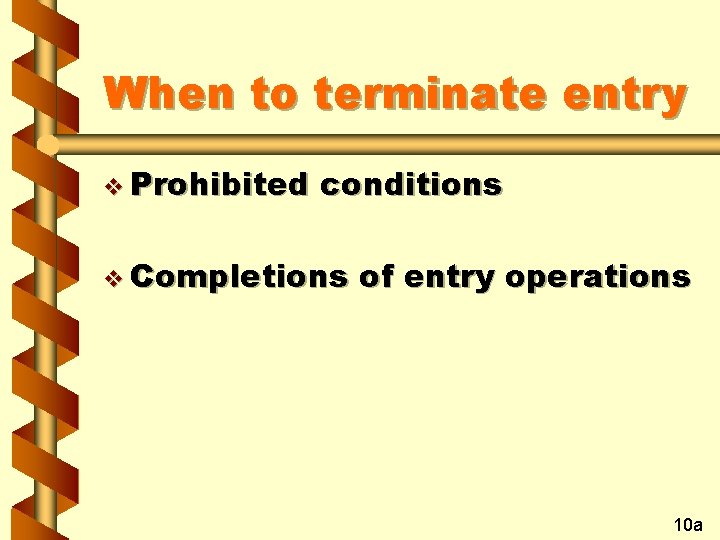

When to terminate entry v Prohibited conditions v Completions of entry operations 10 a

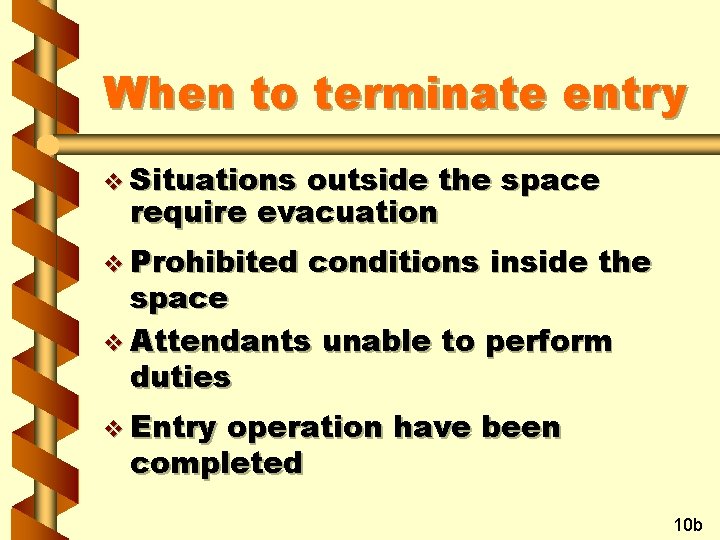

When to terminate entry v Situations outside the space require evacuation v Prohibited conditions inside the space v Attendants unable to perform duties v Entry operation have been completed 10 b
Rescue and emergency procedures v Either an outside rescue service or on-site rescue team can be used v Selection of rescue services must be based on ability to respond and perform 11 a
Rescue and emergency procedures v Rescue teams must be informed of permit space hazards v Rescue teams must have access to permit spaces for training 11 b

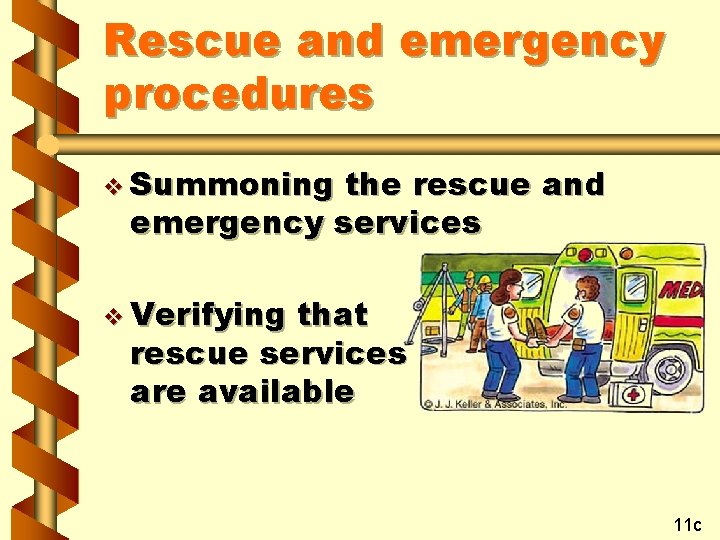

Rescue and emergency procedures v Summoning the rescue and emergency services v Verifying that rescue services are available 11 c
Coordinating entry with multiple employers v Host employers must coordinate entry operations v Entry supervisors must determine that entry operations are consistent with the permit 12 a

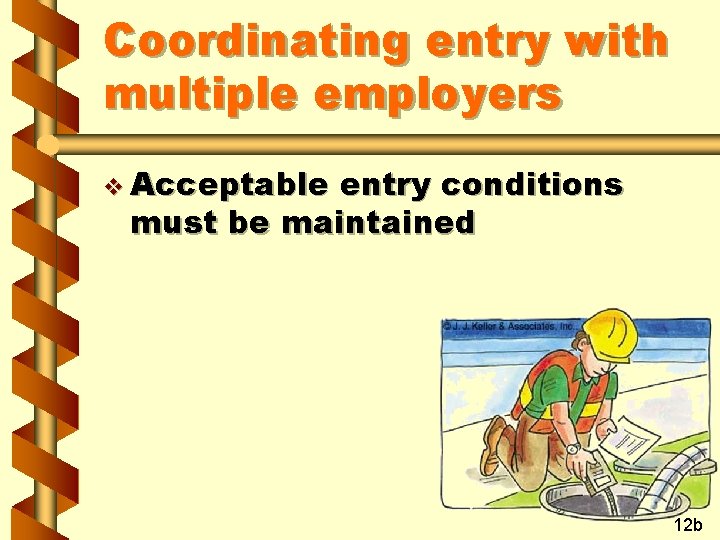

Coordinating entry with multiple employers v Acceptable entry conditions must be maintained 12 b
Summary of key points v Entry permits v Entry procedures v Prohibited conditions 13 a
Summary of key points v Communication v Permit procedures cancellation v Conditions evacuation that cause 13 b
Summary of key points v Equipment v PPE v Rescue/emergency procedures 13 c
