Configuration Management in Aerospace and Defense presented by
Configuration Management in Aerospace and Defense presented by Donald N. Frank BSEE, CFPIM, CIRM D. N. Frank Associates PO Box 295 Florham Park, NJ 07932 Tel: (973) 377 -6782 Fax: (973) 514 -2148 Email: dfrankasso@optonline. net © 2003 D. N. Frank Associates
Our Focus • • • Configuration Management defined Specific A&D issues and concerns CM and the Product Life Cycle CM v Engineering Change Some lessons learned Conclusions © 2003 D. N. Frank Associates

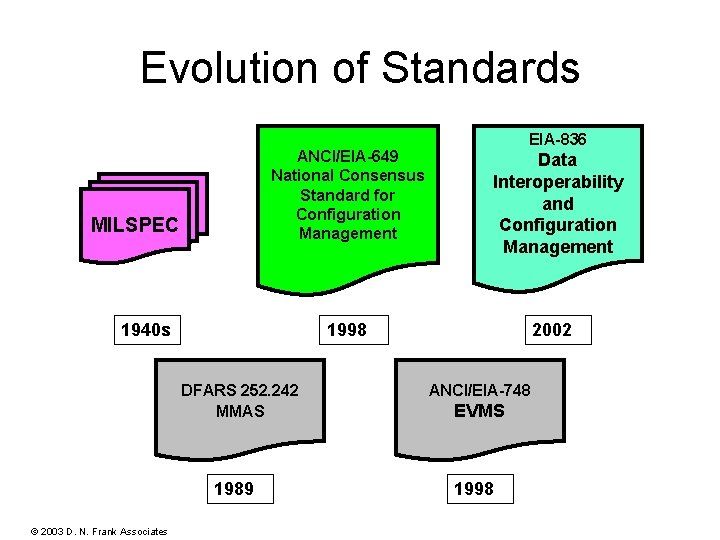

Evolution of Standards ANCI/EIA-649 National Consensus Standard for Configuration Management MILSPEC 1940 s Data Interoperability and Configuration Management 1998 DFARS 252. 242 MMAS 1989 © 2003 D. N. Frank Associates EIA-836 2002 ANCI/EIA-748 EVMS 1998
The Enterprise View Phase I WSB 9806 E - Rev C CM really didn’t have a home here Inventory Management Accounts Payable Purchasing MRP Asset General Management Ledger Master Scheduling Accounts Receivable CRP Shipping & Receiving Warehousing Shop Floor & Control Distribution Mfg Cost Control Human Payroll Resources Services Mgtt Sales Management Order Svc Mgt Project Product Data Management Design Management Information Technology Services © 2003 D. N. Frank Associates
Definitions © 2003 D. N. Frank Associates
Definition of Configuration Management* • Applied over the life cycle of a product • Provides visibility and controls of its performance, functional and physical attributes • Verifies that a product performs as intended • Is identified and documented in sufficient detail to support its projected life cycle * Abstracted from EIA-649 © 2003 D. N. Frank Associates

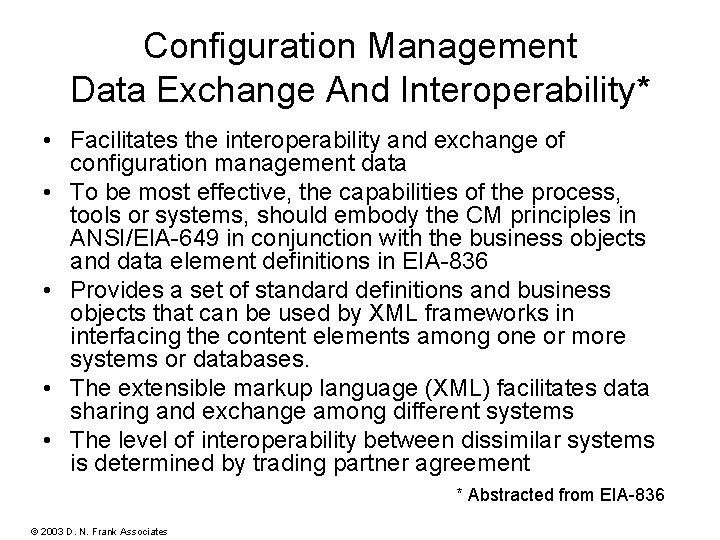

Configuration Management Data Exchange And Interoperability* • Facilitates the interoperability and exchange of configuration management data • To be most effective, the capabilities of the process, tools or systems, should embody the CM principles in ANSI/EIA-649 in conjunction with the business objects and data element definitions in EIA-836 • Provides a set of standard definitions and business objects that can be used by XML frameworks in interfacing the content elements among one or more systems or databases. • The extensible markup language (XML) facilitates data sharing and exchange among different systems • The level of interoperability between dissimilar systems is determined by trading partner agreement * Abstracted from EIA-836 © 2003 D. N. Frank Associates

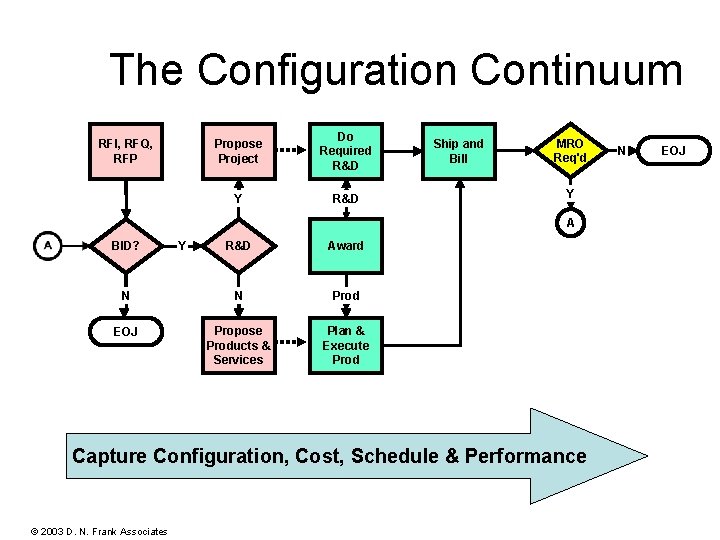

The Configuration Continuum RFI, RFQ, RFP Propose Project Do Required R&D Y R&D Ship and Bill MRO Req'd Y A BID? Y R&D Award N N Prod EOJ Propose Products & Services Plan & Execute Prod Capture Configuration, Cost, Schedule & Performance © 2003 D. N. Frank Associates N EOJ
Aerospace & Defense Environment © 2003 D. N. Frank Associates

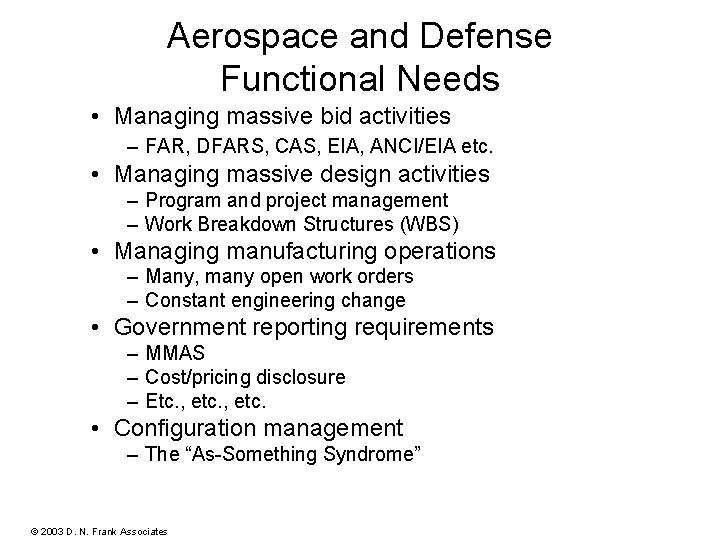

Aerospace and Defense Functional Needs CFG 028 - Rev. B • Managing massive bid activities – FAR, DFARS, CAS, EIA, ANCI/EIA etc. • Managing massive design activities – Program and project management – Work Breakdown Structures (WBS) • Managing manufacturing operations – Many, many open work orders – Constant engineering change • Government reporting requirements – MMAS – Cost/pricing disclosure – Etc. , etc. • Configuration management – The “As-Something Syndrome” © 2003 D. N. Frank Associates

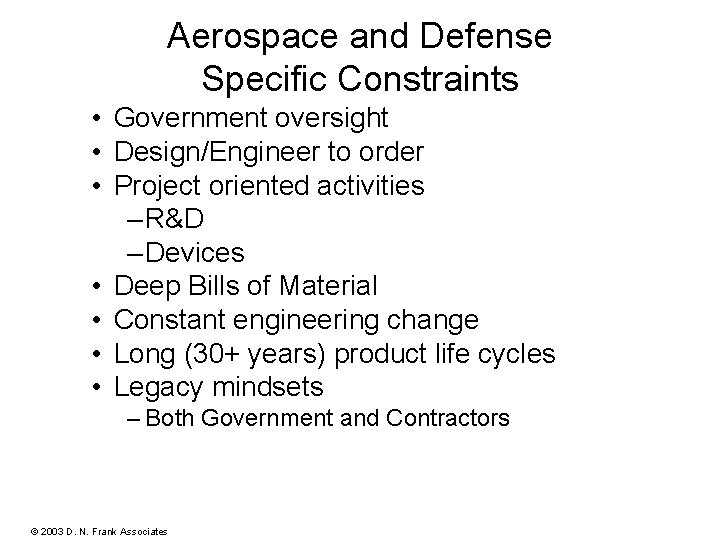

Aerospace and Defense Specific Constraints CFG 028 - Rev. B • Government oversight • Design/Engineer to order • Project oriented activities – R&D – Devices • Deep Bills of Material • Constant engineering change • Long (30+ years) product life cycles • Legacy mindsets – Both Government and Contractors © 2003 D. N. Frank Associates
Product Life Cycle Phases © 2003 D. N. Frank Associates

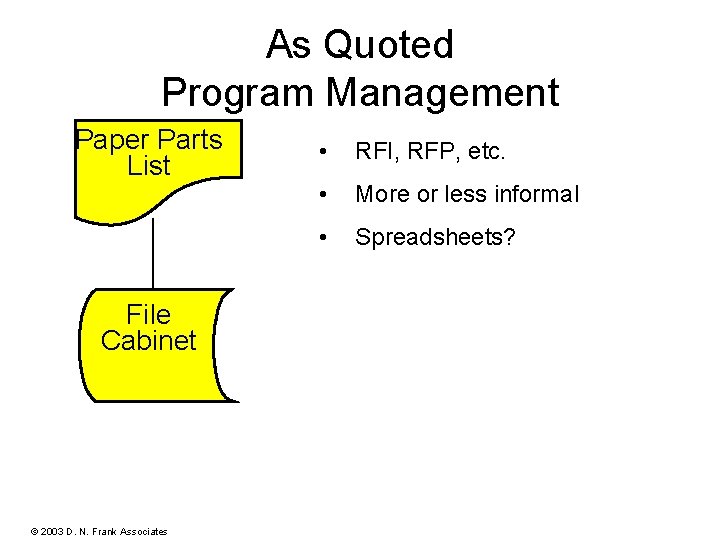

As Quoted Program Management Paper Parts List File Cabinet © 2003 D. N. Frank Associates • RFI, RFP, etc. • More or less informal • Spreadsheets?
As Accepted Program Management WBS • Negotiated Contract • Deliverables and Schedule Committed WBS database • © 2003 D. N. Frank Associates • R&D • Hardware • Software • Ancillary Activities Project Management
As Designed Engineering Printout or Screen CA”n” PLM EBOM databases © 2003 D. N. Frank Associates • CA”n” • Part Definition • CSM • PDM • Workflow & Red Lining • EBOM • Release(s) to Manufacturing • Engineering Changes
As Planned Materials Management Printout or Screen ERP MBOM IM databases © 2003 D. N. Frank Associates • MBOM • Resource Planning • Procurement • Manufacture • Ship • Absorb Engineering Changes
As Built Manufacturing Printout or Screen • Effectivity • By Date • By Lot Number ? © 2003 D. N. Frank Associates • By CLIN • By Serial Number • ? BOM

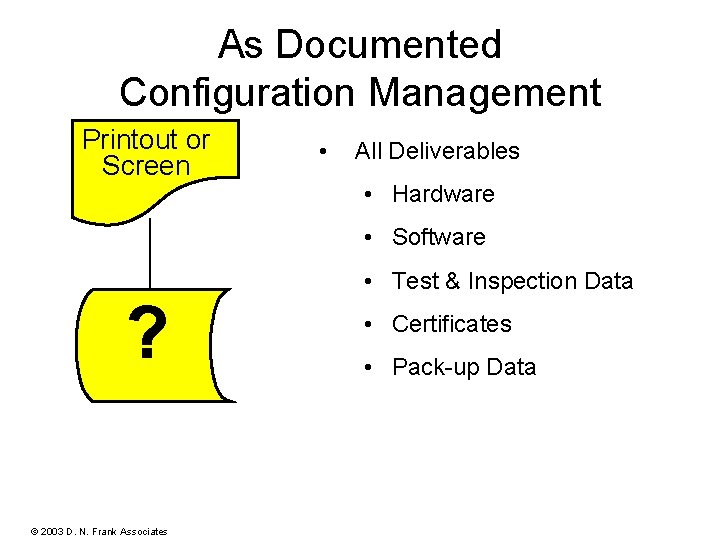

As Documented Configuration Management Printout or Screen • All Deliverables • Hardware • Software ? © 2003 D. N. Frank Associates • Test & Inspection Data • Certificates • Pack-up Data

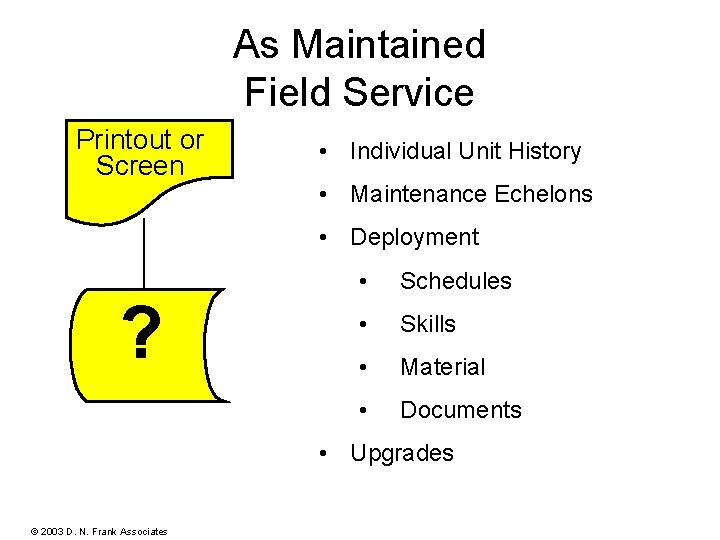

As Maintained Field Service Printout or Screen • Individual Unit History • Maintenance Echelons • Deployment ? • Schedules • Skills • Material • Documents • Upgrades © 2003 D. N. Frank Associates

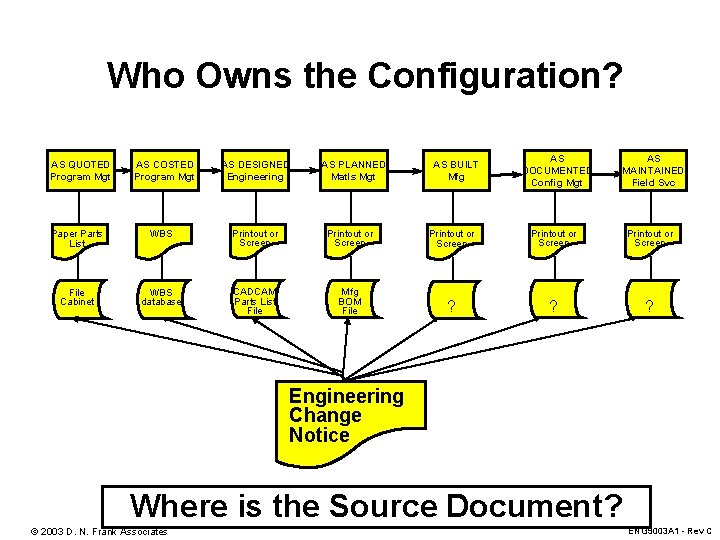

Who Owns the Configuration? AS QUOTED Program Mgt AS COSTED Program Mgt AS DESIGNED Engineering AS PLANNED Matls Mgt AS BUILT Mfg AS DOCUMENTED Config Mgt AS MAINTAINED Field Svc Paper Parts List WBS Printout or Screen Printout or Screen File Cabinet WBS database CADCAM Parts List File Mfg BOM File ? ? ? Engineering Change Notice Where is the Source Document? © 2003 D. N. Frank Associates ENG 9003 A 1 - Rev C

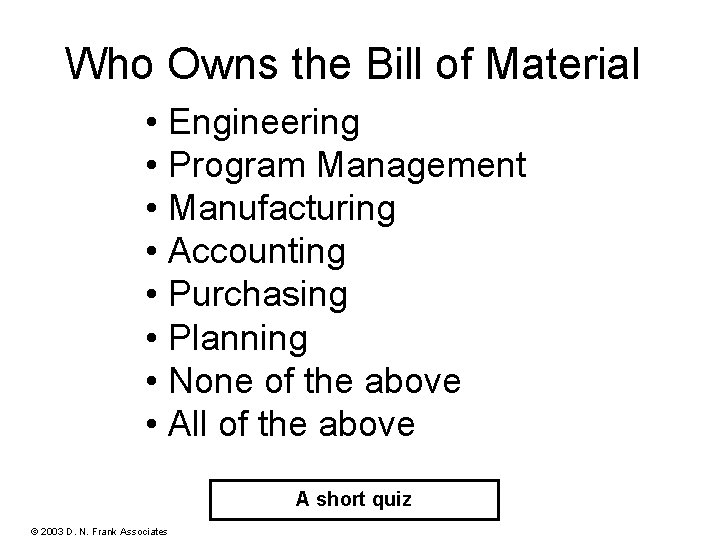

Who Owns the Bill of Material EMBOM 9808 D • Engineering • Program Management • Manufacturing • Accounting • Purchasing • Planning • None of the above • All of the above A short quiz © 2003 D. N. Frank Associates
CM v Engineering Change © 2003 D. N. Frank Associates

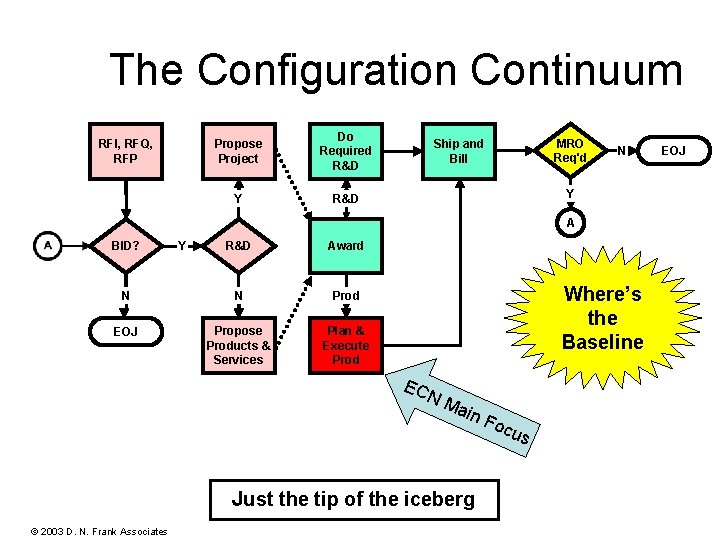

The Configuration Continuum RFI, RFQ, RFP Propose Project Do Required R&D Y R&D MRO Req'd Ship and Bill N Y A BID? Y R&D Award N N Prod EOJ Propose Products & Services Plan & Execute Prod Where’s the Baseline EC NM ain Just the tip of the iceberg © 2003 D. N. Frank Associates Foc us EOJ
ERM-114 - Rev. D What is an Engineering Change • Changing the Product Structure (BOMs) – Adding a part – Deleting a part – Changing the quantity per assembly • Changing the Part Itself – Changing specifications – New Part Number? – Changing approved sources • Changing the Routing (? ) – Changing the process sequence Do all Engineering Changes affect form, fit or function? © 2003 D. N. Frank Associates

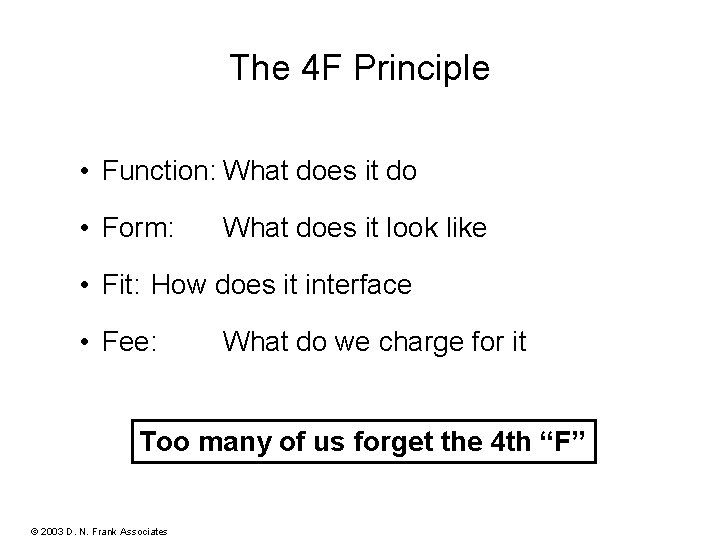

BOM 0404 - Rev. B The 4 F Principle • Function: What does it do • Form: What does it look like • Fit: How does it interface • Fee: What do we charge for it Too many of us forget the 4 th “F” © 2003 D. N. Frank Associates

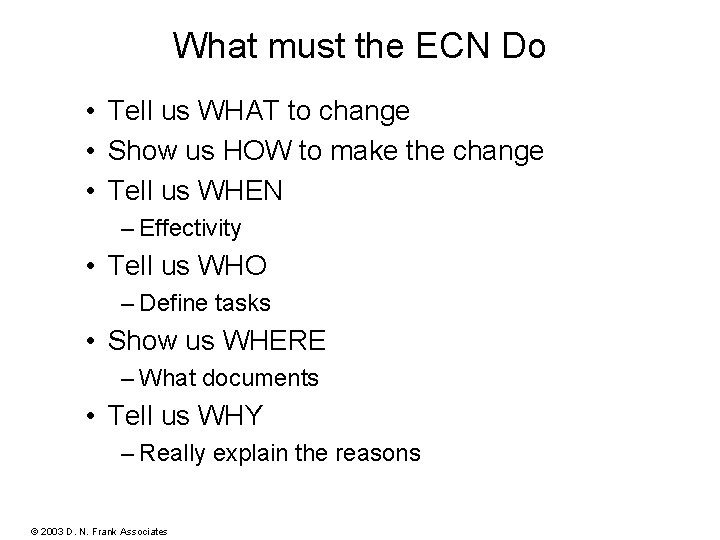

BOM 0405 - Rev. C What must the ECN Do • Tell us WHAT to change • Show us HOW to make the change • Tell us WHEN – Effectivity • Tell us WHO – Define tasks • Show us WHERE – What documents • Tell us WHY – Really explain the reasons © 2003 D. N. Frank Associates

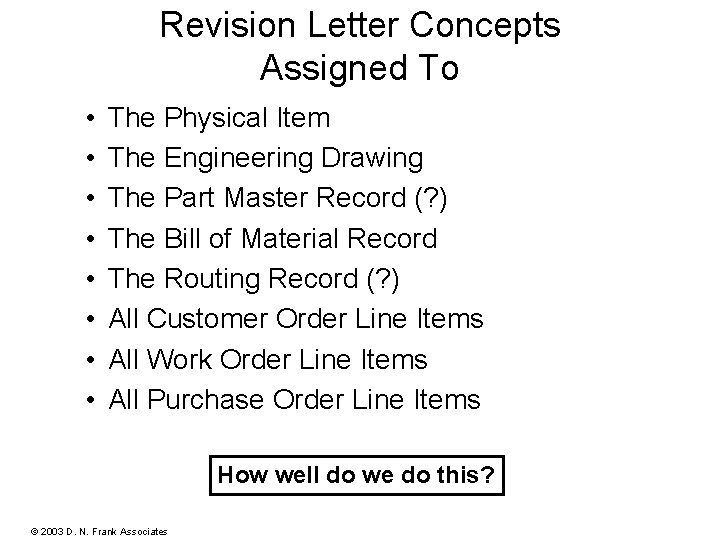

Revision Letter Concepts Assigned To BOM 0414 A - Rev. B • • The Physical Item The Engineering Drawing The Part Master Record (? ) The Bill of Material Record The Routing Record (? ) All Customer Order Line Items All Work Order Line Items All Purchase Order Line Items How well do we do this? © 2003 D. N. Frank Associates
BOM 0414 B- Rev. A Revision Letter Concepts Attributes • • • Has an associated ECN Document Has an Unique ECN Number Has an ECN Initiation Date Has defined Effectivity Suggested Formats – Numerical prior to manufacturing release – Alpha after Manufacturing release • Omit I, O, Q, S, X, Z • After Y, to to AA, AB, etc. • MIL-STD-100 is a good guide How well do we do this? © 2003 D. N. Frank Associates
Effectivity of Change BOM 0415 - Rev. B • By Revision Letter – Engineering’s preference • By Dates – Do not use before, do not use after – Most manufacturing software does this • Other methods (needs) – Use to depletion of old part – Lot (batch) Number – Project (contract) Number – Customer Number – Purchase Order Number – Serial Number Engineering and manufacturing have differing views of effectivity © 2003 D. N. Frank Associates
Some Lessons Learned © 2003 D. N. Frank Associates
BOM 0417 - Rev. B Effectivity of Change Revisited • Engineering traditionally manages changes via Revision Letter upgrades • Engineering change systems do not always consider Effectivity • Manufacturing software systems do not do a good job of managing change by Revision Code • Effectivity dates are subject to change • Ways to close the gap – Put an ECN Czar in charge of bridging the gap – Only allow manufacturing BOM maintenance via an ECN screen with restricted access, requiring Revision Letter update and Effectivity statement Change impact must be communicated to manufacturing … quickly © 2003 D. N. Frank Associates
The Triage Principle BOM 0409 - Rev. A Engineering Change Priority Planning • A Stop work and fix – The sun will not set before preliminary action is taken • B Define Effectivity and schedule into the manufacturing planning and execution process – Plan for least disruption and part obsolescence – No more than 2 -3 working days until preliminary release • C Aggregate and hold for product upgrade – Batch release no less often than quarterly The business side of EC processing © 2003 D. N. Frank Associates

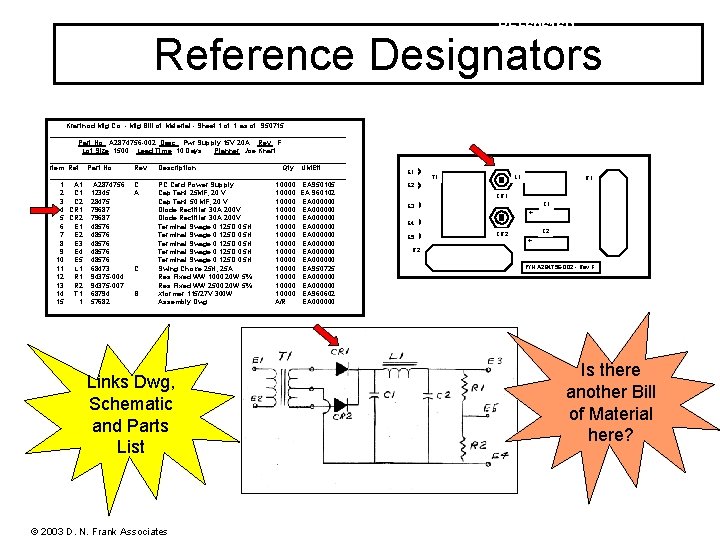

REF 60616 D Reference Designators Krarfnod Mfg Co. - Mfg Bill of Material - Sheet 1 of 1 as of: 950715 ______________________________________ Part No: A 2874756 -002 Desc: Pwr Supply 15 V 20 A Rev: F Lot Size: 1500 Lead Time: 10 Days Planner: Joe Knarf ______________________________________ Item Ref Part No Rev Description Qty UMEff ______________________________________ 1 A 2874756 C PC Card Power Supply 1. 0000 EA 950105 2 C 1 12345 A Cap Tant 25 MF, 20 V 1. 0000 EA 960102 3 C 2 28475 Cap Tant 50 MF, 20 V 1. 0000 EA 000000 4 CR 1 79687 Diode Rectifier 30 A 200 V 1. 0000 EA 000000 5 CR 2 79687 Diode Rectifier 30 A 200 V 1. 0000 EA 000000 6 E 1 48576 Terminal Swage 0. 125 D 0. 5 H 1. 0000 EA 000000 7 E 2 48576 Terminal Swage 0. 125 D 0. 5 H 1. 0000 EA 000000 8 E 3 48576 Terminal Swage 0. 125 D 0. 5 H 1. 0000 EA 000000 9 E 4 48576 Terminal Swage 0. 125 D 0. 5 H 1. 0000 EA 000000 10 E 5 48576 Terminal Swage 0. 125 D 0. 5 H 1. 0000 EA 000000 11 L 1 68473 C Swing Choke 25 H, 25 A 1. 0000 EA 950725 12 R 1 94375 -004 Res Fixed WW 1000 20 W 5% 1. 0000 EA 000000 13 R 2 94375 -007 Res Fixed WW 2500 20 W 5% 1. 0000 EA 000000 14 T 1 68794 B Xformer 115/27 V 300 W 1. 0000 EA 960602 15 1 57682 Assembly Dwg A/R EA 000000 Links Dwg, Schematic and Parts List © 2003 D. N. Frank Associates E 1 T 1 L 1 R 1 E 2 CR 1 C 1 E 3 + E 4 E 5 CR 2 C 2 + R 2 P/N A 284756 -002 - Rev F Is there another Bill of Material here?
SCI 9701 B 1 Panelized Circuit Card UOM Issue Part B 1 Purchased Part AA Part Part AAPart AA AA A B 24 up Raw. Part Board Part Populated Part 4 Up © 2003 D. N. Frank Associates Diced Board Part A 1 up Loaded Board Part B 2 4 up Raw Board B 1 4 up Level 0 Qty=1. 00 UOM=EA Level 1 Qty=0. 25 UOM=EA? Level 2 Qty=1. 00 UOM=EA

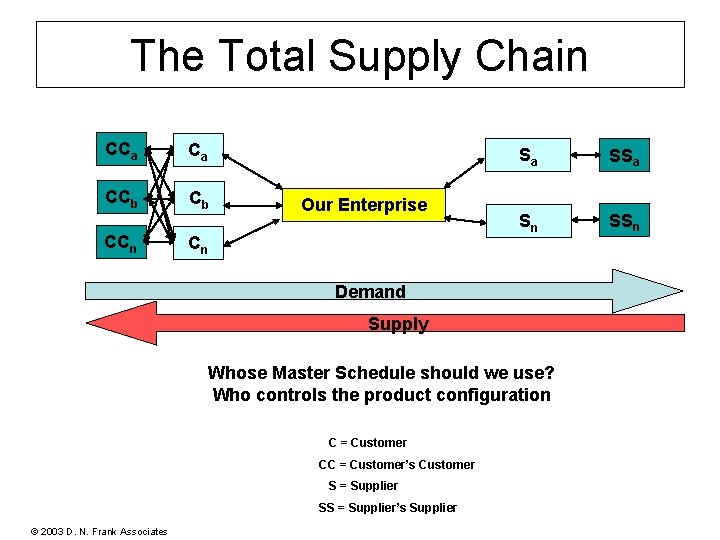

The Total Supply Chain CCa Ca CCb Cb CCn Our Enterprise Cn Sa Sn SSn Demand Supply Whose Master Schedule should we use? Who controls the product configuration C = Customer CC = Customer’s Customer S = Supplier SS = Supplier’s Supplier © 2003 D. N. Frank Associates
Conclusions © 2003 D. N. Frank Associates
The Old Way Engineers don’t Understand Manufacturing © 2003 D. N. Frank Associates PUR 9505 N Manufacturing doesn’t Understand Engineers
95 -029 -Rev. C How We View Each Other © 2003 D. N. Frank Associates

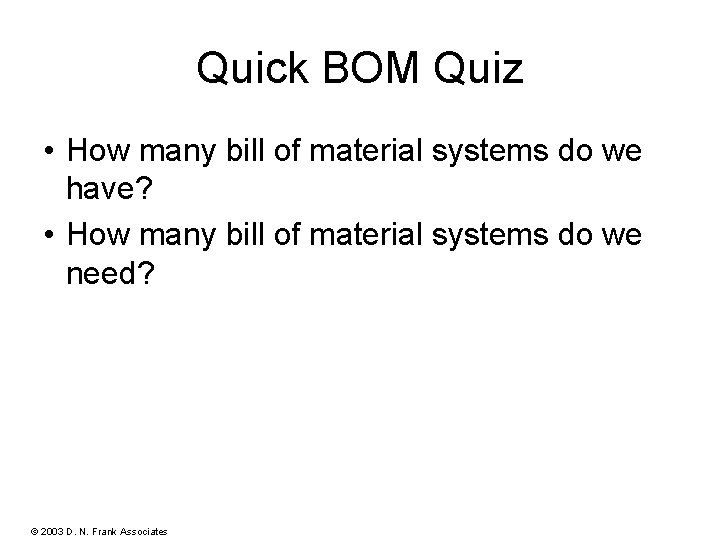

EMBOM 9904 C Quick BOM Quiz • How many bill of material systems do we have? • How many bill of material systems do we need? © 2003 D. N. Frank Associates

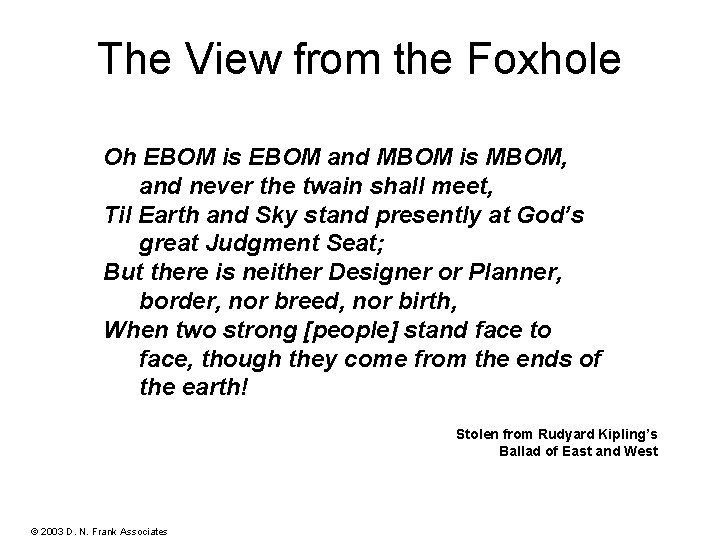

The View from the Foxhole EMBOM 9904 D Oh EBOM is EBOM and MBOM is MBOM, and never the twain shall meet, Til Earth and Sky stand presently at God’s great Judgment Seat; But there is neither Designer or Planner, border, nor breed, nor birth, When two strong [people] stand face to face, though they come from the ends of the earth! Stolen from Rudyard Kipling’s Ballad of East and West © 2003 D. N. Frank Associates

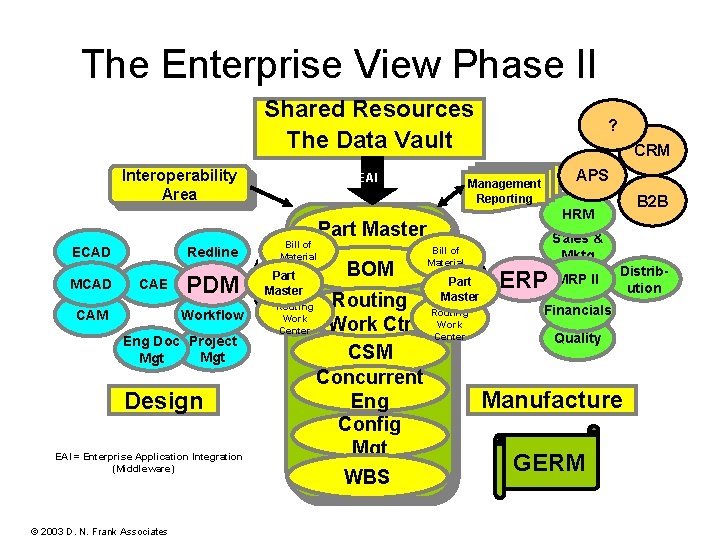

The Enterprise View Phase II ERP 9807 E - Rev G Shared Resources The Data Vault Interoperability Area ECAD MCAD Redline CAE CAM PDM Workflow Eng Doc Project Mgt Design EAI = Enterprise Application Integration (Middleware) © 2003 D. N. Frank Associates EAI Bill of Material Part EAI Master Routing Work Center ? CRM APS Management Reporting Part Master BOM Routing Work Ctr CSM Concurrent Eng Config Mgt WBS B 2 B HRM Bill of Material Part EAI Master Routing Work Center Sales & Mktg ERP MRP II Distribution Financials Quality Manufacture GERM

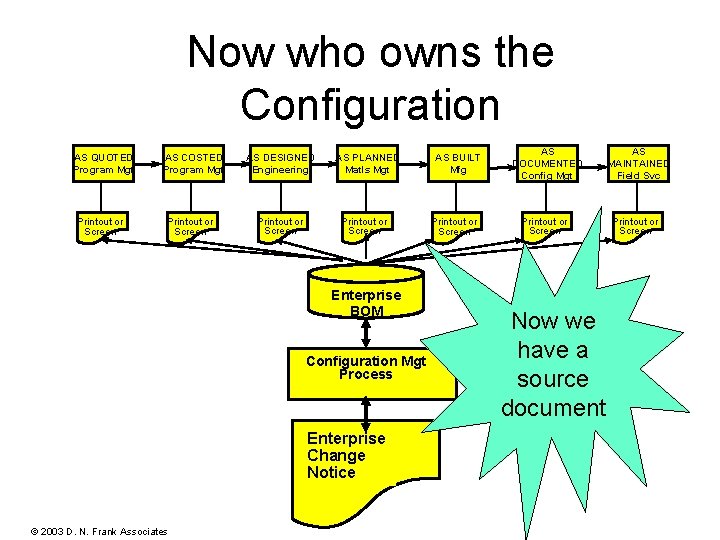

Now who owns the Configuration ENG 9003 A 1 - Rev D AS QUOTED Program Mgt Printout or Screen AS COSTED Program Mgt Printout or Screen AS DESIGNED Engineering Printout or Screen AS PLANNED Matls Mgt Printout or Screen Enterprise BOM Configuration Mgt Process Enterprise Change Notice © 2003 D. N. Frank Associates AS BUILT Mfg Printout or Screen AS DOCUMENTED Config Mgt Printout or Screen Now we have a source document AS MAINTAINED Field Svc Printout or Screen
The Germ of a New Idea EMM 9807 C - Rev. A • Understanding ERP is not enough • Doing Concurrent Engineering is not enough • Understanding PDM is not enough • Understanding SCM is not enough • These initiatives are only parts of the 21 st century unified approach Global Enterprise Resource Management A New FLA © 2003 D. N. Frank Associates

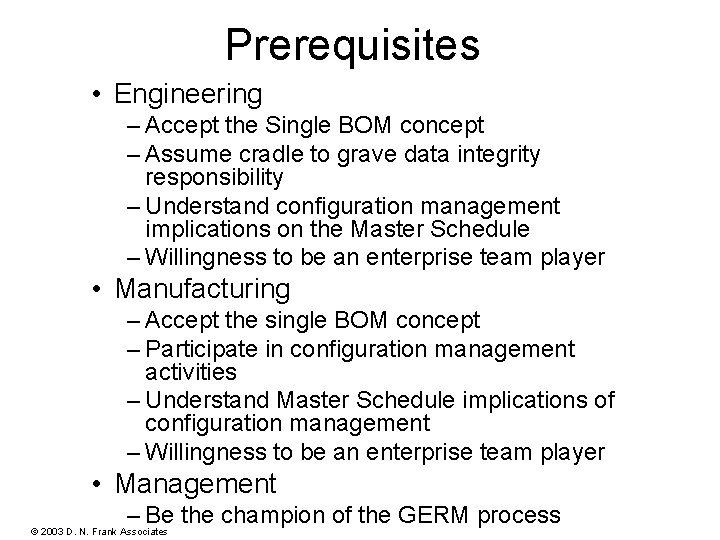

Prerequisites EMM 9807 D - Rev A • Engineering – Accept the Single BOM concept – Assume cradle to grave data integrity responsibility – Understand configuration management implications on the Master Schedule – Willingness to be an enterprise team player • Manufacturing – Accept the single BOM concept – Participate in configuration management activities – Understand Master Schedule implications of configuration management – Willingness to be an enterprise team player • Management – Be the champion of the GERM process © 2003 D. N. Frank Associates

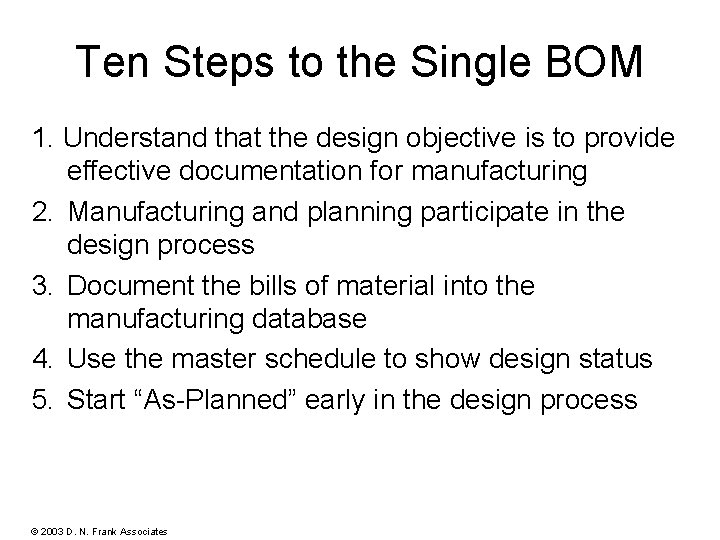

Ten Steps to the Single BOM EMBOM 9808 G 1. Understand that the design objective is to provide effective documentation for manufacturing 2. Manufacturing and planning participate in the design process 3. Document the bills of material into the manufacturing database 4. Use the master schedule to show design status 5. Start “As-Planned” early in the design process © 2003 D. N. Frank Associates
Ten Steps to the Single BOM (con’t) EMBOM 9808 H 6. Document the design for manufacturing the first time out 7. Use the Single BOM to capture drawing numbers and revision status 8. Use the Single BOM to maintain the “As. Something” status 9. Use the Single BOM for customer and/or Government reporting requirements 10. Use the Single BOM as the catalyst for engineering/manufacturing integration © 2003 D. N. Frank Associates
A Final Thought • If we consider the bill of material as a living document that migrates from one phase to another, – We could measure the quality of the quotation against the accepted configuration – We could measure the quality of the design against manufacturing being able to build from the engineering documentation … directly – We could measure manufacturing performance against the baseline configuration – We can capture the “as-maintained” and compare to any “asbuilt” for effective maintenance and upgrade – We could measure the enterprise performance against what the customer really wanted © 2003 D. N. Frank Associates
BOM 8905 L - Rev. B 40 35 In over 25 years, I’ve never found a real reason for more than one Bill of Material system Frank’s 15 th Law © 2003 D. N. Frank Associates
The New Way PUR 9505 P - Rev B Teamwork produces a’mazing results © 2003 D. N. Frank Associates
The Kiss Principle CTN 0003 - Rev. A If your solution is overly complicated. . . You probably do not understand the problem © 2003 D. N. Frank Associates

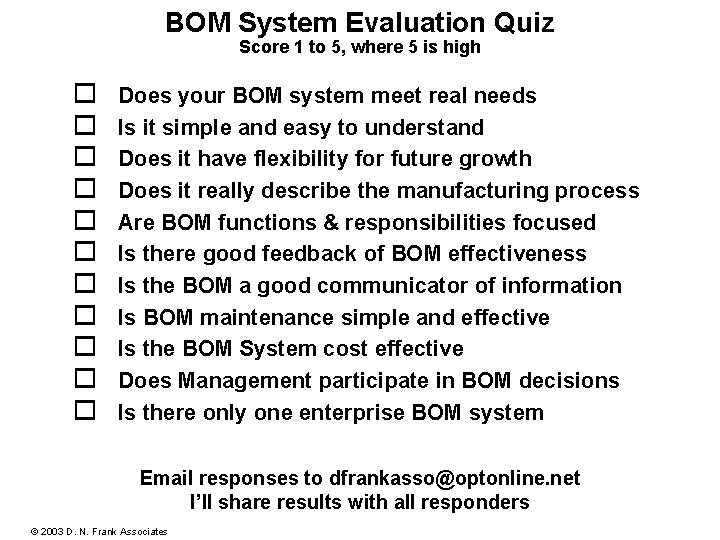

BOM System Evaluation Quiz Score 1 to 5, where 5 BOM 0101 P is high - Rev. E o o o Does your BOM system meet real needs Is it simple and easy to understand Does it have flexibility for future growth Does it really describe the manufacturing process Are BOM functions & responsibilities focused Is there good feedback of BOM effectiveness Is the BOM a good communicator of information Is BOM maintenance simple and effective Is the BOM System cost effective Does Management participate in BOM decisions Is there only one enterprise BOM system Email responses to dfrankasso@optonline. net I’ll share results with all responders © 2003 D. N. Frank Associates
Our Focus • • • Configuration Management defined Specific A&D issues and concerns CM and the Product Life Cycle CM v Engineering Change Some lessons learned Conclusions © 2003 D. N. Frank Associates
WRA 9201 A - Rev. B Questions? Thank You! © 2003 D. N. Frank Associates
