CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems – Genix Target Overview • Supports Simulink Real-Time • Supports H 3, H 4 and H 6 • Powerful hardware • i 7 4 GHz / 32 GByte RAM / SSD • PCI / PCIe I/O board support (Wide range) • FPGA Support (1 us model tick) • Ether. CAT / Ethernet backbone • Additional I/O CPU per slot (300 MHz floating point 32 channels) Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems – Genix Target Features • Based on standard PC hardware • New “Genix” backplane • Supports direct I/O (low level) from PCI to Genix SCM-IO (min routers) • Supports backplane I/O to Genix SCM -IO • Supports passive H 5 Genix SCM • Supports H 6 Genix SCM-IO • 120 MHz 32 bit per 2 xchannels • Simulink capable Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems – Genix Target Features • New “Genix” backplane • Ether. CAT backplane • Ethernet Network incl. switch • Internal USB Hub for Hi-speed USB to backplane CPUs • 4 CAN supported on each backplane and more via Genix • LIN support via PCI cards Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems – Genix Target Software • Multi-platform capable due to standard PC hardware • • • 1 Simulink Real-time 1 Windows (including VCX) Windows + NI RT Linux QNX etc Best performance Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems – H 5 Modules H 5 -DI-DO-AI-R • No Processor • • • Configurable using switches For cost sensitive applications 100 KHz bandwidth Aimed at 3 V 3 HIL I/O Aimed at +60 V HIL ranges No software required (however HCU can store settings for reporting) Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems –H 5 -DI-DO-AI-R Features • DI-DO-AI-R – two single Channels or one differential channel • Digital / PWM Input with external adjustable thresholds up to 22. 5 V • Analogue Input (bipolar) • Protected Digital Output (relays) • Pull up/down (3 settings or none) • Up to three Pull-up voltages and two pull down voltages Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems – H 6 Modules H 6 -DI-DO-AI-R-AO • Powerful processor boasting high end features 2 ECU IO channels 2 HIL Channels Pass though mode (SCM like H 5) I/O mode (IO board) with CAN, HIL and digital backbone interface • Simulink capable • Function provider / Sub-system or I/O node of a distributed or integrated HIL • • Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems –H 6 -DI-DO-AI-R-AO Features • DI-DO-AI-R-AO Even more capability than H 5 • Digital / PWM Input with internally and external adjustable thresholds up to +60 V • Digital / PWM output with output to 0. . 20 V • Analogue Input (bipolar) +20 V and + 60 V ranges • Protected Digital Output (relays) • Protected Analogue output 0. . 20 V • Pull up/down (3 settings or none) • Up to three pull-up voltages and two pull down voltages • Very precise references and gains Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems –PROG-ISOLOAD • Programmable load board • Up to 8 channels with 200 W per channel • 1 KW load per board possible • Channel-to-channels isolated allowing series or parallel use • Useful for simulating charging systems • Closed loop current control • Voltage, Load and Power modes possible via software control modes • Simulink blockset exists Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE HIL Systems –GENIX-PSU-3 KW • 3 KW PSU for Genix HIL systems • PSU with adjustable voltage and current via CAN • Easy to use front controls • Genix logic supplies internally provided • Works with H 1 modules and H 3 modules • GUI provided to control via test automation Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE MICROGen Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE MICROGen – CPU-COMMS • MICROGen has a new COMMS-CPU board in development to bring a wide range of “connected vehicle” technologies to gatewaying, RCP and telemetry applications • 4 x. CAN-FD, 2 x. CAN 2. 0 b, 4 x. LIN, RS 485, RS 232, SENT (Some via plug-ins), USB for real time • 2 x. Ethernet IEE 802. 3, Ether. CAT, 2 x. Broad. R Reach • Integrated network switch • Wi. Fi (802. 11 x), Bluetooth/BLE, GPRS with external Antenna option • USB for HOST • SD Card for Real-time logging (Wi. Fi capable SD option) Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE MICROGen – CPU-COMMS • The combined approach supports a faster CPU with more memory and RAM and is 32 bit hardware floating point • Wi. Fi can run a web server and can provide an access point or can join a local network • Wi. Fi will support model upload and model interrogation • Genix, Standard, DACs, Aux, Relays, PWM are all supported as before with some improvements • Up to 18 MS/s ADC, Change notification, low power sleep Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE MICROGen – Challenges for DTB • We have tried to make this new unit as compatible as possible with the existing mechanical arrangement but there are some considerations… • LCD has to change or go • Front connections are new and would require a DTB box change • However CANFD and Broad. RReach, LINs and RT Ethernet are inside the unit • All HOST connections ore on the front, but CAN is still an option • Could blank the display and not fit some host options Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE MICROGen – Future proofing • Due to the number of resources, some of these facilities are offered via plug-in “mezzanines” which route to CAN/SCI/USB to allow a number of new possibly unknown interfaces to be added, including… • • • RS 232, RS 485, LIN? , GSM/GPRS/5 G/5 G? Lo. Ra. WAN Integrated COMMDongle (via switch) Logger interfaces (temp logger, sens-X, other) Greentooth? Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE MICROGen – SENT Interfaces • There has been some interest in this and we will provide this via mezzanines • Automotive protocol already defined an used • Maybe needed for gateways • Relatively early yet Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE VISUALCONNX Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE VISUALCONNX – V 4 Release • New Developer Environment • Customisable Toolbars and ribbons • Faster environment • Removed older 3 rd party libraries • True container controls • New easier to use properties toolbox • Multiple concurrent connections • Synched real-time media player control • Video capture control Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Sens-X Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Sens-X – New enclosure formats • The first of the phase 1 units are complete and offer • • • 50 Amps continuous current (still limited at the low end, but should be better) Up to 30 A the fuse is the real fuse of the same type Fuse plugs in at the fusebox with a new breakout style (up to 30 A) For higher current fuses a MAXI fuse adapter will be available for fusebox plug -in arrangements, probably up to 60 A For JCASE formats an in-line fuse (2 variants available) will be employed 2 options for CP 12 connectivity LED uses a light pipe to make it visible without removing lid Push button is recessed but externally accessible Same connectivity as existing fuse Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Phase 1 –XTDP Variants • XT 90 Detachable Probe variants • Key differences from STD • Pushbutton and LED • XT 90 Connector • Higher current Sensors • Original Sens-X PCB • Two choices of CLP lead Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Phase 1 –XTDP Detachable Probes • Detachable Probes Available • 0 -30 A Mini Fuse Adapters • • • Plug directly into fusebox Fuse plugs into adapter Cable “figure of 8” 2. 5 mm 2 XT 90 connector remote from fusebox Soon also available for ATO and MAXI • 0 -50 A JCASE Fuse Adapters • Same for as an actual JCASE fuse (or equivalent) • Short cables recommended • Two in-line fuse types supported Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Phase 1 – Additional Accessories • We could also offer • • XTDP to 4 mm plugs (up to 32 A) XTDP to 6 mm plugs (up to 70 A) XTDP to 6 mm Rings (up to 50 A) XTDP Extenders (up to 30 A) XTDP with unterminated wires Fuse extractors Replacement fuses Inline fuse holders • MAXI, JCASE Simon Clarke sclarke@add 2. co. uk

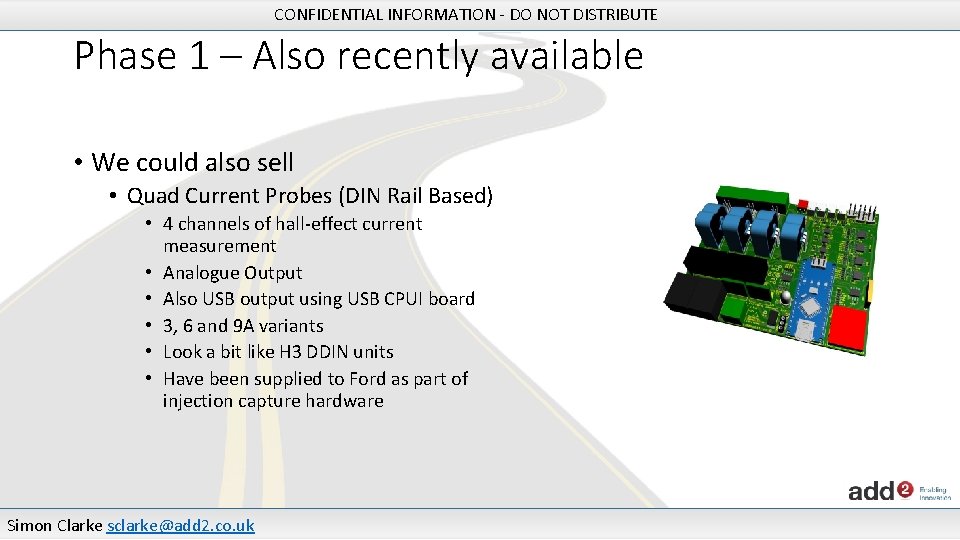

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Phase 1 – Also recently available • We could also sell • Quad Current Probes (DIN Rail Based) • 4 channels of hall-effect current measurement • Analogue Output • Also USB output using USB CPUI board • 3, 6 and 9 A variants • Look a bit like H 3 DDIN units • Have been supplied to Ford as part of injection capture hardware Simon Clarke sclarke@add 2. co. uk

CONFIDENTIAL INFORMATION - DO NOT DISTRIBUTE Phase 1 – What’s left? High accuracy <15 A • Close to completion are • Sens-X Analogue Fuses Bluetooth Interface • Voltage outputs for current and voltage • High accuracy options available • Compensation circuitry for low quiescent current errors often encountered • High speed (10 KS/s and above) USB / Serial Variant • Sens-X Digital Low Range Low Noise • Eg: 5 A with <100 u. A noise • Sens-X Meter Fuses High Current Variant • Small fuses with integral display for current, voltage and power • Sens-X USB, Serial and Bluetooth Serial Fuses • Serial and Virtual Serial based enclosed fuse monitors Simon Clarke sclarke@add 2. co. uk OLED Display Variant
