Confidential Cable Arm Part Number Current Product (Acer OEM) Part Number MCP-290 -00073 -0 N-AI 34 Part Revision Part Type Chassis Parts Last Updated 10/18/2010 Part Description Acer Group Cable Management Arm for 2 U, 3 U and 4 U chassis Part Number MCP-290 -00085 -0 N-AI 34 Part Revision Part Type Chassis Parts Last Updated 10/12/2010 Part Description Acer Group Cable Management Arm for 1 U Chassis Future Product (SMC Cable Arm: P/N Reserved) Part Number MCP-290 -00073 -0 N Part Revision Part Type Chassis Parts Last Updated 10/18/2010 Part Description Supermicro Cable Management Arm for 2 U, 3 U and 4 U chassis Part Number MCP-290 -00085 -0 N Part Revision Part Type Chassis Parts Last Updated 10/01/2010 Part Description Supermicro Cable Management Arm for 1 U Chassis

Confidential Cable Arm 2 U+ Compatibility (Compatible List) Model Chassis Extension Bracket SC 829 /SC 219 SC 828 ＋ SC 835 /SC 836 /SC 936 SC 743 /SC 745 ＋ Arm Structure Rack Mounting Bracket

Confidential Cable Arm for SC 829 / SC 219 Rack Mounting Bracket Chassis Extension Bracket

Confidential Cable Arm for SC 829 / SC 219 Chassis Extension Bracket (Front View) Chassis Extension Bracket (Rear View)

Confidential Cable Arm for SC 829 / SC 219 Arm Structure Chassis Extension Bracket Rack Mounting Bracket

Confidential Joint Connection (Thumb Screw)

Confidential Cable Arm for SC 828 Chassis Extension Bracket

Confidential Cable Arm for SC 828

Confidential Cable Arm for SC 835 / SC 836 / SC 936 2. 定位PIN固定機箱延伸片 3. 鎖固至機櫃上

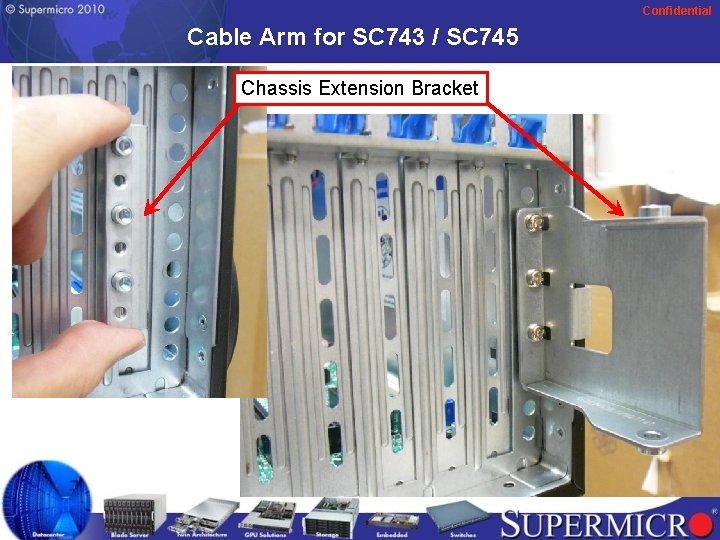

Confidential Cable Arm for SC 743 / SC 745 Chassis Extension Bracket

Confidential Cable Arm for SC 743 / SC 745

Confidential Cable Arm 2 U+ Compatibility (Currently Not Support) SC 825/SC 826 (UIO) For SC 825/SC 826 (UIO), chassis need to add extra two holes by tooling modification. SC 829 chassis extension bracket can be used here. SC 213/SC 216 (UIO): NG For SC 213/SC 216 (UIO), chassis extension mounting conflicts w/ rail mounting. SC 825/SC 826/SC 213/SC 216 (LP) For SC 825/SC 826/SC 213/SC 216 (LP), it needs one new tooling part, chassis extension bracket. 1. Too many different chassis extension bracket? All inside one cable arm package? 2. Existing chassis inventory v. s. cut-in chassis revision

Confidential SC 825 / SC 826 (UIO): Needs Tooling Modification SC 829 Bracket Before Add extra two holes by tooling modification After

Confidential SC 213 / SC 216 (UIO): NG For SC 213/SC 216 (UIO), chassis extension mounting conflicts w/ rail mounting.

Confidential SC 825 (LP): Needs New Extension Bracket Needs one new tooling part, SC 825 (LP) chassis connection bracket. Chassis Extension Bracket

Confidential Cable Arm 1 U Compatibility: How it work? The arm structures attach to one inner rail extension to complete the installation. Rack Mounting Bracket Arm Structure 1 U Inner Rail Extension (Short)

Confidential Cable Arm 1 U Installation The arm structures attach to one inner rail extension to complete the installation. Rack Mounting Bracket 1 U Inner Rail Extension (Short) Arm Structure

Confidential

Confidential

Confidential

Confidential

Confidential

Confidential

Confidential The design of clearance (rack mounting bracket) enables the inner rail extension to go through it w/o interference. Rack Mounting Bracket
