Conclusion for Beam Diagnostics Course Diagnostics is the ’sensory organ’ for the beam. It required for operation and development of accelerators Four types of demands leads to different installations: Ø Quick, non-destructive measurements leading to a single number or simple plots. Ø Instrumentation for daily check, malfunction diagnosis and wanted parameter variation. Ø Complex instrumentation used for hard malfunction and accelerator development. Ø Automated measurement and control of beam parameters i. e. feedback A clear interpretation of the results is a important design criterion. General comments: Ø Good knowledge of accelerators, general physics and technologies needed. Ø Quite different technologies are used, based on various physics processes. Ø Each task and each technology calls for an expert. Ø Accelerator development goes parallel to diagnostics development. Þ Interesting and challenging subject! Peter Forck, JUAS Archamps 1 Conclusion

Beam Quantities and their Diagnostics I LINAC & transport lines: Single pass Synchrotron: multi pass Electrons: always relativistic Protons/Ions: non-relativistic for Ekin < 1 Ge. V/u Depending on application: Low current high current Overview of the most commonly used systems: Beam quantity Current I General Profile xwidth Special General Position xcm Transverse Emittance εtran Special General Special Peter Forck, JUAS Archamps LINAC & transfer line Transformer, dc & ac Faraday Cup Particle Detectors Screens, SEM-Grids Wire Scanners, OTR Screen MWPC, Fluorescence Light Pick-up (BPM) Using position measurement Slit-grid Quadrupole Variation Pepper-Pot 2 Synchrotron Transformer, dc & ac Pick-up Signal (relative) Ionization Profile Monitor Wire Scanner, Synchrotron Light Monitor Pick-up (BPM) Ionization Profile Monitor Wire Scanner Transverse Schottky Conclusion

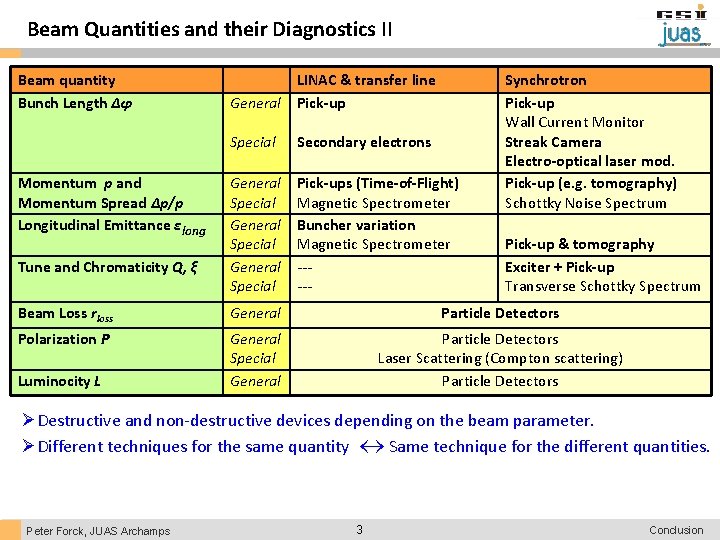

Beam Quantities and their Diagnostics II Beam quantity Bunch Length Δφ Momentum p and Momentum Spread Δp/p Longitudinal Emittance εlong Tune and Chromaticity Q, ξ General LINAC & transfer line Pick-up Special Secondary electrons General Special Pick-ups (Time-of-Flight) Magnetic Spectrometer Buncher variation Magnetic Spectrometer ----- Synchrotron Pick-up Wall Current Monitor Streak Camera Electro-optical laser mod. Pick-up (e. g. tomography) Schottky Noise Spectrum Pick-up & tomography Exciter + Pick-up Transverse Schottky Spectrum Beam Loss rloss General Particle Detectors Polarization P General Special General Particle Detectors Laser Scattering (Compton scattering) Particle Detectors Luminocity L ØDestructive and non-destructive devices depending on the beam parameter. ØDifferent techniques for the same quantity Same technique for the different quantities. Peter Forck, JUAS Archamps 3 Conclusion

Conclusion for Beam Diagnostics Course Diagnostics Thank you for your attention! For a successful construction and operation of an accelerator, the understand right balance of all disciplines is required! Peter Forck, JUAS Archamps 4 Conclusion
