Conceptual Modeling Issues in Web Applications enhanced with

Conceptual Modeling Issues in Web Applications enhanced with Web services Sara Comai, Politecnico di Milano sara. comai@polimi. it In collaboration with: Marco Brambilla, Stefano Ceri, Piero Fraternali and Ioana Manolescu WWW Workshop ESSW 2003 May 20, 2003 - Budapest

Introduction: table of contents The scenario of Web application development Motivations of model-driven Web development extended with Web services The Web. ML approach and its extension with Web services Conceptual primitives for Web services Some examples Implementation in Web. Ratio Conclusions and future directions

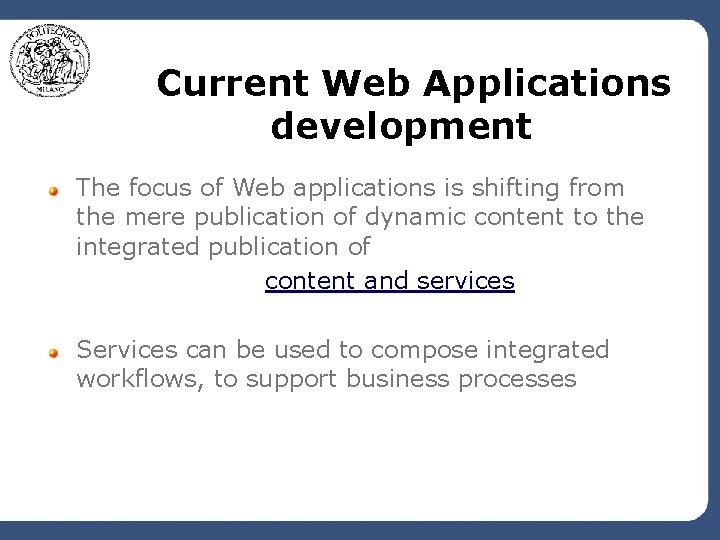

Current Web Applications development The focus of Web applications is shifting from the mere publication of dynamic content to the integrated publication of content and services Services can be used to compose integrated workflows, to support business processes

Web services and modeldriven approaches Technological background: SOAP, UDDI, WSDL, BPEL 4 WS, WSCI, and so on Development methodologies: new methods and CASE tools are required Aim of this work: Conceptual modeling and automatic implementation of Web applications interacting with Web services Primitives for a Web modeling language

Web Modeling Language (Web. ML) Web. ML: a conceptual language for high-level design of data-intensive Web applications Defined in 1998, widely published: Ceri, Fraternali at al. Designing data-intensive Web applications, Morgan Kauffman, Dec. 2002 Adopted in many universities worldwide Commercially implemented (www. webratio. com) Used for developing several applications: www. acer-euro. com, www. aceradvantage. com, www. elet. polimi. it, www. image. co. uk, . . .

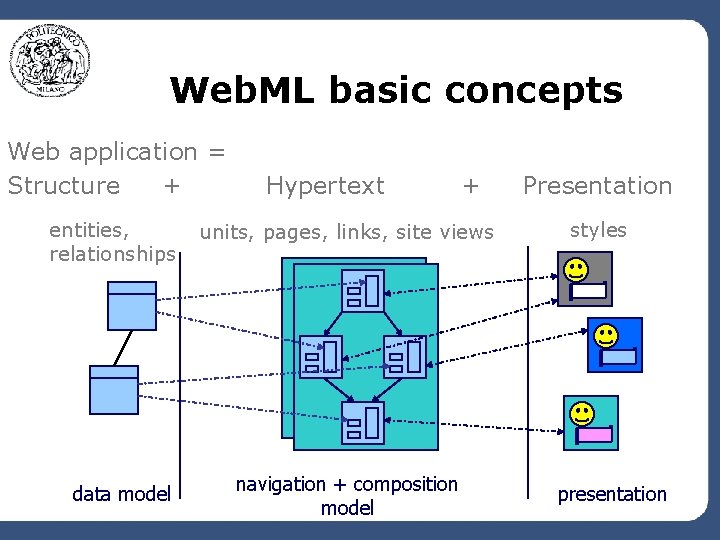

Web. ML basic concepts Web application = Structure + entities, relationships data model Hypertext + units, pages, links, site views navigation + composition model Presentation styles presentation

Web. ML hypertexts Index of Papers • Daml-s and WSDL • Web. ML • Web services Selected paper title: Web services abstract: XXX Go to all authors page All Authors

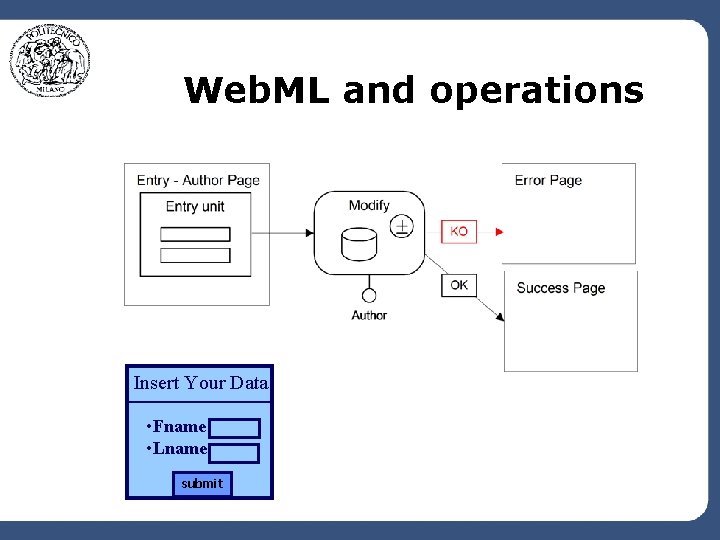

Web. ML and operations Insert Your Data • Fname • Lname submit

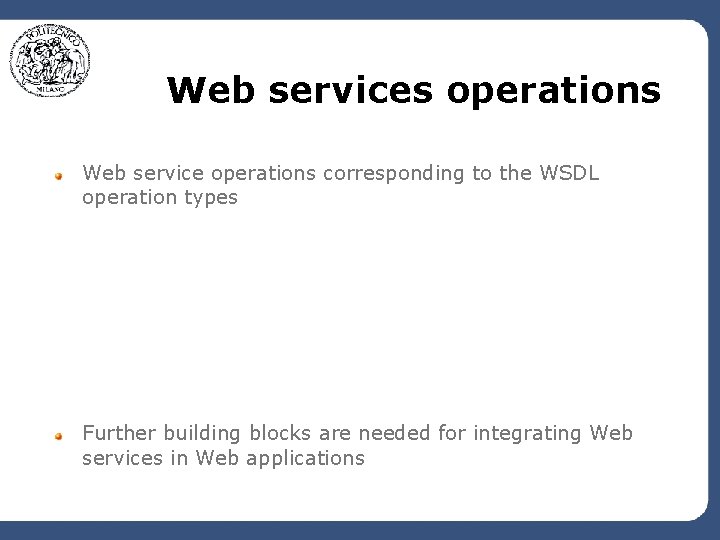

Web services operations Web service operations corresponding to the WSDL operation types Further building blocks are needed for integrating Web services in Web applications

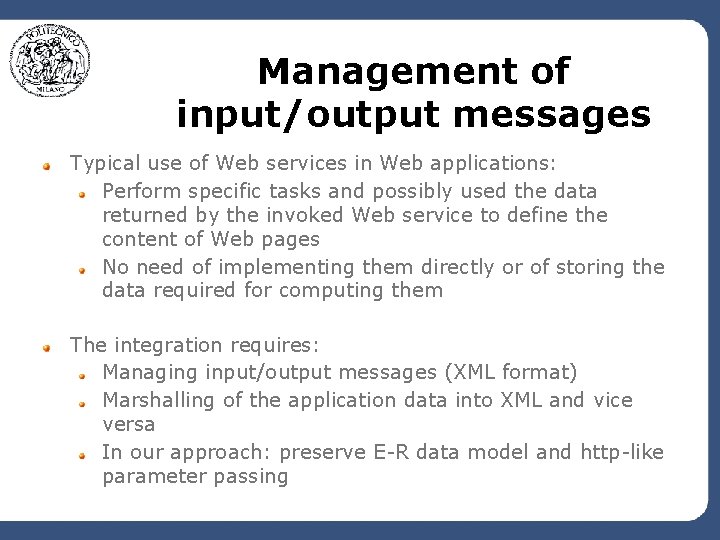

Management of input/output messages Typical use of Web services in Web applications: Perform specific tasks and possibly used the data returned by the invoked Web service to define the content of Web pages No need of implementing them directly or of storing the data required for computing them The integration requires: Managing input/output messages (XML format) Marshalling of the application data into XML and vice versa In our approach: preserve E-R data model and http-like parameter passing

Example of Web service invocation

Chains of Web services Adapter unit for: Composing the input message of a Web service Decomposing the output message of a Web service Calling multiple Web services in sequence, adapting their input and output

Storing the data retrieved from Web services In many applications data retrieved from Web services need also to be stored in local data repository Persistent storage: database updates Temporary storage: e. g. , until the user disconnects from the application in main memory

Lifetime of main memory entities: user session In many cases shorter time is needed, e. g. , only between two calls of the same Web service Different policies to fine tune the behavior of update operations on main memory objects: FLUSH: each time an entity is updated the new data replace any pre-existing data PRESERVE: each time an entity is updated the new data is added to any pre-existing data

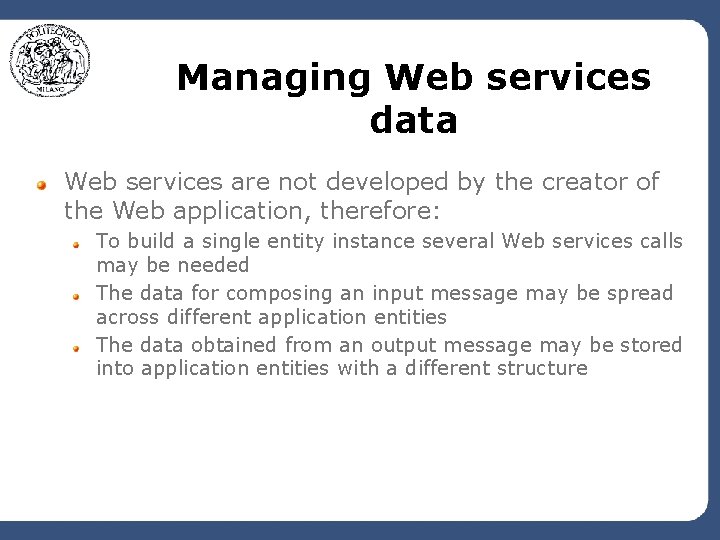

Managing Web services data Web services are not developed by the creator of the Web application, therefore: To build a single entity instance several Web services calls may be needed The data for composing an input message may be spread across different application entities The data obtained from an output message may be stored into application entities with a different structure

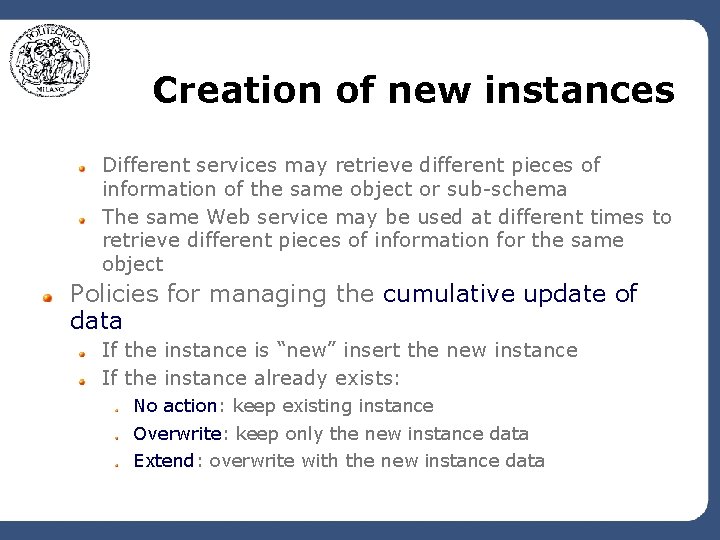

Creation of new instances Different services may retrieve different pieces of information of the same object or sub-schema The same Web service may be used at different times to retrieve different pieces of information for the same object Policies for managing the cumulative update of data If the instance is “new” insert the new instance If the instance already exists: No action: keep existing instance Overwrite: keep only the new instance data Extend: overwrite with the new instance data

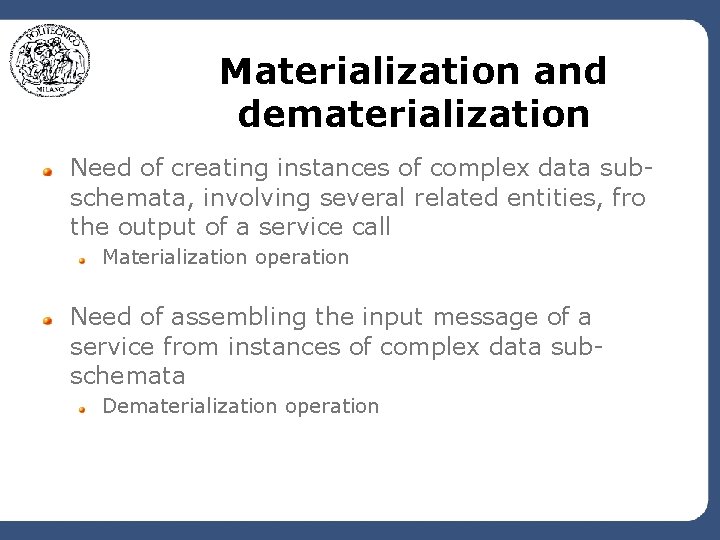

Materialization and dematerialization Need of creating instances of complex data subschemata, involving several related entities, fro the output of a service call Materialization operation Need of assembling the input message of a service from instances of complex data subschemata Dematerialization operation

Materialization and dematerialization /2 Intermediate XML format: canonical XML schema <? xml version="1. 0" encoding="UTF-8"? > <relationship id="rel_Ent 1_Ent 2"> <root> <instance> <entity id="Ent 1"> <source-oid>item 1</source-oid> <instance> <target-oid>object 2</target-oid> <attribute id="oid">item 1</attribute> </instance> <attribute id="att 1">. . . </attribute> <instance> </instance> … <source-oid>item 1</source-oid> </entity> <target-oid>object 2</target-oid> <entity id="Ent 2"> </instance> <instance> </relationship> <attribute id="oid">object 1</attribute> </root> <attribute id="att 2">. . . </attribute> </instance> <instance> <attribute id="oid">object 2</attribute> <attribute id="att 2">. . . </attribute> </instance> </entity>

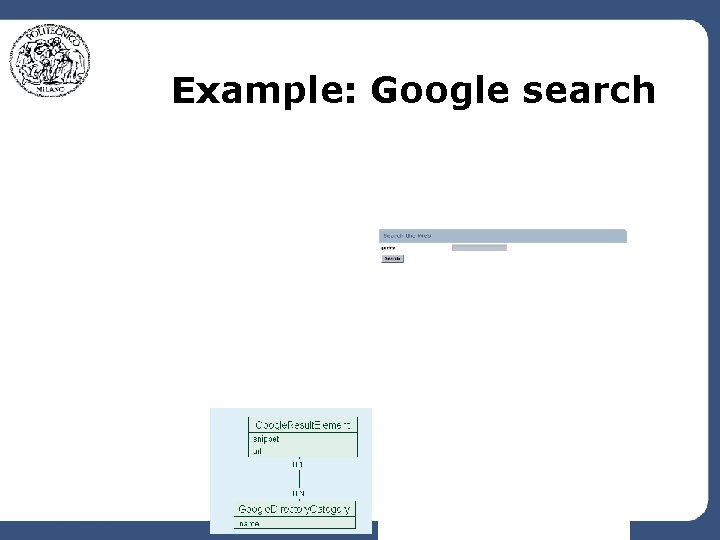

Example: Google search

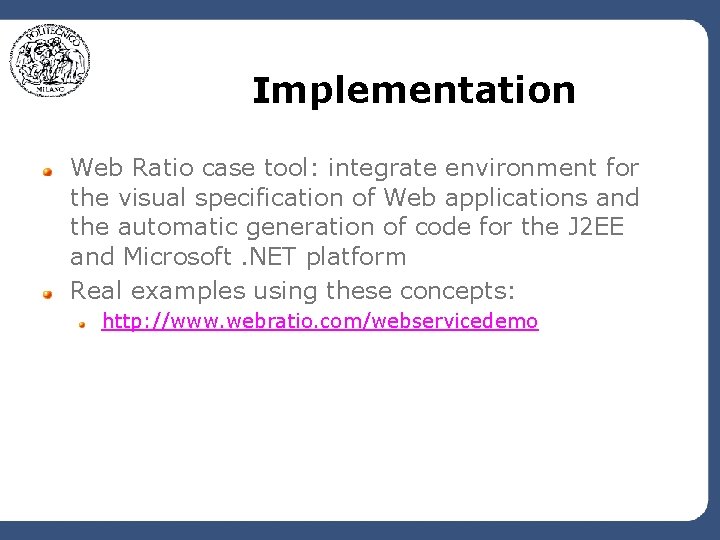

Implementation Web Ratio case tool: integrate environment for the visual specification of Web applications and the automatic generation of code for the J 2 EE and Microsoft. NET platform Real examples using these concepts: http: //www. webratio. com/webservicedemo

Conclusions and future work Conclusions: Requirements and primitives to model Web applications interacting with Web services with the aim of providing and automatic implementation of such integration Building blocks: Supporting the transformation of application data into Web services data and vice versa Providing different storage alternatives Providing specific operations for representing at the conceptual level common processes deriving from the integration of Web services Future work: Adding semantics to the adapter unit Integrating service-centric applications with workflows

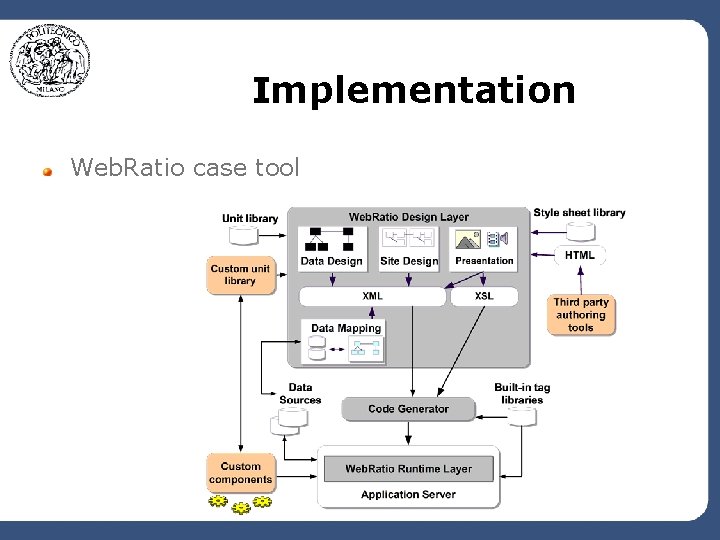

Implementation Web. Ratio case tool

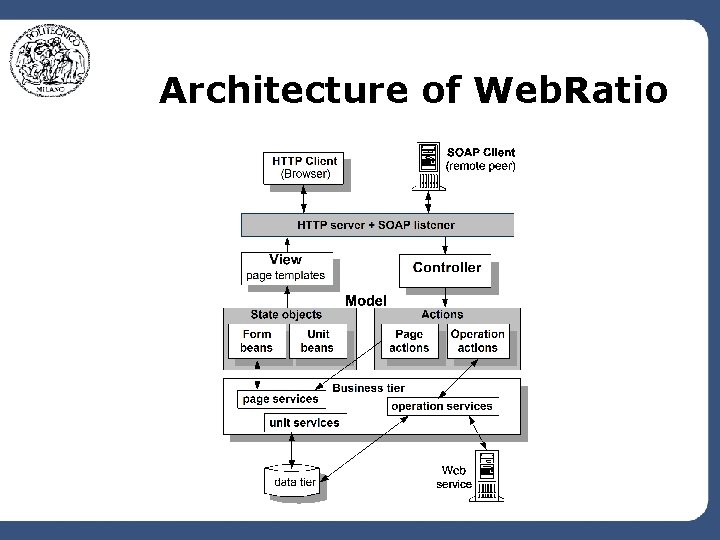

Architecture of Web. Ratio

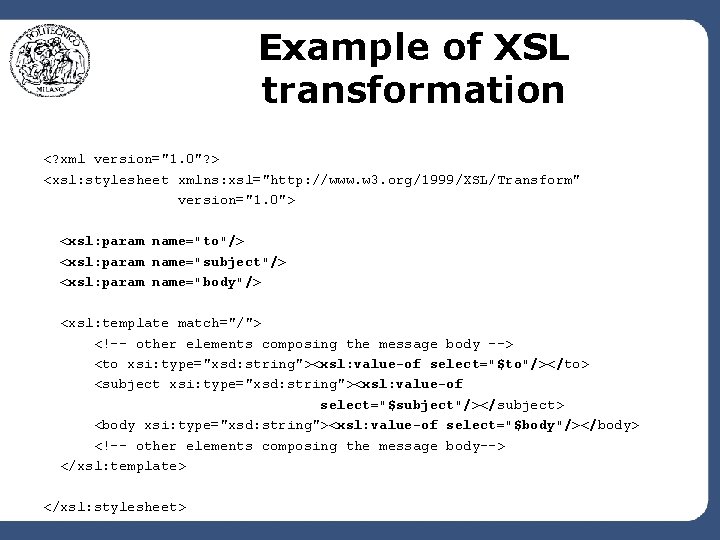

Example of XSL transformation <? xml version="1. 0"? > <xsl: stylesheet xmlns: xsl="http: //www. w 3. org/1999/XSL/Transform" version="1. 0"> <xsl: param name="to"/> <xsl: param name="subject"/> <xsl: param name="body"/> <xsl: template match="/">  <to xsi: type="xsd: string"><xsl: value-of select="$to"/></to> <subject xsi: type="xsd: string"><xsl: value-of select="$subject"/></subject> <body xsi: type="xsd: string"><xsl: value-of select="$body"/></body>  </xsl: template> </xsl: stylesheet>
