Conceptual Chemistry UNIT 6 – STATES OF MATTER

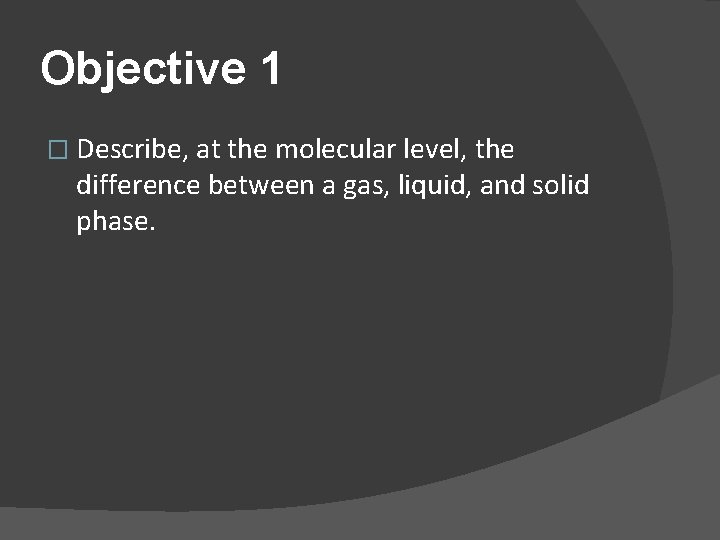

Objective 1 � Describe, at the molecular level, the difference between a gas, liquid, and solid phase.

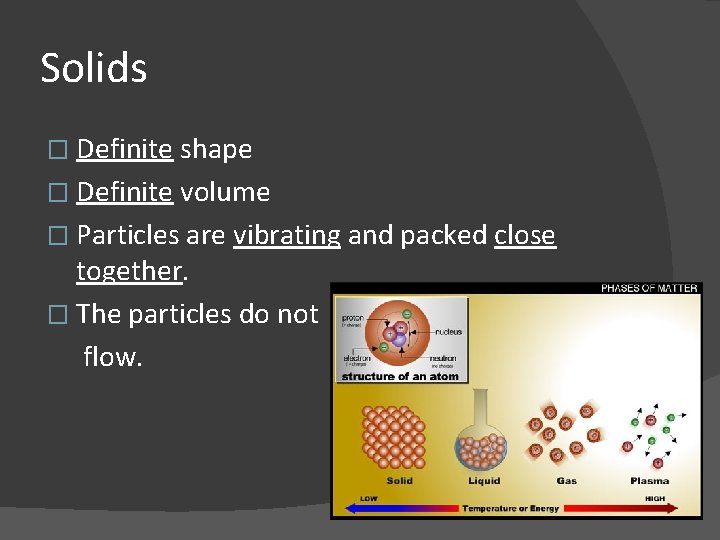

Solids � Definite shape � Definite volume � Particles are vibrating and packed close together. � The particles do not flow.

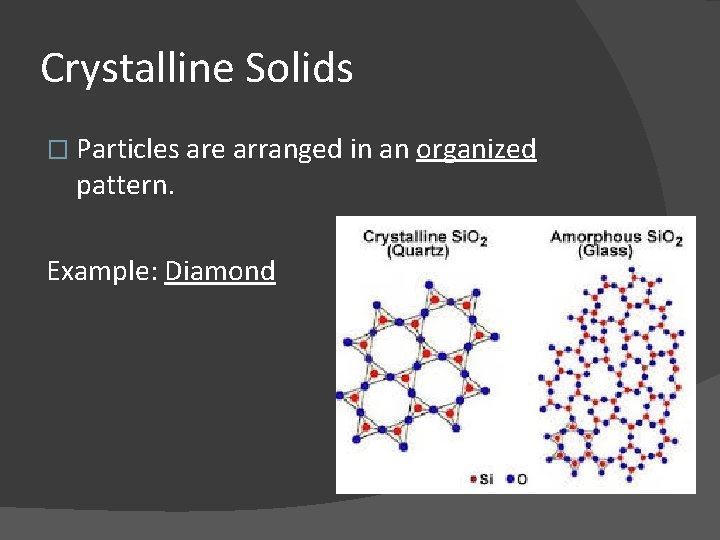

Crystalline Solids � Particles are arranged in an organized pattern. Example: Diamond

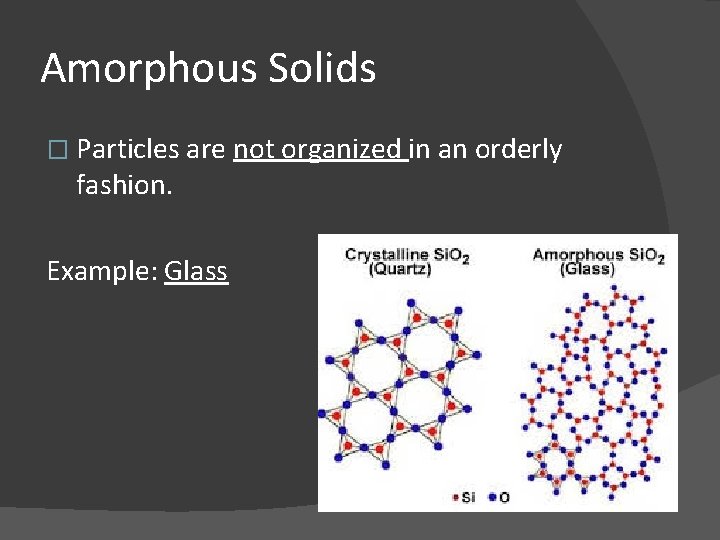

Amorphous Solids � Particles are not organized in an orderly fashion. Example: Glass

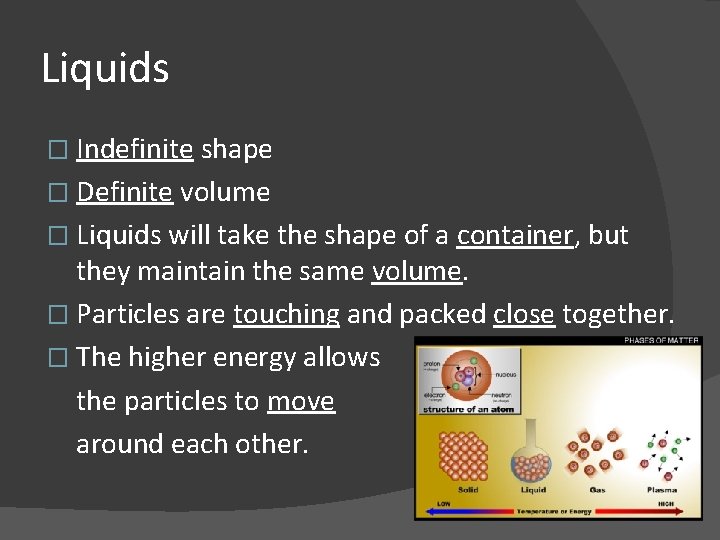

Liquids � Indefinite shape � Definite volume � Liquids will take the shape of a container, but they maintain the same volume. � Particles are touching and packed close together. � The higher energy allows the particles to move around each other.

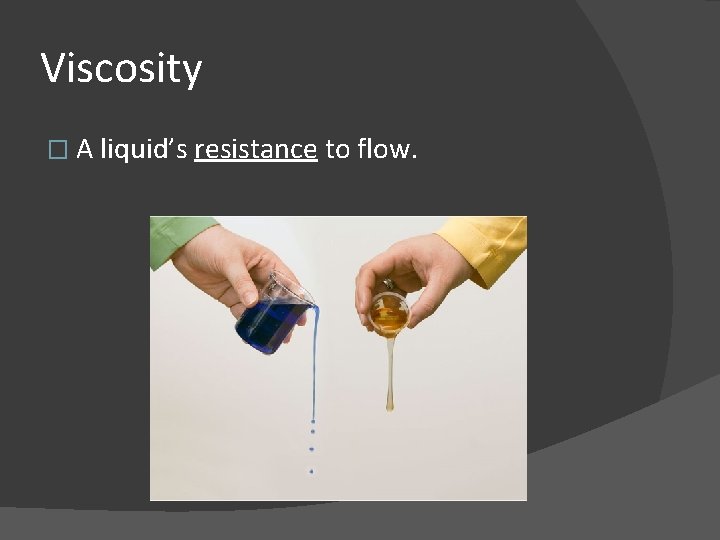

Viscosity � A liquid’s resistance to flow.

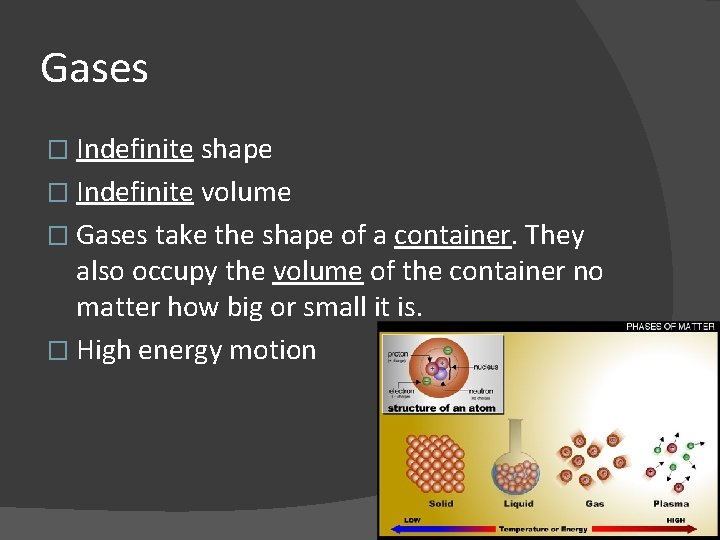

Gases � Indefinite shape � Indefinite volume � Gases take the shape of a container. They also occupy the volume of the container no matter how big or small it is. � High energy motion

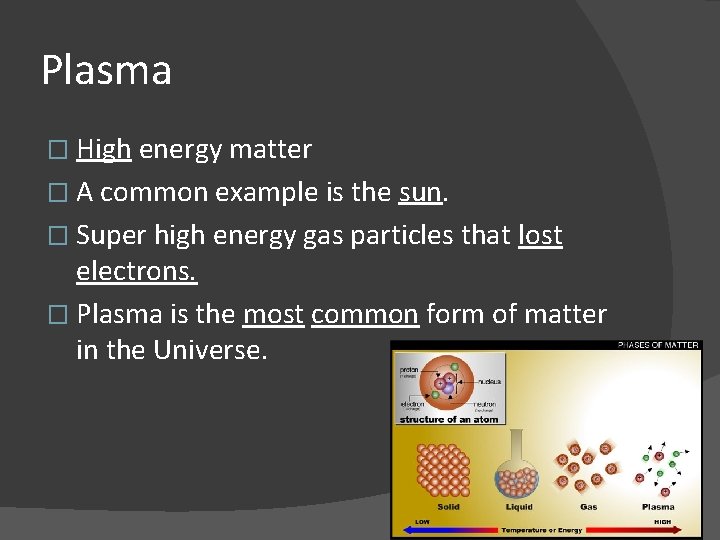

Plasma � High energy matter � A common example is the sun. � Super high energy gas particles that lost electrons. � Plasma is the most common form of matter in the Universe.

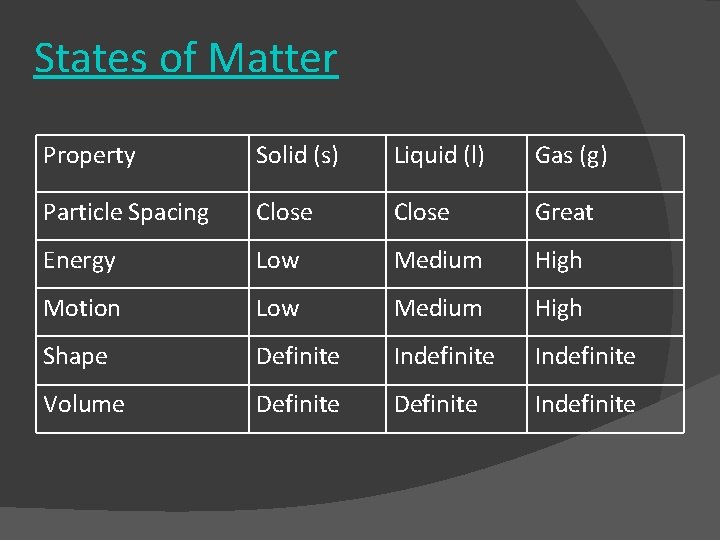

States of Matter Property Solid (s) Liquid (l) Gas (g) Particle Spacing Close Great Energy Low Medium High Motion Low Medium High Shape Definite Indefinite Volume Definite Indefinite

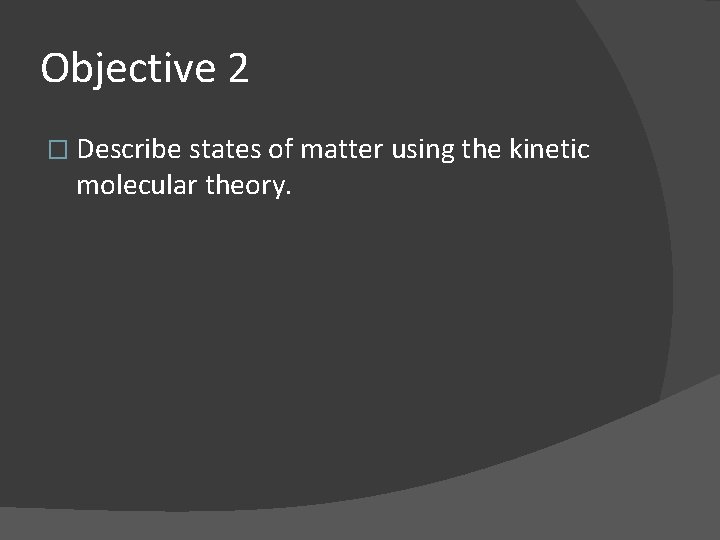

Objective 2 � Describe states of matter using the kinetic molecular theory.

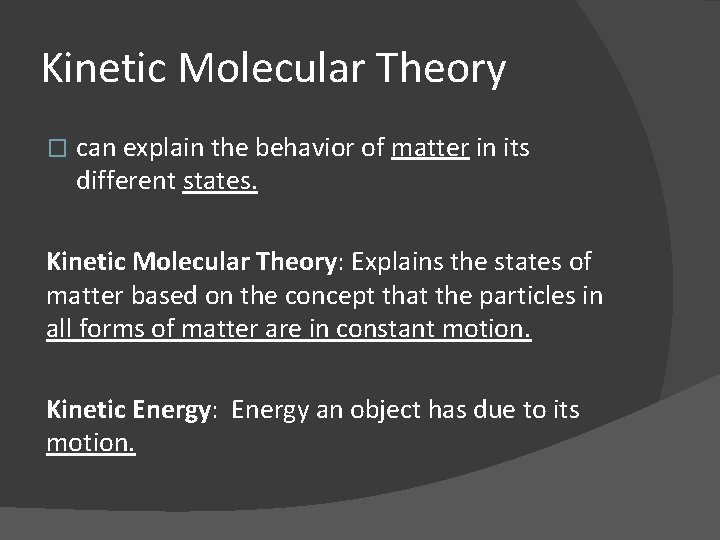

Kinetic Molecular Theory � can explain the behavior of matter in its different states. Kinetic Molecular Theory: Explains the states of matter based on the concept that the particles in all forms of matter are in constant motion. Kinetic Energy: Energy an object has due to its motion.

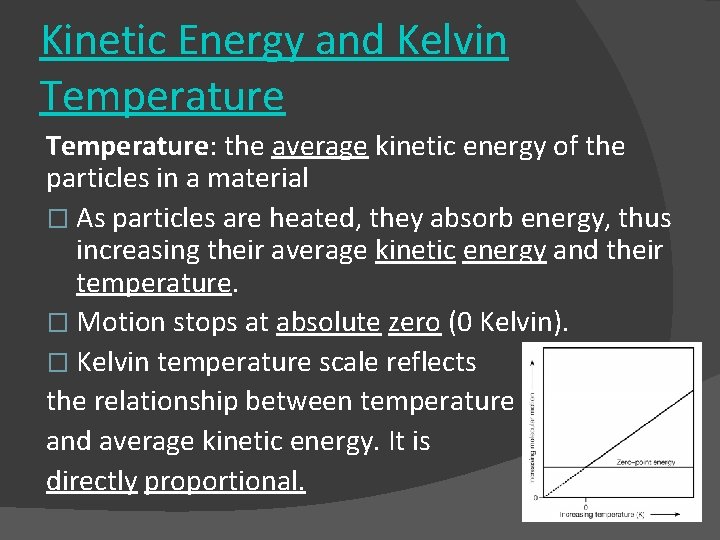

Kinetic Energy and Kelvin Temperature: the average kinetic energy of the particles in a material � As particles are heated, they absorb energy, thus increasing their average kinetic energy and their temperature. � Motion stops at absolute zero (0 Kelvin). � Kelvin temperature scale reflects the relationship between temperature and average kinetic energy. It is directly proportional.

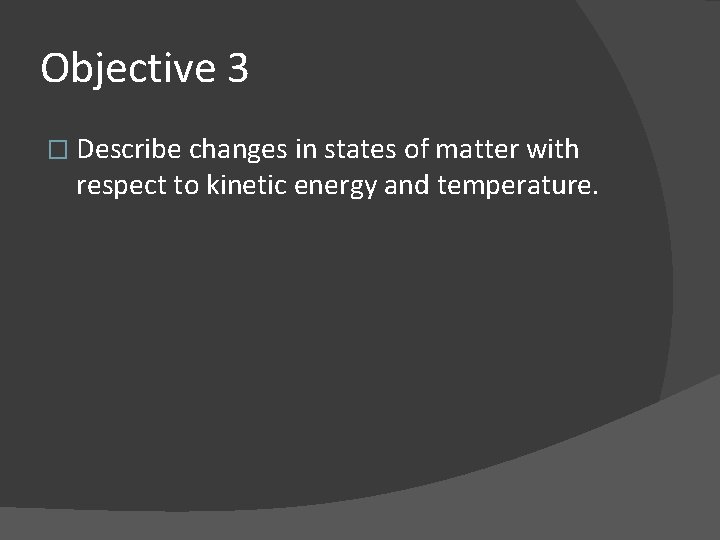

Objective 3 � Describe changes in states of matter with respect to kinetic energy and temperature.

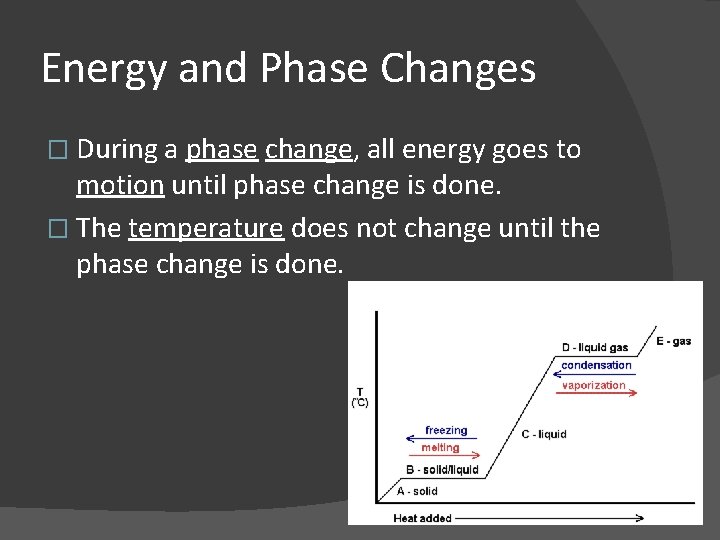

Energy and Phase Changes � During a phase change, all energy goes to motion until phase change is done. � The temperature does not change until the phase change is done.

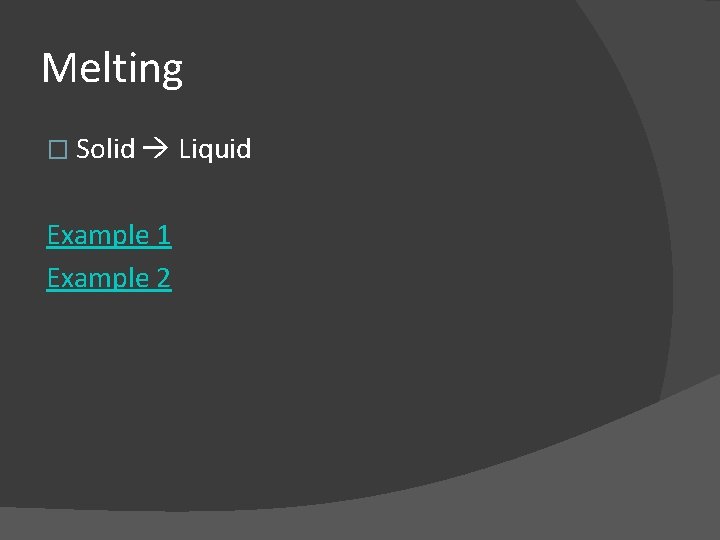

Melting � Solid Liquid Example 1 Example 2

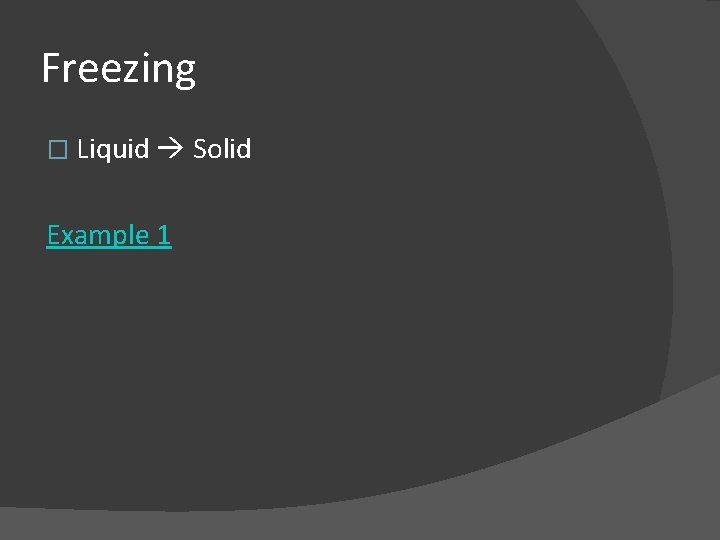

Freezing � Liquid Solid Example 1

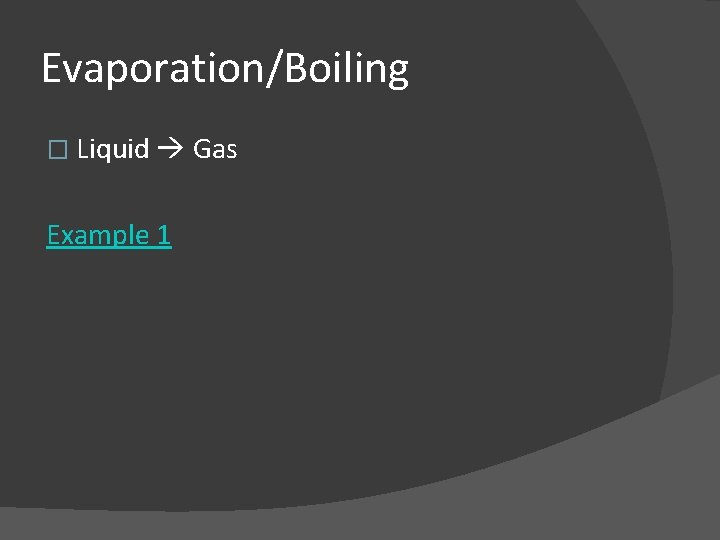

Evaporation/Boiling � Liquid Gas Example 1

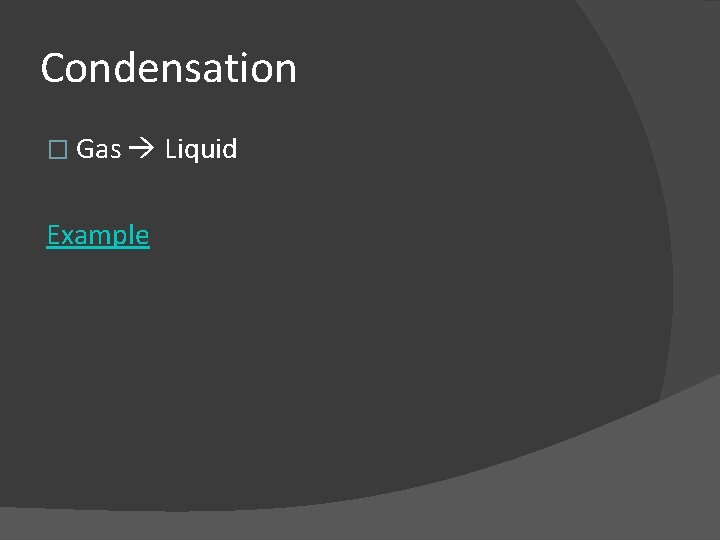

Condensation � Gas Liquid Example

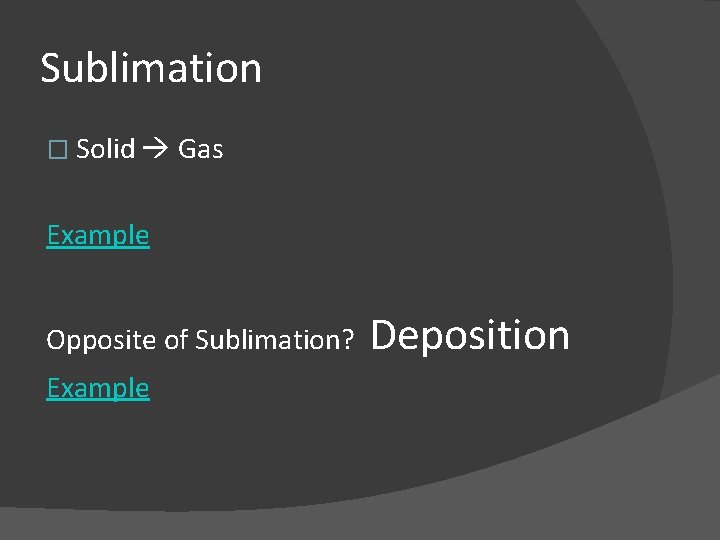

Sublimation � Solid Gas Example Opposite of Sublimation? Example Deposition

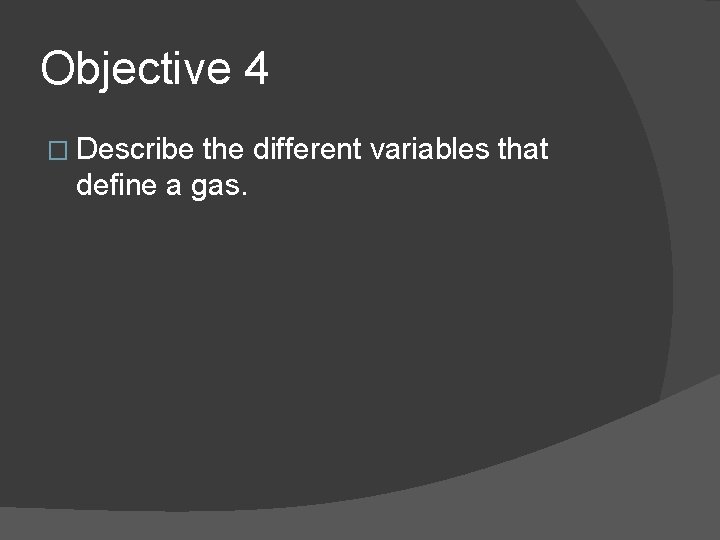

Objective 4 � Describe the different variables that define a gas.

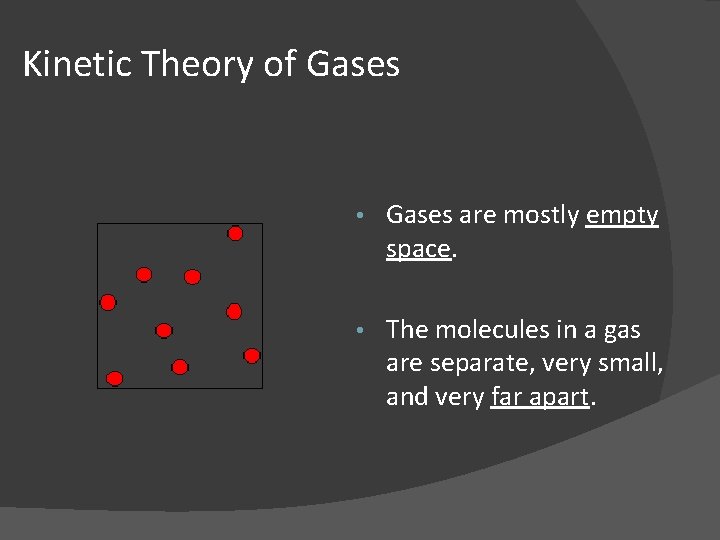

Kinetic Theory of Gases • Gases are mostly empty space. • The molecules in a gas are separate, very small, and very far apart.

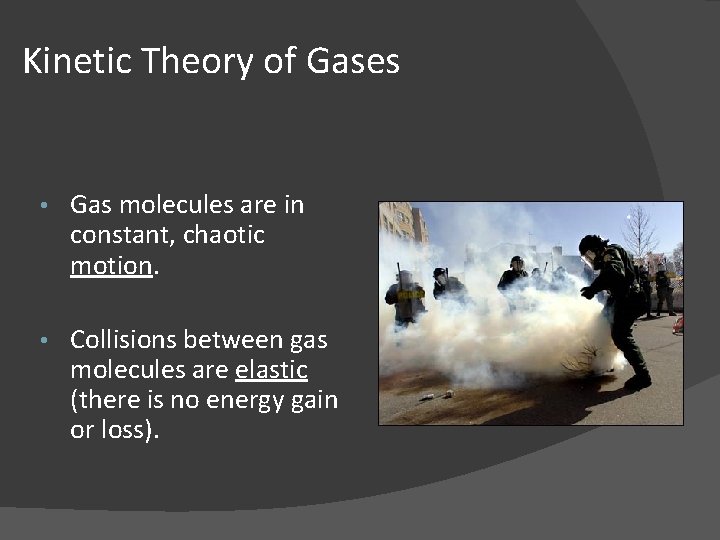

Kinetic Theory of Gases • Gas molecules are in constant, chaotic motion. • Collisions between gas molecules are elastic (there is no energy gain or loss).

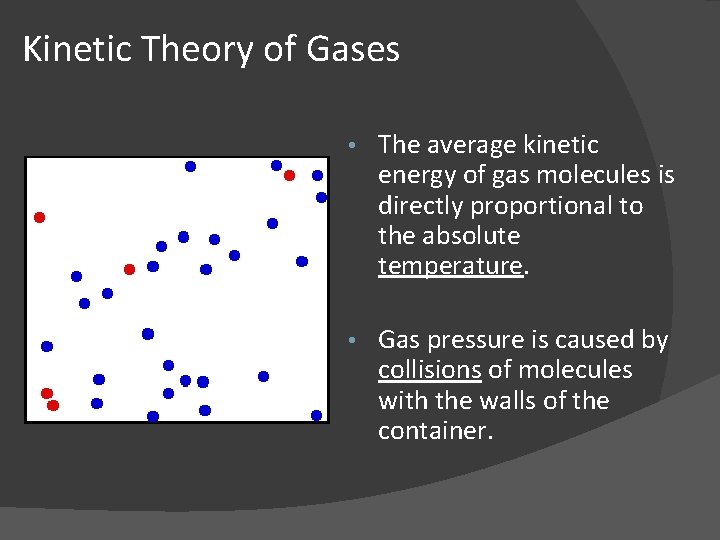

Kinetic Theory of Gases • The average kinetic energy of gas molecules is directly proportional to the absolute temperature. • Gas pressure is caused by collisions of molecules with the walls of the container.

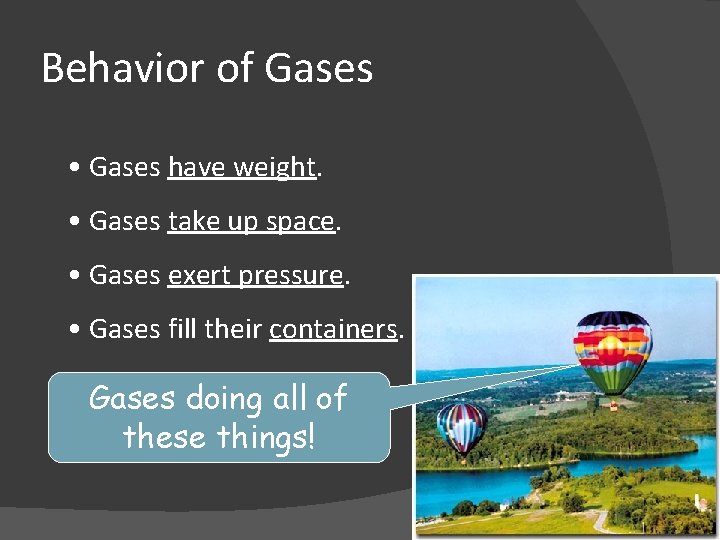

Behavior of Gases • Gases have weight. • Gases take up space. • Gases exert pressure. • Gases fill their containers. Gases doing all of these things!

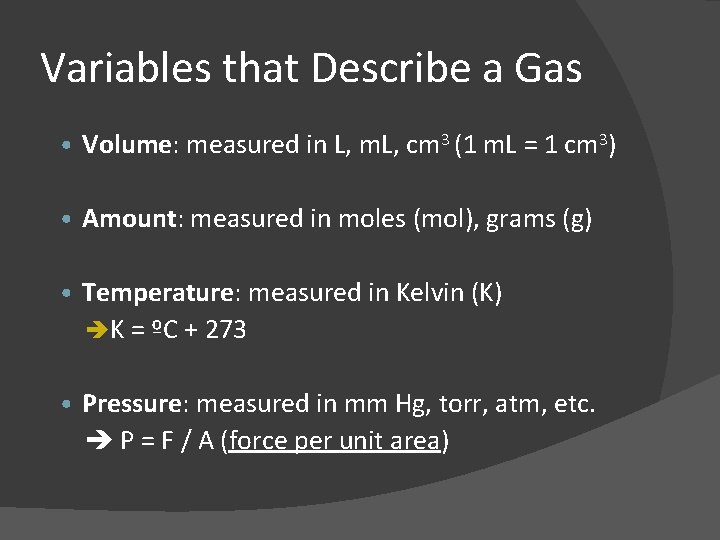

Variables that Describe a Gas • Volume: measured in L, m. L, cm 3 (1 m. L = 1 cm 3) • Amount: measured in moles (mol), grams (g) • Temperature: measured in Kelvin (K) K = ºC + 273 • Pressure: measured in mm Hg, torr, atm, etc. P = F / A (force per unit area)

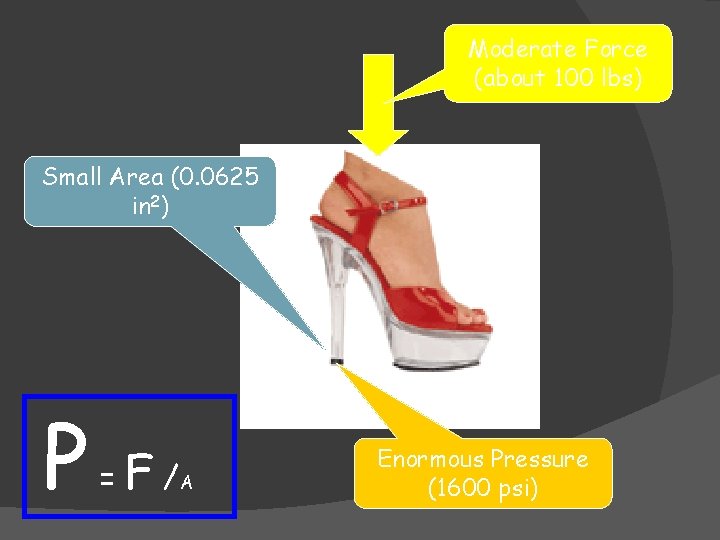

Moderate Force (about 100 lbs) Small Area (0. 0625 in 2) P = F /A Enormous Pressure (1600 psi)

Bed of Nails Small Pressure P= F/ A Moderate Force Large Surface Area (lots of nails)

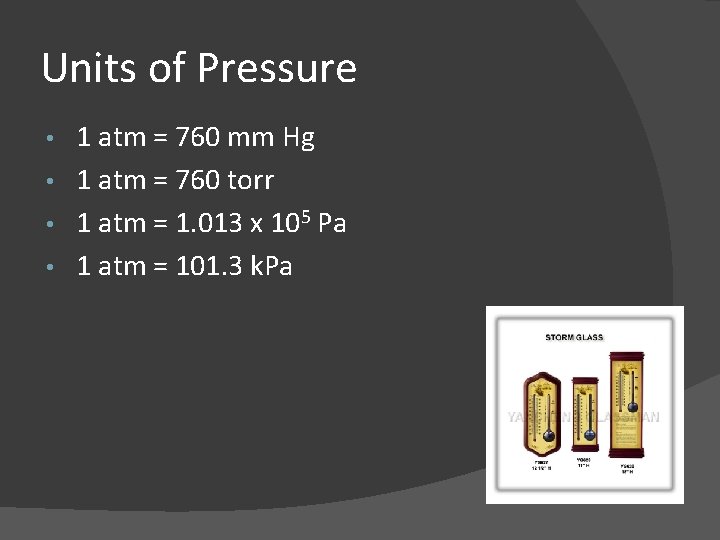

Units of Pressure 1 atm = 760 mm Hg • 1 atm = 760 torr • 1 atm = 1. 013 x 105 Pa • 1 atm = 101. 3 k. Pa •

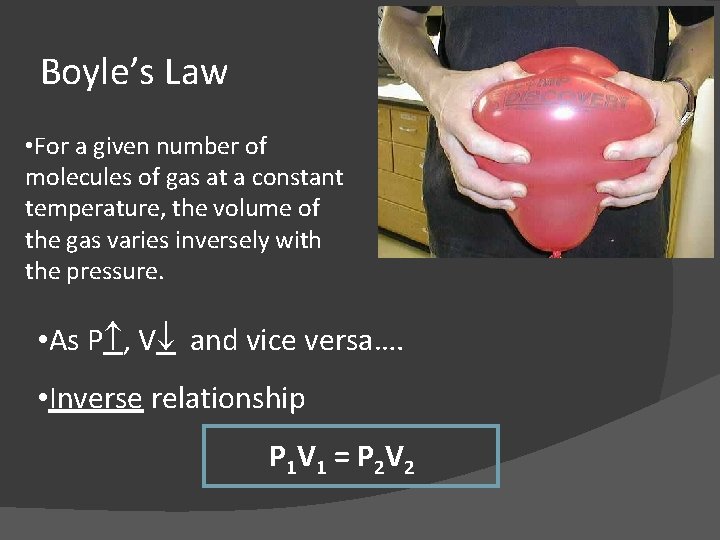

Boyle’s Law • For a given number of molecules of gas at a constant temperature, the volume of the gas varies inversely with the pressure. • As P , V and vice versa…. • Inverse relationship P 1 V 1 = P 2 V 2

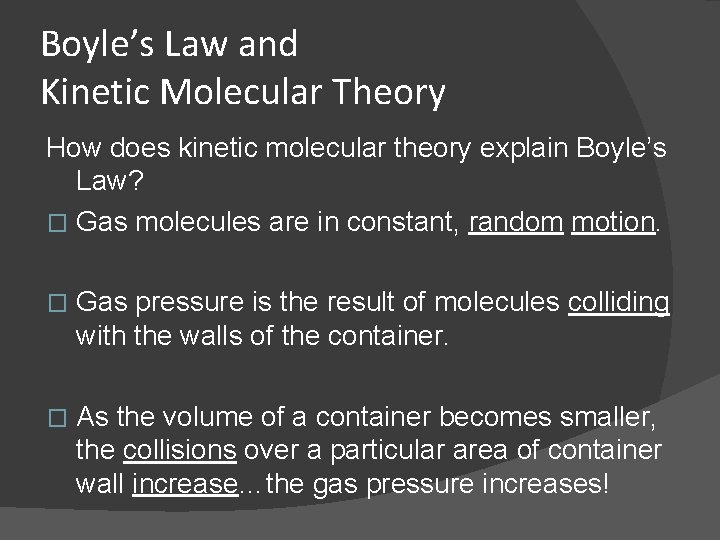

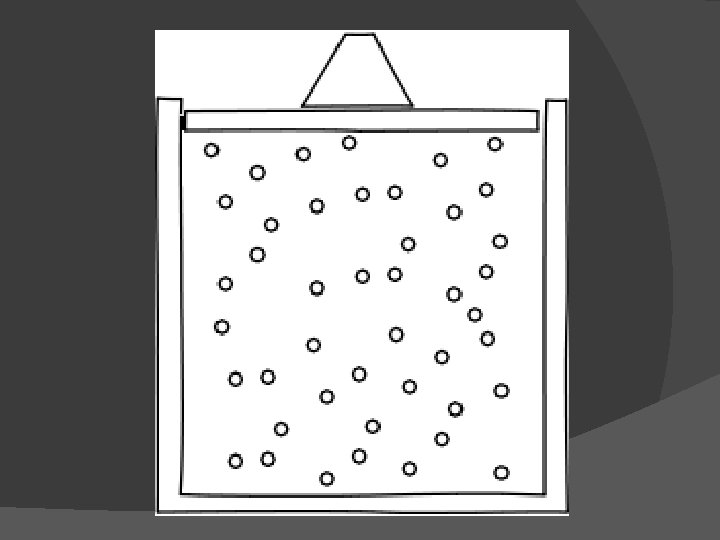

Boyle’s Law and Kinetic Molecular Theory How does kinetic molecular theory explain Boyle’s Law? � Gas molecules are in constant, random motion. � Gas pressure is the result of molecules colliding with the walls of the container. � As the volume of a container becomes smaller, the collisions over a particular area of container wall increase…the gas pressure increases!

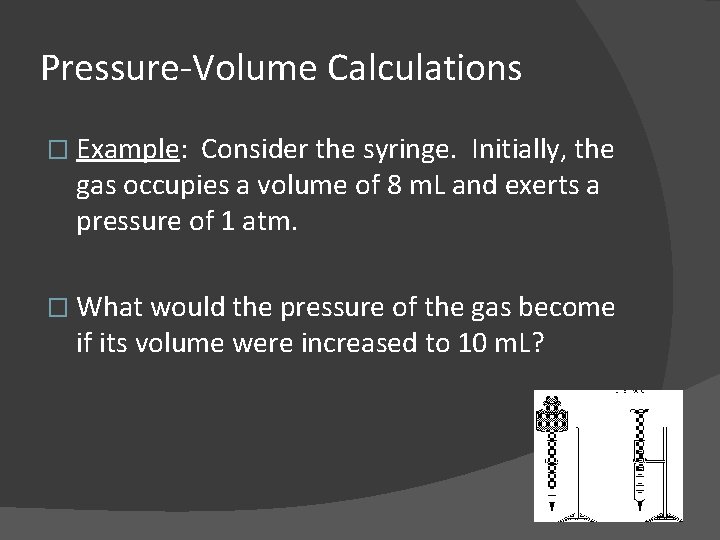

Pressure-Volume Calculations � Example: Consider the syringe. Initially, the gas occupies a volume of 8 m. L and exerts a pressure of 1 atm. � What would the pressure of the gas become if its volume were increased to 10 m. L?

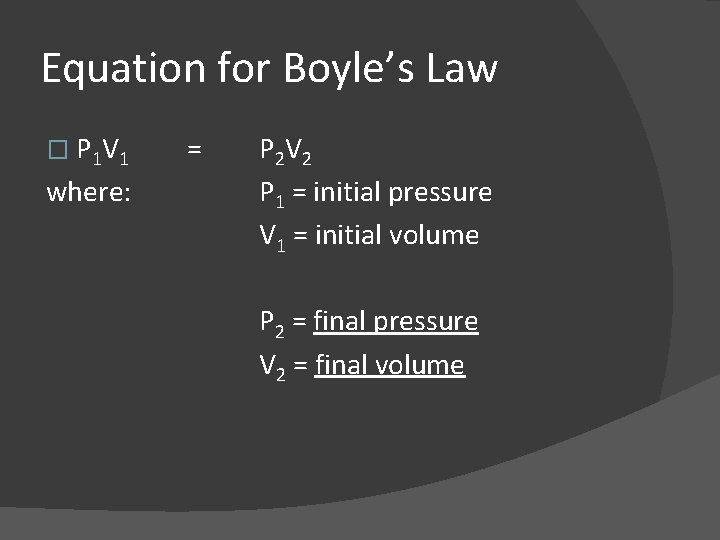

Equation for Boyle’s Law � P 1 V 1 where: = P 2 V 2 P 1 = initial pressure V 1 = initial volume P 2 = final pressure V 2 = final volume

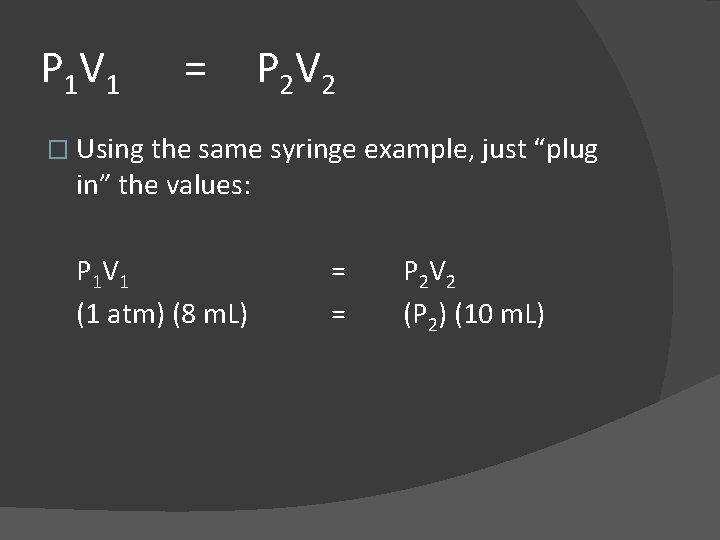

P 1 V 1 = P 2 V 2 � Using the same syringe example, just “plug in” the values: P 1 V 1 (1 atm) (8 m. L) = = P 2 V 2 (P 2) (10 m. L)

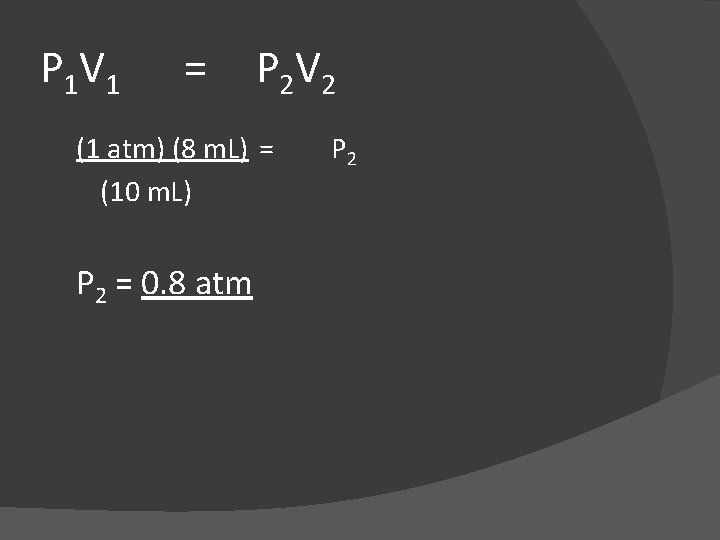

P 1 V 1 = P 2 V 2 (1 atm) (8 m. L) = (10 m. L) P 2 = 0. 8 atm P 2

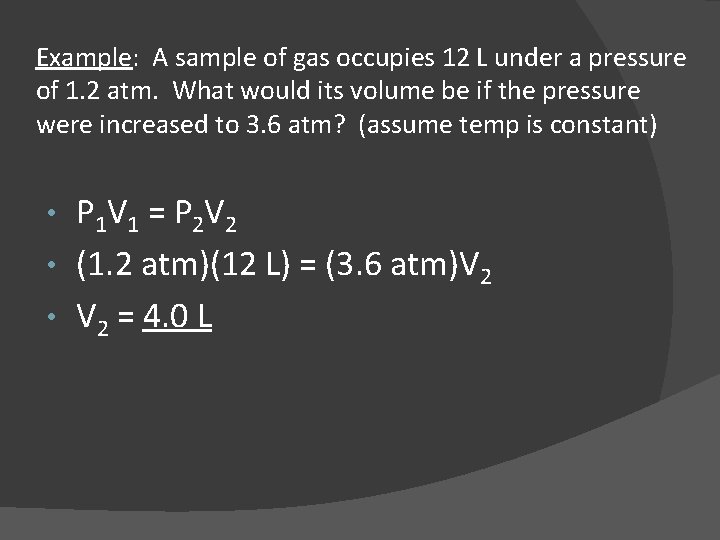

Example: A sample of gas occupies 12 L under a pressure of 1. 2 atm. What would its volume be if the pressure were increased to 3. 6 atm? (assume temp is constant) P 1 V 1 = P 2 V 2 • (1. 2 atm)(12 L) = (3. 6 atm)V 2 • V 2 = 4. 0 L •

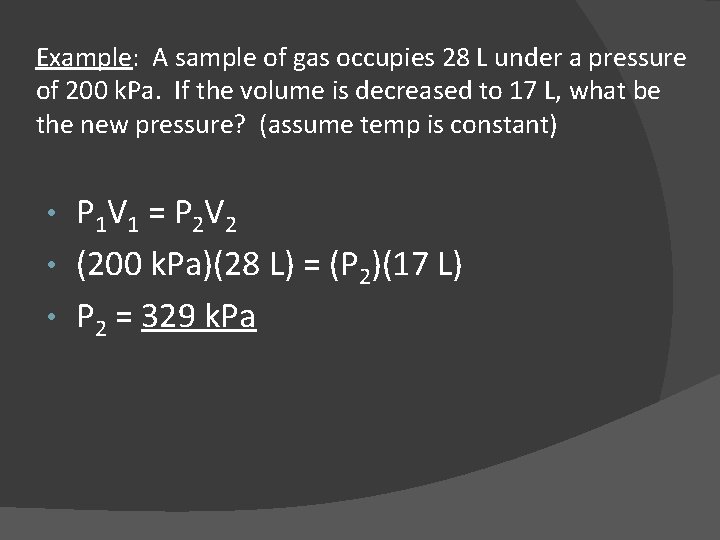

Example: A sample of gas occupies 28 L under a pressure of 200 k. Pa. If the volume is decreased to 17 L, what be the new pressure? (assume temp is constant) P 1 V 1 = P 2 V 2 • (200 k. Pa)(28 L) = (P 2)(17 L) • P 2 = 329 k. Pa •

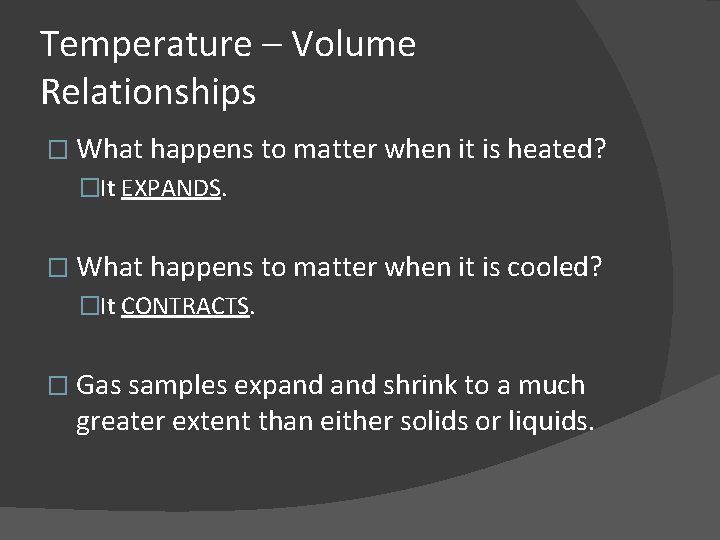

Temperature – Volume Relationships � What happens to matter when it is heated? �It EXPANDS. � What happens to matter when it is cooled? �It CONTRACTS. � Gas samples expand shrink to a much greater extent than either solids or liquids.

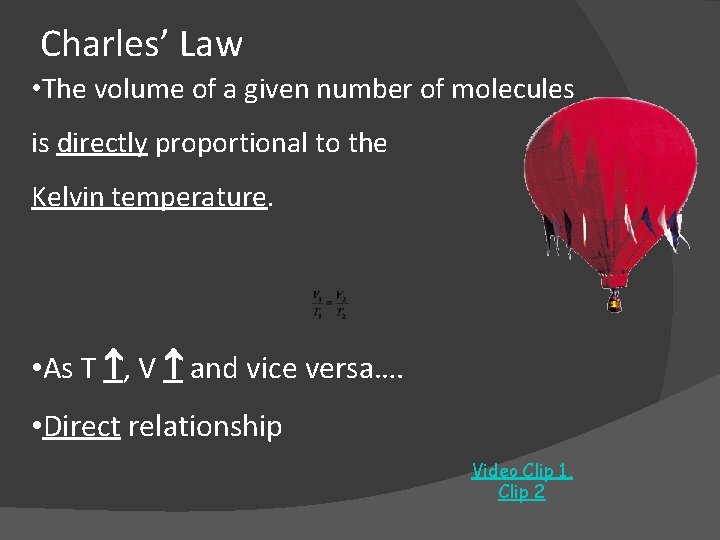

Charles’ Law • The volume of a given number of molecules is directly proportional to the Kelvin temperature. • As T , V and vice versa…. • Direct relationship Video Clip 1, Clip 2

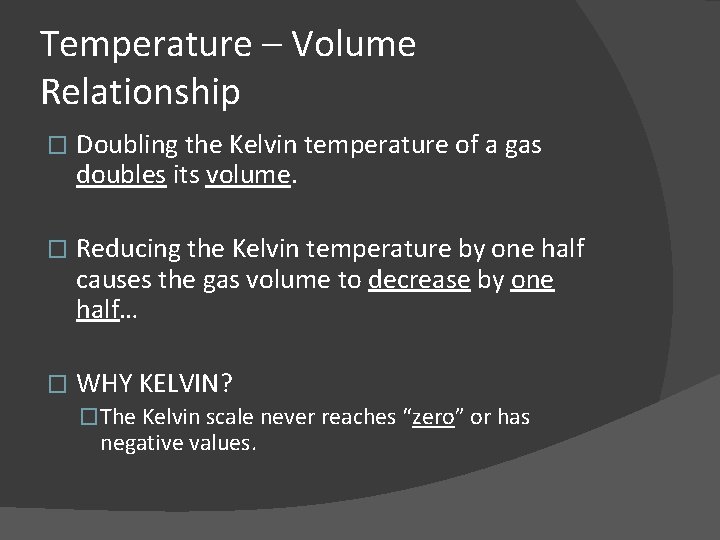

Temperature – Volume Relationship � Doubling the Kelvin temperature of a gas doubles its volume. � Reducing the Kelvin temperature by one half causes the gas volume to decrease by one half… � WHY KELVIN? �The Kelvin scale never reaches “zero” or has negative values.

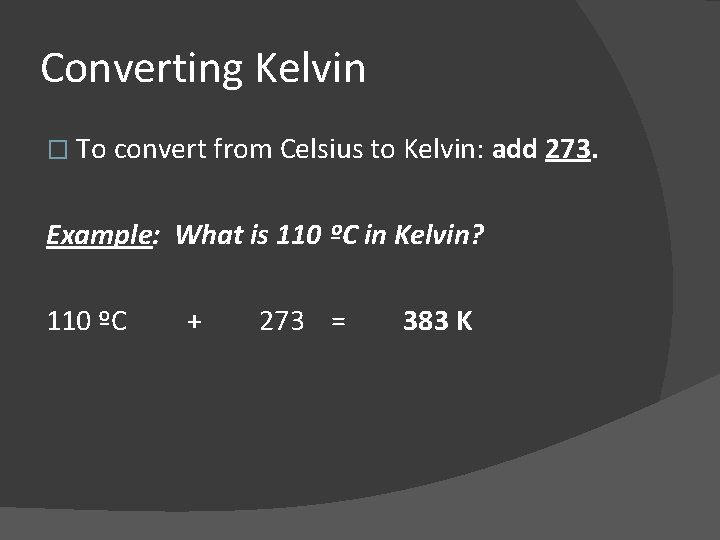

Converting Kelvin � To convert from Celsius to Kelvin: add 273. Example: What is 110 ºC in Kelvin? 110 ºC + 273 = 383 K

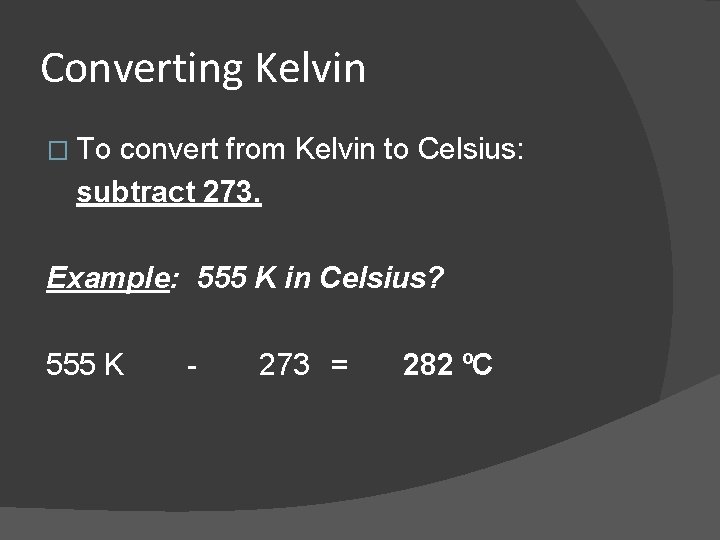

Converting Kelvin � To convert from Kelvin to Celsius: subtract 273. Example: 555 K in Celsius? 555 K - 273 = 282 ºC

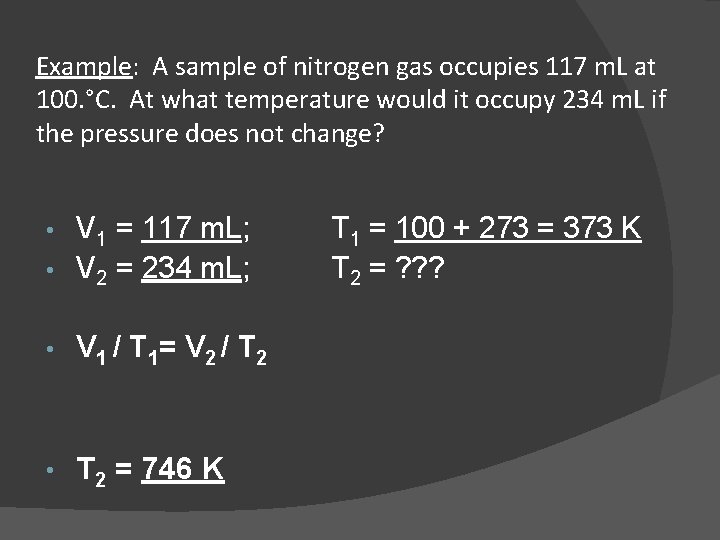

Example: A sample of nitrogen gas occupies 117 m. L at 100. °C. At what temperature would it occupy 234 m. L if the pressure does not change? V 1 = 117 m. L; • V 2 = 234 m. L; • • V 1 / T 1= V 2 / T 2 • T 2 = 746 K T 1 = 100 + 273 = 373 K T 2 = ? ? ?

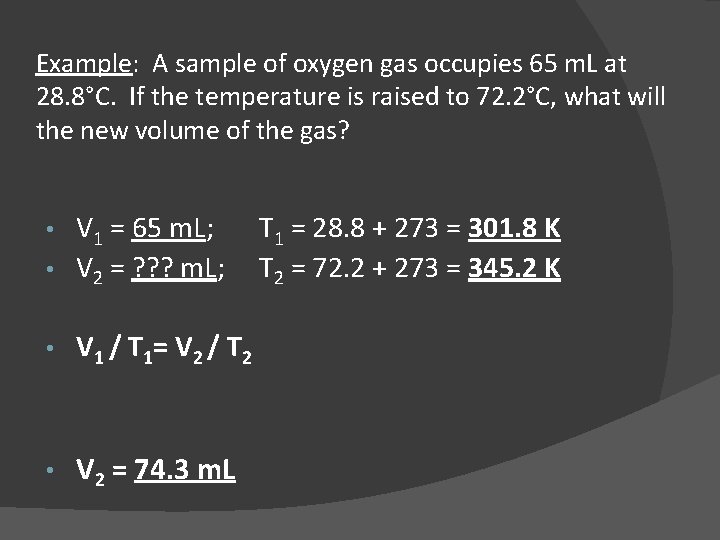

Example: A sample of oxygen gas occupies 65 m. L at 28. 8°C. If the temperature is raised to 72. 2°C, what will the new volume of the gas? V 1 = 65 m. L; • V 2 = ? ? ? m. L; • • V 1 / T 1 = V 2 / T 2 • V 2 = 74. 3 m. L T 1 = 28. 8 + 273 = 301. 8 K T 2 = 72. 2 + 273 = 345. 2 K

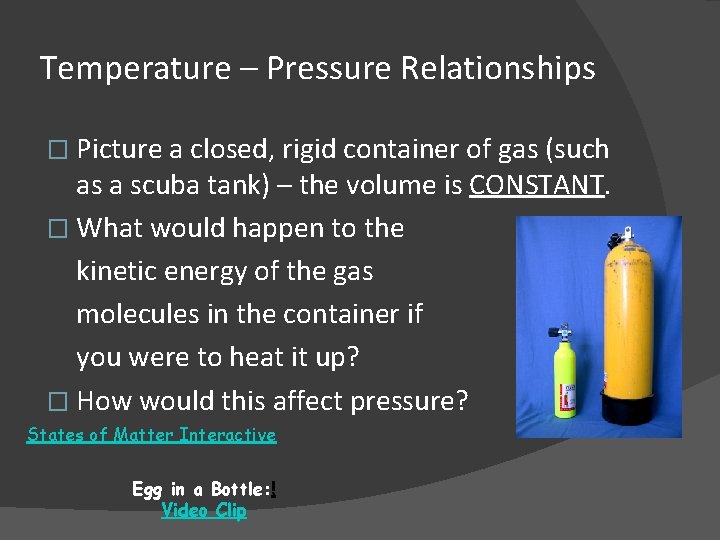

Temperature – Pressure Relationships � Picture a closed, rigid container of gas (such as a scuba tank) – the volume is CONSTANT. � What would happen to the kinetic energy of the gas molecules in the container if you were to heat it up? � How would this affect pressure? States of Matter Interactive Egg in a Bottle: ! Video Clip

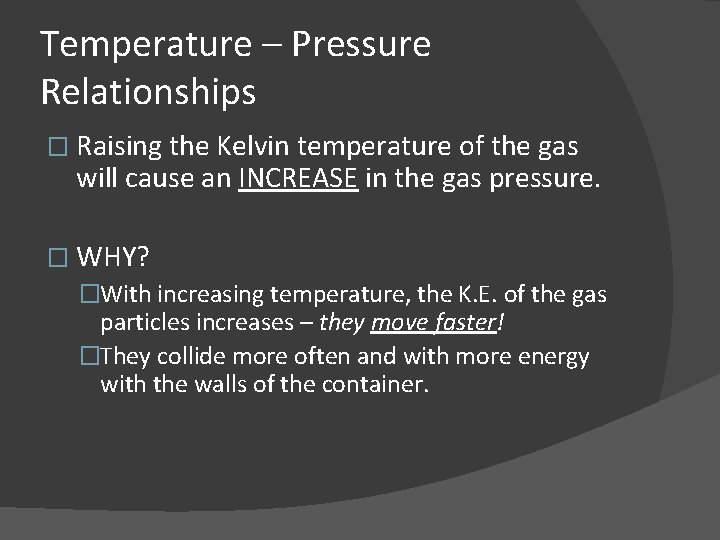

Temperature – Pressure Relationships � Raising the Kelvin temperature of the gas will cause an INCREASE in the gas pressure. � WHY? �With increasing temperature, the K. E. of the gas particles increases – they move faster! �They collide more often and with more energy with the walls of the container.
