Concept Map Pattern number progression and series Sigma

Concept Map �� Pattern number, progression, and series �� Sigma Notation Applying the concept of progression and series in the problemsolving �� Progression and series arithmetic �� nth term arithmetic progression �� Arithmetic series �� Progression and series geometric Solve the problem progression and series �� nth term geometric progression �� Geometric series �� Infinite geometric series Adaptif

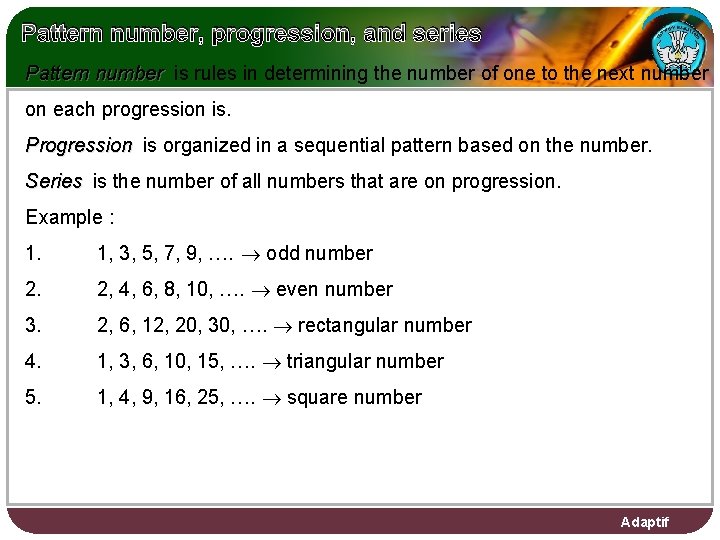

Pattern number, progression, and series Pattern number is rules in determining the number of one to the next number on each progression is. Progression is organized in a sequential pattern based on the number. Series is the number of all numbers that are on progression. Example : 1. 1, 3, 5, 7, 9, …. odd number 2. 2, 4, 6, 8, 10, …. even number 3. 2, 6, 12, 20, 30, …. rectangular number 4. 1, 3, 6, 10, 15, …. triangular number 5. 1, 4, 9, 16, 25, …. square number Adaptif

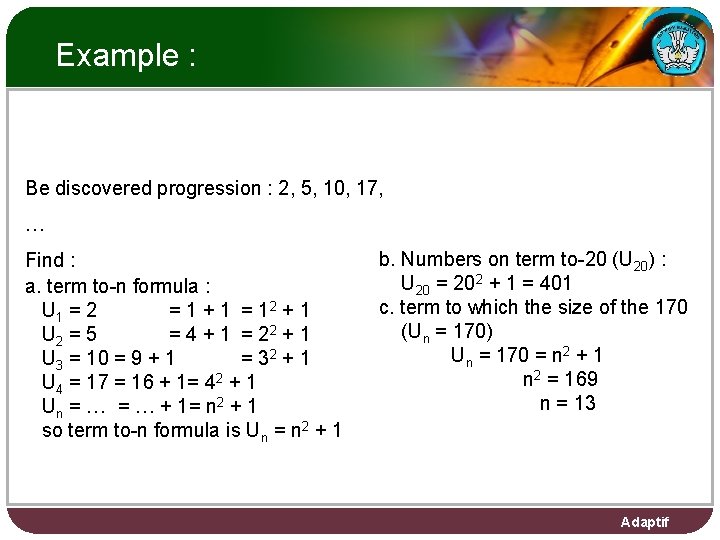

Example : Be discovered progression : 2, 5, 10, 17, … Find : a. term to-n formula : U 1 = 2 = 1 + 1 = 12 + 1 U 2 = 5 = 4 + 1 = 22 + 1 U 3 = 10 = 9 + 1 = 32 + 1 U 4 = 17 = 16 + 1= 42 + 1 Un = … + 1= n 2 + 1 so term to-n formula is Un = n 2 + 1 b. Numbers on term to-20 (U 20) : U 20 = 202 + 1 = 401 c. term to which the size of the 170 (Un = 170) Un = 170 = n 2 + 1 n 2 = 169 n = 13 Adaptif

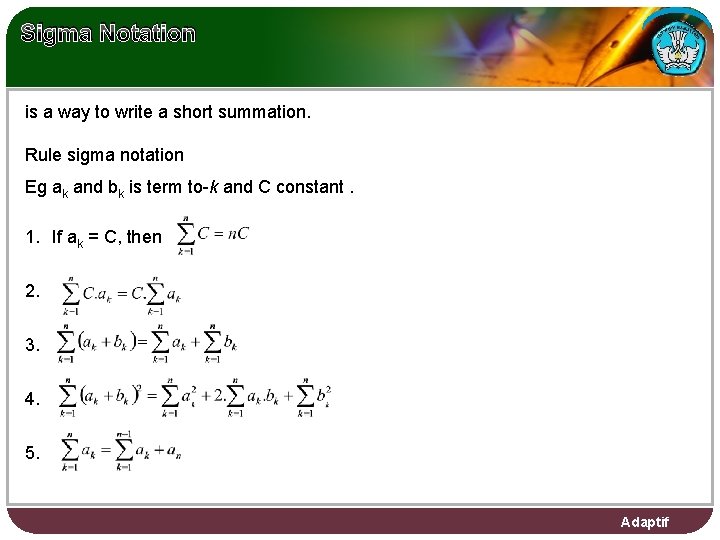

Sigma Notation is a way to write a short summation. Rule sigma notation Eg ak and bk is term to-k and C constant. 1. If ak = C, then 2. 3. 4. 5. Adaptif

Example : 1. Indicate series 1 + 4 + 7 + … + 22 with sigma notation : 1 + 4 + 7 + … + 22 = (3. 1– 2) + (3. 2– 2) + (3. 3– 2) + … + (3. n– 2) 3. n – 2 = 22 n = 8 2. Adaptif

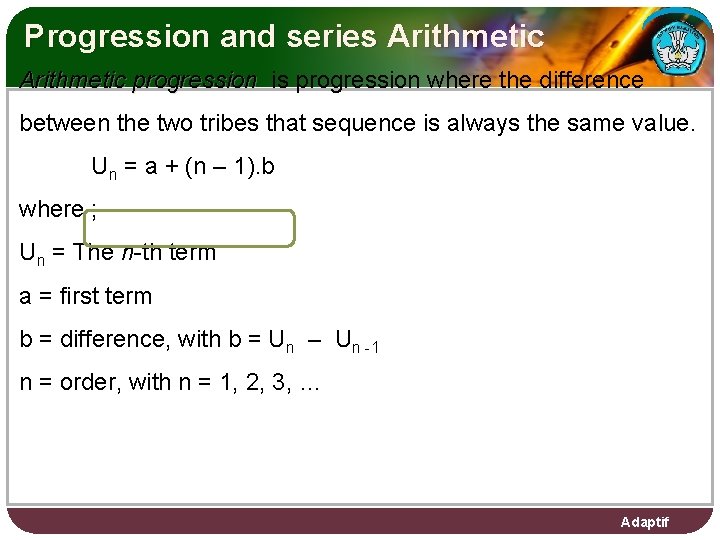

Progression and series Arithmetic progression is progression where the difference between the two tribes that sequence is always the same value. Un = a + (n – 1). b where ; Un = The n-th term a = first term b = difference, with b = Un – Un -1 n = order, with n = 1, 2, 3, … Adaptif

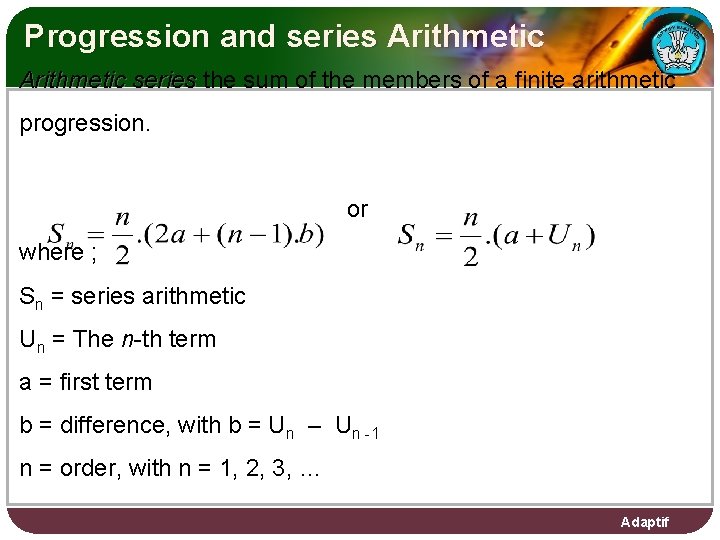

Progression and series Arithmetic series the sum of the members of a finite arithmetic progression. or where ; Sn = series arithmetic Un = The n-th term a = first term b = difference, with b = Un – Un -1 n = order, with n = 1, 2, 3, … Adaptif

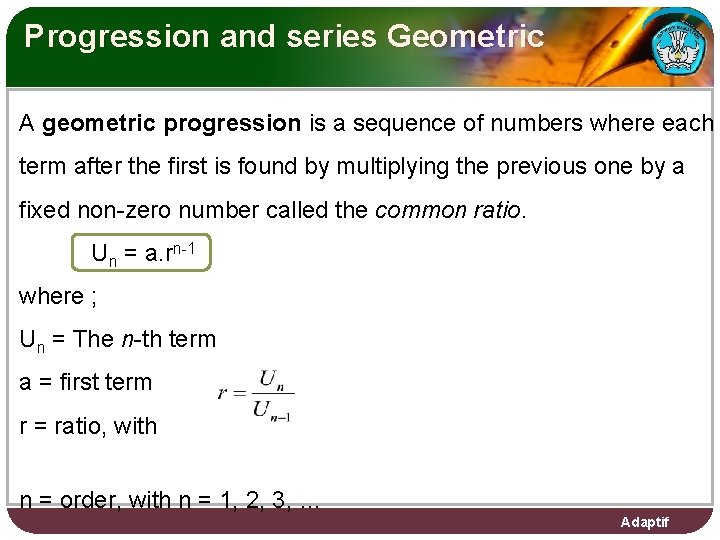

Progression and series Geometric A geometric progression is a sequence of numbers where each term after the first is found by multiplying the previous one by a fixed non-zero number called the common ratio. Un = a. rn-1 where ; Un = The n-th term a = first term r = ratio, with n = order, with n = 1, 2, 3, … Adaptif

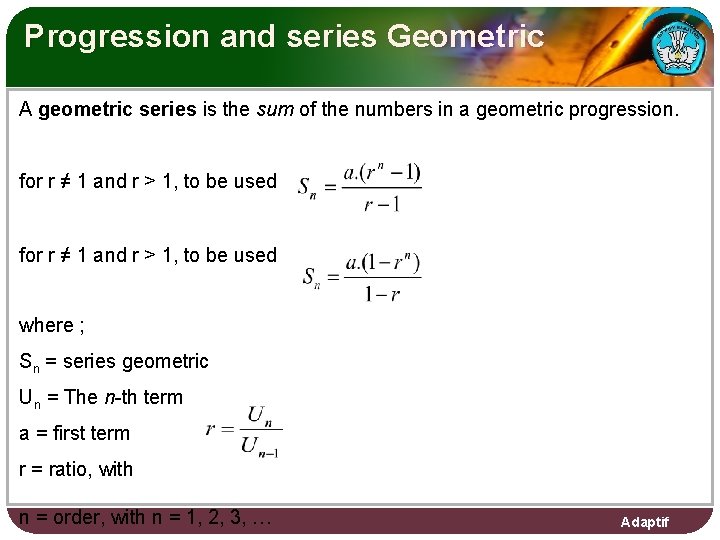

Progression and series Geometric A geometric series is the sum of the numbers in a geometric progression. for r ≠ 1 and r > 1, to be used where ; Sn = series geometric Un = The n-th term a = first term r = ratio, with n = order, with n = 1, 2, 3, … Adaptif

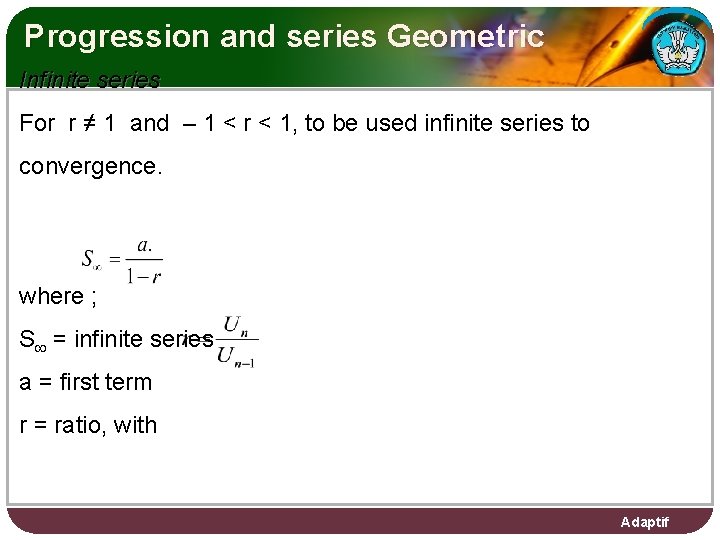

Progression and series Geometric Infinite series For r ≠ 1 and – 1 < r < 1, to be used infinite series to convergence. where ; S = infinite series a = first term r = ratio, with Adaptif

Adaptif
