Computing at the High Energy Physics Lab at FIT Patrick Ford, Jen Helsby, Richard Hoch, David Pena Dr. Hohlmann, Dr. Mitra

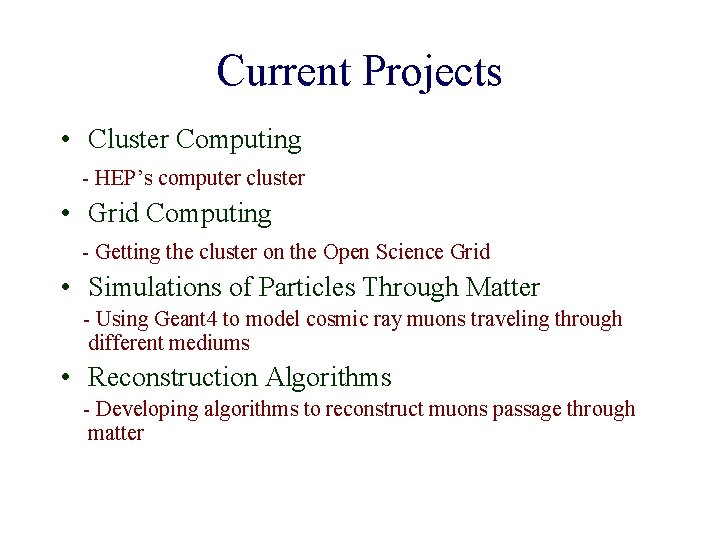

Current Projects • Cluster Computing - HEP’s computer cluster • Grid Computing - Getting the cluster on the Open Science Grid • Simulations of Particles Through Matter - Using Geant 4 to model cosmic ray muons traveling through different mediums • Reconstruction Algorithms - Developing algorithms to reconstruct muons passage through matter

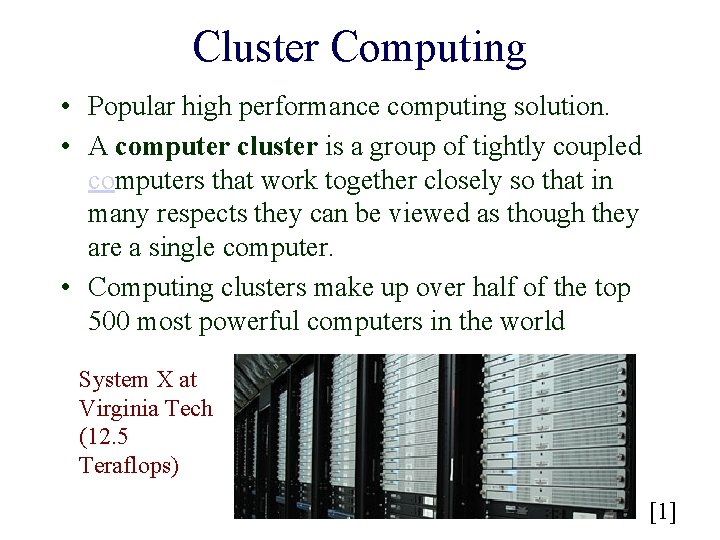

Cluster Computing • Popular high performance computing solution. • A computer cluster is a group of tightly coupled computers that work together closely so that in many respects they can be viewed as though they are a single computer. • Computing clusters make up over half of the top 500 most powerful computers in the world System X at Virginia Tech (12. 5 Teraflops) [1]

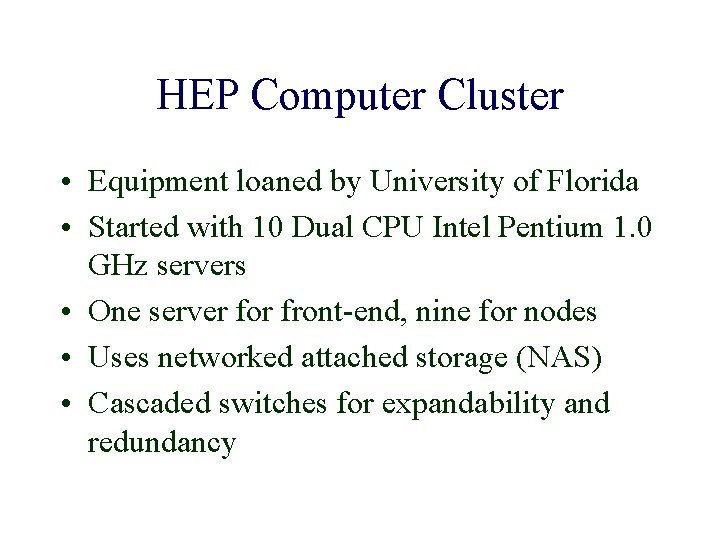

HEP Computer Cluster • Equipment loaned by University of Florida • Started with 10 Dual CPU Intel Pentium 1. 0 GHz servers • One server for front-end, nine for nodes • Uses networked attached storage (NAS) • Cascaded switches for expandability and redundancy

Cluster Topology

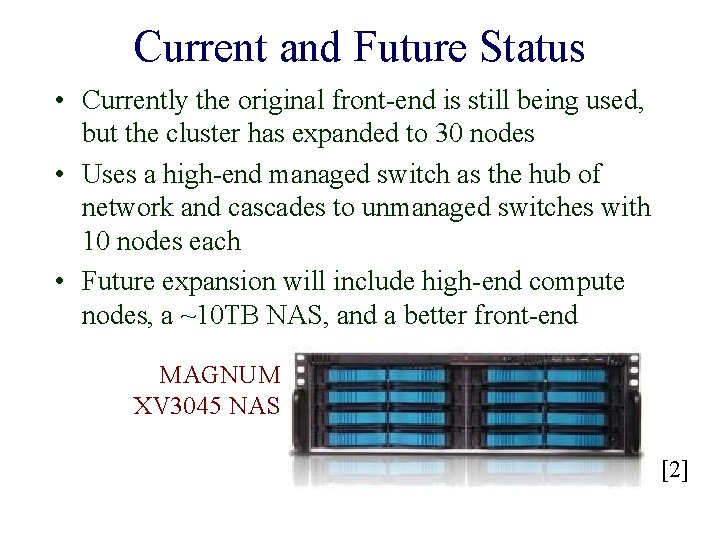

Current and Future Status • Currently the original front-end is still being used, but the cluster has expanded to 30 nodes • Uses a high-end managed switch as the hub of network and cascades to unmanaged switches with 10 nodes each • Future expansion will include high-end compute nodes, a ~10 TB NAS, and a better front-end MAGNUM XV 3045 NAS [2]

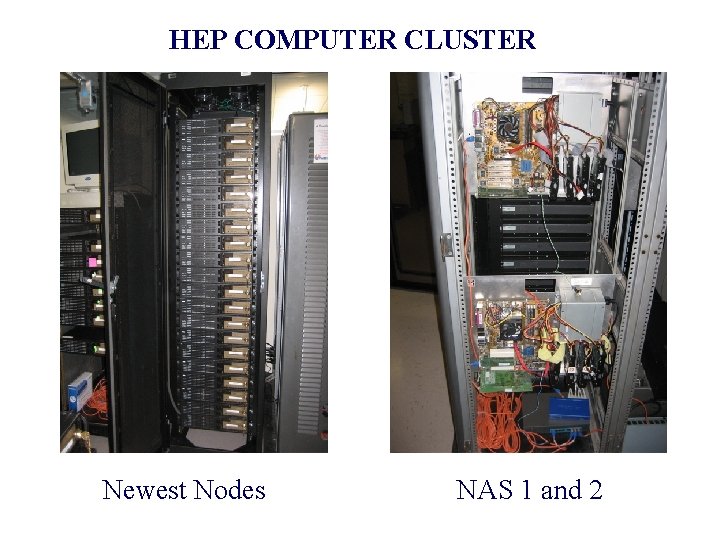

HEP COMPUTER CLUSTER Newest Nodes NAS 1 and 2

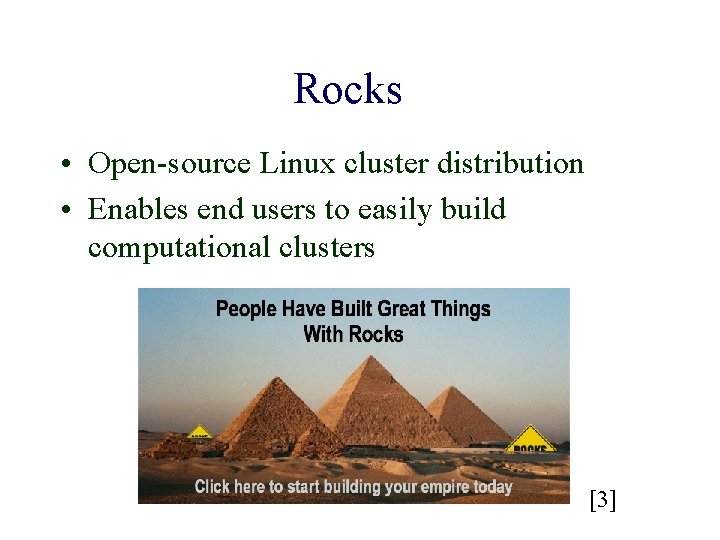

Rocks • Open-source Linux cluster distribution • Enables end users to easily build computational clusters [3]

Rocks Kickstart Graph

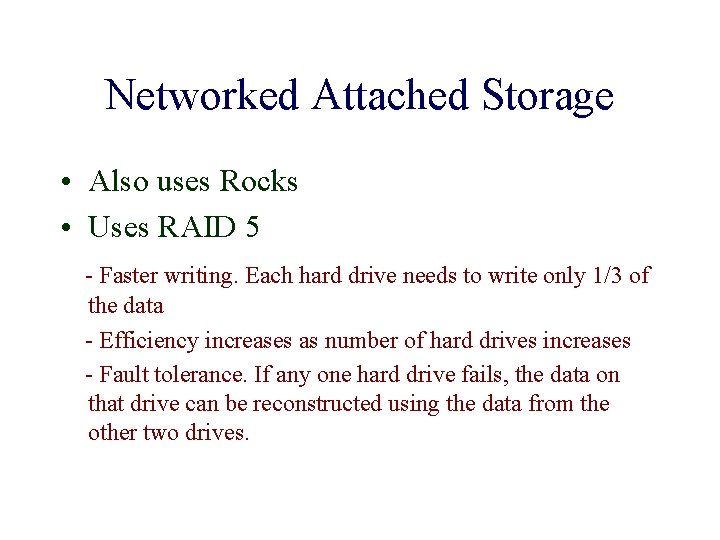

Networked Attached Storage • Also uses Rocks • Uses RAID 5 - Faster writing. Each hard drive needs to write only 1/3 of the data - Efficiency increases as number of hard drives increases - Fault tolerance. If any one hard drive fails, the data on that drive can be reconstructed using the data from the other two drives.

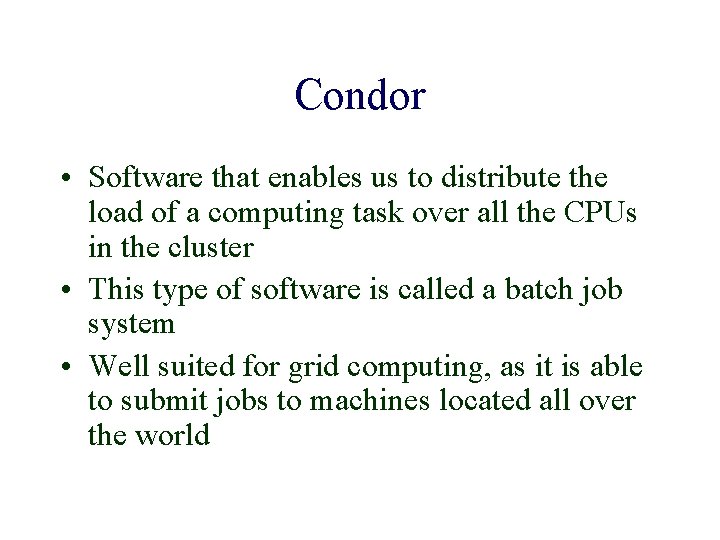

Condor • Software that enables us to distribute the load of a computing task over all the CPUs in the cluster • This type of software is called a batch job system • Well suited for grid computing, as it is able to submit jobs to machines located all over the world

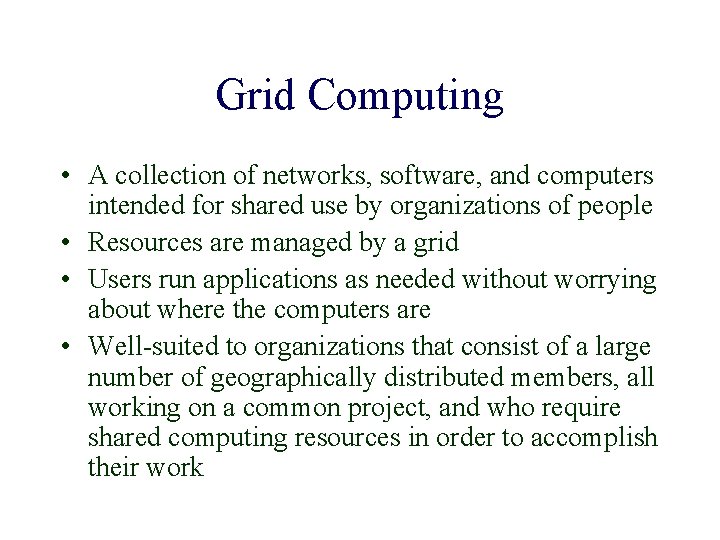

Grid Computing • A collection of networks, software, and computers intended for shared use by organizations of people • Resources are managed by a grid • Users run applications as needed without worrying about where the computers are • Well-suited to organizations that consist of a large number of geographically distributed members, all working on a common project, and who require shared computing resources in order to accomplish their work

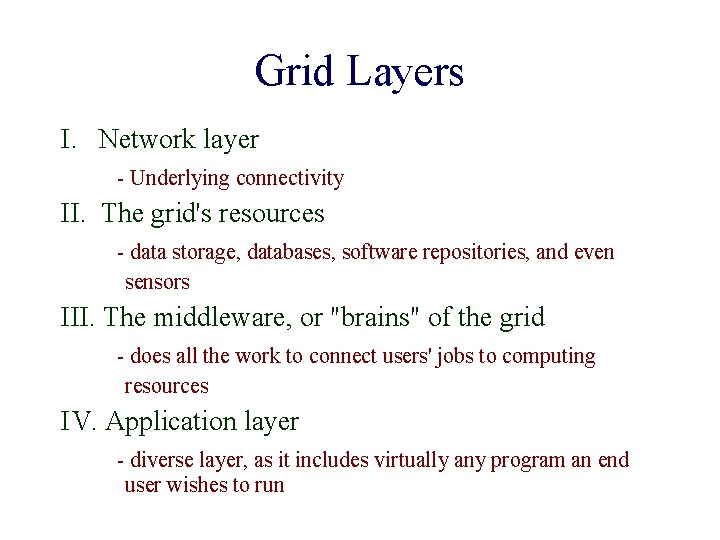

Grid Layers I. Network layer - Underlying connectivity II. The grid's resources - data storage, databases, software repositories, and even sensors III. The middleware, or "brains" of the grid - does all the work to connect users' jobs to computing resources IV. Application layer - diverse layer, as it includes virtually any program an end user wishes to run

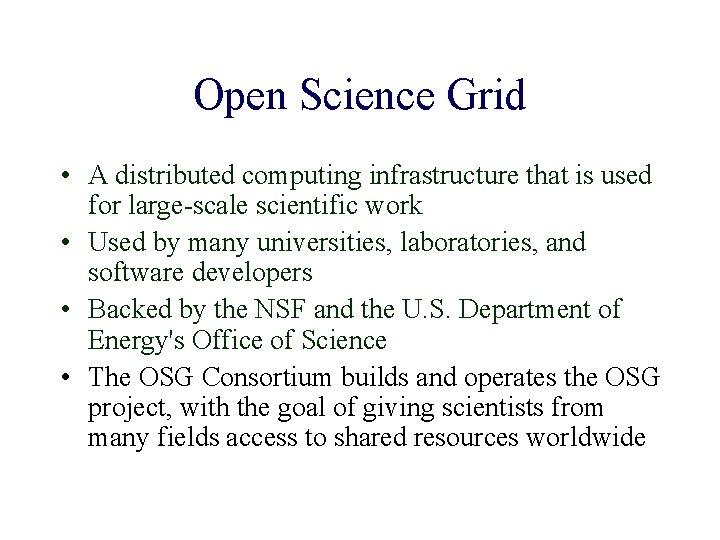

Open Science Grid • A distributed computing infrastructure that is used for large-scale scientific work • Used by many universities, laboratories, and software developers • Backed by the NSF and the U. S. Department of Energy's Office of Science • The OSG Consortium builds and operates the OSG project, with the goal of giving scientists from many fields access to shared resources worldwide

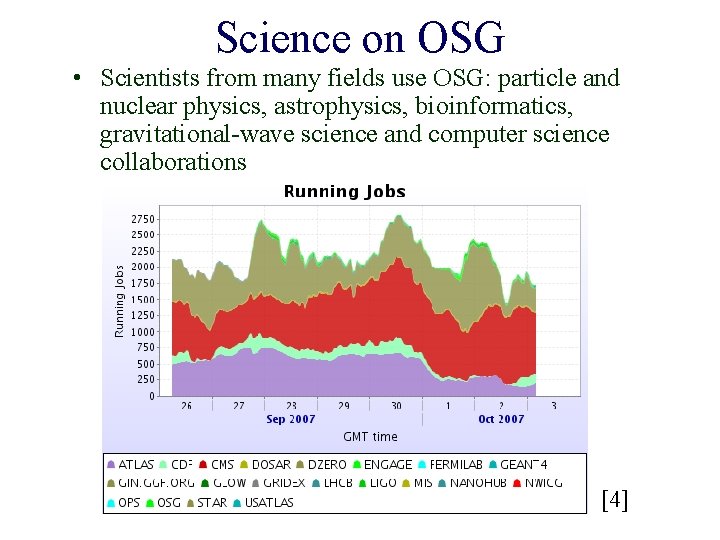

Science on OSG • Scientists from many fields use OSG: particle and nuclear physics, astrophysics, bioinformatics, gravitational-wave science and computer science collaborations [4]

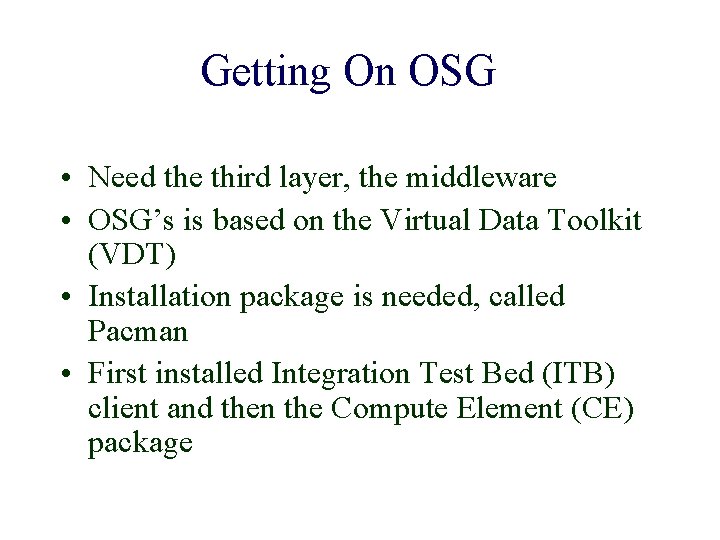

Getting On OSG • Need the third layer, the middleware • OSG’s is based on the Virtual Data Toolkit (VDT) • Installation package is needed, called Pacman • First installed Integration Test Bed (ITB) client and then the Compute Element (CE) package

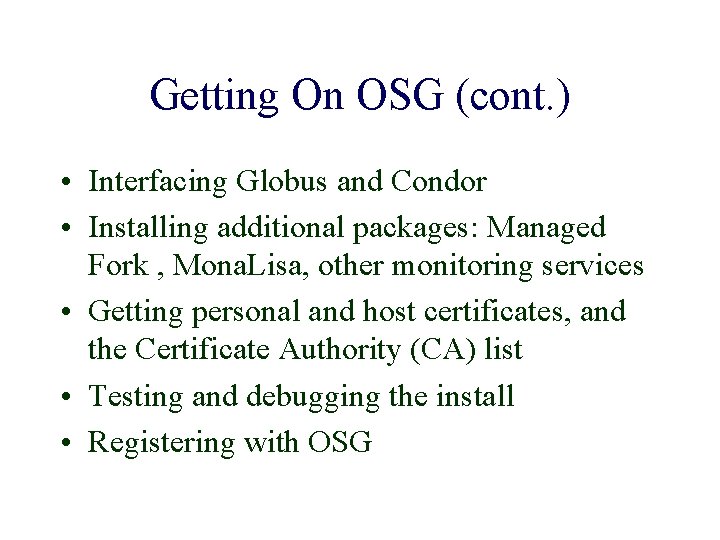

Getting On OSG (cont. ) • Interfacing Globus and Condor • Installing additional packages: Managed Fork , Mona. Lisa, other monitoring services • Getting personal and host certificates, and the Certificate Authority (CA) list • Testing and debugging the install • Registering with OSG

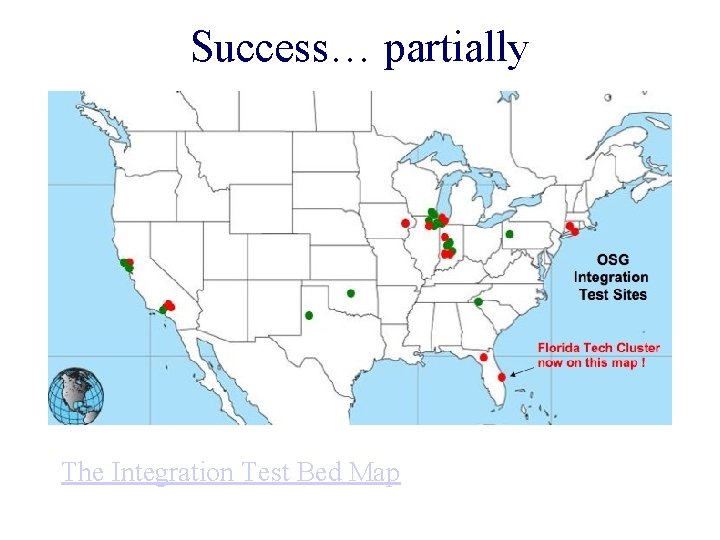

Success… partially The Integration Test Bed Map

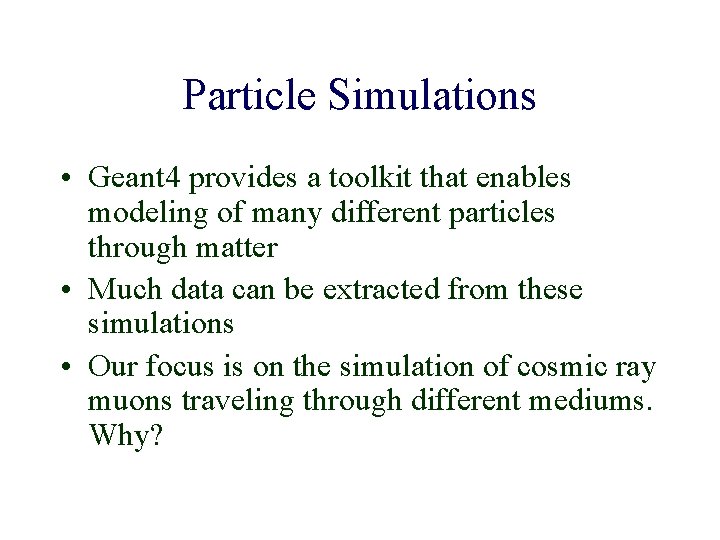

Particle Simulations • Geant 4 provides a toolkit that enables modeling of many different particles through matter • Much data can be extracted from these simulations • Our focus is on the simulation of cosmic ray muons traveling through different mediums. Why?

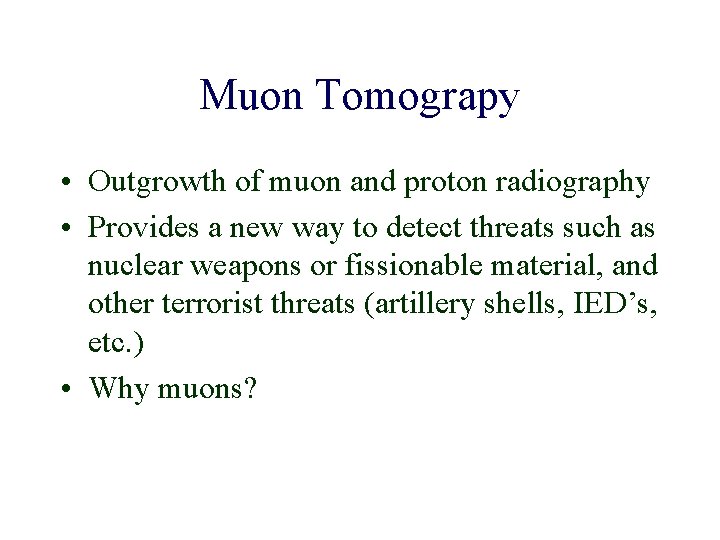

Muon Tomograpy • Outgrowth of muon and proton radiography • Provides a new way to detect threats such as nuclear weapons or fissionable material, and other terrorist threats (artillery shells, IED’s, etc. ) • Why muons?

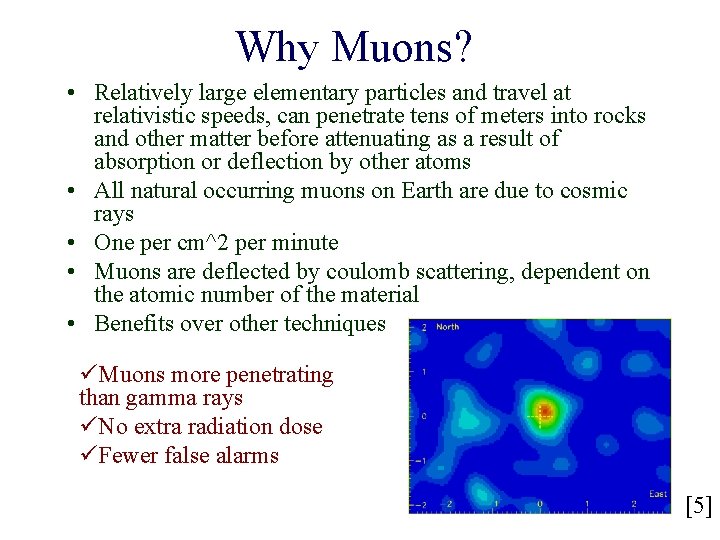

Why Muons? • Relatively large elementary particles and travel at relativistic speeds, can penetrate tens of meters into rocks and other matter before attenuating as a result of absorption or deflection by other atoms • All natural occurring muons on Earth are due to cosmic rays • One per cm^2 per minute • Muons are deflected by coulomb scattering, dependent on the atomic number of the material • Benefits over other techniques üMuons more penetrating than gamma rays üNo extra radiation dose üFewer false alarms [5]

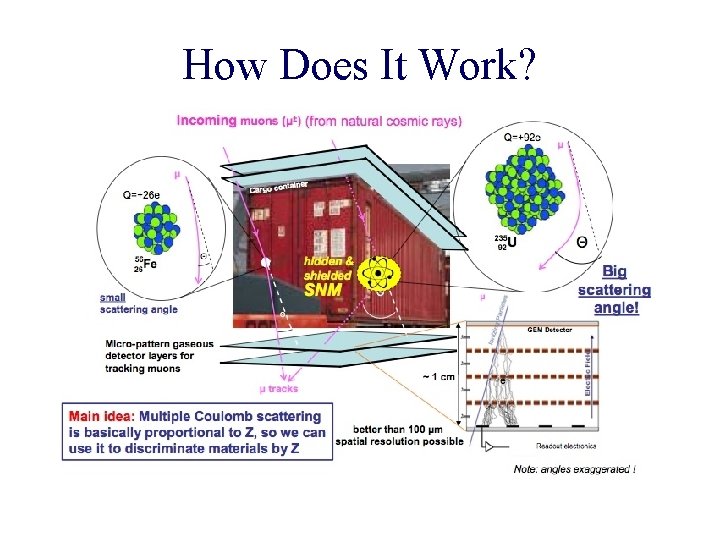

How Does It Work?

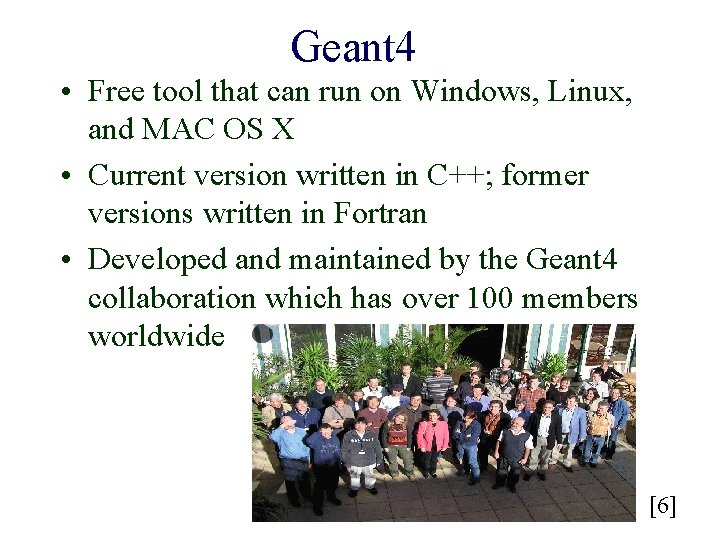

Geant 4 • Free tool that can run on Windows, Linux, and MAC OS X • Current version written in C++; former versions written in Fortran • Developed and maintained by the Geant 4 collaboration which has over 100 members worldwide [6]

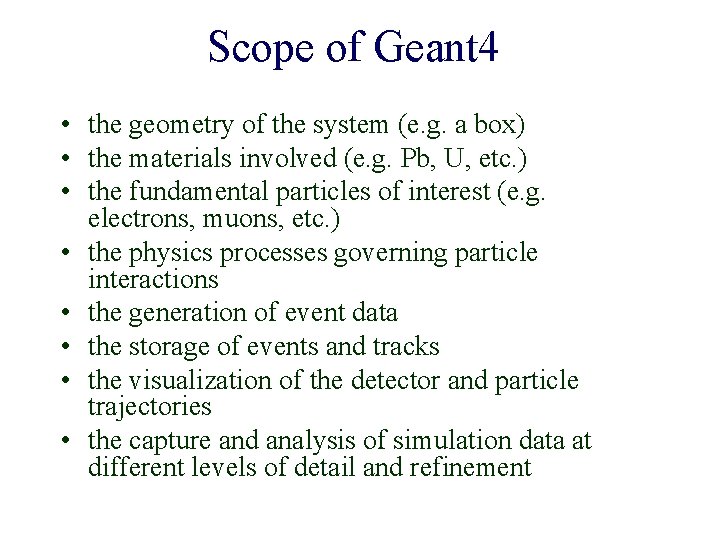

Scope of Geant 4 • the geometry of the system (e. g. a box) • the materials involved (e. g. Pb, U, etc. ) • the fundamental particles of interest (e. g. electrons, muons, etc. ) • the physics processes governing particle interactions • the generation of event data • the storage of events and tracks • the visualization of the detector and particle trajectories • the capture and analysis of simulation data at different levels of detail and refinement

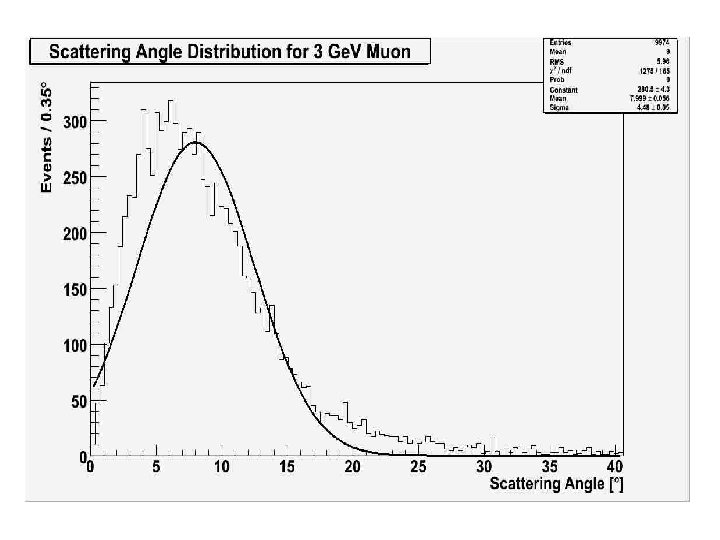

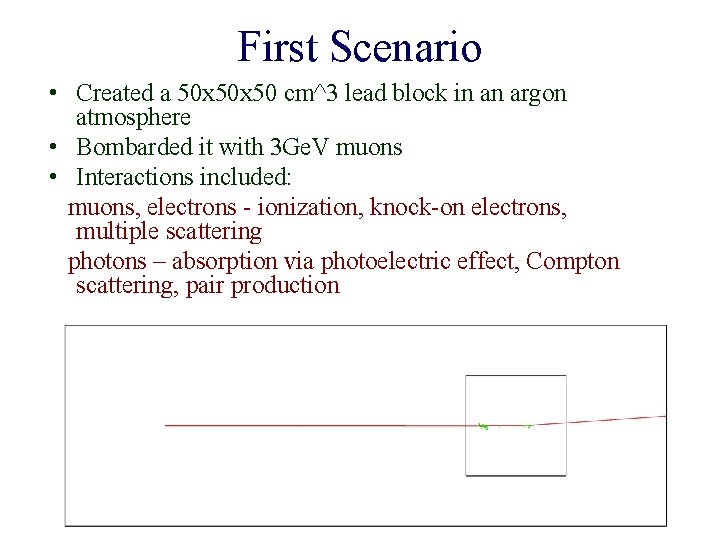

First Scenario • Created a 50 x 50 cm^3 lead block in an argon atmosphere • Bombarded it with 3 Ge. V muons • Interactions included: muons, electrons - ionization, knock-on electrons, multiple scattering photons – absorption via photoelectric effect, Compton scattering, pair production

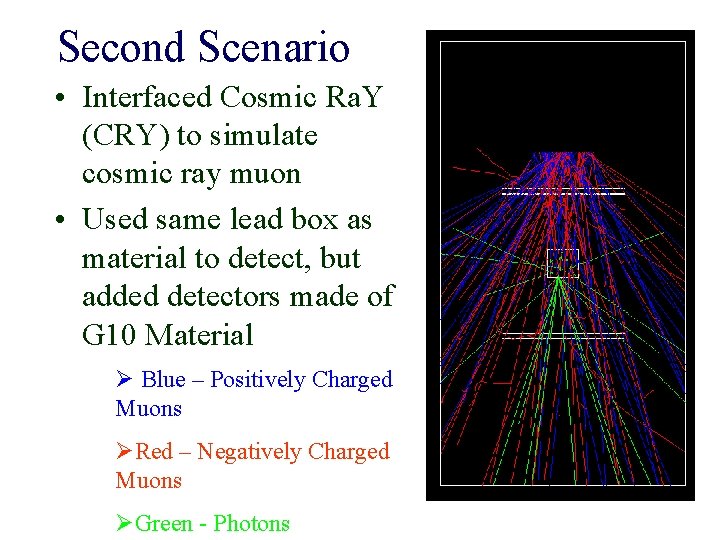

Second Scenario • Interfaced Cosmic Ra. Y (CRY) to simulate cosmic ray muon • Used same lead box as material to detect, but added detectors made of G 10 Material Ø Blue – Positively Charged Muons ØRed – Negatively Charged Muons ØGreen - Photons

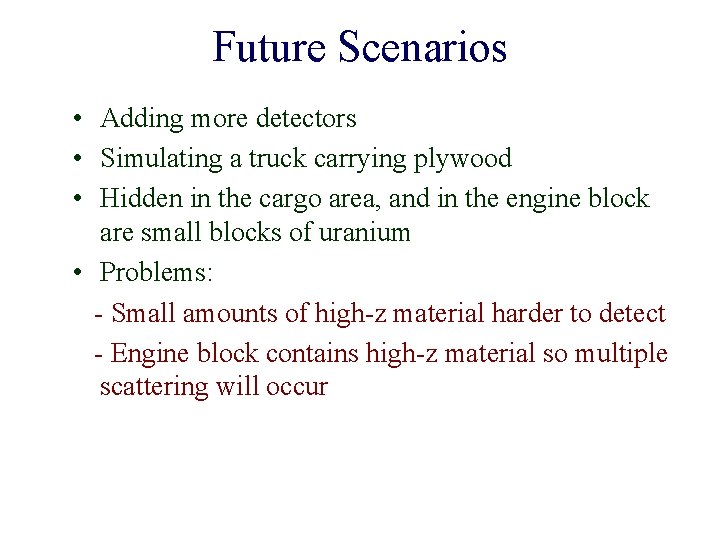

Future Scenarios • Adding more detectors • Simulating a truck carrying plywood • Hidden in the cargo area, and in the engine block are small blocks of uranium • Problems: - Small amounts of high-z material harder to detect - Engine block contains high-z material so multiple scattering will occur

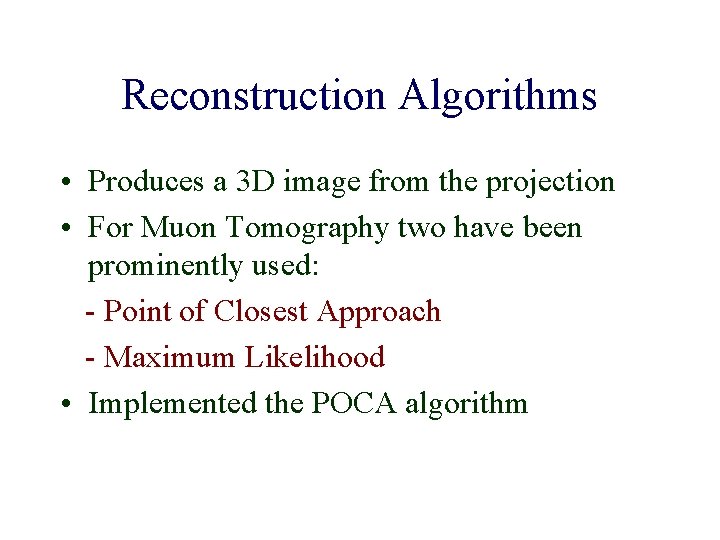

Reconstruction Algorithms • Produces a 3 D image from the projection • For Muon Tomography two have been prominently used: - Point of Closest Approach - Maximum Likelihood • Implemented the POCA algorithm

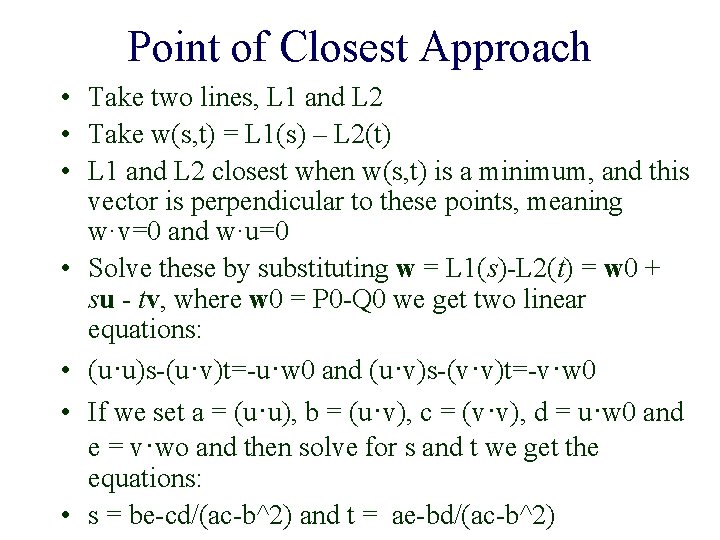

Point of Closest Approach • Take two lines, L 1 and L 2 • Take w(s, t) = L 1(s) – L 2(t) • L 1 and L 2 closest when w(s, t) is a minimum, and this vector is perpendicular to these points, meaning w·v=0 and w·u=0 • Solve these by substituting w = L 1(s)-L 2(t) = w 0 + su - tv, where w 0 = P 0 -Q 0 we get two linear equations: • (u·u)s-(u·v)t=-u·w 0 and (u·v)s-(v·v)t=-v·w 0 • If we set a = (u·u), b = (u·v), c = (v·v), d = u·w 0 and e = v·wo and then solve for s and t we get the equations: • s = be-cd/(ac-b^2) and t = ae-bd/(ac-b^2)

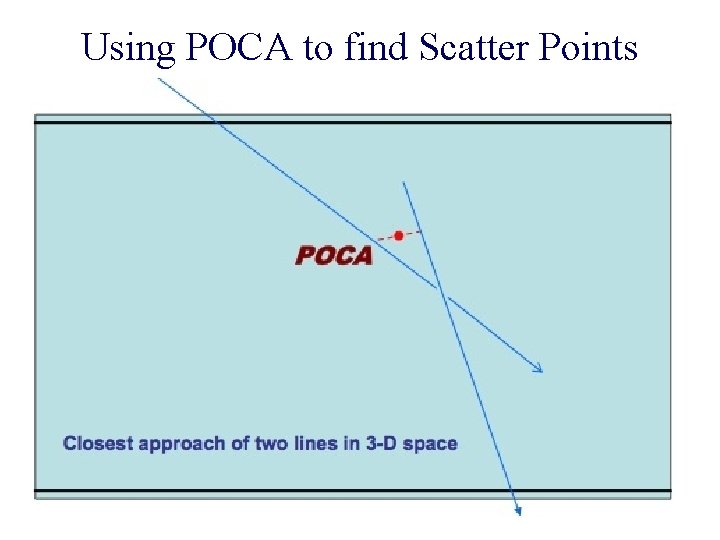

Using POCA to find Scatter Points

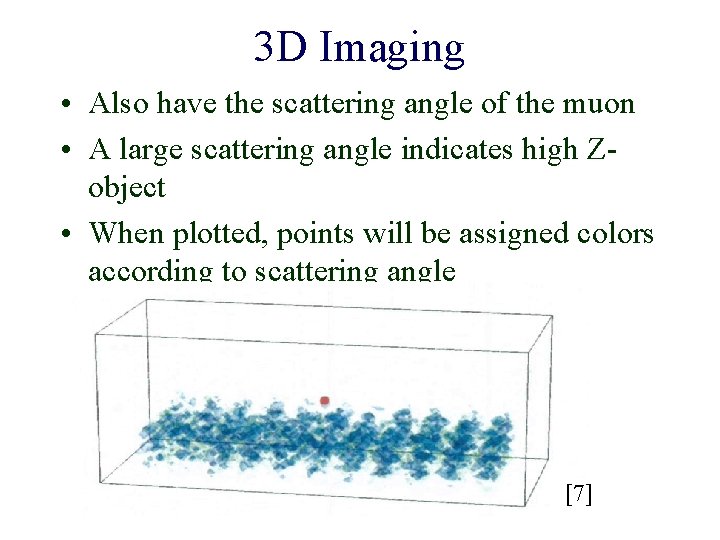

3 D Imaging • Also have the scattering angle of the muon • A large scattering angle indicates high Zobject • When plotted, points will be assigned colors according to scattering angle [7]

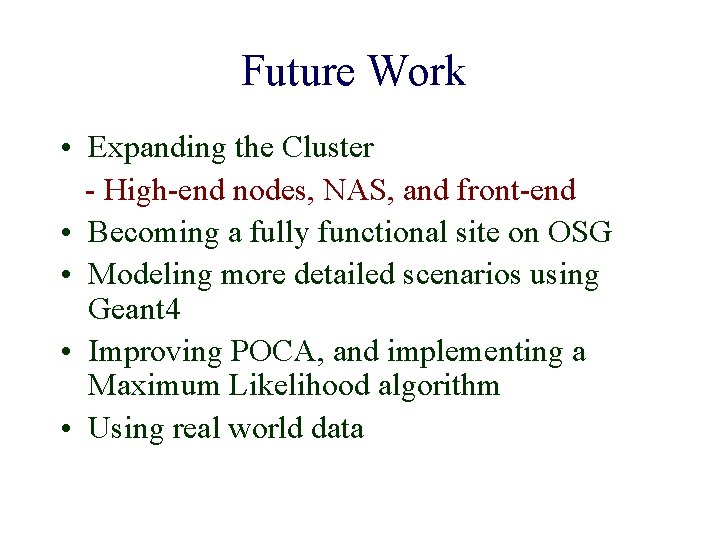

Future Work • Expanding the Cluster - High-end nodes, NAS, and front-end • Becoming a fully functional site on OSG • Modeling more detailed scenarios using Geant 4 • Improving POCA, and implementing a Maximum Likelihood algorithm • Using real world data

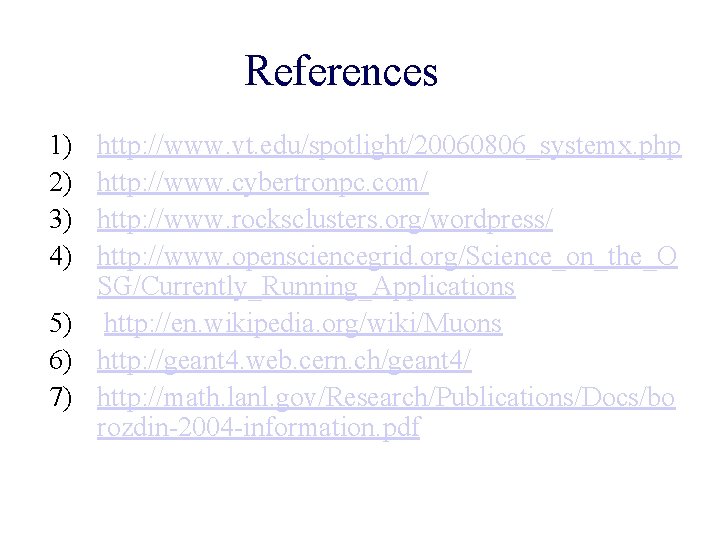

References 1) 2) 3) 4) http: //www. vt. edu/spotlight/20060806_systemx. php http: //www. cybertronpc. com/ http: //www. rocksclusters. org/wordpress/ http: //www. opensciencegrid. org/Science_on_the_O SG/Currently_Running_Applications 5) http: //en. wikipedia. org/wiki/Muons 6) http: //geant 4. web. cern. ch/geant 4/ 7) http: //math. lanl. gov/Research/Publications/Docs/bo rozdin-2004 -information. pdf
