COMPUTERS IN MEDICAL IMAGING By Dr Saidatul Ardeena

COMPUTERS IN MEDICAL IMAGING By: Dr. Saidatul Ardeena Biomedical Engineering Electronics Program, University Malaysia Perlis.

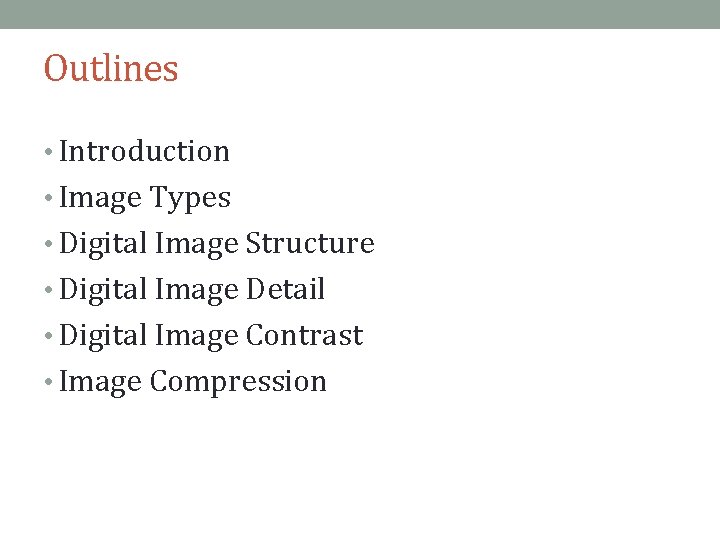

Outlines • Introduction • Image Types • Digital Image Structure • Digital Image Detail • Digital Image Contrast • Image Compression

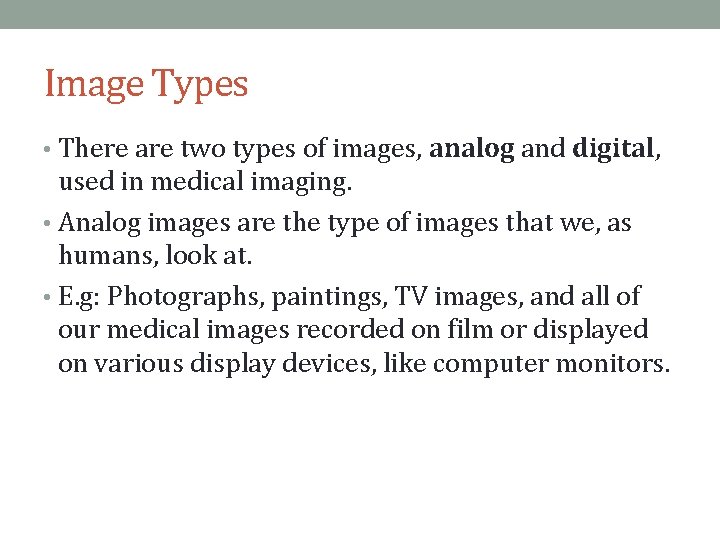

Image Types • There are two types of images, analog and digital, used in medical imaging. • Analog images are the type of images that we, as humans, look at. • E. g: Photographs, paintings, TV images, and all of our medical images recorded on film or displayed on various display devices, like computer monitors.

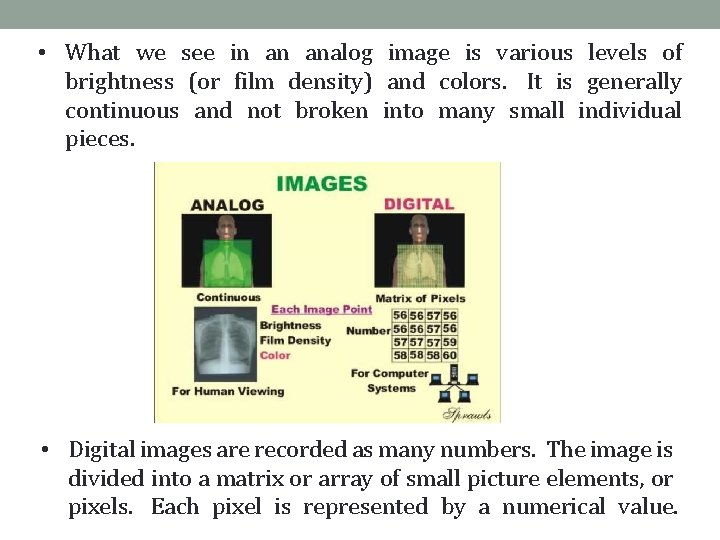

• What we see in an analog image is various levels of brightness (or film density) and colors. It is generally continuous and not broken into many small individual pieces. • Digital images are recorded as many numbers. The image is divided into a matrix or array of small picture elements, or pixels. Each pixel is represented by a numerical value.

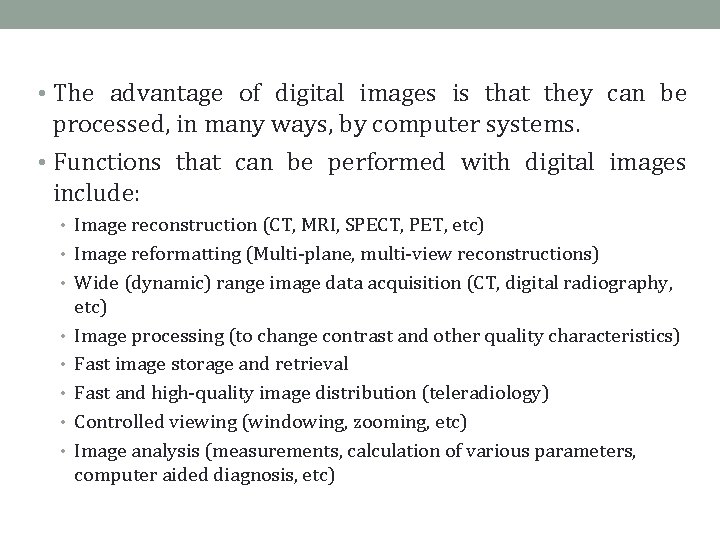

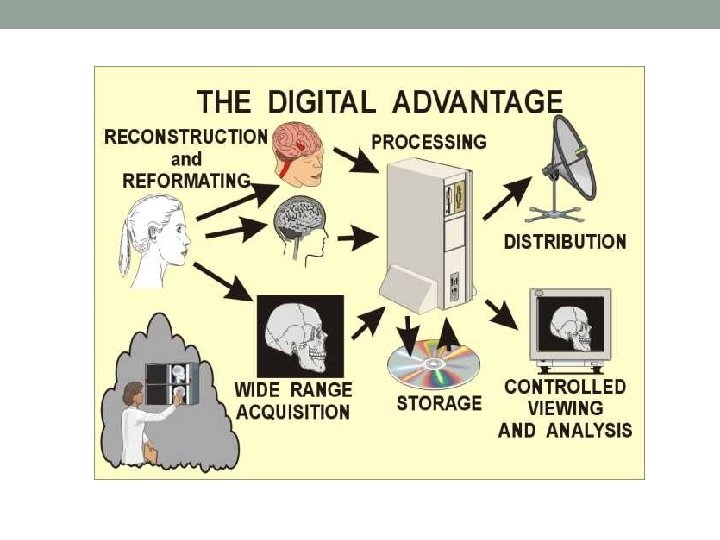

• The advantage of digital images is that they can be processed, in many ways, by computer systems. • Functions that can be performed with digital images include: • Image reconstruction (CT, MRI, SPECT, PET, etc) • Image reformatting (Multi-plane, multi-view reconstructions) • Wide (dynamic) range image data acquisition (CT, digital radiography, • • • etc) Image processing (to change contrast and other quality characteristics) Fast image storage and retrieval Fast and high-quality image distribution (teleradiology) Controlled viewing (windowing, zooming, etc) Image analysis (measurements, calculation of various parameters, computer aided diagnosis, etc)

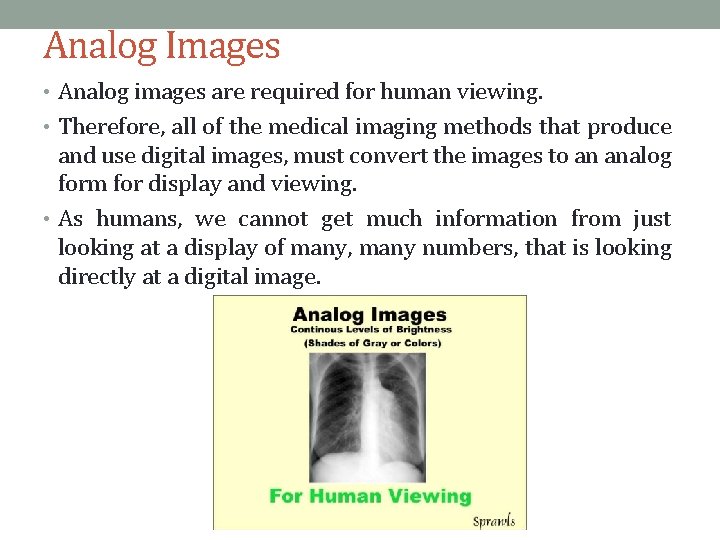

Analog Images • Analog images are required for human viewing. • Therefore, all of the medical imaging methods that produce and use digital images, must convert the images to an analog form for display and viewing. • As humans, we cannot get much information from just looking at a display of many, many numbers, that is looking directly at a digital image.

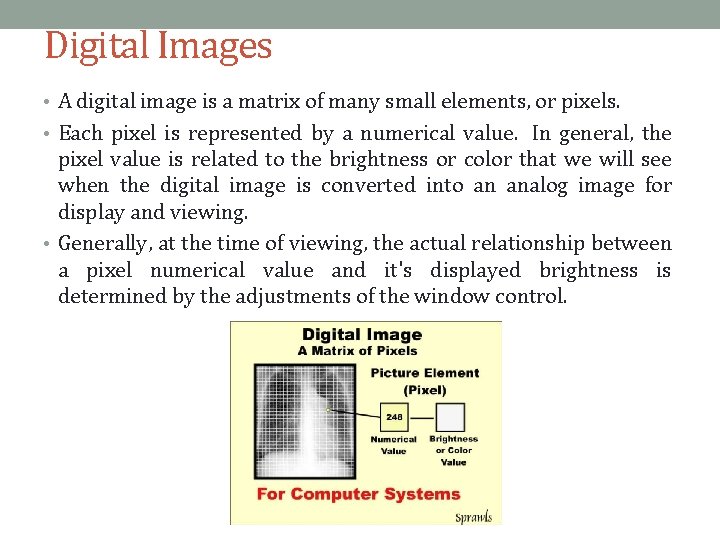

Digital Images • A digital image is a matrix of many small elements, or pixels. • Each pixel is represented by a numerical value. In general, the pixel value is related to the brightness or color that we will see when the digital image is converted into an analog image for display and viewing. • Generally, at the time of viewing, the actual relationship between a pixel numerical value and it's displayed brightness is determined by the adjustments of the window control.

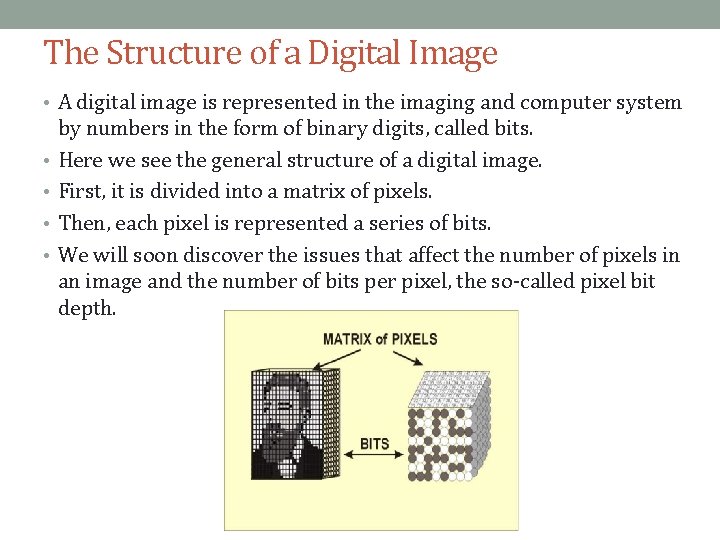

The Structure of a Digital Image • A digital image is represented in the imaging and computer system • • by numbers in the form of binary digits, called bits. Here we see the general structure of a digital image. First, it is divided into a matrix of pixels. Then, each pixel is represented a series of bits. We will soon discover the issues that affect the number of pixels in an image and the number of bits per pixel, the so-called pixel bit depth.

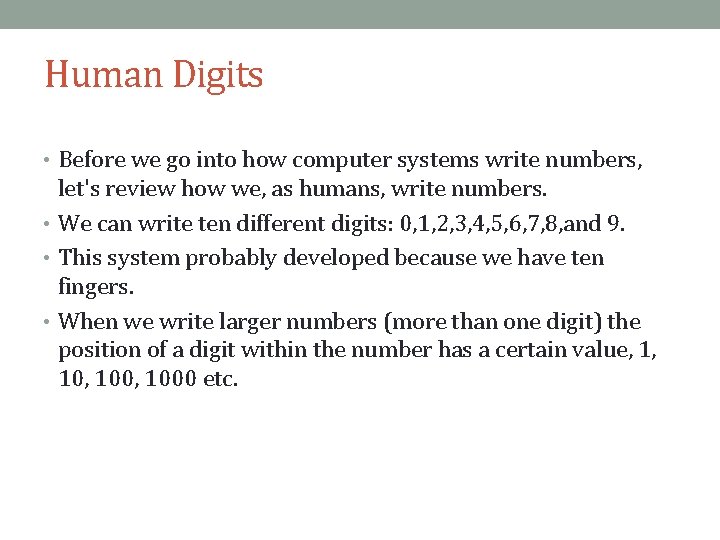

Human Digits • Before we go into how computer systems write numbers, let's review how we, as humans, write numbers. • We can write ten different digits: 0, 1, 2, 3, 4, 5, 6, 7, 8, and 9. • This system probably developed because we have ten fingers. • When we write larger numbers (more than one digit) the position of a digit within the number has a certain value, 1, 100, 1000 etc.

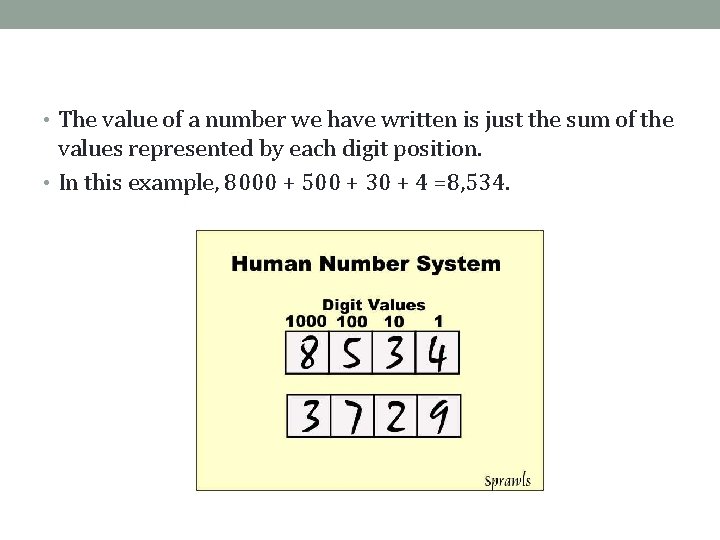

• The value of a number we have written is just the sum of the values represented by each digit position. • In this example, 8000 + 500 + 30 + 4 =8, 534.

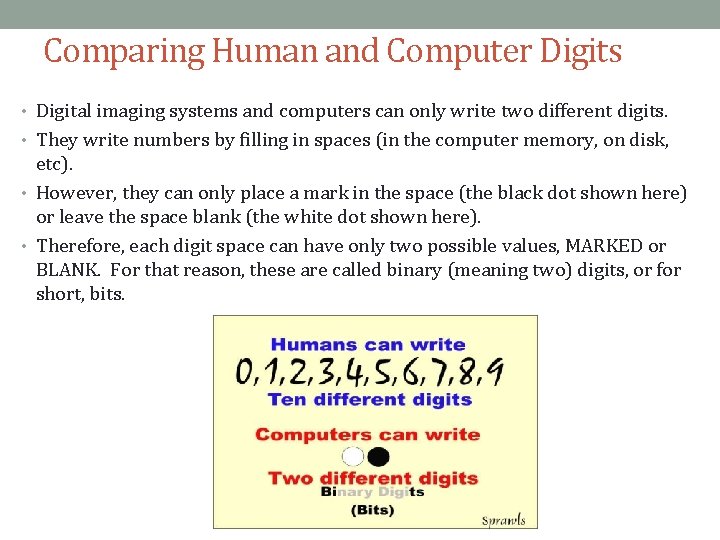

Comparing Human and Computer Digits • Digital imaging systems and computers can only write two different digits. • They write numbers by filling in spaces (in the computer memory, on disk, etc). • However, they can only place a mark in the space (the black dot shown here) or leave the space blank (the white dot shown here). • Therefore, each digit space can have only two possible values, MARKED or BLANK. For that reason, these are called binary (meaning two) digits, or for short, bits.

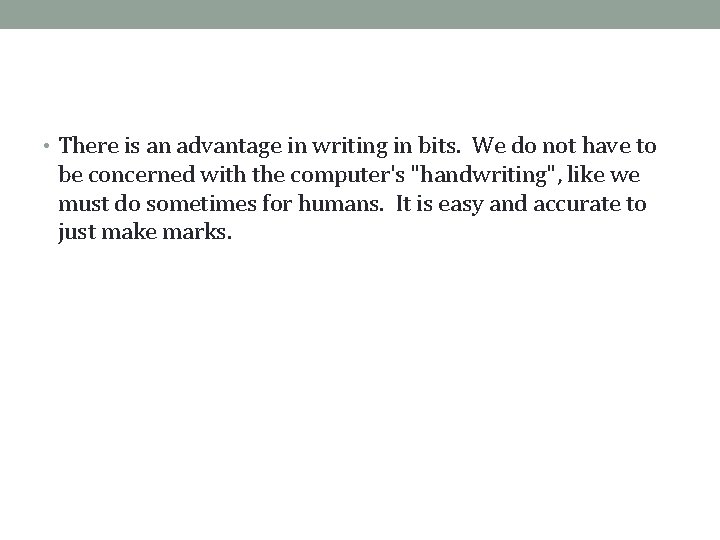

• There is an advantage in writing in bits. We do not have to be concerned with the computer's "handwriting", like we must do sometimes for humans. It is easy and accurate to just make marks.

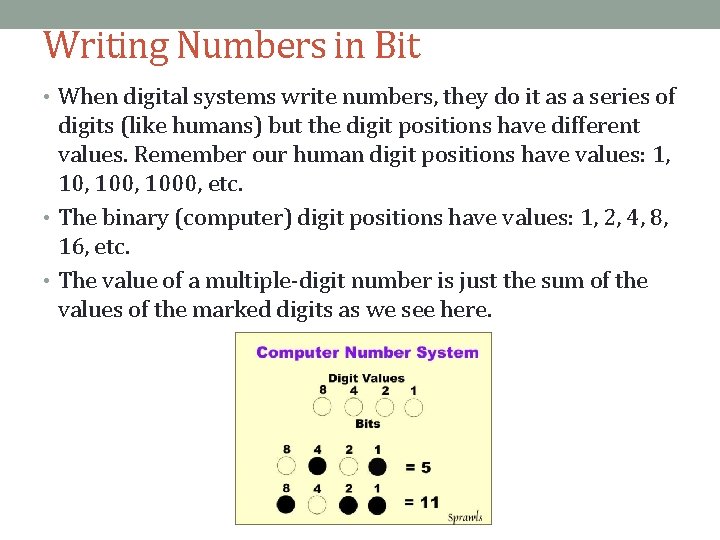

Writing Numbers in Bit • When digital systems write numbers, they do it as a series of digits (like humans) but the digit positions have different values. Remember our human digit positions have values: 1, 100, 1000, etc. • The binary (computer) digit positions have values: 1, 2, 4, 8, 16, etc. • The value of a multiple-digit number is just the sum of the values of the marked digits as we see here.

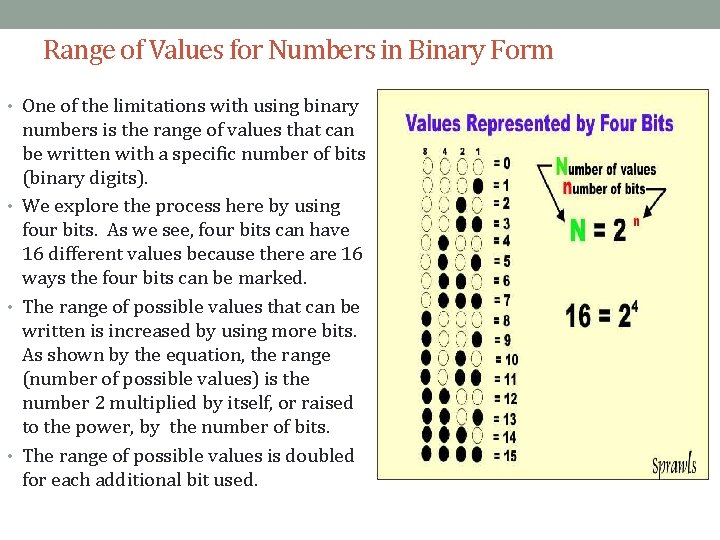

Range of Values for Numbers in Binary Form • One of the limitations with using binary numbers is the range of values that can be written with a specific number of bits (binary digits). • We explore the process here by using four bits. As we see, four bits can have 16 different values because there are 16 ways the four bits can be marked. • The range of possible values that can be written is increased by using more bits. As shown by the equation, the range (number of possible values) is the number 2 multiplied by itself, or raised to the power, by the number of bits. • The range of possible values is doubled for each additional bit used.

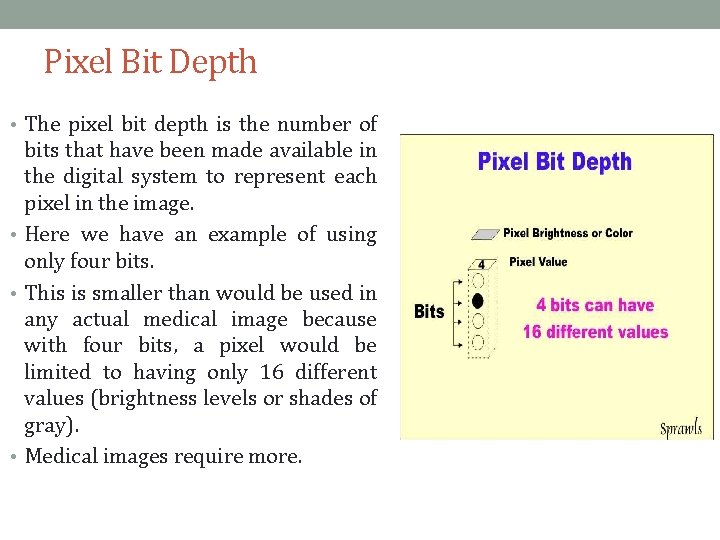

Pixel Bit Depth • The pixel bit depth is the number of bits that have been made available in the digital system to represent each pixel in the image. • Here we have an example of using only four bits. • This is smaller than would be used in any actual medical image because with four bits, a pixel would be limited to having only 16 different values (brightness levels or shades of gray). • Medical images require more.

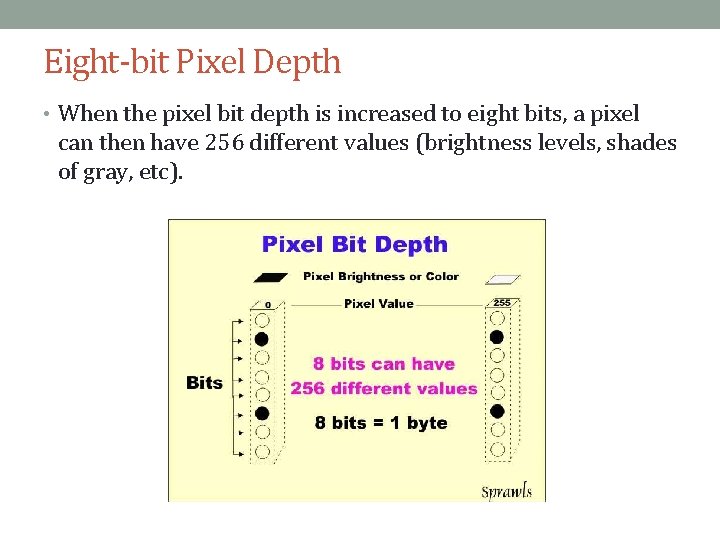

Eight-bit Pixel Depth • When the pixel bit depth is increased to eight bits, a pixel can then have 256 different values (brightness levels, shades of gray, etc).

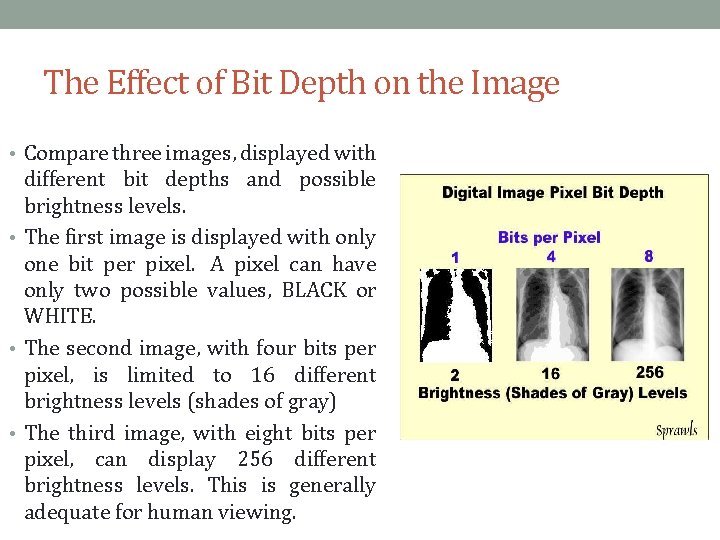

The Effect of Bit Depth on the Image • Compare three images, displayed with different bit depths and possible brightness levels. • The first image is displayed with only one bit per pixel. A pixel can have only two possible values, BLACK or WHITE. • The second image, with four bits per pixel, is limited to 16 different brightness levels (shades of gray) • The third image, with eight bits per pixel, can display 256 different brightness levels. This is generally adequate for human viewing.

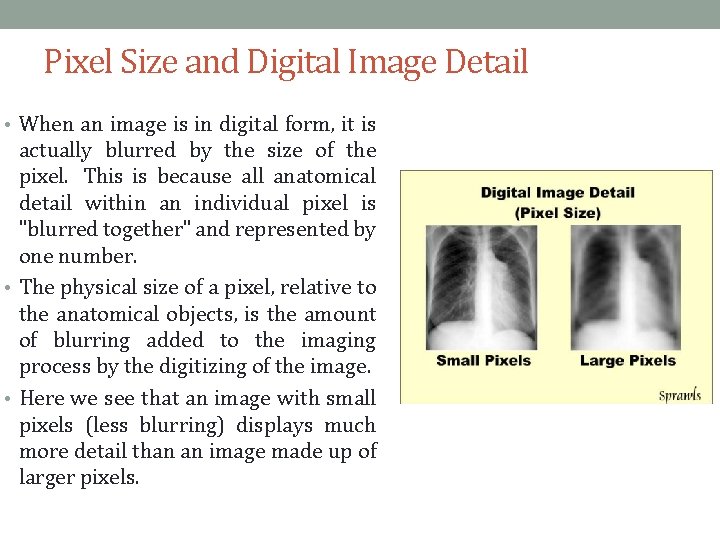

Pixel Size and Digital Image Detail • When an image is in digital form, it is actually blurred by the size of the pixel. This is because all anatomical detail within an individual pixel is "blurred together" and represented by one number. • The physical size of a pixel, relative to the anatomical objects, is the amount of blurring added to the imaging process by the digitizing of the image. • Here we see that an image with small pixels (less blurring) displays much more detail than an image made up of larger pixels.

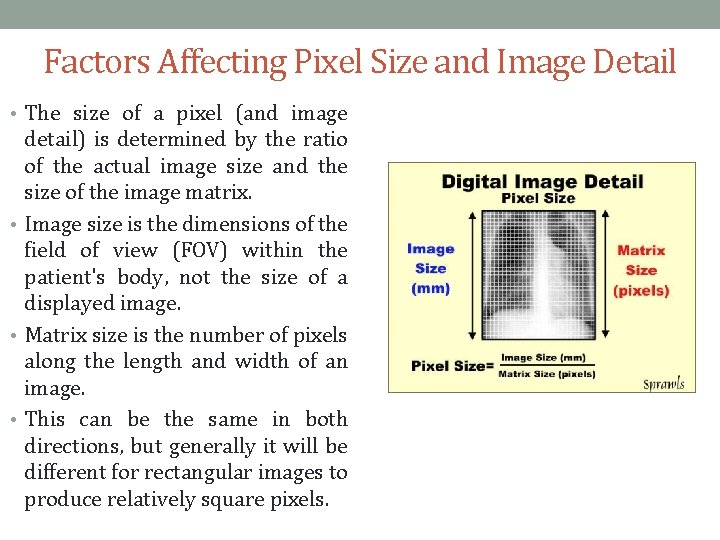

Factors Affecting Pixel Size and Image Detail • The size of a pixel (and image detail) is determined by the ratio of the actual image size and the size of the image matrix. • Image size is the dimensions of the field of view (FOV) within the patient's body, not the size of a displayed image. • Matrix size is the number of pixels along the length and width of an image. • This can be the same in both directions, but generally it will be different for rectangular images to produce relatively square pixels.

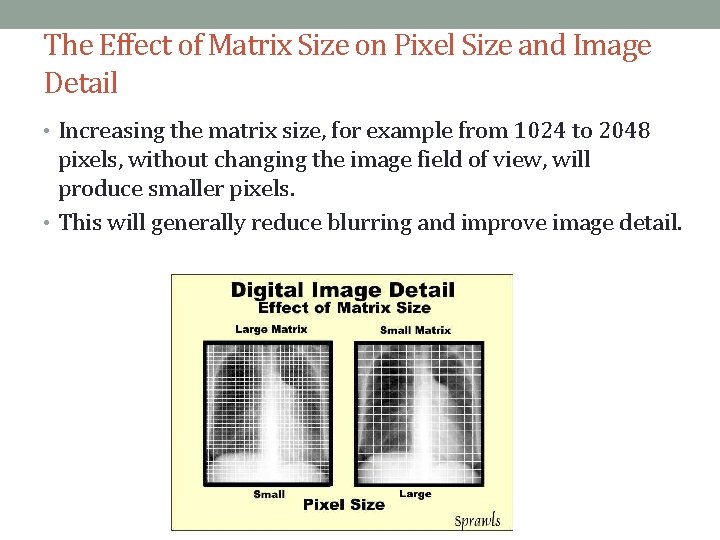

The Effect of Matrix Size on Pixel Size and Image Detail • Increasing the matrix size, for example from 1024 to 2048 pixels, without changing the image field of view, will produce smaller pixels. • This will generally reduce blurring and improve image detail.

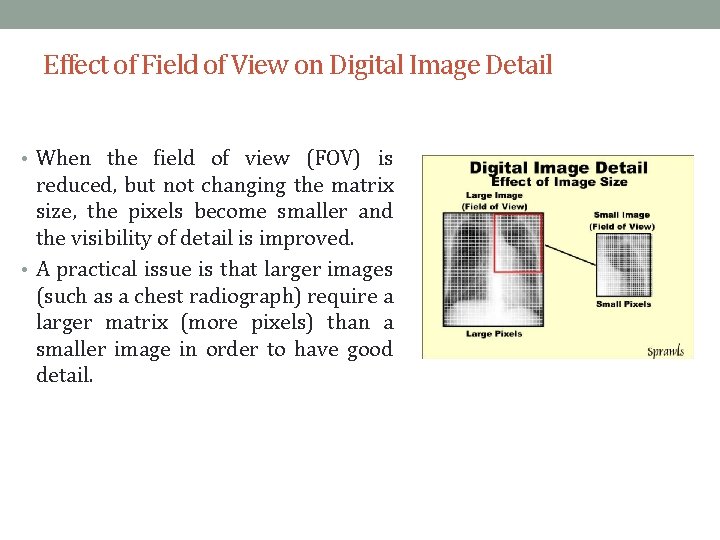

Effect of Field of View on Digital Image Detail • When the field of view (FOV) is reduced, but not changing the matrix size, the pixels become smaller and the visibility of detail is improved. • A practical issue is that larger images (such as a chest radiograph) require a larger matrix (more pixels) than a smaller image in order to have good detail.

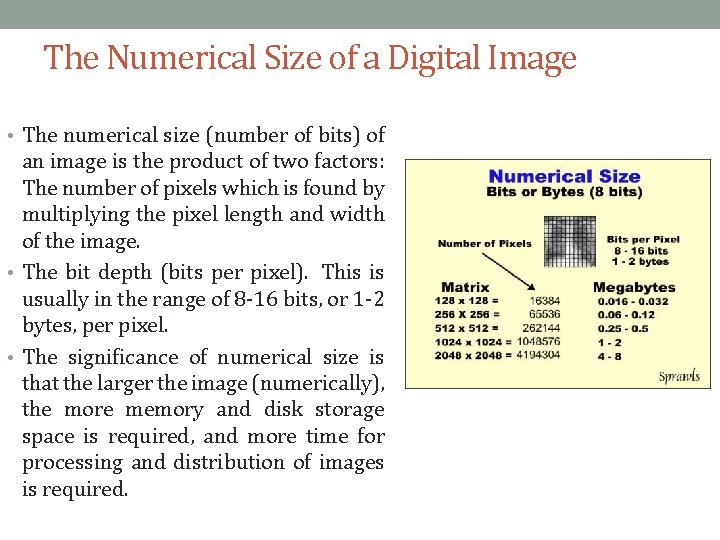

The Numerical Size of a Digital Image • The numerical size (number of bits) of an image is the product of two factors: The number of pixels which is found by multiplying the pixel length and width of the image. • The bit depth (bits per pixel). This is usually in the range of 8 -16 bits, or 1 -2 bytes, per pixel. • The significance of numerical size is that the larger the image (numerically), the more memory and disk storage space is required, and more time for processing and distribution of images is required.

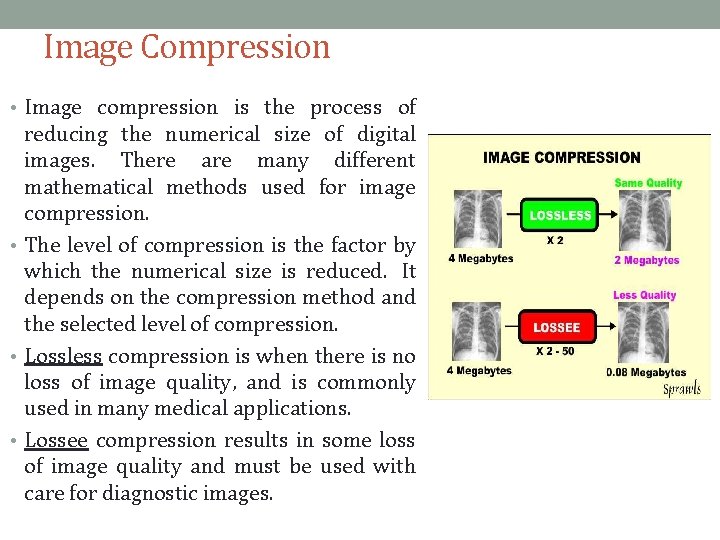

Image Compression • Image compression is the process of reducing the numerical size of digital images. There are many different mathematical methods used for image compression. • The level of compression is the factor by which the numerical size is reduced. It depends on the compression method and the selected level of compression. • Lossless compression is when there is no loss of image quality, and is commonly used in many medical applications. • Lossee compression results in some loss of image quality and must be used with care for diagnostic images.

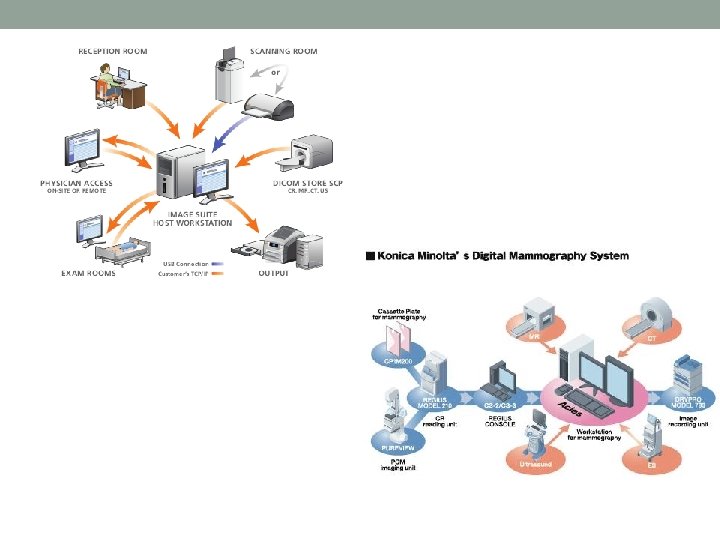

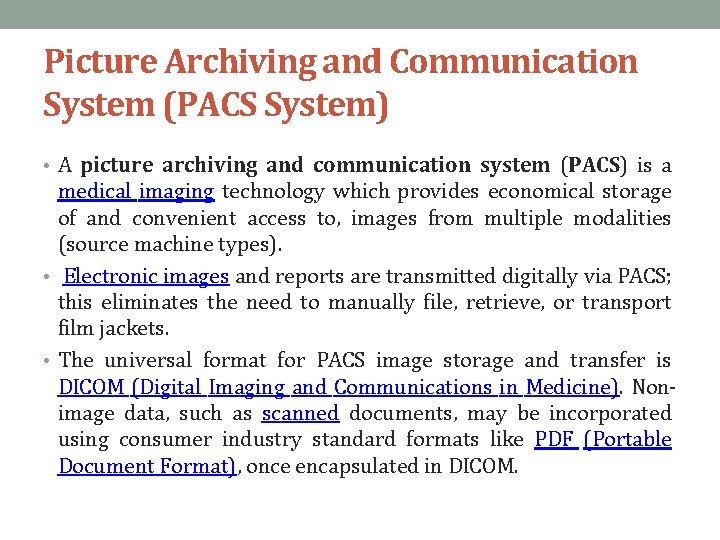

Picture Archiving and Communication System (PACS System) • A picture archiving and communication system (PACS) is a medical imaging technology which provides economical storage of and convenient access to, images from multiple modalities (source machine types). • Electronic images and reports are transmitted digitally via PACS; this eliminates the need to manually file, retrieve, or transport film jackets. • The universal format for PACS image storage and transfer is DICOM (Digital Imaging and Communications in Medicine). Nonimage data, such as scanned documents, may be incorporated using consumer industry standard formats like PDF (Portable Document Format), once encapsulated in DICOM.

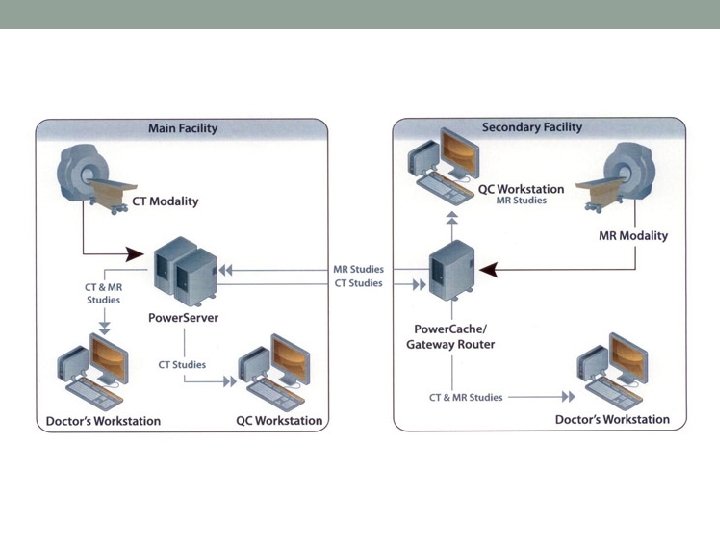

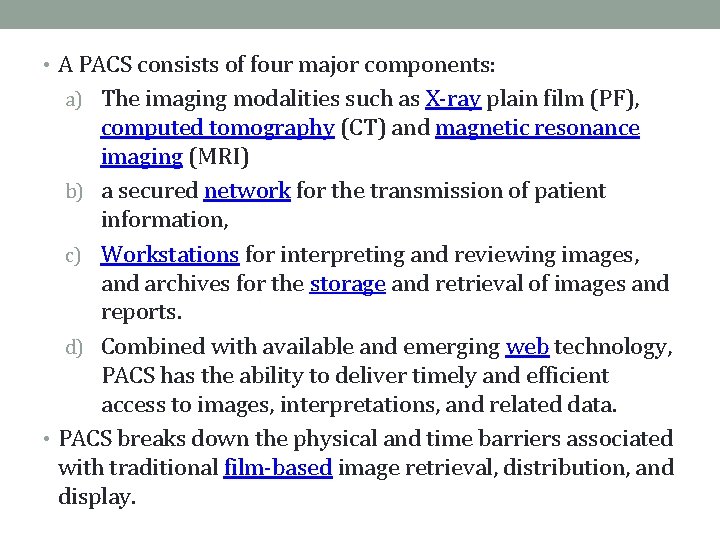

• A PACS consists of four major components: a) The imaging modalities such as X-ray plain film (PF), computed tomography (CT) and magnetic resonance imaging (MRI) b) a secured network for the transmission of patient information, c) Workstations for interpreting and reviewing images, and archives for the storage and retrieval of images and reports. d) Combined with available and emerging web technology, PACS has the ability to deliver timely and efficient access to images, interpretations, and related data. • PACS breaks down the physical and time barriers associated with traditional film-based image retrieval, distribution, and display.

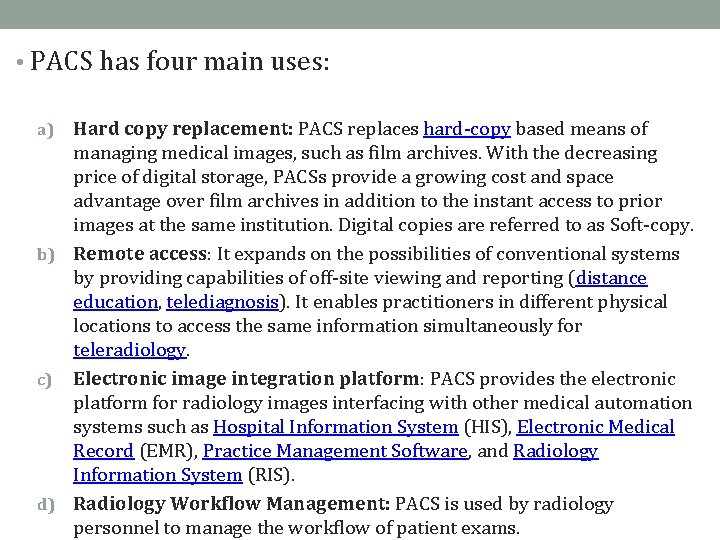

• PACS has four main uses: Hard copy replacement: PACS replaces hard-copy based means of managing medical images, such as film archives. With the decreasing price of digital storage, PACSs provide a growing cost and space advantage over film archives in addition to the instant access to prior images at the same institution. Digital copies are referred to as Soft-copy. b) Remote access: It expands on the possibilities of conventional systems by providing capabilities of off-site viewing and reporting (distance education, telediagnosis). It enables practitioners in different physical locations to access the same information simultaneously for teleradiology. c) Electronic image integration platform: PACS provides the electronic platform for radiology images interfacing with other medical automation systems such as Hospital Information System (HIS), Electronic Medical Record (EMR), Practice Management Software, and Radiology Information System (RIS). d) Radiology Workflow Management: PACS is used by radiology personnel to manage the workflow of patient exams. a)

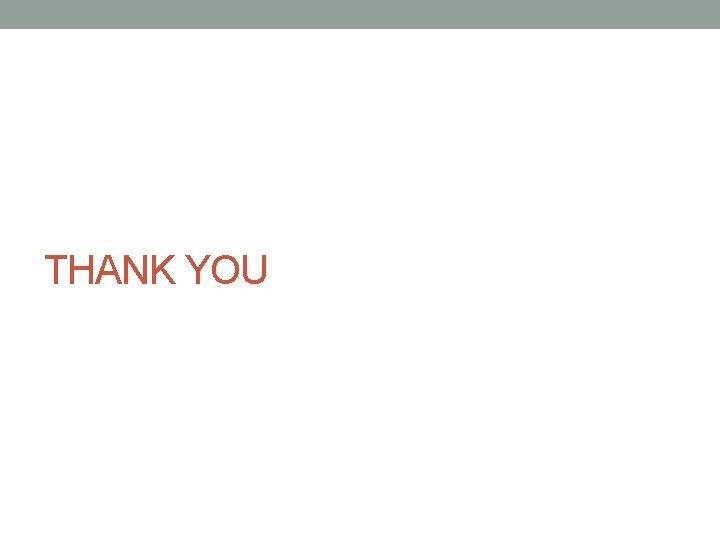

THANK YOU
